FIAT DOBLO COMBI 2018 Owner handbook (in English)

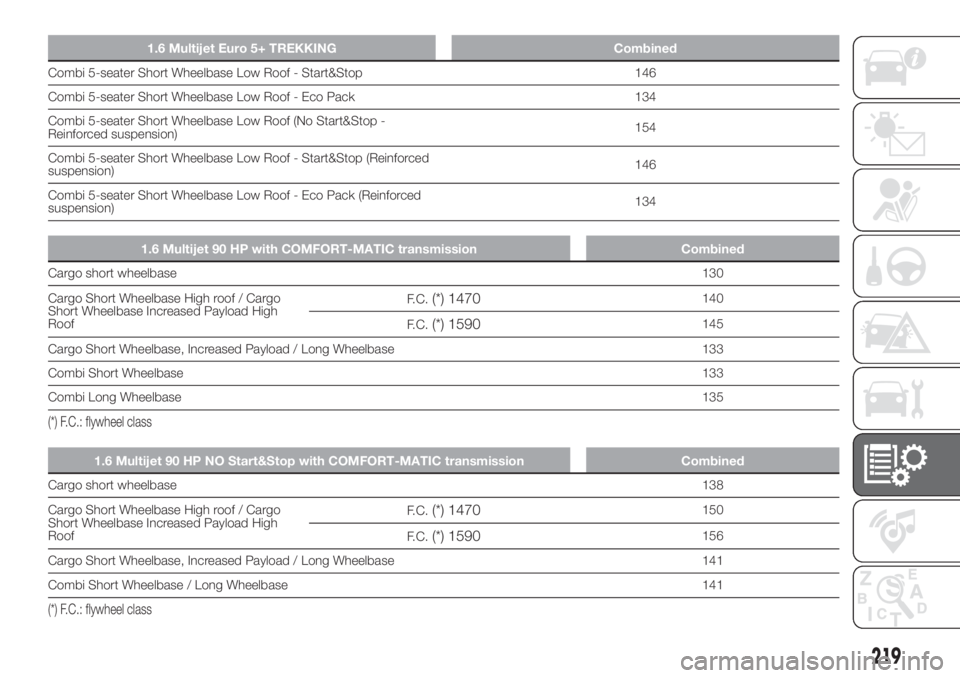

1.6 Multijet Euro 5+ TREKKING Combined
Combi 5-seater Short Wheelbase Low Roof - Start&Stop 146
Combi 5-seater Short Wheelbase Low Roof - Eco Pack 134
Combi 5-seater Short Wheelbase Low Roof (No Start&Stop -
Reinforced suspension)154
Combi 5-seater Short Wheelbase Low Roof - Start&Stop (Reinforced
suspension)146
Combi 5-seater Short Wheelbase Low Roof - Eco Pack (Reinforced
suspension)134
1.6 Multijet 90 HP with COMFORT-MATIC transmission Combined
Cargo short wheelbase130
Cargo Short Wheelbase High roof / Cargo
Short Wheelbase Increased Payload High
RoofF.C.
(*) 1470140
F.C.
(*) 1590145
Cargo Short Wheelbase, Increased Payload / Long Wheelbase 133
Combi Short Wheelbase133
Combi Long Wheelbase135
(*) F.C.: flywheel class
1.6 Multijet 90 HP NO Start&Stop with COMFORT-MATIC transmission Combined
Cargo short wheelbase138
Cargo Short Wheelbase High roof / Cargo
Short Wheelbase Increased Payload High
RoofF.C.
(*) 1470150
F.C.
(*) 1590156
Cargo Short Wheelbase, Increased Payload / Long Wheelbase 141
Combi Short Wheelbase / Long Wheelbase141
(*) F.C.: flywheel class
219

Versions with DUALOGIC™transmission Combined
1.6 Multijet
133 / 147(*)
1.6 Multijet NO Start&Stop
141 / 157(*)
(*) High roof versions
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO Start&Stop Combined
Doblò 5/7 seater, short wheelbase, low roof 137
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 144
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 152
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension152
Cargo, short wheelbase, low roof 134
Cargo, short wheelbase, high roof, increased payload 135
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload135
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)135
Cargo, long wheelbase, high roof 149
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload136
Combi, long wheelbase, low roof 139
Combi, long wheelbase, high roof 149
Truck, long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof — Increased
payload153
220
TECHNICAL DATA

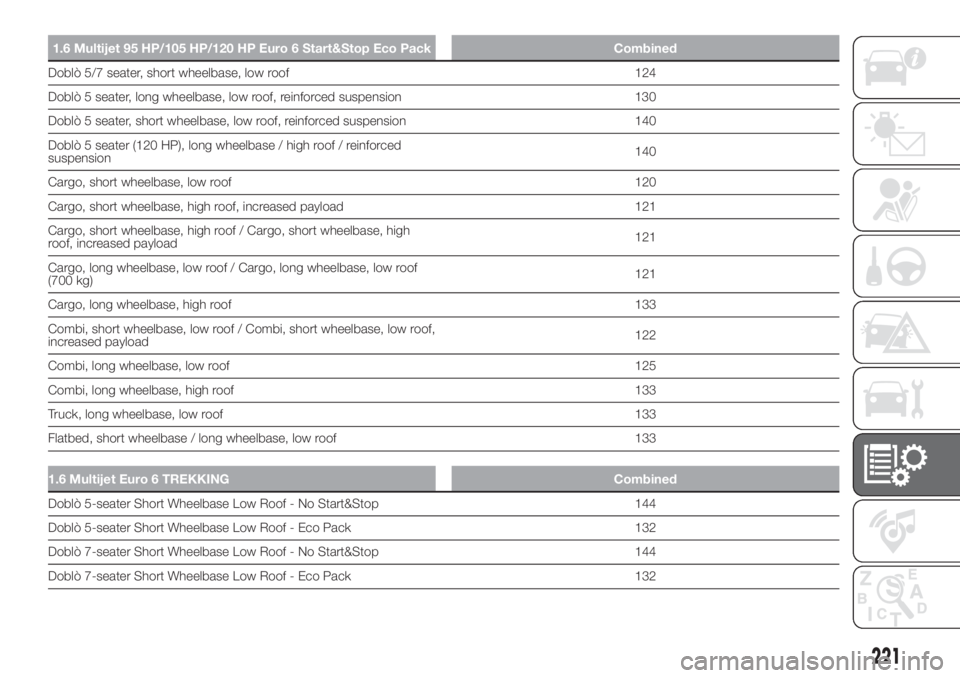

1.6 Multijet 95 HP/105 HP/120 HP Euro 6 Start&Stop Eco Pack Combined
Doblò 5/7 seater, short wheelbase, low roof 124
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 130
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 140
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension140
Cargo, short wheelbase, low roof 120
Cargo, short wheelbase, high roof, increased payload 121
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload121
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)121
Cargo, long wheelbase, high roof 133
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload122
Combi, long wheelbase, low roof 125
Combi, long wheelbase, high roof 133
Truck, long wheelbase, low roof 133
Flatbed, short wheelbase / long wheelbase, low roof 133
1.6 Multijet Euro 6 TREKKING Combined
Doblò 5-seater Short Wheelbase Low Roof - No Start&Stop 144
Doblò 5-seater Short Wheelbase Low Roof - Eco Pack 132
Doblò 7-seater Short Wheelbase Low Roof - No Start&Stop 144
Doblò 7-seater Short Wheelbase Low Roof - Eco Pack 132
221

1.6 Multijet Euro 4 Combined
Cargo short wheelbase143
Cargo, increased payload, short wheelbase, long wheelbase 144
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload152
1.6 Multijet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater138
Doblò 5-seater, high roof150
2.0 Multijet Euro 5 / Euro 5+ Combined
Cargo short wheelbase / long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof152
Doblò 5-seater, high roof157
Doblò 5-seater, long wheelbase 150
2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo short wheelbase154
Cargo, short wheelbase, Increased payload / Cargo, long wheelbase /
Combi 5-seater, short wheelbase156
Combi 5-seater, long wheelbase / Doblò 5/7-seater / Cargo, long
wheelbase, high roof163
Cargo, short wheelbase, high roof 158
Cargo, short wheelbase, high roof, increased payload / Cargo, short
wheelbase, high roof167
222
TECHNICAL DATA

2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo, short wheelbase, high roof / increased payload / Doblò
5-seater, high roof163
Combi 5-seater, long wheelbase, high roof 167
Doblò 5-seater, long wheelbase 156
Flatbed, short wheelbase / long wheelbase, low roof 185
2.0 Multijet Euro 5+ TREKKING Combined
Combi 5-seater Short Wheelbase Low Roof (No Start&Stop) 158
Combi 5-seater Short Wheelbase Low Roof (No Start&Stop -
Reinforced suspension)158
1.4 T-JET Natural Power Combined
Doblò 5-seater Short Wheelbase / Long Wheelbase
173(*) / 134 (**)
Cargo, short wheelbase, high roof
175(*) / 136 (**)
(*) Running on petrol
(**) Running on methane
223

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
(for versions/markets, where provided)
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle (*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular, the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
224
TECHNICAL DATA

MULTIMEDIA
TIPS, CONTROLS AND GENERAL
INFORMATION ................................226
UCONNECT RADIO ........................228
UCONNECT 5” LIVE – UCONNECT
5” NAV LIVE ....................................238
OFFICIAL TYPE APPROVALS .........251
225
OPERATION....................................233
OPERATION....................................243
This chapter describes the main
functions of the Uconnect™ Radio,
Uconnect™ 5" LIVE, Uconnect™
5" Nav LIVE infotainment systems
which can be fitted on the vehicle.

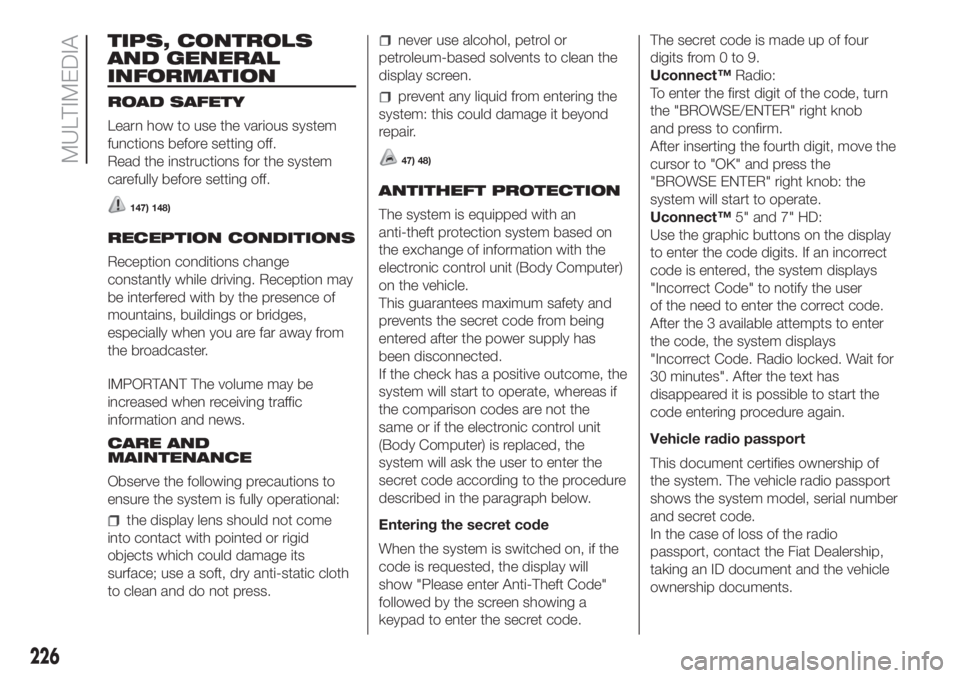

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
147) 148)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
information and news.
CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come
into contact with pointed or rigid
objects which could damage its
surface; use a soft, dry anti-static cloth
to clean and do not press.
never use alcohol, petrol or
petroleum-based solvents to clean the
display screen.
prevent any liquid from entering the
system: this could damage it beyond
repair.
47) 48)
ANTITHEFT PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
system will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will
show "Please enter Anti-Theft Code"
followed by the screen showing a
keypad to enter the secret code.The secret code is made up of four
digits from 0 to 9.
Uconnect™Radio:
To enter the first digit of the code, turn
the "BROWSE/ENTER" right knob
and press to confirm.
After inserting the fourth digit, move the
cursor to "OK" and press the
"BROWSE ENTER" right knob: the
system will start to operate.
Uconnect™5" and 7" HD:
Use the graphic buttons on the display
to enter the code digits. If an incorrect
code is entered, the system displays
"Incorrect Code" to notify the user
of the need to enter the correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". After the text has
disappeared it is possible to start the
code entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In the case of loss of the radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
226
MULTIMEDIA

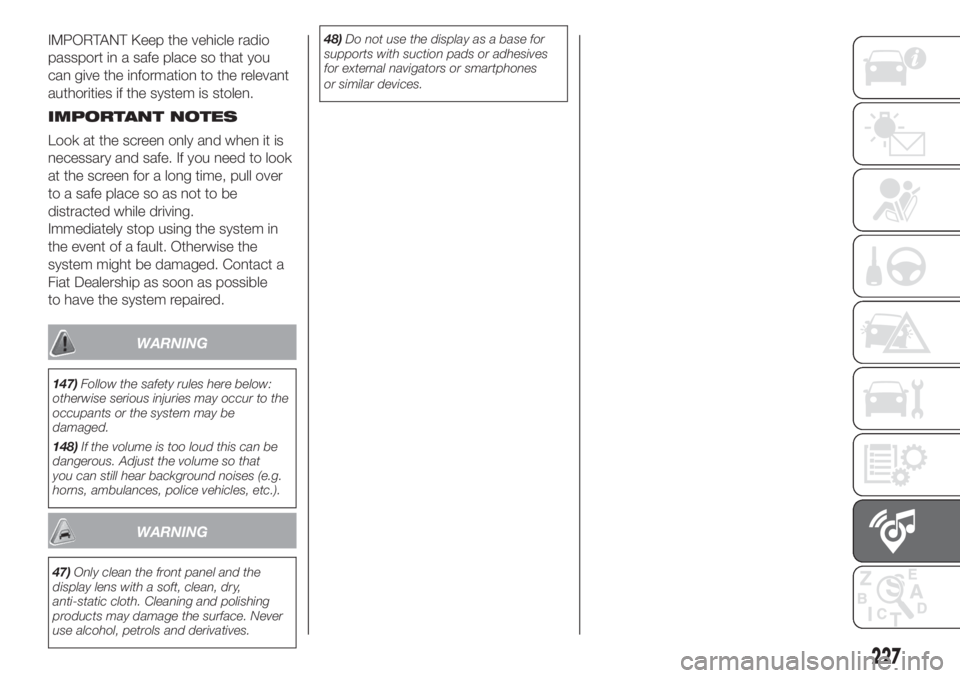

IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the relevant
authorities if the system is stolen.
IMPORTANT NOTES
Look at the screen only and when it is
necessary and safe. If you need to look
at the screen for a long time, pull over
to a safe place so as not to be
distracted while driving.
Immediately stop using the system in
the event of a fault. Otherwise the
system might be damaged. Contact a
Fiat Dealership as soon as possible
to have the system repaired.
WARNING
147)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be
damaged.
148)If the volume is too loud this can be
dangerous. Adjust the volume so that
you can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).
WARNING
47)Only clean the front panel and the
display lens with a soft, clean, dry,
anti-static cloth. Cleaning and polishing
products may damage the surface. Never
use alcohol, petrols and derivatives.48)Do not use the display as a base for
supports with suction pads or adhesives
for external navigators or smartphones
or similar devices.
227

Uconnect™ RADIO

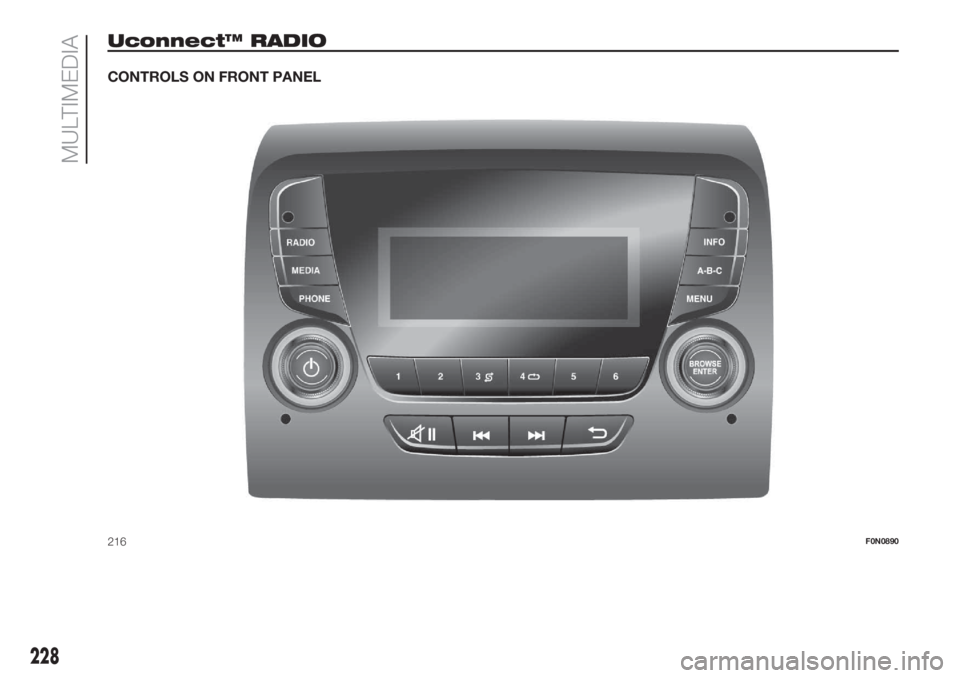

CONTROLS ON FRONT PANEL
