sensor FIAT DUCATO 2010 Owner handbook (in English)

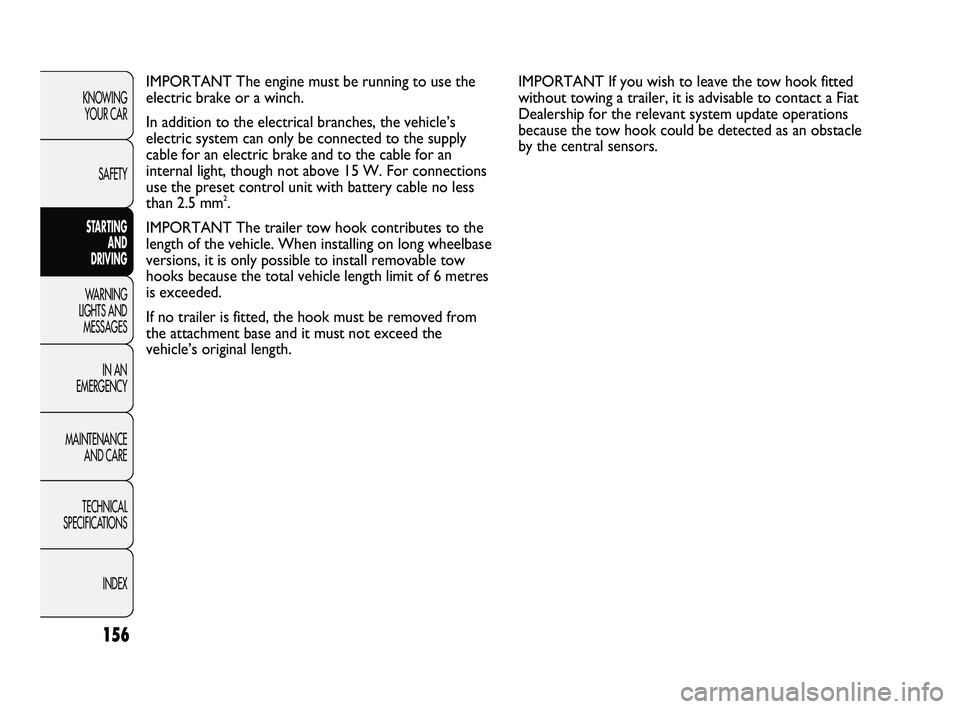

156
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT The engine must be running to use the
electric brake or a winch.
In addition to the electrical branches, the vehicle’s
electric system can only be connected to the supply
cable for an electric brake and to the cable for an
internal light, though not above 15 W. For connections
use the preset control unit with battery cable no less
than 2.5 mm
2.
IMPORTANT The trailer tow hook contributes to the
length of the vehicle. When installing on long wheelbase
versions, it is only possible to install removable tow
hooks because the total vehicle length limit of 6 metres
is exceeded.
If no trailer is fitted, the hook must be removed from
the attachment base and it must not exceed the
vehicle’s original length.IMPORTANT If you wish to leave the tow hook fitted
without towing a trailer, it is advisable to contact a Fiat
Dealership for the relevant system update operations
because the tow hook could be detected as an obstacle
by the central sensors.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 156

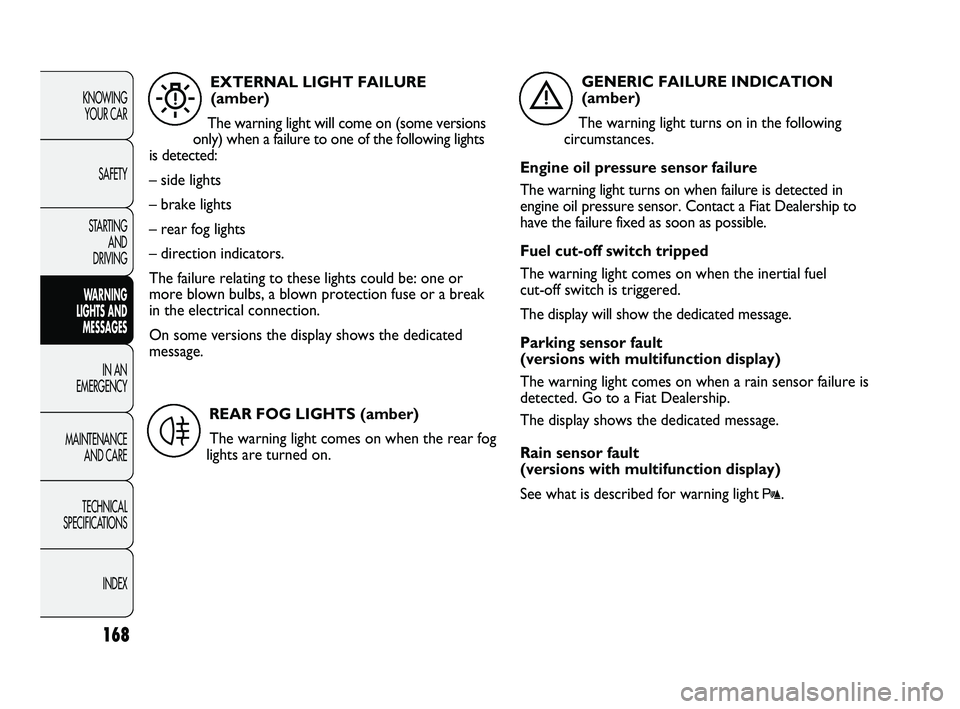

168
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
EXTERNAL LIGHT FAILURE
(amber)
The warning light will come on (some versions
only) when a failure to one of the following lights
is detected:
– side lights
– brake lights
– rear fog lights
– direction indicators.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
On some versions the display shows the dedicated
message.
W
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in
engine oil pressure sensor. Contact a Fiat Dealership to
have the failure fixed as soon as possible.
Fuel cut-off switch tripped
The warning light comes on when the inertial fuel
cut-off switch is triggered.
The display will show the dedicated message.
Parking sensor fault
(versions with multifunction display)
The warning light comes on when a rain sensor failure is
detected. Go to a Fiat Dealership.
The display shows the dedicated message.
Rain sensor fault
(versions with multifunction display)
See what is described for warning light
t.
è
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 168

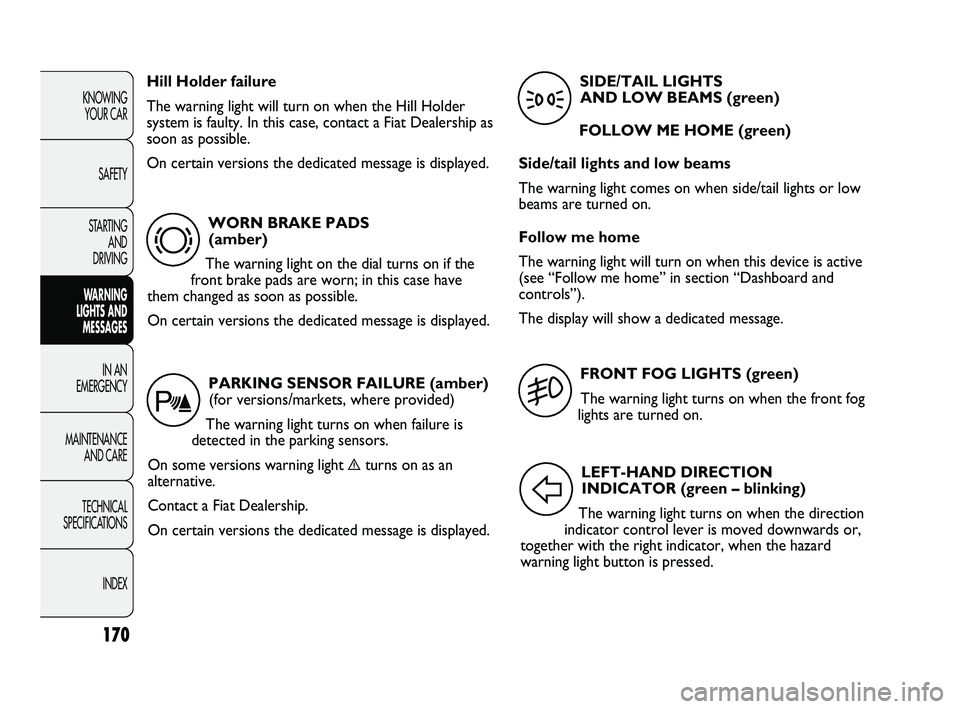

170
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WORN BRAKE PADS
(amber)
The warning light on the dial turns on if the
front brake pads are worn; in this case have
them changed as soon as possible.
On certain versions the dedicated message is displayed.
d
Hill Holder failure
The warning light will turn on when the Hill Holder
system is faulty. In this case, contact a Fiat Dealership as
soon as possible.
On certain versions the dedicated message is displayed.
PARKING SENSOR FAILURE (amber)
(for versions/markets, where provided)
The warning light turns on when failure is
detected in the parking sensors.
On some versions warning light
èturns on as an
alternative.
Contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
t
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog
lights are turned on.
5
LEFT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
SIDE/TAIL LIGHTS
AND LOW BEAMS (green)
FOLLOW ME HOME (green)
Side/tail lights and low beams
The warning light comes on when side/tail lights or low
beams are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Dashboard and
controls”).
The display will show a dedicated message.
3
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 170

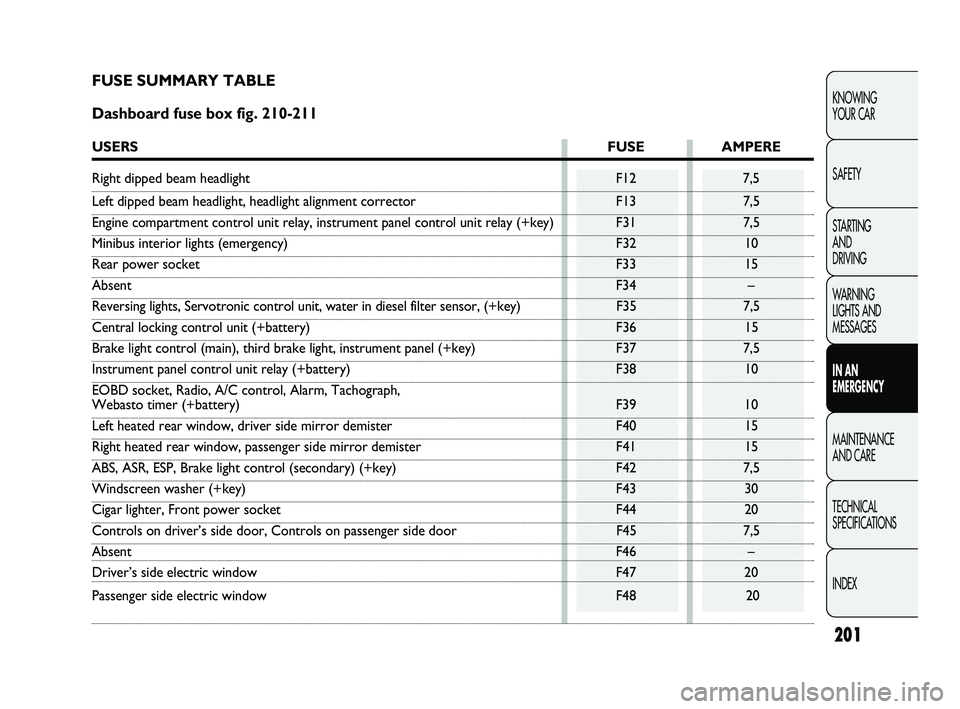

201
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
FUSE SUMMARY TABLE
Dashboard fuse box fig. 210-211
USERSFUSE AMPERE
Right dipped beam headlight F12 7,5
Left dipped beam headlight, headlight alignment corrector F13 7,5
Engine compartment control unit relay, instrument panel control unit relay (+key) F31 7,5
Minibus interior lights (emergency) F32 10
Rear power socket F33 15
AbsentF34 –
Reversing lights, Servotronic control unit, water in diesel filter sensor, (+key) F35 7,5
Central locking control unit (+battery) F36 15
Brake light control (main), third brake light, instrument panel (+key) F37 7,5
Instrument panel control unit relay (+battery) F38 10
EOBD socket, Radio, A/C control, Alarm, Tachograph,
Webasto timer (+battery) F39 10
Left heated rear window, driver side mirror demister F40 15
Right heated rear window, passenger side mirror demister F41 15
ABS, ASR, ESP, Brake light control (secondary) (+key) F42 7,5
Windscreen washer (+key) F43 30
Cigar lighter, Front power socket F44 20
Controls on driver’s side door, Controls on passenger side door F45 7,5
AbsentF46 –
Driver’s side electric window F47 20
Passenger side electric window F48 20
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 201

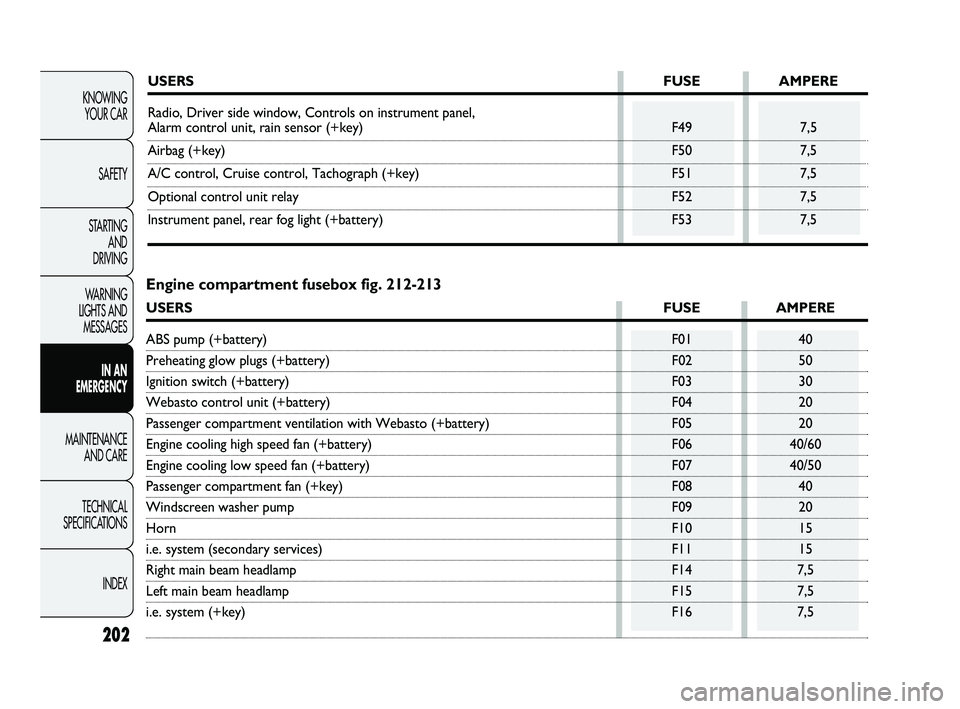

202
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
USERSFUSE AMPERE
Radio, Driver side window, Controls on instrument panel,
Alarm control unit, rain sensor (+key) F49 7,5
Airbag (+key) F50 7,5
A/C control, Cruise control, Tachograph (+key) F51 7,5
Optional control unit relay F52 7,5
Instrument panel, rear fog light (+battery) F53 7,5
Engine compartment fusebox fig. 212-213
USERSFUSE AMPERE
ABS pump (+battery) F01 40
Preheating glow plugs (+battery) F02 50
Ignition switch (+battery) F03 30
Webasto control unit (+battery) F04 20
Passenger compartment ventilation with Webasto (+battery) F05 20
Engine cooling high speed fan (+battery) F06 40/60
Engine cooling low speed fan (+battery) F07 40/50
Passenger compartment fan (+key) F08 40
Windscreen washer pump F09 20
HornF10 15
i.e. system (secondary services) F11 15
Right main beam headlamp F14 7,5
Left main beam headlamp F15 7,5
i.e. system (+key) F16 7,5
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 202

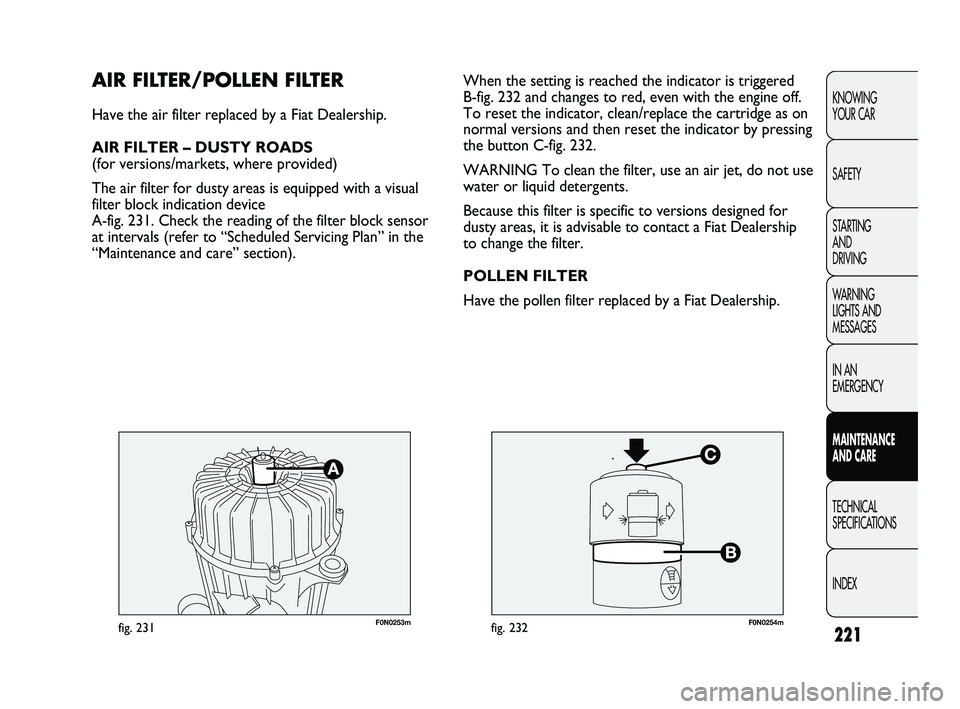

221
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0253mfig. 231F0N0254mfig. 232
When the setting is reached the indicator is triggered
B-fig. 232 and changes to red, even with the engine off.
To reset the indicator, clean/replace the cartridge as on
normal versions and then reset the indicator by pressing
the button C-fig. 232.
WARNING To clean the filter, use an air jet, do not use
water or liquid detergents.
Because this filter is specific to versions designed for
dusty areas, it is advisable to contact a Fiat Dealership
to change the filter.
POLLEN FILTER
Have the pollen filter replaced by a Fiat Dealership.AIR FILTER/POLLEN FILTER
Have the air filter replaced by a Fiat Dealership.
AIR FILTER – DUSTY ROADS
(for versions/markets, where provided)
The air filter for dusty areas is equipped with a visual
filter block indication device
A-fig. 231. Check the reading of the filter block sensor
at intervals (refer to “Scheduled Servicing Plan” in the
“Maintenance and care” section).
207-230 DUCATO LUM EN 7ed 6/21/10 2:17 PM Page 221

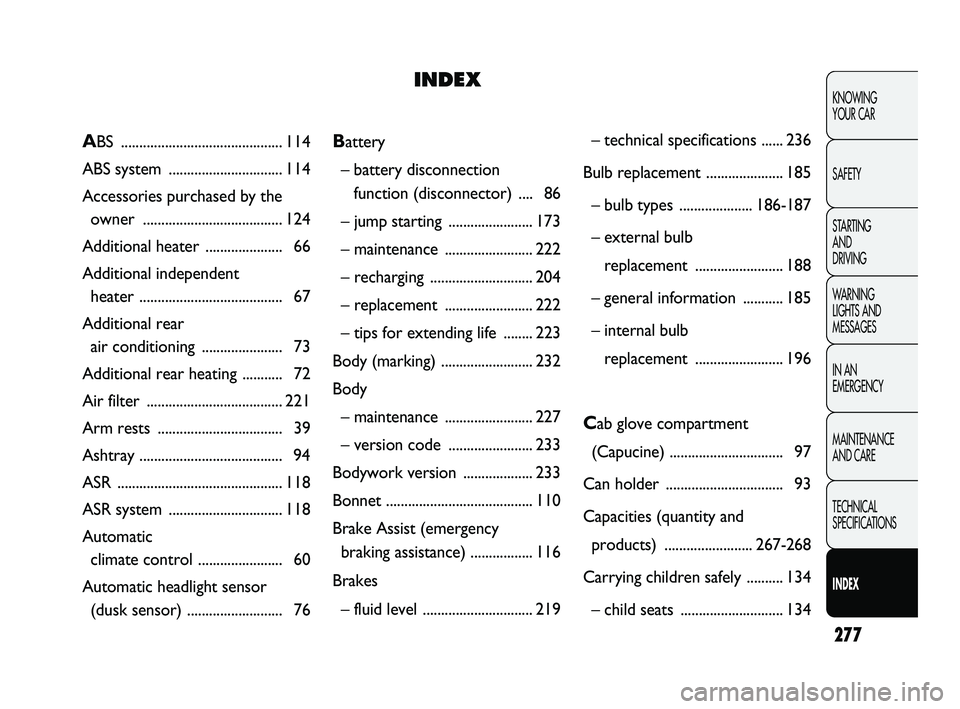

277
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Battery
– battery disconnection
function (disconnector) .... 86
– jump starting ....................... 173
– maintenance ........................ 222
– recharging ............................ 204
– replacement ........................ 222
– tips for extending life ........ 223
Body (marking) ......................... 232
Body
– maintenance ........................ 227
– version code ....................... 233
Bodywork version ................... 233
Bonnet ........................................ 110
Brake Assist (emergency
braking assistance) ................. 116
Brakes
– fluid level .............................. 219– technical specifications ...... 236
Bulb replacement ..................... 185
– bulb types ....................186-187
– external bulb
replacement ........................ 188
– general information ........... 185
– internal bulb
replacement ........................ 196
Cab glove compartment
(Capucine) ............................... 97
Can holder ................................ 93
Capacities (quantity and
products) ........................267-268
Carrying children safely .......... 134
– child seats ............................ 134
ABS ............................................ 114
ABS system ............................... 114
Accessories purchased by the
owner ...................................... 124
Additional heater ..................... 66
Additional independent
heater ....................................... 67
Additional rear
air conditioning ...................... 73
Additional rear heating ........... 72
Air filter ..................................... 221
Arm rests .................................. 39
Ashtray ....................................... 94
ASR ............................................. 118
ASR system ............................... 118
Automatic
climate control ....................... 60
Automatic headlight sensor
(dusk sensor) .......................... 76
INDEX
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 277

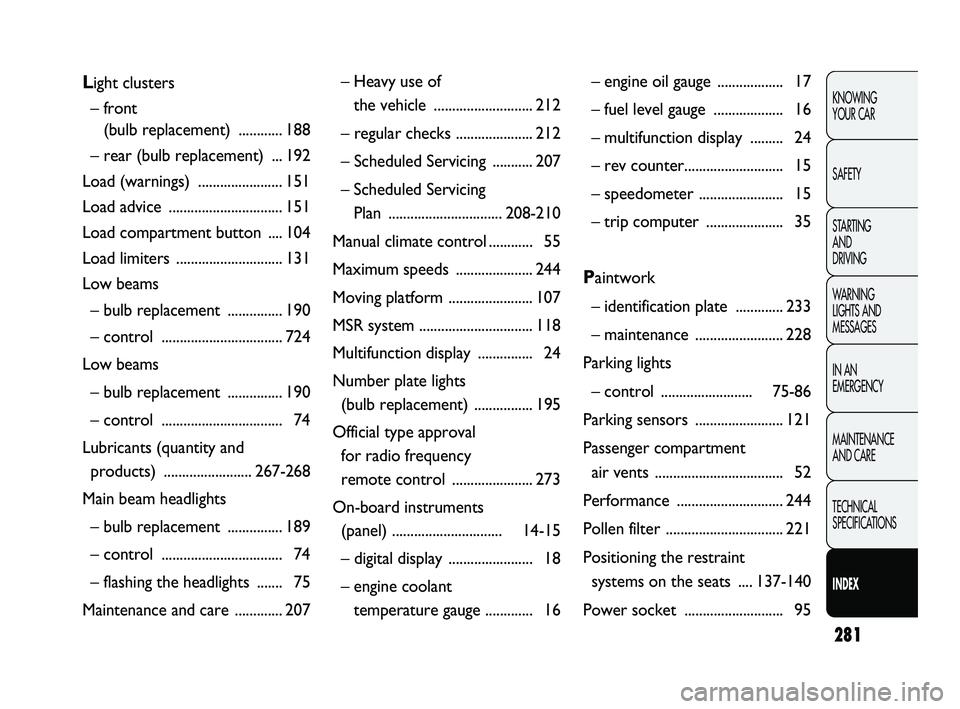

281
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Light clusters
– front
(bulb replacement) ............ 188
– rear (bulb replacement) ... 192
Load (warnings) ....................... 151
Load advice ............................... 151
Load compartment button .... 104
Load limiters .............................131
Low beams
– bulb replacement ............... 190
– control .................................724
Low beams
– bulb replacement ............... 190
– control ................................. 74
Lubricants (quantity and
products) ........................267-268
Main beam headlights
– bulb replacement ............... 189
– control ................................. 74
– flashing the headlights ....... 75
Maintenance and care ............. 207– Heavy use of
the vehicle ........................... 212
– regular checks ..................... 212
– Scheduled Servicing ........... 207
– Scheduled Servicing
Plan ...............................208-210
Manual climate control............ 55
Maximum speeds ..................... 244
Moving platform ....................... 107
MSR system ............................... 118
Multifunction display ............... 24
Number plate lights
(bulb replacement) ................ 195
Official type approval
for radio frequency
remote control ...................... 273
On-board instruments
(panel) ..............................14-15
– digital display ....................... 18
– engine coolant
temperature gauge ............. 16– engine oil gauge .................. 17
– fuel level gauge ................... 16
– multifunction display ......... 24
– rev counter........................... 15
– speedometer ....................... 15
– trip computer ..................... 35
Paintwork
– identification plate ............. 233
– maintenance ........................ 228
Parking lights
– control .........................75-86
Parking sensors ........................ 121
Passenger compartment
air vents ................................... 52
Performance ............................. 244
Pollen filter ................................ 221
Positioning the restraint
systems on the seats .... 137-140
Power socket ...........................95
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 281

282
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Preparation for “Isofix”
child seat ................................. 138
Pretensioners ........................... 131
Protecting
the environment .................... 128
Radio .......................................... 123
Radio transmitters
and mobile phones ................ 125
Rain sensor ............................... 79
Raising the vehicle ................... 205
Rear double swing door ......... 107
Rear partition ........................... 93
Rear view mirrors.................... 48
– defrosting/demisting .......... 50
– electric adjustment ............ 48
– internal ................................. 48
– wing mirrors ....................... 48
Refrigerated compartment .... 90
Refuelling ................................... 126Rev counter ............................... 15
Reversing light
(bulb replacement) ................ 192
Rim Protector .......................... 238
Rims
– reading rim markings ......... 239
Roof lights
– bulb replacement ....... 196-197
– control ................................. 82
Roof rack ................................... 112
Rubber tubes (servicing) ........ 225
S.B.R. system ............................ 130
Safety ......................................... 129
– “Isofix” child seat ............... 138
– carrying children safely ..... 134
– seat belts ..............................129
Saving fuel (warning light) ...... 166
Scheduled Servicing
Plan ...................................208-210Scrappage (prescriptions
for handling the vehicle
at the end of its life) .............. 272
Seat belts ...................................129
– general warnings ................ 132
– load limiters ........................ 131
– maintenance ........................ 133
– pretensioners ...................... 131
Seats
– adjustment .................. 37-38
– arm rests .............................. 39
– base plastic covers .... 39-40
– cleaning ................................ 230
– Combi versions .................. 44
– flap on bench ...................... 42
– headrests ............................. 46
– heating .................................. 41
– Panorama versions ............ 43
– revolving base ............. 39-40
– under-seat
compartment ...................... 42
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 282

284
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

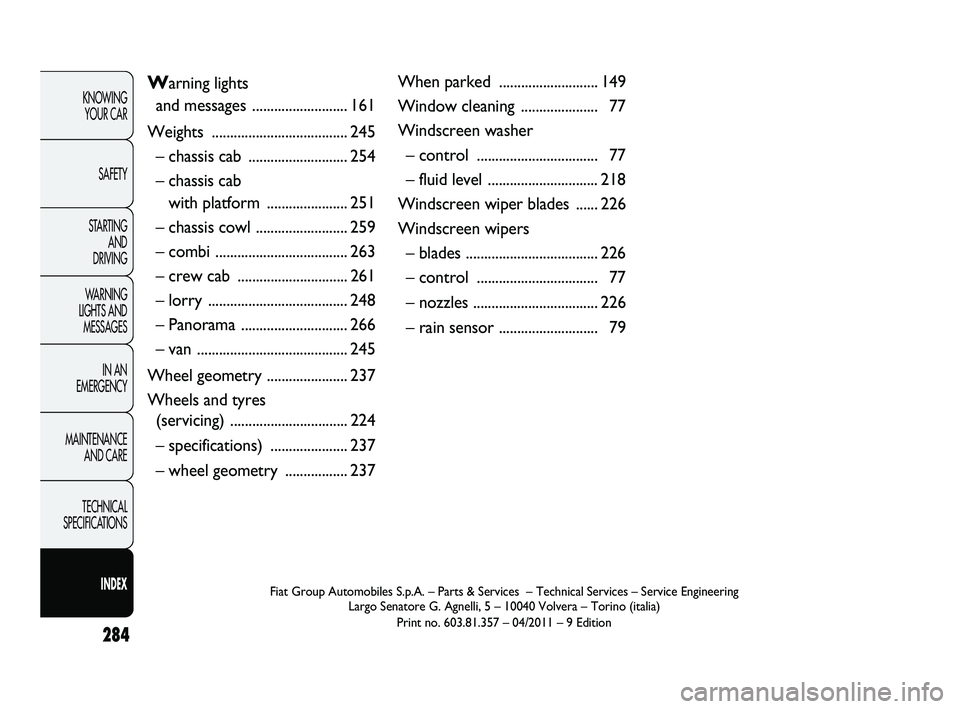

INDEXFiat Group Automobiles S.p.A. – Parts & Services – Technical Services – Service Engineering
Largo Senatore G. Agnelli, 5 – 10040 Volvera – Torino (italia)
Print no. 603.81.357 – 04/2011 – 9 Edition
Warning lights
and messages .......................... 161
Weights ..................................... 245
– chassis cab ........................... 254
– chassis cab
with platform ...................... 251
– chassis cowl ......................... 259
– combi .................................... 263
– crew cab ..............................261
– lorry ...................................... 248
– Panorama ............................. 266
– van ......................................... 245
Wheel geometry ...................... 237
Wheels and tyres
(servicing) ................................224
– specifications) ..................... 237
– wheel geometry ................. 237When parked ...........................149
Window cleaning ..................... 77
Windscreen washer
– control ................................. 77
– fluid level .............................. 218
Windscreen wiper blades ...... 226
Windscreen wipers
– blades .................................... 226
– control ................................. 77
– nozzles .................................. 226
– rain sensor ........................... 79
277-284 DUCATO LUM EN 9ed 15-04-2011 8:32 Pagina 284
