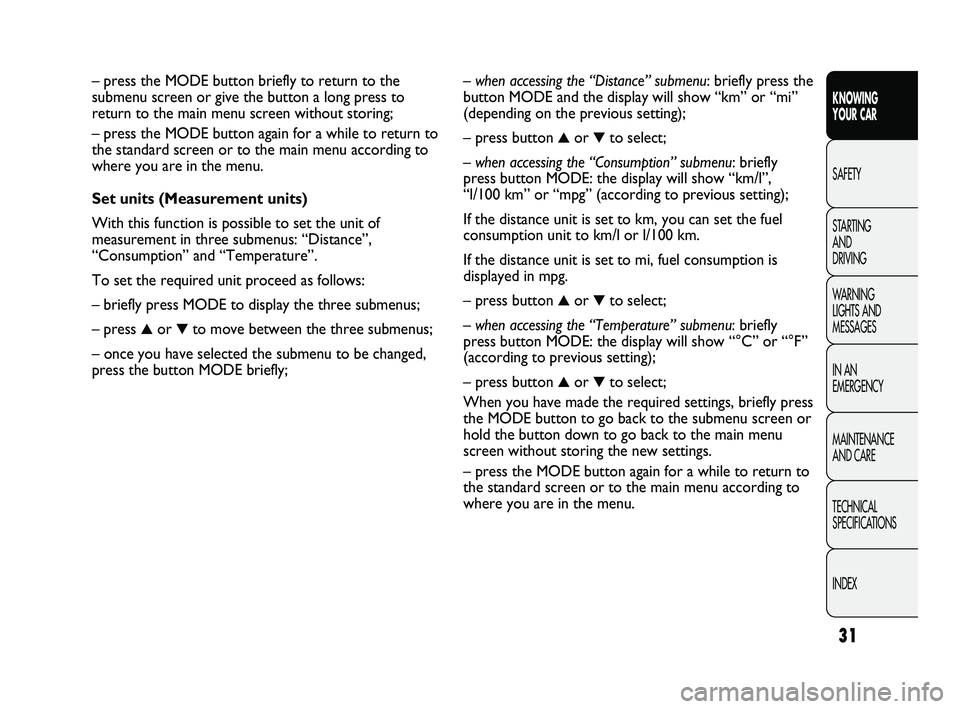

– when accessing the “Distance” submenu: briefly press the
button MODE and the display will show “km” or “mi”
(depending on the previous setting);
– press button
▲or ▼to select;
– when accessing the “Consumption” submenu: briefly
press button MODE: the display will show “km/l”,
“l/100 km” or “mpg” (according to previous setting);
If the distance unit is set to km, you can set the fuel
consumption unit to km/l or l/100 km.
If the distance unit is set to mi, fuel consumption is
displayed in mpg.
– press button
▲or ▼to select;
– when accessing the “Temperature” submenu: briefly
press button MODE: the display will show “°C” or “°F”
(according to previous setting);
– press button
▲or ▼to select;
When you have made the required settings, briefly press
the MODE button to go back to the submenu screen or
hold the button down to go back to the main menu
screen without storing the new settings.
– press the MODE button again for a while to return to
the standard screen or to the main menu according to
where you are in the menu. – press the MODE button briefly to return to the
submenu screen or give the button a long press to
return to the main menu screen without storing;
– press the MODE button again for a while to return to
the standard screen or to the main menu according to
where you are in the menu.
Set units (Measurement units)
With this function is possible to set the unit of
measurement in three submenus: “Distance”,
“Consumption” and “Temperature”.
To set the required unit proceed as follows:
– briefly press MODE to display the three submenus;
– press
▲or ▼to move between the three submenus;
– once you have selected the submenu to be changed,
press the button MODE briefly;
