technical specifications FIAT DUCATO 2012 Owner handbook (in English)

234
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres

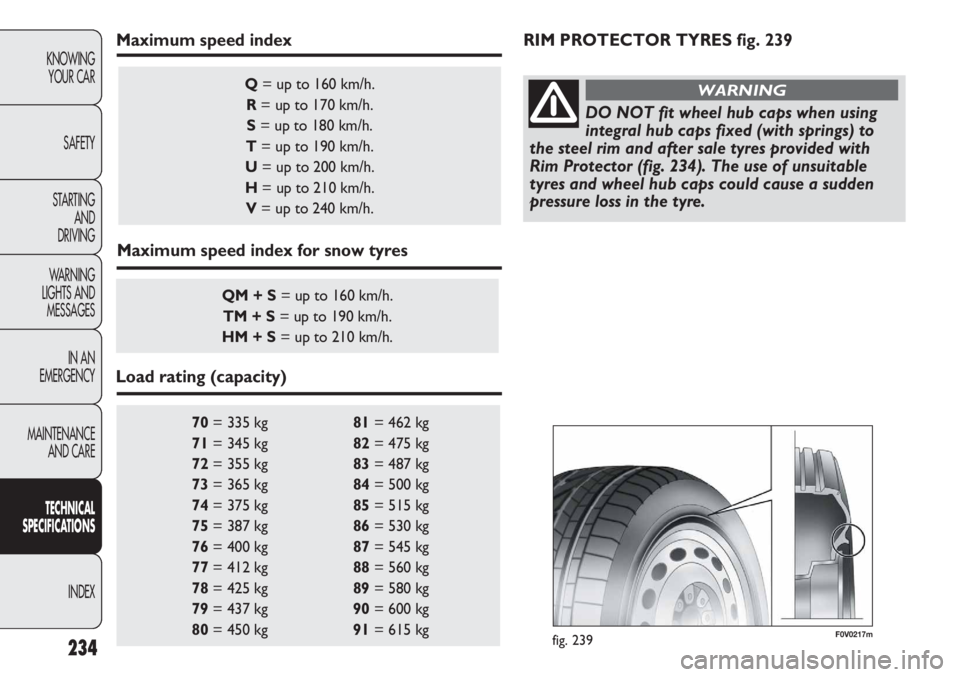

Load rating (capacity)RIM PROTECTOR TYRES fig. 239
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs) to
the steel rim and after sale tyres provided with
Rim Protector (fig. 234). The use of unsuitable
tyres and wheel hub caps could cause a sudden
pressure loss in the tyre.
WARNING
F0V0217mfig. 239

235
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

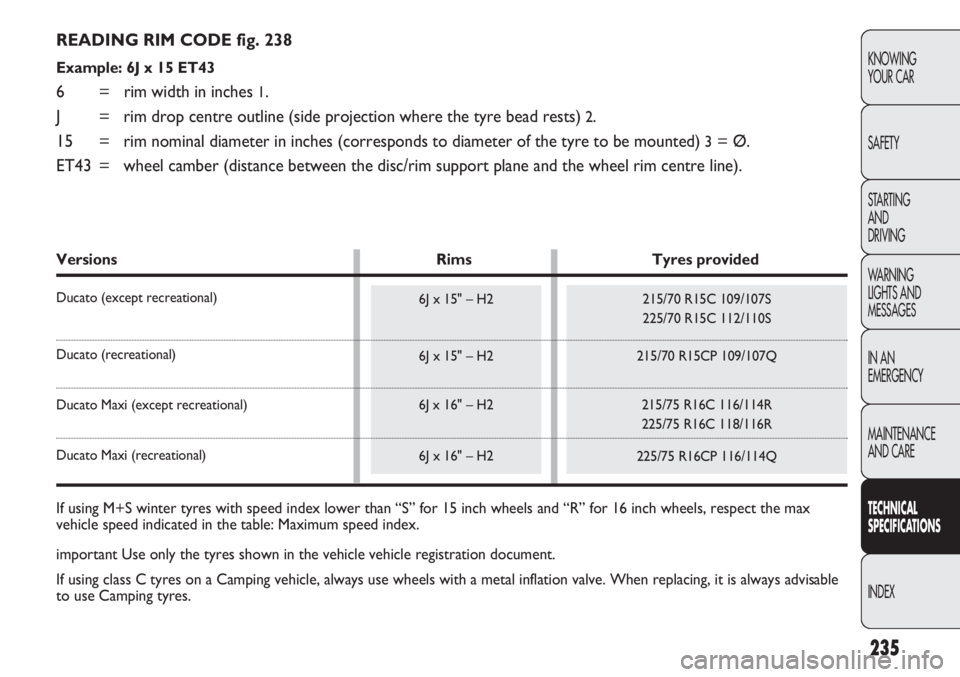

READING RIM CODE fig. 238
Example: 6J x 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side projection where the tyre bead rests)
2.
15 = rim nominal diameter in inches (corresponds to diameter of the tyre to be mounted)
3= Ø.
ET43 = wheel camber (distance between the disc/rim support plane and the wheel rim centre line).
215/70 R15C 109/107S
225/70 R15C 112/110S
215/70 R15CP 109/107Q
215/75 R16C 116/114R
225/75 R16C 118/116R
225/75 R16CP 116/114Q6J x 15" – H2
6J x 15" – H2
6J x 16" – H2
6J x 16" – H2
Versions Rims Tyres provided
Ducato (except recreational)
Ducato (recreational)
Ducato Maxi (except recreational)
Ducato Maxi (recreational)
If using M+S winter tyres with speed index lower than “S” for 15 inch wheels and “R” for 16 inch wheels, respect the max
vehicle speed indicated in the table: Maximum speed index.
important Use only the tyres shown in the vehicle vehicle registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always advisable
to use Camping tyres.

3000 GVW(*) with wide tyres,
except PANORAMA
3300 GVW (*) / 3500 GVW (*)
with basic tyres
PANORAMA with basic tyres
3000 GVW (*) with wide tyres,
except PANORAMA
3300 GVW(*) / 3500 GVW(*)
with wide tyres
Winter tyres M+S class C on Camping vehicle
PANORAMA with wide tyres
Range with Camping tyres
Maxi range with basic tyres
Maxi range with wide tyres
Winter tyres M+S class C on Camping vehicle
Maxi range with camping tyres
236
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
4.0 ± 0.05 4.0 ± 0.05
4.1 ± 0.05 4.5 ± 0.05
4.1 ± 0.05 4.5 ± 0.05
4.0 ± 0.05 4.0 ± 0.05
4.1 ± 0.05 4.5 ± 0.05
4.3 ± 0.05 4.75 ± 0.05
4.1 ± 0.05 4.5 ± 0.05
5.0 ± 0.05 5.5 ± 0.05
4.5 ± 0.05 5.0 ± 0.05
4.5 ± 0.05 5.0 ± 0.05
5.2 ± 0.05 5.2 ± 0.05
5.5 ± 0.05 5.5 ± 0.05

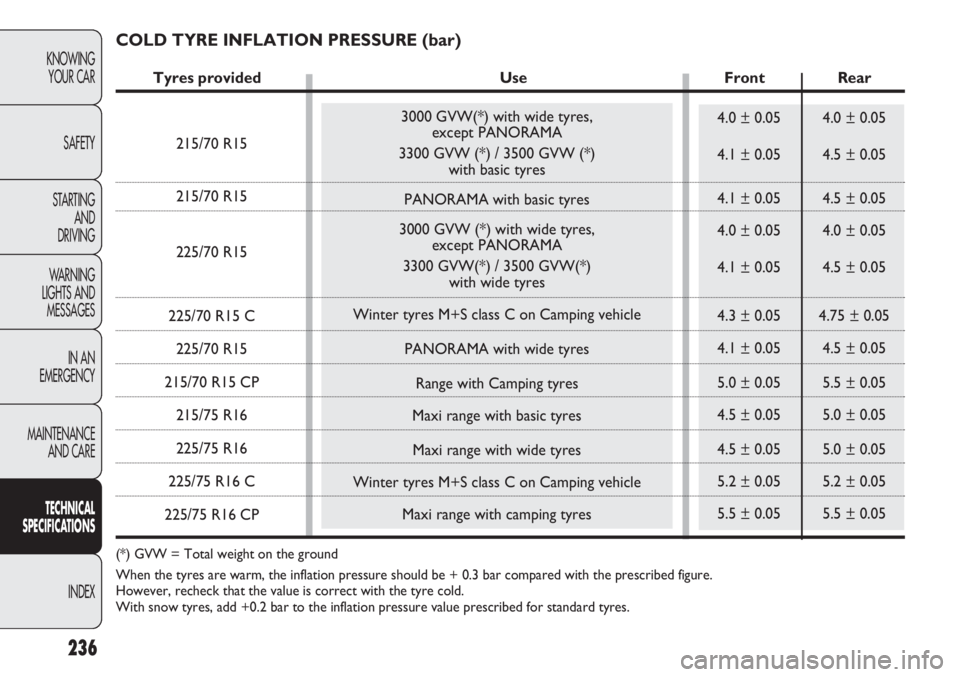

COLD TYRE INFLATION PRESSURE (bar)
Tyres provided Use Front Rear
215/70 R15
215/70 R15
225/70 R15
225/70 R15 C
225/70 R15
215/70 R15 CP
215/75 R16
225/75 R16
225/75 R16 C
225/75 R16 CP
(*) GVW = Total weight on the ground
When the tyres are warm, the inflation pressure should be + 0.3 bar compared with the prescribed figure.
However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.

237
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

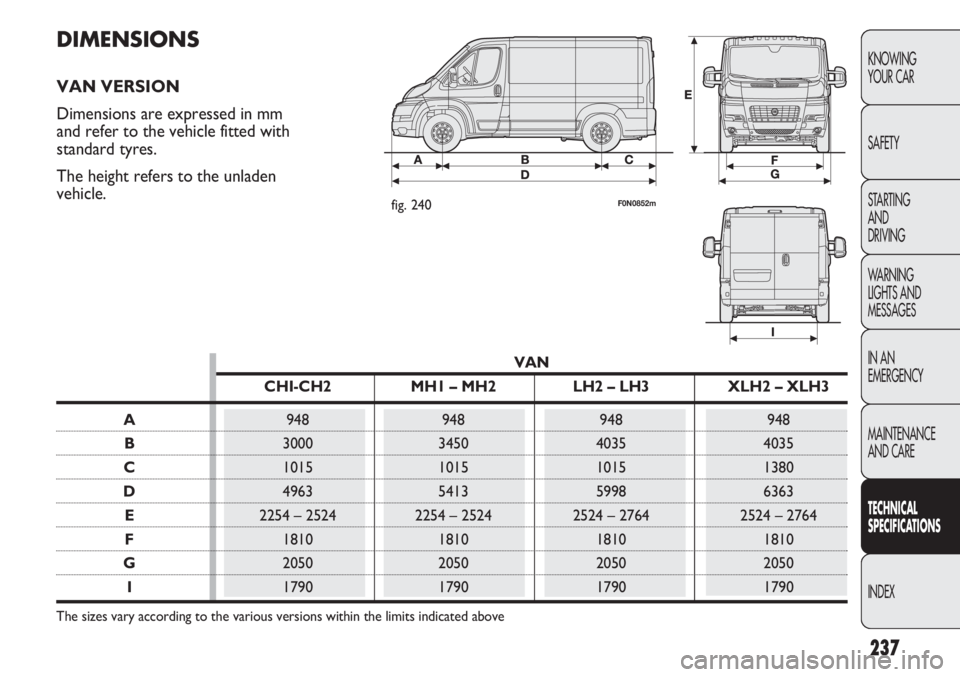

DIMENSIONS
VAN VERSION
Dimensions are expressed in mm
and refer to the vehicle fitted with
standard tyres.
The height refers to the unladen
vehicle.
fig. 240F0N0852m
VAN
CHI-CH2 MH1 – MH2 LH2 – LH3 XLH2 – XLH3
A948 948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 – 2524 2254 – 2524 2524 – 2764 2524 – 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
The sizes vary according to the various versions within the limits indicated above

238
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

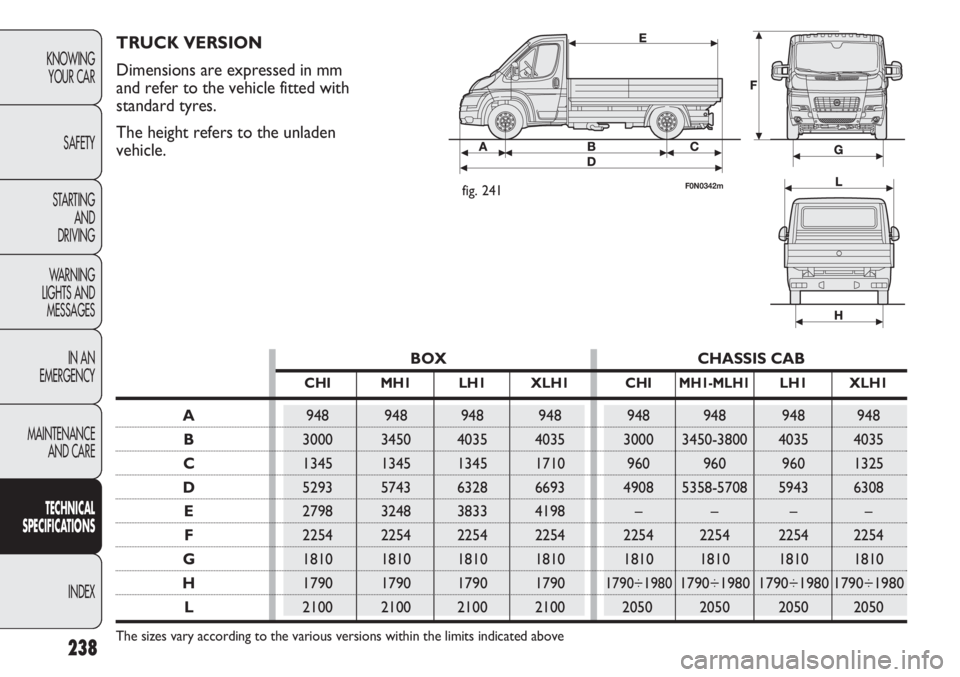

BOX CHASSIS CAB
CHI MH1 LH1 XLH1 CHIMH1-MLH1LH1 XLH1
A948 948 948 948 948 948 948 948
B3000 3450 4035 4035 3000 3450-3800 4035 4035
C1345 1345 1345 1710 960 960 960 1325
D5293 5743 6328 6693 4908 5358-5708 5943 6308
E2798 3248 3833 4198 – – – –
F2254 2254 2254 2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810
H1790 1790 1790 17901790÷19801790÷1980 1790÷1980 1790÷1980
L2100 2100 2100 2100 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
TRUCK VERSION
Dimensions are expressed in mm
and refer to the vehicle fitted with
standard tyres.
The height refers to the unladen
vehicle.
fig. 241F0N0342m

239
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

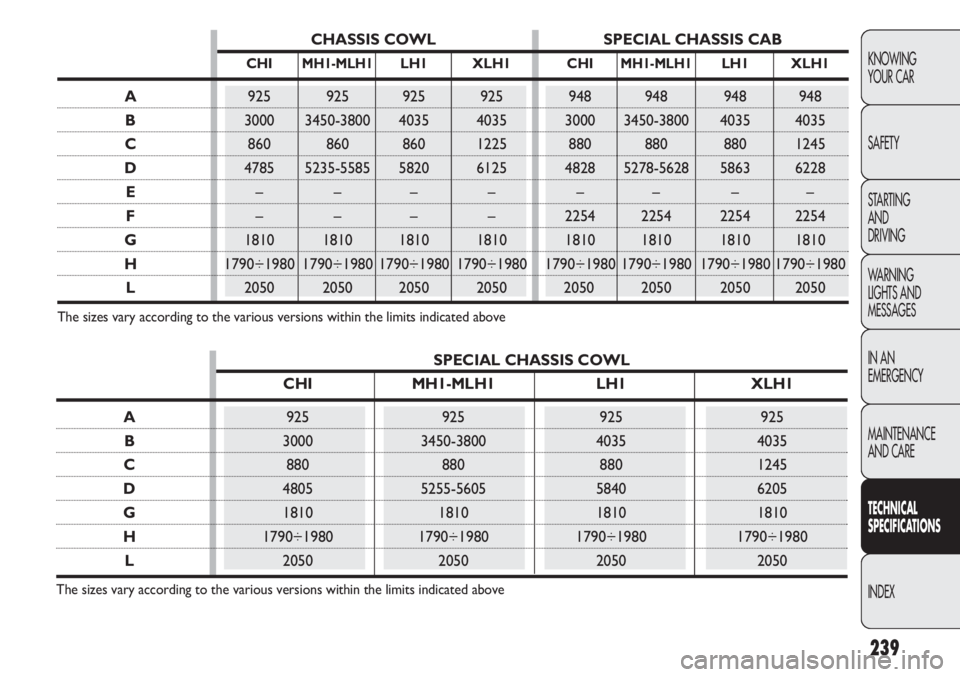

CHASSIS COWL SPECIAL CHASSIS CAB
CHIMH1-MLH1LH1 XLH1 CHIMH1-MLH1LH1 XLH1
A925 925 925 925 948 948 948 948
B3000 3450-3800 4035 4035 3000 3450-3800 4035 4035
C860 860 860 1225 880 880 880 1245
D4785 5235-5585 5820 6125 4828 5278-5628 5863 6228
E–––– ––––
F– – – – 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810
H1790÷1980 1790÷1980 1790÷1980 1790÷1980 1790÷1980 1790÷1980 1790÷1980 1790÷1980
L2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
SPECIAL CHASSIS COWL
CHI MH1-MLH1 LH1 XLH1
A925 925 925 925
B3000 3450-3800 4035 4035
C880 880 880 1245
D4805 5255-5605 5840 6205
G1810 1810 1810 1810
H1790÷1980 1790÷1980 1790÷1980 1790÷1980
L2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above

240
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
LORRIES WITH
FLATBED

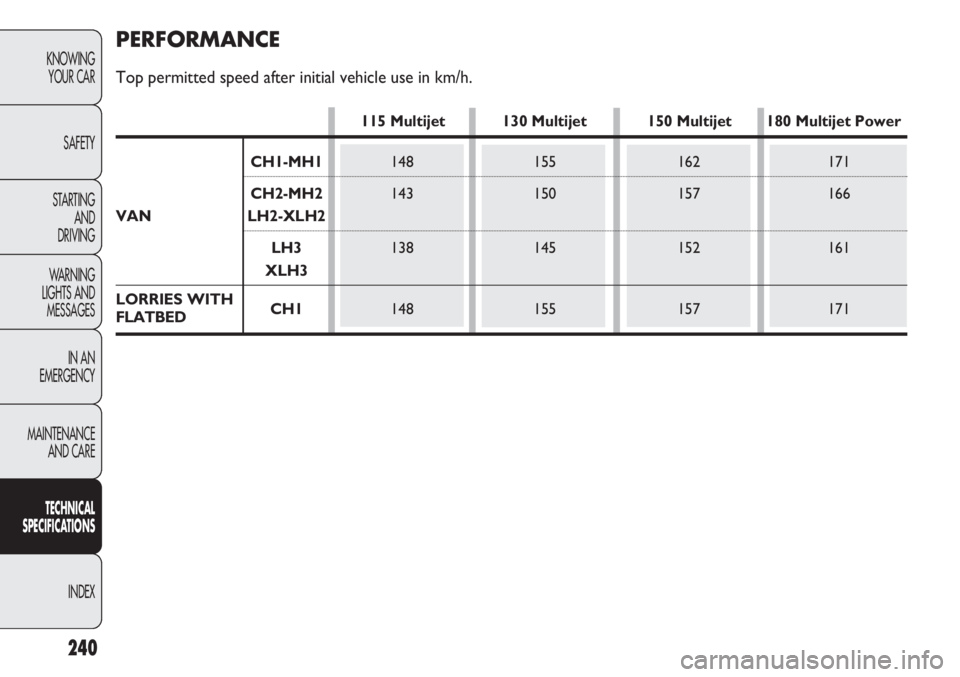

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
115 Multijet 130 Multijet 150 Multijet 180 Multijet Power
CH1-MH1148 155 162 171
CH2-MH2143 150 157 166
VAN LH2-XLH2
LH3138 145 152 161
XLH3
CH1148 155 157 171

241
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
130/150 Multijet
1860÷1925
1075÷1140
1630
1650
3000
2500
750
100
150180 Multijet Power
1910÷1975
1025÷1090
1630
1650
3000
2500
750
100
150115 Multijet
1845÷1910
1090÷1155
1630
1650
3000
2000
750
100
150

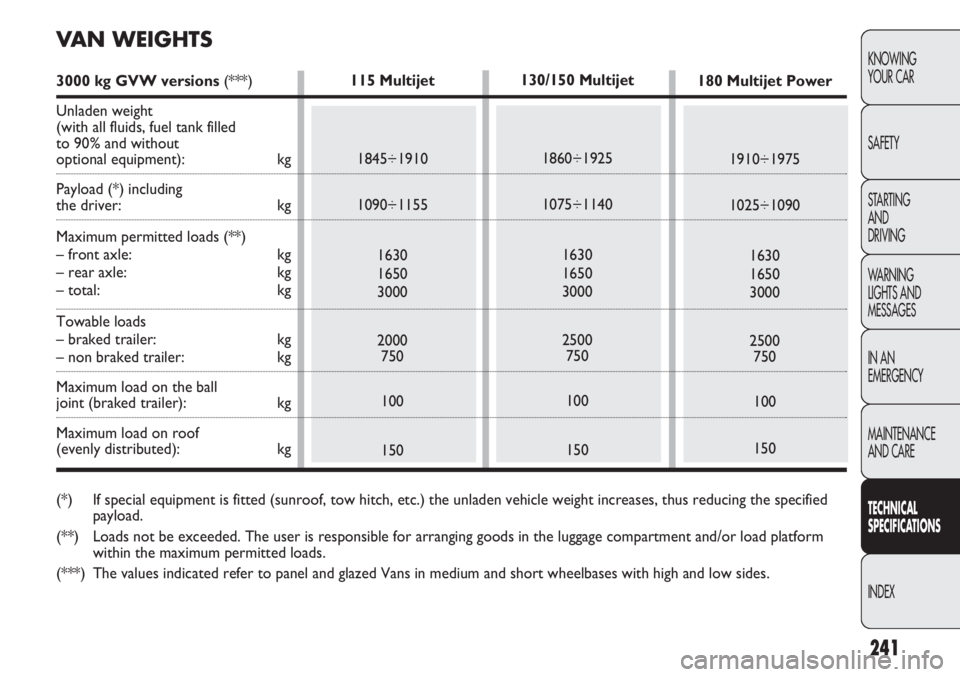

VAN WEIGHTS
3000 kg GVW versions (***)
Unladen weight
(with all fluids, fuel tank filled
to 90% and without
optional equipment): kg
Payload (*) including
the driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
Maximum load on roof
(evenly distributed): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform
within the maximum permitted loads.
(***) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.

242
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
130/150
Multijet
1860÷2000
1300÷1440
1750
1900
3300
2500
750
100
150180
Multijet Power
1910÷2050
1250÷1390
1750
1900
3300
2500
750
100
150
130/150
Multijet
1860÷2000
1500÷1640
1850
2000
3500
2500
750
100
150180
Multijet Power
1910÷2050
1450÷1590
1850
2000
3500
2500
750
100
150 115
Multijet
1845÷1985
1515÷1655
1850
2000
3500
2000
750
100
150
115
Multijet
1845÷1985
1315÷1455
1750
1900
3300
2000
750
100
150

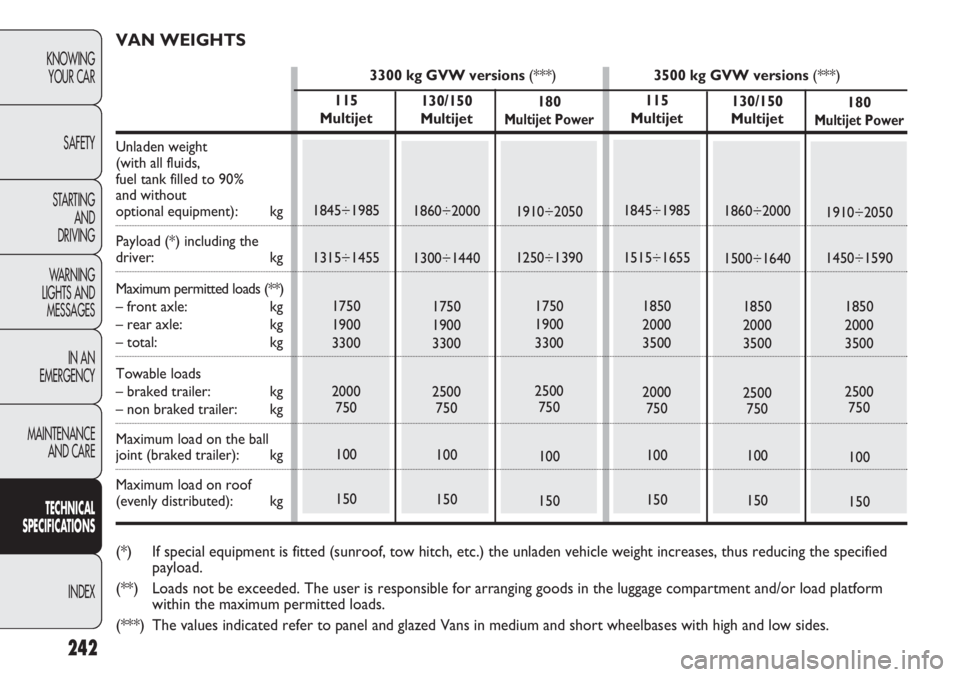

VAN WEIGHTS
3300 kg GVW versions (***)3500 kg GVW versions (***)
Unladen weight
(with all fluids,
fuel tank filled to 90%
and without
optional equipment): kg
Payload (*) including the
driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
Maximum load on roof
(evenly distributed): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform
within the maximum permitted loads.
(***) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.

243
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
130/150 Multijet
1940÷2090
1410÷1560
2100
2400
3500
3000
750
120
150180 Multijet Power
1990÷2140
1360÷1510
2100
2400
3500
3000
750
120
150
130/150 Multijet
2010÷2135
1865÷1990
2100
2400
4000
2500
750
100
150180 Multijet Power
2060÷2185
1815÷1940
2100
2400
4000
2500
750
100
150

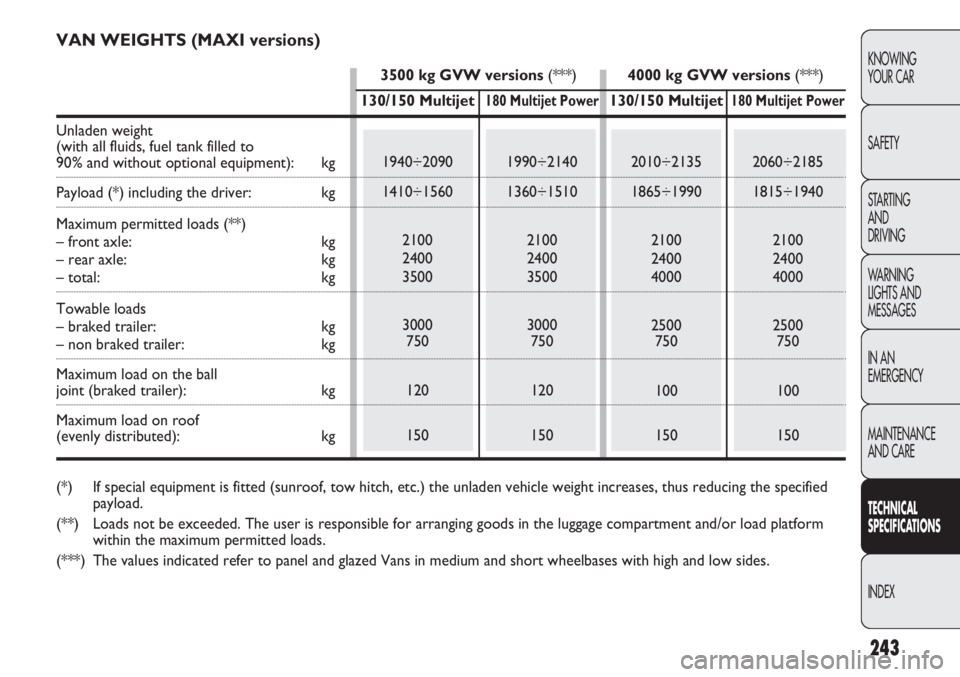

VAN WEIGHTS (MAXI versions)
3500 kg GVW versions (***)4000 kg GVW versions (***)
Unladen weight
(with all fluids, fuel tank filled to
90% and without optional equipment): kg
Payload (*) including the driver: kg
Maximum permitted loads (**)
– front axle: kg
– rear axle: kg
– total: kg
Towable loads
– braked trailer: kg
– non braked trailer: kg
Maximum load on the ball
joint (braked trailer): kg
Maximum load on roof
(evenly distributed): kg
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified
payload.
(**) Loads not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform
within the maximum permitted loads.
(***) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
