technical specifications FIAT DUCATO 2012 Owner handbook (in English)

194
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0091mfig. 201

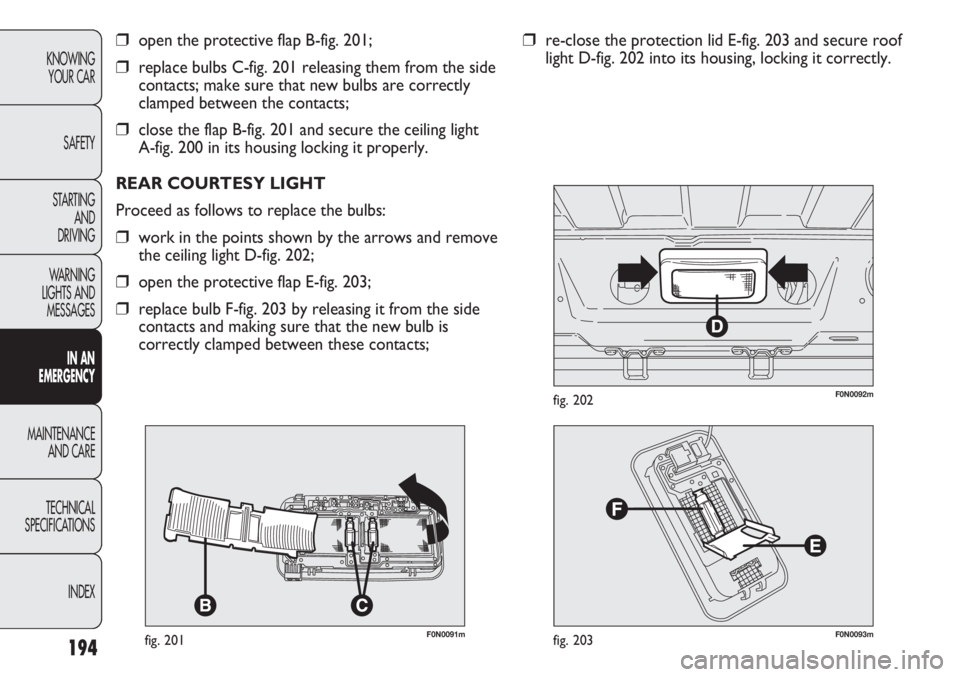

❒open the protective flap B-fig. 201;
❒replace bulbs C-fig. 201 releasing them from the side
contacts; make sure that new bulbs are correctly
clamped between the contacts;
❒close the flap B-fig. 201 and secure the ceiling light
A-fig. 200 in its housing locking it properly.
REAR COURTESY LIGHT
Proceed as follows to replace the bulbs:
❒work in the points shown by the arrows and remove
the ceiling light D-fig. 202;
❒open the protective flap E-fig. 203;
❒replace bulb F-fig. 203 by releasing it from the side
contacts and making sure that the new bulb is
correctly clamped between these contacts;
F0N0093mfig. 203
F0N0092mfig. 202
❒re-close the protection lid E-fig. 203 and secure roof
light D-fig. 202 into its housing, locking it correctly.

195
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0094mfig. 204

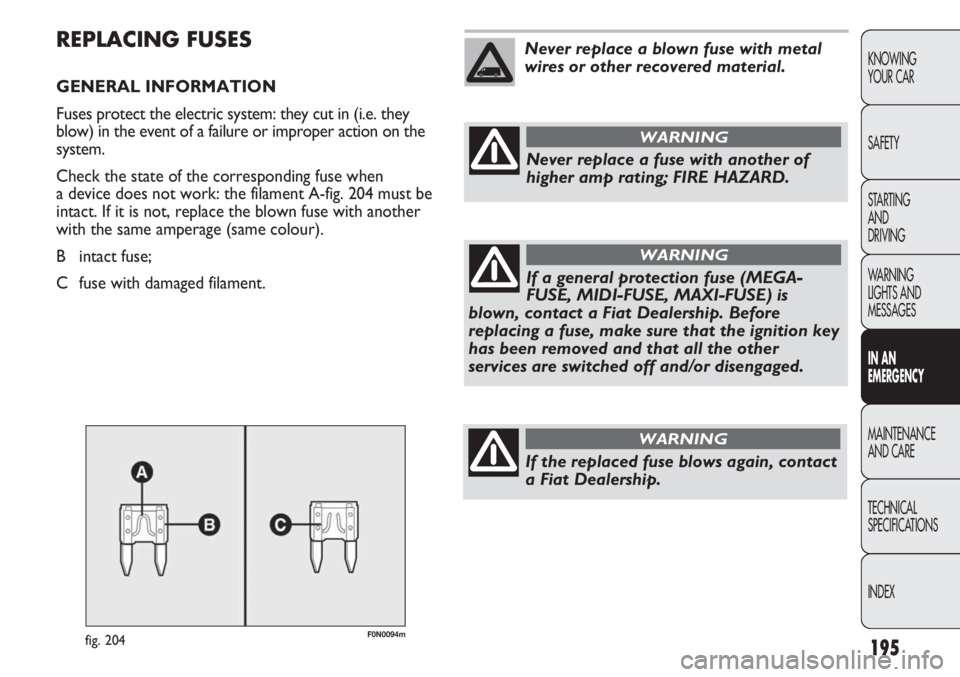

REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electric system: they cut in (i.e. they
blow) in the event of a failure or improper action on the
system.
Check the state of the corresponding fuse when
a device does not work: the filament A-fig. 204 must be
intact. If it is not, replace the blown fuse with another
with the same amperage (same colour).
B intact fuse;
C fuse with damaged filament.
Never replace a blown fuse with metal
wires or other recovered material.
Never replace a fuse with another of
higher amp rating; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) is
blown, contact a Fiat Dealership. Before
replacing a fuse, make sure that the ignition key
has been removed and that all the other
services are switched off and/or disengaged.
WARNING
If the replaced fuse blows again, contact
a Fiat Dealership.
WARNING

196
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
If a general protection fuse for safety
systems (air bag system, braking system),
power unit systems (engine system, gearbox
system) or steering system blows, contact a Fiat
Dealership.
WARNING
F0N0095mfig. 205F0N0513mfig. 206

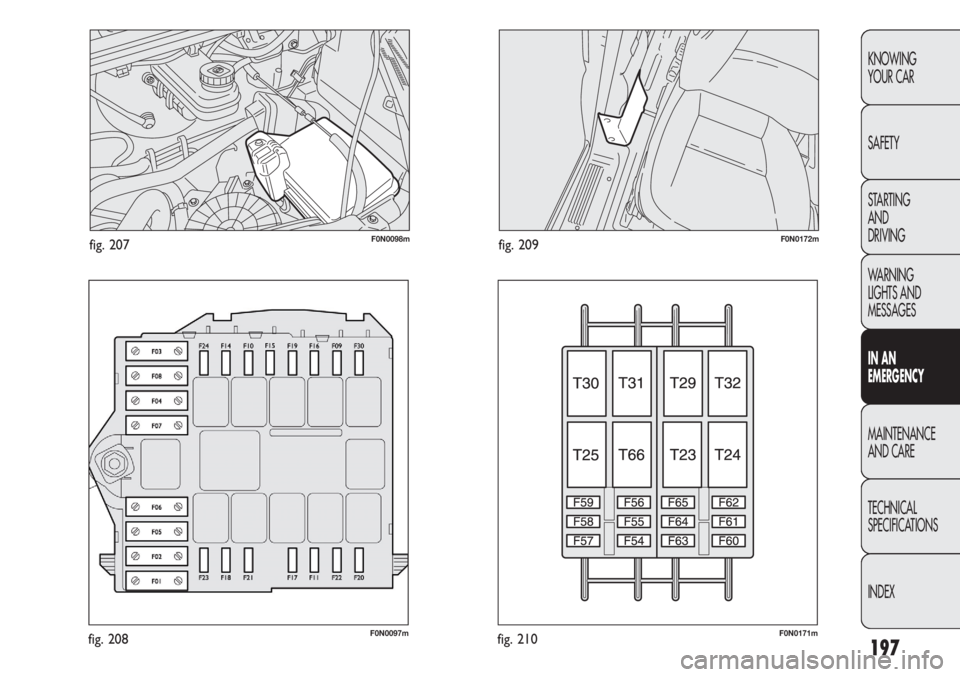

Engine compartment fuse box
To gain access to the fuse box, fig. 208, remove the
protective cover fig. 207.
Right central pillar optional fuse box
(for versions/markets, where provided)
To gain access to the fuse box, fig. 210, remove the
protective cover fig. 209.

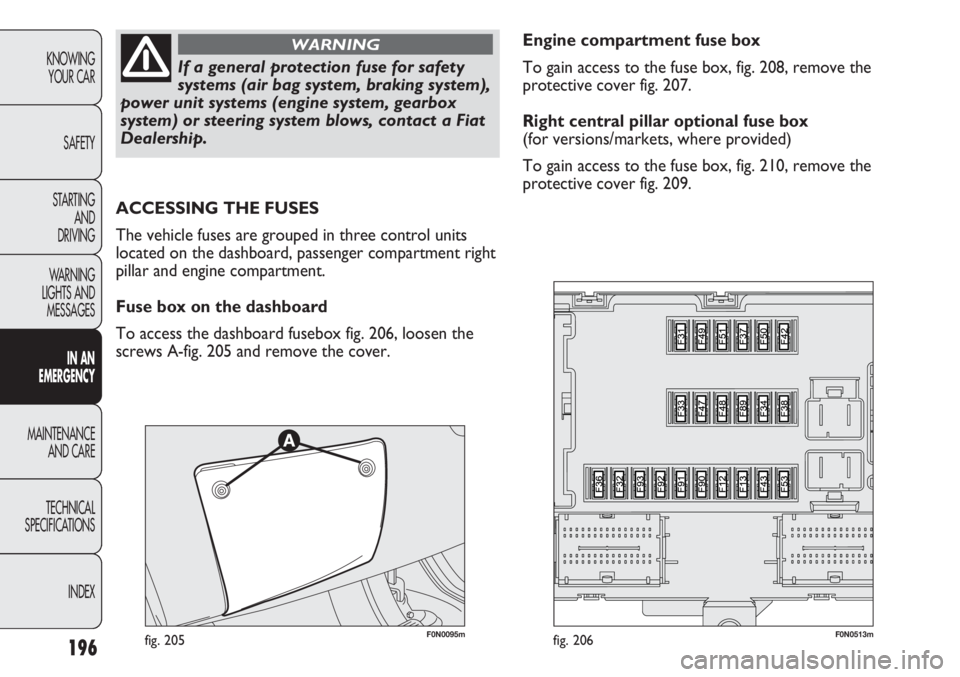

ACCESSING THE FUSES
The vehicle fuses are grouped in three control units
located on the dashboard, passenger compartment right
pillar and engine compartment.
Fuse box on the dashboard
To access the dashboard fusebox fig. 206, loosen the
screws A-fig. 205 and remove the cover.

197
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0098mfig. 207
F0N0097mfig. 208
F0N0172mfig. 209
F0N0171mfig. 210

198
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
FUSE SUMMARY TABLE
Dashboard fuse box fig. 205-206
USERSFUSE AMPERE
Right dipped headlamp F12 7.5
Left dipped headlamp F13 7.5
Engine compartment control unit relay, instrument panel control unit relay (+key) F31 5
Lighting of roof lights in the passenger compartment (+battery) F32 7.5
Battery monitoring sensor for Start&Stop versions (+battery) F33 20
Minibus interior lights (emergency) F34 20
Radio, A/C control, alarm, tachograph, F36 10
Battery disconnecting unit, Webasto timer (+battery)
Brake light control (main), third brake light, instrument panel (+key) F37 7.5
Door lock (+battery) F38 20
ABS, ASR, ESP, brake light control (secondary) (+key) F42 5
Windscreen washer (+key) F43 20
Driver's side electric window F47 20
Passenger side electric window F48 20
Parking sensor control unit, radio, controls on the steering wheel, F49 5
centre dashboard, left dashboard, auxiliary dashboard,
battery disconnecting unit (+key)
Airbag (+key) F50 7.5
Climate control system, power steering control unit, reversing lights, F51 5
water in diesel filter sensor, flow meter, tachograph (+key)

199
7.5
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

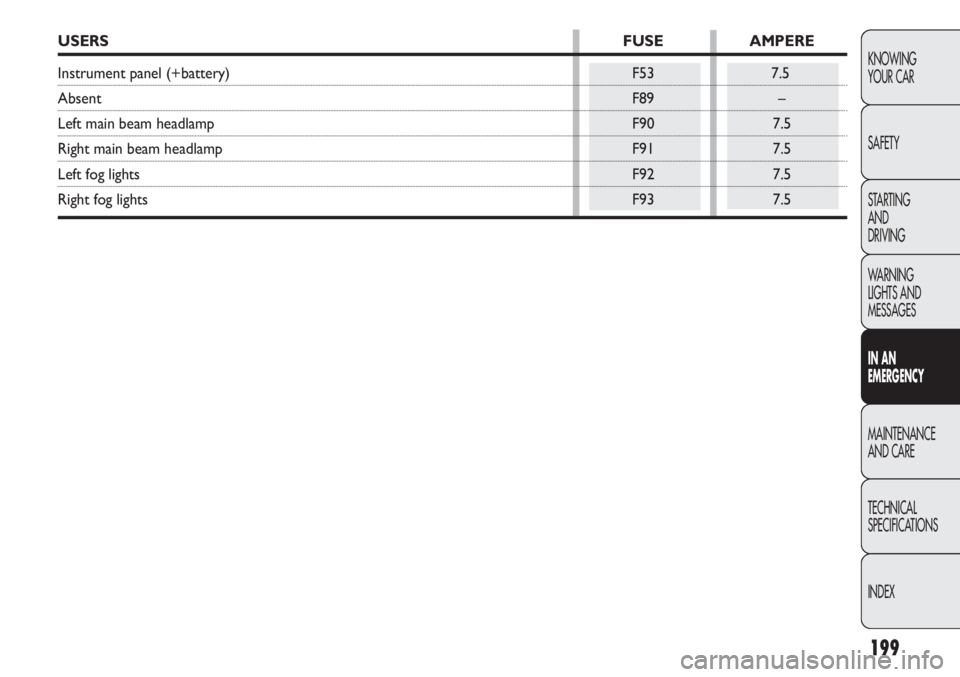

USERSFUSE AMPERE
Instrument panel (+battery) F53 7.5
AbsentF89 –
Left main beam headlamp F90 7.5
Right main beam headlamp F91 7.5
Left fog lightsF92 7.5
Right fog lights F93 7.5

200
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

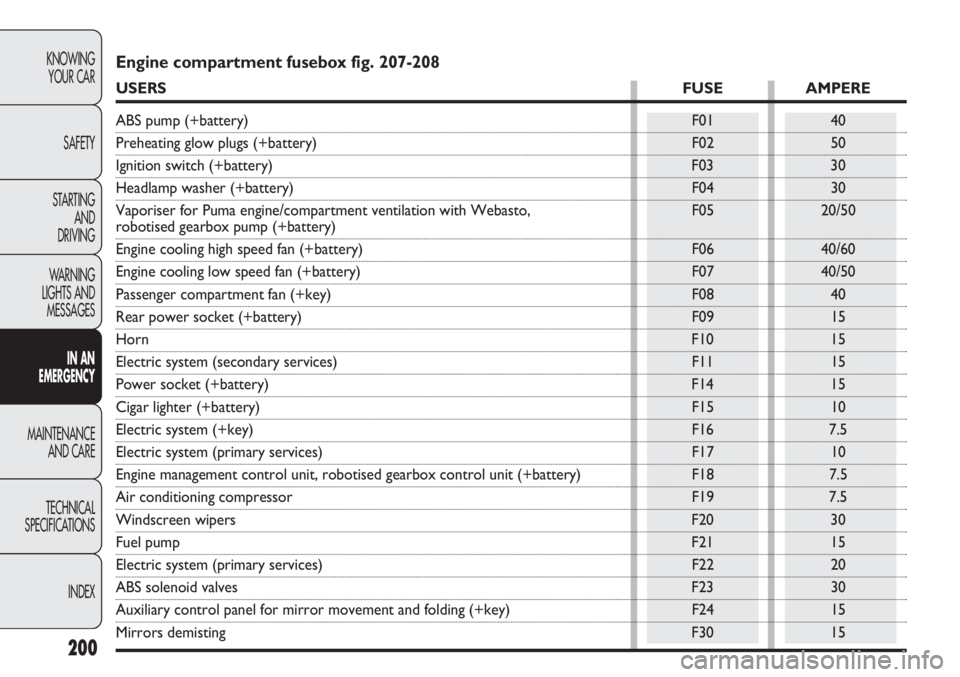

Engine compartment fusebox fig. 207-208
USERSFUSE AMPERE
ABS pump (+battery) F01 40
Preheating glow plugs (+battery) F02 50
Ignition switch (+battery) F03 30
Headlamp washer (+battery) F04 30
Vaporiser for Puma engine/compartment ventilation with Webasto, F05 20/50
robotised gearbox pump (+battery)
Engine cooling high speed fan (+battery) F06 40/60
Engine cooling low speed fan (+battery) F07 40/50
Passenger compartment fan (+key) F08 40
Rear power socket (+battery) F09 15
HornF10 15
Electric system (secondary services) F11 15
Power socket (+battery) F14 15
Cigar lighter (+battery) F15 10
Electric system (+key) F16 7.5
Electric system (primary services) F17 10
Engine management control unit, robotised gearbox control unit (+battery) F18 7.5
Air conditioning compressor F19 7.5
Windscreen wipers F20 30
Fuel pumpF21 15
Electric system (primary services) F22 20
ABS solenoid valves F23 30
Auxiliary control panel for mirror movement and folding (+key) F24 15
Mirrors demisting F30 15

201
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

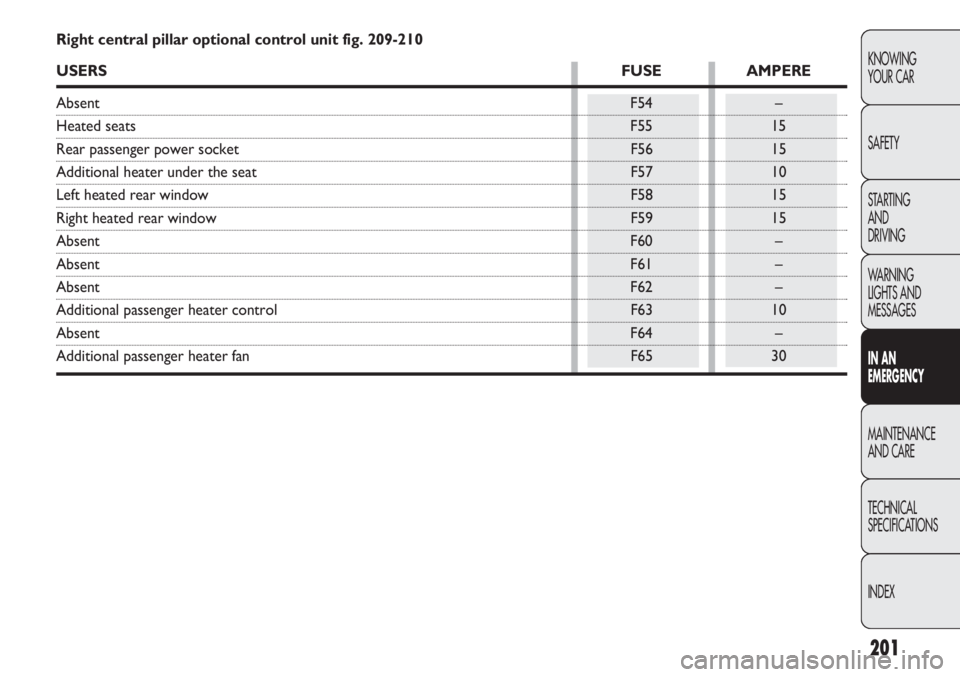

Right central pillar optional control unit fig. 209-210
USERSFUSE AMPERE
AbsentF54 –
Heated seatsF55 15
Rear passenger power socket F56 15
Additional heater under the seat F57 10
Left heated rear window F58 15
Right heated rear window F59 15
AbsentF60 –
AbsentF61 –
AbsentF62 –
Additional passenger heater control F63 10
AbsentF64 –
Additional passenger heater fan F65 30

202
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

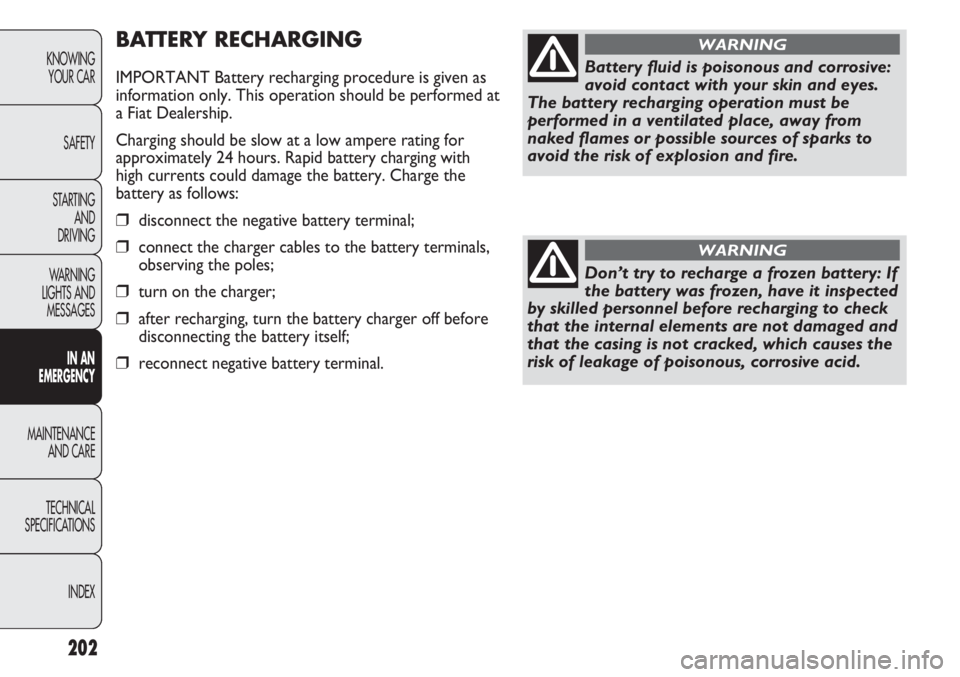

BATTERY RECHARGING
IMPORTANT Battery recharging procedure is given as
information only. This operation should be performed at
a Fiat Dealership.
Charging should be slow at a low ampere rating for
approximately 24 hours. Rapid battery charging with
high currents could damage the battery. Charge the
battery as follows:
❒disconnect the negative battery terminal;
❒connect the charger cables to the battery terminals,
observing the poles;
❒turn on the charger;
❒after recharging, turn the battery charger off before
disconnecting the battery itself;
❒reconnect negative battery terminal.
Battery fluid is poisonous and corrosive:
avoid contact with your skin and eyes.
The battery recharging operation must be
performed in a ventilated place, away from
naked flames or possible sources of sparks to
avoid the risk of explosion and fire.
WARNING
Don’t try to recharge a frozen battery: If
the battery was frozen, have it inspected
by skilled personnel before recharging to check
that the internal elements are not damaged and
that the casing is not cracked, which causes the
risk of leakage of poisonous, corrosive acid.
WARNING

203
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0340mfig. 211

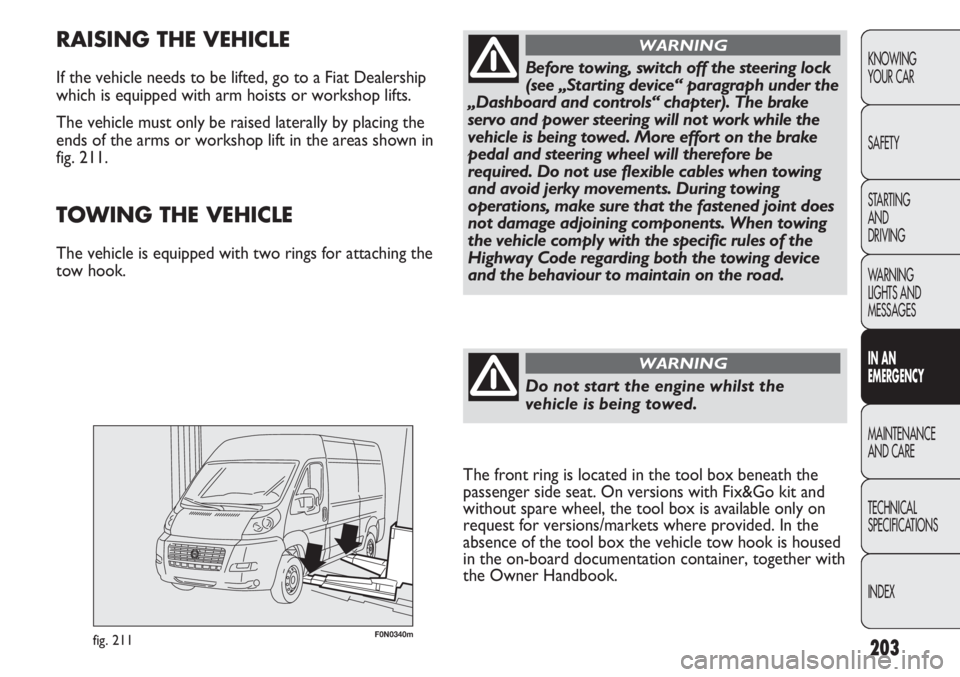

RAISING THE VEHICLE
If the vehicle needs to be lifted, go to a Fiat Dealership
which is equipped with arm hoists or workshop lifts.
The vehicle must only be raised laterally by placing the
ends of the arms or workshop lift in the areas shown in
fig. 211.
Do not start the engine whilst the
vehicle is being towed.
WARNING
Before towing, switch off the steering lock
(see „Starting device“ paragraph under the
„Dashboard and controls“ chapter). The brake
servo and power steering will not work while the
vehicle is being towed. More effort on the brake
pedal and steering wheel will therefore be
required. Do not use flexible cables when towing
and avoid jerky movements. During towing
operations, make sure that the fastened joint does
not damage adjoining components. When towing
the vehicle comply with the specific rules of the
Highway Code regarding both the towing device
and the behaviour to maintain on the road.
WARNING
TOWING THE VEHICLE
The vehicle is equipped with two rings for attaching the
tow hook.
The front ring is located in the tool box beneath the
passenger side seat. On versions with Fix&Go kit and
without spare wheel, the tool box is available only on
request for versions/markets where provided. In the
absence of the tool box the vehicle tow hook is housed
in the on-board documentation container, together with
the Owner Handbook.
