FIAT DUCATO 250 2009 3.G Blue And Me Manual

• Call [Name]
• Call [Name]
[(at) Work /
(at) Home /
(on/at) Mobile / (on/at)
Cellular /
(on/at) Cell]
Calls a contact.
In this keyword, Name
represents the full name
of acontact in your
phonebook Starts the process to call a
contact in the phonebook,
transferred to the
hands-free kit
• Nome• Name
Calls a contact “(at) Home”• (at) Home
• (at) Work
Calls a contact “(on/at) Mobile/ (on/at)
Cellular/ (on/at) Cell• (on/at) Mobile
• (on/at) Cellular
• (on/at) CellCalls a contact “(at) Work”
• Telephone
• PhoneActivates the phone function and speaks helpful information for using the hands-free phone
• CallbackDials the phone number of the last caller
• RedialDials the phone number of the last person called
➯continued
50
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 50

51
MESSAGE READER VOICE COMMANDS (KEYWORDS)
To read the last message received
To open the MESSAGE READERTo read the last message received
To display the inbox;
the system will display the first message
contained in the inbox.
To delete all the messages
contained in the inbox; the system
will ask for confirmation before deleting
the messages.
To set the Signal type
• Read last one
• Read last
• Read last message
• Read message
• Read last SMS text
• Read last text
• Read text
• Read SMS texts
• Inbox
• Messages received
• Incoming messages
• Texts received
• Incoming texts
• Received
• Delete all
• Delete messages
• Delete texts
• Delete
• Signal type
• Signal
• Type of signal
• Read last one
• Read last
• Read last message
• Read message
• Read last SMS text
• Read last text
• Read text
• Read SMS texts
• Message reader
• Messages
• SMS messages
• SMS texts
• SMS
• Texts
• Read
• Read again
• Call
• Dial
• Delete
• Delete message
• Reader off
• Switch off reader
• Switch reader off
• Deactivate reader
• Next
• Forward
• The one after
• Visual and acoustic
signal
• Visual and acoustic
• Acoustic
• Visual plus acoustic
• Previous
• Back
• Backwards
• The one before
• Visual signal only
• Visual
• Visual only
To read the selected message in the
inbox
To start a call to the phone number of
the message selected
To delete the call to the phone
number of the message selected
To read next message
To read previous message
To switch the message reader off;
new incoming message will not be
signalled and will not be
transmitted to the system
The arrival of a new message
will be both indicated through a
visual signal on the instrument
panel display and through an acoustic
signal (the system will sound a beep)
The arrival of a new message will only be
indicated through a visual signal on the
instrument panel display
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 51

• Media Player
• Media
• MusicEnters the MEDIA PLAYER menu
• Play
• Play music
• Play media Activates playback
• Stop
• Stop music
• Stop mediaStops playback
• Previous
• Previous track
• Previous song
• The one beforePlays previous track
• Shuffle on
• Random order on Activates random track playing
• Shuffle off
• Random order offDeactivates random track playing
• Next
• Next track
• Next song
• The one afterPlays next track
MEDIA PLAYER VOICE COMMANDS
continues➯
• Loop on
• Loop track on
• Cycle onActivates track repeat
52
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 52

53
➯continued
• Now playing
• What’s playing
• What is playing
• What’s this trackDisplays current track data
• Artists
• Artist
• Browse artists
• Albums
• Album
• Browse albumsEnters Media Player ARTISTS menu
Enters Media PlayerGENRESmenu
Enters Media Player ALBUMSmenu
• Playlists
• Playlist
• Browse playlists Enters Media PlayerPLAYLISTSmenu
• Folders
• Folder
• Browse foldersEnters Media Player FOLDERSmenu
• Loop off
• Loop track off
• Cycle offDeactivates track repeat
• Genres
• Genre
• Browse genres
• Type of music
• Styles
• Music styles
• Types
• Music types
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 53

• Autoplay on
• Autoplay media on
• Autoplay music onActivates automatic playback when connecting the USB device to the relevant port in the vehicle
• Play anything
• Play something Activates playback of all digital audio tracks
• Autoplay off
• Autoplay media off
• Autoplay music offDeactivates automatic playback when connecting the USB device to the relevant port in the vehicle
• Media settings
Enters MEDIA PLAYERmenu
➯continued
54
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 54

55
SETTINGS FUNCTION VOICE COMMANDS
• Setup
• Setup menu
• Settings
Enters the SETTINGSmenu
• Media settings
Enters the MEDIA
PLAYER menu
• Shuffle
• Random order
Shuffle on/off
• User data
Enters the USER DATAmenu
• Delete usersDeletes user data for pairing
relationships
• Add ContactsAdds contacts from mobile phone to
hands-free phone system
Nota“Push” phones only (**)
• Reset allDeletes all paired phone user data
and phonebooks/contacts and restores
default values
• Device ID
Displays the device ID
• Connection code
• Connection IDEnters the GPRS CODEmenu
• Delete phone book
Deletes the current phonebook
• Download phone bookDownloads phonebook from mobile phone to
hands-free phone system
Note“Pull” phones only (*)
• Pairing
Starts the process to create
a pairing relationship
Enters theADVANCED OPTIONSmenu
Exits the SETTINGS menu
Autoplay on/off when connecting
the USB device to the relevant
port in the vehicle
• Advanced Features
• Advanced Options
• Exit• Autoplay
• Autoplay media
• Autoplay music(*) Pull” phone means that your mobile phone supports phonebook automatic download
with Bluetooth®wireless technology, your whole phonebook will be automatically down-
loaded to the hands-free kit during phone pairing procedure.
(**) “Push” phone means that your mobile phone supports the single contact download
with Bluetooth
®wireless technology. During the pairing procedure you will be required
to send phonebook contacts from your mobile phone (your phonebook is not automati-
cally downloaded during the phone pairing procedure).
• Cycle
Cycle on/off
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 55

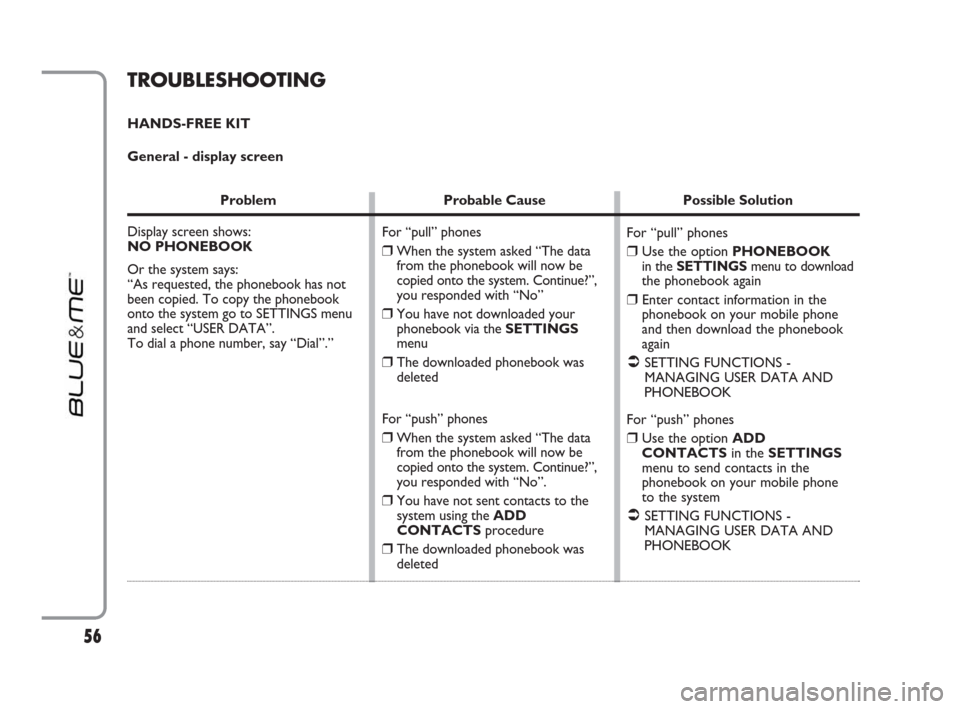

Problem Probable Cause Possible Solution
Display screen shows:
NO PHONEBOOK
Or the system says:
“As requested, the phonebook has not
been copied. To copy the phonebook
onto the system go to SETTINGS menu
and select “USER DATA”.
To dial a phone number, say “Dial”.”
For “pull” phones
❒Use the option PHONEBOOKin the SETTINGSmenu to downloadthe phonebook again
❒Enter contact information in the
phonebook on your mobile phone
and then download the phonebook
again
ÂSETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
For “push” phones
❒Use the option ADD
CONTACTSin the SETTINGS
menu to send contacts in the
phonebook on your mobile phone
to the system
ÂSETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK For “pull” phones
❒When the system asked “The data
from the phonebook will now be
copied onto the system. Continue?”,
you responded with “No”
❒You have not downloaded your
phonebook via the SETTINGS
menu
❒The downloaded phonebook was
deleted
For “push” phones
❒When the system asked “The data
from the phonebook will now be
copied onto the system. Continue?”,
you responded with “No”.
❒You have not sent contacts to the
system using the ADD
CONTACTSprocedure
❒The downloaded phonebook was
deleted
TROUBLESHOOTING
HANDS-FREE KIT
General - display screen
56
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 56

57

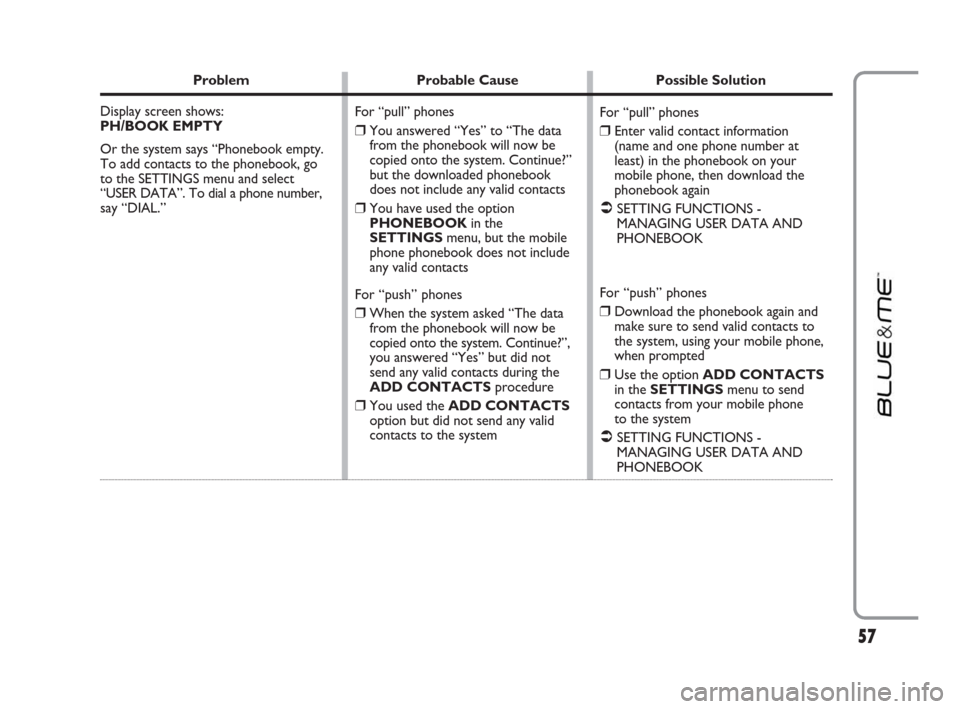

Problem Probable Cause Possible Solution
Display screen shows:
PH/BOOK EMPTY
Or the system says “Phonebook empty.
To add contacts to the phonebook, go
to the SETTINGS menu and select
“USER DATA”. To dial a phone number,
say “DIAL.”
For “pull” phones
❒Enter valid contact information
(name and one phone number at
least) in the phonebook on your
mobile phone, then download the
phonebook again
ÂSETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK
For “push” phones
❒Download the phonebook again and
make sure to send valid contacts to
the system, using your mobile phone,
when prompted
❒Use the option ADD CONTACTS
in the SETTINGSmenu to send
contacts from your mobile phone
to the system
ÂSETTING FUNCTIONS -
MANAGING USER DATA AND
PHONEBOOK For “pull” phones
❒You answered “Yes” to “The data
from the phonebook will now be
copied onto the system. Continue?”
but the downloaded phonebook
does not include any valid contacts
❒You have used the option
PHONEBOOKin the
SETTINGSmenu, but the mobile
phone phonebook does not include
any valid contacts
For “push” phones
❒When the system asked “The data
from the phonebook will now be
copied onto the system. Continue?”,
you answered “Yes” but did not
send any valid contacts during the
ADD CONTACTSprocedure
❒You used the ADD CONTACTS
option but did not send any valid
contacts to the system
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 57

Problem Probable Cause Possible Solution
Display screen shows: NO PHONE
Or the system says
“There’s no bluetooth phone connected”
Display screen shows: TEL DISCONN.
Display screen shows:PAIR. FAILED
Or the system says “Pairing failed.
Please try again”
❒Turn the paired mobile phone on
❒Make sure that your phone is paired
❒Make sure that the Bluetooth®
wireless technology connection on
your mobile phone is enabled
(“Blue&Me” ID)
❒
Make sure that the mobile phone
you paired with the system is within
range
❒Reset Blue&Me™by turning
the mobile phone off and on
❒Reset Blue&Me™by turning the
ignition key to STOPand then to
MARagain
❒Verify the correct PIN number, and
try entering it again
❒Reset the mobile phone by turning it
off and on, and then retry the pairing
procedure
ÂSETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
❒The paired mobile phone is turned
off
❒The paired mobile phone is not
within range of the system
(the mobile phone should be located
within approximately 10 m of the
system)
❒Bluetooth®wireless technology
connection has been disabled on
your mobile phone
(“Blue&Me” ID)
❒
A technical error occurred
with the mobile phone
Bluetooth
®wireless technology
capabilities
❒
During an ongoing phone
conversation,the mobile phone
was taken out of the system range
❒A technical error occurred during
the pairing procedure
58
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 58

59
Problem Probable Cause Possible Solution
Display screen shows: PAIR. FAILED
Or the system says “Bluetooth pairing
timed out. Please try again later.”
Display screen shows:
PRIVATE NUMBER
Display screen shows: ONLY AT REST
Or the system says:
“This function is only available
when the vehicle is stationary”
Retry the pairing procedure. During the
PIN entering step, verify that the PIN
number you are entering on the mobile
phone is the same number that
is shown
on the instrument panel display
ÂSETTING FUNCTIONS -
PAIRING YOUR MOBILE PHONE
Enter a contact in your mobile
phonebook for the incoming call,
and then download your phonebook/
contact again
In this case, nothing can be done and
the message will always appear
Stop your vehicle and attempt to
perform the function again manually,
or continue driving and perform the
function using the voice recognition
system After three minutes, each attempt to
enter the PIN number fails since
pairing timed out
❒The caller is not recognized as a
name stored in the phonebook,
and the paired mobile phone does
not have a called ID feature
❒The caller has blocked caller ID
to prevent the system from
displaying the caller’s name
and/or phone number
Even occasional short viewings of the
vehicle display may be hazardous if
your attention has been diverted away
from your driving tasks. Certain
Blue&Me™functions, which require
the user to give attention to the
vehicle display, are only available when
the vehicle is stopped
603_97_223 DUCATO BLUE&ME PACK8.2 GB 1ed 5-08-2009 15:36 Pagina 59
