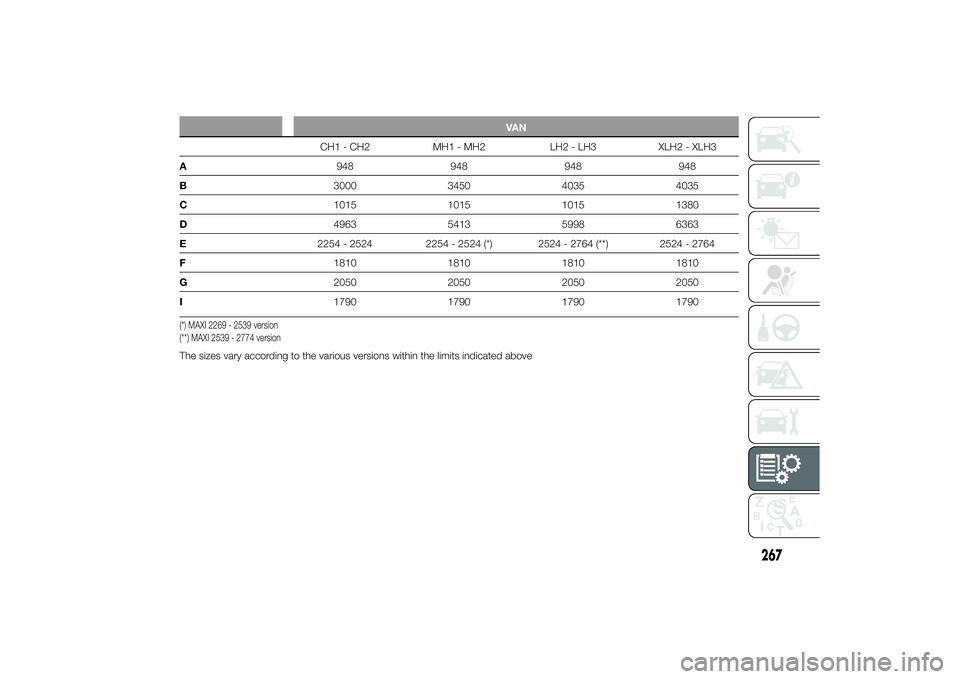

VAN
CH1 - CH2 MH1 - MH2 LH2 - LH3 XLH2 - XLH3
A948 948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 - 2524 2254 - 2524 (*) 2524 - 2764 (**) 2524 - 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
(*) MAXI 2269 - 2539 version
(**) MAXI 2539 - 2774 versionThe sizes vary according to the various versions within the limits indicated above
267

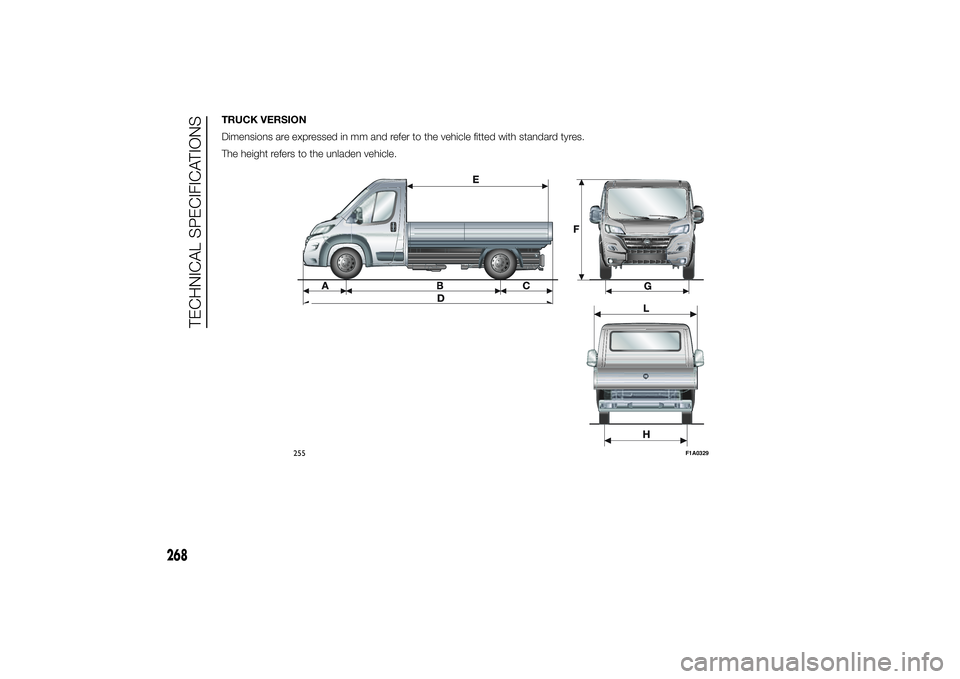

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
255
F1A0329
268
TECHNICAL SPECIFICATIONS

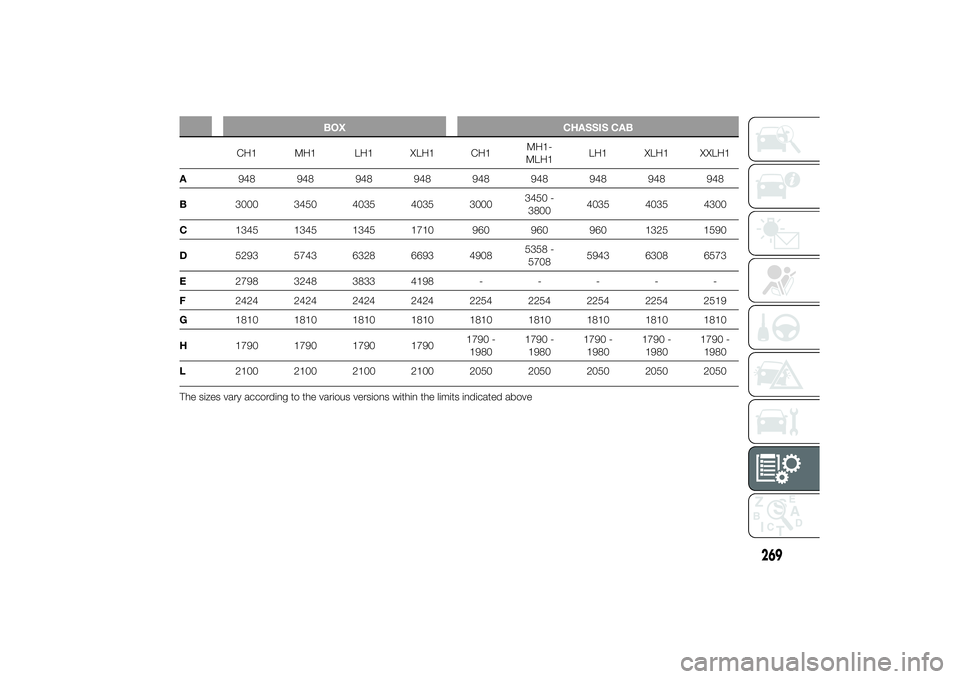

BOX CHASSIS CAB
CH1 MH1 LH1 XLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A948 948 948 948 948 948 948 948 948
B3000 3450 4035 4035 30003450 -
38004035 4035 4300
C1345 1345 1345 1710 960 960 960 1325 1590
D5293 5743 6328 6693 49085358 -
57085943 6308 6573
E2798 3248 3833 4198-----
F2424 2424 2424 2424 2254 2254 2254 2254 2519
G1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 1790 1790 17901790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2100 2100 2100 2100 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
269

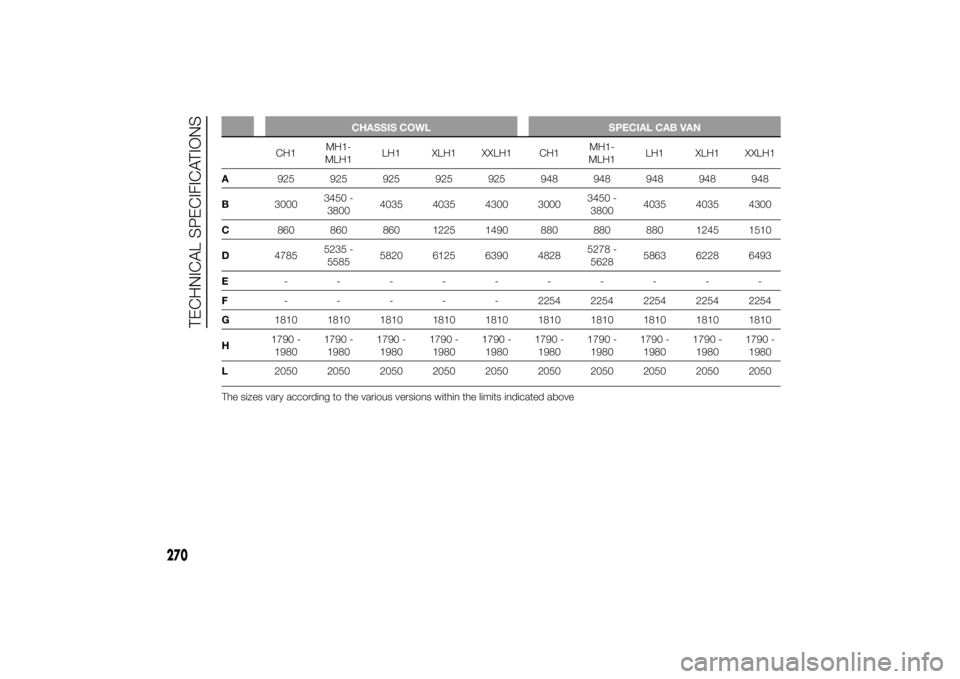

CHASSIS COWL SPECIAL CAB VAN
CH1MH1-
MLH1LH1 XLH1 XXLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A925 925 925 925 925 948 948 948 948 948
B30003450 -
38004035 4035 4300 30003450 -
38004035 4035 4300
C860 860 860 1225 1490 880 880 880 1245 1510
D47855235 -
55855820 6125 6390 48285278 -
56285863 6228 6493
E----------
F-----2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2050 2050 2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
270
TECHNICAL SPECIFICATIONS

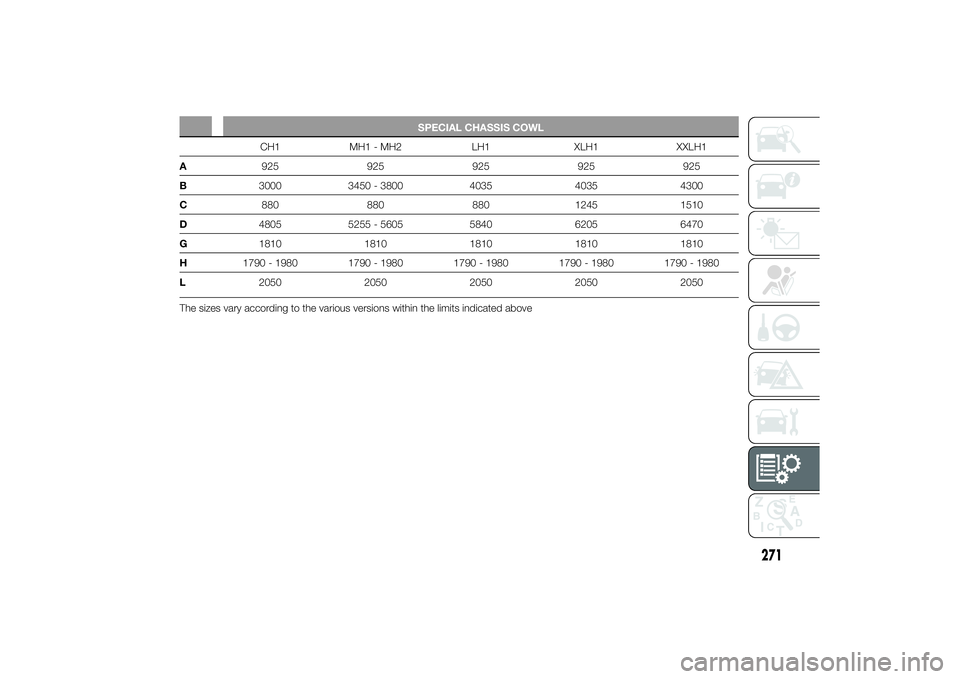

SPECIAL CHASSIS COWL
CH1 MH1 - MH2 LH1 XLH1 XXLH1
A925 925 925 925 925
B3000 3450 - 3800 4035 4035 4300
C880 880 880 1245 1510
D4805 5255 - 5605 5840 6205 6470
G1810 1810 1810 1810 1810
H1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980
L2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
271

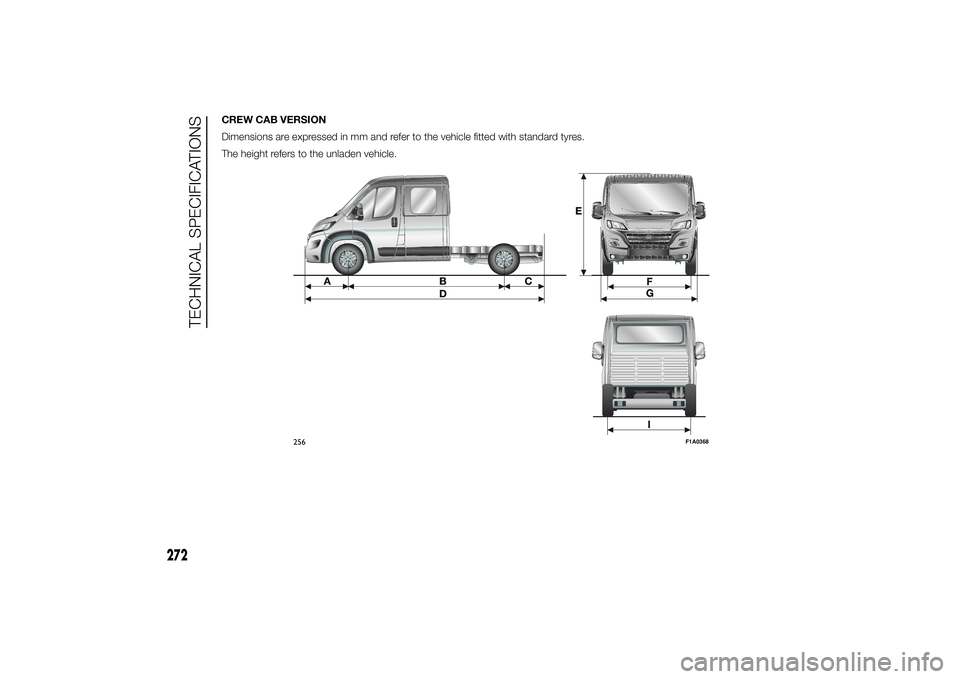

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
256
F1A0368
272
TECHNICAL SPECIFICATIONS

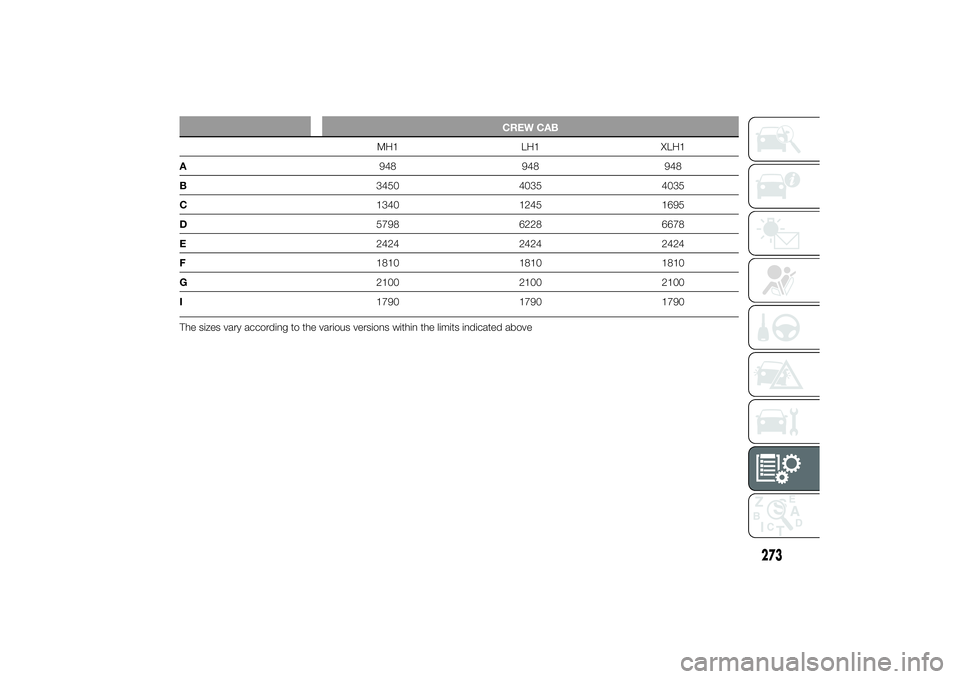

CREW CAB
MH1 LH1 XLH1
A948 948 948
B3450 4035 4035
C1340 1245 1695
D5798 6228 6678
E2424 2424 2424
F1810 1810 1810
G2100 2100 2100
I1790 1790 1790
The sizes vary according to the various versions within the limits indicated above
273

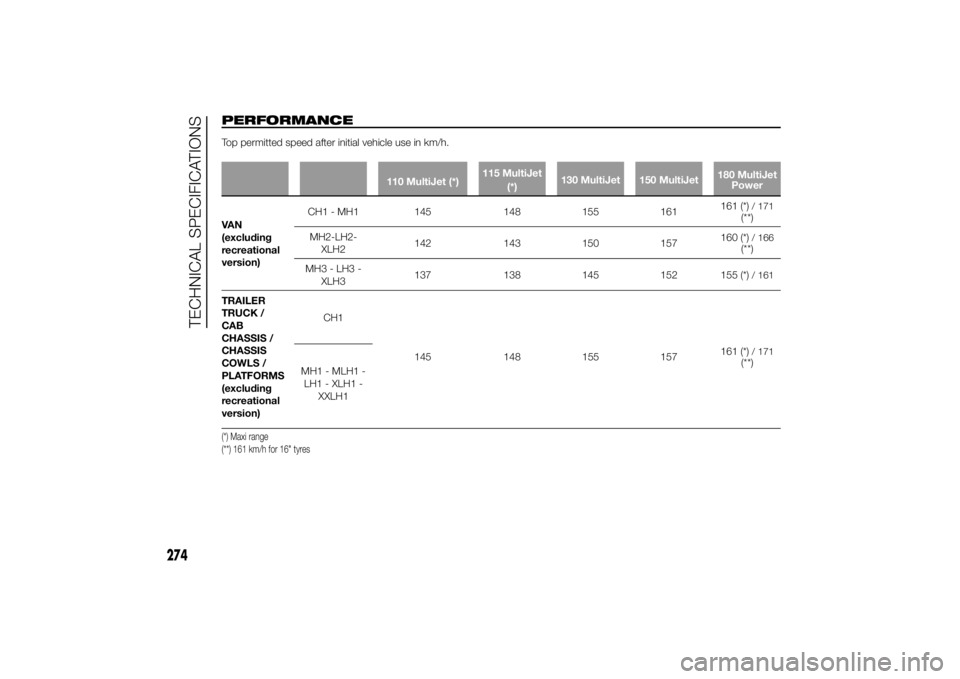

PERFORMANCETop permitted speed after initial vehicle use in km/h.
110 MultiJet (*)115 MultiJet
(*)130 MultiJet 150 MultiJet180 MultiJet
Power
VAN
(excluding
recreational
version)CH1 - MH1 145 148 155 161161 (*)
/ 171(**)
MH2-LH2-
XLH2142 143 150 157160 (*)/ 166(**)
MH3 - LH3 -
XLH3137 138 145 152 155 (*)/ 161
TRAILER
TRUCK /
CAB
CHASSIS /
CHASSIS
COWLS /
PLATFORMS
(excluding
recreational
version)CH1
145 148 155 157161 (*)
/ 171(**)
MH1 - MLH1 -
LH1 - XLH1 -
XXLH1
(*) Maxi range
(**) 161 km/h for 16" tyres
274
TECHNICAL SPECIFICATIONS

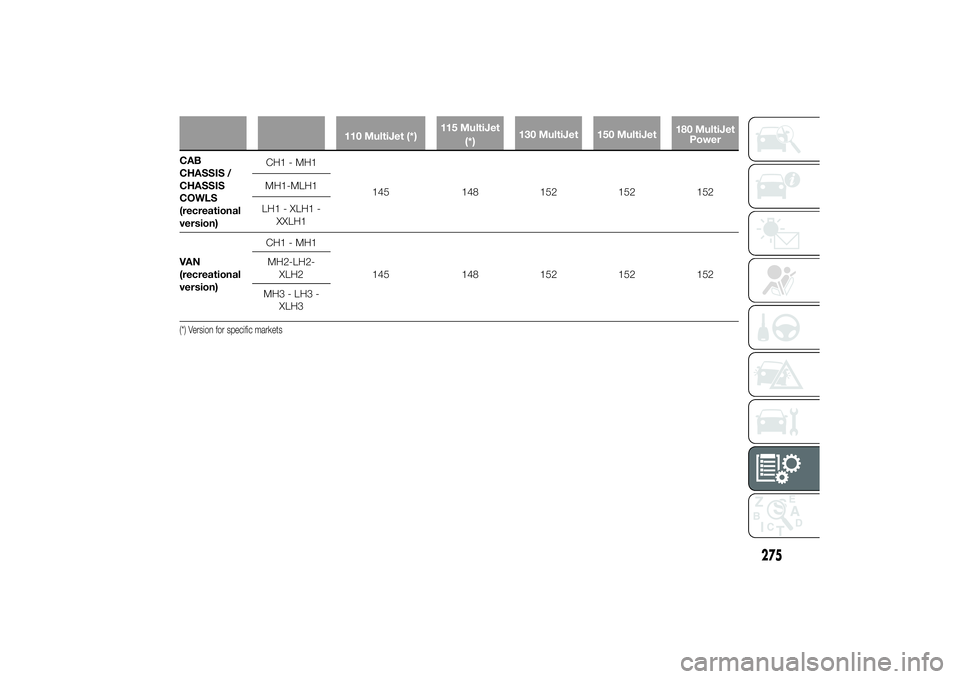

110 MultiJet (*)115 MultiJet
(*)130 MultiJet 150 MultiJet180 MultiJet
Power
CAB
CHASSIS /
CHASSIS
COWLS
(recreational
version)CH1 - MH1
145 148 152 152 152 MH1-MLH1
LH1 - XLH1 -
XXLH1
VAN
(recreational
version)CH1 - MH1
145 148 152 152 152 MH2-LH2-
XLH2
MH3 - LH3 -
XLH3(*) Version for specific markets
275

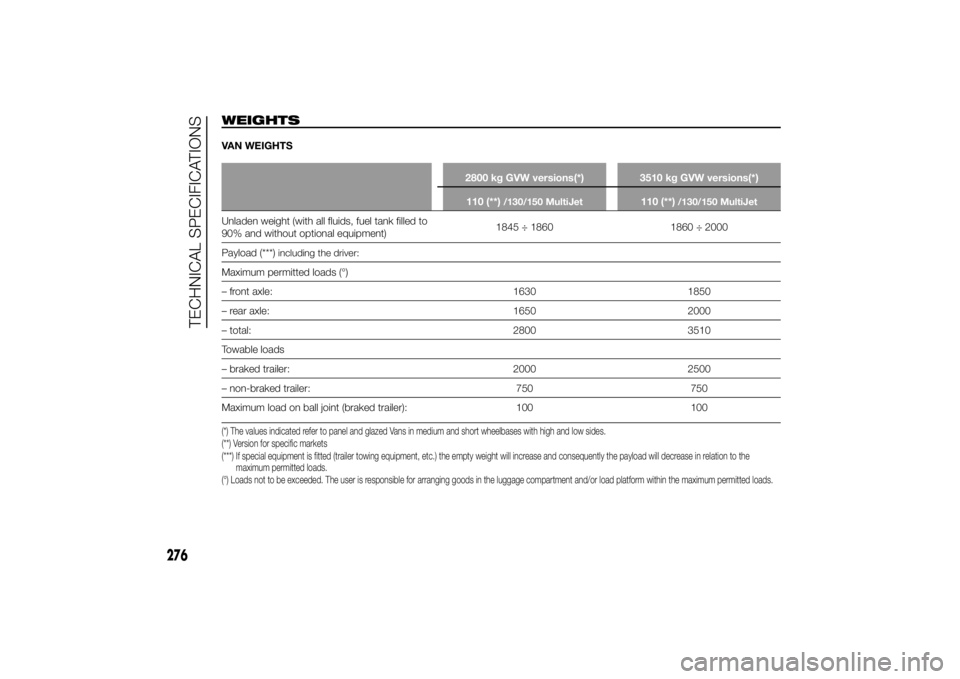

WEIGHTSVAN WEIGHTS
2800 kg GVW versions(*) 3510 kg GVW versions(*)
110 (**)
/130/150 MultiJet
110 (**)
/130/150 MultiJet
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 1860 1860 ÷ 2000
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 1630 1850
– rear axle: 1650 2000
– total: 2800 3510
Towable loads
– braked trailer: 2000 2500
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
