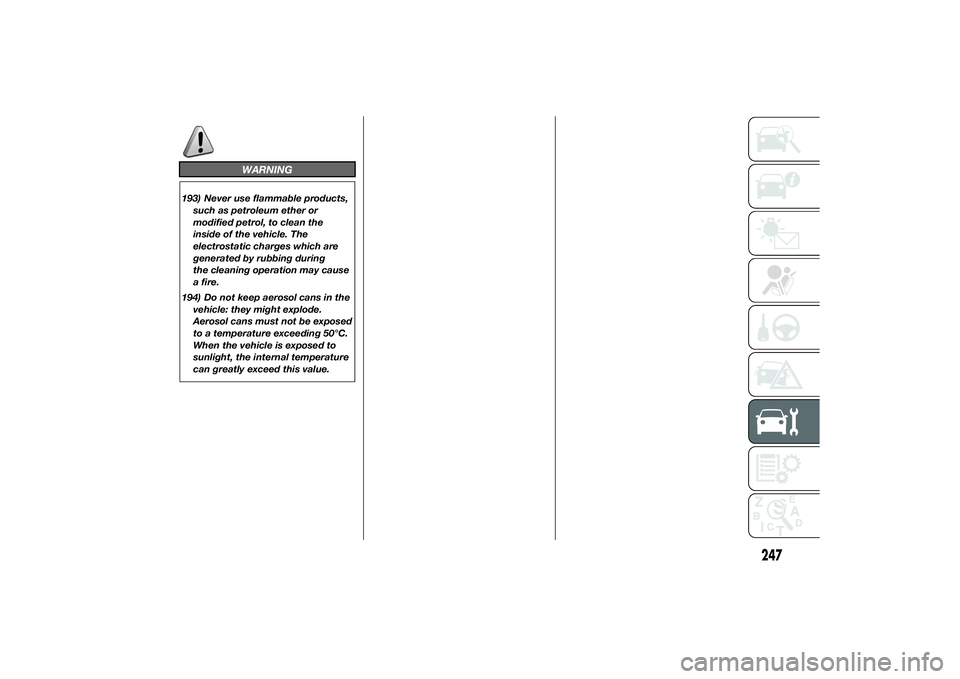

WARNING
193) Never use flammable products,
such as petroleum ether or
modified petrol, to clean the
inside of the vehicle. The
electrostatic charges which are
generated by rubbing during
the cleaning operation may cause
a fire.
194) Do not keep aerosol cans in the
vehicle: they might explode.
Aerosol cans must not be exposed
to a temperature exceeding 50°C.
When the vehicle is exposed to
sunlight, the internal temperature
can greatly exceed this value.
247

248

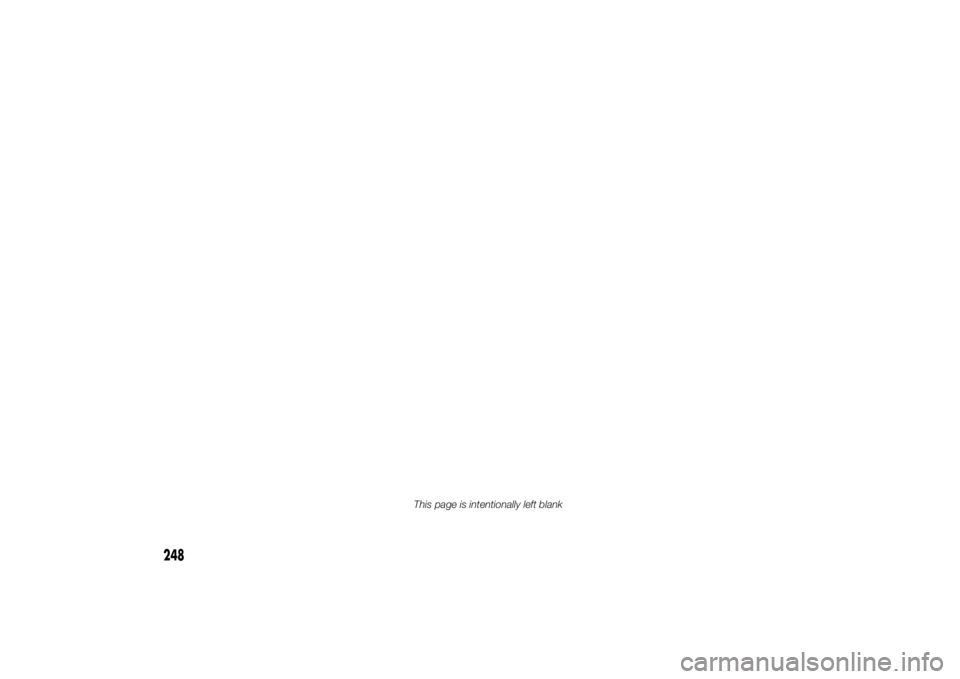

This page is intentionally left blank

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................250
ENGINE CODES - BODYWORK
VERSION ........................................252
ENGINE ..........................................254
POWER SUPPLY ............................255
TRANSMISSION .............................256
SUSPENSION .................................257
BRAKES .........................................258
STEERING ......................................259
WHEELS .........................................260
DIMENSIONS ..................................264
PERFORMANCE .............................274
WEIGHTS........................................276
SUPPLIES .......................................316
FLUIDS AND LUBRICANTS ............318
FUEL CONSUMPTION ....................321
CO2 EMISSIONS ............................332
OFFICIAL TYPE APPROVALS .........342
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................346
249

IDENTIFICATION
DATAIt is advisable to take note of the
identification codes. Identification codes
are printed and shown on the plates
as indicated below, together with the
positions:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
V.I.N. PLATE
This plate is fitted to the engine
compartment front crossmember and
contains the following data fig. 247:BType-approval number.CVehicle type identification code.DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.FMaximum authorised weight of
vehicle fully laden plus trailer.GMaximum permitted weight on first
(front) axle.HMaximum authorised weight on
second axle (rear).IEngine type.LBodywork version code.M
Spare parts number.
NCorrect value of smoke coefficient
(for diesel engines)
CHASSIS MARKING
They are located respectively: one on
the passenger side interior wheel arch,
A fig. 248, and the other on the low
part of the windscreen fig. 249.The marking includes:
❒type of vehicle;
❒chassis serial number.
247
F1A0243
248
F1A0244
249
F1A0365
250
TECHNICAL SPECIFICATIONS

BColour name.
CFiat colour code.
DRespray and touch up colour code.ENGINE MARKING
Engine marking is stamped on the
cylinder block and includes the model
and the chassis serial number.
251

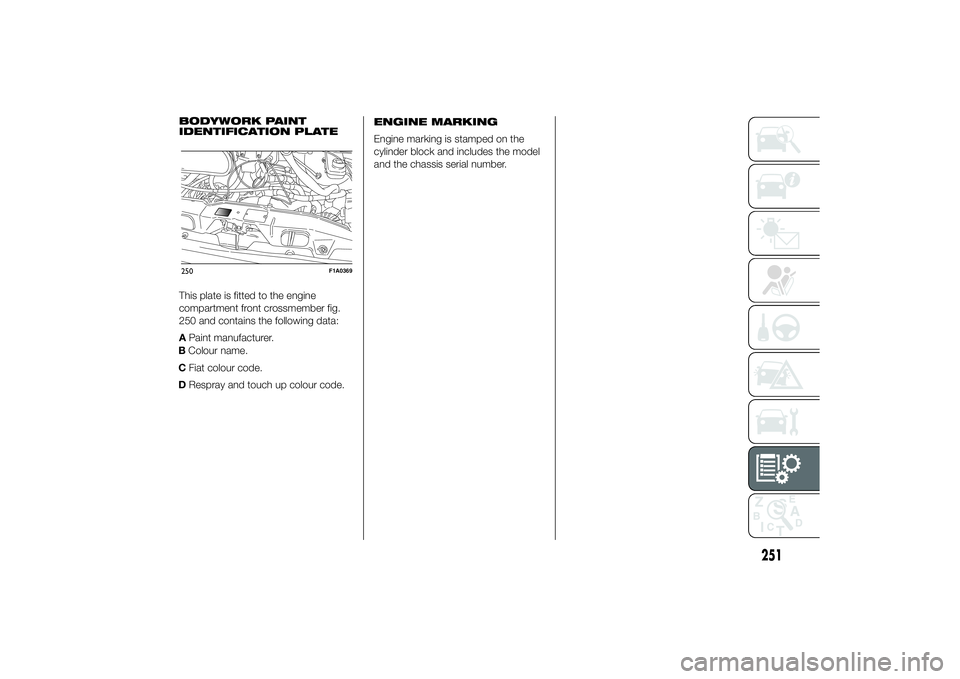

BODYWORK PAINT
IDENTIFICATION PLATE
This plate is fitted to the engine
compartment front crossmember fig.
250 and contains the following data:
APaint manufacturer.250
F1A0369

ENGINE CODES - BODYWORK VERSION
.
VersionEngine code110 MultiJet(*) F1AE3481G
115 MultiJet(*)250A1000
130 MultiJetF1AE3481D
150 MultiJetF1AE3481E
180 MultiJet PowerF1CE3481E(*)Version for specific markets
252
TECHNICAL SPECIFICATIONS

PPanoramaR6/9 seater crew cab
253
There is an example of a bodywork
version code below by way of
explanation with a key which is valid for
all bodywork version codes.
Example:
250AMMFADX250
MODEL
AGVWM
ENGINE
M
ENGINE TRANSMISSION/AXLES
FBODYWORKAWHEELBASERH
VERSION
GVW
A3000 kgB3300 kgC3500 kg
D3500 kg HEAVYE3995/4005/4250 kg HEAVYF2800 kgG3650 kgH3510 kg HEAVYL3510 kgM
4400 kg HEAVY
ENGINE
M
130 MultiJet
N150 MultiJetP180 MultiJet PowerR115 MultiJetV110 MultiJet
TRANSMISSIONM
Manual gearbox
AAutomatic transmissionWHEELBASE
AShort wheelbaseBMedium wheelbaseCLong wheelbaseDMedium-long wheelbaseUAll wheelbases (incomplete vehicles)
BODYWORKACab chassisBChassis without cabCPlatform chassis cabDBox truckEPrimary school busFVa nGLong cab trailerHLong cab chassisM
Minibus

ENGINEGeneral information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
PowerType code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
Cycle Diesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)(*)Version for specific markets
254
TECHNICAL SPECIFICATIONS

POWER SUPPLYVersions Power supplyAll Common Rail direct injection
195)
WARNING
195) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
255

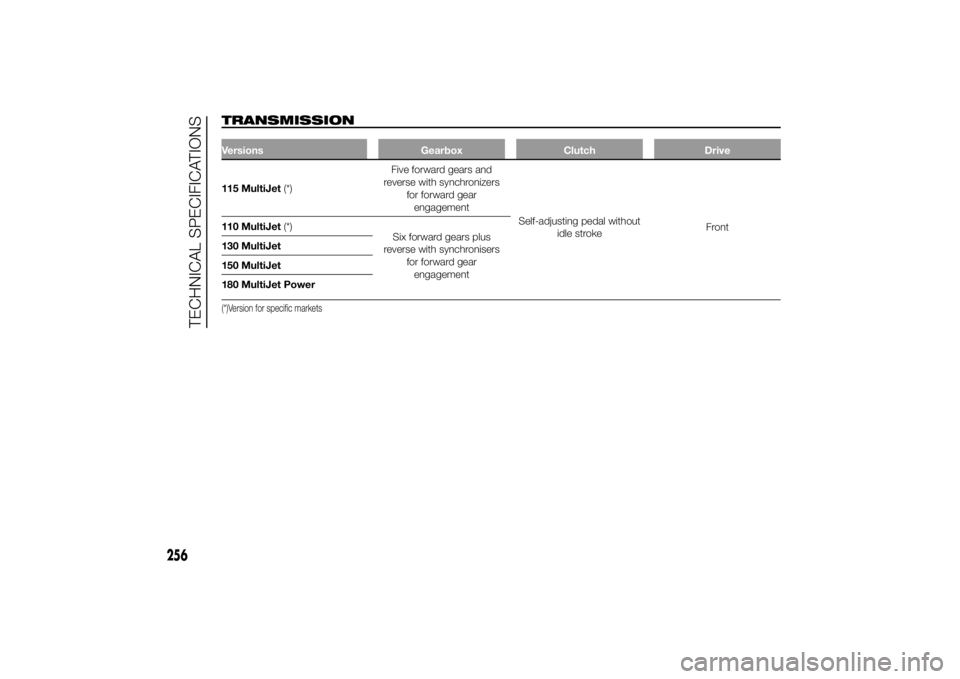

TRANSMISSIONVersions Gearbox Clutch Drive115 MultiJet(*)Five forward gears and
reverse with synchronizers
for forward gear
engagement
Self-adjusting pedal without
idle strokeFront 110 MultiJet(*)
Six forward gears plus
reverse with synchronisers
for forward gear
engagement 130 MultiJet
150 MultiJet
180 MultiJet Power(*)Version for specific markets
256
