key FIAT FIORINO 2007 Owner handbook (in English)

51
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WINDOW WASHING
The right stalk fig. 51controls windscreen
wiper/washer and rear heated window
wiper/washer operation (where provid-
ed).
WINDSCREEN WIPER\WASHER
The device can work only when the igni-
tion key is on MAR.
The right lever can take four different po-
sitions:
O
O
windscreen wiper off;
≤intermittent;
≥continuous slow;
¥continuous fast.
fig. 51F0T0158m
Move the lever to position A-fig. 51(un-
stable) to limit operation during the time
when the lever is held in this position. The
lever will return to position and the wiper
will be automatically stopped when re-
leased.
With the knurled ring in position
≤the
windscreen wiper will automatically adapt
to the speed of the vehicle.
With windscreen wiper on and reverse
gear engaged, the rear window wiper is
automatically activated.Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If the issue persists,
contact the Fiat Dealership.

52
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
REAR WINDOW WIPER/
WASHER (where provided)
The device can work only when the igni-
tion key is on MAR.
Activation
Turn the knurled ring to
'to operate the
rear window wiper as follows:
❒intermittent operation if the wind-
screen wiper is off;
❒synchronised with the windscreen
wiper (but with half stroke frequency);
❒continuous operation with reverse gear
engaged and windscreen wiper on.
With windscreen wiper on and reverse
gear engaged, rear window wiping will be
continuous.
Pushing the stalk towards the dashboard
(unstable position) will activate the rear
window washer. Keeping the stalk pushed
for over half a second will also activate the
rear window wiper. Releasing the stalk will
activate the smart washing function as de-
scribed for the windscreen wiper.Deactivation
Operation will stop when releasing the
stalk.
Do not use the rear window
wiper to remove layers of
snow or ice from the rear win-
dow. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If rear window wiper
operation is not reset, contact the
Fiat Dealership.
“Smart washing” function
Pull the stalk towards the steering wheel
(unstable position) to operate the wind-
screen washer jet.
Keeping the stalk pulled for more than half
a second, with just one movement it is
possible to operate the washer jet and the
wiper at the same time.
The wiper stops working three strokes af-
ter releasing the stalk.
A further stroke after approx. 6 seconds
completes the wiping cycle.

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PORTABLE LIGHT
(where provided)
This light is installed on the right-hand side
of the loading compartment. It is used as
both a fixed light and a portable electric
torch.
To use the portable torch A-fig. 56first
press button Bto extract it in the direc-
tion indicated by the arrow. Then, use
switch Cto switch the light on/off.
When the portable light is secured to its
stationary support, the battery of the elec-
tric torch is automatically recharged.
Portable light recharge when the vehicle
is not running and the ignition key is either
in the STOPposition or removed must
last max. 15 minutes.
fig. 56
AUTO
B
A
C
F0T0115m
SWITCHING ON/OFF
OF THE CEILING LIGHTS
Cargo versions
The ceiling lights turn on/off as described
below.
Ceiling light switch-on without central locking
Front ceiling lights: switch on when front
doors are opened.
Rear ceiling lights: are switched on man-
ually.
Portable light (as an alternative to rear
ceiling light): stationary part is switched on
manually.
Ceiling light switch-off with central locking
Front and rear ceiling lights (also with
portable light option): switch off (with fad-
ing effect) when side sliding doors, rear
swing-doors or front doors are closed.
Option with independent loading compart-
ment
Front ceiling lights: switch off (with fad-
ing effect) when front doors are closed.
Rear ceiling lights (also with portable light
option): switch off (with fading effect)
when rear doors are closed.Combi versions
The ceiling lights turn on/off as described
below.
Ceiling light switch-on without central locking
Front ceiling lights: switch on when front
doors are opened.
Rear ceiling lights: are switched on man-
ually.
Ceiling light switch-off with central locking
Front and rear ceiling lights (also with
portable light option): switch off (with fad-
ing effect) when side sliding doors, rear
swing-doors or front doors are closed.

56
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CONTROLS
EMERGENCY LIGHTS
Emergency lights switch on by pressing
switch A-fig. 57, regardless of the posi-
tion of the ignition key.
When the device is on, the switch flashes,
and warning lights
Îand ¥on the panel
come on.
Press switch Aagain to turn the lights off.
IMPORTANT The use of emergency lights
is governed by the Highway Code of the
country where you are driving. Keep to
the rules.FOG LIGHTS
(where provided) fig. 58
To turn front fog lights on, press button
5. To activate these lights it is necessary
to have the side/taillights switched on.
The warning light switches on
5on the
instrument panel.
Press the button again to turn the lights
off.REAR FOG LIGHTS fig. 58
The rear fog lights switch on, with low
beams or front fog lights on, by pressing
the button 4.
The warning light switches on 4on the
instrument panel.
Press the button again or switch off the
dipped beams and/or front fog lights
(where provided) to turn the rear fog
lights off.fig. 57
A
F0T0049mfig. 58F0T0036m

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒switch off of fuel supply with conse-
quent engine switch off;
❒automatic door unlocking;
❒switch on of all lights inside the vehicle.
When the system is triggered, the mes-
sage “Fuel cut-off tripped - see handbook”
is displayed on some versions.
Carefully check the vehicle for fuel leaks,
for instance in the engine compartment
below the vehicle or near the fuel tank
area.
After the collision, position ignition key on
STOPto avoid battery draining.To reset vehicle operation, follow this
procedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
POWER OUTLET (12V)
The power outlet is positioned on the
central console fig. 62and is only opera-
tional when the ignition key is turned to
MAR.
If the smokers kit is supplied with the ve-
hicle, the outlet is replaced with a cigar
lighter (see next paragraph).CIGAR LIGHTER
(where provided)
The cigar lighter is positioned on the cen-
tral console. Press button A-fig. 63to en-
able the cigar lighter after turning the ig-
nition key to MAR.
After a few seconds the button goes back
to its initial position, and the cigar lighter
is ready for use.
IMPORTANT Always check that the cig-
ar lighter has been disabled.
fig. 62F0T0075mfig. 63
A
F0T0118m
The cigar lighter reaches
high temperatures. Handle
with care. The device must not be
used by children: risk of fire and/or
burns.
WARNING
fig. 64F0T0117m
ASHTRAY fig. 64
(where provided)
The ashtray consists of a removable plas-
tic box with spring loaded opening that
can be fitted into the cup/can recesses on
the central console.
Do not use the ashtray as a
paper bin: paper may go on
fire when contacting cigarette butts.
WARNING

63
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 72FF0T0137m
Opening/closing from outside
To open: turn the metal insert of the key
in the lock and pull handle A-fig. 70as
illustrated by the arrow. Then, let the
door slide to the back of the vehicle until
the latch stopping the door at the end of
its stroke.
To close: use handle A-fig. 70and push
the door to the front of the vehicle. Turn
the key metal insert in position as if to lock
the door.Opening/closing from inside
(Cargo versions)
To open: pull the lever A-fig. 72and let
the door slide to the back of the vehicle un-
til the latch stops it.
To close: close the door letting it slide to
the front of the vehicle.
fig. 70F0T0136mfig. 71
A
F0T0197m
Opening/closing from inside
(Combi versions)
To open: press the device A-fig. 71to
release the door. Then, pull the lever
A-fig. 72and let the door slide to the
back of the vehicle until the latch stops it.
To close: press the device A-fig. 71to
release the door and let it slide to the
front of the vehicle.

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

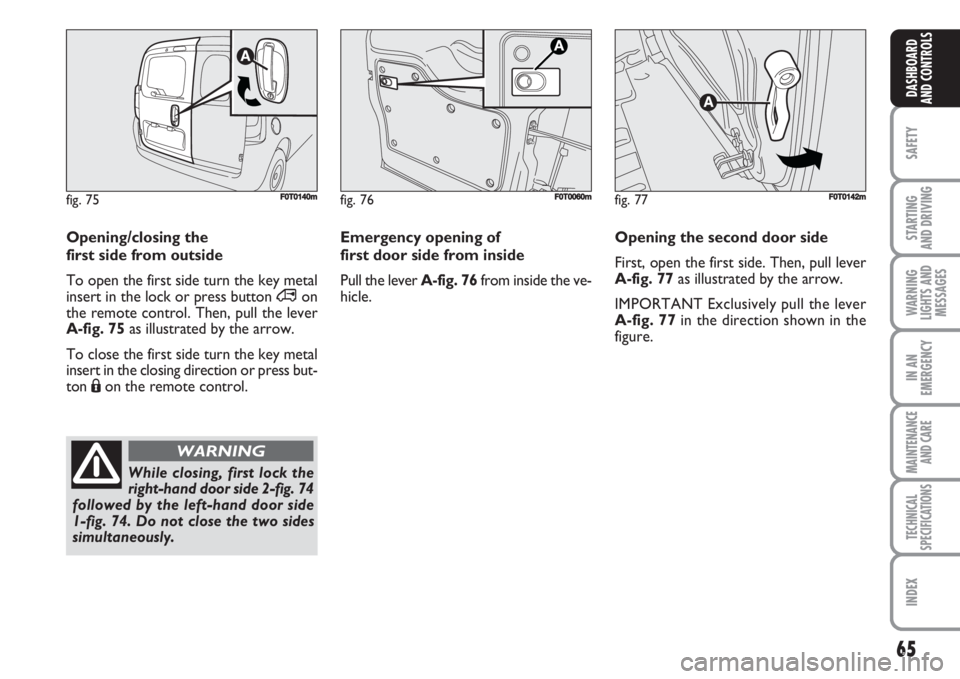

Emergency opening of
first door side from inside
Pull the lever A-fig. 76from inside the ve-
hicle.Opening the second door side
First, open the first side. Then, pull lever
A-fig. 77 as illustrated by the arrow.
IMPORTANT Exclusively pull the lever
A-fig. 77in the direction shown in the
figure.
fig. 76F0T0060mfig. 77F0T0142m
Opening/closing the
first side from outside
To open the first side turn the key metal
insert in the lock or press button ∞on
the remote control. Then, pull the lever
A-fig. 75as illustrated by the arrow.
To close the first side turn the key metal
insert in the closing direction or press but-
ton Áon the remote control.
fig. 75F0T0140m
While closing, first lock the
right-hand door side 2-fig. 74
followed by the left-hand door side
1-fig. 74. Do not close the two sides
simultaneously.
WARNING

66
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WINDOW WINDERS
FRONT POWER
WINDOWS (where provided)
Buttons fig. 78have been provided on the
driver’s door panel to control the follow-
ing functions with the ignition turned to
MAR:
A:opening/closing of left-hand window;
B:opening/closing of right-hand window.
Press buttons Aor Bto open/close the
desired window.
When one of these buttons is pressed
shortly, the window “jogs”; when pressed
for long, continuous automatic window
lifting or lowering is engaged. The window
stops in the required position when but-
ton Aor Bis pressed again.
The power windows are fitted with a safe-
ty system (where provided) that detects
the presence of an obstacle during win-
dow closing and cuts in by stopping and
reversing the window stroke.
IMPORTANT If the anti-crush function is
enabled for 5 times within 1 minute, the
system automatically switches to “recov-
ery” mode (self-protection). This condi-
tion is highlighted by upward jogging of the
window while closing.In this case, it is necessary to carry out the
system restore procedure as follows:
❒open the windows;
or
❒turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation automat-
ically.
IMPORTANT With ignition key in STOP
position or removed, the power windows
remain activated for about 2 minutes and
are deactivated immediately as soon as a
door is opened.
fig. 78F0T0044m
Incorrect use of the power
windows may be dangerous.
Before operation, always check that
no passenger is exposed to the risk of
being injured directly by the moving
window or by objects getting caught
in or dragged by the window.
WARNING
When leaving the vehicle, al-
ways remove the ignition key
to avoid the risk of injury due to ac-
cidental operation of the power win-
dows.
WARNING
FRONT MANUAL
WINDOW WINDERS
Some versions feature manual window
winders.
To open/close, operate the handle.

73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEADLIGHTS
DIRECTING THE BEAM
Correct direction of the headlights is es-
sential for the comfort and safety of the
driver and the other road users. To en-
sure the best visibility conditions during
travel with the headlights on the vehicle
must have beams aimed correctly. Con-
tact the Fiat Dealership to have the head-
lights checked and properly adjusted.
HEADLIGHT AIMING DEVICE
This device works with the key at MAR
and the dipped beam headlights on.
The vehicle slants backwards when it is
loaded, raising the beam. The beams must
therefore be directed again in this case.Headlight aiming device regulation
To adjust, press buttons Òand
fig. 95
on the control panel.
The display located on the instrument pan-
el provides a visual indication of the posi-
tions during adjustment operations.
Position 0 - one or two passengers on
front seats.
Position 1 - five passengers.
Position 2 - five passengers + loaded
boot.
Position 3 - driver + maximum admitted
cargo in the boot.
IMPORTANT Check beam aiming when-
ever the weight of the load carried
changes.FOG LIGHT AIMING DEVICE
(where provided)
Contact the Fiat Dealership to have the
fog lights checked and properly adjusted.
REGULATING THE BEAMS
ABROAD
Dipped beams factory adjustment depends
on the country where the vehicle is pur-
chased. In countries driving on the left, the
beams are aimed by affixing a purposeful-
ly studied adhesive film in order not to
dazzle the vehicles travelling in the oppo-
site direction. This adhesive film is pro-
vided in Lineaccessori Fiat and is available
at the Fiat Dealership.
fig. 95F0T0037m
