technical specifications FIAT FIORINO 2010 Owner handbook (in English)

144
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

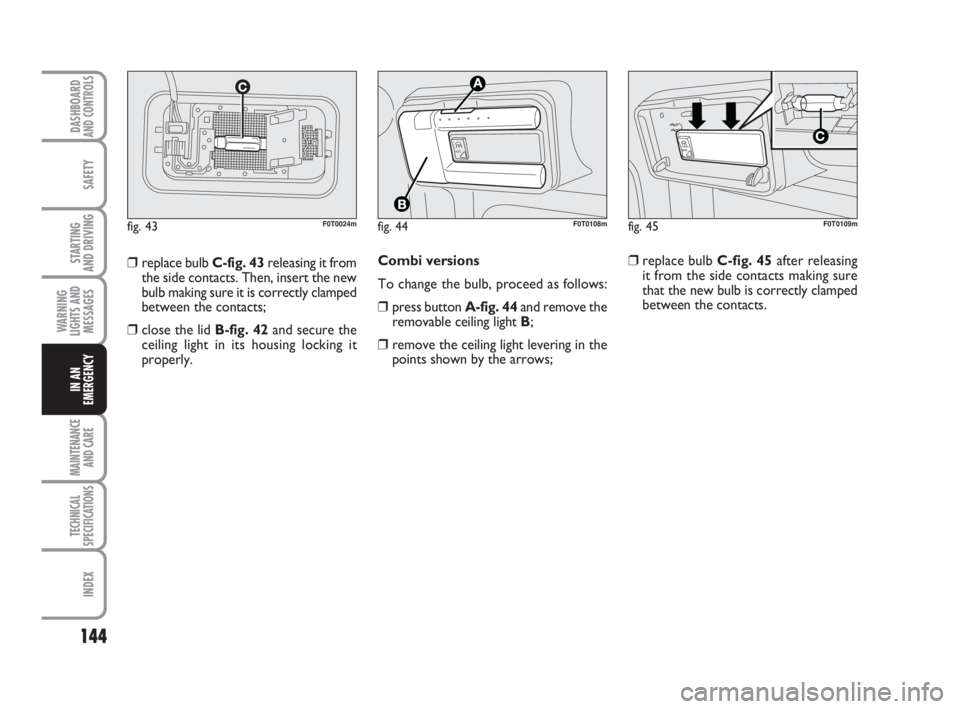

Combi versions
To change the bulb, proceed as follows:
❒press button A-fig. 44and remove the
removable ceiling light B;
❒remove the ceiling light levering in the
points shown by the arrows; ❒replace bulb C-fig. 43releasing it from
the side contacts. Then, insert the new
bulb making sure it is correctly clamped
between the contacts;
❒close the lid B-fig. 42and secure the
ceiling light in its housing locking it
properly.
fig. 44
A
U
T
O
F0T0108mfig. 45
A
U
T
O
F0T0109mfig. 43F0T0024m
❒replace bulb C-fig. 45after releasing
it from the side contacts making sure
that the new bulb is correctly clamped
between the contacts.
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:33 Pagina 144

145
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

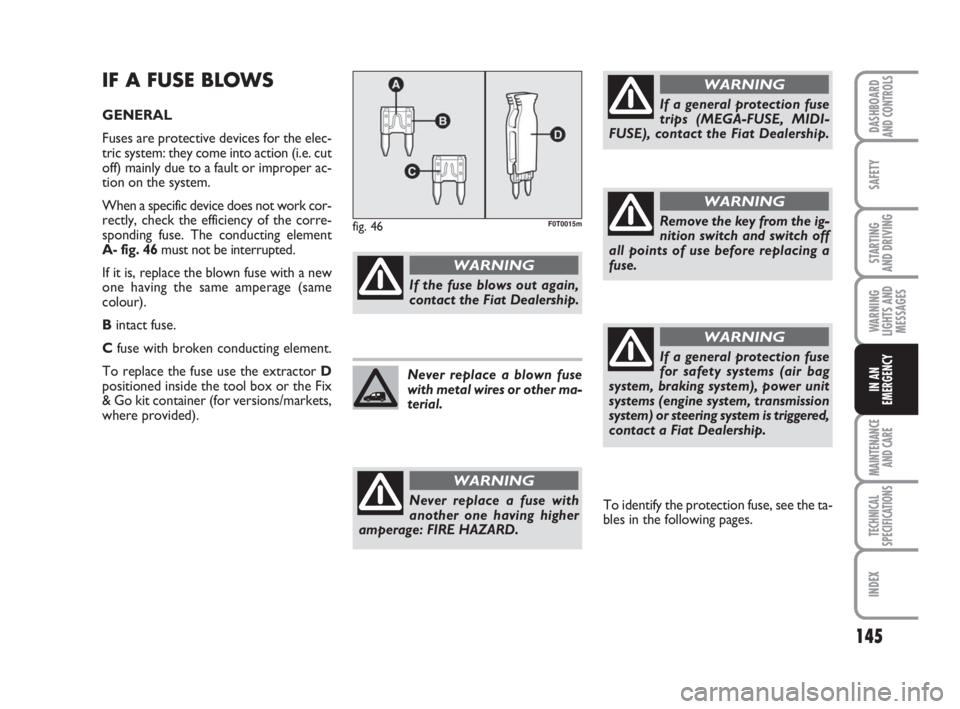

IF A FUSE BLOWS
GENERAL
Fuses are protective devices for the elec-
tric system: they come into action (i.e. cut
off) mainly due to a fault or improper ac-
tion on the system.
When a specific device does not work cor-
rectly, check the efficiency of the corre-
sponding fuse. The conducting element
A- fig. 46must not be interrupted.
If it is, replace the blown fuse with a new
one having the same amperage (same
colour).
Bintact fuse.
Cfuse with broken conducting element.
To replace the fuse use the extractor D
positioned inside the tool box or the Fix
& Go kit container (for versions/markets,
where provided).
If the fuse blows out again,
contact the Fiat Dealership.
WARNING
Never replace a fuse with
another one having higher
amperage: FIRE HAZARD.
WARNING
If a general protection fuse
trips (MEGA-FUSE, MIDI-
FUSE), contact the Fiat Dealership.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
Never replace a blown fuse
with metal wires or other ma-
terial.
fig. 46F0T0015m
To identify the protection fuse, see the ta-
bles in the following pages.
Remove the key from the ig-
nition switch and switch off
all points of use before replacing a
fuse.
WARNING
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:33 Pagina 145

146
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
FUSES INSTALLED ON ENGINE
WIRED BOX
The fuse box is positioned on the right-
hand side of the engine.Removing the lid of the fuse box
Proceed as follows:
❒remove the lid A-fig. 47protecting the
positive pole of the battery by pulling
it up;
❒use the fin A-fig. 48to remove the fuse
box protection lid B;
❒move the lid towards the headlight by
turning it anticlockwise (as shown by
the arrow). Then, remove it, fig. 49.
❒The fuse central unit is now accessible,
fig. 50.
fig. 47F0T0171mfig. 48F0T0172m
fig. 49F0T0173m
If you need to wash the en-
gine compartment, take care
not to directly hit the engine
compartment control unit
with the water jet.
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:33 Pagina 146

147
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

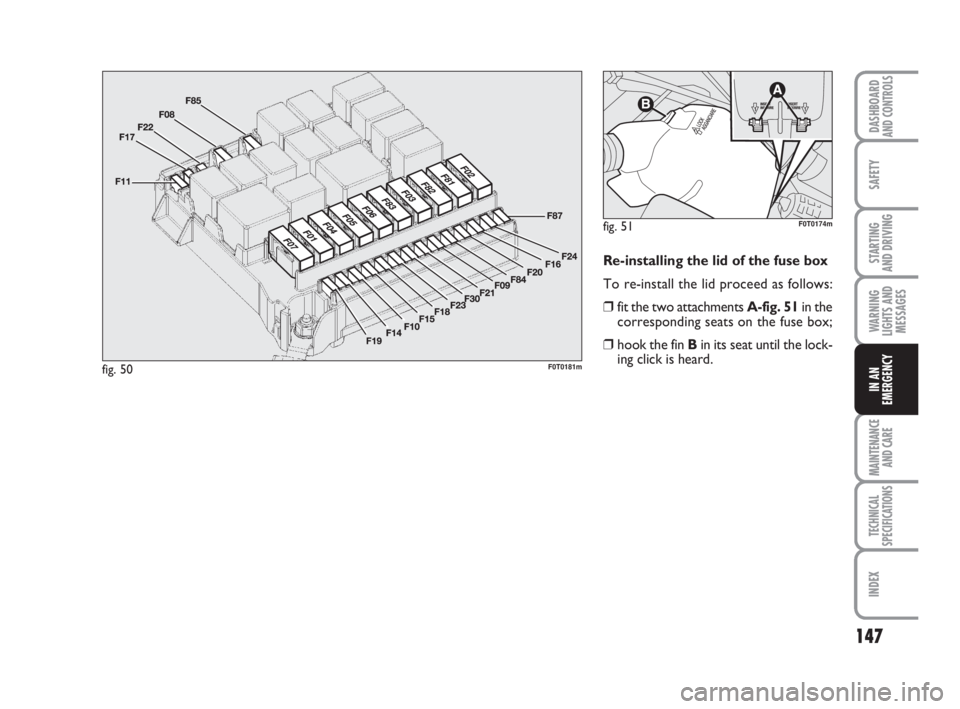

Re-installing the lid of the fuse box
To re-install the lid proceed as follows:
❒fit the two attachments A-fig. 51in the
corresponding seats on the fuse box;
❒hook the fin Bin its seat until the lock-
ing click is heard.
fig. 50F0T0181m
fig. 51F0T0174m
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:33 Pagina 147

148
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

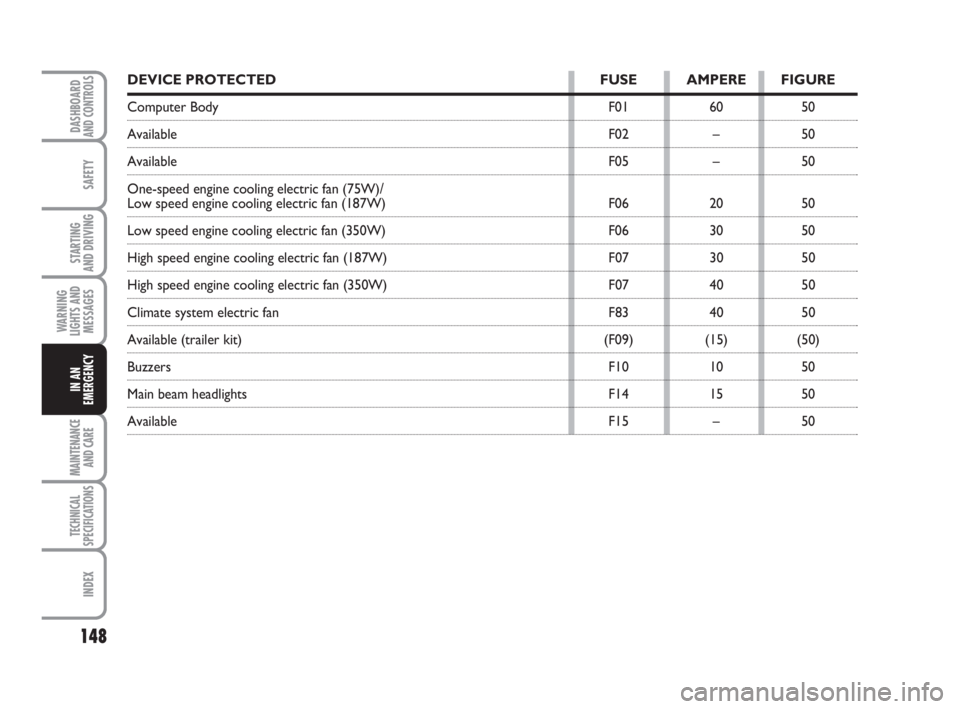

DEVICE PROTECTED FUSE AMPERE FIGURE
Computer Body F01 60 50
Available F02 – 50
Available F05 – 50
One-speed engine cooling electric fan (75W)/
Low speed engine cooling electric fan (187W) F06 20 50
Low speed engine cooling electric fan (350W) F06 30 50
High speed engine cooling electric fan (187W) F07 30 50
High speed engine cooling electric fan (350W) F07 40 50
Climate system electric fan F83 40 50
Available (trailer kit) (F09) (15) (50)
Buzzers F10 10 50
Main beam headlights F14 15 50
Available F15 – 50
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:33 Pagina 148

149
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Climate system compressor F19 7.5 50
Rear heated window/Mirror demisters F20 30 50
Fuel pump F21 15 50
Fog lights F30 15 50
Available F08 – 50
Cigar lighter/Passenger compartment current outlets/Heated seats F85 30 50
+15 Reverse lights/decimetre/Water sensor in diesel fuel/
Reels for relays T02, T05, T14, T17 and T19 F87 7.5 50
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 149

150
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

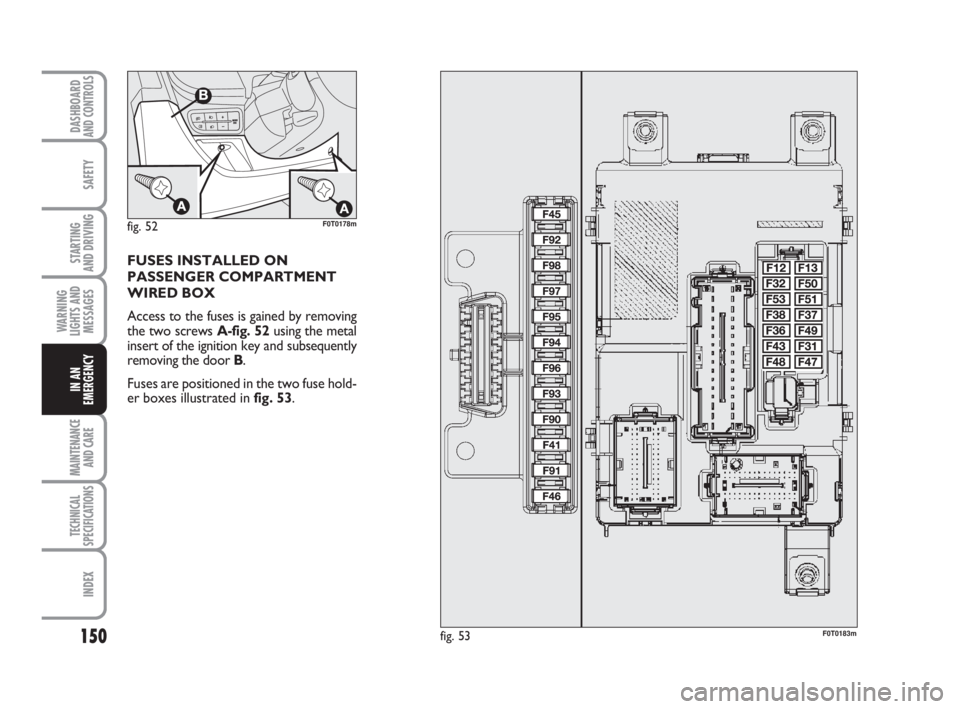

FUSES INSTALLED ON
PASSENGER COMPARTMENT
WIRED BOX
Access to the fuses is gained by removing
the two screws A-fig. 52 using the metal
insert of the ignition key and subsequently
removing the door B.
Fuses are positioned in the two fuse hold-
er boxes illustrated in fig. 53.
fig. 52F0T0178m
fig. 53F0T0183m
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 150

151
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Dipped beam headlight (on passenger’s side) F12 7.5 53
Dipped beam headlight (on driver’s side)/Headlight aiming control F13 7.5 53
INT/A relay reels SCM F31 5 53
Timed internal lighting F32 7.5 53
Bluetooth
®sound system/central unit node/Blue&Me™ node/Troubleshooting outlet for EOBD system/Volumetric alarm control unit/Alarm siren control unit F36 10 53
Instrument panel/Stop light control node (NA) F37 5 53
Door/boot lock actuators F38 20 53
Widow/rear window washer two direction pump F43 15 53
Front power window (on driver’s side) F47 20 53
Front power window (on passenger’s side) F48 20 53
Control lighting/Parking sensor control unit/
Electric door mirror control/Volumetric alarm control unit F49 5 53
INT Sound system node/Bluetooth
®central unit node/Blue&Me™ node/Movement of electric door mirrors/Clutch switch/Stop light control (NC) F51 5 53
Instrument panel node F53 5 53
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 151

152
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

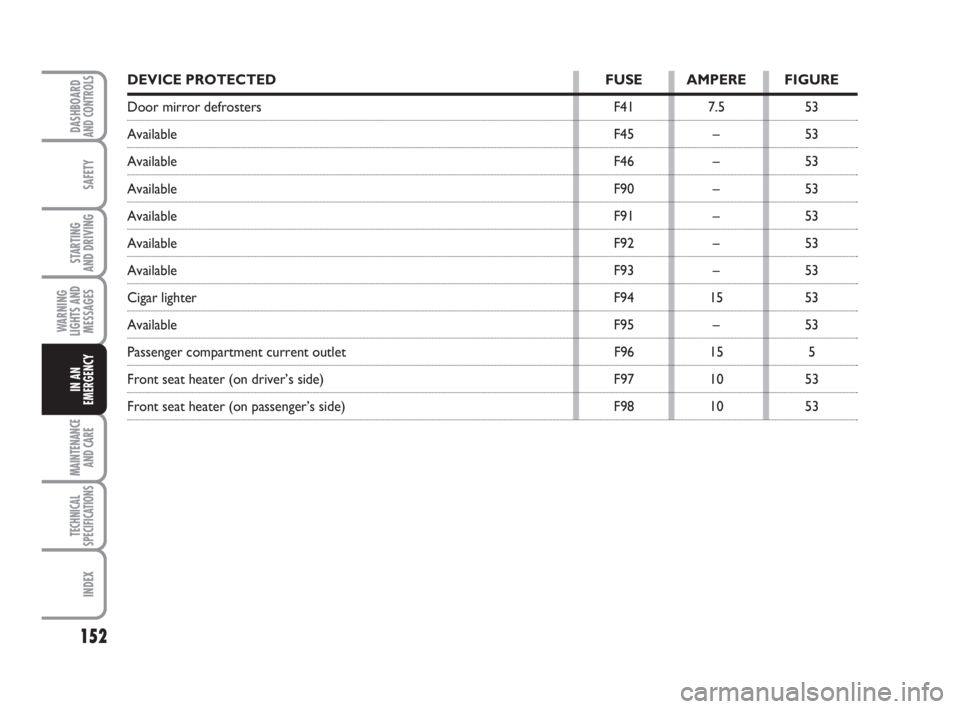

DEVICE PROTECTED FUSE AMPERE FIGURE
Door mirror defrosters F41 7.5 53
Available F45 – 53
Available F46 – 53
Available F90 – 53
Available F91 – 53
Available F92 – 53
Available F93 – 53
Cigar lighter F94 15 53
Available F95 – 53
Passenger compartment current outlet F96 15 5
Front seat heater (on driver’s side) F97 10 53
Front seat heater (on passenger’s side) F98 10 53
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 152

153
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

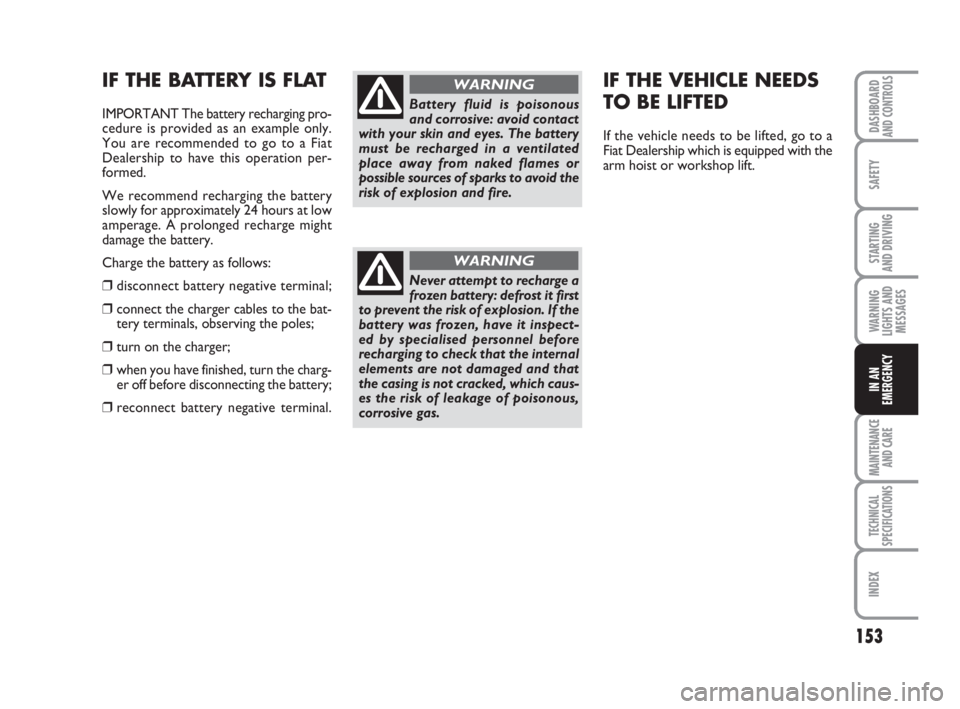

IF THE BATTERY IS FLAT
IMPORTANT The battery recharging pro-
cedure is provided as an example only.
You are recommended to go to a Fiat
Dealership to have this operation per-
formed.
We recommend recharging the battery
slowly for approximately 24 hours at low
amperage. A prolonged recharge might
damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting the battery;
❒reconnect battery negative terminal.Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
must be recharged in a ventilated
place away from naked flames or
possible sources of sparks to avoid the
risk of explosion and fire.
WARNING
Never attempt to recharge a
frozen battery: defrost it first
to prevent the risk of explosion. If the
battery was frozen, have it inspect-
ed by specialised personnel before
recharging to check that the internal
elements are not damaged and that
the casing is not cracked, which caus-
es the risk of leakage of poisonous,
corrosive gas.
WARNING
IF THE VEHICLE NEEDS
TO BE LIFTED
If the vehicle needs to be lifted, go to a
Fiat Dealership which is equipped with the
arm hoist or workshop lift.
