rinse thoroughly to avoid soap marks staying on
the bodywork or less visible parts.
Some car washes with old-style blades
and/or in a poor state of repair can
damage the paintwork, facilitating the
formation of lines that give the paint a dull/misty
appearance, especially on dark colours. If this
happens, lightly polish the paintwork with
appropriate products.
Dry the less visible parts particularly carefully, such
as the door frames, bonnet and the headlight frames,
where water may stagnate more easily. It is a good
idea to leave the vehicle outdoors for a while after
washing it to give water time to evaporate.
Do not wash the vehicle after it has been left in the
sun or with the bonnet hot: this may alter the shine
of the paintwork.
Exterior plastic parts should be cleaned in the same
way as the rest of the vehicle. Where possible, do
not park the vehicle under trees; the resinous
substances released by many species give the paint a
dull appearance and increase the possibility of rust.
IMPORTANT Bird droppings should be washed
off immediately and thoroughly as the acid
they contain is particularly aggressive.
Detergents cause water pollution.The
vehicle should be washed in areas
equipped for collecting and purifying the
liquid used in the washing process.
Windows
Use specific detergents to clean the windows. Also
use clean cloths to avoid scratching the glass or
altering the transparency.
IMPORTANT Wipe the rear window gently with a
cloth in the direction of the filaments to avoid
damaging the heating device.
Engine compartment
At the end of each winter, thoroughly wash the
engine compartment, taking care to avoid spraying
the water jet directly onto the electronic control
units and the relay/fuse box on the left side of the
engine compartment (as you look from behind
the wheel). Have this operation performed at a
specialist garage.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the wash, make sure that the various
protective devices (e.g. rubber caps and guards)
have not been removed or damaged.
213
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

TECHNICAL DATA
IDENTIFICATION DATA
It is advisable to take note of the identification
codes. Identification codes are printed and shown on
the plates as indicated below, together with the
positions fig. 200:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.
VEHICLE IDENTIFICATION NUMBER (VIN)
PLATE
This is applied on the rear part of the vehicle and
contains the following data fig. 201:
AName of manufacturer
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle fully laden.
FMaximum permitted weight of vehicle fully laden
plus trailer.
GMaximum permitted weight on first axle (front).
HMaximum permitted weight on second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient (for diesel
engines)
fig. 200F0T0175fig. 201F0T0011
216
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

CHASSIS MARKING
This is printed on the passenger compartment floor,
near the right front seat.
Slide the hatch A fig. 202 forward to access.
The marking includes:
type of vehicle;
chassis serial number.
BODYWORK PAINT IDENTIFICATION
PLATE
This plate is applied inside the bonnet and shows the
following data fig. 203:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.ENGINE MARKING
It is stamped on the cylinder block and includes the
type and the engine serial number.
fig. 202F0T0084fig. 203F0T0012
217
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE CODES - BODYWORK
VERSION
Version Engine code
1.4 Euro 6350A1000
1.3 16V Multijet 80HP
Euro 6225A2000
1.3 16V Multijet 95 HP
Euro 6330A1000
The following body version code and key are an
example that may be applied to all body version
codes.
Example:
225BXB1AAX
Key :
225Model
BBodywork
XBEngine
1Traction
ATransmission
AXVersion
BODYWORK
ACombi M1 (5 seats)
BCargo (2 seats)
CCombi N1 (4 seats)ENGINES
XA1.4 petrol Euro 6
XG1.3 16V Multijet 80HP Euro 6
XH1.3 16V Multijet 95HP Euro 6
DRIVE
1Front
TRANSMISSION
AManual gearbox
1Comfort/Dualogic gearbox
218
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE
Introduction 1.4 Euro 61.3 16V Multijet
80HP Euro 61.3 16V Multijet
95HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm3) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EC) (Nm) 115 200 200
Maximum torque (EC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 HIDRIA 5011–721–431 HIDRIA 5011–721–431
FuelUnleaded petrol 95
R.O.N. (Specification
EN590)Diesel for motor
vehicles (EN590
Specification)Diesel for motor
vehicles (EN590
Specification)
219
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

REFUELLING
1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications) including a reserve of: 6/7 -
Engine cooling system: 6.64 -Mixture of distilled water
and PARAFLU UP liquid at
50%
(*)
Engine sump: - 2.1
SELENIA K P.E.
Engine sump and filter: - 2.25
Gearbox casing/differential: - 1.5TUTELA TRANSMISSION
TECHNYX
(***)
Hydraulic power steering 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC 35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
(***) 1.4 Euro 6 versions
240
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

1.3 16V Multijet 80 HP Euro 6 - 1.3 16V Multijet
95 HP Euro 6Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water
and PARAFLU UP liquid
at 50%
(*)
Engine sump: 3.7 3.13
SELENIA WR
FORWARD.
Engine sump and filter: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA
TRANSMISSION
TECHNYX
Hydraulic power steering 0.38 0.35TUTELA
TRANSMISSION GI/E
Hydraulic brake circuit: - 0.5 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
241
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

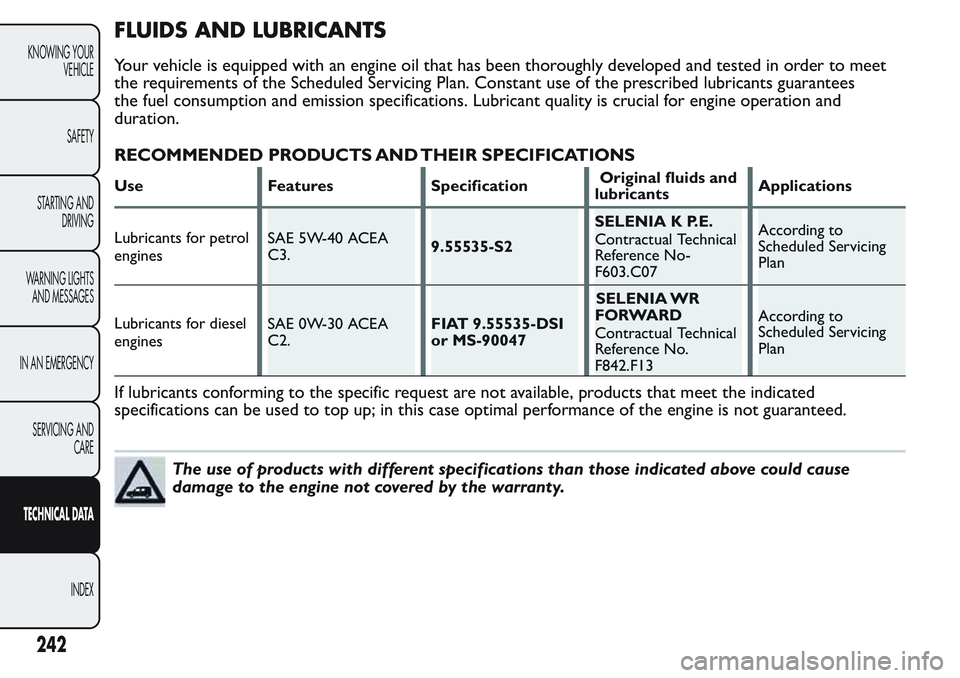

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet
the requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees
the fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and
duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants for petrol
enginesSAE 5W-40 ACEA
C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No-
F603.C07According to
Scheduled Servicing
Plan
Lubricants for diesel
enginesSAE 0W-30 ACEA
C2.FIAT 9.55535-DSI
or MS-90047SELENIA WR
FORWARD
Contractual Technical
Reference No.
F842.F13According to
Scheduled Servicing
Plan
If lubricants conforming to the specific request are not available, products that meet the indicated
specifications can be used to top up; in this case optimal performance of the engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
242
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

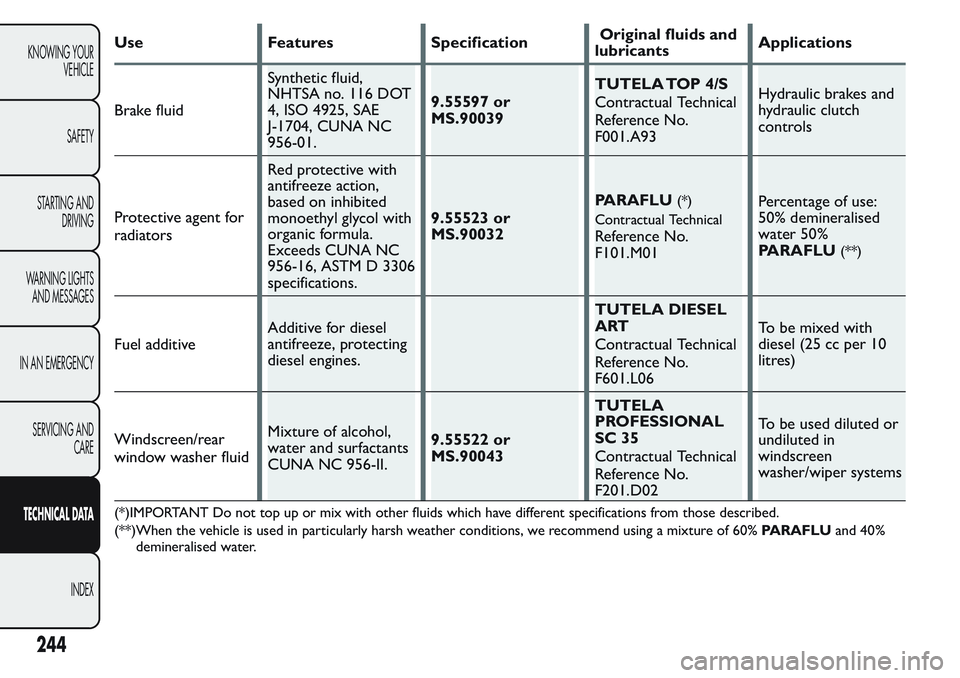

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid,
NHTSA no. 116 DOT
4, ISO 4925, SAE
J-1704, CUNA NC
956-01.9.55597 or
MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch
controls
Protective agent for
radiatorsRed protective with
antifreeze action,
based on inhibited
monoethyl glycol with
organic formula.
Exceeds CUNA NC
956-16, ASTM D 3306
specifications.9.55523 or
MS.90032PARAFLU
(*)
Contractual Technical
Reference No.
F101.M01Percentage of use:
50% demineralised
water 50%
PARAFLU(**)
Fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.TUTELA DIESEL
ART
Contractual Technical
Reference No.
F601.L06To be mixed with
diesel (25 cc per 10
litres)
Windscreen/rear
window washer fluidMixture of alcohol,
water and surfactants
CUNA NC 956-II.9.55522 or
MS.90043TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in
windscreen
washer/wiper systems
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUand 40%
demineralised water.
244
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

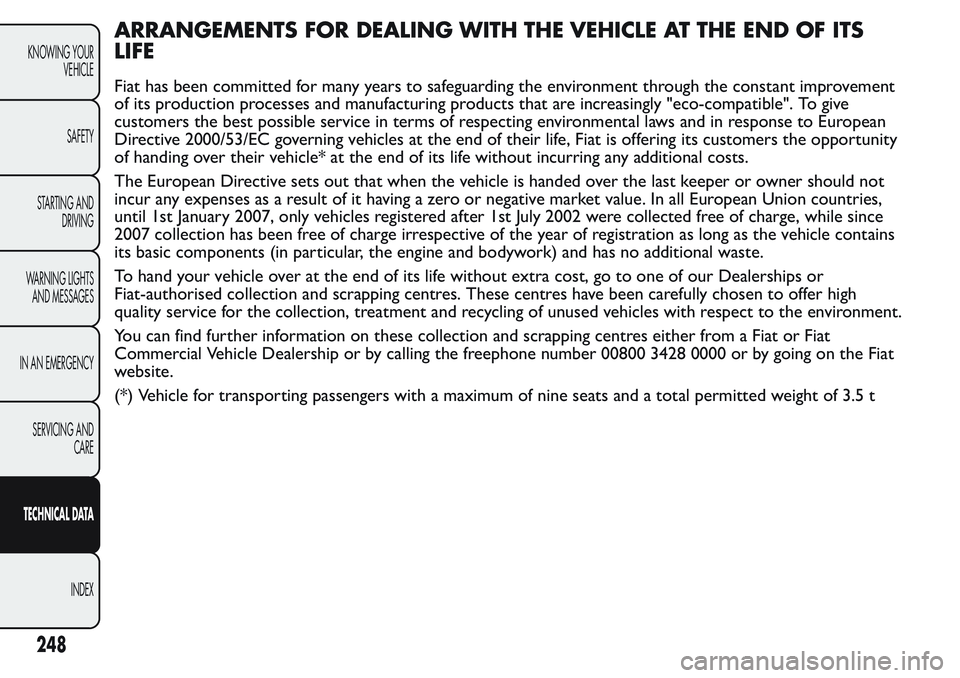

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS
LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly "eco-compatible". To give
customers the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering its customers the opportunity
of handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In all European Union countries,
until 1st January 2007, only vehicles registered after 1st July 2002 were collected free of charge, while since
2007 collection has been free of charge irrespective of the year of registration as long as the vehicle contains
its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of unused vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat
Commercial Vehicle Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat
website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
248
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
