Page 51 of 196

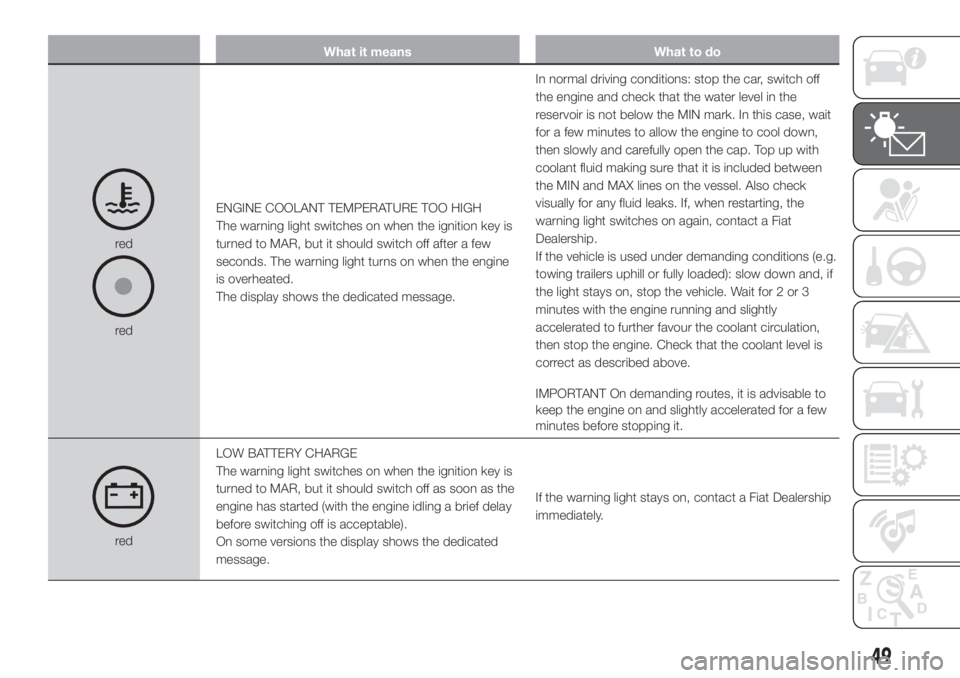

What it means What to do
red
redENGINE COOLANT TEMPERATURE TOO HIGH
The warning light switches on when the ignition key is
turned to MAR, but it should switch off after a few
seconds. The warning light turns on when the engine
is overheated.
The display shows the dedicated message.In normal driving conditions: stop the car, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. In this case, wait
for a few minutes to allow the engine to cool down,
then slowly and carefully open the cap. Top up with
coolant fluid making sure that it is included between
the MIN and MAX lines on the vessel. Also check
visually for any fluid leaks. If, when restarting, the
warning light switches on again, contact a Fiat
Dealership.
If the vehicle is used under demanding conditions (e.g.
towing trailers uphill or fully loaded): slow down and, if
the light stays on, stop the vehicle. Wait for 2 or 3
minutes with the engine running and slightly
accelerated to further favour the coolant circulation,
then stop the engine. Check that the coolant level is
correct as described above.
IMPORTANT On demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before stopping it.
redLOW BATTERY CHARGE
The warning light switches on when the ignition key is
turned to MAR, but it should switch off as soon as the
engine has started (with the engine idling a brief delay
before switching off is acceptable).
On some versions the display shows the dedicated
message.If the warning light stays on, contact a Fiat Dealership
immediately.
49
Page 52 of 196

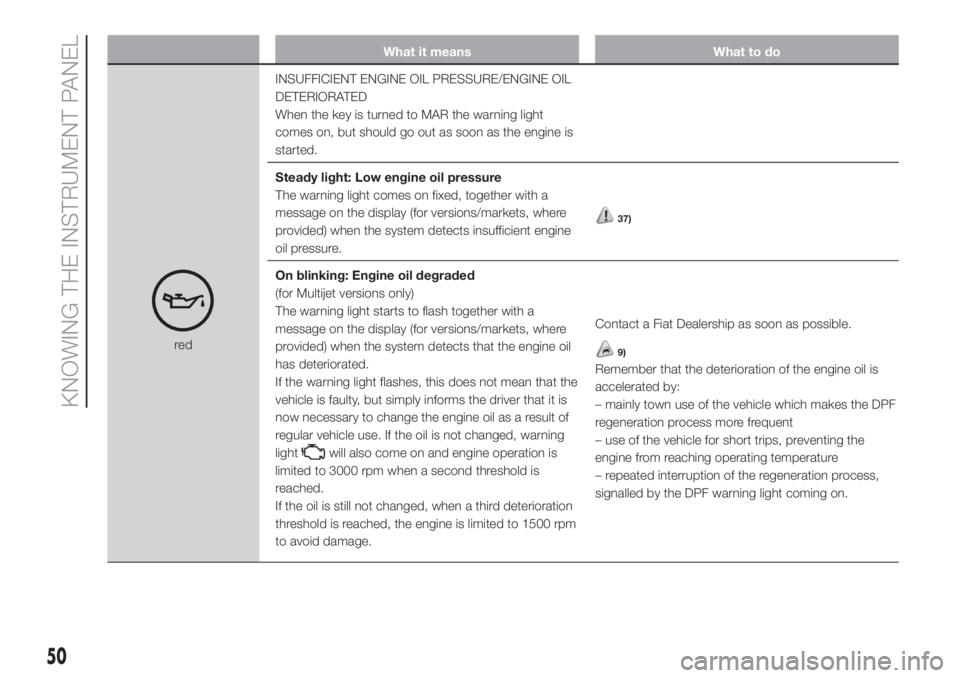

What it means What to do
redINSUFFICIENT ENGINE OIL PRESSURE/ENGINE OIL
DETERIORATED
When the key is turned to MAR the warning light
comes on, but should go out as soon as the engine is
started.
Steady light: Low engine oil pressure
The warning light comes on fixed, together with a
message on the display (for versions/markets, where
provided) when the system detects insufficient engine
oil pressure.
37)
On blinking: Engine oil degraded
(for Multijet versions only)
The warning light starts to flash together with a
message on the display (for versions/markets, where
provided) when the system detects that the engine oil
has deteriorated.
If the warning light flashes, this does not mean that the
vehicle is faulty, but simply informs the driver that it is
now necessary to change the engine oil as a result of
regular vehicle use. If the oil is not changed, warning
light
will also come on and engine operation is
limited to 3000 rpm when a second threshold is
reached.
If the oil is still not changed, when a third deterioration
threshold is reached, the engine is limited to 1500 rpm
to avoid damage.Contact a Fiat Dealership as soon as possible.
9)
Remember that the deterioration of the engine oil is
accelerated by:
– mainly town use of the vehicle which makes the DPF
regeneration process more frequent
– use of the vehicle for short trips, preventing the
engine from reaching operating temperature
– repeated interruption of the regeneration process,
signalled by the DPF warning light coming on.
50
KNOWING THE INSTRUMENT PANEL
Page 53 of 196

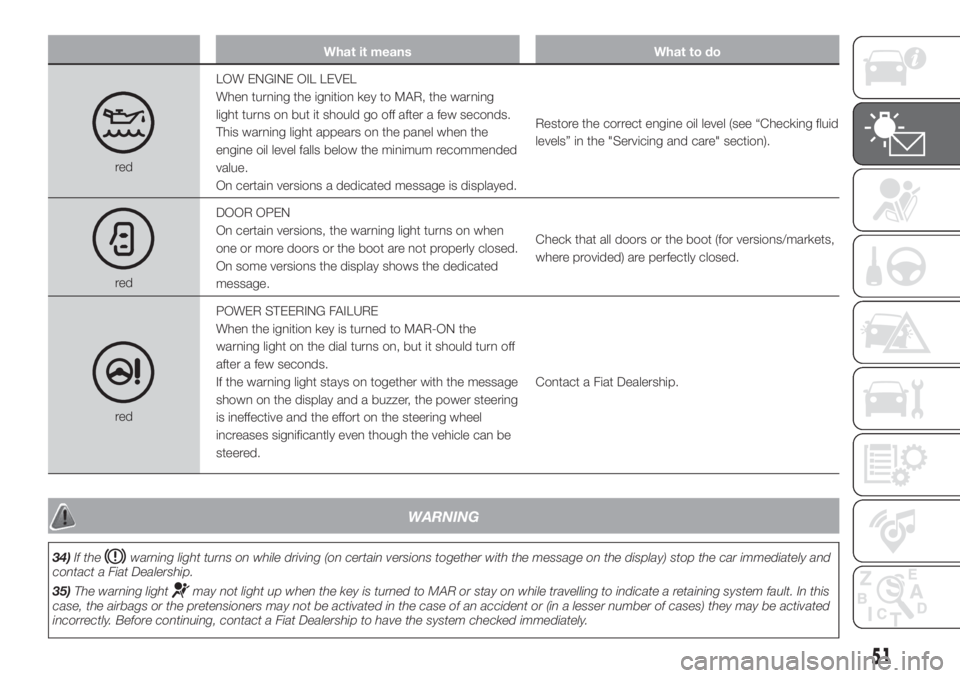

What it means What to do
redLOW ENGINE OIL LEVEL
When turning the ignition key to MAR, the warning
light turns on but it should go off after a few seconds.
This warning light appears on the panel when the
engine oil level falls below the minimum recommended
value.
On certain versions a dedicated message is displayed.Restore the correct engine oil level (see “Checking fluid
levels” in the "Servicing and care" section).
redDOOR OPEN
On certain versions, the warning light turns on when
one or more doors or the boot are not properly closed.
On some versions the display shows the dedicated
message.Check that all doors or the boot (for versions/markets,
where provided) are perfectly closed.
redPOWER STEERING FAILURE
When the ignition key is turned to MAR-ON the
warning light on the dial turns on, but it should turn off
after a few seconds.
If the warning light stays on together with the message
shown on the display and a buzzer, the power steering
is ineffective and the effort on the steering wheel
increases significantly even though the vehicle can be
steered.Contact a Fiat Dealership.
WARNING
34)If thewarning light turns on while driving (on certain versions together with the message on the display) stop the car immediately and
contact a Fiat Dealership.
35)The warning light
may not light up when the key is turned to MAR or stay on while travelling to indicate a retaining system fault. In this
case, the airbags or the pretensioners may not be activated in the case of an accident or (in a lesser number of cases) they may be activated
incorrectly. Before continuing, contact a Fiat Dealership to have the system checked immediately.
51
Page 54 of 196
36)A failure of thewarning light is indicated by thewarning light flashing or, depending on the version, by theicon turning on
continuously on the display. In this case, thewarning light may not indicate a possible problem with the airbag restraint system. Before
continuing, contact a Fiat Dealership to have the system checked immediately.
37)If the
warning light switches on when travelling (on certain versions together with the message on the display), stop the engine
immediately and contact a Fiat Dealership.
WARNING
9)If the warning light switches on, the degraded engine oil must be changed as soon as possible, and never more than 500 km from the first
time that the warning light switches on. Failure to observe the above may result in severe damage to the engine and invalidate the warranty.
The activation of this warning light is not related to the amount of oil in the engine. Therefore, never top up with oil when the warning light
starts flashing.
Amber warning lights
What it means What to do
amberINJECTION SYSTEM FAULT (Multijet versions) - EOBD
ENGINE CONTROL SYSTEM FAULT (petrol versions)
In normal conditions, when the ignition key is turned to
MAR the warning light switches on, but it should
switch off as soon as the engine is started.
10)
Injection system failure
(Multijet versions)
If the warning light stays on or comes on when
travelling, it means there is a fault in the injection
system which could cause loss of performance, poor
handling and high fuel consumption levels.
On some versions the display shows the dedicated
message.Under these conditions, the vehicle can continue
travelling at moderate speed without demanding
excessive effort from the engine. Prolonged use of the
vehicle with the warning light on may cause damage.
52
KNOWING THE INSTRUMENT PANEL
Page 55 of 196

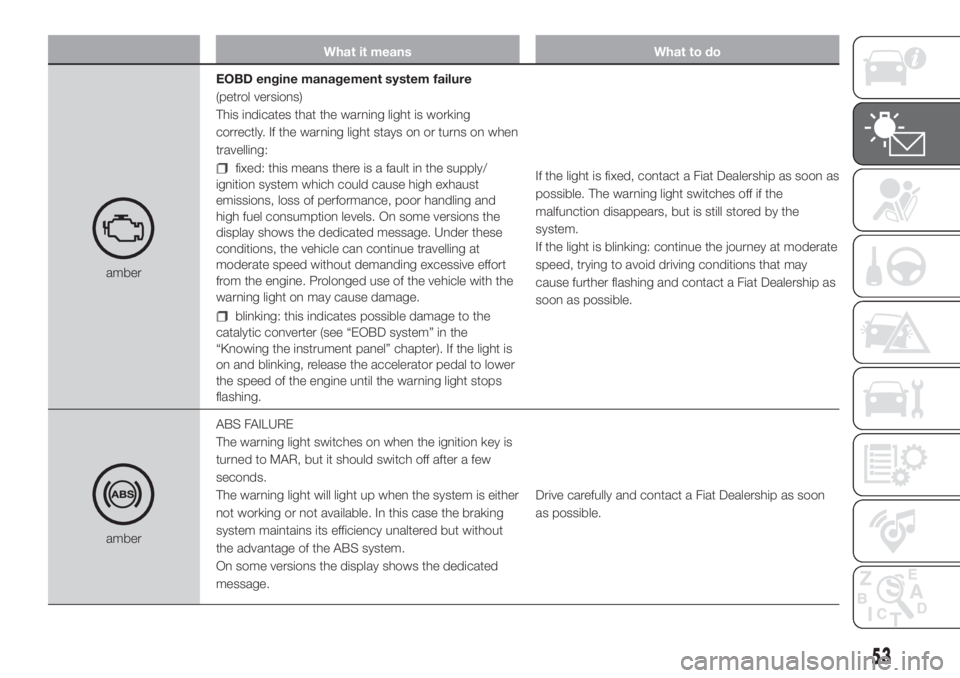

What it means What to do
amberEOBD engine management system failure
(petrol versions)
This indicates that the warning light is working
correctly. If the warning light stays on or turns on when
travelling:
fixed: this means there is a fault in the supply/
ignition system which could cause high exhaust
emissions, loss of performance, poor handling and
high fuel consumption levels. On some versions the
display shows the dedicated message. Under these
conditions, the vehicle can continue travelling at
moderate speed without demanding excessive effort
from the engine. Prolonged use of the vehicle with the
warning light on may cause damage.
blinking: this indicates possible damage to the
catalytic converter (see “EOBD system” in the
“Knowing the instrument panel” chapter). If the light is
on and blinking, release the accelerator pedal to lower
the speed of the engine until the warning light stops
flashing.If the light is fixed, contact a Fiat Dealership as soon as
possible. The warning light switches off if the
malfunction disappears, but is still stored by the
system.
If the light is blinking: continue the journey at moderate
speed, trying to avoid driving conditions that may
cause further flashing and contact a Fiat Dealership as
soon as possible.
amberABS FAILURE
The warning light switches on when the ignition key is
turned to MAR, but it should switch off after a few
seconds.
The warning light will light up when the system is either
not working or not available. In this case the braking
system maintains its efficiency unaltered but without
the advantage of the ABS system.
On some versions the display shows the dedicated
message.Drive carefully and contact a Fiat Dealership as soon
as possible.
53
Page 56 of 196
What it means What to do
amberFUEL RESERVE
The warning light switches on when the ignition key is
turned to MAR, but it should switch off after a few
seconds. The warning light turns on when about6-7
litres of fuel are left in the tank.
The triangle on the right side of the symbol
indicates the side of the vehicle with the fuel filler.The warning light will blink to indicate a system fault. If
this is the case, go to a Fiat Dealership to have the
system checked.
amberPLUG PREHEATING (Multijet versions) - PLUG
PREHEATING FAULT (Multijet versions)
Glow plugs
(Multijet versions)
This warning light switches on when the key is turned
to MAR. It will switch off as soon as the glow plugs
have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short time.Start the engine as soon as the warning light switches
off.
Glow plug preheating failure
(Multijet versions)
The warning light flashes if there is a fault in the
preheating system.
On some versions the display shows the dedicated
message.Contact a Fiat Dealership as soon as possible.
54
KNOWING THE INSTRUMENT PANEL
Page 57 of 196

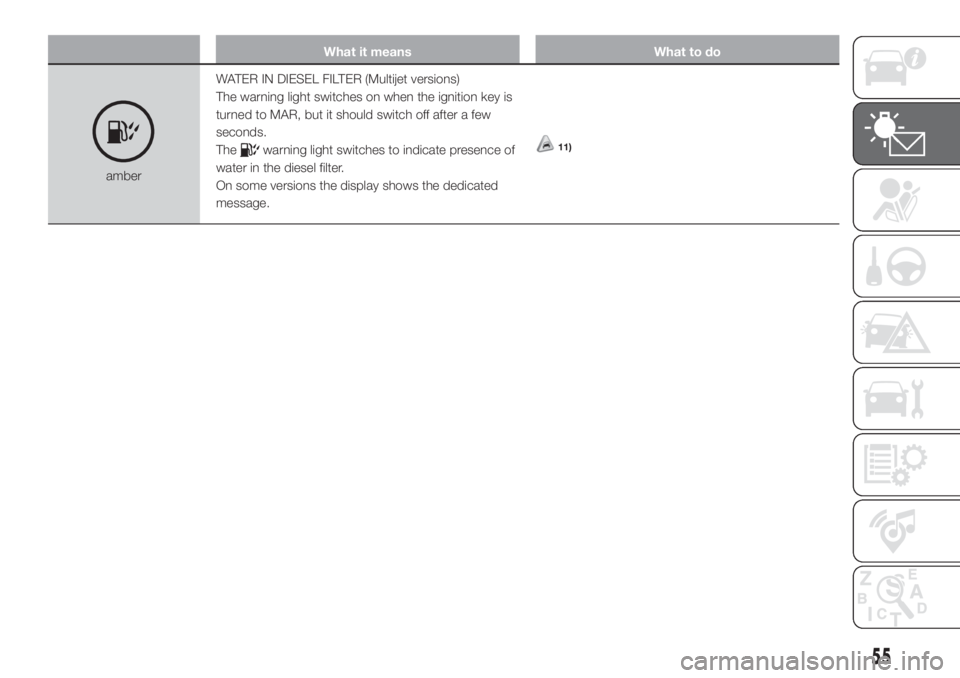

What it means What to do
amberWATER IN DIESEL FILTER (Multijet versions)
The warning light switches on when the ignition key is
turned to MAR, but it should switch off after a few
seconds.
The
warning light switches to indicate presence of
water in the diesel filter.
On some versions the display shows the dedicated
message.11)
55
Page 58 of 196

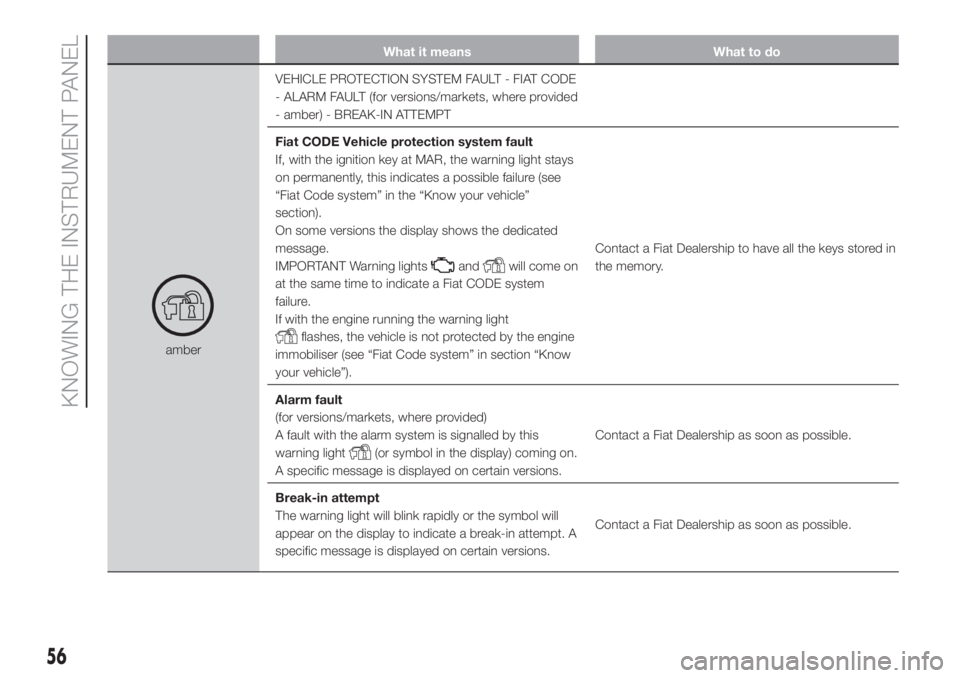

What it means What to do
amberVEHICLE PROTECTION SYSTEM FAULT - FIAT CODE
- ALARM FAULT (for versions/markets, where provided
- amber) - BREAK-IN ATTEMPT
Fiat CODE Vehicle protection system fault
If, with the ignition key at MAR, the warning light stays
on permanently, this indicates a possible failure (see
“Fiat Code system” in the “Know your vehicle”
section).
On some versions the display shows the dedicated
message.
IMPORTANT Warning lights
andwill come on
at the same time to indicate a Fiat CODE system
failure.
If with the engine running the warning light
flashes, the vehicle is not protected by the engine
immobiliser (see “Fiat Code system” in section “Know
your vehicle”).Contact a Fiat Dealership to have all the keys stored in
the memory.
Alarm fault
(for versions/markets, where provided)
A fault with the alarm system is signalled by this
warning light
(or symbol in the display) coming on.
A specific message is displayed on certain versions.Contact a Fiat Dealership as soon as possible.
Break-in attempt
The warning light will blink rapidly or the symbol will
appear on the display to indicate a break-in attempt. A
specific message is displayed on certain versions.Contact a Fiat Dealership as soon as possible.
56
KNOWING THE INSTRUMENT PANEL
Page 59 of 196
What it means What to do
amberGENERAL FAILURE INDICATION
The warning light turns on in the following
circumstances:
Engine oil pressure sensor failure
The warning light switches on when an engine oil
pressure sensor anomaly is detected.Contact a Fiat Dealership as soon as possible to have
the fault fixed.
Exterior lights failure:
On certain versions, the warning light will come on
when a failure to one of the following lights is detected:side lights;
brake lights;
rear fog lamps;
direction indicators;
number plate lights.
On some versions the display shows the dedicated
message.The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
57
Page 60 of 196
What it means What to do
amberFuel cut-off inertia switch tripped
The warning light switches on when the fuel cut-off
inertia switch is tripped. The display shows the
dedicated message.
Parking sensor failure
(for versions/markets, where provided)
See parking sensor warning light section.In this case, the
warning light may not indicate a
possible problem with the airbag restraint system.
Before continuing, contact a Fiat Dealership to have
the system checked immediately.
Airbag failure warning light
Thewarning light turns on and flashes to indicate a
failure of the
warning light. In this case, the
warning light may not indicate a possible problem
with the airbag restraint system.Before continuing, contact a Fiat Dealership to have
the system checked immediately.
Start&Stop system failure
(for versions/markets, where provided)
The warning light comes on alternatively to the
warning light
when a Start&Stop system fault is
detected.In this case, contact the Fiat Service Network as soon
as possible.
58
KNOWING THE INSTRUMENT PANEL
