169)After washing the vehicle, drive the
vehicle slowly while lightly depressing the
brake pedal several times in order to dry
out the brakes. Leaving the brakes wet
could result in reduced braking
performance. Also, there is a possibility that
they could freeze up or become inoperative
due to rust, rendering the vehicle unable to
move.
170)Using an automatic car wash, pay
attention to the following items, referring to
the operation manual or consulting a car
wash operator. If the following procedure is
not followed, it could result in damage to
your vehicle: 1 – the outside rear-view
mirrors are retracted. 2 – The antenna is
removed. 3 – The wiper arms are secured
in place with tape.4–Ifyour vehicle has
rain sensor wipers, place the wiper switch
lever in the “OFF” position to deactivate the
rain sensor.
171)Waxes containing high abrasive
compounds should not be used.
172)Do not use a scrubbing brush or other
hard tools as they may damage the plastic
part surface.
173)Do not bring the plastic parts into
contact with petrol, light oil, brake fluids,
engine oils, greases, paint thinners and
sulphuric acid (battery electrolyte) which
may crack, stain or discolour the plastic
parts. If they touch the plastic parts, wipe
them off with soft cloth, chamois or the like
and an aqueous solution of neutral
detergent then immediately rinse the
affected parts with water.
174)Do not use a brush or other hard
implement on the wheels. Doing so could
scratch the wheels.175)Do not use any cleaner that contains
an abrasive substance or is acidic or
alkaline. Doing so could cause the coating
on the wheels to peel or become
discoloured or stained.
176)Do not directly apply hot water using a
steam cleaner or by any other means.
177)Contact with seawater and road
deicer can cause corrosion. Rinse off such
substances as soon as possible.
IMPORTANT
6)Detergents pollute the environment. Only
wash your vehicle in areas equipped to
collect and treat wastewater from this type
of activity.
259

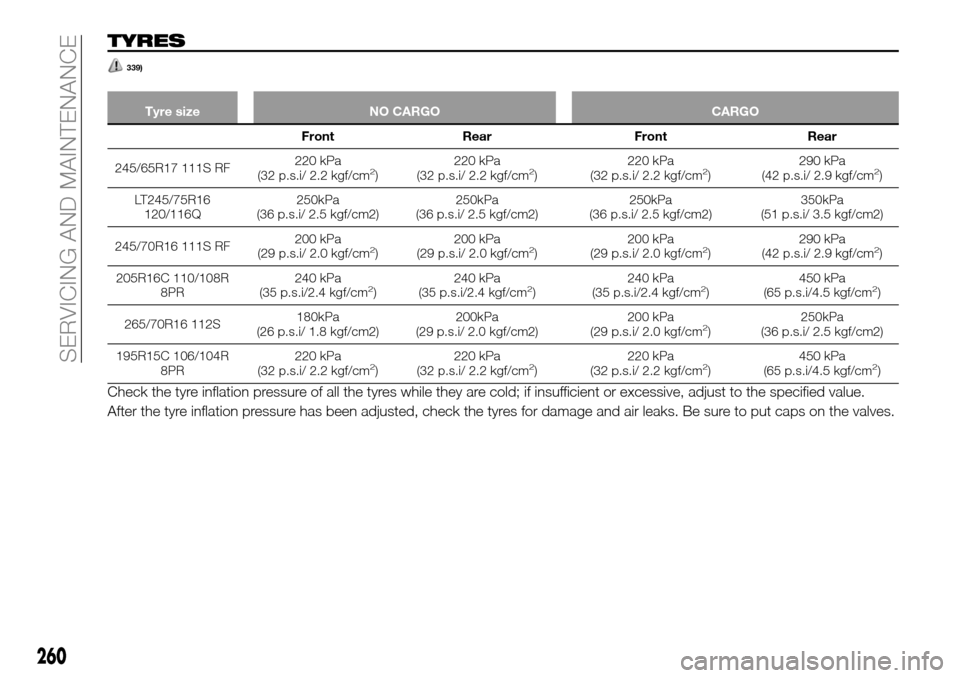

TYRES
339)
Tyre size NO CARGO CARGO
Front Rear Front Rear
245/65R17 111S RF220 kPa
(32 p.s.i/ 2.2 kgf/cm
2)220 kPa
(32 p.s.i/ 2.2 kgf/cm2)220 kPa
(32 p.s.i/ 2.2 kgf/cm2)290 kPa
(42 p.s.i/ 2.9 kgf/cm2)
LT245/75R16
120/116Q250kPa
(36 p.s.i/ 2.5 kgf/cm2)250kPa
(36 p.s.i/ 2.5 kgf/cm2)250kPa
(36 p.s.i/ 2.5 kgf/cm2)350kPa
(51 p.s.i/ 3.5 kgf/cm2)
245/70R16 111S RF200 kPa
(29 p.s.i/ 2.0 kgf/cm
2)200 kPa
(29 p.s.i/ 2.0 kgf/cm2)200 kPa
(29 p.s.i/ 2.0 kgf/cm2)290 kPa
(42 p.s.i/ 2.9 kgf/cm2)
205R16C 110/108R
8PR240 kPa
(35 p.s.i/2.4 kgf/cm
2)240 kPa
(35 p.s.i/2.4 kgf/cm2)240 kPa
(35 p.s.i/2.4 kgf/cm2)450 kPa
(65 p.s.i/4.5 kgf/cm2)
265/70R16 112S180kPa
(26 p.s.i/ 1.8 kgf/cm2)200kPa
(29 p.s.i/ 2.0 kgf/cm2)200 kPa
(29 p.s.i/ 2.0 kgf/cm
2)250kPa
(36 p.s.i/ 2.5 kgf/cm2)
195R15C 106/104R
8PR220 kPa
(32 p.s.i/ 2.2 kgf/cm
2)220 kPa
(32 p.s.i/ 2.2 kgf/cm2)220 kPa
(32 p.s.i/ 2.2 kgf/cm2)450 kPa
(65 p.s.i/4.5 kgf/cm2)
Check the tyre inflation pressure of all the tyres while they are cold; if insufficient or excessive, adjust to the specified value.
After the tyre inflation pressure has been adjusted, check the tyres for damage and air leaks. Be sure to put caps on the valves.
260
SERVICING AND MAINTENANCE

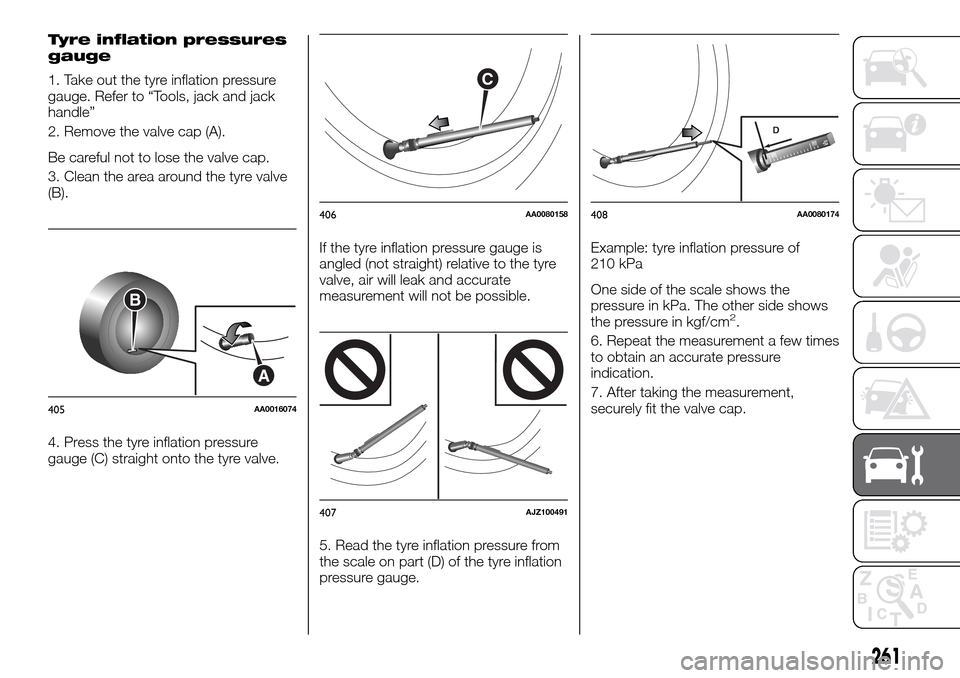

Tyre inflation pressures
gauge
1. Take out the tyre inflation pressure
gauge. Refer to “Tools, jack and jack
handle”
2. Remove the valve cap (A).
Be careful not to lose the valve cap.
3. Clean the area around the tyre valve
(B).
4. Press the tyre inflation pressure
gauge (C) straight onto the tyre valve.If the tyre inflation pressure gauge is
angled (not straight) relative to the tyre
valve, air will leak and accurate
measurement will not be possible.
5. Read the tyre inflation pressure from
the scale on part (D) of the tyre inflation
pressure gauge.Example: tyre inflation pressure of
210 kPa
One side of the scale shows the
pressure in kPa. The other side shows
the pressure in kgf/cm
2.
6. Repeat the measurement a few times
to obtain an accurate pressure
indication.
7. After taking the measurement,
securely fit the valve cap.
A
B
405AA0016074
C
406AA0080158
407AJZ100491
D
408AA0080174
261

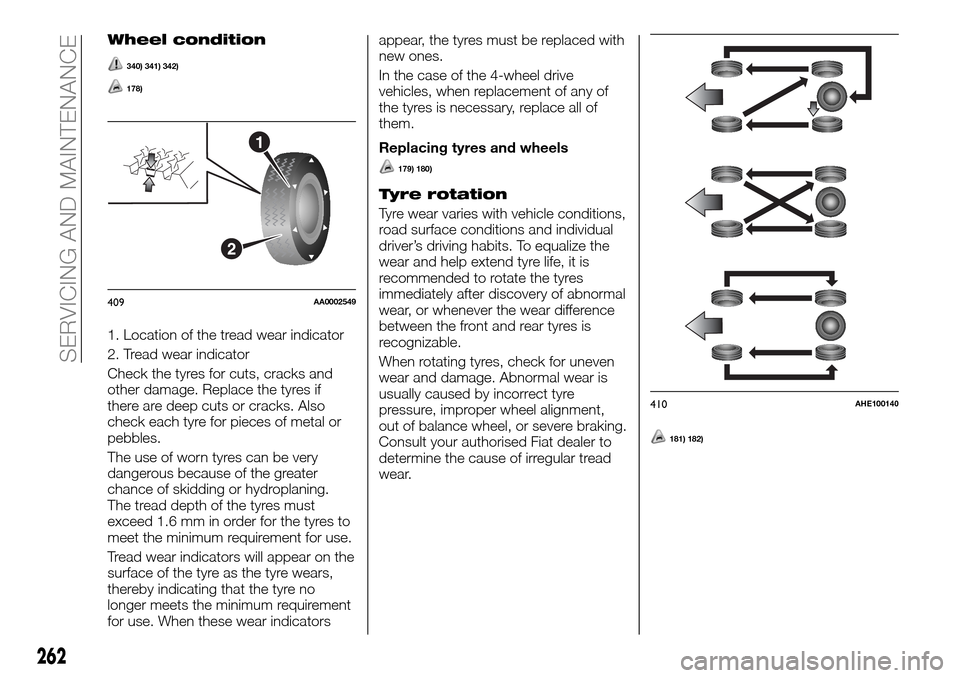

Wheel condition
340) 341) 342)
178)
1. Location of the tread wear indicator
2. Tread wear indicator
Check the tyres for cuts, cracks and
other damage. Replace the tyres if
there are deep cuts or cracks. Also
check each tyre for pieces of metal or
pebbles.
The use of worn tyres can be very
dangerous because of the greater
chance of skidding or hydroplaning.
The tread depth of the tyres must
exceed 1.6 mm in order for the tyres to
meet the minimum requirement for use.
Tread wear indicators will appear on the
surface of the tyre as the tyre wears,
thereby indicating that the tyre no
longer meets the minimum requirement
for use. When these wear indicatorsappear, the tyres must be replaced with
new ones.
In the case of the 4-wheel drive
vehicles, when replacement of any of
the tyres is necessary, replace all of
them.
Replacing tyres and wheels
179) 180)
Tyre rotation
Tyre wear varies with vehicle conditions,
road surface conditions and individual
driver’s driving habits. To equalize the
wear and help extend tyre life, it is
recommended to rotate the tyres
immediately after discovery of abnormal
wear, or whenever the wear difference
between the front and rear tyres is
recognizable.
When rotating tyres, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tyre
pressure, improper wheel alignment,
out of balance wheel, or severe braking.
Consult your authorised Fiat dealer to
determine the cause of irregular tread
wear.
181) 182)
1
2
409AA0002549
410AHE100140
262
SERVICING AND MAINTENANCE

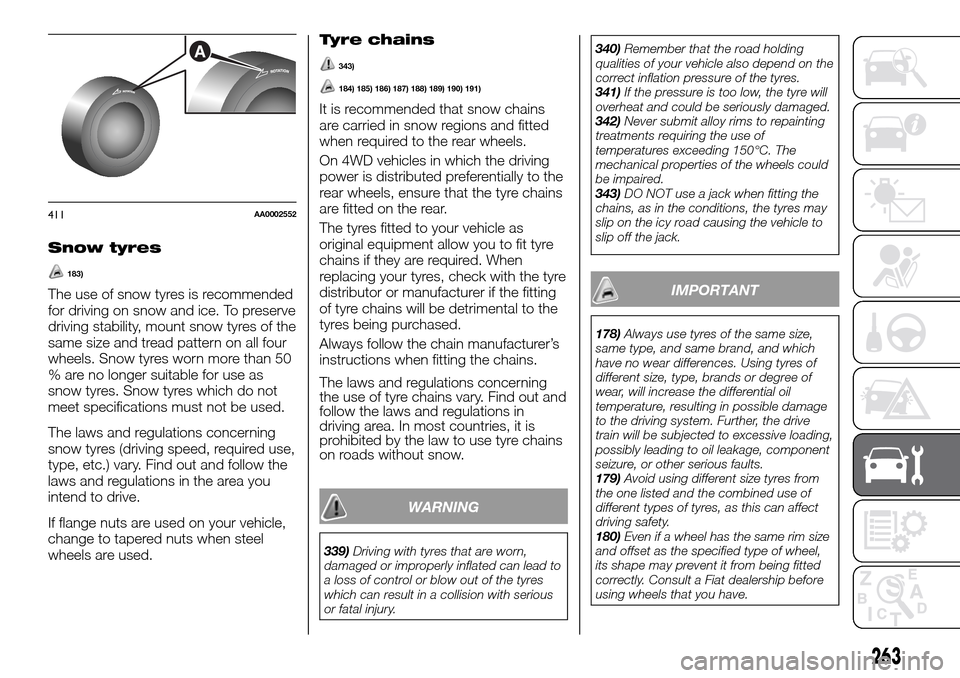

Snow tyres
183)
The use of snow tyres is recommended
for driving on snow and ice. To preserve
driving stability, mount snow tyres of the
same size and tread pattern on all four
wheels. Snow tyres worn more than 50
% are no longer suitable for use as
snow tyres. Snow tyres which do not
meet specifications must not be used.
The laws and regulations concerning
snow tyres (driving speed, required use,
type, etc.) vary. Find out and follow the
laws and regulations in the area you
intend to drive.
If flange nuts are used on your vehicle,
change to tapered nuts when steel
wheels are used.
Tyre chains
343)
184) 185) 186) 187) 188) 189) 190) 191)
It is recommended that snow chains
are carried in snow regions and fitted
when required to the rear wheels.
On 4WD vehicles in which the driving
power is distributed preferentially to the
rear wheels, ensure that the tyre chains
are fitted on the rear.
The tyres fitted to your vehicle as
original equipment allow you to fit tyre
chains if they are required. When
replacing your tyres, check with the tyre
distributor or manufacturer if the fitting
of tyre chains will be detrimental to the
tyres being purchased.
Always follow the chain manufacturer’s
instructions when fitting the chains.
The laws and regulations concerning
the use of tyre chains vary. Find out and
follow the laws and regulations in
driving area. In most countries, it is
prohibited by the law to use tyre chains
on roads without snow.
WARNING
339)Driving with tyres that are worn,
damaged or improperly inflated can lead to
a loss of control or blow out of the tyres
which can result in a collision with serious
or fatal injury.340)Remember that the road holding
qualities of your vehicle also depend on the
correct inflation pressure of the tyres.
341)If the pressure is too low, the tyre will
overheat and could be seriously damaged.
342)Never submit alloy rims to repainting
treatments requiring the use of
temperatures exceeding 150°C. The
mechanical properties of the wheels could
be impaired.
343)DO NOT use a jack when fitting the
chains, as in the conditions, the tyres may
slip on the icy road causing the vehicle to
slip off the jack.
IMPORTANT
178)Always use tyres of the same size,
same type, and same brand, and which
have no wear differences. Using tyres of
different size, type, brands or degree of
wear, will increase the differential oil
temperature, resulting in possible damage
to the driving system. Further, the drive
train will be subjected to excessive loading,
possibly leading to oil leakage, component
seizure, or other serious faults.
179)Avoid using different size tyres from
the one listed and the combined use of
different types of tyres, as this can affect
driving safety.
180)Even if a wheel has the same rim size
and offset as the specified type of wheel,
its shape may prevent it from being fitted
correctly. Consult a Fiat dealership before
using wheels that you have.
A
411AA0002552
263

181)If the tyres have arrows (A) indicating
the correct direction of rotation, swap the
front and rear tyres on the left hand side of
the vehicle and the front and rear tyres on
the right hand side of the vehicle separately.
Keep each tyre on its original side of the
vehicle. When fitting the tyres, make sure
the arrows point in the direction in which
the wheels will turn when the vehicle moves
forward. Any tyre whose arrow points in the
wrong direction will not perform to its full
potential.
182)Avoid the combined use of different
types of tyres. Using different types of tyres
can affect vehicle performance and safety.
183)If winter tyres with a lower speed
rating than that indicated in the Registration
Document are used, do not exceed the
maximum speed corresponding to the
speed rating of the tyres used.
184)Do not fit snow traction device (Tyre
chains) before you need them. This will
wear out your tyres and the road surface.
185)After driving around 100-300 metres,
stop and retighten the snow traction device
(Tyre chains).
186)Care should be taken with extremes of
steering lock to prevent possible contact
between the chains and the vehicle body.
187)Drive cautiously and do not exceed
50 km/h. Remember that preventing
accidents is not the purpose of snow
traction device (tyre chains).
188)When tyre chains are installed, take
care that they do not damage the disc
wheel or body.189)An aluminium wheel can be damaged
by a snow traction device (Tyre chains)
while driving. When fitting a snow traction
device (Tyre chains) on an aluminium wheel,
take care that any part of the snow traction
device (Tyre chains) and fitting cannot be
brought into contact with the wheel.
190)When installing or removing a tyre
chain, take care that hands and other parts
of your body are not injured by the sharp
edges of the vehicle body.
191)Install the chains only on the rear tyres
and tighten them as tightly as possible with
the ends securely fastened.
264
SERVICING AND MAINTENANCE

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.VEHICLE LABELING..........266
ENGINE SPECIFICATIONS......268
VEHICLE DIMENSIONS........271
VEHICLE PERFORMANCE......279
VEHICLE WEIGHTS..........281
ELECTRICAL SYSTEM.........289
TYRES AND WHEELS.........291
REFILL CAPACITIES..........292
FLUIDS AND LUBRICANTS......300
265

VEHICLE LABELING
Vehicle Identification Number (VIN)
The vehicle identification number is
stamped as shown in the illustration.
Vehicle Information code plate
The vehicle information code plate is
located as shown in the illustration.The plate shows model code, engine
model, transmission model and body
colour code, etc.
Please use this number when ordering
replacement parts.
1. Model code
2. Engine model code
3. Transmission model code
4. Final gear ratio
5. Body colour code
6. Interior code
7. Option code
Engine model/number
Engine model and engine number are
stamped on the engine cylinder block
as shown in the illustrations.
412AHA101413
413AHA101400
1
246735
414AA0117333
415AHA101439
416AHA101442
266
TECHNICAL SPECIFICATIONS

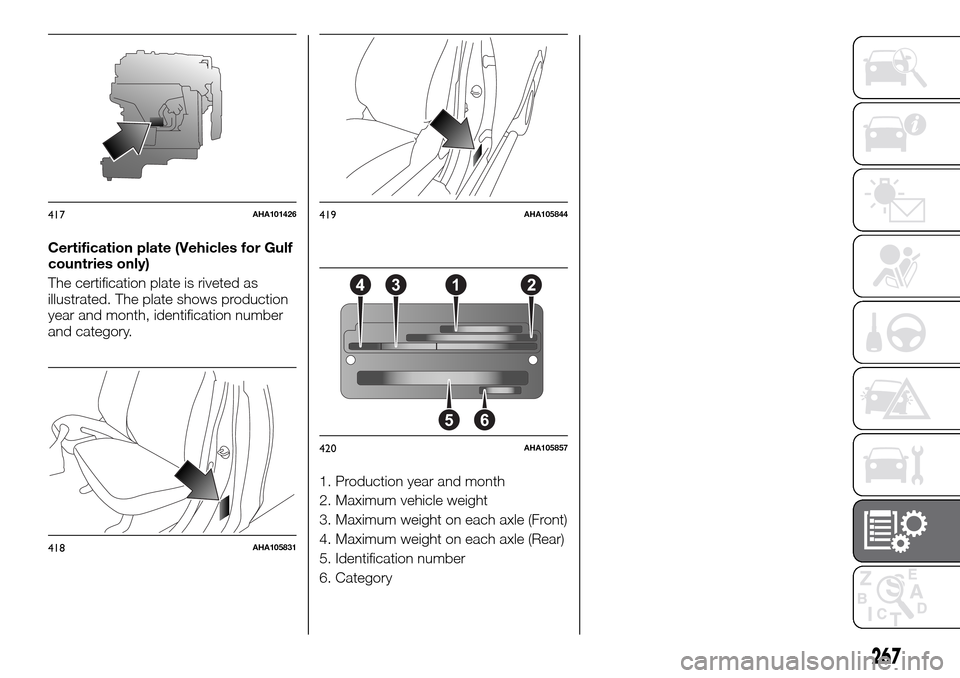

Certification plate (Vehicles for Gulf
countries only)
The certification plate is riveted as
illustrated. The plate shows production
year and month, identification number
and category.
1. Production year and month
2. Maximum vehicle weight
3. Maximum weight on each axle (Front)
4. Maximum weight on each axle (Rear)
5. Identification number
6. Category
417AHA101426
418AHA105831
419AHA105844
1342
65
420AHA105857
267

ENGINE SPECIFICATIONS
Engine specifications
344)
Item Petrol-powered vehicles
Engine models 4G64
n. of cylinders 4 in line
Total displacement 2,351 cc
Bore 86.5 mm
Stroke 100.0 mm
Camshaft Single overhead
Mixture preparation Electronic injection
Maximum output (EEC net) 97 kW/5,250 r/min
Maximum torque (EEC net) 202 Nm/4,000 r/min
268
TECHNICAL SPECIFICATIONS
