FIAT FULLBACK 2016 1.G Owners Manual

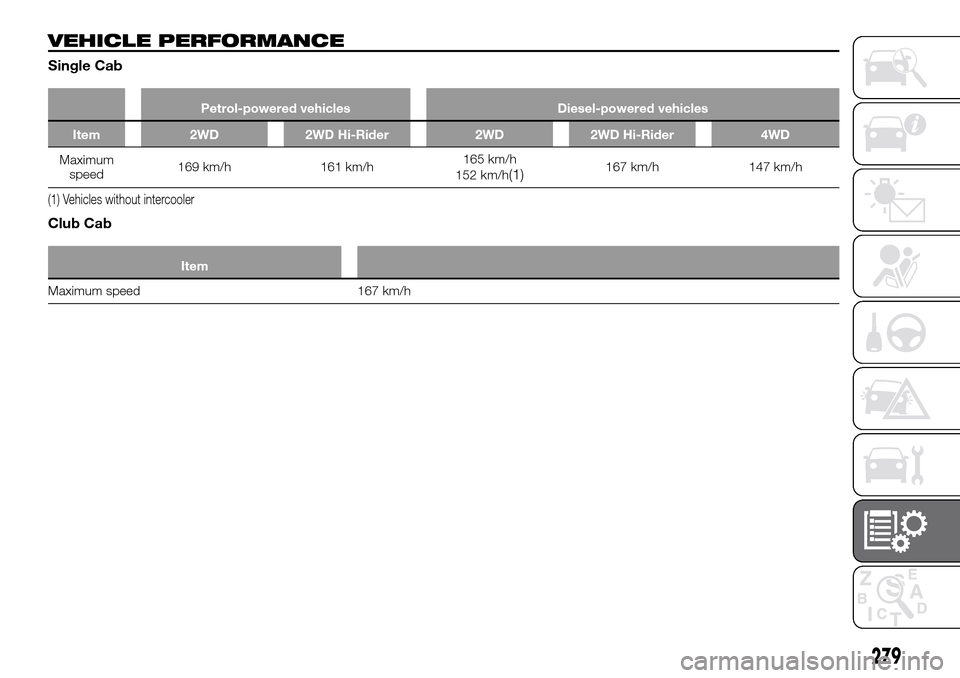

VEHICLE PERFORMANCE
Single Cab
Petrol-powered vehicles Diesel-powered vehicles
Item 2WD 2WD Hi-Rider 2WD 2WD Hi-Rider 4WD
Maximum
speed169 km/h 161 km/h165 km/h
152 km/h(1)167 km/h 147 km/h
(1) Vehicles without intercooler
Club Cab
Item
Maximum speed 167 km/h
279

Double Cab
Petrol-powered vehicles
Item 2WD 2WD Hi-Rider 4WD
Maximum speed 169 km/h 161 km/h 161 km/h
Diesel-powered vehicles (4D56)
Item 2WD 2WD Hi-Rider4WD
Without intercooler4WD
With intercooler
M/T A/T
Maximum
speed152 km/h167 km/h
169 km/h(2)147 km/h167 km/h
179 km/h(2)165 km/h
175 km/h(2)
(2) Vehicles with high power engine
Diesel-powered vehicles (4N15)
Item 2WD Hi-Rider4WD
Without wide fender4WD
With wide fender
M/T A/T
Maximum
speed169 km/h 169 km/h174 km/h
179 km/h(2)173 km/h
177 km/h(2)
(2) Vehicles with high power engine
280
TECHNICAL SPECIFICATIONS

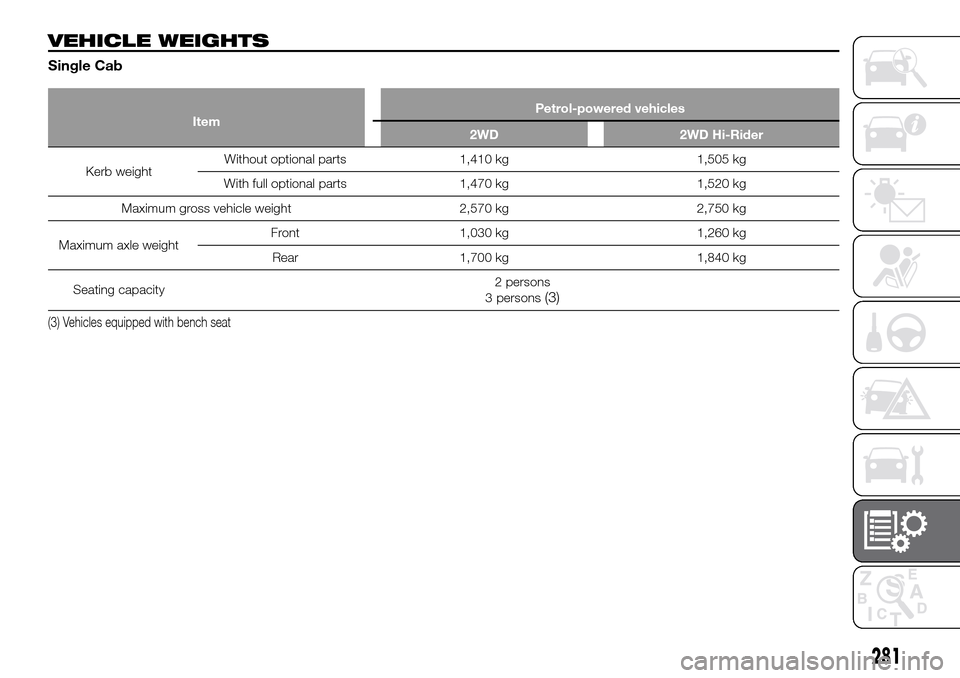

VEHICLE WEIGHTS
Single Cab
ItemPetrol-powered vehicles
2WD 2WD Hi-Rider
Kerb weightWithout optional parts 1,410 kg 1,505 kg
With full optional parts 1,470 kg 1,520 kg
Maximum gross vehicle weight 2,570 kg 2,750 kg
Maximum axle weightFront 1,030 kg 1,260 kg
Rear 1,700 kg 1,840 kg
Seating capacity2 persons
3 persons
(3)
(3) Vehicles equipped with bench seat
281

ItemDiesel-powered vehicles
2WD 2WD Hi-Rider 4WD
Kerb weightWithout optional
parts1,500 kg
1,505 kg(1) (2)1,620 kg 1,690 kg
With full optional
parts1,560 kg
1,570 kg
(1) (2)1,645 kg 1,775 kg
Maximum gross vehicle weight 2,570 kg 2,850 kg 2,760 kg
Maximum axle
weightFront 1,030 kg 1,260 kg 1,260 kg
Rear 1,700 kg 1,840 kg 1,840 kg
Seating capacity2 persons
3 persons
(3)
(1) Vehicles with intercooler
(2) Vehicles for specific markets
(3) Vehicles equipped with bench seat
282
TECHNICAL SPECIFICATIONS

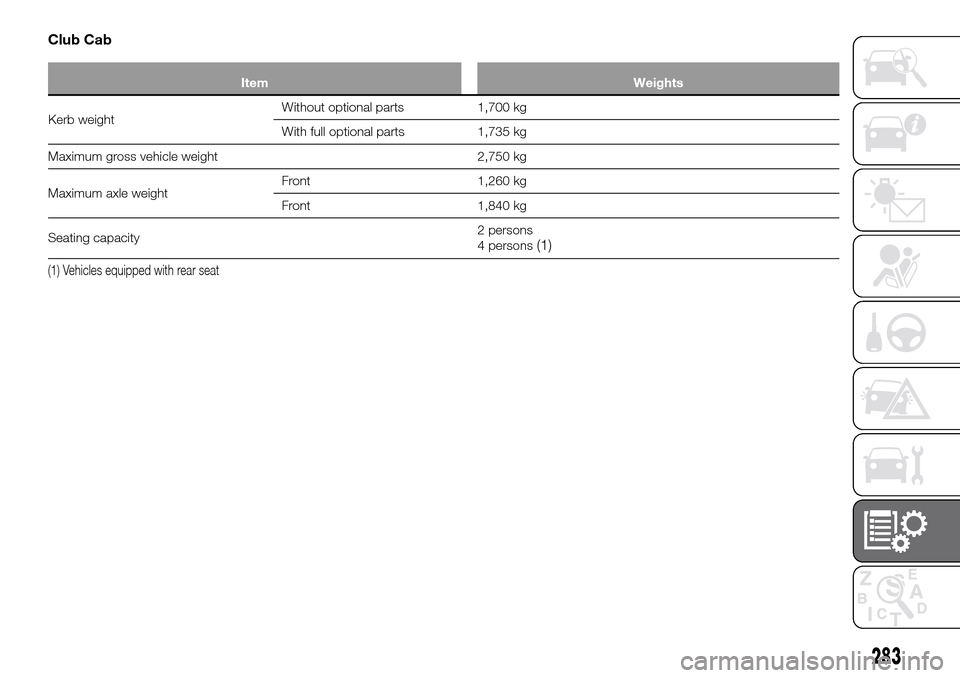

Club Cab
Item Weights
Kerb weightWithout optional parts 1,700 kg
With full optional parts 1,735 kg
Maximum gross vehicle weight 2,750 kg
Maximum axle weightFront 1,260 kg
Front 1,840 kg
Seating capacity2 persons
4 persons
(1)
(1) Vehicles equipped with rear seat
283

Double Cab
Petrol-powered vehicles
Item 2WD 2WD Hi-Rider 4WD
Kerb weightWithout optional
parts1,510 kg 1,615 kg1,690 kg
1,685 kg(1)
With full optional
parts1,570 kg 1,660 kg1,770 kg
1,765 kg(1)
Maximum gross vehicle weight 2,525 kg 2,650 kg2,760 kg
2,700 kg(1)
Maximum axle
weightFront 1,030 kg 1,260 kg 1,260 kg
Rear 1,700 kg 1,840 kg 1,840 kg
Seating capacity5 persons
6 persons
(3)
(1) Vehicles for specific Countries
(3) Vehicles equipped with bench seat
284
TECHNICAL SPECIFICATIONS

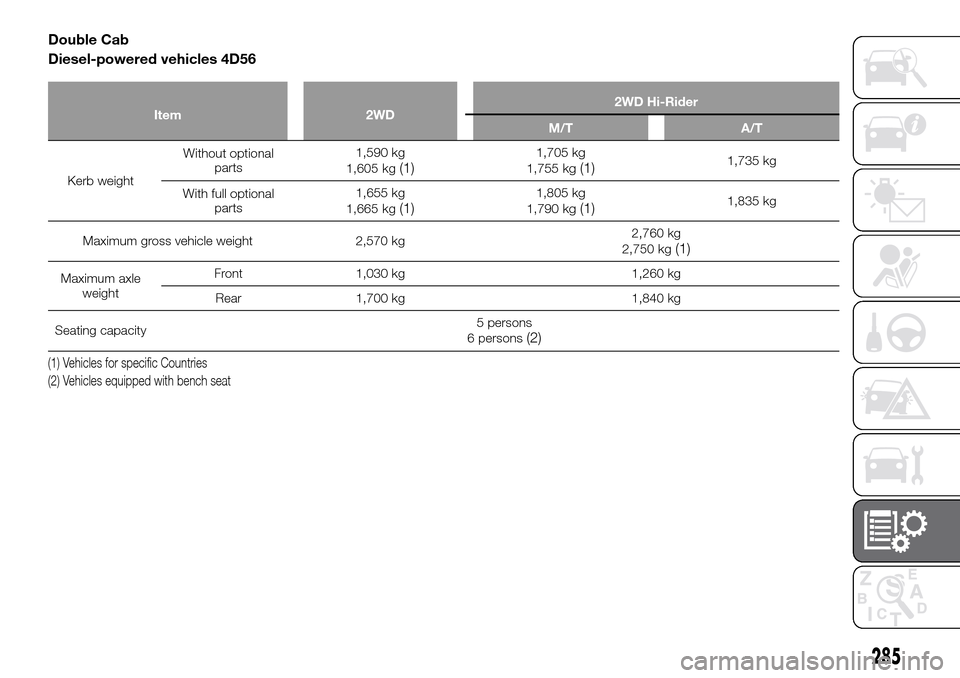

Double Cab
Diesel-powered vehicles 4D56
Item 2WD2WD Hi-Rider
M/T A/T
Kerb weightWithout optional
parts1,590 kg
1,605 kg(1)1,705 kg
1,755 kg(1)1,735 kg
With full optional
parts1,655 kg
1,665 kg
(1)1,805 kg
1,790 kg(1)1,835 kg
Maximum gross vehicle weight 2,570 kg2,760 kg
2,750 kg
(1)
Maximum axle
weightFront 1,030 kg 1,260 kg
Rear 1,700 kg 1,840 kg
Seating capacity5 persons
6 persons
(2)
(1) Vehicles for specific Countries
(2) Vehicles equipped with bench seat
285

4WD
M/T
ItemVehicles without wide fender Vehicles with wide fender
LHD RHD LHD RHD
Kerb weightWithout optional
parts1,775 kg
1,805 kg
(1)1,775 kg1,820 kg
1,835 kg(4)
1,820 kg
1,835 kg(4)1,865 kg(2)
With full optional
parts1,855 kg
1,920 kg(1)1,890 kg(2)1,880 kg1,950 kg
1,980 kg(4)
1,955 kg
1,960 kg(4)1,900 kg(2)
Maximum gross vehicle weight 2,850 kg2,850 kg
2,870 kg(4)2,880 kg(2)
Maximum axle
weightFront 1,260 kg 1,260 kg
Rear 1,840 kg 1,840 kg
Seating
capacity5 persons
6 persons
(3)
(1) Vehicles with intecooler
(4) Vehicles with high power engine
(2) Vehicles for specific Countries
(3) Vehicles equipped with bench seat
286
TECHNICAL SPECIFICATIONS

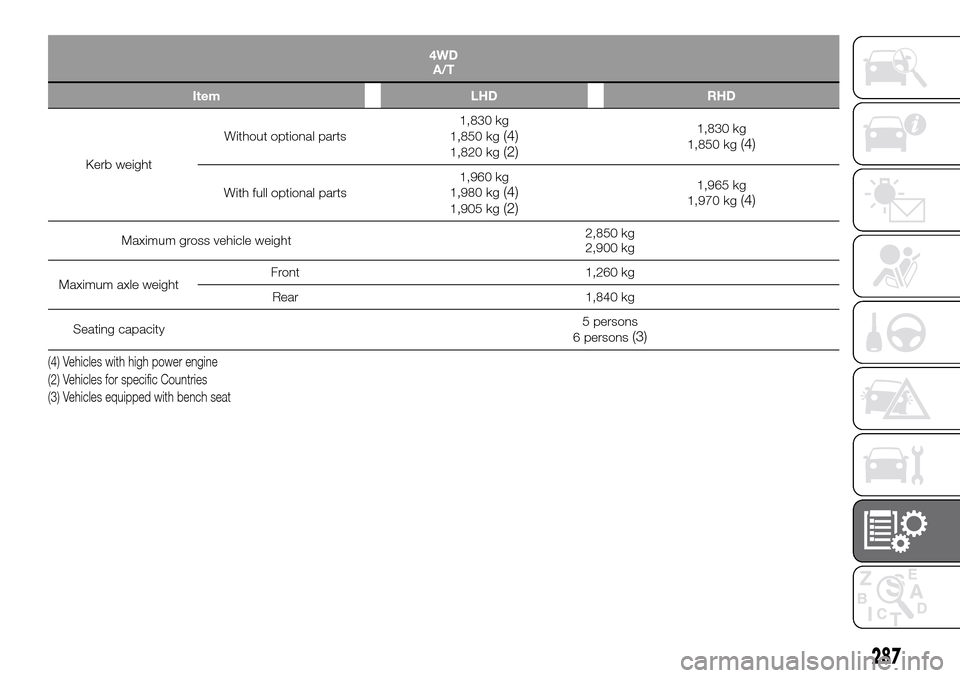

4WD
A/T
Item LHD RHD
Kerb weightWithout optional parts1,830 kg
1,850 kg
(4)1,820 kg(2)
1,830 kg
1,850 kg(4)
With full optional parts1,960 kg
1,980 kg(4)1,905 kg(2)
1,965 kg
1,970 kg(4)
Maximum gross vehicle weight2,850 kg
2,900 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Seating capacity5 persons
6 persons
(3)
(4) Vehicles with high power engine
(2) Vehicles for specific Countries
(3) Vehicles equipped with bench seat
287

Item 2WD Hi-RiderM/T
A/T
Vehicles without wide
fenderVehicles with wide
fender
Kerb weightWithout optional
parts1,725 kg 1,830 kg1,835 kg
1,840 kg(1)1,840 kg
1,845 kg(3)
With full optional
parts1,815 kg 1,925 kg 1,955 kg1,955 kg
1,960 kg(4)
Maximum gross vehicle weight 2,760 kg 2,840 kg 2,870 kg 2,870 kg
Maximum axle
weightFront 1,260 kg
Rear 1,840 kg
Seating
capacity5 persons
6 persons
(2)
(1) LHD
(3) Vehicles with high power engine (LHD)
(4) Vehicles with high power engine
(2) Vehicles equipped with bench seat
288
