FIAT FULLBACK 2016 1.G Owners Manual

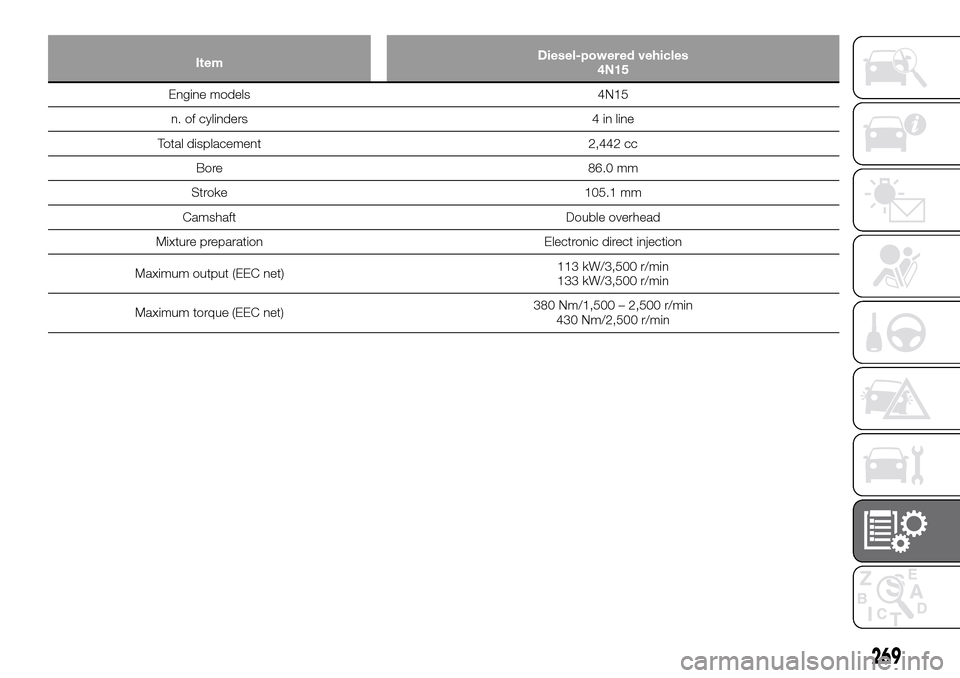

ItemDiesel-powered vehicles
4N15
Engine models 4N15
n. of cylinders 4 in line
Total displacement 2,442 cc
Bore 86.0 mm
Stroke 105.1 mm
Camshaft Double overhead
Mixture preparation Electronic direct injection
Maximum output (EEC net)113 kW/3,500 r/min
133 kW/3,500 r/min
Maximum torque (EEC net)380 Nm/1,500 – 2,500 r/min
430 Nm/2,500 r/min
269

ItemDiesel-powered vehicles
4D56
Without intercoolerWith intercooler
Not for vehicles with 15 inch tyreWith intercooler
Vehicles with 15 inch tyre
Engine models 4D56
No. of cylinders 4 in line
Total displacement 2,477 cc
Bore91.1 mm
Stroke95.0 mm
Camshaft Double overhead
Mixture preparation Electronic direct injection
Maximum output (EEC net) 81 kW/4,000 r/min100 kW/4,000 r/min
131 kW/4,000 r/min
(1)94 kW/4,000 r/min
Maximum torque (EEC net)200 Nm/1,500
–3,500 r/min324 Nm/2,000 r/min
400 Nm/2,000 r/min
(1)240 Nm/1,500 – 3,500 r/min
(1) Vehicles with high power engine
344)
WARNING
344)Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s technical specifications
into account may cause malfunctions leading to a risk of fire.
270
TECHNICAL SPECIFICATIONS

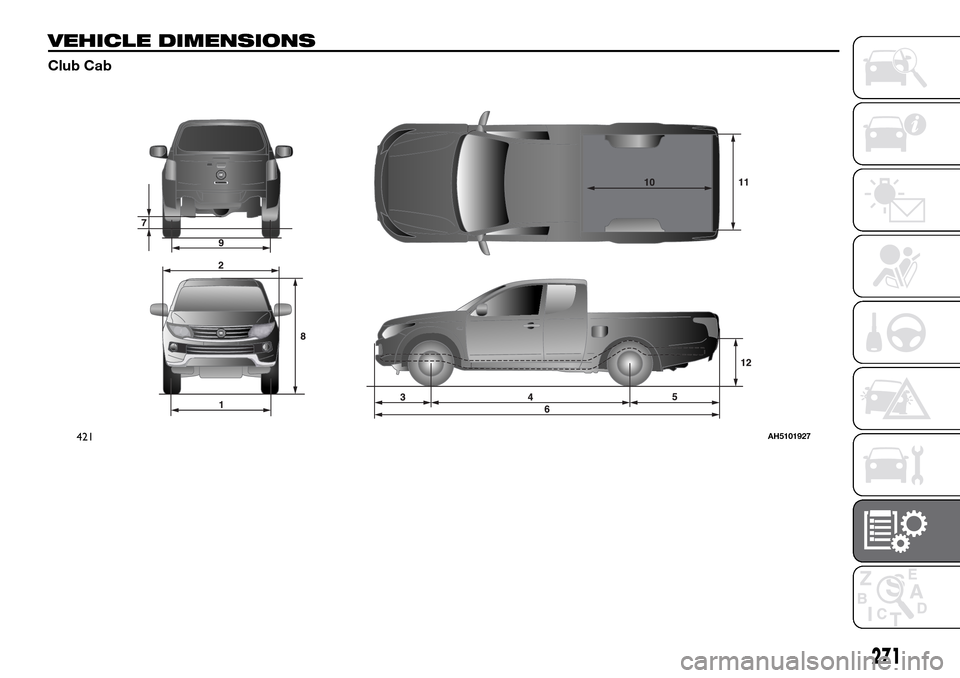

VEHICLE DIMENSIONS
Club Cab
421AH5101927
271

Reference Length
1 Front track1,520 mm
2 Overall width1,815 mm
3 Front overhang865 mm
4 Wheel base3,000 mm
5 Rear overhangWithout rear bumper 1,330 mm
With rear bumper 1,410 mm
6 Overall lengthWithout rear bumper 5,195 mm
With rear bumper 5,275 mm
7 Ground clearance (unladen) 205 mm
8 Overall height (unladen) 1,780 mm
9 Rear track1,515 mm
10 Cargo bed length1,850 mm
11 Cargo bed width1,470 mm
12 Cargo bed height850 mm
Minimum turning radiusBody 6.3 m
Wheel 5.9 m
The vehicle overall length and height may vary depending on the equipment installed.
272
TECHNICAL SPECIFICATIONS

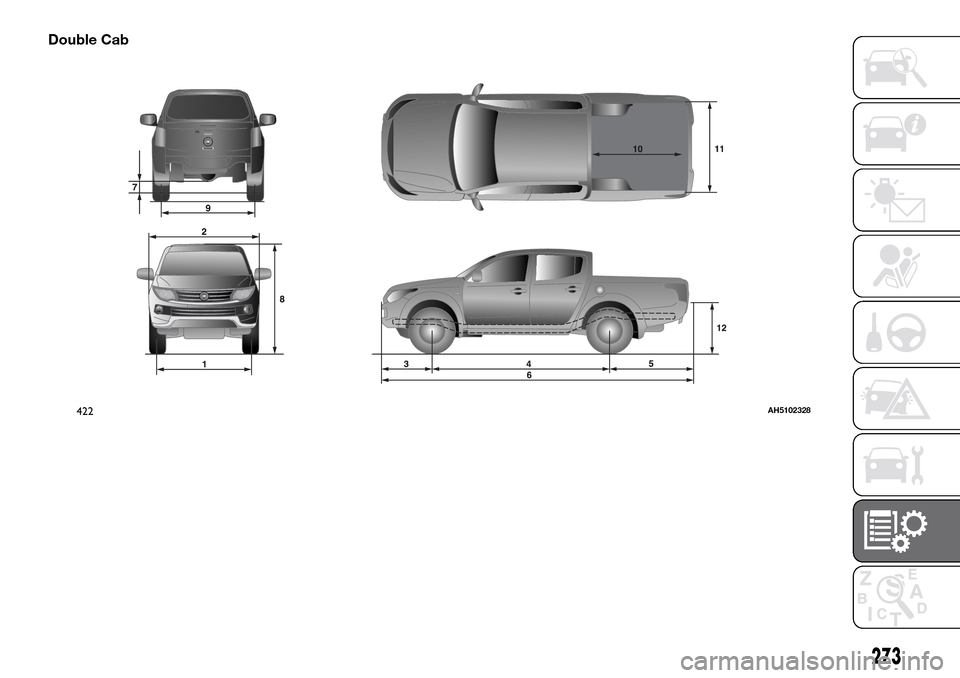

Double Cab
422AH5102328
273

Item 2WD2WD Hi-Rider
Vehicles without wide
fender2WD Hi-Rider
Vehicles with wide fender
1 Front track 1,520 mm
2 Overall width 1,785 mm 1,785 mm 1,815 mm
3 Front overhang
860 mm, 865 mm
(1)
4 Wheel base 3,000 mm
5 Rear overhangWithout rear
bumper1,340 mm
With chrome
rear bumper1,485 mm
With silver rear
bumper— 1,420 mm
6 Overall lengthWithout rear
bumper5,200 mm, 5,205 mm
(1)
With chrome
rear bumper5,345 mm, 5,350 mm(1)
With silver rear
bumper——
5,280 mm, 5,285 mm(1)
7Ground clearance
(unladen)200 mm 200 mm 205 mm
8Overall height
(unladen)1,655 mm 1,775 mm 1,780 mm
9 Rear track 1,515 mm
10 Cargo bed length 1,520 mm
11 Cargo bed width 1,470 mm
12 Cargo bed height 715 mm 845 mm 850 mm
(1) Vehicles equipped with licence garnish
274
TECHNICAL SPECIFICATIONS

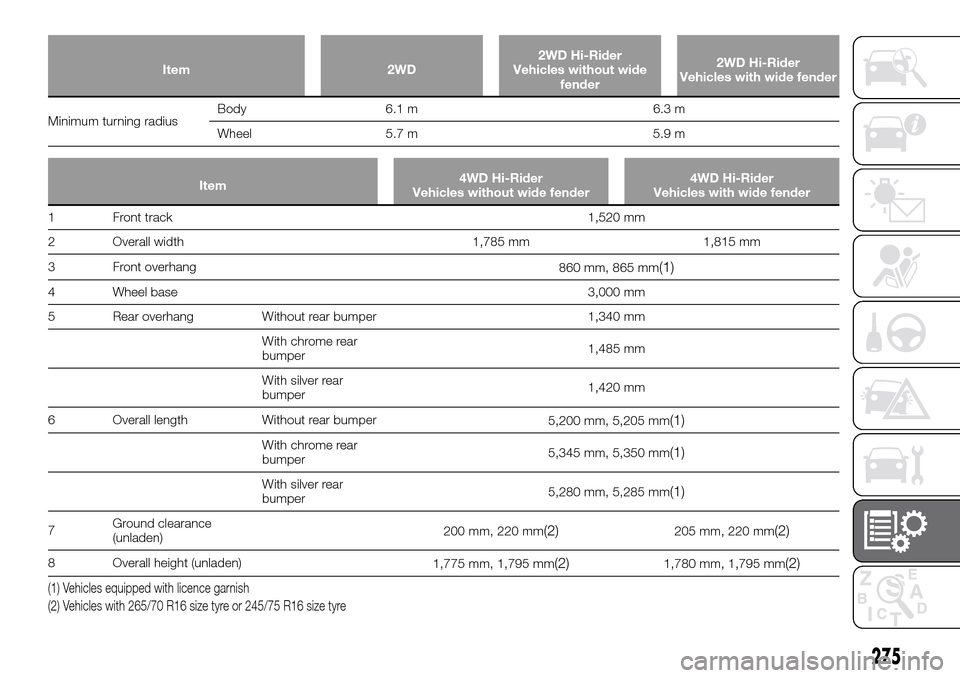

Item 2WD2WD Hi-Rider
Vehicles without wide
fender2WD Hi-Rider
Vehicles with wide fender
Minimum turning radiusBody 6.1 m 6.3 m
Wheel 5.7 m 5.9 m
Item4WD Hi-Rider
Vehicles without wide fender4WD Hi-Rider
Vehicles with wide fender
1 Front track1,520 mm
2 Overall width 1,785 mm 1,815 mm
3 Front overhang
860 mm, 865 mm
(1)
4 Wheel base 3,000 mm
5 Rear overhang Without rear bumper 1,340 mm
With chrome rear
bumper1,485 mm
With silver rear
bumper1,420 mm
6 Overall length Without rear bumper
5,200 mm, 5,205 mm
(1)
With chrome rear
bumper5,345 mm, 5,350 mm(1)
With silver rear
bumper5,280 mm, 5,285 mm(1)
7Ground clearance
(unladen)200 mm, 220 mm(2)205 mm, 220 mm(2)
8 Overall height (unladen)
1,775 mm, 1,795 mm(2)1,780 mm, 1,795 mm(2)
(1) Vehicles equipped with licence garnish
(2) Vehicles with 265/70 R16 size tyre or 245/75 R16 size tyre
275

Item4WD Hi-Rider
Vehicles without wide fender4WD Hi-Rider
Vehicles with wide fender
9 Rear track1,515 mm
10 Cargo bed length 1,520 mm
11 Cargo bed width 1,470 mm
12 Cargo bed height
845 mm, 865 mm
(2)850 mm, 865 mm(2)
Minimum turning radiusBody 6.3 m
Wheel 5.9 m
(2) Vehicles with 265/70 R16 size tyre or 245/75 R16 size tyre
276
TECHNICAL SPECIFICATIONS

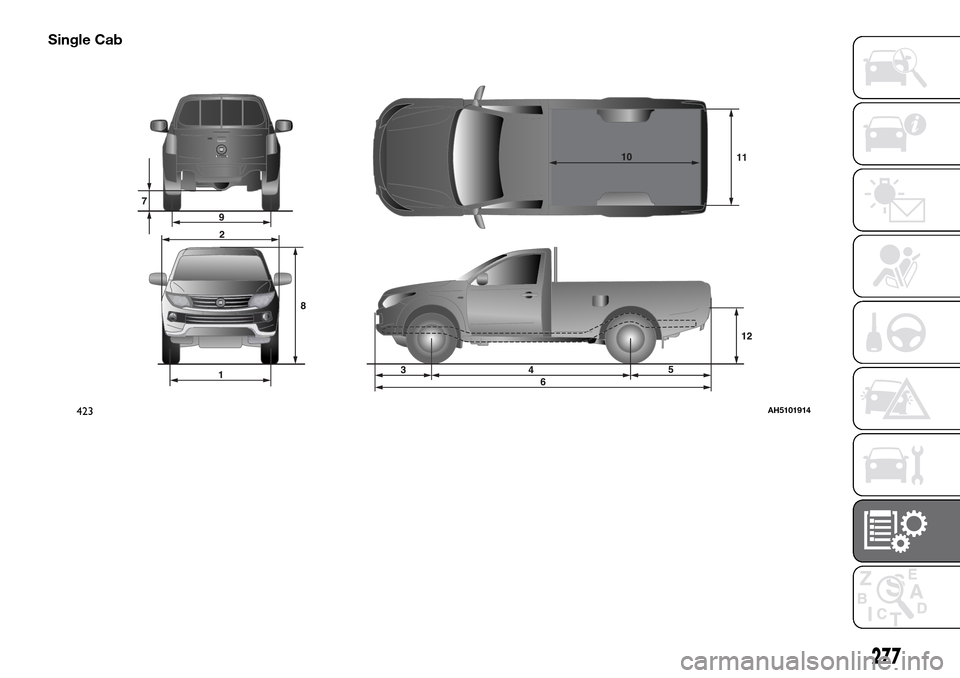

Single Cab
423AH5101914
277

Item 2WD 2WD Hi-Rider 4WD
1 Front track1,520 mm
2 Overall width1,785 mm
3 Front overhang 860 mm, 865 mm
*1865 mm 860 mm, 865 mm*1
4 Wheel base3,000 mm
5 Rear overhangWithout rear bumper 1,215 mm
With rear bumper 1,360 mm - 1,360 mm
6 Overall lengthWithout rear bumper 5,075 mm, 5,080 mm
*15,080 mm 5,075 mm, 5,080 mm*1
With rear bumper 5,220 mm, 5,225 mm*1- 5,220 mm, 5,225 mm*1
7 Ground clearance (unladen) 200 mm
8 Overall height (unladen) 1,655 mm 1,765 mm, 1,780 mm
*21,780 mm
9 Rear track1,515 mm
10 Cargo bed length 2,265 mm
11 Cargo bed width 1,470 mm
12 Cargo bed height 710 mm 840 mm 845 mm
Minimum turning radiusBody 6.1 m 6.3 m
Wheel 5.7 m 5.9 m
*1: Vehicles equipped with licence plate garnish*2: Vehicles equipped with rear guard frame
278
TECHNICAL SPECIFICATIONS
