FIAT FULLBACK 2016 1.G Owners Manual

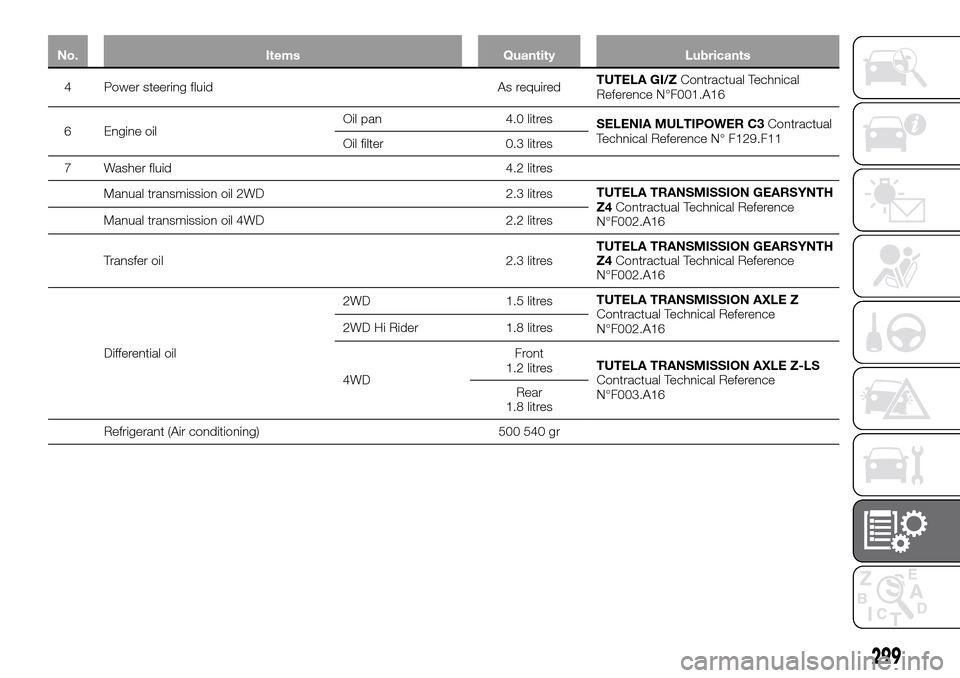

No. Items Quantity Lubricants
4 Power steering fluid As requiredTUTELA GI/ZContractual Technical
Reference N°F001.A16
6 Engine oilOil pan 4.0 litres
SELENIA MULTIPOWER C3Contractual
Technical Reference N° F129.F11
Oil filter 0.3 litres
7 Washer fluid 4.2 litres
Manual transmission oil 2WD 2.3 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16 Manual transmission oil 4WD 2.2 litres
Transfer oil 2.3 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16
Differential oil2WD 1.5 litresTUTELA TRANSMISSION AXLE Z
Contractual Technical Reference
N°F002.A16 2WD Hi Rider 1.8 litres
4WDFront
1.2 litresTUTELA TRANSMISSION AXLE Z-LS
Contractual Technical Reference
N°F003.A16 Rear
1.8 litres
Refrigerant (Air conditioning) 500 540 gr
299

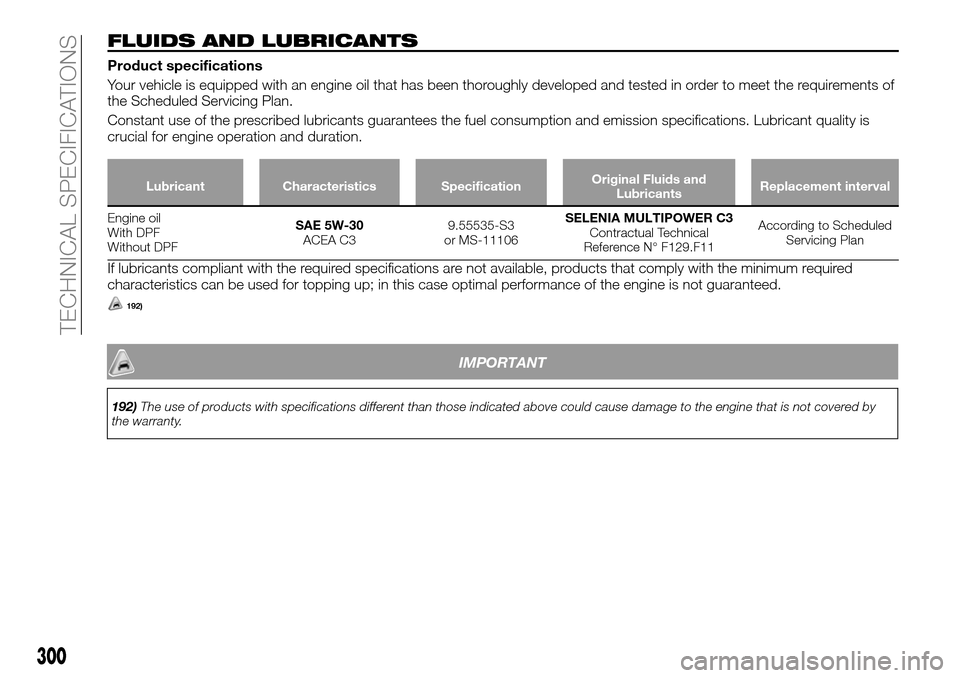

FLUIDS AND LUBRICANTS
Product specifications
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsReplacement interval
Engine oil
With DPF
Without DPFSAE 5W-30
ACEA C39.55535-S3
or MS-11106SELENIA MULTIPOWER C3
Contractual Technical
Reference N° F129.F11According to Scheduled
Servicing Plan
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
192)
300
TECHNICAL SPECIFICATIONS
IMPORTANT
192)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by
the warranty.

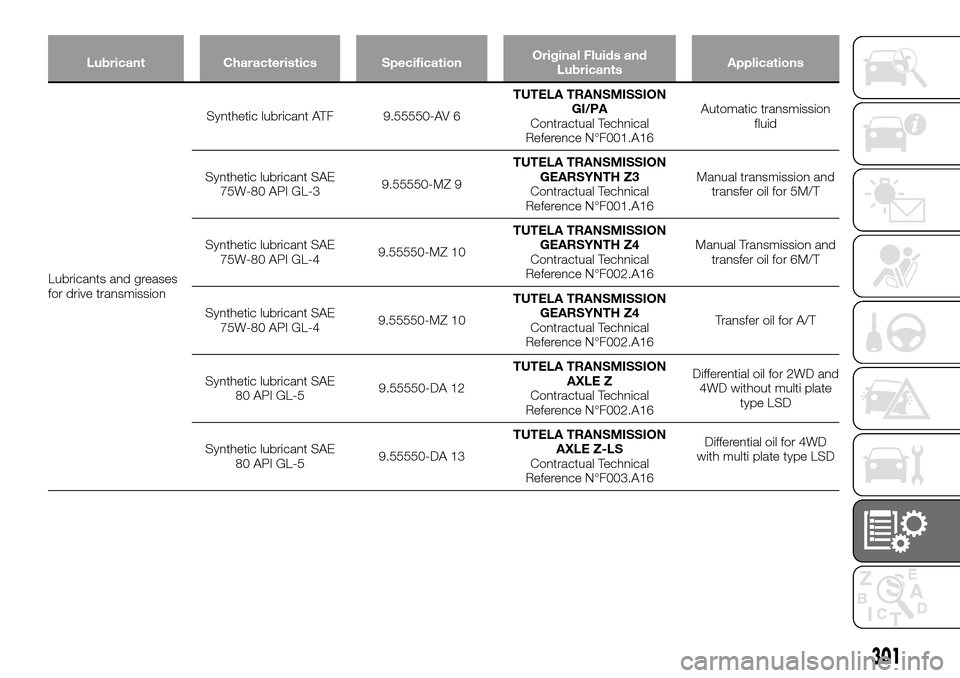

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplications
Lubricants and greases
for drive transmissionSynthetic lubricant ATF 9.55550-AV 6TUTELA TRANSMISSION
GI/PA
Contractual Technical
Reference N°F001.A16Automatic transmission
fluid
Synthetic lubricant SAE
75W-80 API GL-39.55550-MZ 9TUTELA TRANSMISSION
GEARSYNTH Z3
Contractual Technical
Reference N°F001.A16Manual transmission and
transfer oil for 5M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Manual Transmission and
transfer oil for 6M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Transfer oil for A/T
Synthetic lubricant SAE
80 API GL-59.55550-DA 12TUTELA TRANSMISSION
AXLE Z
Contractual Technical
Reference N°F002.A16Differential oil for 2WD and
4WD without multi plate
type LSD
Synthetic lubricant SAE
80 API GL-59.55550-DA 13TUTELA TRANSMISSION
AXLE Z-LS
Contractual Technical
Reference N°F003.A16Differential oil for 4WD
with multi plate type LSD
301

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplications
Protective agent for
radiatorsCUNA NC 956-16
ASTM D 33069.55523
or MS.90032PARAFLU UP
Contractual Technical
Reference N° F101.M01
(1)Engine Coolant
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount we recommend completely changing the coolant in the percentages given.
302
TECHNICAL SPECIFICATIONS

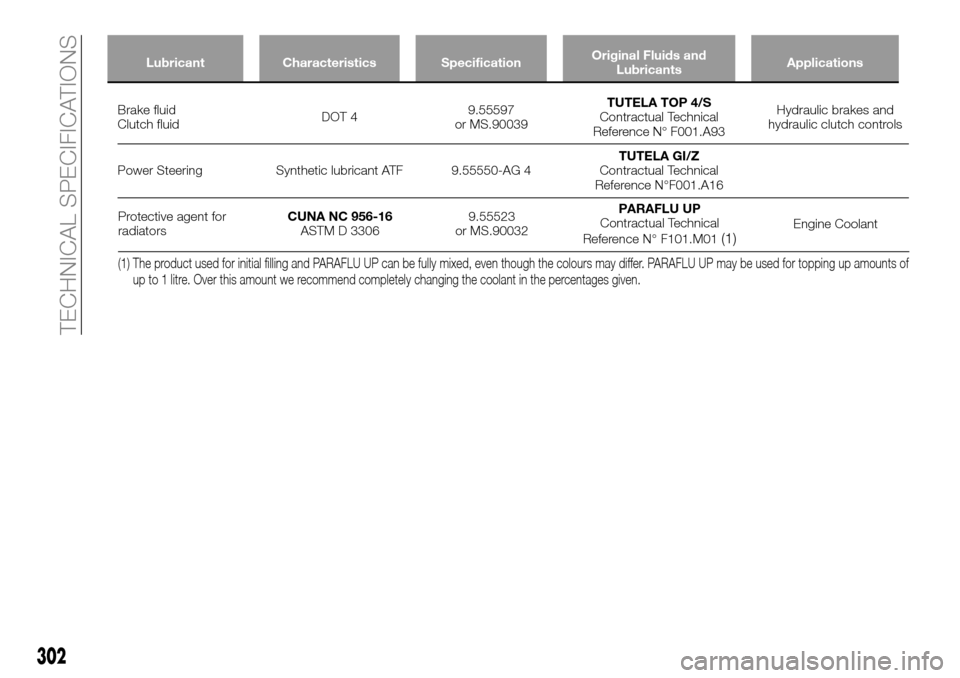

Brake fluid
Clutch fluidDOT 49.55597
or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F001.A93Hydraulic brakes and
hydraulic clutch controls
Power Steering Synthetic lubricant ATF 9.55550-AG 4TUTELA GI/Z
Contractual Technical
Reference N°F001.A16

Mopar Vehicle Protectionoffers a series of service contracts that are designed to give all our customers the
pleasure of driving their vehicle without any hitch's and concerns.
Our product portfolio consists of a wide and flexible range of extended warranty and maintenance plans
endorsed by FCA. Each with a series of different coverage tiers, in terms of durability and mileage, built to
accommodate you’re driving needs.
Service contracts are made by experts that know every part of your vehicle, and commit themselves
to maintain it in tip top conditions. Our knowledge and passion is tailored around designing
products that promises all our drivers “worry-free driving”.
Only with Mopar Vehicle Protection you are ensured that all service operations are performed
by highly qualified and specialized technicians in authorized FCA repair facilities, using the right tools,
equipment and only original parts, all over Europe.
Check which Service Contract plans are available on your market today and choose the
Service Contract that suits your driving habits best.
Ask your local dealer for further information.
MAINTAIN YOUR VEHICLE IN
TIP TOP CONDITIONS WITH

NOTES
