FIAT FULLBACK 2016 1.G Owners Manual

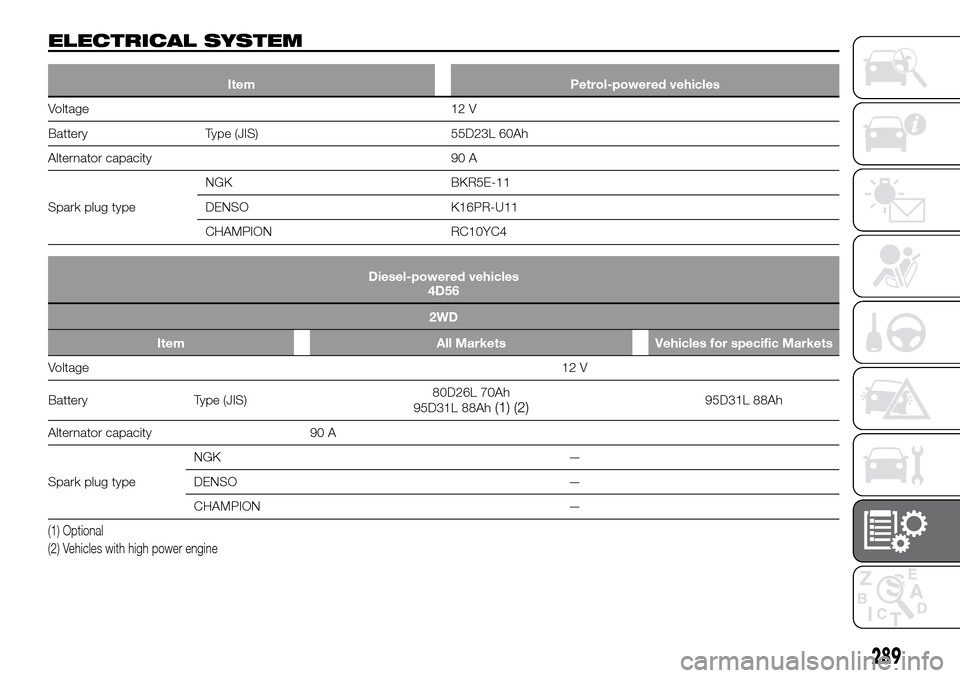

ELECTRICAL SYSTEM
Item Petrol-powered vehicles
Voltage 12 V
Battery Type (JIS) 55D23L 60Ah
Alternator capacity 90 A
Spark plug typeNGK BKR5E-11
DENSO K16PR-U11
CHAMPION RC10YC4
Diesel-powered vehicles
4D56
2WD
Item All Markets Vehicles for specific Markets
Voltage12 V
Battery Type (JIS)80D26L 70Ah
95D31L 88Ah
(1) (2)95D31L 88Ah
Alternator capacity 90 A
Spark plug typeNGK —
DENSO —
CHAMPION —
(1) Optional
(2) Vehicles with high power engine
289

Diesel-powered vehicles
4D56
4WD
Item Single CabDouble Cab
Without intecooler With Intercooler
Voltage12 V
Battery Type (JIS)80D26L 70Ah
95D31L 88Ah
(1) (3)95D31L 88Ah80D26L 70Ah
95D31L 88Ah(1) (2)
Alternator capacity 90 A
Spark plug
typeNGK —
DENSO —
CHAMPION —
(1) Optional
(3) RHD
(2) Vehicles with high power engine
ItemDiesel-powered vehicles
4N15
Voltage12 V
Battery Type (JIS)95D31L 88Ah
115D31L 72Ah
Alternator capacity90 A
Spark plug typeNGK BKR5E-11
DENSO K16PR-U11
CHAMPION RC10YC4
290
TECHNICAL SPECIFICATIONS

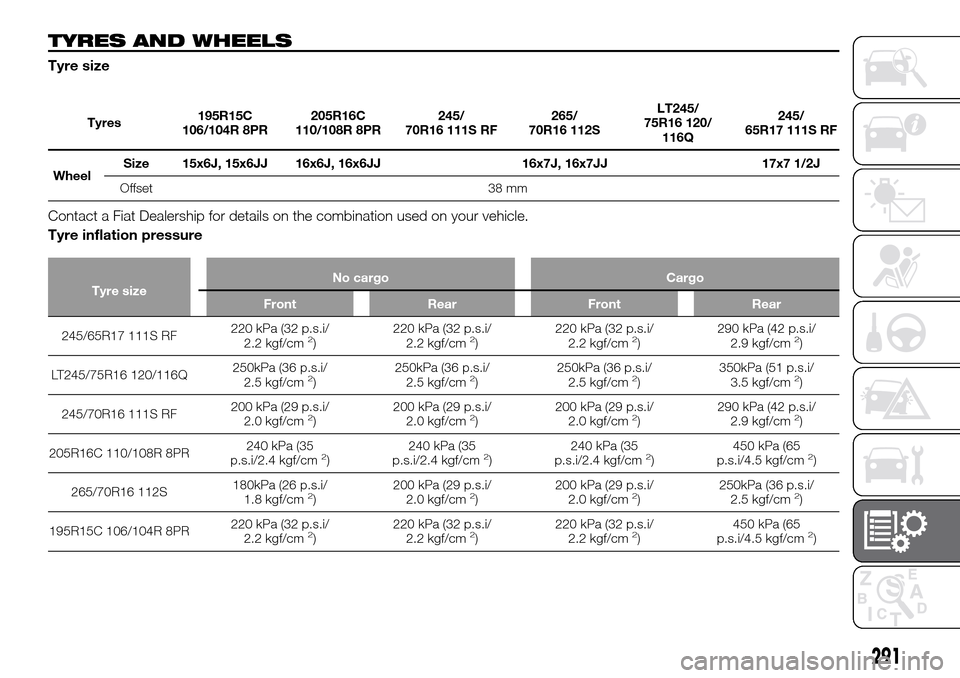

TYRES AND WHEELS
Tyre size
Tyres195R15C
106/104R 8PR205R16C
110/108R 8PR245/
70R16 111S RF265/
70R16 112SLT245/
75R16 120/
116Q245/
65R17 111S RF
WheelSize 15x6J, 15x6JJ 16x6J, 16x6JJ 16x7J, 16x7JJ 17x7 1/2J
Offset 38 mm
Contact a Fiat Dealership for details on the combination used on your vehicle.
Tyre inflation pressure
Tyre sizeNo cargo Cargo
Front Rear Front Rear
245/65R17 111S RF220 kPa (32 p.s.i/
2.2 kgf/cm2)220 kPa (32 p.s.i/
2.2 kgf/cm2)220 kPa (32 p.s.i/
2.2 kgf/cm2)290 kPa (42 p.s.i/
2.9 kgf/cm2)
LT245/75R16 120/116Q250kPa (36 p.s.i/
2.5 kgf/cm
2)250kPa (36 p.s.i/
2.5 kgf/cm2)250kPa (36 p.s.i/
2.5 kgf/cm2)350kPa (51 p.s.i/
3.5 kgf/cm2)
245/70R16 111S RF200 kPa (29 p.s.i/
2.0 kgf/cm
2)200 kPa (29 p.s.i/
2.0 kgf/cm2)200 kPa (29 p.s.i/
2.0 kgf/cm2)290 kPa (42 p.s.i/
2.9 kgf/cm2)
205R16C 110/108R 8PR240 kPa (35
p.s.i/2.4 kgf/cm
2)240 kPa (35
p.s.i/2.4 kgf/cm2)240 kPa (35
p.s.i/2.4 kgf/cm2)450 kPa (65
p.s.i/4.5 kgf/cm2)
265/70R16 112S180kPa (26 p.s.i/
1.8 kgf/cm
2)200 kPa (29 p.s.i/
2.0 kgf/cm2)200 kPa (29 p.s.i/
2.0 kgf/cm2)250kPa (36 p.s.i/
2.5 kgf/cm2)
195R15C 106/104R 8PR220 kPa (32 p.s.i/
2.2 kgf/cm
2)220 kPa (32 p.s.i/
2.2 kgf/cm2)220 kPa (32 p.s.i/
2.2 kgf/cm2)450 kPa (65
p.s.i/4.5 kgf/cm2)
291

REFILL CAPACITIES
4N15 Diesel-powered vehicles
A— RHD vehicles
No. Items Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)7.7 litresPARAFLU UPContractual Technical
Reference N° F101.M01 (1)
Automatic transmission fluid
(1)10.9 litresTUTELA TRANSMISSION GI/PA
Contractual Technical Reference
N°F001.A16
(1) If so equipped
A
1
42253
3
678
424VANODIESEL3231
292
TECHNICAL SPECIFICATIONS

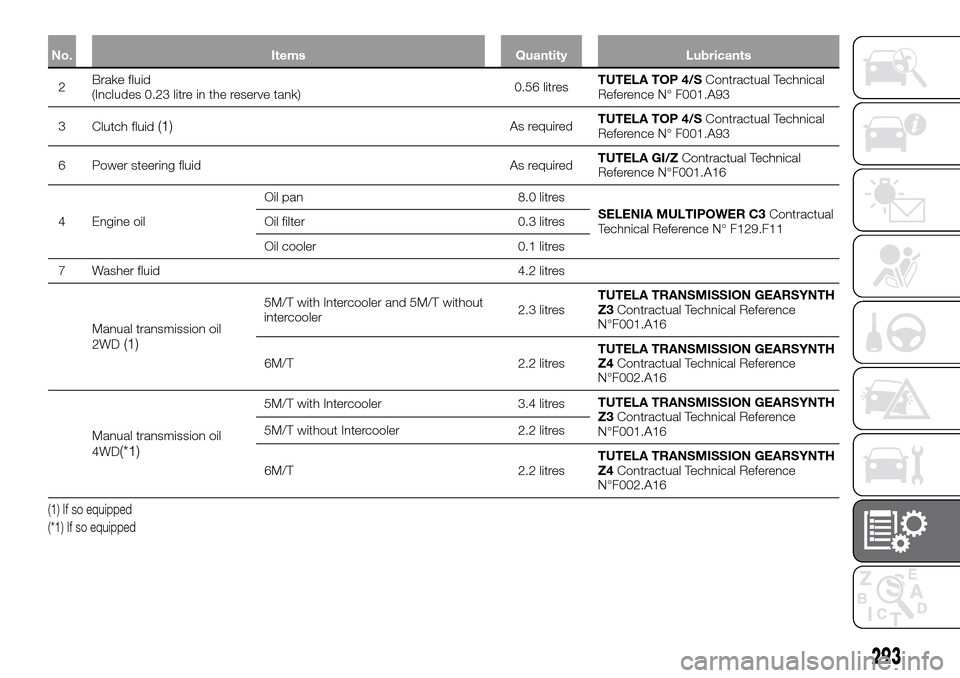

No. Items Quantity Lubricants
2Brake fluid
(Includes 0.23 litre in the reserve tank)0.56 litresTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
3
Clutch fluid
(1)As requiredTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
6 Power steering fluid As requiredTUTELA GI/ZContractual Technical
Reference N°F001.A16
4 Engine oilOil pan 8.0 litres
SELENIA MULTIPOWER C3Contractual
Technical Reference N° F129.F11 Oil filter 0.3 litres
Oil cooler 0.1 litres
7 Washer fluid 4.2 litres
Manual transmission oil
2WD
(1)
5M/T with Intercooler and 5M/T without
intercooler2.3 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16
6M/T 2.2 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16
Manual transmission oil
4WD
(*1)
5M/T with Intercooler 3.4 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16 5M/T without Intercooler 2.2 litres
6M/T 2.2 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16
(1) If so equipped
(*1) If so equipped
293

No. Items Quantity Lubricants
Transfer oil5M/T with Intercooler 2.5 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16 5M/T without Intercooler 2.3 litres
6M/T, 5A/T Super select 4WD II 1.34 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16 6M/T, 5A/T Easy select 4WD 1.15 litres
Differential oil2WD 1.5 litresTUTELA TRANSMISSION AXLE Z
Contractual Technical Reference
N°F002.A16 2WD HIi-Rider 2.3 litres
4WD Front 1.2 litres
TUTELA TRANSMISSION AXLE Z-LS
Contractual Technical Reference
N°F003.A16 4WD Rearwithout intercooler1.8 litres
2.3 litres
(2)
with intercooler 2.3 litres
Refrigerant (Air conditioning) 500-540 g
(2) Optional
294
TECHNICAL SPECIFICATIONS

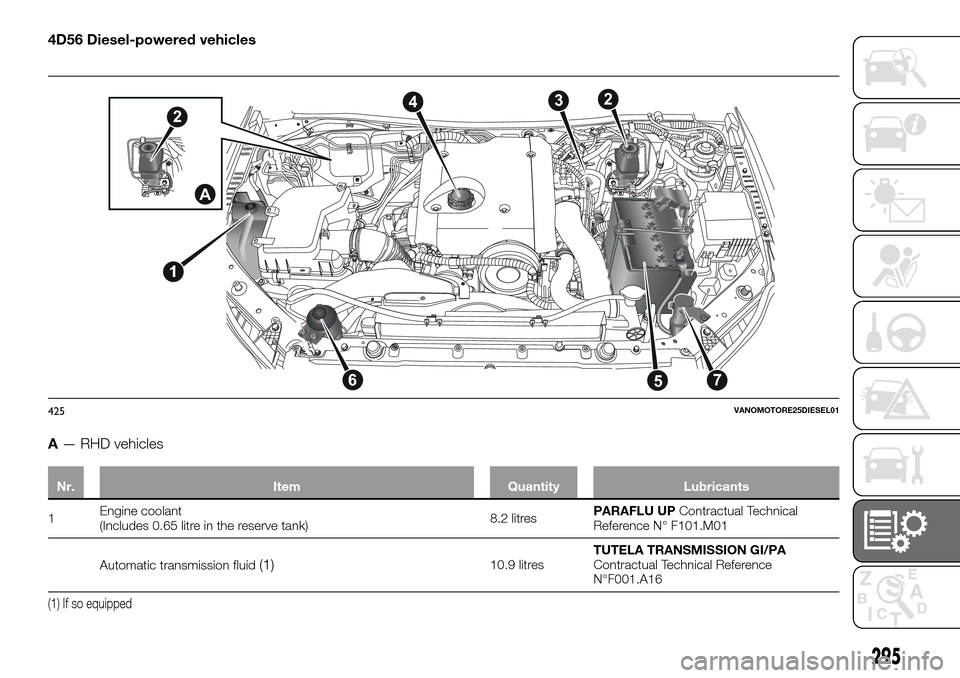

4D56 Diesel-powered vehicles
A— RHD vehicles
Nr. Item Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)8.2 litresPARAFLU UPContractual Technical
Reference N° F101.M01
Automatic transmission fluid
(1)10.9 litresTUTELA TRANSMISSION GI/PA
Contractual Technical Reference
N°F001.A16
(1) If so equipped
1
42
23
756
A
425VANOMOTORE25DIESEL01
295

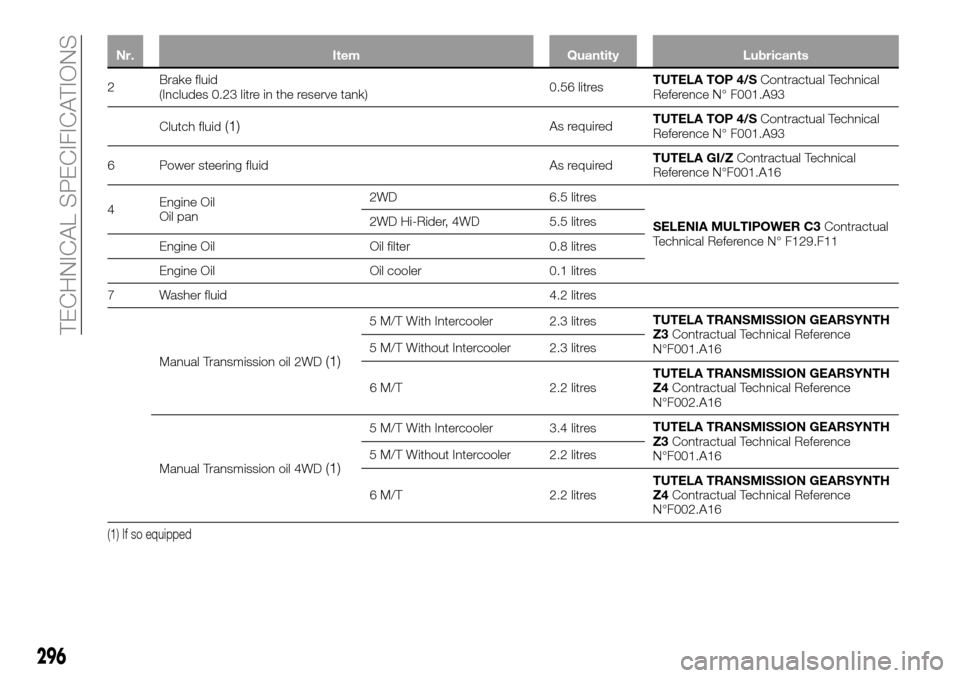

Nr. Item Quantity Lubricants
2Brake fluid
(Includes 0.23 litre in the reserve tank)0.56 litresTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
Clutch fluid
(1)As requiredTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
6 Power steering fluid As requiredTUTELA GI/ZContractual Technical
Reference N°F001.A16
4Engine Oil
Oil pan2WD 6.5 litres
SELENIA MULTIPOWER C3Contractual
Technical Reference N° F129.F11 2WD Hi-Rider, 4WD 5.5 litres
Engine Oil Oil filter 0.8 litres
Engine Oil Oil cooler 0.1 litres
7 Washer fluid 4.2 litres
Manual Transmission oil 2WD
(1)
5 M/T With Intercooler 2.3 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16 5 M/T Without Intercooler 2.3 litres
6 M/T 2.2 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16
Manual Transmission oil 4WD
(1)
5 M/T With Intercooler 3.4 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16 5 M/T Without Intercooler 2.2 litres
6 M/T 2.2 litresTUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16
(1) If so equipped
296
TECHNICAL SPECIFICATIONS

Nr. Item Quantity Lubricants
Transfer oil5 M/T With Intercooler 2.5 litresTUTELA TRANSMISSION GEARSYNTH
Z3Contractual Technical Reference
N°F001.A16 5 M/T Without Intercooler 2.3 litres
6 M/T, 5 A/T
Super select 4WD II1.34 litres
TUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference
N°F002.A16 6 M/T, 5 A/T
Easy select 4WD1.15 litres
Differential oil 2WD2WD 1.5 litresTUTELA TRANSMISSION AXLE Z
Contractual Technical Reference
N°F002.A16 2WD Hi-Rider 2.3 litres
Differential oil 4WDFront 1.2 litres
TUTELA TRANSMISSION AXLE Z-LS
Contractual Technical Reference
N°F003.A16 Rear — without intercooler 1.8 litres
Rear — with intercooler 2.3 litres
Refrigerant 500–540 gr
297

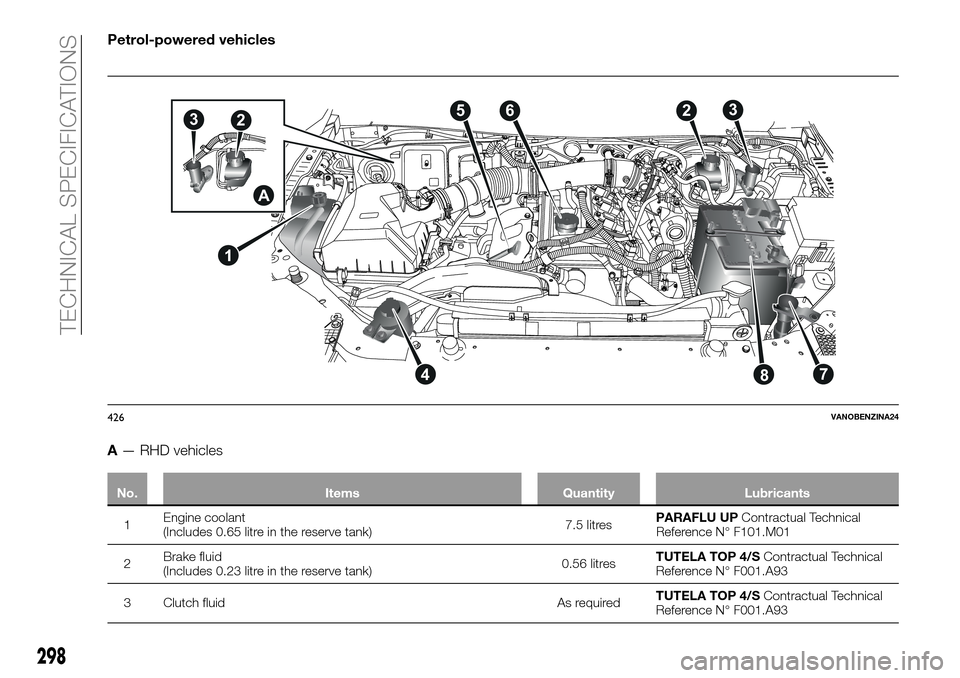

Petrol-powered vehicles
A— RHD vehicles
No. Items Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)7.5 litresPARAFLU UPContractual Technical
Reference N° F101.M01
2Brake fluid
(Includes 0.23 litre in the reserve tank)0.56 litresTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
3 Clutch fluid As requiredTUTELA TOP 4/SContractual Technical
Reference N° F001.A93
1
623
784
5
A
23
426VANOBENZINA24
