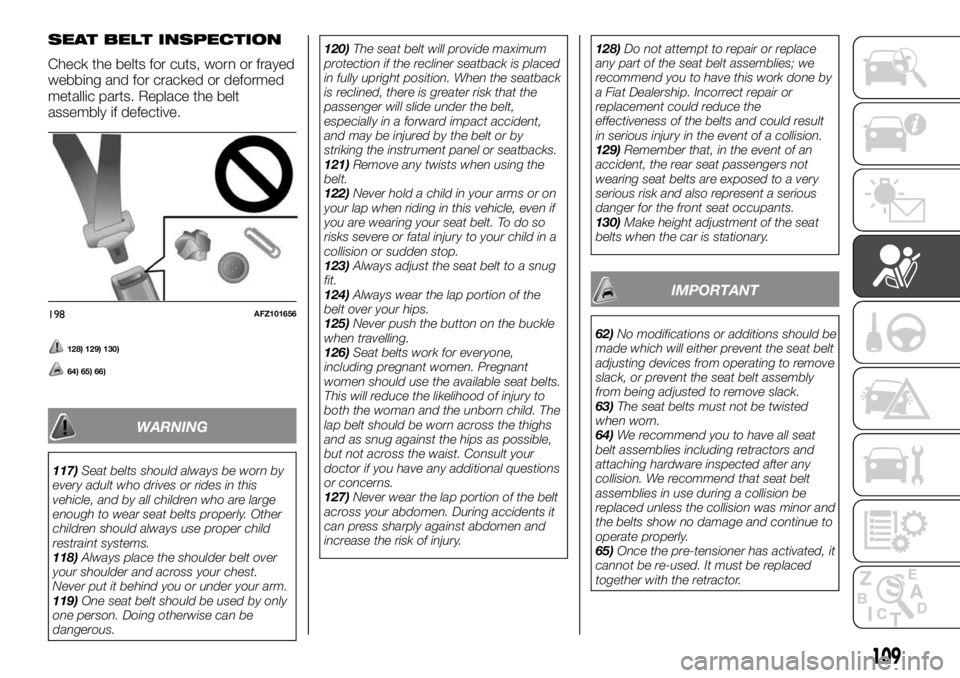

SEAT BELT INSPECTION
Check the belts for cuts, worn or frayed
webbing and for cracked or deformed
metallic parts. Replace the belt
assembly if defective.
128) 129) 130)
64) 65) 66)
WARNING
117)Seat belts should always be worn by
every adult who drives or rides in this
vehicle, and by all children who are large
enough to wear seat belts properly. Other
children should always use proper child
restraint systems.
118)Always place the shoulder belt over
your shoulder and across your chest.
Never put it behind you or under your arm.
119)One seat belt should be used by only
one person. Doing otherwise can be
dangerous.120)The seat belt will provide maximum
protection if the recliner seatback is placed
in fully upright position. When the seatback
is reclined, there is greater risk that the
passenger will slide under the belt,
especially in a forward impact accident,
and may be injured by the belt or by
striking the instrument panel or seatbacks.
121)Remove any twists when using the
belt.
122)Never hold a child in your arms or on
your lap when riding in this vehicle, even if
you are wearing your seat belt. To do so
risks severe or fatal injury to your child in a
collision or sudden stop.
123)Always adjust the seat belt to a snug
fit.
124)Always wear the lap portion of the
belt over your hips.
125)Never push the button on the buckle
when travelling.
126)Seat belts work for everyone,
including pregnant women. Pregnant
women should use the available seat belts.
This will reduce the likelihood of injury to
both the woman and the unborn child. The
lap belt should be worn across the thighs
and as snug against the hips as possible,
but not across the waist. Consult your
doctor if you have any additional questions
or concerns.
127)Never wear the lap portion of the belt
across your abdomen. During accidents it
can press sharply against abdomen and
increase the risk of injury.128)Do not attempt to repair or replace
any part of the seat belt assemblies; we
recommend you to have this work done by
a Fiat Dealership. Incorrect repair or
replacement could reduce the
effectiveness of the belts and could result
in serious injury in the event of a collision.
129)Remember that, in the event of an
accident, the rear seat passengers not
wearing seat belts are exposed to a very
serious risk and also represent a serious
danger for the front seat occupants.
130)Make height adjustment of the seat
belts when the car is stationary.
IMPORTANT
62)No modifications or additions should be
made which will either prevent the seat belt
adjusting devices from operating to remove
slack, or prevent the seat belt assembly
from being adjusted to remove slack.
63)The seat belts must not be twisted
when worn.
64)We recommend you to have all seat
belt assemblies including retractors and
attaching hardware inspected after any
collision. We recommend that seat belt
assemblies in use during a collision be
replaced unless the collision was minor and
the belts show no damage and continue to
operate properly.
65)Once the pre-tensioner has activated, it
cannot be re-used. It must be replaced
together with the retractor.
198AFZ101656
109

66)Do not insert any foreign objects
(pieces of plastic, paper clips, buttons, etc.)
in the buckle or retractor mechanism
fig. 198. In addition, do not modify, remove,
or install the seat belt. Otherwise, the seat
belt may not be able to provide adequate
protection in a collision or other situation.
67)A dirty belt should be cleaned with
neutral detergent in warm water. After
rinsing in water, let it dry in the shade. Do
not attempt to bleach or re-dye the belts
because this affects their characteristics.SBR SYSTEM

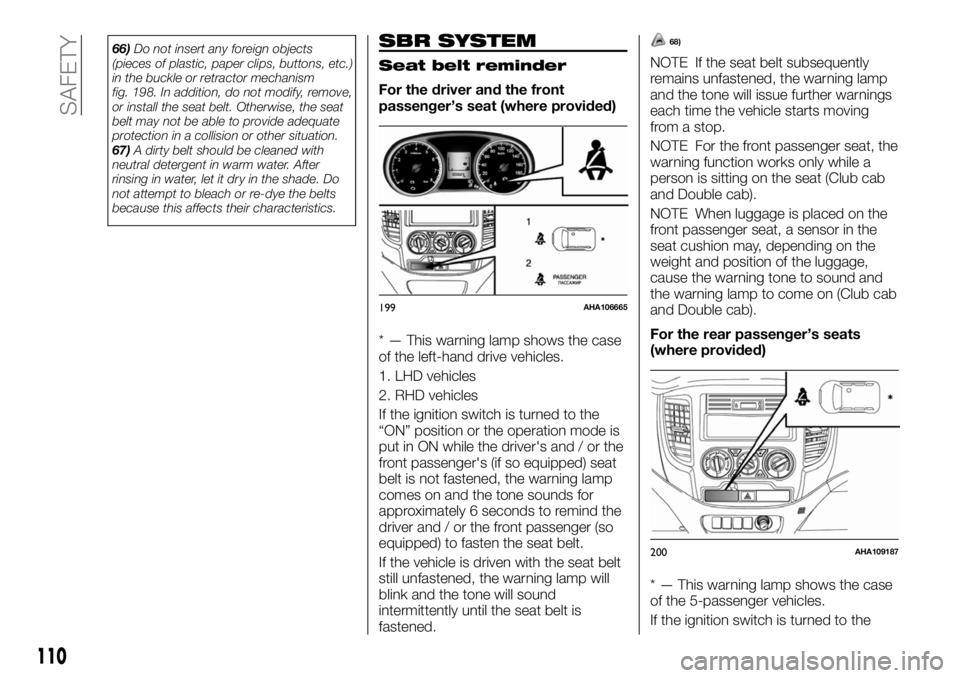

Seat belt reminder
For the driver and the front
passenger’s seat (where provided)
* — This warning lamp shows the case
of the left-hand drive vehicles.
1. LHD vehicles
2. RHD vehicles
If the ignition switch is turned to the
“ON” position or the operation mode is
put in ON while the driver's and / or the
front passenger's (if so equipped) seat
belt is not fastened, the warning lamp
comes on and the tone sounds for
approximately 6 seconds to remind the
driver and / or the front passenger (so
equipped) to fasten the seat belt.
If the vehicle is driven with the seat belt
still unfastened, the warning lamp will
blink and the tone will sound
intermittently until the seat belt is
fastened.
68)
NOTE If the seat belt subsequently
remains unfastened, the warning lamp
and the tone will issue further warnings
each time the vehicle starts moving
from a stop.
NOTE For the front passenger seat, the
warning function works only while a
person is sitting on the seat (Club cab
and Double cab).
NOTE When luggage is placed on the
front passenger seat, a sensor in the
seat cushion may, depending on the
weight and position of the luggage,
cause the warning tone to sound and
the warning lamp to come on (Club cab
and Double cab).
For the rear passenger’s seats
(where provided)
* — This warning lamp shows the case
of the 5-passenger vehicles.
If the ignition switch is turned to the
199AHA106665
200AHA109187
110
SAFETY

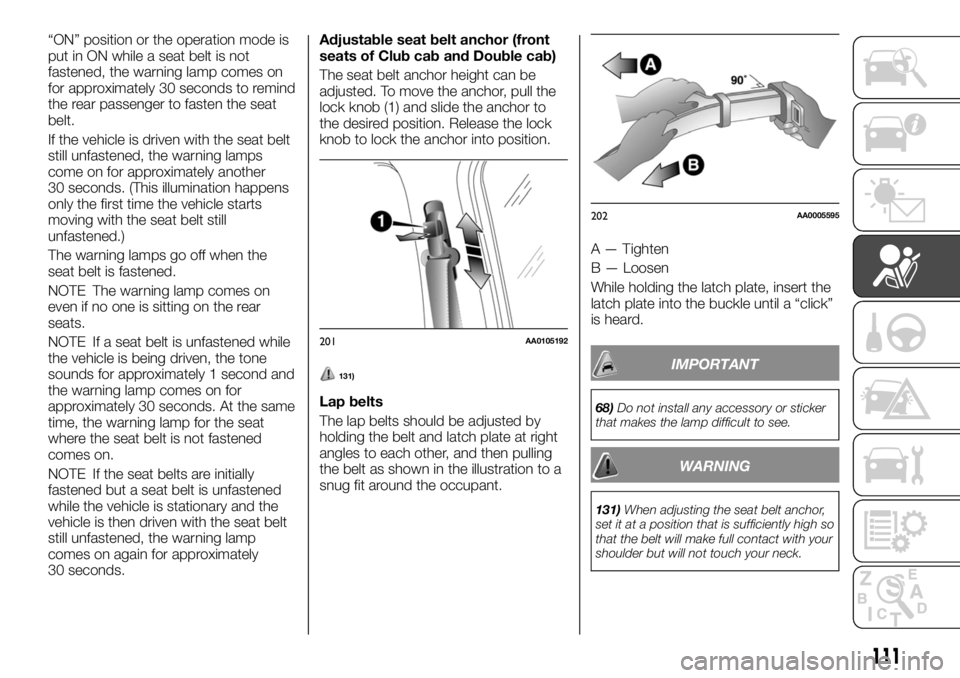

“ON” position or the operation mode is
put in ON while a seat belt is not
fastened, the warning lamp comes on
for approximately 30 seconds to remind
the rear passenger to fasten the seat
belt.
If the vehicle is driven with the seat belt
still unfastened, the warning lamps
come on for approximately another
30 seconds. (This illumination happens
only the first time the vehicle starts
moving with the seat belt still
unfastened.)
The warning lamps go off when the
seat belt is fastened.
NOTE The warning lamp comes on
even if no one is sitting on the rear
seats.
NOTE If a seat belt is unfastened while
the vehicle is being driven, the tone
sounds for approximately 1 second and
the warning lamp comes on for
approximately 30 seconds. At the same
time, the warning lamp for the seat
where the seat belt is not fastened
comes on.
NOTE If the seat belts are initially
fastened but a seat belt is unfastened
while the vehicle is stationary and the
vehicle is then driven with the seat belt
still unfastened, the warning lamp
comes on again for approximately
30 seconds.Adjustable seat belt anchor (front
seats of Club cab and Double cab)
The seat belt anchor height can be
adjusted. To move the anchor, pull the
lock knob (1) and slide the anchor to
the desired position. Release the lock
knob to lock the anchor into position.
131)
Lap belts
The lap belts should be adjusted by
holding the belt and latch plate at right
angles to each other, and then pulling
the belt as shown in the illustration to a
snug fit around the occupant.A — Tighten
B — Loosen
While holding the latch plate, insert the
latch plate into the buckle until a “click”
is heard.
IMPORTANT
68)Do not install any accessory or sticker
that makes the lamp difficult to see.
WARNING
131)When adjusting the seat belt anchor,
set it at a position that is sufficiently high so
that the belt will make full contact with your
shoulder but will not touch your neck.
201AA0105192
202AA0005595
111

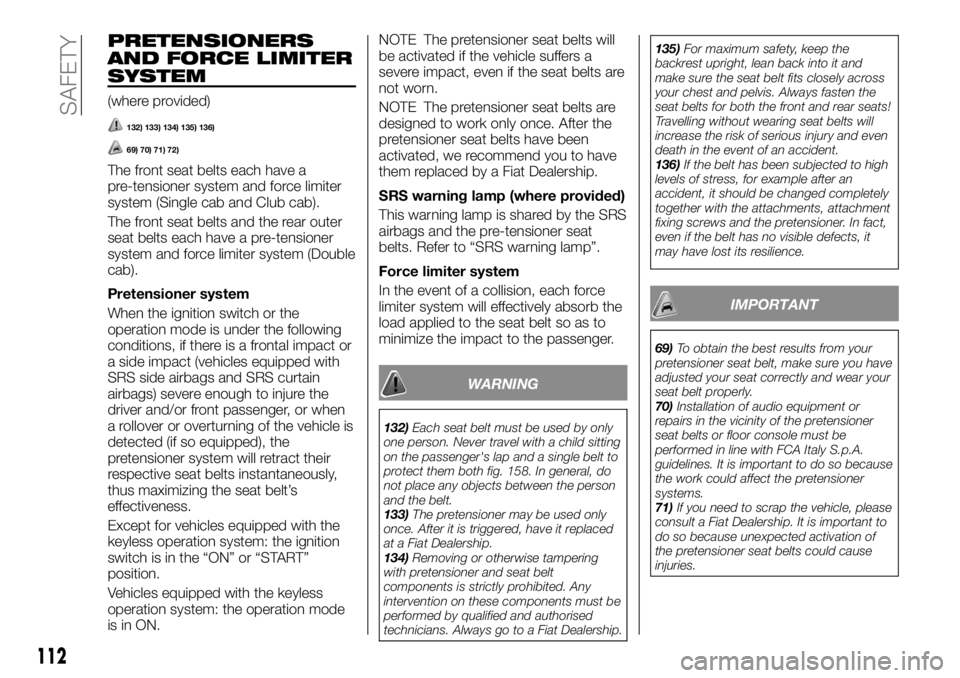

PRETENSIONERS
AND FORCE LIMITER
SYSTEM
(where provided)
132) 133) 134) 135) 136)
69) 70) 71) 72)
The front seat belts each have a
pre-tensioner system and force limiter
system (Single cab and Club cab).
The front seat belts and the rear outer
seat belts each have a pre-tensioner
system and force limiter system (Double
cab).
Pretensioner system
When the ignition switch or the
operation mode is under the following
conditions, if there is a frontal impact or
a side impact (vehicles equipped with
SRS side airbags and SRS curtain
airbags) severe enough to injure the
driver and/or front passenger, or when
a rollover or overturning of the vehicle is
detected (if so equipped), the
pretensioner system will retract their
respective seat belts instantaneously,
thus maximizing the seat belt’s
effectiveness.
Except for vehicles equipped with the
keyless operation system: the ignition
switch is in the “ON” or “START”
position.
Vehicles equipped with the keyless
operation system: the operation mode
is in ON.NOTE The pretensioner seat belts will
be activated if the vehicle suffers a
severe impact, even if the seat belts are
not worn.
NOTE The pretensioner seat belts are
designed to work only once. After the
pretensioner seat belts have been
activated, we recommend you to have
them replaced by a Fiat Dealership.
SRS warning lamp (where provided)
This warning lamp is shared by the SRS
airbags and the pre-tensioner seat
belts. Refer to “SRS warning lamp”.
Force limiter system
In the event of a collision, each force
limiter system will effectively absorb the
load applied to the seat belt so as to
minimize the impact to the passenger.
WARNING
132)Each seat belt must be used by only
one person. Never travel with a child sitting
on the passenger's lap and a single belt to
protect them both fig. 158. In general, do
not place any objects between the person
and the belt.
133)The pretensioner may be used only
once. After it is triggered, have it replaced
at a Fiat Dealership.
134)Removing or otherwise tampering
with pretensioner and seat belt
components is strictly prohibited. Any
intervention on these components must be
performed by qualified and authorised
technicians. Always go to a Fiat Dealership.135)For maximum safety, keep the
backrest upright, lean back into it and
make sure the seat belt fits closely across
your chest and pelvis. Always fasten the
seat belts for both the front and rear seats!
Travelling without wearing seat belts will
increase the risk of serious injury and even
death in the event of an accident.
136)If the belt has been subjected to high
levels of stress, for example after an
accident, it should be changed completely
together with the attachments, attachment
fixing screws and the pretensioner. In fact,
even if the belt has no visible defects, it
may have lost its resilience.
IMPORTANT
69)To obtain the best results from your
pretensioner seat belt, make sure you have
adjusted your seat correctly and wear your
seat belt properly.
70)Installation of audio equipment or
repairs in the vicinity of the pretensioner
seat belts or floor console must be
performed in line with FCA Italy S.p.A.
guidelines. It is important to do so because
the work could affect the pretensioner
systems.
71)If you need to scrap the vehicle, please
consult a Fiat Dealership. It is important to
do so because unexpected activation of
the pretensioner seat belts could cause
injuries.
112
SAFETY

72)Operations which lead to impacts,
vibrations or localised heating (over 100°C
for a maximum of six hours) in the area
around the pretensioners may damage or
accidentally deploy them. Contact a Fiat
Dealership should intervention be

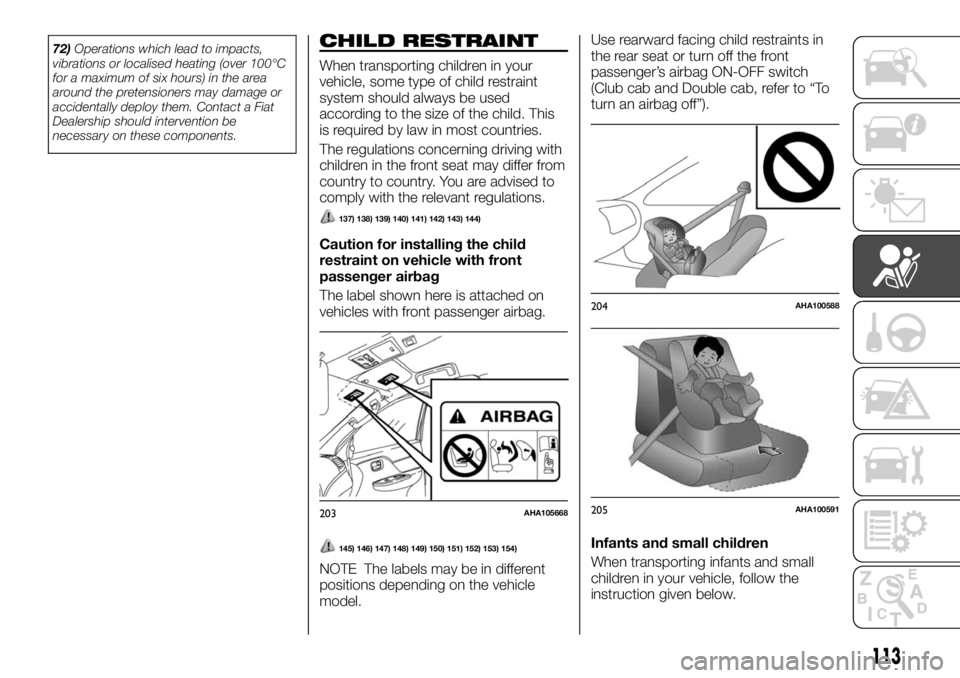

necessary on these components.CHILD RESTRAINT
When transporting children in your
vehicle, some type of child restraint
system should always be used
according to the size of the child. This
is required by law in most countries.
The regulations concerning driving with
children in the front seat may differ from
country to country. You are advised to
comply with the relevant regulations.
137) 138) 139) 140) 141) 142) 143) 144)
Caution for installing the child
restraint on vehicle with front
passenger airbag
The label shown here is attached on
vehicles with front passenger airbag.
145) 146) 147) 148) 149) 150) 151) 152) 153) 154)
NOTE The labels may be in different
positions depending on the vehicle
model.Use rearward facing child restraints in
the rear seat or turn off the front
passenger’s airbag ON-OFF switch
(Club cab and Double cab, refer to “To
turn an airbag off”).
Infants and small children
When transporting infants and small
children in your vehicle, follow the
instruction given below.
203AHA105668
204AHA100588
205AHA100591
113

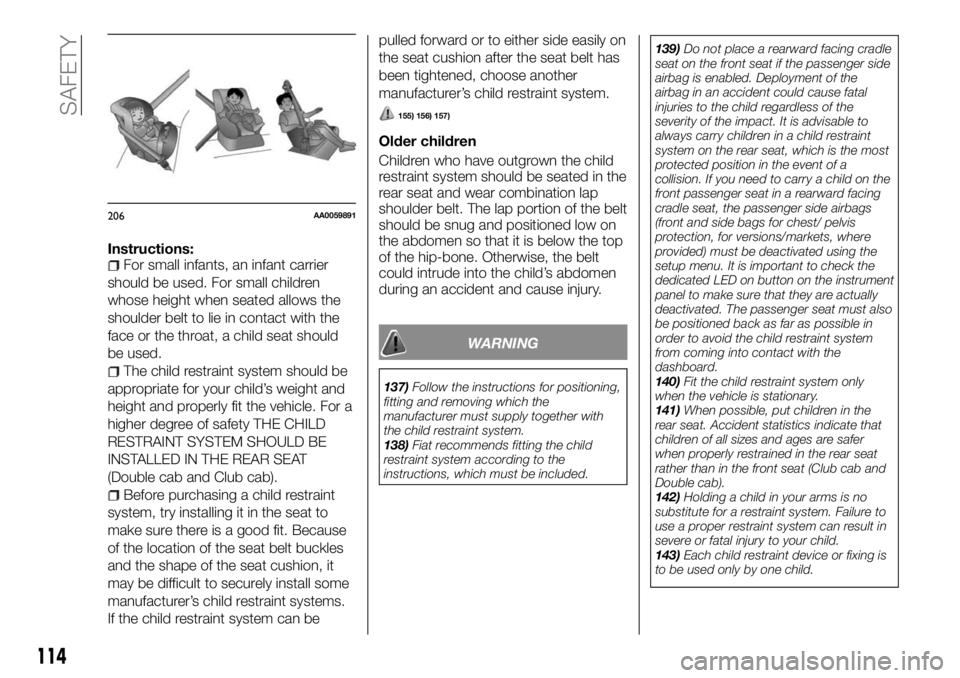

Instructions:For small infants, an infant carrier
should be used. For small children
whose height when seated allows the
shoulder belt to lie in contact with the
face or the throat, a child seat should
be used.
The child restraint system should be
appropriate for your child’s weight and
height and properly fit the vehicle. For a
higher degree of safety THE CHILD
RESTRAINT SYSTEM SHOULD BE
INSTALLED IN THE REAR SEAT
(Double cab and Club cab).
Before purchasing a child restraint
system, try installing it in the seat to
make sure there is a good fit. Because
of the location of the seat belt buckles
and the shape of the seat cushion, it
may be difficult to securely install some
manufacturer’s child restraint systems.
If the child restraint system can bepulled forward or to either side easily on
the seat cushion after the seat belt has
been tightened, choose another
manufacturer’s child restraint system.
155) 156) 157)
Older children
Children who have outgrown the child
restraint system should be seated in the
rear seat and wear combination lap
shoulder belt. The lap portion of the belt
should be snug and positioned low on
the abdomen so that it is below the top
of the hip-bone. Otherwise, the belt
could intrude into the child’s abdomen
during an accident and cause injury.
WARNING
137)Follow the instructions for positioning,
fitting and removing which the
manufacturer must supply together with
the child restraint system.
138)Fiat recommends fitting the child
restraint system according to the
instructions, which must be included.139)Do not place a rearward facing cradle
seat on the front seat if the passenger side
airbag is enabled. Deployment of the
airbag in an accident could cause fatal
injuries to the child regardless of the
severity of the impact. It is advisable to
always carry children in a child restraint
system on the rear seat, which is the most
protected position in the event of a
collision. If you need to carry a child on the
front passenger seat in a rearward facing
cradle seat, the passenger side airbags
(front and side bags for chest/ pelvis
protection, for versions/markets, where
provided) must be deactivated using the
setup menu. It is important to check the
dedicated LED on button on the instrument
panel to make sure that they are actually
deactivated. The passenger seat must also
be positioned back as far as possible in
order to avoid the child restraint system
from coming into contact with the
dashboard.
140)Fit the child restraint system only
when the vehicle is stationary.
141)When possible, put children in the
rear seat. Accident statistics indicate that
children of all sizes and ages are safer
when properly restrained in the rear seat
rather than in the front seat (Club cab and
Double cab).
142)Holding a child in your arms is no
substitute for a restraint system. Failure to
use a proper restraint system can result in
severe or fatal injury to your child.
143)Each child restraint device or fixing is
to be used only by one child.
206AA0059891
114
SAFETY

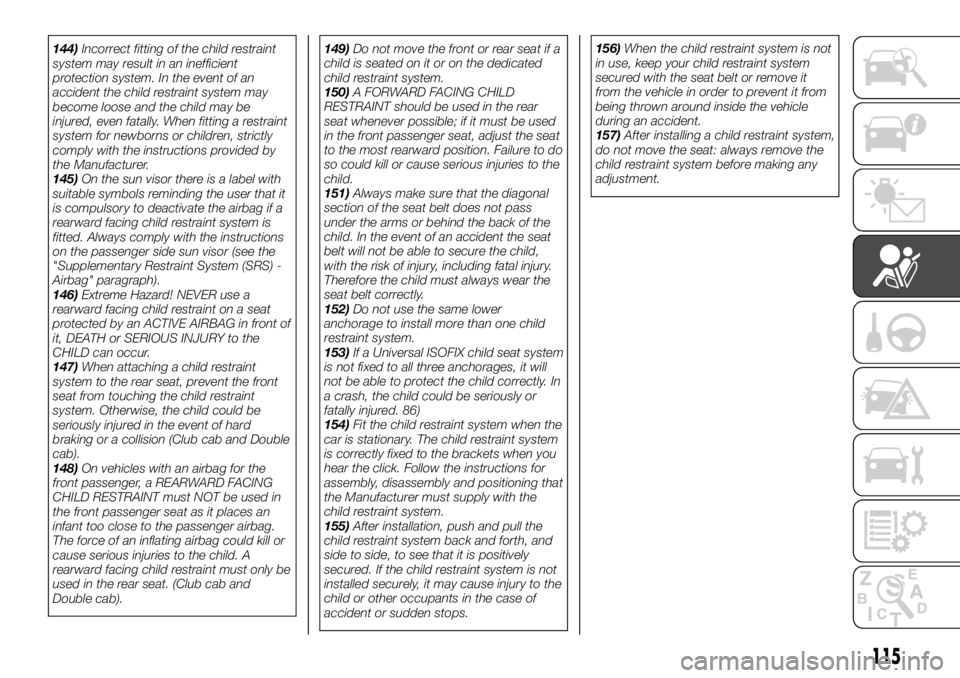

144)Incorrect fitting of the child restraint
system may result in an inefficient
protection system. In the event of an
accident the child restraint system may
become loose and the child may be
injured, even fatally. When fitting a restraint
system for newborns or children, strictly
comply with the instructions provided by
the Manufacturer.
145)On the sun visor there is a label with
suitable symbols reminding the user that it
is compulsory to deactivate the airbag if a
rearward facing child restraint system is
fitted. Always comply with the instructions
on the passenger side sun visor (see the
"Supplementary Restraint System (SRS) -
Airbag" paragraph).
146)Extreme Hazard! NEVER use a
rearward facing child restraint on a seat
protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the
CHILD can occur.
147)When attaching a child restraint
system to the rear seat, prevent the front
seat from touching the child restraint
system. Otherwise, the child could be
seriously injured in the event of hard
braking or a collision (Club cab and Double
cab).
148)On vehicles with an airbag for the
front passenger, a REARWARD FACING
CHILD RESTRAINT must NOT be used in
the front passenger seat as it places an
infant too close to the passenger airbag.
The force of an inflating airbag could kill or
cause serious injuries to the child. A
rearward facing child restraint must only be
used in the rear seat. (Club cab and
Double cab).149)Do not move the front or rear seat if a
child is seated on it or on the dedicated
child restraint system.
150)A FORWARD FACING CHILD
RESTRAINT should be used in the rear
seat whenever possible; if it must be used
in the front passenger seat, adjust the seat
to the most rearward position. Failure to do
so could kill or cause serious injuries to the
child.
151)Always make sure that the diagonal
section of the seat belt does not pass
under the arms or behind the back of the
child. In the event of an accident the seat
belt will not be able to secure the child,
with the risk of injury, including fatal injury.
Therefore the child must always wear the
seat belt correctly.
152)Do not use the same lower
anchorage to install more than one child
restraint system.
153)If a Universal ISOFIX child seat system
is not fixed to all three anchorages, it will
not be able to protect the child correctly. In
a crash, the child could be seriously or
fatally injured. 86)
154)Fit the child restraint system when the
car is stationary. The child restraint system
is correctly fixed to the brackets when you
hear the click. Follow the instructions for
assembly, disassembly and positioning that
the Manufacturer must supply with the
child restraint system.
155)After installation, push and pull the
child restraint system back and forth, and
side to side, to see that it is positively
secured. If the child restraint system is not
installed securely, it may cause injury to the
child or other occupants in the case of
accident or sudden stops.156)When the child restraint system is not
in use, keep your child restraint system
secured with the seat belt or remove it
from the vehicle in order to prevent it from
being thrown around inside the vehicle
during an accident.
157)After installing a child restraint system,
do not move the seat: always remove the
child restraint system before making any
adjustment.
115

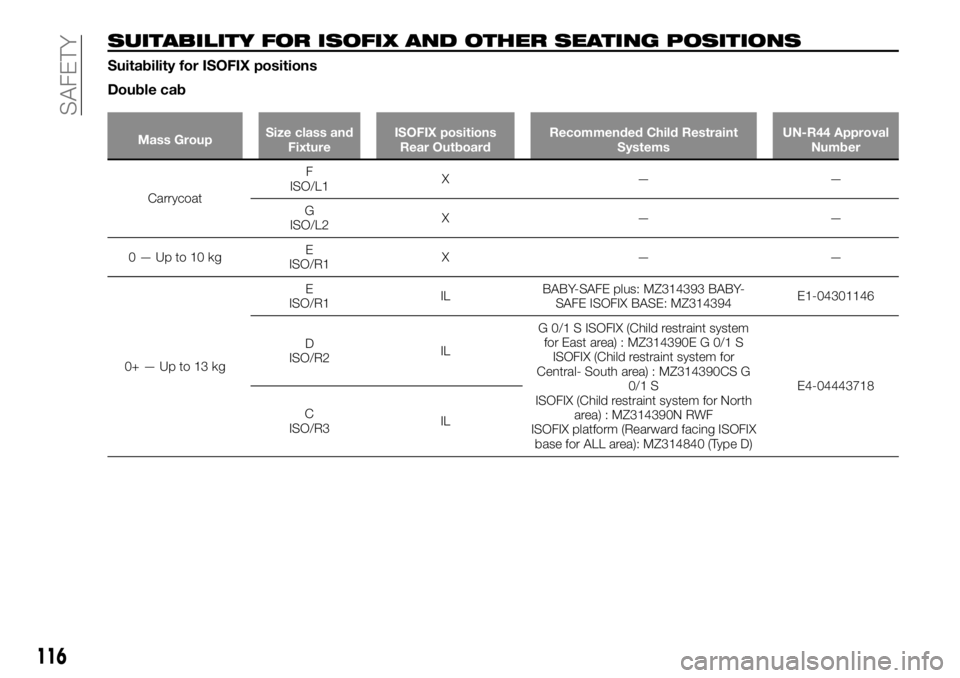

SUITABILITY FOR ISOFIX AND OTHER SEATING POSITIONS
Suitability for ISOFIX positions
Double cab
Mass GroupSize class and
FixtureISOFIX positions
Rear OutboardRecommended Child Restraint
SystemsUN-R44 Approval
Number
CarrycoatF
ISO/L1X——
G
ISO/L2X——
0—Upto10kgE
ISO/R1X——
0+—Upto13kgE
ISO/R1ILBABY-SAFE plus: MZ314393 BABY-
SAFE ISOFIX BASE: MZ314394E1-04301146
D
ISO/R2ILG 0/1 S ISOFIX (Child restraint system
for East area) : MZ314390E G 0/1 S
ISOFIX (Child restraint system for
Central- South area) : MZ314390CS G
0/1 S
ISOFIX (Child restraint system for North
area) : MZ314390N RWF
ISOFIX platform (Rearward facing ISOFIX
base for ALL area): MZ314840 (Type D)E4-04443718
C
ISO/R3IL
116
SAFETY

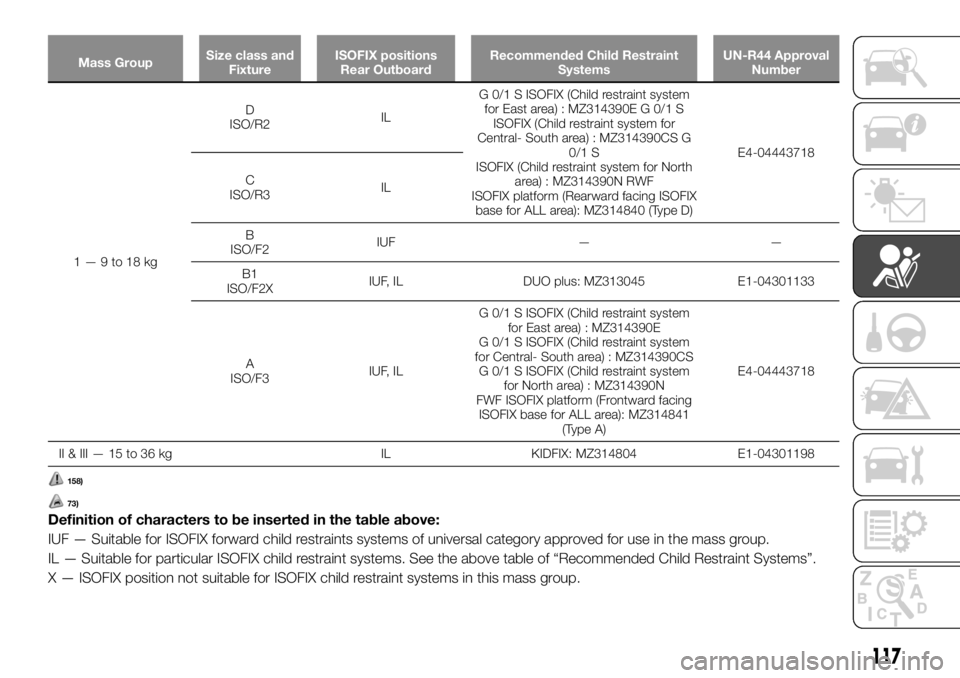

Mass GroupSize class and
FixtureISOFIX positions
Rear OutboardRecommended Child Restraint
SystemsUN-R44 Approval
Number
1—9to18kgD
ISO/R2ILG 0/1 S ISOFIX (Child restraint system
for East area) : MZ314390E G 0/1 S
ISOFIX (Child restraint system for
Central- South area) : MZ314390CS G
0/1 S
ISOFIX (Child restraint system for North
area) : MZ314390N RWF
ISOFIX platform (Rearward facing ISOFIX
base for ALL area): MZ314840 (Type D)E4-04443718
C
ISO/R3IL
B
ISO/F2IUF — —
B1
ISO/F2XIUF, IL DUO plus: MZ313045 E1-04301133
A
ISO/F3IUF, ILG 0/1 S ISOFIX (Child restraint system
for East area) : MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area) : MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area) : MZ314390N
FWF ISOFIX platform (Frontward facing
ISOFIX base for ALL area): MZ314841
(Type A)E4-04443718
II & III — 15 to 36 kg IL KIDFIX: MZ314804 E1-04301198
158)
73)
Definition of characters to be inserted in the table above:
IUF — Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
IL — Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
X — ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.
117

Important note:
Front passenger seat is NOT suitable for rearward facing child restraint system when the passenger airbag is active. It is
suitable for universal child restraint system when the airbag has been disabled (refer to “Supplemental restraint system —
Airbag”).

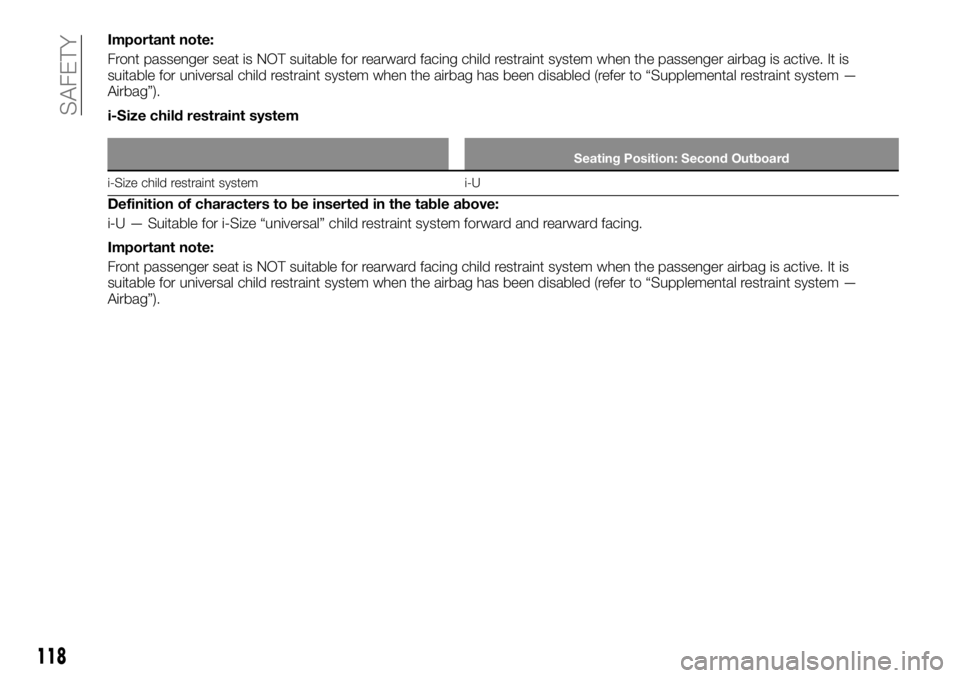

i-Size child restraint system
Seating Position: Second Outboard
i-Size child restraint system i-U
Definition of characters to be inserted in the table above:
i-U — Suitable for i-Size “universal” child restraint system forward and rearward facing.
Important note:
Front passenger seat is NOT suitable for rearward facing child restraint system when the passenger airbag is active. It is
suitable for universal child restraint system when the airbag has been disabled (refer to “Supplemental restraint system —
Airbag”).
118
SAFETY
