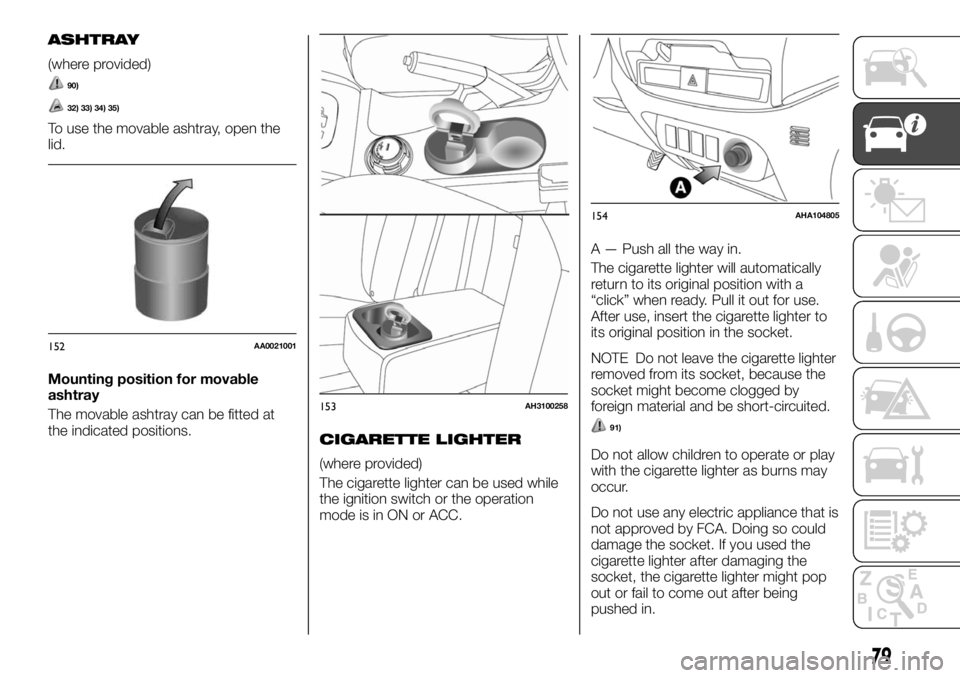

ASHTRAY
(where provided)
90)
32) 33) 34) 35)
To use the movable ashtray, open the
lid.
Mounting position for movable
ashtray
The movable ashtray can be fitted at
the indicated positions.
CIGARETTE LIGHTER
(where provided)
The cigarette lighter can be used while
the ignition switch or the operation
mode is in ON or ACC.A — Push all the way in.
The cigarette lighter will automatically
return to its original position with a
“click” when ready. Pull it out for use.
After use, insert the cigarette lighter to
its original position in the socket.
NOTE Do not leave the cigarette lighter
removed from its socket, because the
socket might become clogged by
foreign material and be short-circuited.
91)
Do not allow children to operate or play
with the cigarette lighter as burns may
occur.
Do not use any electric appliance that is
not approved by FCA. Doing so could
damage the socket. If you used the
cigarette lighter after damaging the
socket, the cigarette lighter might pop
out or fail to come out after being
pushed in.
152AA0021001
153AH3100258
154AHA104805
79

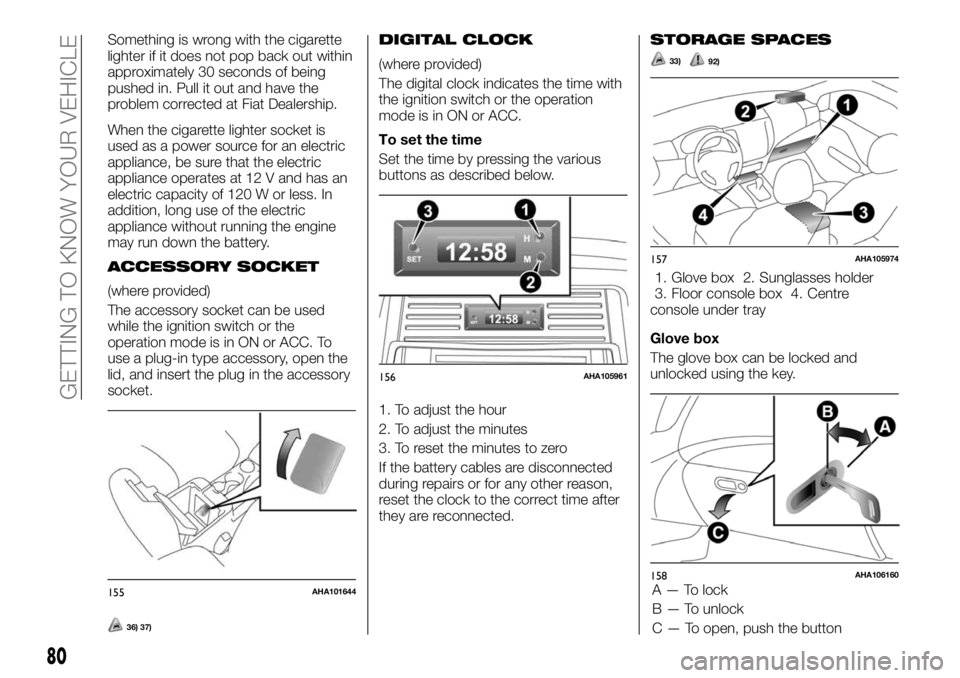

Something is wrong with the cigarette
lighter if it does not pop back out within
approximately 30 seconds of being
pushed in. Pull it out and have the
problem corrected at Fiat Dealership.
When the cigarette lighter socket is
used as a power source for an electric
appliance, be sure that the electric
appliance operates at 12 V and has an
electric capacity of 120 W or less. In
addition, long use of the electric
appliance without running the engine
may run down the battery.
ACCESSORY SOCKET
(where provided)
The accessory socket can be used
while the ignition switch or the
operation mode is in ON or ACC. To
use a plug-in type accessory, open the
lid, and insert the plug in the accessory
socket.
36) 37)
DIGITAL CLOCK
(where provided)
The digital clock indicates the time with
the ignition switch or the operation
mode is in ON or ACC.
To set the time
Set the time by pressing the various
buttons as described below.
1. To adjust the hour
2. To adjust the minutes
3. To reset the minutes to zero
If the battery cables are disconnected
during repairs or for any other reason,
reset the clock to the correct time after
they are reconnected.
STORAGE SPACES
33)92)
1. Glove box 2. Sunglasses holder
3. Floor console box 4. Centre
console under tray
Glove box
The glove box can be locked and
unlocked using the key.
155AHA101644
156AHA105961
157AHA105974
158AHA106160
80
GETTING TO KNOW YOUR VEHICLE
A — To lock
B — To unlock
C — To open, push the button

NOTE When the lamps are illuminated
with the lamp switch in the,,
or “AUTO” position (vehicles with
automatic lamp control), the glove box
lamp illuminates, refer to “Combination
headlamps and dipper switch”.
Centre console under tray
The centre console under tray is on the
floor console part.
Type 1Type 2
NOTE The centre console under tray is
removable, so it is also possible to use
as storage space.NOTE When using a commercially
available USB connector cable
connected to the USB input terminal or
commercially available HDMI connector
cable connected to the HDMI input
terminal, if you hold up extra length of
the cable in the storage space and
install the tray, you can use only the
necessary length cable pulled out from
the storage space.
Do not use the centre console under
tray as an ashtray. This could cause a
fire or the tray will be damaged
Floor console box
Upper and lower boxes are located
inside the floor console box. The floor
console box can also be used as an
armrest.
A — Upper box
B — Lower box
159AHA105365
160AHA101686
161AHZ100567
162AHA101699
81

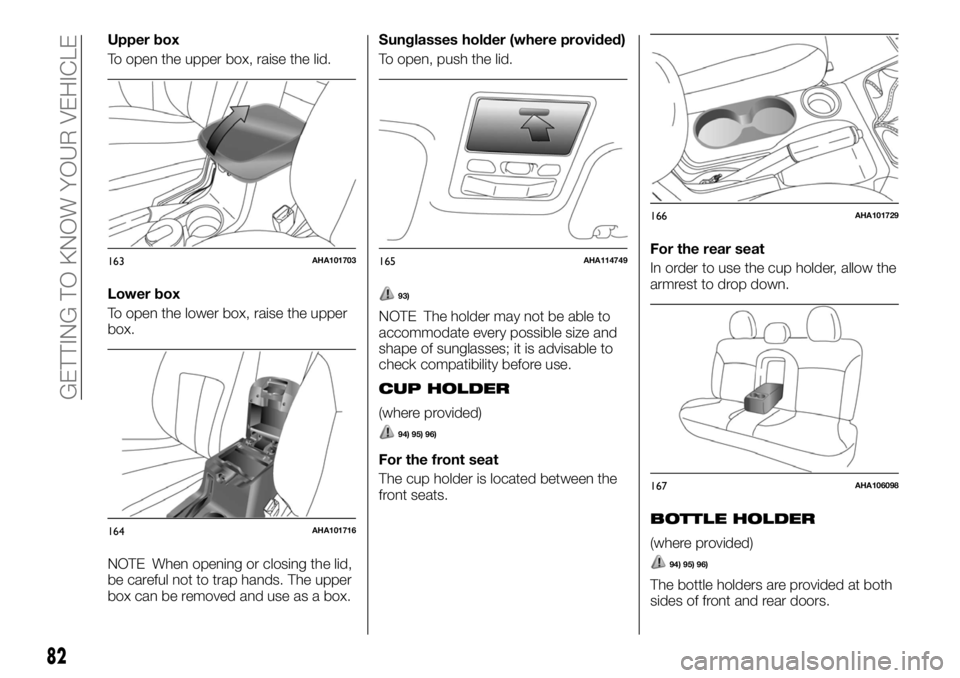

Upper box
To open the upper box, raise the lid.
Lower box
To open the lower box, raise the upper
box.
NOTE When opening or closing the lid,
be careful not to trap hands. The upper
box can be removed and use as a box.Sunglasses holder (where provided)
To open, push the lid.
93)
NOTE The holder may not be able to
accommodate every possible size and
shape of sunglasses; it is advisable to
check compatibility before use.
CUP HOLDER
(where provided)
94) 95) 96)
For the front seat
The cup holder is located between the
front seats.For the rear seat
In order to use the cup holder, allow the
armrest to drop down.
BOTTLE HOLDER
(where provided)
94) 95) 96)
The bottle holders are provided at both
sides of front and rear doors.
163AHA101703
164AHA101716
165AHA114749
166AHA101729
167AHA106098
82
GETTING TO KNOW YOUR VEHICLE

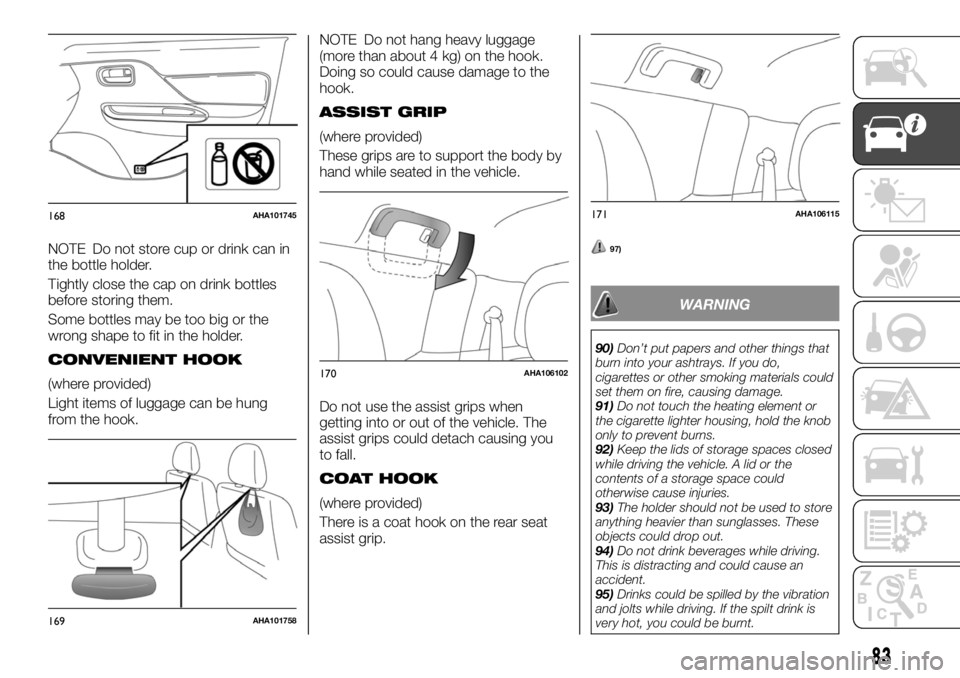

NOTE Do not store cup or drink can in
the bottle holder.
Tightly close the cap on drink bottles
before storing them.
Some bottles may be too big or the
wrong shape to fit in the holder.
CONVENIENT HOOK
(where provided)
Light items of luggage can be hung
from the hook.NOTE Do not hang heavy luggage
(more than about 4 kg) on the hook.
Doing so could cause damage to the
hook.
ASSIST GRIP
(where provided)
These grips are to support the body by
hand while seated in the vehicle.
Do not use the assist grips when
getting into or out of the vehicle. The
assist grips could detach causing you
to fall.
COAT HOOK
(where provided)
There is a coat hook on the rear seat
assist grip.
97)
WARNING
90)Don’t put papers and other things that
burn into your ashtrays. If you do,
cigarettes or other smoking materials could
set them on fire, causing damage.
91)Do not touch the heating element or
the cigarette lighter housing, hold the knob
only to prevent burns.
92)Keep the lids of storage spaces closed
while driving the vehicle. A lid or the
contents of a storage space could
otherwise cause injuries.
93)The holder should not be used to store
anything heavier than sunglasses. These
objects could drop out.
94)Do not drink beverages while driving.
This is distracting and could cause an
accident.
95)Drinks could be spilled by the vibration
and jolts while driving. If the spilt drink is
very hot, you could be burnt.
168AHA101745
169AHA101758
170AHA106102
171AHA106115
83

96)Do not spray water or spill beverages
inside the vehicle. If the switches, wires, or
electrical components become wet, they
could malfunction or cause a vehicle fire. If
you accidentally spill a beverage, wipe up
as much liquid as possible and immediately
consult a Fiat Dealership.
97)Do not put a hanger or any heavy or
pointed object on the coat hook. If the
curtain airbag was activated, any such item
could be propelled away with great force
and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on
the coat hook (without using a hanger).
Make sure there are no heavy or sharp
objects in the pockets of clothes that you
hang on the coat hook.
IMPORTANT
32)When the accessory socket is not in
use, be sure to close the lid, because the
socket might become clogged by foreign
material and be short-circuited.
33)Never leave lighters, canned
carbonated beverage, and spectacles in
the cabin when parking the vehicle in hot
sunshine. The cabin will become extremely
hot, so lighters and other flammable items
may catch fire and unopened drink cans
may rupture. Also, spectacles with plastic
lenses or materials could deform or crack.
34)Put out matches and cigarettes before
they are placed in the ashtray.
35)Always close the ashtray. If left open,
other cigarette butts in the ashtray may be
rekindled.36)Be sure to use a “plug-in” type
accessory operating at 12 V and at 120 W
or less. When using more than one socket
at the same time, make sure that the
electrical accessories are 12 V accessories
and that the total power consumption does
not exceed 120 W.
37)Long use of the electric appliance
without running the engine may run down
the battery.
FUEL SELECTION
Recommended fuel:Cetane number
(EN590) 51 or higher
38) 39) 40) 41)
NOTE For diesel fuel, due to the
separation of paraffin, the fluidity
decreases considerably as the
temperature falls. Because of this fact
there are two kinds of fuel: “summer”
and “winter”. This must be considered
in winter use. Select either of the two
kinds of fuel in accordance with
ambient temperature.
Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in
advance about the fuels served in local
service stations.
Poor-quality diesel fuel can cause
deposits to form in the injector, resulting
in black smoke and rough idling.
If these problems occur, you are
advised to add a cleaning additive to
the diesel fuel when you refuel the
vehicle. The additive will break up and
remove the deposits, thereby returning
the engine to a normal condition.
Be sure to use a FCA GENUINE
DIESEL FUEL SYSTEM CLEANER.
Using an unsuitable additive could
make the engine malfunction. For
details, please contact your Fiat
Dealsership.
84
GETTING TO KNOW YOUR VEHICLE

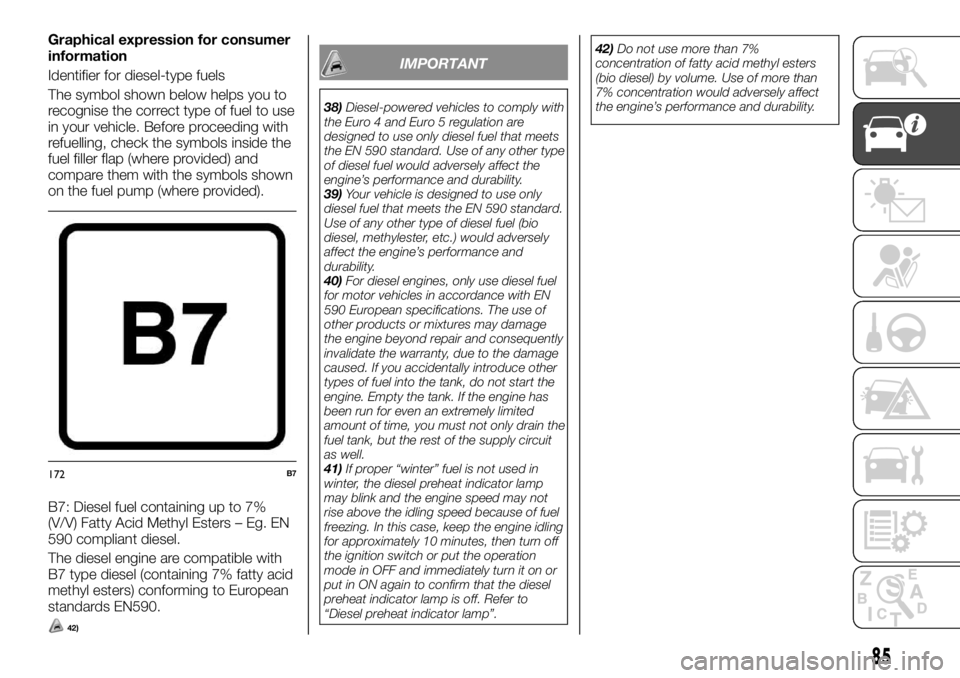

Graphical expression for consumer
information
Identifier for diesel-type fuels
The symbol shown below helps you to
recognise the correct type of fuel to use
in your vehicle. Before proceeding with
refuelling, check the symbols inside the
fuel filler flap (where provided) and
compare them with the symbols shown
on the fuel pump (where provided).
B7: Diesel fuel containing up to 7%
(V/V) Fatty Acid Methyl Esters – Eg. EN
590 compliant diesel.
The diesel engine are compatible with
B7 type diesel (containing 7% fatty acid
methyl esters) conforming to European
standards EN590.
42)
IMPORTANT
38)Diesel-powered vehicles to comply with
the Euro 4 and Euro 5 regulation are
designed to use only diesel fuel that meets
the EN 590 standard. Use of any other type
of diesel fuel would adversely affect the
engine’s performance and durability.
39)Your vehicle is designed to use only
diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel (bio
diesel, methylester, etc.) would adversely
affect the engine’s performance and
durability.
40)For diesel engines, only use diesel fuel
for motor vehicles in accordance with EN
590 European specifications. The use of
other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage
caused. If you accidentally introduce other
types of fuel into the tank, do not start the
engine. Empty the tank. If the engine has
been run for even an extremely limited
amount of time, you must not only drain the
fuel tank, but the rest of the supply circuit
as well.
41)If proper “winter” fuel is not used in
winter, the diesel preheat indicator lamp
may blink and the engine speed may not
rise above the idling speed because of fuel
freezing. In this case, keep the engine idling
for approximately 10 minutes, then turn off
the ignition switch or put the operation
mode in OFF and immediately turn it on or
put in ON again to confirm that the diesel
preheat indicator lamp is off. Refer to
“Diesel preheat indicator lamp”.42)Do not use more than 7%
concentration of fatty acid methyl esters
(bio diesel) by volume. Use of more than
7% concentration would adversely affect
the engine’s performance and durability.
172B7
85

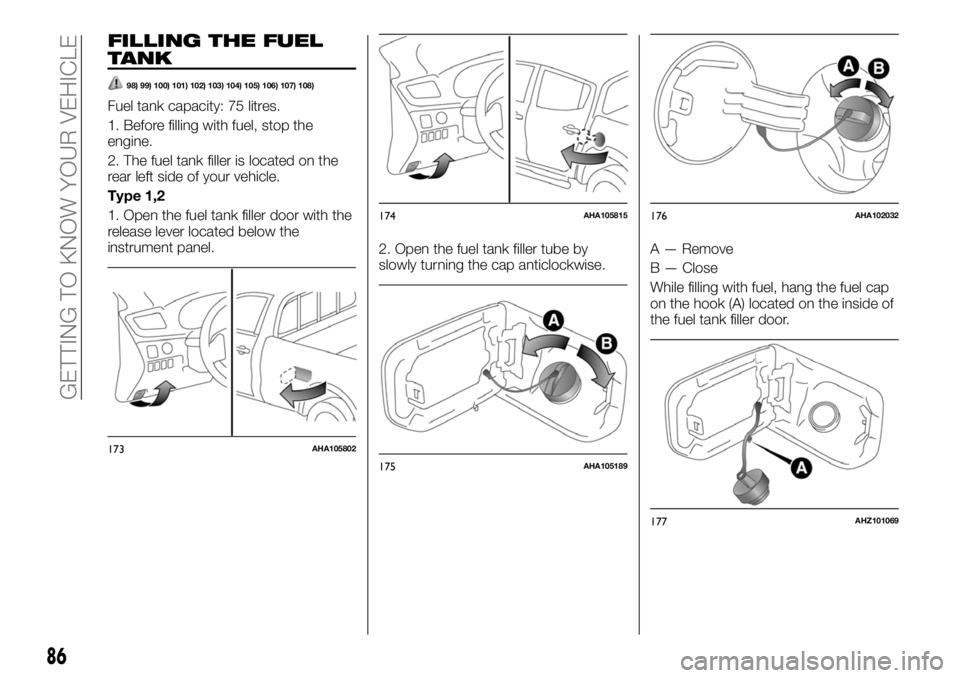

FILLING THE FUEL
TANK
98) 99) 100) 101) 102) 103) 104) 105) 106) 107) 108)
Fuel tank capacity: 75 litres.
1. Before filling with fuel, stop the
engine.
2. The fuel tank filler is located on the
rear left side of your vehicle.
Type 1,2
1. Open the fuel tank filler door with the
release lever located below the
instrument panel.
2. Open the fuel tank filler tube by
slowly turning the cap anticlockwise.A — Remove
B — Close
While filling with fuel, hang the fuel cap
on the hook (A) located on the inside of
the fuel tank filler door.
173AHA105802
174AHA105815
175AHA105189
176AHA102032
177AHZ101069
86
GETTING TO KNOW YOUR VEHICLE

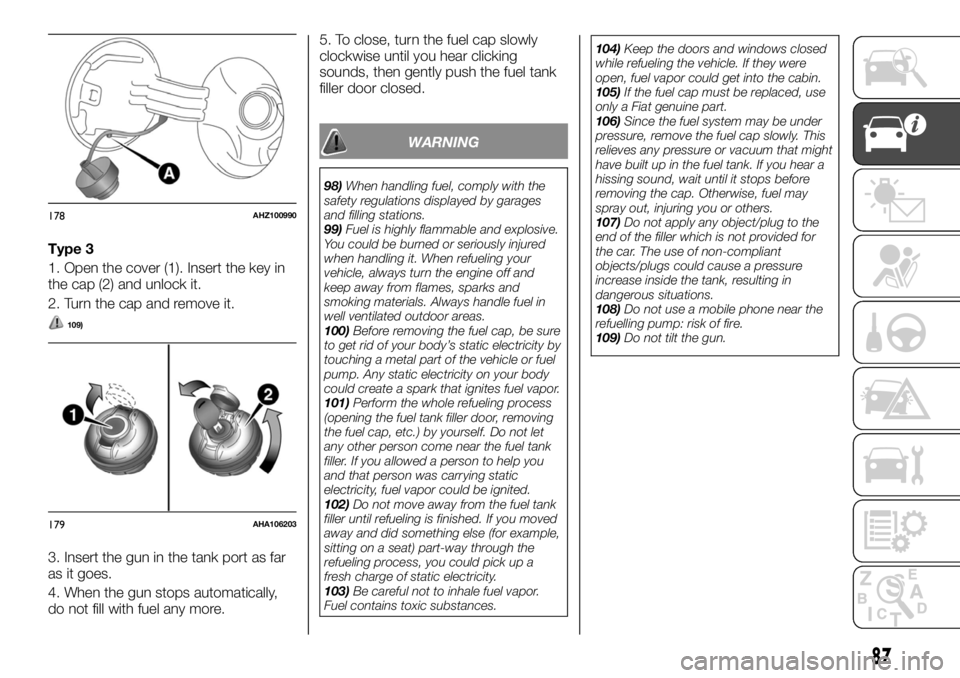

Type 3
1. Open the cover (1). Insert the key in
the cap (2) and unlock it.
2. Turn the cap and remove it.
109)
3. Insert the gun in the tank port as far
as it goes.
4. When the gun stops automatically,
do not fill with fuel any more.5. To close, turn the fuel cap slowly
clockwise until you hear clicking
sounds, then gently push the fuel tank
filler door closed.
WARNING
98)When handling fuel, comply with the
safety regulations displayed by garages
and filling stations.
99)Fuel is highly flammable and explosive.
You could be burned or seriously injured
when handling it. When refueling your
vehicle, always turn the engine off and
keep away from flames, sparks and
smoking materials. Always handle fuel in
well ventilated outdoor areas.
100)Before removing the fuel cap, be sure
to get rid of your body’s static electricity by
touching a metal part of the vehicle or fuel
pump. Any static electricity on your body
could create a spark that ignites fuel vapor.
101)Perform the whole refueling process
(opening the fuel tank filler door, removing
the fuel cap, etc.) by yourself. Do not let
any other person come near the fuel tank
filler. If you allowed a person to help you
and that person was carrying static
electricity, fuel vapor could be ignited.
102)Do not move away from the fuel tank
filler until refueling is finished. If you moved
away and did something else (for example,
sitting on a seat) part-way through the
refueling process, you could pick up a
fresh charge of static electricity.
103)Be careful not to inhale fuel vapor.
Fuel contains toxic substances.104)Keep the doors and windows closed
while refueling the vehicle. If they were
open, fuel vapor could get into the cabin.
105)If the fuel cap must be replaced, use
only a Fiat genuine part.
106)Since the fuel system may be under
pressure, remove the fuel cap slowly. This
relieves any pressure or vacuum that might
have built up in the fuel tank. If you hear a
hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may
spray out, injuring you or others.
107)Do not apply any object/plug to the
end of the filler which is not provided for
the car. The use of non-compliant
objects/plugs could cause a pressure
increase inside the tank, resulting in
dangerous situations.
108)Do not use a mobile phone near the
refuelling pump: risk of fire.
109)Do not tilt the gun.
178AHZ100990
179AHA106203
87

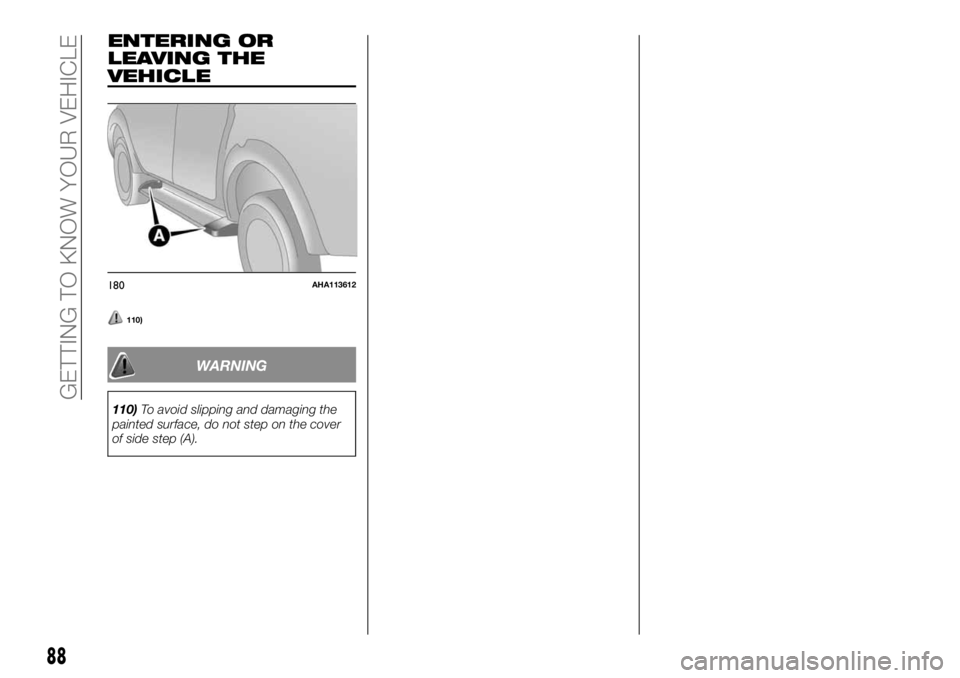

ENTERING OR
LEAVING THE
VEHICLE
110)
WARNING
110)To avoid slipping and damaging the
painted surface, do not step on the cover
of side step (A).
180AHA113612
88
GETTING TO KNOW YOUR VEHICLE
