key FIAT FULLBACK 2017 Owner handbook (in English)

A — Lock
B — Unlock
NOTE Be careful not to lock the doors
while the key is inside the vehicle when
getting off the vehicle.
Vehicle-speed sensitive automatic
door lock (with impact sensitive
unlock mechanism)
All of the doors lock automatically when
the vehicle speed exceeds
approximately 15 km/h. In addition, all
of the doors unlock when a strong
impact that could be very dangerous to
the occupants is sustained by the
collision of the vehicle. This is prepared
for rescue activities when an
unexpected accident occurs.
20)
NOTE Even if the vehicle suffers
significant deformation from a collision
etc., depending on the location and
angle of the collision, as well as on the
shape and condition of the other object
in the collision, the doors may not
unlock. The extent of deformation or
damage to the vehicle does not
necessarily correlate with unlock of the
doors.
NOTE These functions are activated
when the vehicle is shipped from the
factory. If you wish to activate or
deactivate these functions, please
contact a Fiat Dealership.
Unlock using the ignition switch,
the engine switch or the selector
lever
It is possible to unlock all of the doors
whenever as follows.
Vehicles with M/T — The ignition switch
is turned to the “LOCK” position or the
operation mode is put in OFF.
Vehicles with A/T — The selector lever
placed the “P” (PARK) position while the
operation mode is in ON. Or the
operation mode is put in OFF.
These functions are deactivated when
the vehicle is shipped from the factory.
If you wish to activate or deactivate
these functions, please contact a Fiat
Dealership.DEAD LOCK SYSTEM

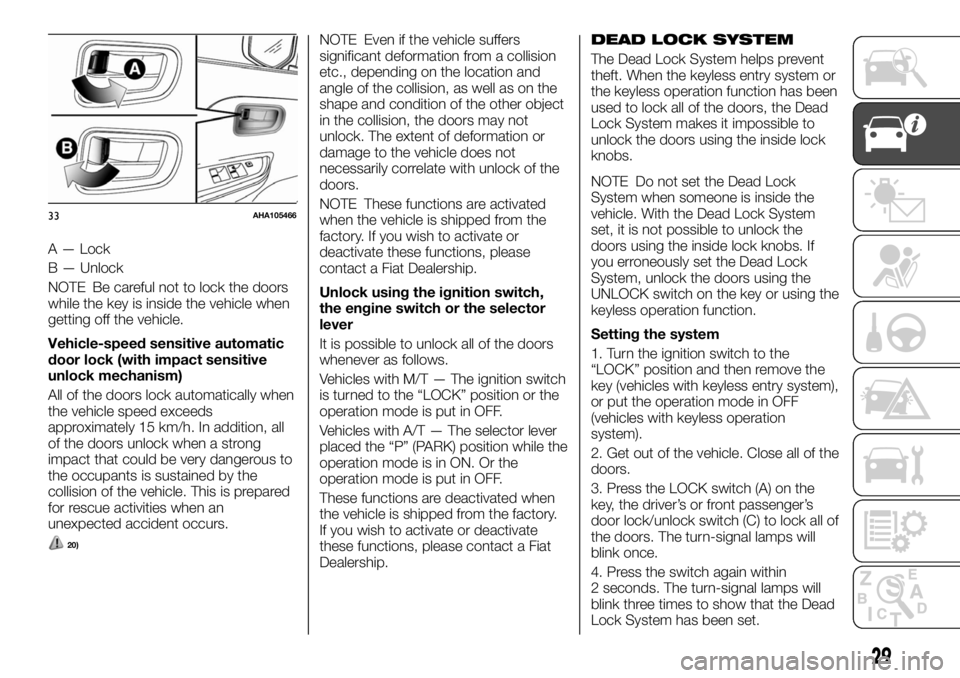

The Dead Lock System helps prevent
theft. When the keyless entry system or
the keyless operation function has been
used to lock all of the doors, the Dead
Lock System makes it impossible to
unlock the doors using the inside lock
knobs.
NOTE Do not set the Dead Lock
System when someone is inside the
vehicle. With the Dead Lock System
set, it is not possible to unlock the
doors using the inside lock knobs. If
you erroneously set the Dead Lock
System, unlock the doors using the
UNLOCK switch on the key or using the
keyless operation function.
Setting the system
1. Turn the ignition switch to the
“LOCK” position and then remove the
key (vehicles with keyless entry system),
or put the operation mode in OFF
(vehicles with keyless operation
system).
2. Get out of the vehicle. Close all of the
doors.

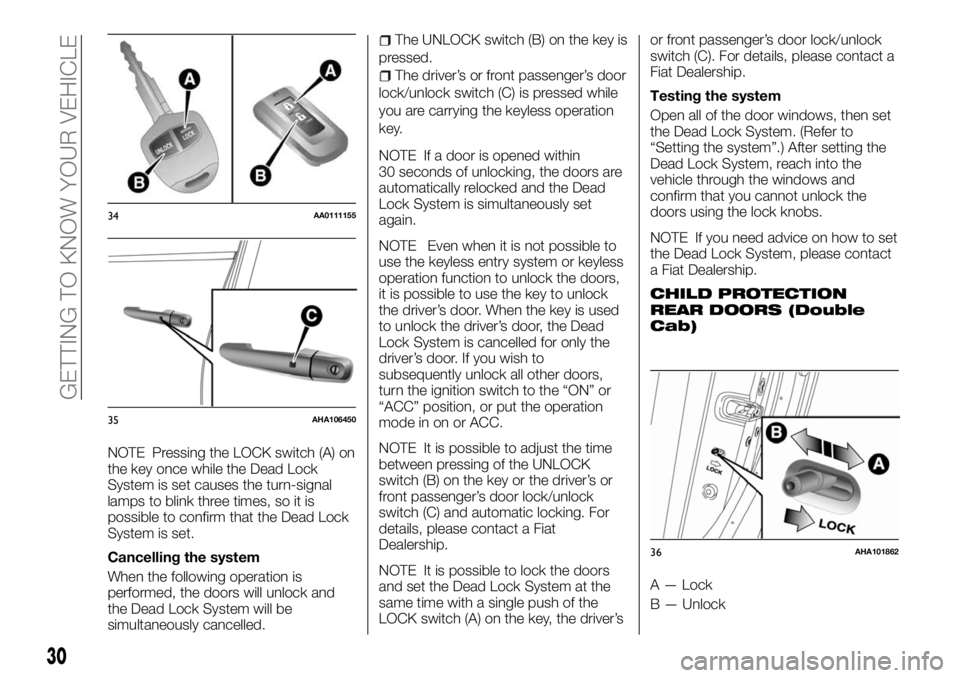

3. Press the LOCK switch (A) on the
key, the driver’s or front passenger’s
door lock/unlock switch (C) to lock all of
the doors. The turn-signal lamps will
blink once.
4. Press the switch again within
2 seconds. The turn-signal lamps will
blink three times to show that the Dead
Lock System has been set.
33AHA105466
29

NOTE Pressing the LOCK switch (A) on
the key once while the Dead Lock
System is set causes the turn-signal
lamps to blink three times, so it is
possible to confirm that the Dead Lock
System is set.
Cancelling the system
When the following operation is
performed, the doors will unlock and
the Dead Lock System will be
simultaneously cancelled.
The UNLOCK switch (B) on the key is
pressed.
The driver’s or front passenger’s door
lock/unlock switch (C) is pressed while
you are carrying the keyless operation
key.
NOTE If a door is opened within
30 seconds of unlocking, the doors are
automatically relocked and the Dead
Lock System is simultaneously set
again.
NOTE Even when it is not possible to
use the keyless entry system or keyless
operation function to unlock the doors,
it is possible to use the key to unlock
the driver’s door. When the key is used
to unlock the driver’s door, the Dead
Lock System is cancelled for only the
driver’s door. If you wish to
subsequently unlock all other doors,
turn the ignition switch to the “ON” or
“ACC” position, or put the operation
mode in on or ACC.
NOTE It is possible to adjust the time
between pressing of the UNLOCK
switch (B) on the key or the driver’s or
front passenger’s door lock/unlock
switch (C) and automatic locking. For
details, please contact a Fiat
Dealership.
NOTE It is possible to lock the doors
and set the Dead Lock System at the
same time with a single push of the
LOCK switch (A) on the key, the driver’sor front passenger’s door lock/unlock
switch (C). For details, please contact a
Fiat Dealership.
Testing the system
Open all of the door windows, then set
the Dead Lock System. (Refer to
“Setting the system”.) After setting the
Dead Lock System, reach into the
vehicle through the windows and
confirm that you cannot unlock the
doors using the lock knobs.
NOTE If you need advice on how to set
the Dead Lock System, please contact
a Fiat Dealership.
CHILD PROTECTION
REAR DOORS (Double
Cab)
A — Lock
B — Unlock
34AA0111155
35AHA106450
36AHA101862
30
GETTING TO KNOW YOUR VEHICLE

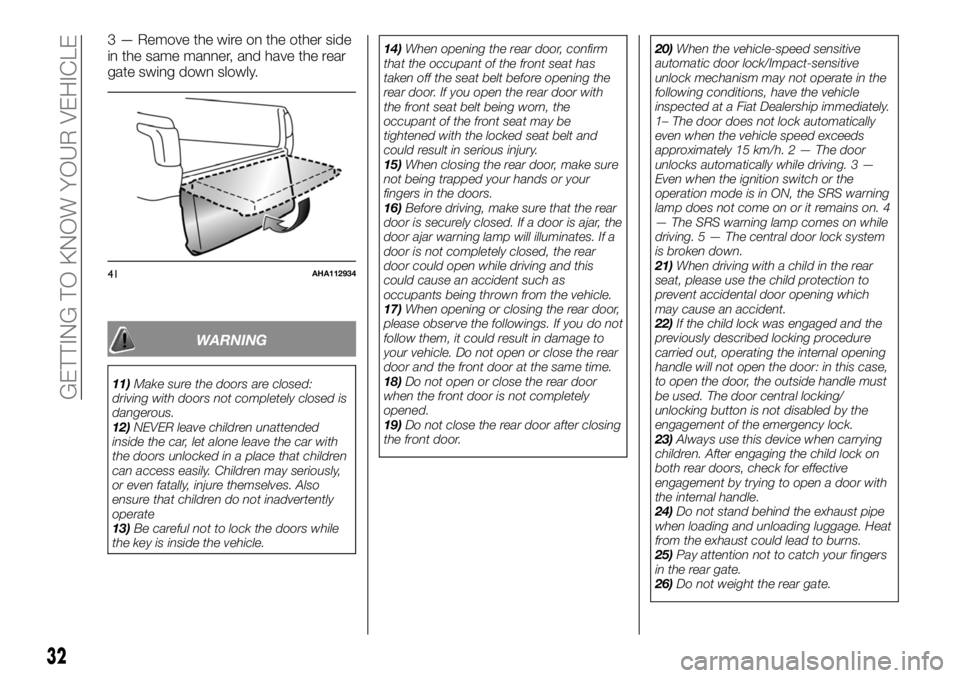

3 — Remove the wire on the other side
in the same manner, and have the rear
gate swing down slowly.
WARNING
11)Make sure the doors are closed:
driving with doors not completely closed is
dangerous.
12)NEVER leave children unattended
inside the car, let alone leave the car with
the doors unlocked in a place that children
can access easily. Children may seriously,
or even fatally, injure themselves. Also
ensure that children do not inadvertently
operate
13)Be careful not to lock the doors while
the key is inside the vehicle.14)When opening the rear door, confirm
that the occupant of the front seat has
taken off the seat belt before opening the
rear door. If you open the rear door with
the front seat belt being worn, the
occupant of the front seat may be
tightened with the locked seat belt and
could result in serious injury.
15)When closing the rear door, make sure
not being trapped your hands or your
fingers in the doors.
16)Before driving, make sure that the rear
door is securely closed. If a door is ajar, the
door ajar warning lamp will illuminates. If a
door is not completely closed, the rear
door could open while driving and this
could cause an accident such as
occupants being thrown from the vehicle.
17)When opening or closing the rear door,
please observe the followings. If you do not
follow them, it could result in damage to
your vehicle. Do not open or close the rear
door and the front door at the same time.
18)Do not open or close the rear door
when the front door is not completely
opened.
19)Do not close the rear door after closing
the front door.20)When the vehicle-speed sensitive
automatic door lock/Impact-sensitive
unlock mechanism may not operate in the
following conditions, have the vehicle
inspected at a Fiat Dealership immediately.
1– The door does not lock automatically
even when the vehicle speed exceeds
approximately 15 km/h. 2 — The door
unlocks automatically while driving. 3 —
Even when the ignition switch or the
operation mode is in ON, the SRS warning
lamp does not come on or it remains on. 4
— The SRS warning lamp comes on while
driving. 5 — The central door lock system
is broken down.
21)When driving with a child in the rear
seat, please use the child protection to
prevent accidental door opening which
may cause an accident.
22)If the child lock was engaged and the
previously described locking procedure
carried out, operating the internal opening
handle will not open the door: in this case,
to open the door, the outside handle must
be used. The door central locking/
unlocking button is not disabled by the
engagement of the emergency lock.
23)Always use this device when carrying
children. After engaging the child lock on
both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
24)Do not stand behind the exhaust pipe
when loading and unloading luggage. Heat
from the exhaust could lead to burns.
25)Pay attention not to catch your fingers
in the rear gate.
26)Do not weight the rear gate.
41AHA112934
32
GETTING TO KNOW YOUR VEHICLE

27)Before driving, make sure that the rear
gate is securely closed. If the rear gate
opens while driving the vehicle, objects
stored in the cargo area could fall out onto
the road.
28)Once the dead lock system is engaged
it is impossible to open the doors from
inside the vehicle. Therefore, before
engaging the system check that there is no
one left inside. If the remote control battery
is flat, the system can be disengaged only
by inserting the key metal insert in either of
the door locks as described previously: in
this case the device remains active only for
the rear doors.
29)This spring loaded system has
activation forces that were designed for
optimum comfort. Accidental knocks or a
strong gust of wind may release the
springs and close the doors
spontaneously.
30)On vehicles with the rear bumper,
never swing down the rear gate because
the rear gate could be damaged.
31)Never close the rear gate with the link
or wire left unhooked.SEATS
SEAT ADJUSTMENT
Adjust the driver’s seat so that you are
comfortable and that you can reach the
pedals, steering wheel, switches etc.
while retaining a clear field of vision.
32) 33) 34) 35) 36) 37) 38) 39) 40) 41) 42) 43) 44) 45)
10)
FRONT SEATS
Manual type
1—
To adjust forward or backward: Lift
the handle and adjust the seat to the
desired position, and release the handle.
2 — To recline the seatback: Pull the
lever up and then lean backward to the
desired position, and release the lever.
3 — To adjust seat cushion height
(driver’s side only of Club cab and
Double cab): Turn the dial and adjust
the seat cushion height to the desired
position.Power type (where provided)
1 — To adjust forward or backward:
Operate the switch as indicated by the
arrows and adjust the seat to the
desired position.
2 — To recline the seatback: Operate
the switch as indicated by the arrows
and adjust the seatback angle to the
desired position.
3 — To adjust seat height: Operate the
switch as indicated by the arrows and
adjust the seat height to the desired
position. If the entire switch is operated,
then the entire seat moves.
4 — To adjust seat cushion angle:
Operate the switch as indicated by the
arrows and adjust the seat cushion
angle to the desired position.
NOTE To prevent the battery from
running down, operate the switch with
the engine running.
42AHA105626
43AHA105639
33

STEERING WHEEL LOCK
Except for vehicles equipped with
the keyless operation system
To lock
Remove the key at the “LOCK”
position. Turn the steering wheel until it
is locked.
To unlock
Turn the key to the “ACC” position while
moving the steering wheel slightly right
and left.
For vehicles equipped with the
keyless operation system
To lock
After pressing the engine switch and
operation mode in OFF, when driver’s
door is opened, the steering wheel is
locked.
NOTE When the following operation is
performed with the operation mode in
OFF, the steering wheel is locked.
Open or close the driver’s door.
Close all the doors.
Open one of the doors when all the
doors are closed.
Lock all the doors with the keyless
entry system or the keyless operation
function.
The selector lever is the “P” (PARK)
position (A/T).
NOTE When the door is opened while
the steering wheel does not lock, the
buzzer sounds to alert the steering
wheel is unlocked.
To unlock
The following methods can be used to
unlock the steering wheel.
Put the operation mode in ACC.
Start the engine.
18) 19)
NOTE When the steering wheel does
not unlock, the warning lamp will blink
and the inner buzzer will sounds and
warning lamp illuminates. Press the
engine switch again while moving the
steering wheel slightly right and left.
NOTE When the steering wheel lock is
abnormal, the warning lamp illuminates.
Put the operation mode in OFF and
then press the lock switch of the
keyless operation key. And then press
the engine switch, If the warning lamp
illuminates again, contact a Fiat
Dealership.NOTE If there is a fault in the steering
wheel lock, the warning lamp
illuminates. Immediately stop the vehicle
in a safe place and contact a Fiat
Dealership.
57AHA103808
58AHZ100903
59AHA103505
39

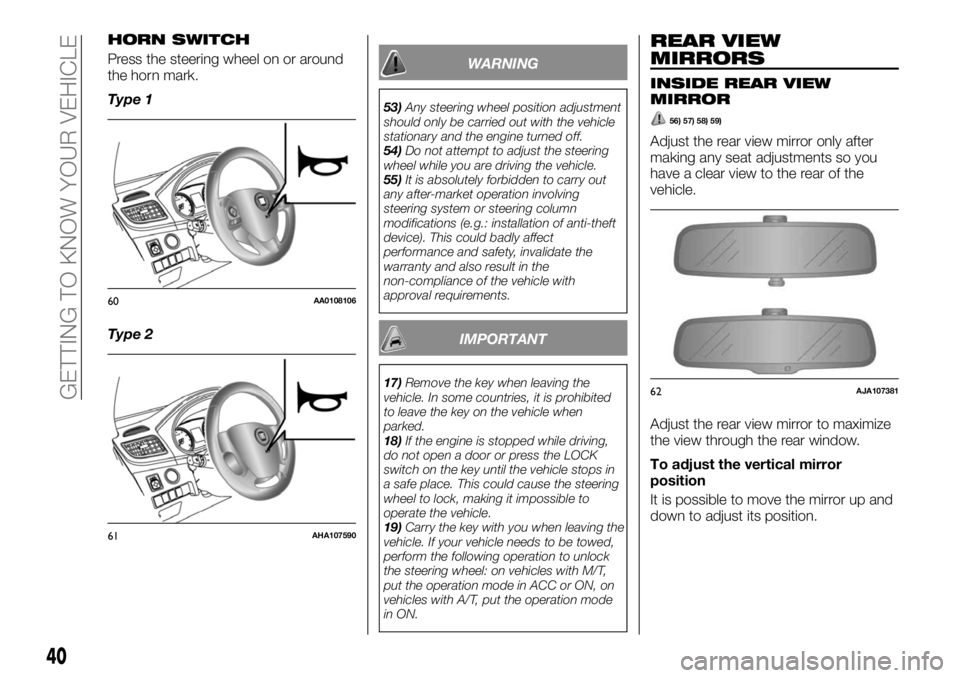

HORN SWITCH
Press the steering wheel on or around
the horn mark.
Type 1
Type 2WARNING
53)Any steering wheel position adjustment
should only be carried out with the vehicle
stationary and the engine turned off.
54)Do not attempt to adjust the steering
wheel while you are driving the vehicle.
55)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device). This could badly affect
performance and safety, invalidate the
warranty and also result in the
non-compliance of the vehicle with
approval requirements.
IMPORTANT
17)Remove the key when leaving the
vehicle. In some countries, it is prohibited
to leave the key on the vehicle when
parked.
18)If the engine is stopped while driving,
do not open a door or press the LOCK
switch on the key until the vehicle stops in
a safe place. This could cause the steering
wheel to lock, making it impossible to
operate the vehicle.
19)Carry the key with you when leaving the
vehicle. If your vehicle needs to be towed,
perform the following operation to unlock
the steering wheel: on vehicles with M/T,
put the operation mode in ACC or ON, on
vehicles with A/T, put the operation mode
in ON.
REAR VIEW
MIRRORS
INSIDE REAR VIEW
MIRROR
56) 57) 58) 59)
Adjust the rear view mirror only after
making any seat adjustments so you
have a clear view to the rear of the
vehicle.
Adjust the rear view mirror to maximize
the view through the rear window.
To adjust the vertical mirror
position
It is possible to move the mirror up and
down to adjust its position.
60AA0108106
61AHA107590
62AJA107381
40
GETTING TO KNOW YOUR VEHICLE

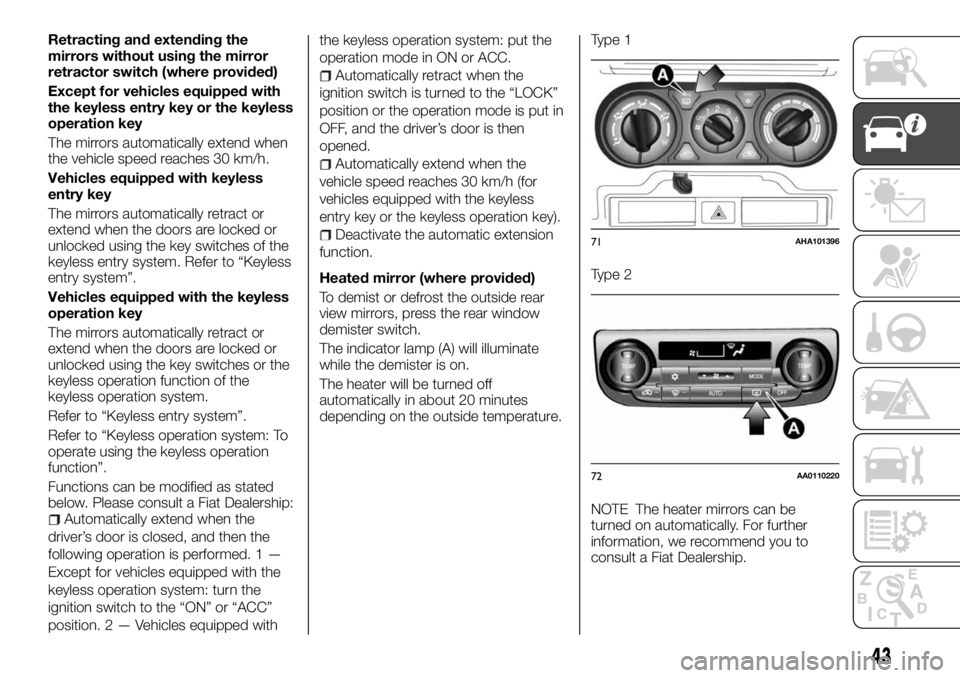

Retracting and extending the
mirrors without using the mirror
retractor switch (where provided)
Except for vehicles equipped with
the keyless entry key or the keyless
operation key
The mirrors automatically extend when
the vehicle speed reaches 30 km/h.
Vehicles equipped with keyless
entry key
The mirrors automatically retract or
extend when the doors are locked or
unlocked using the key switches of the
keyless entry system. Refer to “Keyless
entry system”.
Vehicles equipped with the keyless
operation key
The mirrors automatically retract or
extend when the doors are locked or
unlocked using the key switches or the
keyless operation function of the
keyless operation system.
Refer to “Keyless entry system”.
Refer to “Keyless operation system: To
operate using the keyless operation
function”.
Functions can be modified as stated
below. Please consult a Fiat Dealership:
Automatically extend when the
driver’s door is closed, and then the
following operation is performed. 1 —
Except for vehicles equipped with the
keyless operation system: turn the
ignition switch to the “ON” or “ACC”
position.2—Vehicles equipped withthe keyless operation system: put the
operation mode in ON or ACC.
Automatically retract when the
ignition switch is turned to the “LOCK”
position or the operation mode is put in
OFF, and the driver’s door is then
opened.
Automatically extend when the
vehicle speed reaches 30 km/h (for
vehicles equipped with the keyless
entry key or the keyless operation key).
Deactivate the automatic extension
function.
Heated mirror (where provided)
To demist or defrost the outside rear
view mirrors, press the rear window
demister switch.
The indicator lamp (A) will illuminate
while the demister is on.
The heater will be turned off
automatically in about 20 minutes
depending on the outside temperature.Type 1
Type 2
NOTE The heater mirrors can be
turned on automatically. For further
information, we recommend you to
consult a Fiat Dealership.71AHA101396
72AA0110220
43

OFF— all lamps off
— position, tail, licence plate and
instrument panel lamps on
—headlamps and other lamps go on
Type 2
Rotate the switch to turn on the lamps.
OFF— all lamps off
AUTO— with the ignition switch or the
operation mode is in ON, headlamps,
position, tail, licence plate and
instrument panel lamps turn on and off
automatically in accordance with
outside light level. All lamps turn off
automatically when the ignition switch is
turned to “OFF” position or the
operation mode is put in OFF.
— position, tail, licence plate and
instrument panel lamps on
—headlamps and other lamps go on
NOTE The sensitivity of the automatic
on/off control can be adjusted. Forfurther information, contact a Fiat
Dealership.
NOTE If the front fog lamps (if so
equipped) turn on when they are
supposed to with the switch in the
“AUTO” position, the lamps turn off
automatically with the ignition switch or
operation mode off.
NOTE When the headlamps are turned
off by the automatic on/off control with
the ignition switch in the “ON” position
or the operation mode in ON, the front
fog lamps (if so equipped) and rear fog
lamps (if so equipped) also go off.
When the headlamps are subsequently
turned back on by the automatic on/off
control, the front fog lamps also come
on but the rear fog lamp stay off. If you
wish to turn the rear fog lamp back on,
operate the switch again.
NOTE Do not cover the sensor (A) for
the automatic on/off control by affixing
a sticker or label to the windscreen.NOTE If the lamps do not turn on or off
with the switch in the “AUTO” position,
manually operate the switch and we
recommend you to have your vehicle
checked.
Lamps (headlamps, fog lamp, etc.)
auto-cutout function
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off when the
driver’s door is opened. [Except for
vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
If the following operation is
performed while the lamp switch is in
the
position, the lamps are
automatically turned off if the driver’s
door then remains closed for
approximately three minutes. [Except
for vehicles equipped with the keyless
operation system] The ignition switch is
turned to the “LOCK” or “ACC”
position, or the key is removed from the
ignition switch. [For vehicles equipped
with the keyless operation system] The
operation mode is put in OFF or ACC.
74AA0071497
75AJZ101023
45

NOTE The lamp auto-cutout function
can also be disabled. For further
information, we recommend you to
consult a Fiat Dealership.
Lamp monitor buzzer
If the following operation is performed,
a buzzer will sound to remind the driver
to turn off the lamps. [Except for
vehicles equipped with the keyless
operation system]
If the driver’s door is opened when the
key is in the “LOCK” or “ACC” position
or removed from the ignition switch
while the lamps are on. [For vehicles
equipped with the keyless operation
system] If the driver’s door is opened
when the operation mode is in ACC or
OFF while the lamps are on. In both
cases, the buzzer will automatically
stop if the auto-cutoff function is
activated, the lamp switch is turned off,
or the door is closed.
Daytime running lamp
The daytime running lamps comes on
when the engine is running and the
lamp switch is in the “OFF” or “AUTO”
position and the tail lamps are off.
60) 61)
Dipper (High/Low beam change)
When the lamp switch is in the
position, the beam changes from
high to low (or low to high) each time
the lever is pulled fully (A). While the
high beam is on, the high beamindicator lamp in the instrument cluster
will also illuminate.
Headlamp flasher
The high beams flash when the lever is
pulled slightly (B), and will go off when it
is released. When the high beam is on,
the high beam indicator lamp in the
instrument cluster will illuminate.
NOTE The high beams can also flash
when the lamp switch is OFF.
NOTE If you turn the lamps off with the
headlamps set to high beam, the
headlamps are automatically returned
to their low-beam setting when the
lamp switch is next turned to the
position.
HEADLAMP LEVELLING
SWITCH
(where provided)
62)
The angle of the headlamp beam varies
depending upon the load carried by the
vehicle. The headlamp levelling switch
can be used to adjust the headlamp
illumination distance (when the lower
beam is illuminated) so that the
headlamps’ glare does not distract the
drivers of approaching vehicles. Set the
switch (referring to the following table)
to the appropriate position according to
the number of people and the load in
the vehicle.
NOTE When adjusting the beam
position, first put the dial in the “0”
position (the highest beam position).
Vehicle condition — Single Cab
Switch position 0 — Driver only.
Switch position 2 — Driver and full
76AA0061218
77AHA105525
46
GETTING TO KNOW YOUR VEHICLE
luggage loading.

61)Daytime running lights cannot replace
dipped beam headlights when driving at
night or through tunnels. The use of
daytime running lights is governed by the
highway code of the country in which you
are driving. Comply with legal
requirements.
62)Always perform adjustments before
driving. Do not attempt to adjust while
driving, as it could cause an accident.INTERIOR LAMPS
1. Front room & map lamps
2. Rear room lamp
If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure
that all the lamps are off.
Room lamps
FrontRear
A—ON
The lamp illuminates regardless of
whether a door is open or closed.
B — DOOR (Delayed off function)
Vehicles without keyless entry system:
the lamp illuminates when a door is
opened. It goes off about 7 seconds
after all doors are closed. However, the
lamp goes off immediately when the
84AHA106144
85AA0082787
86AHA104818
87AA0082790
50
GETTING TO KNOW YOUR VEHICLE
