FIAT FULLBACK 2018 Owner handbook (in English)

NOTE If the keyless operation key is
within the operating range, even
someone not carrying the key can lock
and unlock the doors by pressing the
driver’s or front passenger’s door
lock/unlock switch.
Operating range for starting the
engine and changing the operation
mode
* — indicates front of the vehicle
The operating range is the interior of the
vehicle.
NOTE Even if it is within the operating
range, if the keyless operation key is in
a small item holder such as the glove
box, on top of the instrument panel,
door pocket or in the luggage
compartment, it may be impossible to
start the engine and change the
operation mode.NOTE If a keyless operation key is too
close to the door or door window, it
may be possible to start the engine or
change the operation mode even when
the key is outside the vehicle.
To operate using the keyless
operation function
Locking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
the doors are locked.
The turn-signal lamps will blink once
and the outer buzzer will sound once.
Also refer to “Locking and unlocking:
Doors, Central door locks”.
Unlocking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
all the doors are unlocked.If the room lamp switch is in the middle
position at this time, the room lamp will
turn on for 15 seconds. The turn-signal
lamps will blink twice and the outer
buzzer will sound twice.
If the driver’s or front passenger’s door
lock/unlock switch is pressed and any
of the doors is not opened within
approximately 30 seconds, relocking
will automatically occur.
Refer to “Locking and unlocking: Doors,
Central door locks”.
NOTE For vehicles equipped with the
mirror retractor switch, the outside rear
view mirrors automatically
retract/extend when all the doors are
locked/unlocked using the keyless
operation function. Refer to “Outside
rear view mirrors”.
NOTE For vehicles equipped with the
Dead Lock System, pressing the
driver’s or front passenger’s door
lock/unlock switch (A) two times in
succession causes the Dead Lock
System to be set (refer to “Setting the
system”).
NOTE The keyless operation function
does not operate under the following
conditions:
The keyless operation key is inside
the vehicle.
A door is open or ajar.
The operation mode is not in OFF.
18AHA101790
19AHA105437
19

NOTE The time between unlocking and
automatic locking can be adjusted.
Please consult a Fiat Dealership.
Operation confirmation when
locking and unlocking
Operation can be confirmed as shown
below. However, the room lamp will
illuminate only if the room lamp switch
is in the middle position (●).
When locking — the turn-signal lamps
blink once.
When unlocking — the room lamp
illuminates for approximately
15 seconds, the turn-signal lamps blink
twice.
NOTE Functions can be modified as
stated below. For further information,
please contact a Fiat Dealership.
NOTE Activating the operation
confirmation function (blinking of the
turn-signal lamps) only during locking,
or only during unlocking.
NOTE Disabling the operation
confirmation function (blinking of the
turn-signal lamps) and outer buzzer.
NOTE Changing the number of blinks
for the operation confirmation function
(blinking of the turn-signal lamps).To lock/unlock without using the
keyless operation function
Emergency key
The emergency key (A) can only be
used to lock and unlock the door. To
use the emergency key, unlock the lock
knob (B) and remove it from the keyless
operation key (C).
NOTE Only use the emergency key for
emergencies. If the keyless operation
key battery wears out, replace it as
quickly as possible so that you can use
the keyless operation key.
NOTE The emergency key is built in the
keyless operation key.
NOTE After using the emergency key,
always return it into the original position.Locking and unlocking the door
Turning the emergency key in the
forward direction locks the door, and
turning it in the rear direction unlocks
the door. Also refer to “Locking and
unlocking: Doors”.
1 — Lock
2 — Unlock
Operation of the Dead Lock System
For vehicles equipped with the Dead
Lock System, it is possible to set the
Dead Lock System using the driver’s or
front passenger’s door lock/unlock
switch. Refer to “Dead Lock System”.
20AG0010823
21AHA105440
20
GETTING TO KNOW YOUR VEHICLE

Warning activation
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the lamp and buzzer are used to
alert the driver.
Buzzer Item Cause Note / Solution
BlinksOuter buzzer
sounds
4 times. Inner
buzzer sounds.Keyless
operation key
take-out
monitoring
systemWhen the vehicle is parked with
the operation mode in any mode
other than OFF, if you close the
door after opening any of the
doors and taking the keyless
operation key out of the vehicle.
Outer buzzer sounds 4 times at
this time. And when a vehicle
starts, inner buzzer sounds once.If you take the keyless operation key out of the
vehicle through a window without opening a door,
this system does not operate.
It is possible to change the setting to make the
system operate if you take the keyless operation key
out from the vehicle through a window without
opening a door. For further information, please
contact a Fiat Dealership.
Even if you have the keyless operation key within the
engine start operating range, if the key and vehicle
ID codes cannot be matched, for example due to
the ambient environment or electromagnetic
conditions, the warning may be activated.
BlinksOuter buzzer
sounds
approximately
3 secondsKey lock-in
prevention
systemWhen the operation mode is in
OFF, if you close all the doors with
the keyless operation key left in
the vehicle and you try to lock the
doors by pressing the driver’s or
front passenger’s door lock/unlock
switch.Make sure you have the keyless operation key with
you before locking the doors. Even if you leave the
keyless operation key inside the vehicle, it is
possible that the doors will lock depending on the
surrounding environment and wireless signal
conditions.
BlinksOuter buzzer
sounds
approximately
3 secondsDoor ajar
prevention
systemWhen the operation mode is in
OFF, if you try to lock the doors by
pressing the driver’s or front
passenger’s door lock/unlock
switch with one of the doors not
completely closed.—
Blinks No soundKeyless
operation
systemThe battery of the keyless
operation key has worn out.Replace the battery as soon as possible at a Fiat
Dealership.
21

Buzzer Item Cause Note / Solution
Illuminates No soundKeyless
operation
systemA power supply is not switched
over from OFF because the
keyless operation key in the
vehicle cannot be detected. When
a warning is issued to being in the
vehicle, it is because the battery of
the keyless operation key has
worn out or the state of the
surrounding radio wave is bad.Please confirm that the keyless operation key is in
the vehicle. If the key is in the vehicle, insert the slot.
Starting the engine and changing the operation
mode should be now possible.
Illuminates No soundKeyless
operation
systemThere is a fault in the keyless
operation system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(intermittent
sounds)Keyless
operation
systemThere is a fault in the electrical
system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(continuous
sounds)Keyless
operation
systemThere is a fault in the electrical
system.Immediately stop the vehicle in a safe place and
contact a Fiat Dealership.
BlinksOuter buzzer
sounds
approximately
3 seconds.
Inner buzzer
sounds
approximately
1 minute.Keyless
operation key
reminderWhen the operation mode is in
OFF with the keyless operation
key left in the key slot, if you try to
open the driver’s door.Remove the keyless operation key from the key slot.
Refer to “Starting and stopping the engine”.
IlluminatesInner buzzer
soundsSteering wheel
lockThere is a fault in the steering
wheel lock system.Refer to “Steering wheel lock”.
22
GETTING TO KNOW YOUR VEHICLE

Buzzer Item Cause Note / Solution
BlinksOuter buzzer
sounds
approximately
3 secondsOperation
mode OFF
reminder
systemWhen the operation mode is in
any mode other than OFF with all
the doors are closed, if you try to
lock by using the driver’s or front
passenger’s door lock/unlock
switch.Refer to “Operation mode OFF reminder system”.
Buzzer Item Cause Note / Solution
Illuminates No soundsImmobilizer
systemThere is a fault in the electronic
immobilizer (Anti-theft starting
system).Put the operation mode in OFF and then start the
engine again. If the warning is not cancelled,
contact a Fiat Dealership.
BlinksInner buzzer
soundsSteering wheel
lockSteering wheel does not unlock.Unlock the steering wheel lock following the
procedure of reference page. Refer to “Steering
wheel lock”
Illuminates No soundsSteering wheel
lockSteering wheel lock is abnormal. Refer to “Steering wheel lock”.
WARNING
1)When carrying a key on flights, do not
press any switches on the key while on the
plane. If a switch is pressed on the plane,
the key emits electromagnetic waves,
which could adversely affect the plane’s
flight operation. When carrying a key in a
bag, be careful that no switches on the key
can be easily pressed by mistake.2)Don’t make any alterations or additions
to the immobilizer system; alterations or
additions could cause failure of the
immobilizer.
3)When the key case is opened, be careful
to keep water, dust, etc. out. Also, do not
touch the internal components.4)People with implantable cardiac
pacemakers or implantable cardiovascular-
defibrillators should not go near the exterior
transmitters (A) or the interior transmitters
(B) see fig. 15, fig. 16. The radio waves
used by the keyless operation system could
adversely affect implantable cardiac
pacemakers or implantable
cardiovascular-defibrillators.
23

5)When using electro-medical devices
other than implantable cardiac pacemakers
or implantable cardiovascular-defibrillators,
contact the electro-medical device
manufacturer ahead of time to determine
the adverse effects of radio waves on the
devices. Electro-medical device operations
could be affected by radio waves.
IMPORTANT
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
IGNITION SWITCH
(where provided)
LOCK
The engine is stopped and the steering
wheel locked. The key can only be
inserted and removed in this position.
ACC
The engine is stopped, but the audio
system and other electric devices can
be operated.
ON
All the vehicle’s electrical devices can
be operated.
START
The starter motor operates. After the
engine has started, release the key and
it will automatically return to the “ON”
position.NOTE If your vehicle is equipped with
an electronic immobilizer. To start the
engine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
To remove the key
For vehicles equipped with a M/T, when
removing the key, push the key in at the
“ACC” position and keep it depressed
until it is turned to the “LOCK” position
and remove it.
For vehicles equipped with A/T, when
removing the key, first set the selector
lever to the “P” (PARK) position, and
push the key in at the “ACC” position
and keep it depressed until it is turned
to the “LOCK” position, and remove it.
6) 7) 8) 9) 10)
1) 2) 3)
24AG0004466
25AHA103488
24
GETTING TO KNOW YOUR VEHICLE

ENGINE SWITCH
(Where provided)
In order to prevent theft, the engine will
not start unless a preregistered keyless
operation key is used. (Engine
immobilizer function)
If you are carrying the keyless operation
key, you can start the engine.
4) 5) 6) 7)
NOTE When operating the engine
switch, press the switch all the way in. If
the switch is not fully pressed, the
engine may not start or the operation
mode may not change. If the engine
switch is pressed correctly, there is no
need to hold the engine switch down.
NOTE When the battery in the keyless
operation key has worn out, or the
keyless operation key is out of the
vehicle, a warning lamp will blink for
5 seconds.Operation mode of the engine
switch and its function
OFF
The indicator lamp on the engine switch
turns off. The operation mode cannot
be put in OFF when the selector lever is
in any position other than the “P”
(PARK) position (A/T).
ACC
Electrical devices such as the audio and
accessory socket can be operated. The
indicator lamp on the engine switch
illuminates orange.
ON
All vehicle’s electrical devices can be
operated. The indicator lamp on the
engine switch illuminates green. The
indicator lamp turns off when the
engine is running.NOTE Your vehicle is equipped with an
electronic immobilizer. To start the
engine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
Changing the operation mode
If you press the engine switch without
depressing the brake pedal (A/T) or the
clutch pedal (M/T), you can change the
operation mode in the order of OFF,
ACC, ON, OFF.
NOTE If the operation mode cannot be
changed to OFF, perform the following
procedure:
1 – Move the selector lever to the “P”
(PARK) position, and then change the
operation mode to OFF. (For vehicles
with A/T)
26AHA105990
27AHA103505
28AG0022644
25

2 – One of the other causes could be
low battery voltage. If this occurs, the
keyless entry system, keyless operation
function, and steering lock will also not
operate. Contact an Authorised Fiat
Dealership.
8) 9)
ACC power auto-cutout function
After about 30 minutes has elapsed
with the operation mode in ACC, the
function automatically cuts out the
power for the audio system and other
electric devices that can be operated
with that position. (only that driver’s
door has closed and the selector lever
in the “P” (PARK) position).
When you open driver’s door or the
engine switch operate again, the power
is supplied again.
NOTE When ACC power supply
automatic stop, the steering wheel
can’t lock and you can’t lock and
unlock the doors by the keyless entry
key and keyless operation key.
NOTE It is possible to modify functions
as follows:
The time until the power cuts out can
be changed to about 60 minutes.
The ACC power auto-cutout function
can be deactivated. For details, we
recommend you to consult a Fiat
Dealership.
Operation mode OFF reminder
system
When the operation mode is in any
mode other than OFF, if you try to lock
the doors by pressing the driver’s or
front passenger’s door lock/unlock
switch, a warning lamp will blink and
the outer buzzer will sounds and you
cannot lock the doors.
Operation mode ON reminder
system
If the driver’s door is opened with the
engine stopped and the operation
mode in any mode other than OFF, the
operation mode ON reminder inner
buzzer sounds intermittently to remind
you to put the operation mode in OFF.
WARNING
6)Do not remove the ignition key from the
ignition switch while driving. The steering
wheel will be locked, causing loss of
control.
7)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by an authorized Dealership
before driving again.
8)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.
9)Never extract the key while the vehicle is
moving. The steering wheel will lock as
soon as it is turned. This also applies to
cases in which the vehicle is towed.
10)Under no circumstances should
aftermarket operations be carried out
involving steering system or steering
column modifications (e.g. installation of
anti-theft device). This could negatively
affect performance and safety, invalidate
the warranty, cause serious safety
problems and also result in vehicle
non-compliance with type-approval
requirements.
29AHA103505
26
GETTING TO KNOW YOUR VEHICLE

IMPORTANT
1)If the engine is stopped while driving, the
brake servomechanism will cease to
function and braking efficiency will
deteriorate. Also, the power steering
system will not function and it will require
greater manual effort to operate the
steering.
2)Do not leave the key in the “ON” position
for a long time when the engine is not
running, doing so will cause the battery to
be discharged.
3)Do not turn the key to the “START”
position while the engine is running. Doing
so could damage the starter motor.
4)The indicator lamp (A) fig. 26 will flash
orange when there is a problem or
malfunction in the keyless operation
system. Never drive if the indicator lamp on
the engine switch is flashing orange.
Immediately contact your Fiat Dealership.
5)If the engine switch operation is not
smooth and feels like it is sticking, do not
operate the switch. Immediately contact
your Fiat Dealership.
6)When the engine is not running, put the
operation mode in OFF. Leaving the
operation mode in ON or ACC for a long
time when the engine is not running may
cause the battery to be discharged, making
it impossible to start the engine, lock and
unlock the steering wheel.7)When the battery is disconnected, the
current operation mode is memorized. After
reconnecting the battery, the memorized
mode is selected automatically. Before
disconnecting the battery for repair or
replacement, make sure to put the
operation mode in OFF. Be careful if you
are not sure which operation mode the
vehicle is in when the battery is run down.
8)The operation mode cannot be changed
from OFF to ACC or ON if the keyless
operation key is not detected to be in the
vehicle. Refer to “Keyless operation system:
Operating range for starting the engine and
changing the operation mode”.
9)When there is the keyless operation key
in the vehicle and the operation mode isn’t
change, the keyless operation key may
have worn out.
DOORS
11) 12) 13)
NOTE To prevent the key from being
locked inside the vehicle, neither the
lock knob on the driver’s door nor the
key can be used to lock the driver’s
door when it is open.
To lock or unlock with the key
A — Lock
B — Unlock
NOTE On vehicles with central door
locks, when locking or unlocking with
the key, all doors will be locked or
unlocked. Refer to “Central door locks”.
NOTE If the vehicle is equipped with
the keyless operation system, the
driver’s door can be locked or unlocked
with the emergency key. Refer to
“Emergency key”.
30AHA105453
27

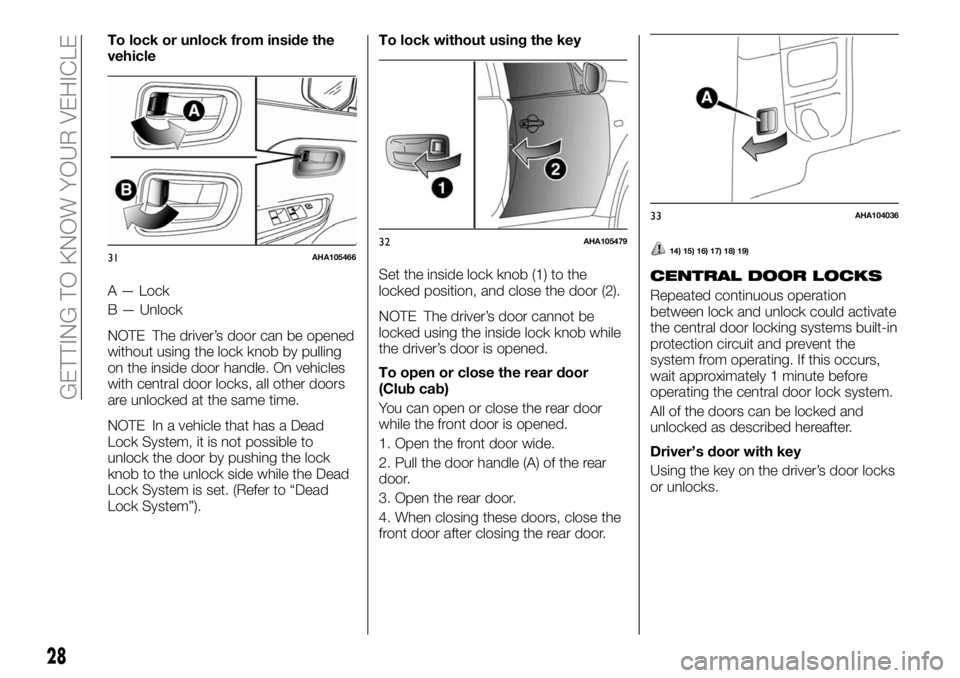

To lock or unlock from inside the
vehicle
A — Lock
B — Unlock
NOTE The driver’s door can be opened
without using the lock knob by pulling
on the inside door handle. On vehicles
with central door locks, all other doors
are unlocked at the same time.
NOTE In a vehicle that has a Dead
Lock System, it is not possible to
unlock the door by pushing the lock
knob to the unlock side while the Dead
Lock System is set. (Refer to “Dead
Lock System”).To lock without using the key
Set the inside lock knob (1) to the
locked position, and close the door (2).
NOTE The driver’s door cannot be
locked using the inside lock knob while
the driver’s door is opened.
To open or close the rear door
(Club cab)
You can open or close the rear door
while the front door is opened.
1. Open the front door wide.
2. Pull the door handle (A) of the rear
door.
3. Open the rear door.
4. When closing these doors, close the
front door after closing the rear door.
14) 15) 16) 17) 18) 19)
CENTRAL DOOR LOCKS
Repeated continuous operation
between lock and unlock could activate
the central door locking systems built-in
protection circuit and prevent the
system from operating. If this occurs,
wait approximately 1 minute before
operating the central door lock system.
All of the doors can be locked and
unlocked as described hereafter.
Driver’s door with key
Using the key on the driver’s door locks
or unlocks.
31AHA10546632AHA105479
33AHA104036
28
GETTING TO KNOW YOUR VEHICLE
