FIAT FULLBACK 2018 Owner handbook (in English)
Manufacturer: FIAT, Model Year: 2018, Model line: FULLBACK, Model: FIAT FULLBACK 2018Pages: 316, PDF Size: 10.52 MB
Page 31 of 316
A — Lock
B — Unlock
NOTE If the vehicle is equipped with
the keyless operation system, the
driver’s door can be locked or unlocked
with the emergency key. Refer to
“Emergency key”.
Driver’s door with inside lock knob
Using the door lock knob on the driver’s
door locks or unlocks all doors.A — Lock
B — Unlock
NOTE Be careful not to lock the doors
while the key is inside the vehicle when
getting off the vehicle.
Vehicle-speed sensitive automatic
door lock (with impact sensitive
unlock mechanism)
All of the doors lock automatically when
the vehicle speed exceeds
approximately 15 km/h. In addition, all
of the doors unlock when a strong
impact that could be very dangerous to
the occupants is sustained by the
collision of the vehicle. This is prepared
for rescue activities when an
unexpected accident occurs.
20)
NOTE Even if the vehicle suffers
significant deformation from a collision
etc., depending on the location and
angle of the collision, as well as on the
shape and condition of the other object
in the collision, the doors may not
unlock. The extent of deformation or
damage to the vehicle does not
necessarily correlate with unlock of the
doors.
NOTE These functions are activated
when the vehicle is shipped from the
factory. If you wish to activate or
deactivate these functions, please
contact a Fiat Dealership.Unlock using the ignition switch,
the engine switch or the selector
lever
It is possible to unlock all of the doors
whenever as follows.
Vehicles with M/T — The ignition switch
is turned to the “LOCK” position or the
operation mode is put in OFF.
Vehicles with A/T — The selector lever
placed the “P” (PARK) position while the
operation mode is in ON. Or the
operation mode is put in OFF.
These functions are deactivated when
the vehicle is shipped from the factory.
If you wish to activate or deactivate
these functions, please contact a Fiat
Dealership.
DEAD LOCK SYSTEM
The Dead Lock System helps prevent
theft. When the keyless entry system or
the keyless operation function has been
used to lock all of the doors, the Dead
Lock System makes it impossible to
unlock the doors using the inside lock
knobs.
NOTE Do not set the Dead Lock
System when someone is inside the
vehicle. With the Dead Lock System
set, it is not possible to unlock the
doors using the inside lock knobs. If
you erroneously set the Dead Lock
System, unlock the doors using the
UNLOCK switch on the key or using the
keyless operation function.
34AHA105453
35AHA105466
29
Page 32 of 316
Setting the system
1. Turn the ignition switch to the
“LOCK” position and then remove the
key (vehicles with keyless entry system),
or put the operation mode in OFF
(vehicles with keyless operation
system).
2. Get out of the vehicle. Close all of the
doors.
3. Press the LOCK switch (A) on the
key, the driver’s or front passenger’s
door lock/unlock switch (C) to lock all of
the doors. The turn-signal lamps will
blink once.
4. Press the switch again within
2 seconds. The turn-signal lamps will
blink three times to show that the Dead
Lock System has been set.
Left side: Keyless entry system. Right
side: Keyless operation systemNOTE Pressing the LOCK switch (A) on
the key once while the Dead Lock
System is set causes the turn-signal
lamps to blink three times, so it is
possible to confirm that the Dead Lock
System is set.
Cancelling the system
When the following operation is
performed, the doors will unlock and
the Dead Lock System will be
simultaneously cancelled.
The UNLOCK switch (B) on the key is
pressed.
The driver’s or front passenger’s door
lock/unlock switch (C) is pressed while
you are carrying the keyless operation
key.
NOTE If a door is opened within
30 seconds of unlocking, the doors are
automatically relocked and the Dead
Lock System is simultaneously set
again.NOTE Even when it is not possible to
use the keyless entry system or keyless
operation function to unlock the doors,
it is possible to use the key to unlock
the driver’s door. When the key is used
to unlock the driver’s door, the Dead
Lock System is cancelled for only the
driver’s door. If you wish to
subsequently unlock all other doors,
turn the ignition switch to the “ON” or
“ACC” position, or put the operation
mode in ON or ACC.
NOTE It is possible to adjust the time
between pressing of the UNLOCK
switch (B) on the key or the driver’s or
front passenger’s door lock/unlock
switch (C) and automatic locking. For
details, please contact a Fiat
Dealership.
NOTE It is possible to lock the doors
and set the Dead Lock System at the
same time with a single push of the
LOCK switch (A) on the key, the driver’s
or front passenger’s door lock/unlock
switch (C). For details, please contact a
Fiat Dealership.
Testing the system
Open all of the door windows, then set
the Dead Lock System. (Refer to
“Setting the system”.) After setting the
Dead Lock System, reach into the
vehicle through the windows and
confirm that you cannot unlock the
doors using the lock knobs.
36AHA114475
37AHA106450
30
GETTING TO KNOW YOUR VEHICLE
Page 33 of 316
NOTE If you need advice on how to set
the Dead Lock System, please contact
a Fiat Dealership.
CHILD PROTECTION REAR
DOORS (Double Cab)
A — Lock
B — Unlock
Child protection helps prevent doors
from being opened accidentally,
especially when small children are in the
rear seat.
A lever is provided on each rear door. If
the lever is set to the locked position,
the rear door cannot be opened using
the inside handle.
To open the rear door while the child
protection is in use, pull the outside
door handle. If the lever is set to the
“Unlock” position, the child protection
mechanism does not function.
21) 22) 23)
REAR GATE
To open
Lift up the handle and lower the rear
gate.
To close
Raise the rear gate and close with
enough force to latch the assembly
securely into position.
24) 25) 26) 27) 28) 29)
To swing down
30) 31)
The rear gate can be swung down in
two stages except some models. To
lower it to the second stage, proceed
as follows:
1 — Swing open the rear gate to the
first position. Then, lift it up to the
position shown in the illustration while
holding the link or wire (1).
2 — Remove the wire (1) on one side
while aligning the hole in the wire with
the hook (2).
38AHA101862
39AHA101875
40AHA101888
41AHA113263
31
Page 34 of 316
3 — Remove the wire on the other side
in the same manner, and have the rear
gate swing down slowly.
WARNING
11)Make sure the doors are closed:
driving with doors not completely closed is
dangerous.12)NEVER leave children unattended
inside the car, let alone leave the car with
the doors unlocked in a place that children
can access easily. Children may seriously,
or even fatally, injure themselves. Also
ensure that children do not inadvertently
operate
13)Be careful not to lock the doors while
the key is inside the vehicle.
14)When opening the rear door, confirm
that the occupant of the front seat has
taken off the seat belt before opening the
rear door. If you open the rear door with
the front seat belt being worn, the
occupant of the front seat may be
tightened with the locked seat belt and
could result in serious injury.
15)When closing the rear door, make sure
not being trapped your hands or your
fingers in the doors.
16)Before driving, make sure that the rear
door is securely closed. If a door is ajar, the
door ajar warning lamp will illuminates. If a
door is not completely closed, the rear
door could open while driving and this
could cause an accident such as
occupants being thrown from the vehicle.
17)When opening or closing the rear door,
please observe the followings. If you do not
follow them, it could result in damage to
your vehicle. Do not open or close the rear
door and the front door at the same time.
18)Do not open or close the rear door
when the front door is not completely
opened.
19)Do not close the rear door after closing
the front door.20)When the vehicle-speed sensitive
automatic door lock/Impact-sensitive
unlock mechanism may not operate in the
following conditions, have the vehicle
inspected at a Fiat Dealership immediately.
1– The door does not lock automatically
even when the vehicle speed exceeds
approximately 15 km/h. 2 — The door
unlocks automatically while driving. 3 —
Even when the ignition switch or the
operation mode is in ON, the SRS warning
lamp does not come on or it remains on. 4
— The SRS warning lamp comes on while
driving. 5 — The central door lock system
is broken down.
21)When driving with a child in the rear
seat, please use the child protection to
prevent accidental door opening which
may cause an accident.
22)If the child lock was engaged and the
previously described locking procedure
carried out, operating the internal opening
handle will not open the door: in this case,
to open the door, the outside handle must
be used. The door central locking/
unlocking button is not disabled by the
engagement of the emergency lock.
23)Always use this device when carrying
children. After engaging the child lock on
both rear doors, check for effective
engagement by trying to open a door with
the internal handle.
24)Do not stand behind the exhaust pipe
when loading and unloading luggage. Heat
from the exhaust could lead to burns.
25)Pay attention not to catch your fingers
in the rear gate.
26)Do not weight the rear gate.
42AHA113276
43AHA112934
32
GETTING TO KNOW YOUR VEHICLE
Page 35 of 316
27)Before driving, make sure that the rear
gate is securely closed. If the rear gate
opens while driving the vehicle, objects
stored in the cargo area could fall out onto
the road.
28)Once the dead lock system is engaged
it is impossible to open the doors from
inside the vehicle. Therefore, before
engaging the system check that there is no
one left inside. If the remote control battery
is flat, the system can be disengaged only
by inserting the key metal insert in either of
the door locks as described previously: in
this case the device remains active only for
the rear doors.
29)This spring loaded system has
activation forces that were designed for
optimum comfort. Accidental knocks or a
strong gust of wind may release the
springs and close the doors
spontaneously.
30)On vehicles with the rear bumper,
never swing down the rear gate because
the rear gate could be damaged.
31)Never close the rear gate with the link
or wire left unhooked.SEATS
SEAT ADJUSTMENT
Adjust the driver’s seat so that you are
comfortable and that you can reach the
pedals, steering wheel, switches etc.
while retaining a clear field of vision.
32) 33) 34) 35) 36) 37) 38) 39) 40) 41) 42) 43) 44) 45)
10)
FRONT SEATS
Manual type (where provided)
1 — To adjust forward or backward: Lift
the handle and adjust the seat to the
desired position, and release the
handle.
2 — To recline the seatback: Pull the
lever up and then lean backward to the
desired position, and release the lever.
3 — To adjust seat cushion height
(driver’s side only of Club cab and
Double cab): Turn the dial and adjust
the seat cushion height to the desired
position.Power type (where provided)
1 — To adjust forward or backward:
Operate the switch as indicated by the
arrows and adjust the seat to the
desired position.
2 — To recline the seatback: Operate
the switch as indicated by the arrows
and adjust the seatback angle to the
desired position.
3 — To adjust seat height: Operate the
switch as indicated by the arrows and
adjust the seat height to the desired
position. If the entire switch is operated,
then the entire seat moves.
4 — To adjust seat cushion angle:
Operate the switch as indicated by the
arrows and adjust the seat cushion
angle to the desired position.
44AHA105626
45AHA105639
33
Page 36 of 316
NOTE To prevent the battery from
running down, operate the switch with
the engine running.
Passenger’s seat (Single cab and
Double cab)
To access the onboard tool kit (Single
cab): fold forward the seatback of the
passenger’s seat. Refer to “Tools, jack
and jack handle”. Pull the band and fold
the seatback forward.
To recline the seatback: pull the band
and then learn backward to the desired
position, and release the band.
Heated seats (where provided)
The heated seats can be operated with
the ignition switch or the operation
mode in ON. Operate the switch as
indicated by arrows. The indication
lamp (A) will illuminate while the heater
is on.1. (HI) — Heater high (for quick
heating). 2. Heater off. 3. (LO) —
Heater low (to keep the seat warm).
46)
11) 12) 13) 14) 15) 16)
REAR SEATS (Club Cab
and Double Cab)
(Where provided)
When a person is sitting in the middle
seating position of the rear seat, adjust
the head restraint to height at which it
lock in position. Refer to “Head
restraints”.
Folding the seatback forward
(Double cab)
Pull up the band on the top of the
seatback and fold it forward.To return
Raise the seatback until it is locked
securely in place.
Push and pull the seatback lightly to be
sure it is secure.
Folding up the seat cushion (Club
cab)
(Where provided)
The right and left seat cushions can be
folded up separately.
46AHA105642
47AHA10621648AHA102999
49AHA103996
34
GETTING TO KNOW YOUR VEHICLE
Page 37 of 316
To fold the seat cushions up, raise the
seat cushions.
Securely retain the seat cushion by
hooking the retaining band (A) onto the
head restraint (B) of the rear seat.
Armrest (Double cab)
(Where provided)
To use the armrest, fold it down.
To return to the original position, push it
backward (into the seatback) until it is
flush with the seat.NOTE Do not climb or sit on the
armrest. Doing so could damage the
armrest.
NOTE The top surface of the armrest
contains a cup holder for rear seat
occupants. Refer to “Cup holder”.
WARNING
32)All adjustments must be made with the
vehicle stationary.
33)Do not attempt to adjust the seat while
driving. This can cause loss of vehicle
control and result in an accident. After
adjustments are made, ensure the seating
is locked in position by attempting to move
the seat forward and rearward without
using the adjusting mechanism.
34)After releasing the adjustment lever,
always check that the seat is locked on the
guides by trying to move it back and forth.
If it is not locked, the seat may move
unexpectedly and make you lose control of
the vehicle.35)For maximum safety, keep the back of
your seat upright, lean back into it and
make sure the seat belt fits closely across
your chest and pelvis.
36)Make sure the backrests are properly
secured at both sides (not visible "red
notches”) to prevent them from moving
forward, in the event of sharp braking, with
possible impact with of the passengers.
37)It is extremely dangerous to ride in the
cargo area of a vehicle. Also, the cargo
area and rear seats should never be used
as a play area by children. In a collision,
people or children riding unrestrained in
these areas are more likely to be seriously
injured or killed.
38)Do not allow people or children to ride
in any area of your vehicle that is not
equipped with seats and seat belts, and
make sure that everyone travelling in your
vehicle is in a seat and wearing a seat belt,
or in the case of a child is strapped in a
child restraint.
39)To minimize the risk of personal injury in
the event of a collision or sudden braking,
the seatbacks should always be in the
almost upright position while the vehicle is
in motion. The protection provided by the
seat belts may be reduced significantly
when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious
injury, when the seatback is reclined.
40)Do not place objects under the seats.
This could prevent the seat from locking
securely, and it could lead to an accident. It
may also cause damage to the seat or
other parts.
41)Make sure the seat is adjusted by an
adult or with adult supervision for correct
and safe operation.
50AHA105121
51AHA103000
35
Page 38 of 316
42)Do not place a cushion or the like
between your back and the seatback while
driving. The effectiveness of the head
restraints will be reduced in the event of an
accident.
43)The reclining mechanism of the front
manual seat's seatback is spring loaded,
causing it to fold the seatback forward
when the lock lever is operated. When
using the lever, sit close to the seatback or
hold it with your hand to control its return
motion.
44)When sliding the seats, be careful not
to catch your hand or foot.
45)If your vehicle is equipped with the rear
seat, when sliding or reclining the seat
rearward, pay careful attention to the rear
seat passengers.
46)If the following types of persons use
the heated seats, they might become too
hot or receive minor burns (red skin, heat
blisters, etc.): children, elderly or ill people,
people with sensitive skin, excessively tired
people, people under the influence of
alcohol or sleep inducing medication (cold
medicine, etc.).
IMPORTANT
10)The fabric upholstery of the seats has
been designed to withstand long-term wear
deriving from normal use of the car. Some
precautions are however required. Avoid
prolonged and/or excessive rubbing
against clothing accessories such as metal
buckles and Velcro strips which, by
applying a high pressure on the fabric in a
small area, could cause it to break, thereby
damaging the upholstery.11)Operate in the “HI” position for quick
heating. Once the seat is warm, set the
heater switch to the “LO” position to keep it
warm. Slight variations in seat temperature
may be felt while using the heated seats.
This is caused by the operation of the
heater’s internal thermostat and does not
indicate a malfunction.
12)Do not place heavy objects on the seat
or stick pins, needles, or other pointed
objects into it.
13)Do not use a blanket, cushion, or other
material with high heat insulation properties
on the seat while using the heater; this
might cause the heater element to
overheat.
14)Do not use benzine, kerosene, petrol,
alcohol or other organic solvents when
cleaning the seats. Doing so could damage
not only the seat cover, but also the heater
element.
15)If water or any other liquid is spilled on
the seat, allow it to dry thoroughly before
attempting to use the heater.
16)Turn the heater off immediately if it
appears to be malfunctioning during use.
HEAD RESTRAINTS
(where provided)
47) 48) 49) 50) 51) 52)
To adjust height
Front seats
Adjust the head restraint height so that
the centre of the head restraint is as
close as possible to ear level to reduce
the chances of injury in the event of
collision. Any person too tall for the
head restraint to reach their seated ear
level, should adjust the restraint as high
as possible.
To raise the head restraint, move it
upward.
To lower the restraint, move it
downward while pushing the height
adjusting knob (A) in the direction of the
arrow. After adjustment, push the head
restraint downward and make sure that
it is locked.
52AHA103013
36
GETTING TO KNOW YOUR VEHICLE
Page 39 of 316

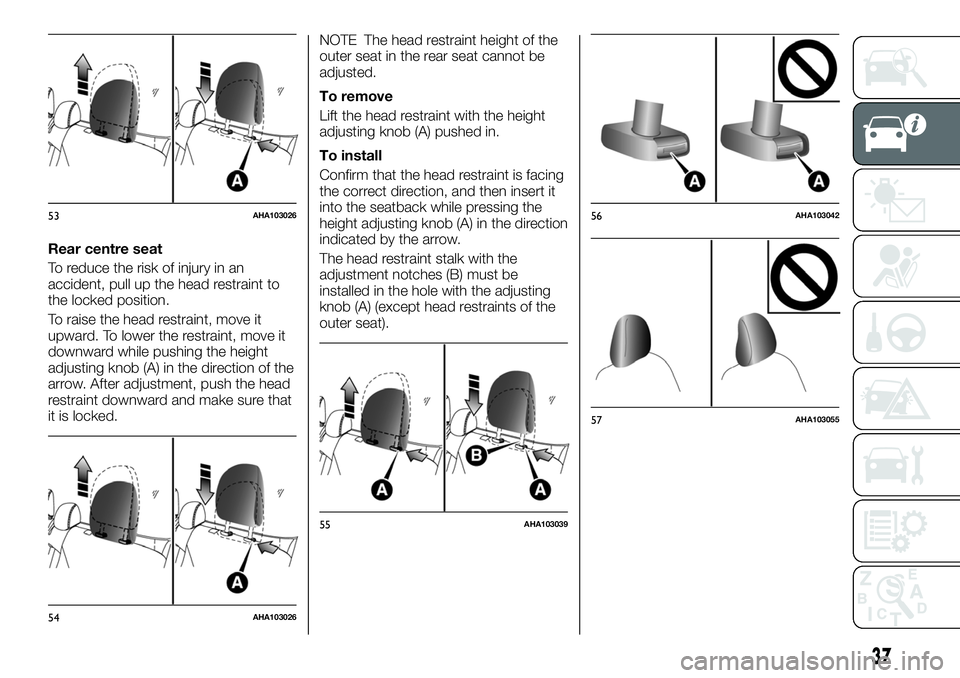

Rear centre seat
To reduce the risk of injury in an
accident, pull up the head restraint to
the locked position.
To raise the head restraint, move it
upward. To lower the restraint, move it
downward while pushing the height
adjusting knob (A) in the direction of the
arrow. After adjustment, push the head
restraint downward and make sure that
it is locked.NOTE The head restraint height of the
outer seat in the rear seat cannot be
adjusted.
To remove
Lift the head restraint with the height
adjusting knob (A) pushed in.
To install
Confirm that the head restraint is facing
the correct direction, and then insert it
into the seatback while pressing the
height adjusting knob (A) in the direction
indicated by the arrow.
The head restraint stalk with the
adjustment notches (B) must be
installed in the hole with the adjusting
knob (A) (except head restraints of the
outer seat).
53AHA103026
54AHA103026
55AHA103039
56AHA103042
57AHA103055
37
Page 40 of 316
WARNING
47)All adjustments must only be carried
out with the vehicle stationary and the
engine off. Head restraints must be
adjusted so that the head, rather than the
neck, rests on them. Only in this case can
they protect your head correctly. To take
best advantage of the protection provided
by the head restraint, adjust the seat back
so that you are sitting up straight and your
head is as close to the head restraint as
possible.
48)Driving without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To
reduce the risk of injury in an accident,
always make sure the head restraints are
installed and properly positioned when the
seat is occupied.
49)Never place a cushion or similar device
on the seatback. This can adversely affect
head restraint performance by increasing
the distance between your head and the
restraint.
50)When a person sits in the middle
seating position of the rear seat, pull up the
head restraint to a height at which it locks
in position fig. 52. Be sure to make this
adjustment before starting to drive. Serious
injuries could otherwise be suffered in the
result of an impact (Double cab).
51)Make sure that the height adjusting
knob (A) is correctly adjusted as shown in
the illustration fig. 56, and also lift the head
restraints to ensure that they do not come
out of the seatback.52)The shape and size of the head
restraint differs according to the seat.
Always use the correct head restraint
provided for the seat and do not install the
head restraint in the wrong direction fig. 57.
STEERING WHEEL
STEERING WHEEL
HEIGHT AND REACH
ADJUSTMENT
(Vehicles equipped with the reach
adjustment)
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the
desired position.
3. Securely lock the steering wheel by
pulling the lever fully upward.
A. Locked
B. Release
53) 54) 55)
58AA0110800
38
GETTING TO KNOW YOUR VEHICLE
