FIAT FULLBACK 2018 Owner handbook (in English)

Double Cab
2WD Hi-Rider
Kerb weightWithout optional parts 1,765 kg
With full optional parts 1,850 kg
Maximum gross vehicle weight2,800 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 2,700 kg
Without brake 750 kg
Maximum trailer-nose weight110 kg
Maximum gross combination weight 5,450 kg
Maximum permissible weight of the coupling device 34 kg
Maximum roof load
80 kg
(1)
Seating capacity5 persons
(1) Except for vehicles for Russia and Ukraine
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
289

Diesel engine 2.4 (4N15) 4WD
M/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts1,870 kg
1,840 kg
(1)1,875 kg
1,855 kg(1)1,860 kg
1,855 kg(2)
With full optional parts1,960 kg
1,915 kg(1)1,955 kg
1,950 kg(1)1,950 kg
1,960 kg(2)
Maximum gross vehicle weight2,900 kg
2,850 kg(1)2,905 kg
2,850 kg(1)2,905 kg
2,900 kg(2)
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight5,950 kg
5,900 kg
(1)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Maximum roof load
80 kg
(3)
Seating capacity 5 persons
(1) Vehicles for specific Markets
(2) Vehicles with the Start&Stop
(3) Except for vehicles for Russia and Ukraine
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle. NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
290
TECHNICAL SPECIFICATIONS

Diesel engine 2.4 (4N15) 4WD
A/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts 1,870 kg1,875 kg
1,855 kg
(*2)1,860 kg
With full optional parts 1,960 kg 1,955 kg 1,950 kg
Maximum gross vehicle weight 2,900 kg2,910 kg
2,850 kg
(*2)2,910 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight 5,950 kg5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Maximum roof load
80 kg
(*2)
Seating capacity 5 persons
(*2) Versions for specific markets
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
291

ELECTRICAL SYSTEM
Except for vehicles with the Start&Stop system
Vehicles with the
Start&Stop system
All vehiclesVehicles for Specific
Markets
Voltage12 V
Battery Type (JIS)95D31L – 80Ah
115D31L – 84Ah
(*)115D31L – 84Ah T-105 – 86Ah
Alternator capacity
95 A, 130 A
(*)130 A
95 A, 130 A(*)
(*) Optional
NOTE The vehicles equipped with Start&Stop have a dedicated Start&Stop battery type. Use of a different battery could cause
the battery to run down quickly or Start&Stop system not to operate normally. Please contact a Fiat Dealership when replacing
the battery.
292
TECHNICAL SPECIFICATIONS

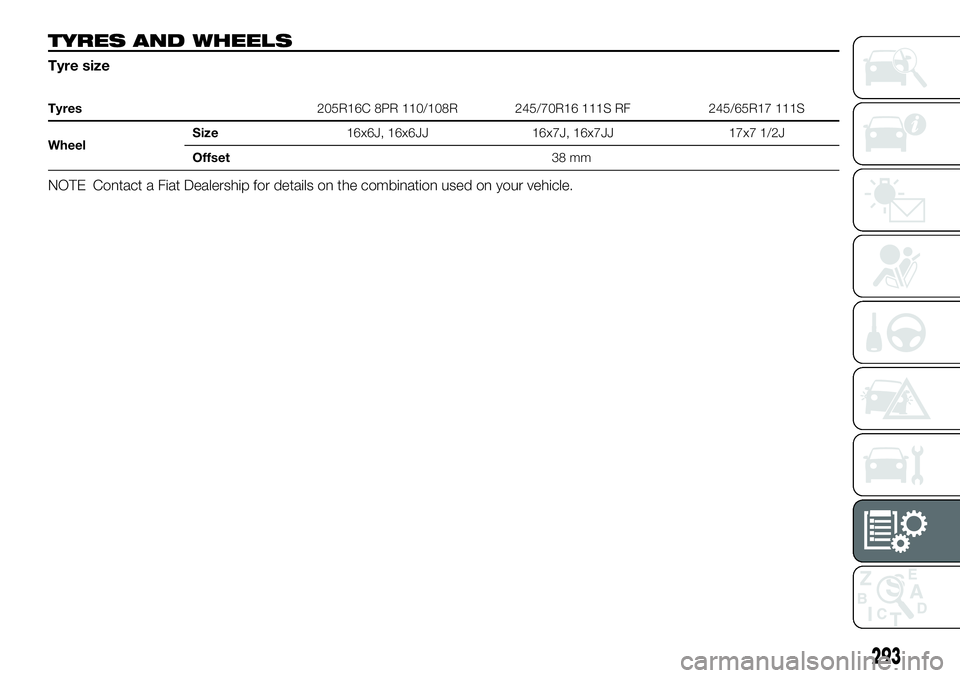

TYRES AND WHEELS
Tyre size
Tyres205R16C 8PR 110/108R 245/70R16 111S RF 245/65R17 111S
WheelSize16x6J, 16x6JJ 16x7J, 16x7JJ 17x7 1/2J
Offset38 mm
NOTE Contact a Fiat Dealership for details on the combination used on your vehicle.
293

CAPACITY
A— RHD vehicles
No. Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)7.7 litresPARAFLU UPContractual Technical Reference
N° F101.M01 (1)
2 Brake fluid As requiredDOT4
TUTELA TOP 4/SContractual Technical Reference
N° F005.F15
482VANODIESEL3231EM
294
TECHNICAL SPECIFICATIONS

No. Quantity Lubricants
3 Clutch fluid As requiredDOT4
TUTELA TOP 4/SContractual Technical Reference
N° F005.F15
4 Engine oilOil pan 8.0 litres
SELENIA MULTIPOWER C3Contractual Technical
Reference N° F129.F11 Oil filter 0.3 litres
Oil cooler 0.1 litres
5 Power Steering As requiredTUTELA GI/ZContractual Technical Reference
N°F001.A16
6 Washer fluid 4.2 litresPETRONAS DURANCE SC 35Contractual Technical
Reference N° F001.D16
Automatic Transmission fluid 10.9 litresTUTELA TRANSMISSION GI/PAContractual Technical
Reference N°F001.A16
Manual transmission oil 5M/T
(1)2.2 litresTUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
Manual transmission oil 6M/T
(1)TUTELA TRANSMISSION GEARSYNTH Z4
Contractual Technical Reference N°F002.A16
Transfer oilSuper select 4WD II 1.34 litresfor 5M/T:TUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
for 6M/T, A/T:TUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference N°F002.A16 Easy select 4WD 1.15 litres
Differential oil2WD 2.3 litresTUTELA TRANSMISSION AXLE ZContractual
Technical Reference N°F002.A16
4WDFront 1.2 litres
TUTELA TRANSMISSION AXLE Z-LSContractual
Technical Reference N°F003.A16
Rear 2.3 litres
(1) If so equipped
295

No. Quantity Lubricants
Refrigerant (Air
conditioning)Amount 0.52 kg
HFC-134a(2)Co2equivalent0.743 t
GWP 1,430
(2) Contains fluorinated greenhouse gases
NOTE For the Automatic transmission fluid, use only the Fiat Genuine products. Use of a different fluid could damage the
transmission.
No. Quantity Lubricants
Manual transmission oil 2.2 litresTUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
Transfer oilSuper select 4WD II 1.34 litresfor 5M/T:TUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
for 6M/T, A/T:TUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference N°F002.A16 Easy select 4WD 1.15 litres
Differential oil2WD 2.3 litresTUTELA TRANSMISSION AXLE ZContractual
Technical Reference N°F002.A16
4WDFront 1.2 litres
TUTELA TRANSMISSION AXLE Z-LSContractual
Technical Reference N°F003.A16
Rear 2.3 litres
Refrigerant (Air
conditioning)Amount 0.52 kg
HFC-134a
(2)Co2equivalent0.743 t
GWP 1,430
(2) Contains fluorinated greenhouse gases
296
TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS
Product specifications
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsReplacement interval
Engine oil
With DPF
Without DPFSAE 5W-30
ACEA C39.55535-S3
or MS-11106SELENIA MULTIPOWER
C3
Contractual Technical
Reference N° F129.F11According to Scheduled
Servicing Plan
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
233)
297

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplication
Lubricants and greases
for drive transmissionSynthetic lubricant ATF 9.55550-AV 6TUTELA TRANSMISSION
GI/PA
Contractual Technical
Reference N°F001.A16Automatic transmission
fluid
Synthetic lubricant SAE
75W-80 API GL-39.55550-MZ 9TUTELA TRANSMISSION
GEARSYNTH Z3
Contractual Technical
Reference N°F001.A16Manual transmission and
transfer oil for 5M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Manual transmission and
transfer oil for 6M/T
Synthetic lubricant SAE
75W-80 API GL-49.55550-MZ 10TUTELA TRANSMISSION
GEARSYNTH Z4
Contractual Technical
Reference N°F002.A16Transfer oil for A/T
Synthetic lubricant SAE
80 API GL-59.55550-DA 12TUTELA TRANSMISSION
AXLE Z
Contractual Technical
Reference N°F002.A16Differential oil for 2WD
and 4WD without multi
plate type LSD
Synthetic lubricant SAE
80 API GL-59.55550-DA 13TUTELA TRANSMISSION
AXLE Z-LS
Contractual Technical
Reference N°F003.A16Differential oil for 4WD
with multi plate type LSD
Brake fluid
Clutch fluidDOT 49.55597
or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Power Steering Synthetic lubricant ATF 9.55550-AG 4TUTELA GI/Z
Contractual Technical
Reference N°F001.A16
298
