Bodywork code
350 AXD1A 03E (5 seats) (❍)
350 AXF1A 08T (5 seats) (❍)
350 AXF1A 08U (4 seats) (❍)
350 AXA1B 07N (5 seats) (❍)
350 AXA1B 07Q (5 seats) (❒)
350 AXE1A 06D (5 seats) (❍)
350 AXB1A 01T (5 seats) (❍)
350 AXG1A 09AQ (5 seats) (❍)
350 AXG1A 09AR (5 seats) (*) (❍)
350AXM1A 13C (5 seats) (*) (❒)
350 AXH1A 11N (5 seats) (*) (❍)
350 AXH1A 11Q (5 seats) (*) (❒)
350 AXL1A 12Q (5 seats) (*) (❒)
350 AXL1A 12N (5 seats) (*) (❍)Engine type code
188A5000
350A1000
843A1000
192B2000
188A9000
199A3000
199B1000
350A2000
350A3000
184
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

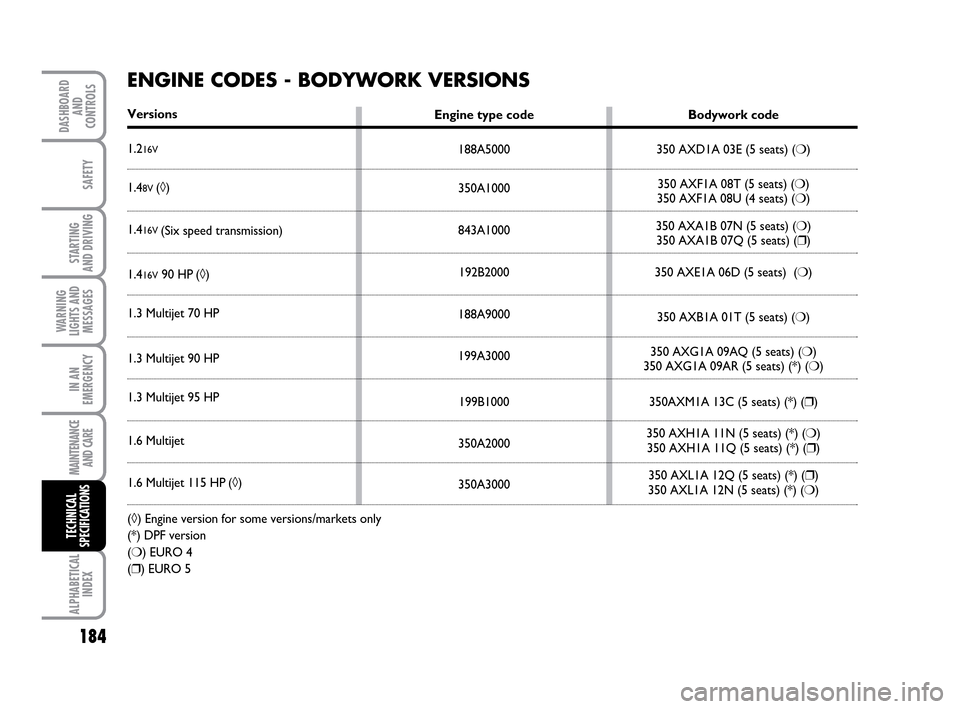

ENGINE CODES - BODYWORK VERSIONS
Versions
1.2
16V
1.48V (◊)
1.416V (Six speed transmission)
1.416V90 HP (◊)
1.3 Multijet 70 HP
1.3 Multijet 90 HP
1.3 Multijet 95 HP
1.6 Multijet
1.6 Multijet 115 HP (◊)
(◊) Engine version for some versions/markets only
(*) DPF version
(❍) EURO 4
(❒) EURO 5
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 184
Page 186 of 210
185
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
(◊) Engine version for some versions/markets only

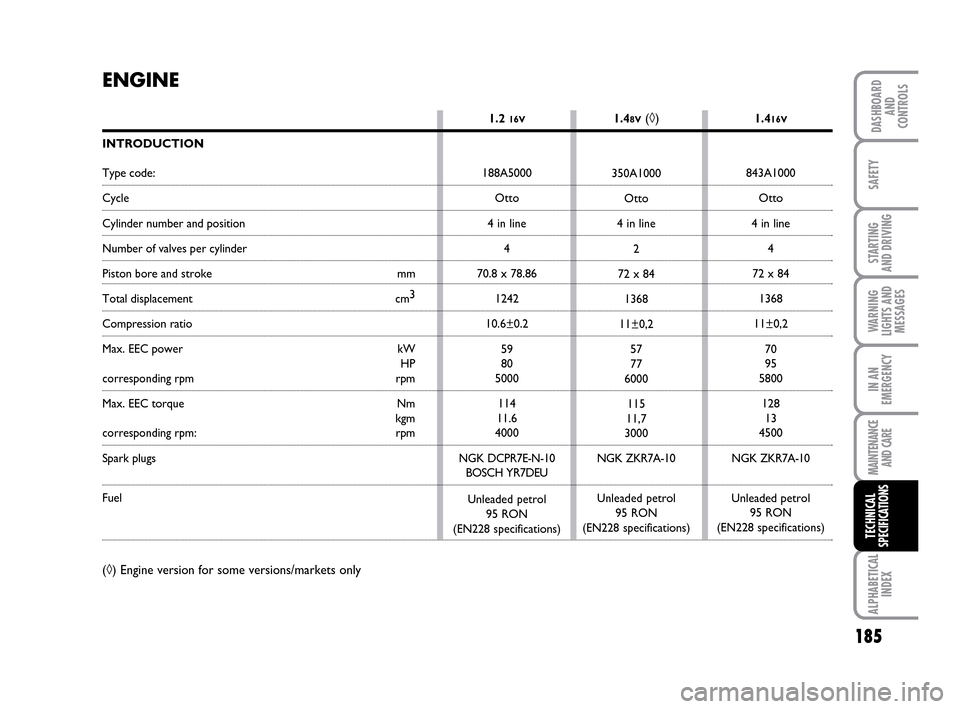

ENGINE
INTRODUCTION
Type code:
Cycle
Cylinder number and position
Number of valves per cylinder
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Max. EEC power kW
HP
corresponding rpm rpm
Max. EEC torque Nm
kgm
corresponding rpm: rpm
Spark plugs
Fuel
1.2 16V
188A5000
Otto
4 in line
4
70.8 x 78.86
1242
10.6±0.2
59
80
5000
114
11.6
4000
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 RON
(EN228 specifications)1.4
16V
843A1000
Otto
4 in line
4
72 x 84
1368
11±0,2
70
95
5800
128
13
4500
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 specifications) 1.4
8V(◊)
350A1000
Otto
4 in line
2
72 x 84
1368
11±0,2
57
77
6000
115
11,7
3000
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 specifications)
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 185
Page 187 of 210
186
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

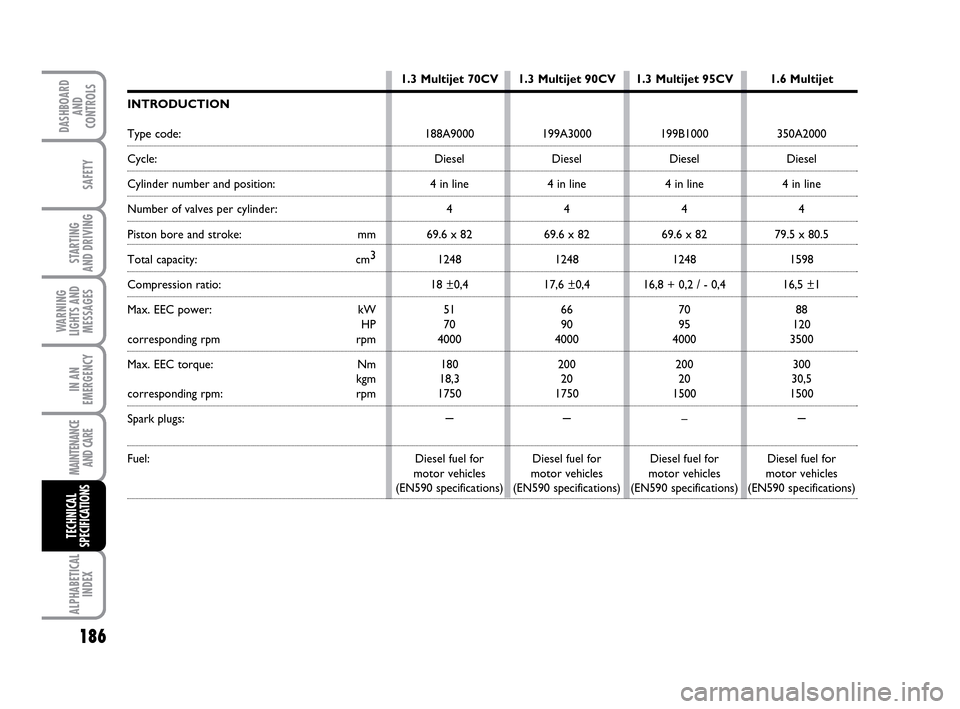

INTRODUCTION
Type code:
Cycle:
Cylinder number and position:
Number of valves per cylinder:
Piston bore and stroke: mm
Total capacity: cm3
Compression ratio:
Max. EEC power: kW
HP
corresponding rpm rpm
Max. EEC torque: Nm
kgm
corresponding rpm: rpm
Spark plugs:
Fuel:
1.6 Multijet
350A2000
Diesel
4 in line
4
79.5 x 80.5
1598
16,5 ±1
88
120
3500
300
30,5
1500
–
Diesel fuel for
motor vehicles
(EN590 specifications) 1.3 Multijet 90CV
199A3000
Diesel
4 in line
4
69.6 x 82
1248
17,6 ±0,4
66
90
4000
200
20
1750
–
Diesel fuel for
motor vehicles
(EN590 specifications) 1.3 Multijet 70CV
188A9000
Diesel
4 in line
4
69.6 x 82
1248
18 ±0,4
51
70
4000
180
18,3
1750
–
Diesel fuel for
motor vehicles
(EN590 specifications)1.3 Multijet 95CV
199B1000
Diesel
4 in line
4
69.6 x 82
1248
16,8 + 0,2 / - 0,4
70
95
4000
200
20
1500
–
Diesel fuel for
motor vehicles
(EN590 specifications)
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 186
Page 188 of 210
187
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

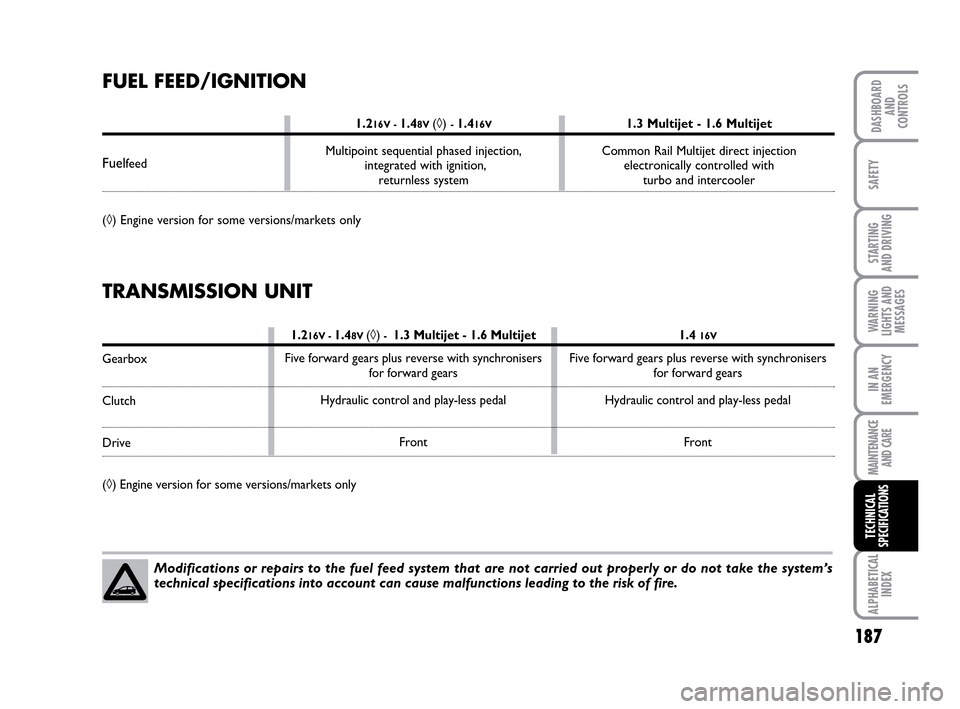

FUEL FEED/IGNITION
Fuelfeed
(◊) Engine version for some versions/markets only
TRANSMISSION UNIT
Gearbox
Clutch
Drive
(◊) Engine version for some versions/markets only1.3 Multijet - 1.6 Multijet
Common Rail Multijet direct injection
electronically controlled with
turbo and intercooler 1.2
16V - 1.48V (◊) - 1.416V
Multipoint sequential phased injection,
integrated with ignition,
returnless system
1.2
16V - 1.48V (◊) - 1.3 Multijet - 1.6 Multijet
Five forward gears plus reverse with synchronisers
for forward gears
Hydraulic control and play-less pedal
Front1.4 16V
Five forward gears plus reverse with synchronisers
for forward gears
Hydraulic control and play-less pedal
Front
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 187
Page 189 of 210
188
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
SUSPENSIONS
Front
Rear
(◊) Engine version for some versions/markets only1.2
16V - 1.48V (◊) - 1.416V- 1.3 Multijet - 1.6 Multijet
McPherson independent wheels
Semi-independent wheels interconnected by means of torque axle
STEERING SYSTEM
Type
Steering circle
(kerb to kerb) m
(◊) Engine version for some versions/markets only1.2
16V - 1.48V (◊) - 1.416V- 1.3 Multijet - 1.6 Multijet
Rack and pinion with electric power steering
10,0

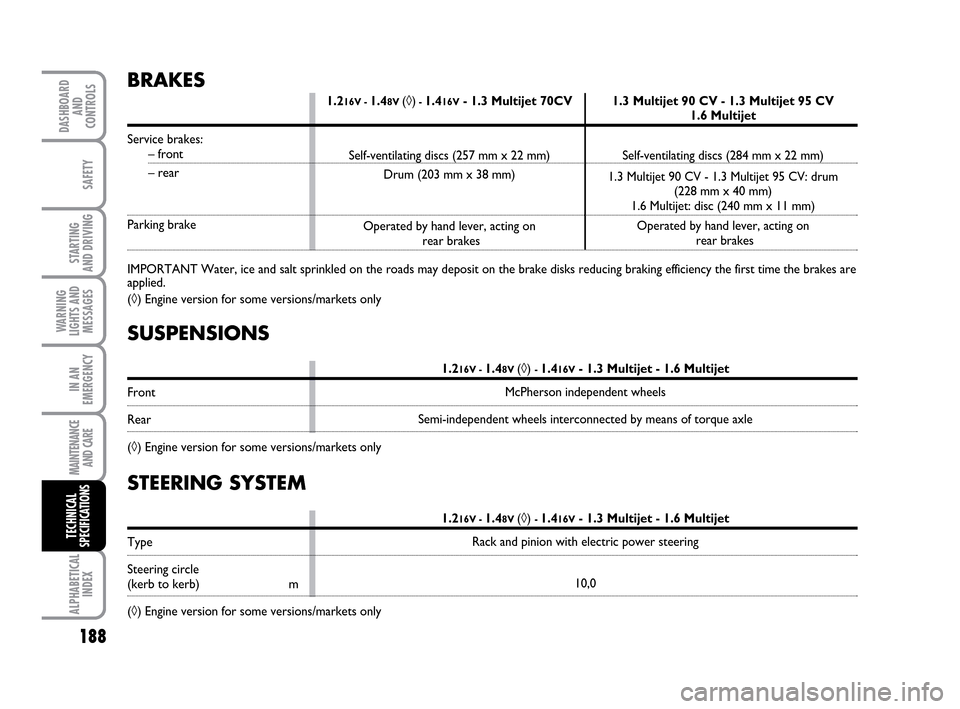

BRAKES
Service brakes:– front
– rear
Parking brake
IMPORTANT Water, ice and salt sprinkled on the roads may deposit on the brake disks reducing braking efficiency the first time the brakes are
applied.
(◊) Engine version for some versions/markets only1.2
16V - 1.48V (◊)- 1.416V- 1.3 Multijet 70CV
Self-ventilating discs (257 mm x 22 mm)
Drum (203 mm x 38 mm)
Operated by hand lever, acting on
rear brakes1.3 Multijet 90 CV - 1.3 Multijet 95 CV
1.6 Multijet
Self-ventilating discs (284 mm x 22 mm)
1.3 Multijet 90 CV - 1.3 Multijet 95 CV: drum
(228 mm x 40 mm)
1.6 Multijet: disc (240 mm x 11 mm)
Operated by hand lever, acting on
rear brakes
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 188
Page 190 of 210
189
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
fig. 5F0H0229m

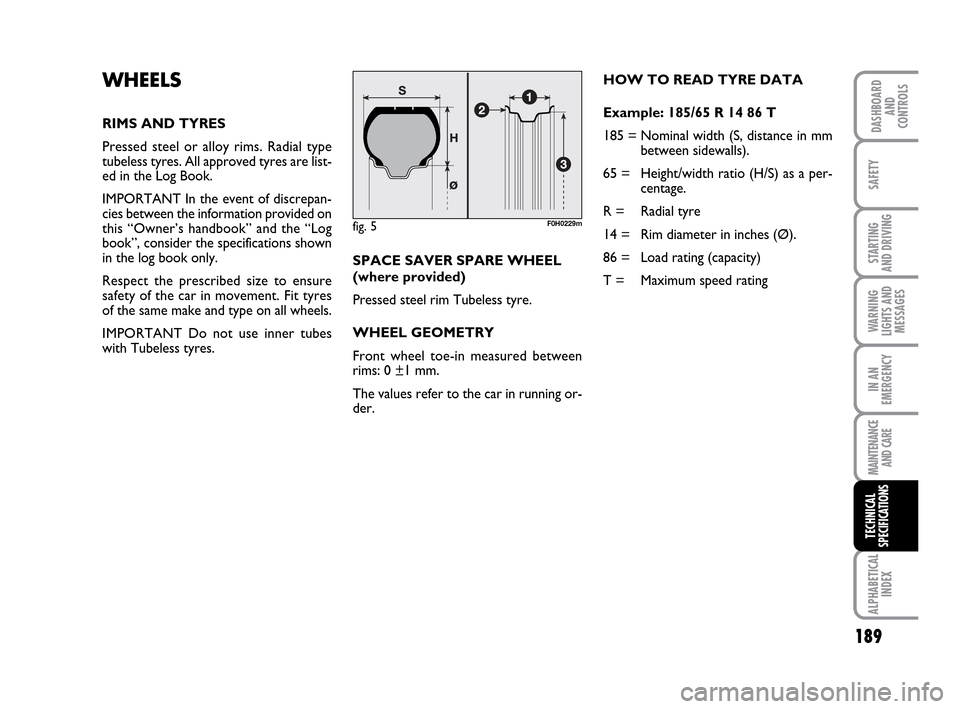

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Radial type
tubeless tyres. All approved tyres are list-
ed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner’s handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the car in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.HOW TO READ TYRE DATA
Example: 185/65 R 14 86 T
185 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) as a per-
centage.
R = Radial tyre
14 = Rim diameter in inches (Ø).
86 = Load rating (capacity)
T = Maximum speed rating SPACE SAVER SPARE WHEEL
(where provided)
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured between
rims: 0 ±1 mm.
The values refer to the car in running or-
der.
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 189
Page 191 of 210
190
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

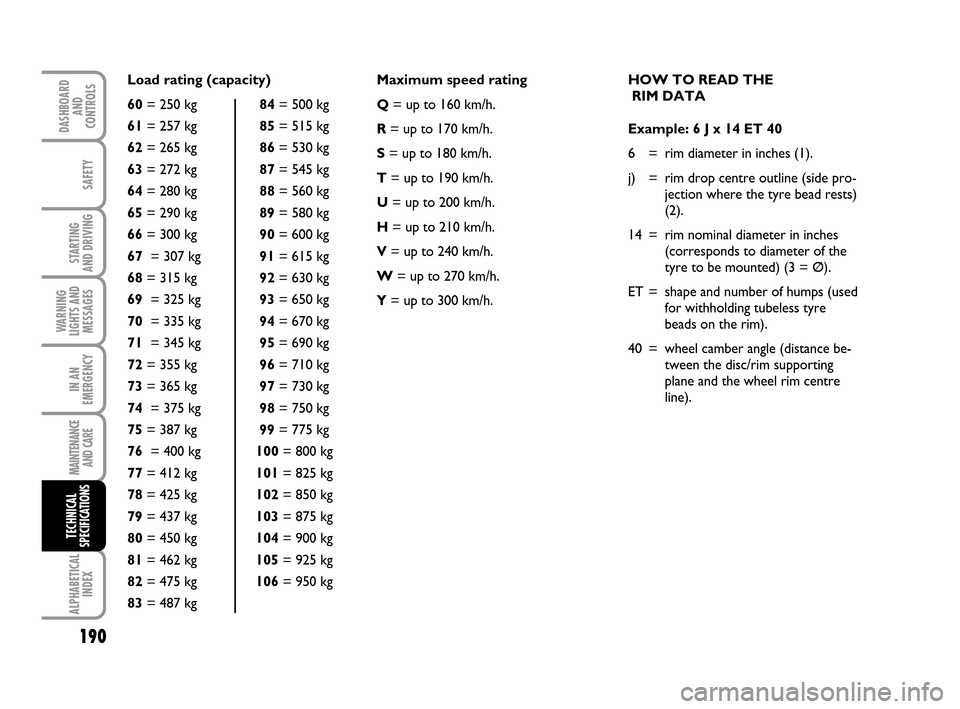

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.HOW TO READ THE
RIM DATA
Example: 6 J x 14 ET 40
6 = rim diameter in inches (1).
j) = rim drop centre outline (side pro-
jection where the tyre bead rests)
(2).
14 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
ET = shape and number of humps (used
for withholding tubeless tyre
beads on the rim).
40 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93= 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg
101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kg
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 190
Page 192 of 210
191
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

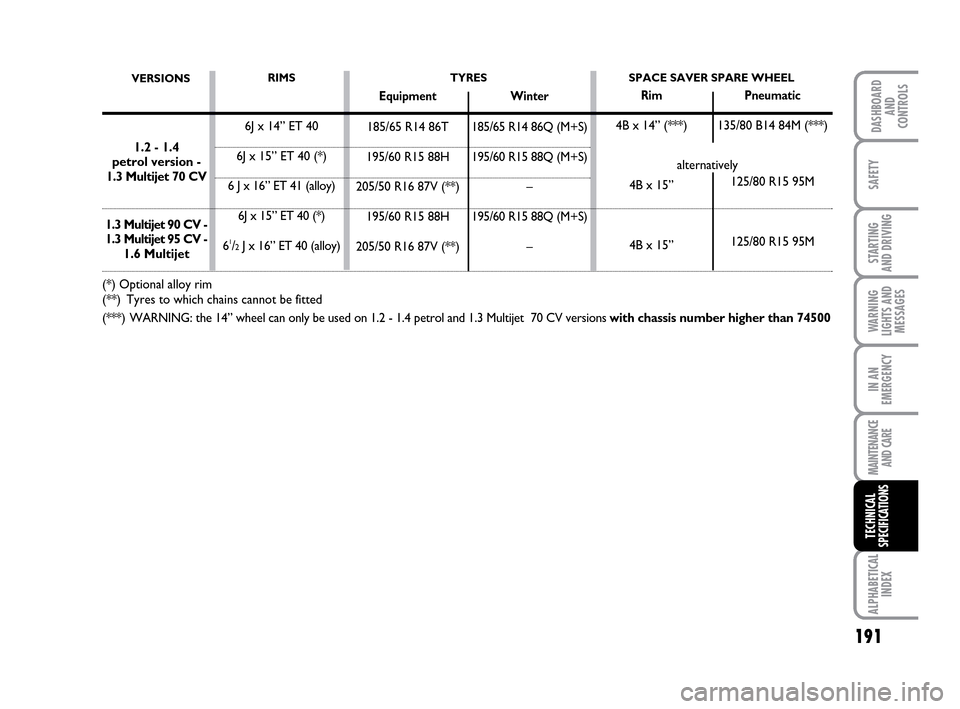

1.2 - 1.4
petrol version -
1.3 Multijet 70 CV
1.3 Multijet 90 CV -
1.3 Multijet 95 CV -
1.6 Multijet
(*) Optional alloy rim
(**) Tyres to which chains cannot be fitted
(***) WARNING: the 14” wheel can only be used on 1.2 - 1.4 petrol and 1.3 Multijet 70 CV versions with chassis number higher than 74500
RIMS
6J x 14” ET 40
6J x 15” ET 40 (*)
6 J x 16” ET 41 (alloy)
6J x 15” ET 40 (*)
6
1/2J x 16” ET 40 (alloy)
TYRES
Equipment
185/65 R14 86T
195/60 R15 88H
205/50 R16 87V (**)
195/60 R15 88H
205/50 R16 87V (**)
Winter
185/65 R14 86Q (M+S)
195/60 R15 88Q (M+S)
–
195/60 R15 88Q (M+S)
–
SPACE SAVER SPARE WHEEL
Rim
4B x 14” (***)
4B x 15”
4B x 15”
Pneumatic
135/80 B14 84M (***)
125/80 R15 95M
125/80 R15 95M
VERSIONS
alternatively
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 191
Page 193 of 210
192
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

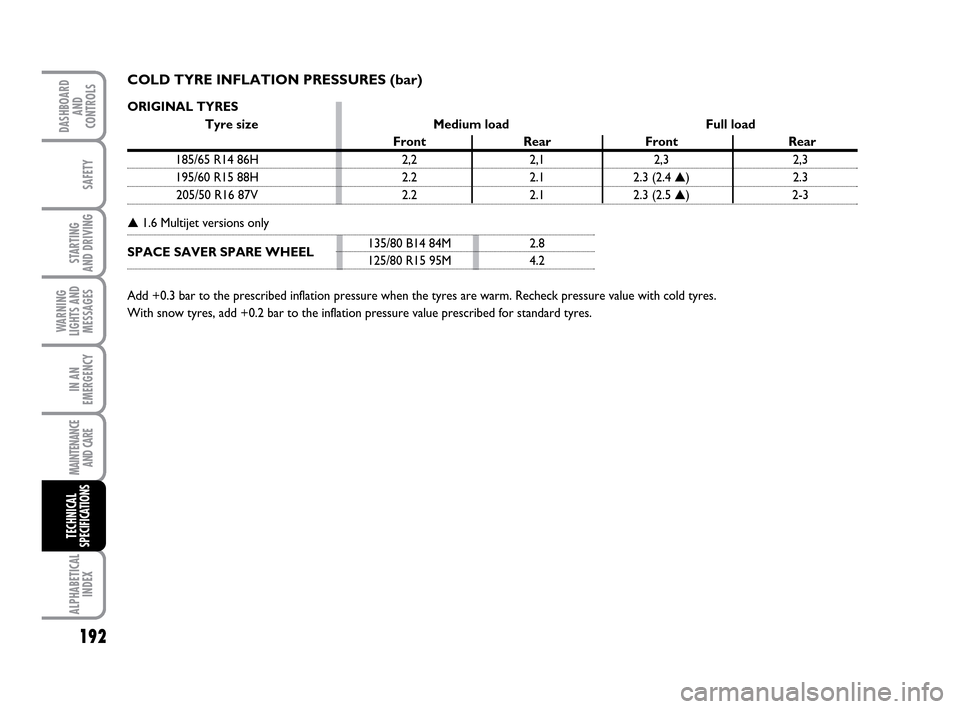

COLD TYRE INFLATION PRESSURES (bar)
ORIGINAL TYRES
Tyre size Medium load Full load
Front Rear Front Rear
185/65 R14 86H 2,2 2,1 2,3 2,3
195/60 R15 88H 2.2 2.1 2.3 (2.4 ▲) 2.3
205/50 R16 87V 2.2 2.1 2.3 (2.5 ▲) 2-3
▲1.6 Multijet versions only
SPACE SAVER SPARE WHEEL135/80 B14 84M 2.8125/80 R15 95M 4.2
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 192
Page 194 of 210
193
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS

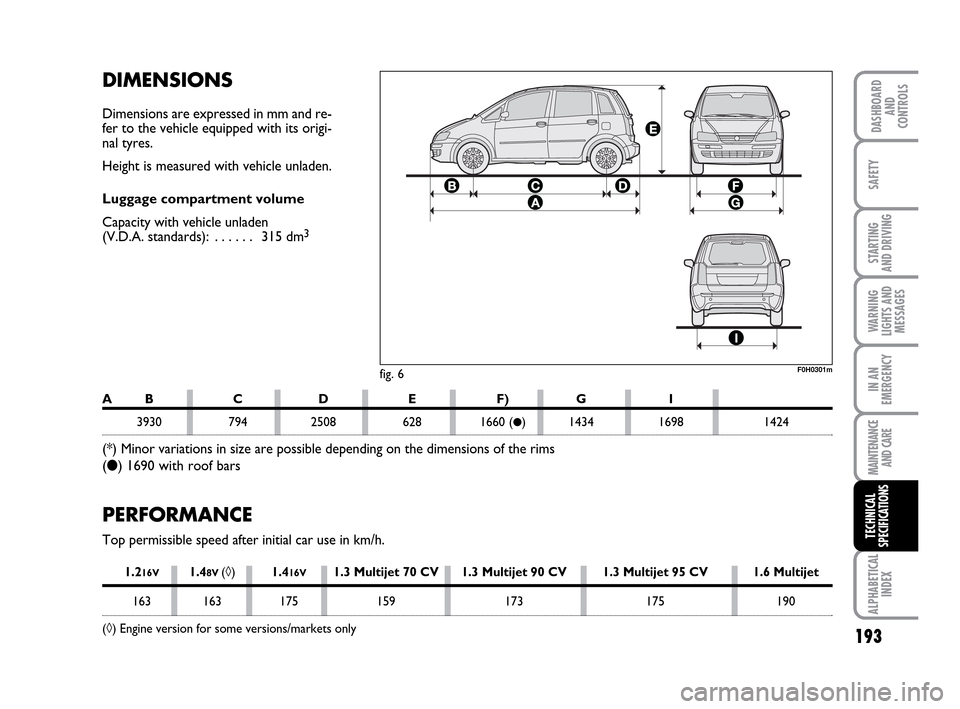

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle equipped with its origi-
nal tyres.
Height is measured with vehicle unladen.
Luggage compartment volume
Capacity with vehicle unladen
(V.D.A. standards): . . . . . . 315 dm
3
F0H0301m
AB C D E F) G I
3930 794 2508 628 1660 (●) 1434 1698 1424
(*) Minor variations in size are possible depending on the dimensions of the rims
(●) 1690 with roof bars
fig. 6
PERFORMANCE
Top permissible speed after initial car use in km/h.
1.216V1.48V (◊)1.416V1.3 Multijet 70 CV 1.3 Multijet 90 CV 1.3 Multijet 95 CV 1.6 Multijet
163 163 175 159 173 175 190
(◊) Engine version for some versions/markets only
181-199 LUM IDEA GB 2 ed.qxd 14-01-2010 13:56 Pagina 193
