FIAT LINEA RHD 2010 1.G Owner's Guide

30
TRIP COMPUTER
General features
The “Trip computer” is used to display in-
formation on car operation when the key
is turned to MAR. This function allows to
define two separate trips called “Trip A”
and “Trip B” for monitoring the car’s
“complete mission” in a reciprocally in-
dependent manner.
Both functions are resettable (reset - start
of new mission).
“Trip A” may be used to display the fig-
ures relating to:
– Range
– Distance travelled
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).“Trip B”, available on multifunctional dis-
play only, shall be used to display the fig-
ures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Travel time B (driving time).
Note“Trip B” functions may be exclud-
ed (see “Trip B on”). “Range” and “In-
stantaneous consumption” cannot be re-
set.Values displayed
Range
This indicates the distance which may be
travelled with the fuel in the tank
assuming that driving conditions will not
change. The message “——”
will appear
on the display in the following cases:
– range shorter than 50 km (or 30 mi)
– car left parked with engine running for
long.
Distance travelled
This indicates the distance covered from
the start of the new mission.SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 30LINEA Owner HAND BOOK RHD.pdf 308/21/09 2:16:02 PM8/21/09 2:16:02 PM

31
Average consumption
This indicates the average consumption
from the start of the new mission.
Instant consumption
This indicates the fuel consumption. The
value is constantly updated. The message
“----”
will appear on the display
if the car is parked with the engine run-
ning.
Average speed
This shows the car average speed as a
function of the overall time elapsed since
the start of the new mission.
Travel time
This value shows the time elapsed since
the start of the new mission.
IMPORTANT If information is not avail-
able, the message “----” will appear instead
of the Trip Computer values. Displaying
of the values will be resumed when nor-
mal operation is restored without reset-
ting the values displayed before the prob-
lem nor starting a new mission. TRIP button fig. 21
Button TRIP, set on the top of the right
steering column stalk, shall be used (with
ignition key at MAR) to display and to re-
set the previously described values to start
a new mission:
– briefly press to display the different val-
ues
– hold pressed to reset and then start a
new mission.
New mission
Reset can be:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the “Trip dis-
tance” reaches 3999.9 km or 9999.9 km
(according to the type of display) or when
the “Travel time” reaches 99.59 (99 hours
and 59 minutes);
– after disconnecting/reconnecting the
battery.IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip A” makes it possible to reset only
the information associated with this func-
tion.
IMPORTANT The reset operation in the
presence of the screens concerning the
“Trip B” makes it possible to reset only
the information associated with this func-
tion.
Start of journey procedure
With ignition key at MAR, press and keep
button TRIPpressed for over 2 seconds
to reset.
Exit Trip
To exit the Trip function: hold MENU
ESCpressed for longer than 2 seconds.
fig. 21F0R0020m
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 31LINEA Owner HAND BOOK RHD.pdf 318/21/09 2:16:03 PM8/21/09 2:16:03 PM

32
The fabric upholstery of your
car is designed to withstand
the normal wear and tear of
your car for a long time. Some
precautions are however needed. Avoid
prolonged rubbing against clothing ac-
cessories, such as metal buckles, Velcro
strips and the like, which by applying a
high pressure on the fabric in a small
area could cause the breakage of some
threads and damage the upholster y.
Seat height adjustment
(where provided) fig. 22
Move lever Bupwards or downwards to
achieve the required height.
IMPORTANT
Adjustment must be car-
ried out only seated in the relevant seat.
FRONT SEATS
fig. 22F0R0021m
All adjustments must be
made with the car stationary.
WARNING
Backwards/Forwards adjustment
fig. 22
Lift lever Aand push the seat forwards
and backwards: ensure
your arms should
rest on the steering wheel rim while you
are driving.
After releasing the lever, al-
ways check that the seat is
locked on the guides by tr ying to
move it backwards and forth. If it is
not locked, the seat may move unex-
pectedly and make you loose control
of the car.
WARNING
For maximum safety, keep
the back of your seat up-
right, lean back into it and make sure
the seat belt fits closely across your
chest and hips.
WARNING
Back rest angle adjustment fig. 22
Push lever C.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 32LINEA Owner HAND BOOK RHD.pdf 328/21/09 2:16:03 PM8/21/09 2:16:03 PM

33
The fabric upholstery of your
car is designed to withstand
the normal wear and tear of
your car for a lon g tim e.
Some precautions are however need-
ed. Avoid prolonged rubbing against
clothing accessories,
such as metal
buckles, Velcro strips and the like,
which by applying a high pressure on
the fabric in a small area could cause
the breakage of some threads and
damage the upholstery.
HEAD RESTRAINTS
FRONT fig. 23
To improve passenger safety, the height of
the head restraints can be adjusted. They
lock into place automatically in the requi-
red position.
To adjust head restraints proceed as
fol-
lows:
upward adjustment: raise the head re-
Downward adjustment: push the head straint until you hear it click.
restraint down to the required position
REAR SEATS
To folds the rear seats refer to paragraph
“Extending the boot” ‘Refer page no. 68’
of this section.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS


The head restraints must be
adjusted so that they sup-
port your neck and not your head.
Only in this way may they perform
their protective action.
WARNING
LINEA Owner HAND BOOK RHD.pdf 33LINEA Owner HAND BOOK RHD.pdf 338/21/09 2:16:03 PM8/21/09 2:16:03 PM

34

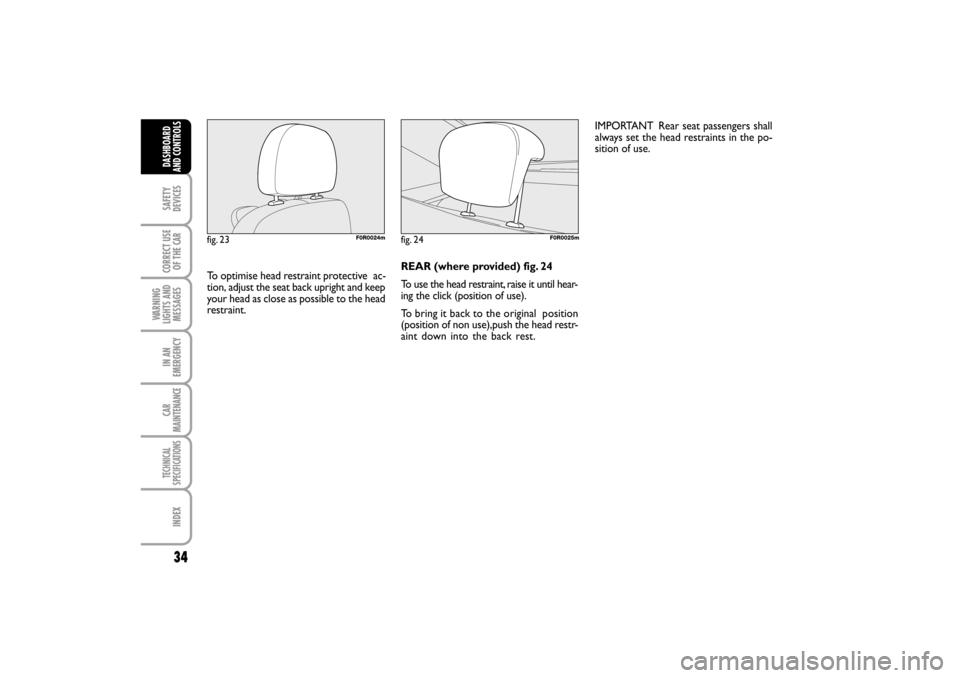

REAR (where provided) fig. 24
To use the head restraint, raise it until hear-
ing the click (position of use).
To bring it back to the original position
(position of non use),push the head restr-
aint down into the back rest.
fig. 23F0R0024mfig. 24F0R0025m
To optimise head restraint protective ac-
tion, adjust the seat back upright and keep
your head as close as possible to the head
restraint. IMPORTANT
Rear seat passengers shall
always set the head restraints in the po-
sition of use.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 34LINEA Owner HAND BOOK RHD.pdf 348/21/09 2:16:03 PM8/21/09 2:16:03 PM

35

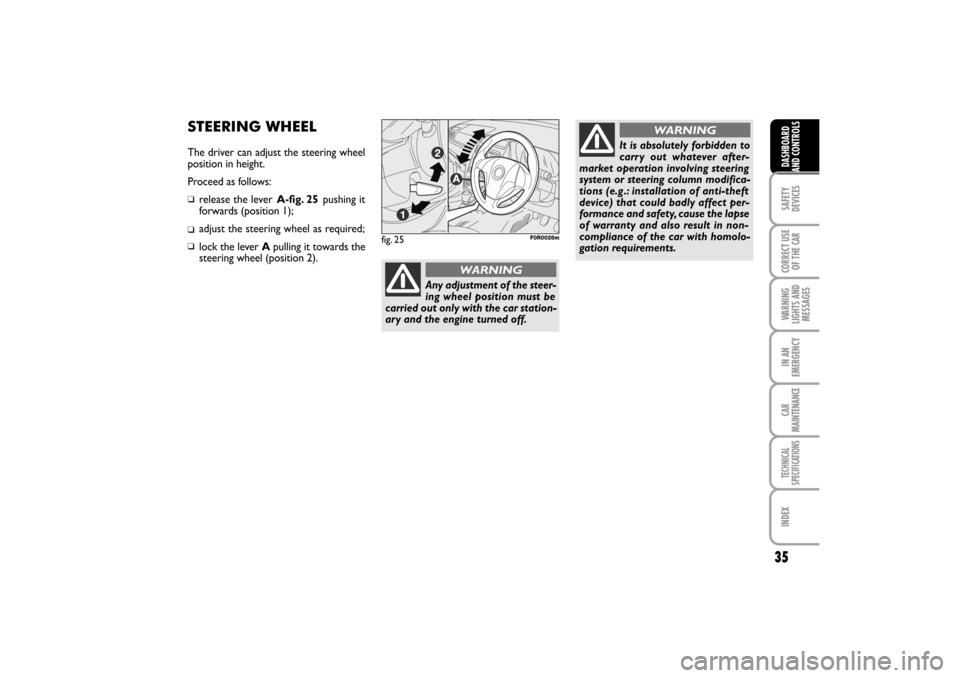

STEERING WHEEL
The driver can adjust the steering wheel
position in height.
Proceed as follows:
release the lever A-fig. 25pushing it
forwards (position 1);
adjust the steering wheel as required;
lock the lever Apulling it towards the
steering wheel (position 2).
fig. 25F0R0026m
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carr y out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g .: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS


LINEA Owner HAND BOOK RHD.pdf 35LINEA Owner HAND BOOK RHD.pdf 358/21/09 2:16:03 PM8/21/09 2:16:03 PM

36

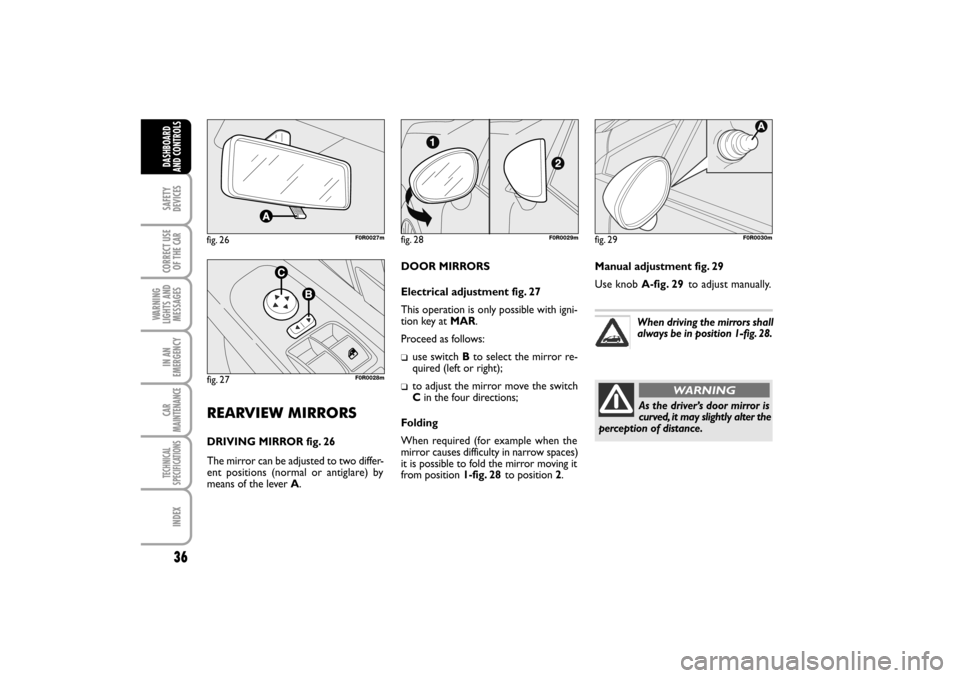

DOOR MIRRORS
Electrical adjustment fig. 27
This operation is only possible with igni-
tion key at MAR.
Proceed as follows:
use switch Bto select the mirror re-
quired (left or right);
to adjust the mirror move the switch
Cin the four directions;
Folding
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirror moving it
from position 1-fig. 28 to position 2.
fig. 26F0R0027m
fig. 27F0R0028m
The mirror can be adjusted to two differ-
ent positions (normal or antiglare) by
means of the lever A.When driving the mirrors shall
always be in position 1-fig. 28.
As the driver’s door mirror is
curved, it may slightly alter the
perception of distance.
WARNING
fig. 28F0R0029mfig. 29F0R0030m
Manual adjustment fig. 29
Use knob A-fig. 29to adjust manually.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS


REARVIEW MIRRORS
DRIVING MIRROR fig. 26
LINEA Owner HAND BOOK RHD.pdf 36LINEA Owner HAND BOOK RHD.pdf 368/21/09 2:16:03 PM8/21/09 2:16:03 PM

37
fig. 30
F0R0031m
HEATING AND VENTILATION
1.Upper fixed vent - 2.Adjustable central vents - 3.Fixed side vent - 4.Adjustable side vents - 5. Lower vents for front seats -
6.Lower side vents for rear seats - 7.Lower central vent for rear seats (where provided).
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 37LINEA Owner HAND BOOK RHD.pdf 378/21/09 2:16:04 PM8/21/09 2:16:04 PM

38
fig. 31F0R0032m
fig. 32F0R0033m

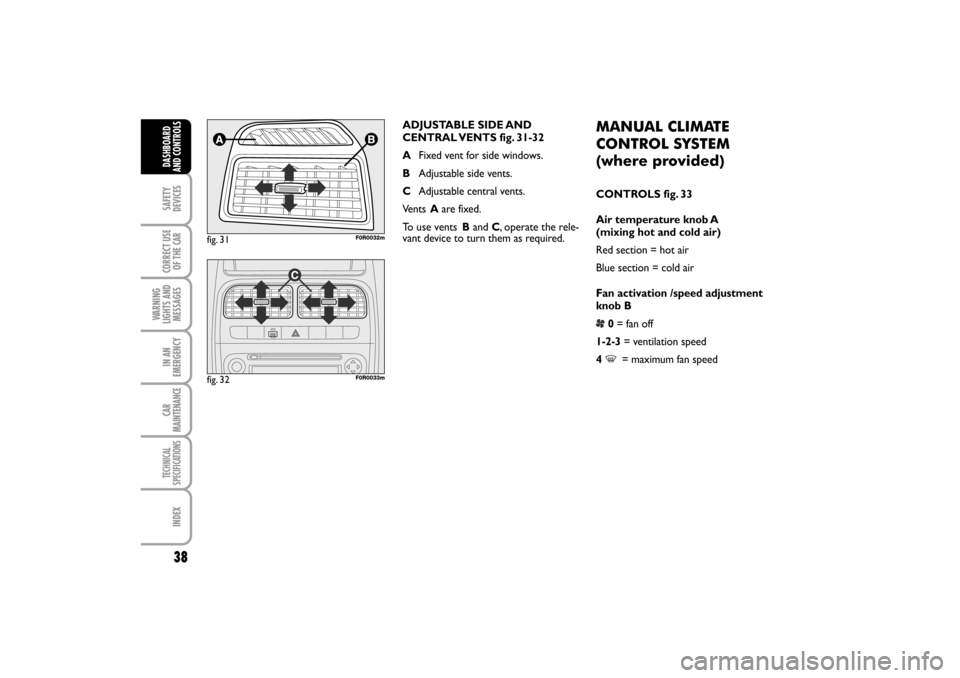

ADJUSTABLE SIDE AND
CENTRAL VENTS fig. 31-32
AFixed vent for side windows.
BAdjustable side vents.
CAdjustable central vents.
Ve n t s Aare fixed.
To u s e v e n t s Band C, o p e r a t e t h e r e l e -
vant device to turn them as required.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

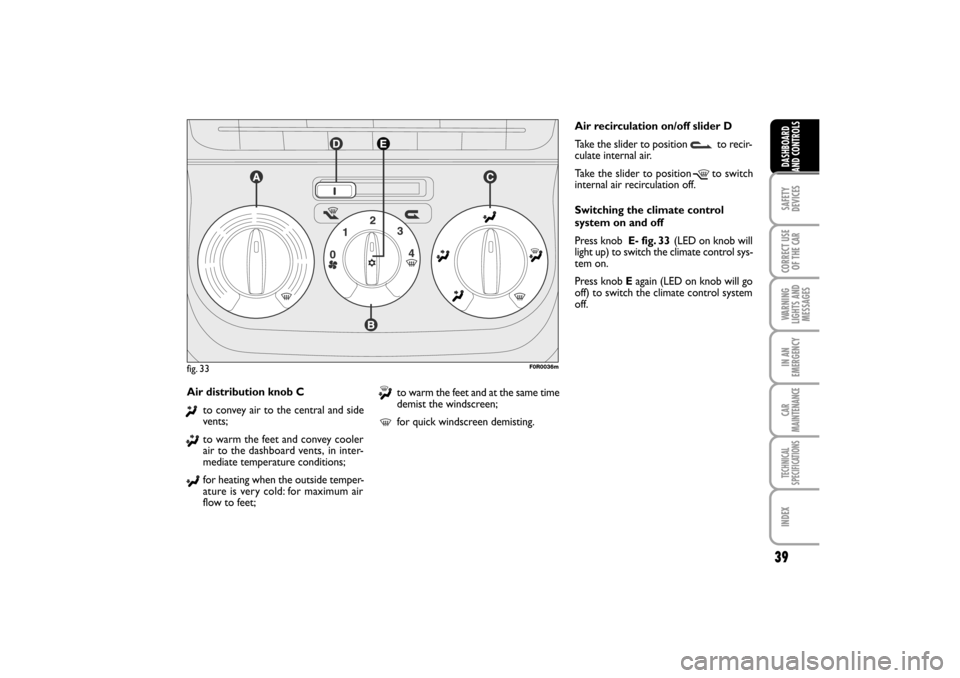

MANUAL CLIMATE
CONTROL SYSTEM
(where provided)
CONTROLS fig. 33
Air temperature knob A
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
Fan activation /speed adjustment
knob B
0= fan off
1-2-3= ventilation speed
4 = maximum fan speed
LINEA Owner HAND BOOK RHD.pdf 38LINEA Owner HAND BOOK RHD.pdf 388/21/09 2:16:04 PM8/21/09 2:16:04 PM

Air distribution knob C
to convey air to the central and side
vents;
to warm the feet and convey cooler
air to the dashboard vents,
in inter-
mediate temperature conditions;
for heating when the outside temper-
ature is very cold: for maximum air
flow to feet;Air recirculation on/off slider D
Take the slider to position to recir-
culate internal air.
Take the slider to position to switch
internal air recirculation off.
Switching the climate control
system on and off
Press knob E- fig. 33(LED on knob will
light up) to switch the climate control sys-
tem on.
Press knob Eagain (LED on knob will go
off) to switch the climate control system
off.
fig. 33F0R0036m
to warm the feet and at the same time
demist the windscreen;
for quick windscreen demisting.
39
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 39LINEA Owner HAND BOOK RHD.pdf 398/21/09 2:16:04 PM8/21/09 2:16:04 PM
