FIAT LINEA RHD 2010 1.G User Guide

KEY WITHOUT REMOTE
CONTROLfig. 7
The metal insert of the key Ais fixed.
The key operates:
the ignition switch;
the door locks;
the fuel filler lock (where provided)
the tailgate lock.
fig. 7F0R0008m




Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat
Dealership, which will deal with their
disposal.
10
DEVICES CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
AND CONTROLS
SAFETY LIGHTS AND
CAR
DASHBOARD
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 10LINEA Owner HAND BOOK RHD.pdf 108/21/09 2:15:59 PM8/21/09 2:15:59 PM

Ty p e
Key without remote control
Key with remote control
Direction indicators
flashing (only with key
with remote control)
The main functions that can be activated with the keys (with or without remote control) are the following:
Unlocking
the doors
Turn key anticlockwise
(driver’s side)
Turn key anticlockwise
(driver’s side)
Briefly press
blinks twiceLocking the doors
from the outside
Turn key clockwise
(driver’s side)
Turn key clockwise
(driver’s side)
Briefly press
blinks onceUnlocking the
tailgate
–
–
Briefly press
blinks twice
11
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 11LINEA Owner HAND BOOK RHD.pdf 118/21/09 2:16:00 PM8/21/09 2:16:00 PM

IGNITION
DEVICE
The key can be turned to 3 different po-
sitions fig. 8:
STOP: engine off, key extractable,
steering locked. Some electrical devices
(e.g. sound system, central door lock-
ing system, etc.) may work.
MAR: driving position. All electrical de-
vices may work.
AV V: engine starting (unstable posi-
tion).
The ignition switch is fitted with an elec-
tronic safety system that, in the event the
engine is not started, turns back the igni-
tion key to STOPbefore repeating the
starting operation.STEERING COLUMN LOCK
Engaging
When the key is at STOP, remove the
key and turn the steering wheel until it
locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls . Remember to
apply the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 8
Never extract the key while
the vehicl e is moving. The
steering wheel would be locked as
soon as the steering wheel is turned.
This also applies to when the car is
towed.
WARNING
It is absolutely forbidden to
carr y out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g .: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING



F0R0009m
12
DEVICES CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
AND CONTROLS
SAFETY LIGHTS AND
CAR
DASHBOARD
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 12LINEA Owner HAND BOOK RHD.pdf 128/21/09 2:16:00 PM8/21/09 2:16:00 PM

INSTRUMENT PANEL
Versions with digital display fig. 9
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
Versions with multifunction display
fig. 10
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0R0010mfig. 9
F0R0011mfig. 10
13
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 13LINEA Owner HAND BOOK RHD.pdf 138/21/09 2:16:00 PM8/21/09 2:16:00 PM

14
INSTRUMENTS
Instrument background colour and type
may vary according to the version.

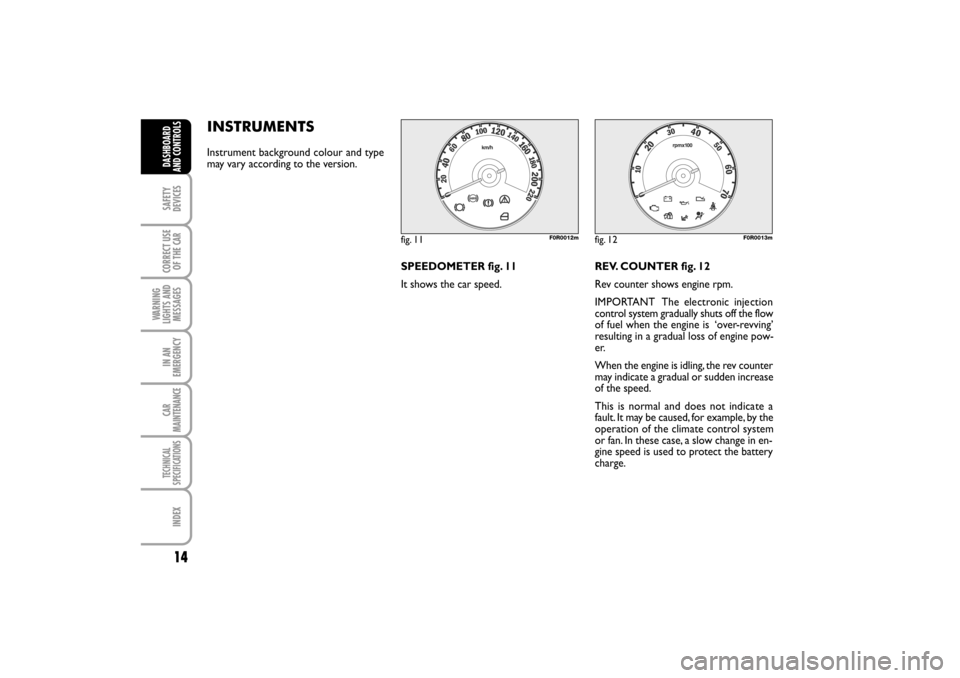

SPEEDOMETER fig. 11
It shows the car speed.REV. COUNTER fig. 12
Rev counter shows engine rpm.
IMPORTANT The electronic inje ction
control system gradually shuts off the flow
of fuel when the engine is ‘over-revving’
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden increase
of the speed.
This is normal and does not indicate a
fault. It may be caused, for example, by the
operation of the climate control system
or fan. In these case, a slow change in en-
gine speed is used to protect the battery
charge.
fig. 11F0R0012mfig. 12F0R0013m
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 14LINEA Owner HAND BOOK RHD.pdf 148/21/09 2:16:00 PM8/21/09 2:16:00 PM

15

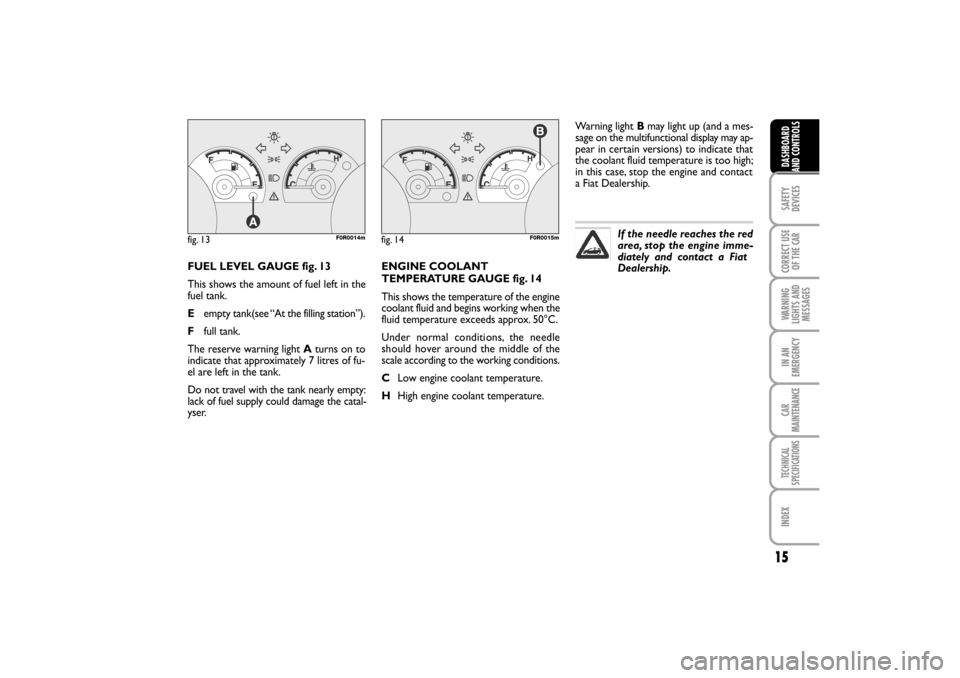

FUEL LEVEL GAUGE fig. 13
This shows the amount of fuel left in the
fuel tank.
Eempty tank(see “At the filling station”).
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 7 litres of fu-
el are left in the tank.
Do not travel with the tank nearly empty:
lack of fuel supply could damage the catal-
yser.ENGINE COOLANT
TEMPERATURE GAUGE fig. 14
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditi ons, the needle
should hover around the middle of the
scale according to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.Warning light Bmay light up (and a mes-
sage on the multifunctional display may ap-
pear in certain versions) to indicate that
the coolant fluid temperature is too high;
in this case, stop the engine and contact
a Fiat Dealership.
fig. 13F0R0014mfig. 14F0R0015mIf the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 15LINEA Owner HAND BOOK RHD.pdf 158/21/09 2:16:00 PM8/21/09 2:16:00 PM

16
DIGITAL DISPLAY

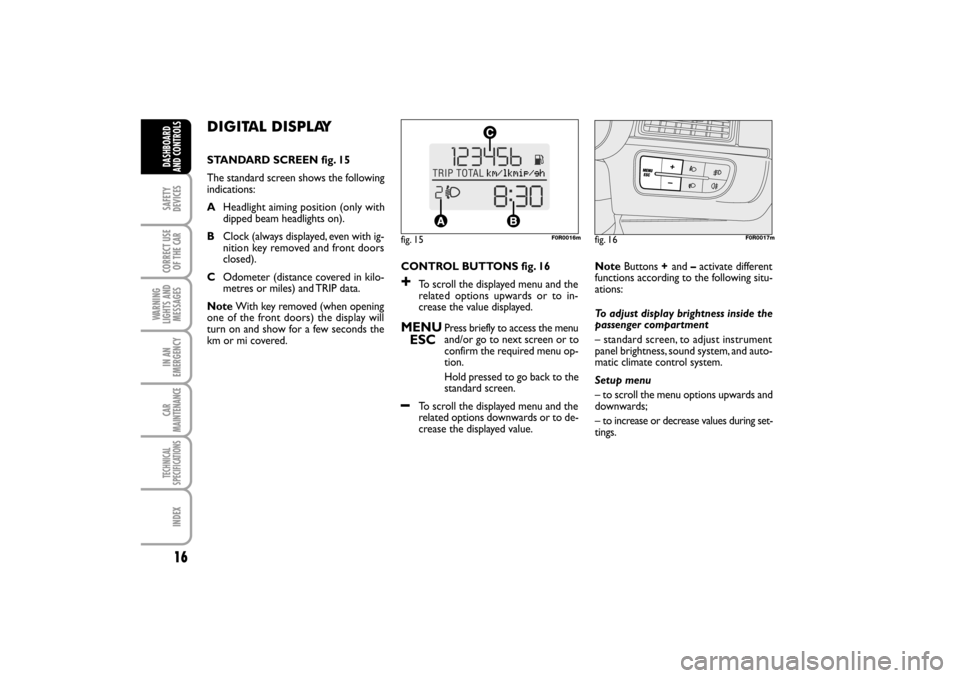

STANDARD SCREEN fig. 15
The standard screen shows the following
indications:
AHeadlight aiming position (only with
dipped beam headlights on).
BClock (always displayed, even with ig-
nition key removed and front doors
closed).
COdometer (distance covered in kilo-
metres or miles) and TRIP data.
NoteWith key removed (when opening
one of the front doors) the display will
turn on and show for a few seconds the
km or mi covered.CONTROL BUTTONS fig. 16
+To scroll the displayed menu and the
relate d options upwards or to in-
crease the value displayed.
MENU
ESCPress briefly to access the menu
and/or go to next screen or to
confirm the required menu op-
tion.
Hold pressed to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the displayed value. NoteButtons +and –activate different
functions according to the following situ-
ations:
To adjust display brightness inside the
passenger compartment
– standard screen, to adjust instrument
panel brightness, sound system, and auto-
matic climate control system.
Setup menu
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during set-
tings.
fig. 15F0R0016mfig. 16F0R0017m
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 16LINEA Owner HAND BOOK RHD.pdf 168/21/09 2:16:00 PM8/21/09 2:16:00 PM

17
SETUP MENU fig. 17
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons +and –to access the dif-
ferent select operations and settings (set-
up) given in the following paragraphs.
The setup menu can be activated by press-
ing briefly button MENU ESC.
Single presses on buttons +and –will
scroll the setup menu options.
Handling modes differ with each other ac-
cording to the characteristic of the option
selected.Selecting a menu option
– press briefly button MENU ESCto se-
lect the menu option to set;
– press buttons +and –(by single press-
es) to select the new setting;
– press briefly button MENU ESCto
store the new setting and to go back to
the previously selected menu option.
Selecting “Set Clock”
– briefly press button MENU ESCto se-
lect the first value to change (hours);
– press buttons +and –(by single press-
es) to select the new setting;
– briefly press button MENU ESCto
store the new setting and to go
to the
next setup menu option (minutes);
– after setting the values with the same
procedure, the system will go back to the
menu option previously selected.Hold button MENU ESC pressed
– to quit the set up menu if you are in the
menu;
– to quit the displayed menu if you are set-
ting an option;
– to save only the settings stored yet (and
confirmed by pressing button MENU
ESC).
The setup menu displaying is timed; when
quitting the menu due to timing expiry, on-
ly settings stored yet by the user (and con-
firmed by pressing briefly button MENU
ESC).
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 17LINEA Owner HAND BOOK RHD.pdf 178/21/09 2:16:00 PM8/21/09 2:16:00 PM

18

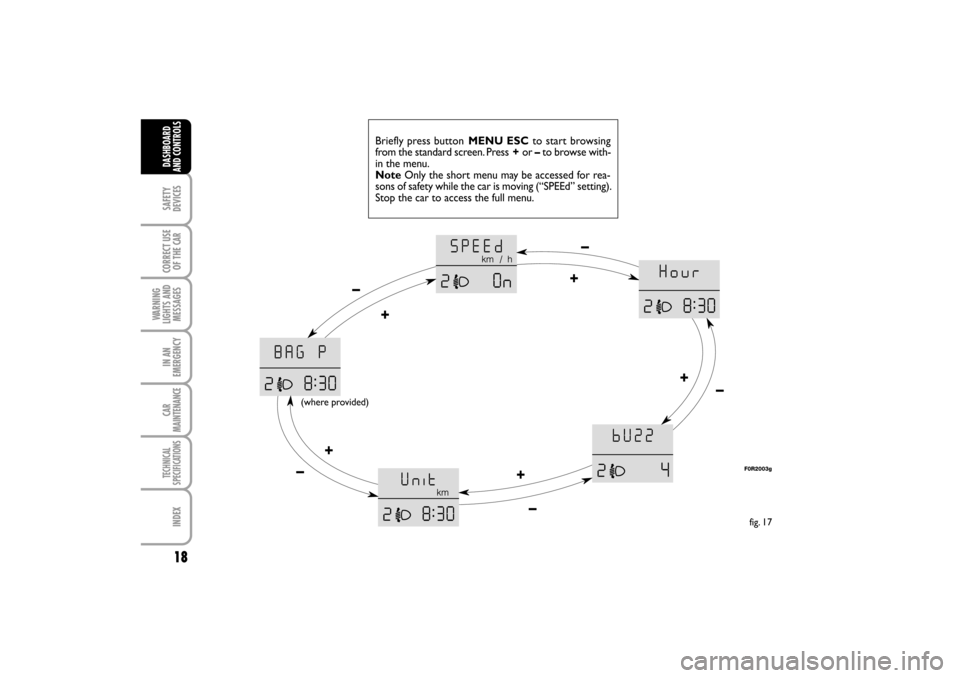

Briefly press button MENU ESCto start browsing
from the standard screen. Press +or –to browse with-
in the menu.
NoteOnly the short menu may be accessed for rea-
sons of safety while the car is moving (“SPEEd” setting).
Stop the car to access the full menu.
fig. 17
F0R2003g
+ –
+
–
+
–+
– +–
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
(where provided)
LINEA Owner HAND BOOK RHD.pdf 18LINEA Owner HAND BOOK RHD.pdf 188/21/09 2:16:00 PM8/21/09 2:16:00 PM

19
Setting the speed limit (SPEEd)
This function may be used to set the car
speed limit (km/h or mph), when this lim-
it is exceeded the driver is immediately
alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MENU ESC, the
message (SPEEd) and the previously set
unit (km/h) or (mph) will appear on the
display;
– press button+or –to activate (on) or
deactivate (OFF) the speed limit function;
– if the function is on, press buttons +or
–to select the required speed limit and
then press MENU ESCto confirm;
NoteThe speed may be set in the range
from 30 to 200 km/h, or from 20 to 125
mph according to the previously chosen
unit (see “Setting the distance unit”) de-
scribed below. The settin g will in-
crease/decrease by five units each time
button +/–is pressed. Hold button +/–
pressed to increase/decrease the setting
rapidly. Complete the setting by briefly
pressing the button when you approach
the required setting.– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.To cancel
the setting, proceed as follows:
– briefly press button MENU ESC: (On)
will blink on the display;
– press button –: (Off) will blin k on the
display;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
Setting the clock (Hour)
This function is used to set the clock.
Proceed as follows:
– briefly press button MENU ESC,
“hours” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC, “ m i n -
utes” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Adjusting the buzzer volume
(bUZZ)
This function is used to adjust the buzzer
volume used for failure/warning indica-
tions and when MENU ESC,
+and –
buttons are pressed.
To adjust the volume proceed as follows:
– briefly press button MENU ESC, t h e
display will show the wording (bUZZ);
– press button +or –to select the re-
quired volume (volume can be adjusted ac-
cording to 8 levels).
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 19LINEA Owner HAND BOOK RHD.pdf 198/21/09 2:16:01 PM8/21/09 2:16:01 PM
