FIAT LINEA RHD 2010 1.G Owner's Manual

20

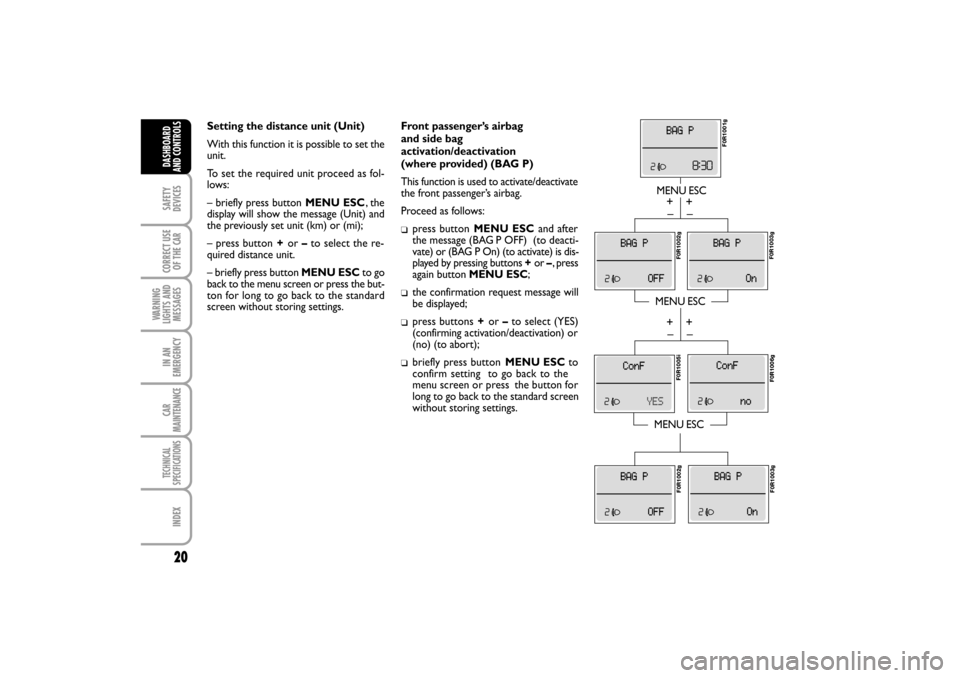

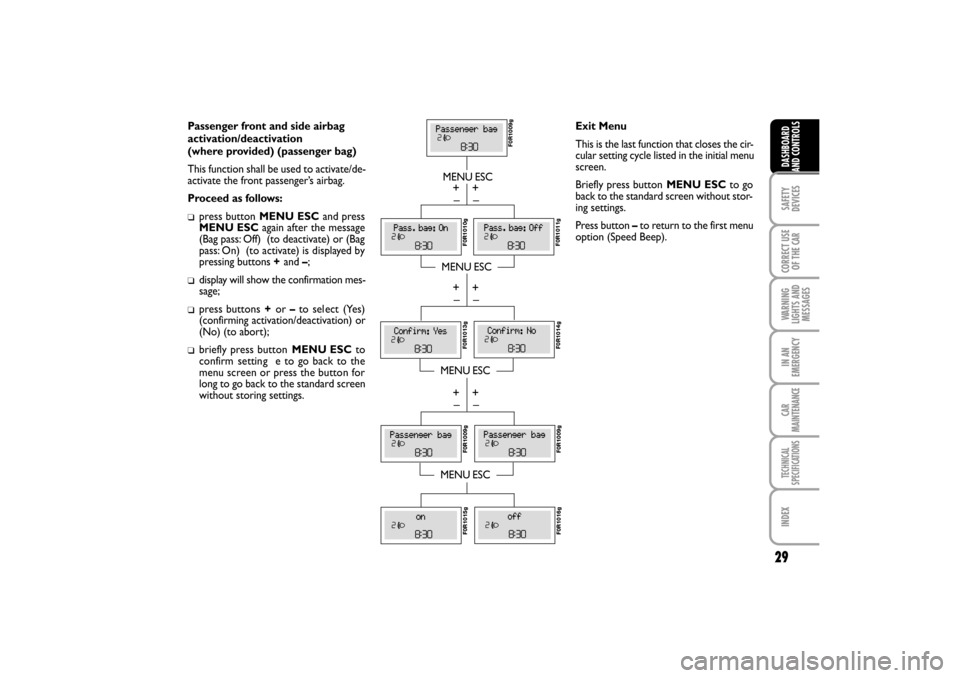

Front passenger’s airbag
and side bag
activation/deactivation
(where provided) (BAG P)
This function is used to activate/deactivate
the front passenger’s airbag.
Proceed as follows:
press button MENU ESCand after
the message (BAG P OFF) (to deacti-
vate) or (BAG P On) (to activate) is dis-
played by pressing buttons +or –, press
again button MENU ESC;
the confirmation request message will
be displayed;
press buttons +or –to select (YES)
(confirming activation/deactivation) or
(no) (to abort);
briefly press button MENU ESC to
confirm setting
to go back to the
menu screen or press the button for
long to go back to the standard screen
without storing settings.
MENU ESC
MENU ESC
MENU ESC
– +
– +
– +
– +
F0R1003gF0R1001g F0R1002g F0R1005i
F0R1006g F0R1002g
F0R1003g
Setting the distance unit (Unit)
With this function it is possible to set the
unit.
To set the required unit proceed as fol-
lows:
– briefly press button MENU ESC, the
display will show the message (Unit) and
the previously set unit (km) or (mi);
– press button +or –to select the re-
quired distance unit.
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS




LINEA Owner HAND BOOK RHD.pdf 20LINEA Owner HAND BOOK RHD.pdf 208/21/09 2:16:01 PM8/21/09 2:16:01 PM

21
CONTROL BUTTONS fig. 19
+To scroll the displayed menu and the
related options upwards or to in-
crease the value displayed.
MENU
ESCPress briefly to access the menu
and/or go to next screen or to
confirm the required menu op-
tion.
Hold pressed to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.
MULTIFUNCTION
DISPLAY
(where provided)
The car can be equipped with the multi-
functional display that, according to the
settings made, will show useful informa-
tion necessary when driving.

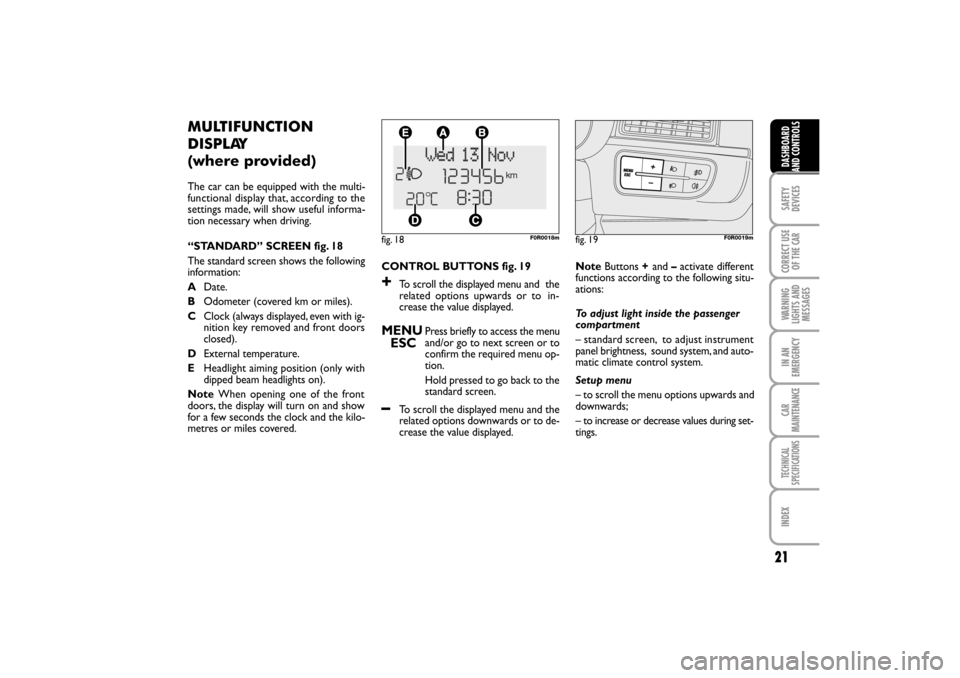

“STANDARD” SCREEN fig. 18
The standard screen shows the following
information:
ADate.
BOdometer (covered km or miles).
CClock (always displayed, even with ig-
nition key removed and front doors
closed).
DExternal temperature.
EHeadlight aiming position (only with
dipped beam headlights on).
NoteWhen opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the kilo-
metres or miles covered.
fig. 18F0R0018m
NoteButtons +and –activate different
functions according to the following situ-
ations:
To adjust light inside the passenger
compartment
– standard screen, to adjust instrument
panel brightness, sound system, and auto-
matic climate control system.
Setup menu
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during set-
tings.
fig. 19F0R0019m
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 21LINEA Owner HAND BOOK RHD.pdf 218/21/09 2:16:01 PM8/21/09 2:16:01 PM

22

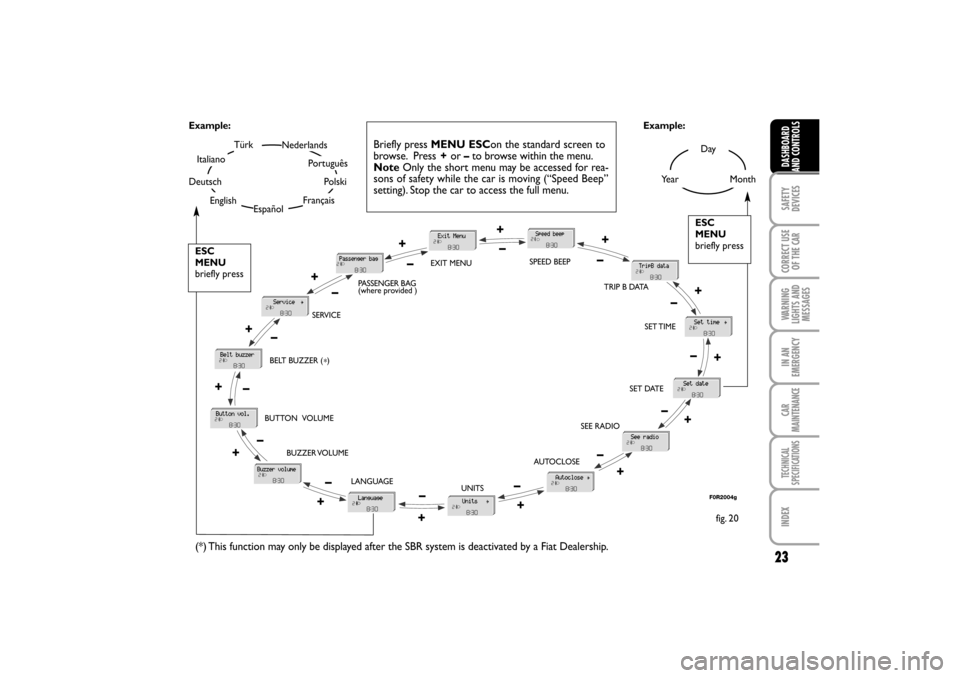

SETUP MENU fig. 20
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons +and –to access the dif-
ferent select operations and settings (set-
up) given in the following paragraphs. A
submenu is provided for some
items
(Clock and Unit setting).
The setup menu can be activated by press-
ing briefly button MENU ESC.
Single presses on buttons +or –will scroll
the setup menu options.
Handling modes differ with each other ac-
cording to the characteristic of the option
selected.
Selecting an option of the main menu with-
out submenu
– press briefly button MENU ESCto se-
lect the main menu option to set;
– press buttons +or –(by single press-
es) to select the new setting;
– press briefly button MENU ESCto
store the new setting and
to go back to
the main menu option previously select-
ed.Selecting “Set Date” and
“Set time”:
– briefly press button MENU ESCto se-
lect the first value to change (e.g . hours
/minutes or year / month / day);
– press buttons +or –(by single press-
es) to select the new setting;
– briefly press button MENU ESCto store
the new setting and to go to the next set-
up menu option, if this is the last one you
will go back to the previously selected op-
tion of the main menu.
Hold button MENU ESC pressed:
– to quit the set-up menu if you are in the
main menu;
– to quit the main menu if you are at an-
other point of the menu (e.g.: at submenu
option setting level, at submenu level or
at main menu option setting level);
– to save only the settings stored yet (and
confirmed by pressing button MENU
ESC).
The setup menu environment is timed.
Only the changes saved by the user b
briefly pressing MENU ESC will be saved
when the menu is automatically closed. Selecting an option of the main menu with
submenu:
– briefly press button MENU ESCto dis-
play the first submenu option;
– press buttons +or –(by single press-
es) to scroll all the submenu options;
– press briefly button MENU ESCto se-
lect the displayed submenu option and to
open the relevant setup menu;
– press buttons +or –(by single press-
es) to select the new setting for this sub-
menu option;
– briefly press button MENU ESC to
store the new setting and to go back to
the previously selected submenu option.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 22LINEA Owner HAND BOOK RHD.pdf 228/21/09 2:16:01 PM8/21/09 2:16:01 PM

23
Day
Ye a rMonth
TürkNederlands
Español
Português
Français
Italiano
DeutschPolski
English Example:
fig. 20 Example:
Briefly press MENU ESCon the standard screen to
browse. Press +or –to browse within the menu.
NoteOnly the short menu may be accessed for rea-
sons of safety while the car is moving (“Speed Beep”
setting). Stop the car to access the full menu.
F0R2004g
ESC
MENU
briefly press
(*) This function may only be displayed after the SBR system is deactivated by a Fiat Dealership.
ESC
MENU
briefly press
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
+
EXIT MENUSPEED BEEP
(where provided )
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE
UNITS LANGUAGE BUZZER VOLUME BUTTON VOLUME BELT BUZZER (
*) SERVICEPASSENGER BAG
TRIP B DATA
+ –+ –+ –+ –+
– +
– +
–
–
+
–
+
–
+
–
+–
+
+ –
–
LINEA Owner HAND BOOK RHD.pdf 23LINEA Owner HAND BOOK RHD.pdf 238/21/09 2:16:01 PM8/21/09 2:16:01 PM

24
– press button –: (Off) will flash on the dis-
play;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings. Speed limit (Speed Beep)
This function may be used to set the car
speed limit (km/h or mph); when this lim-
it is exceeded the driver is immediate ly
alerted (see section “Warning lights and
messages”).
To set the speed limit, proceed as follows:
– briefly press button MENU ESC, the
disp lay will show the wordin g (Sp eed
Buzz);
– press button +or –to select speed lim-
it activation (On) or deactivation (Off);
– if the function has been activated (On),
press buttons +or –to select the re-
quired speed limit and then press MENU
ESCto confirm.
NoteThe speed may be set in the range
from 30 to 250 km/h, or from 20 to 125 mph
according to the previously chosen unit (see
“Setting the distance unit”) described below.
The setting will increase/decrease by five
units each time button +/–is pressed. Hold
button +/–pressed to increase/decrease the
setting rapidly. Complete the setting by
briefly pressing the button when you ap-
proach the required setting.
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
To cancel the setting, proceed as follows:
– briefly press button MENU ESC: (On)
will blink on the display;
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 24LINEA Owner HAND BOOK RHD.pdf 248/21/09 2:16:01 PM8/21/09 2:16:01 PM

25
Trip B On/Off (tripB data)
Through this option it is possible to acti-
vate (On) or deactivate (Off) the Trip B
(partial trip).
For fur the r info rmation see “Trip com-
puter”.
Proceed as follows to switch the function
on and off:
– briefly press button MENU ESC: ( O n )
or (Off) will flash on the display (accord-
ing to previous setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Setting the clock (Set time)
This function allows to set the clock through
two sub-menus: “Time” and “Mode”.
Proceed as follows:
– briefly press button MENU ESC, t h e
display will show the two sub-menus
“Time” and “Mode”;
– press button +or –to surf the two sub-
menus;
– select the required option and then
press button MENU ESCbriefly;
– when accessing the “Hour” submenu: –
briefly press button MENU ESC,
“hours” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC, “ m i n -
utes” will flash on the display;
– press button +or –for setting;
– when accessing the “Format” submenu:
briefly press button MENU ESC : t h e
previously set display format will flash on
the display;
– press button +or –to select “24h” or
“12h”.
When you have made the required set-
tings, briefly press button MENU ESC
to go back to the menu screen or press
the button for long to go back to the stan-
dard screen without storing settings.
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at.Set date (Set Date)
This function may be used to update the
date (year - month - day).
To correct the date proceed as follows:
– briefly press button MENU ESC: “day”
will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC:
“month” will flash on the display;
– press button +or –for setting;
– briefly press button MENU ESC
:
“year” will flash on the display;
– press button +or –for setting.
NoteThe settin g will increase or de-
crease by one unit each time +or – is
pressed. Hold the button pressed to in-
crease/decrease the setting rapidly. Com-
plete the setting by briefly pressing the
button when you approach the required
setting.
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 25LINEA Owner HAND BOOK RHD.pdf 258/21/09 2:16:02 PM8/21/09 2:16:02 PM

26
Automatic door locking with car
running (Autoclose)
When activated (On), this function locks
automatically the doors when the car
speed exceeds 20 km/h.
This function is availab le on all versions
and may only be switch ed off by means
of the multifunctional display.
To activate (On) or to deactivate (Off) this
function proceed as follows:
– briefly press button MENU ESCto dis-
play the three sub-menus;
– briefly press button MENU ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button +or –for setting;
– briefly press button MENU ESCto
go back to the menu screen or press the
button for long to go back to the stan-
dard screen without storing settings.
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at. Audio repetition (See radio)
With this function the display repeats in-
formation relevant to the sound system.
– Radio:
tuned radio station frequency or
RDS message, automatic tuning activation
or AutoSTore;
– CD audio, CD MP3: track number;
– CD Changer : CD number and track
number;
To activate (On) or to deactivate (Off)
sound system info displaying proceed as
follows:
– briefly press MENU ESC: ( O n ) o r ( O f f )
will flash on the display (according to pre-
vious setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for lon g to go back to the stan dard
screen without storing settings.Set units (Unit of measure)
With this function it is possible to set the
units through three sub-menus:
“Distances”,
“Consumption” and “Temperature”.
Proceed as follows to set the required unit:
– briefly press button MENU ESCto dis-
play the three sub-menus;
– press button +or –to surf the three sub-
menus;
– select the required sub-menu and then
press briefly button MENU ESC;
– when accessing the “Distances”submenu:
briefly press MENU ESC: either “km” or
“mi” will appear on the display (according
to the previous setting);
– press + or –to make your choice;
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 26LINEA Owner HAND BOOK RHD.pdf 268/21/09 2:16:02 PM8/21/09 2:16:02 PM

27
Selecting the language (Language)
The messages may be displayed in the fol-
lowing languages: Italian, Turkish, Dutch,
Portuguese, Polish, French, Spanish, Eng-
lish, German.
To set the required language proceed as
follows:
– briefly press button MENU ESC:
the
previously set “language” “ will flash on the
display;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings. – when you are in the “Consumption”sub-
menu: briefly press MENU ESC: either
“km/l, Lit/100km” or “mpg” will appear on
the display (according to the previous setting);
If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press button +or –for setting;
– when accessing the “Temperature”sub-
menu: briefly press MENU ESC:
either
“°C” or “°F” will appear on the display (ac-
cording to the previous setting);
– press button +or –for setting;
When you have made the required set-
tings, briefly press button MENU ESCto
go back to the menu screen or press the
button for long to go back to the standard
screen without storing settings.
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at.Adjusting the failure/warning
buzzer volume (Buzzer Volume)
With this function the volume of the
buzzer accompanying any failure/warning
indication can be adjusted according to 8
levels.
To adjust the volume proceed as follows:
– briefly press button MENU ESC: t h e
previously set volume
“level” will flash on
the display;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 27LINEA Owner HAND BOOK RHD.pdf 278/21/09 2:16:02 PM8/21/09 2:16:02 PM

28
Scheduled Servicing (Service)
Through this function it is possible to dis-
play information connected to proper car
servicing.
Proceed as follows:
– briefly press button MENU ESC: s e r-
vice in km or mi, according to previous
settin g, will be displayed (see paragraph
“Units”);
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen.NoteThe “Service Schedule” requires the
car to be serviced every 20,000 km; this in-
dication will appear automatically with the
key at MAR when there are 2000 km left
(or 1240 mi) and will be presented auto-
mati cally ever y 200 km (or 124 mi). The
The indications will appear more frequ-
ently where there are 200 km left. The indi-
cation will appear in kilometers or miles
according to the settings. When the next
scheduled service operation is approaching,
the message “Service” will appear on the
display followed by the number of kilome-
ters or miles left when the key is turned
to MAR. Go to a Fi at Dea ler shi p
where the “Scheduled Service” operations
will be performed and the message will be
reset. Adjusting the button volume
(Button Vol.)
This function may be used to adjust the
volume of the beep accompanying the ac-
tivation of buttons MENU ESC, +and
–can be adjusted according to 8 levels.
To adjust the volume proceed as follows:
– briefly press button MENU ESC: t h e
previously set volume “level” will flash on
the display;
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 28LINEA Owner HAND BOOK RHD.pdf 288/21/09 2:16:02 PM8/21/09 2:16:02 PM

29
Passenger front and side airbag
activation/deactivation
(where provided) (passenger bag)
This function shall be used to activate/de-
activate the front passenger’s airbag.
Proceed as follows:
press button MENU ESCand press
MENU ESCagain after the message
(Bag pass: Off) (to deactivate) or (Bag
pass: On) (to activate) is displayed by
pressing buttons +and –;
display will show the confirmation mes-
sage;
press buttons +or –to sel ect (Yes)
(confirming activation/deactivation) or
(No) (to abort);
briefly press button MENU ESC to
confirm settin g e to go back to the
menu screen or press the button for
long to go back to the standard screen
without storing settings.
MENU ESC
MENU ESC
MENU ESC
– +
– +
– +
– +
– +
– +
F0R1009g
F0R1011g F0R1010g F0R1013g
F0R1014g F0R1009g
F0R1009g
MENU ESC
F0R1015g
F0R1016g
Exit Menu
This is the last function that closes the cir-
cular setting cycle listed in the initial menu
screen.
Briefly press button MENU ESCto go
back to the standard screen without stor-
ing settings.
Press button –to return to the first menu
option (Speed Beep).
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS




LINEA Owner HAND BOOK RHD.pdf 29LINEA Owner HAND BOOK RHD.pdf 298/21/09 2:16:02 PM8/21/09 2:16:02 PM
