FIAT MAREA 2001 1.G Workshop Manual

Marea- Marea Weekend Electrical system
2000 range (Q) Radio System
55.
ALTERING EXPERT SETTINGS
Turning on EXPERT
Depress the EXP key for 2 seconds until «EXPERT» appears on the display.
4F041LL01
Choosing options
Select the settings to be checked or altered using keys A or B.
Example: Setting maximum volume upon start-up. (N.3): use keys A or B to select the required option
(e.g. ONVOL 13), the display shows «ONVOL 13». The selected station is played at the set speed.
Altering the setting
Turn the volume knob to set the required volume, the display shows "ONVOL 20", for example.
Turn the knob clockwise: increase the value; turn the knob anticlockwise: reduce the value.
Concluding the setting
Set the next function using keys A or B
Alternatively, press the EXP for 2 seconds until "EXIT" appears on the display. EXPERT mode is closed
(except for the code and clock).
POSSIBLE SETTINGS
1 - set time
«TM 2:13» appears, for example.
Turn the volume knob to set hours and minutes:
- turn fast to adjust hours
- turn slow to adjust minutes
Give a short press to the EXP key to start the clock.
2 - activate/deactivate synchronisation of the clock with the time sent by some RDS stations
- turn volume knob clockwise: «SYNC ON»: the built-in clock goes forward (synchronisation) toward
RDS information.
- turn the knb anticlockwise: »SYNC OFF».
Synchronisation may be deactivated in places where no RDS TIMER signal is received.
NOTE: The signal sent by the stations may often be incorrect.
Copyright by Fiat Auto XII 00 - Update 41

Electrical system Marea-Marea Weekend
2000 range (§) Radio System
55.
3 - setting maximum volume upon start-up
«0NV0L 20» appears for example, where 20 is the setting in a range that extends up to 31
- turn volume knob clockwise: VOL +
- turn volume knob anticlockwise: VOL -
Volume is limited only when volume is higher than the set value when the radio is turned off.
4 - setting minimum volume for traffic information
«TA VOL 16» appears for example (limit values from 4 to 31)
- turn volume knob clockwise = VOL +
- turn volume knob anticlockwise = VOL -
During adjustment, the volume is as selected for traffic news.
5 - automatic deactivation by means of car ignition switch
- turn volume knob clockwise: «IGN ON» appears : in this way, the radio can be turned on/off using the
car ignition switch.
- turn volume knob anticlockwise: "IGN OFF": activation/deactivation takes place only via the VOL knob.
6 - IS LEARN activation/deactivation
- turn volume knob clockwise: «IS 0N» appears
- turn volume knob anticlockwise: «ISN 0FF».
7 - LRN activation/deactivation
With «LRN OFF» (standard mode) the radio remains on the selected station until the incoming signal is
practically illegible.
In «LRN ON» mode, the radio turns to another station as soon as the incoming signal quality falls.
When in an area where the reception of RDS programmes with traffic news is uncertain, the station search
may be blocked in the radio function.
- turn volume knob clockwise: «LRN ON» appears: automatic search of traffic news broadcasts is acti­
vated automatically,
- turn volume knob anticlockwise: «LRN OFF»: automatic search of traffic news broadcasts is not acti­
vated.
8 - activation/deactivation of automatic regional programme change
When the same RDS programme is transmitted from various regional stations, the radio may switch be­
tween stations due to the reception field.
- turn volume knob clockwise: "REG ON" appears: regional p rogramme may be changed automatically in
this mode.
- turn volume knob anticlockwise: «REG OFF»: regional programme cannot be changed automatically.
9 - delayed activation/deactivation for connected booster (BDLY)
NOTE: remember that the Booster switch signal is connected to pin C6 of the radio.
This mode eliminates the abrupt on/off manoeuvre:
- turn volume knob clockwise: »BDLY ON» appears
- turn volume knob anticlockwise: «BDLY OFF»: is disabled.
42 XII-00 Update Publication no. 506.763/24

Marea-Marea Weekend Electrical system
2000 range (§j) Radio System
55.
10 - suppression of sound in case of incoming/outgoing phone call
- turn volume knob clockwise: «PHONE 0FF» no use of phone connection
- turn volume knob clockwise: «PH0NE 0N»: the radio sound is automatically deactivated in the case of
a phone call
The «PH0NE ON" function required the mobile phone mount base to be connected.
The «PH0NE IN» function allows a conversation via the car speakers in the case of a phone call.
The «PH0NE IN» function requires the mobile phone to be connected in handsfree mode
If the radio is off, a phone call (IN or OUT) is still possible. In this case the radio
- comes on automatically;
- allows listening under sound conditions identical to the last phone call (BASS, TREBLE, FADER,
BALANCE);
- goes off automatically at the end of the phone call
11 - setting mobile phone input sensitivity
Allows adaptation to the signal broadcast level for the type of handsfree system installed.
- turn volume knob anticlockwise: «PHONE 00» : low input sensitivity
- turn volume knob clockwise: «PHONE 03»: high input sensitivity
12 - security code activation
The code is not activated if «CODE» appears on the display.
If «SAFE» appears on the display, the code is activated.
NOTE: See next section for more detailed instructions.
13 - Controlling volume according to vehicle speed (SCV)
Standard value: «SCVOL 19»
Function off: «SCVOL - -«
Function at maximum efficiency: «SCVOL 34»
Setting:
1. Vehicle still, engine on: set required volume using the relevant knob.
2. Depress the EXP key for more than 2 seconds until «EXPERT» appears on the display.
3. Use keys A or B to select the «SCVOL» setting.
4. Set the required value using the volume knob:
- turn volume knob clockwise: VOL +
- turn volume knob anticlockwise: VOL -
14 - audible function confirmation (BEEP)
The BEEP function is active in the system
This function gives an audible confirmation (BEEP) of the functions. Function activation requires continu­
ous pressing of the key for a time greater than or equal to 2 seconds.
15 - select MONO/STEREO radio reproduction
turn volume knob clockwise: «MONO ON».
turn volume knob anticlockwise: «MONO OFF».
16 - activate/deactivate LOC
The automatic search in the FM range may be used at two sensitivity levels When in search of stations,
the set may be tuned with high field intensity (local stations) or low field intensity (distant reception).
- turn volume knob clockwise: «LOC ON».
- turn volume knob anticlockwise: «LOC OFF».
Copyright by Fiat Auto XII-00 Updale 43

Electrical system
Radio System
Marea- Marea Weekend
2000 range ©
55.
CODING
When coding is activated, the radio is protected
electronicall as soon as the radio is disconnected
from the car power supply. It can be made to
work again only by entering the code.
The radio code is on the CODE CARD mm
^â„¢ fC SP VP fil â„¢
CODICE DI SICUREZZA
ATTENTION: coding is not activated initially by the Manufacturer
ACTIVATING THE CODE
1. Select the EXPERT code level and press keys A or B, until «CODE» appears on the display.
2. Enter the first figure of the code by turning the volume knob and confirm by pressing the RND/EXP
key.
Example: 17 0 3
- turn the volume knob to display the figure«1 ---«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«17D«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«170-«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«1703»»
press the RDN/EXP key briefly to confirm
3. To confirm the code: press the EXP key, «SAFE» appears on the display : the code is activated.
>. To deactivate EXPERT mode: press the EXP key until «EXIT» appears on the display.
44 Xii-00 - Update Publication no. 506.763/24

Marea-Marea Weekend Electrical system
2000 range @ Radio System
55.
Checking code activation
Select the EXPERT control level and press keys A or B until «SAFE» or «C0DE» appears on the display:
If «SAFE» appears: the code is activated
If « C0DE» appears: the code is not activated
DEACTIVATING THE CODE
1. Activate EXPERT mode: «SAFE» appears on the display.
2. Set the code, as described previously.
3. To confirm the code: briefly press the EXP key until «CODE» appears on the display: the coding is no
longer active.
NOTE: If an incorrect code is entered, the message «SAFE» remains on the display and the procedure
must be repeated in full. Respect the waiting times between one attempt and the next, as indi­
cated below.
RESTORING TO OPERATION
If the radio is disconnected from the car power supply (e.g. when servicing), it is protected electronically
with the code active.
1. Turn on the radio: the message «SAFE» appears on the display, «1 - - - -« appears after more than 3
seconds. The «1» marks the number of input attempts.
2. Set the code, as described in CODE ACTIVATION.
3. Confirm the code by pressing the EXP key briefly. The message "SAFE" appears on the display.
The radio switches on after about 3 seconds.
NOTE: If an incorrect code is entered, the message «SAFE» remains on the display, the radio does not
come on and the procedure must be repeated completely. Respect the waiting times between
one attempt and the next, as indicated below.
WARNING: waiting times
To make it impossible to restore the radio to operation and deactivate the code by repeated, suc-

A

cessive attempts, specific waiting times must be left between attempts.
The radio must not be switched on during the standby time.
It must still be connected to the power supply
As long as the message "SAFE" is on the display, the waiting time is not over.
The waiting time is up when the number of the next attempt can be seen on the display (e.g. "2-
---")•
The following table shows the waiting times between attempts:
Unsuccessful attempts
(number shown on display) Approximate waiting time
1 21 seconds
2 1.5 seconds
3 5.5 seconds
4 22 seconds
5 1.5 seconds
6 6 seconds
7 24 seconds
Copyright by Fiat Auto XII-00- Update 45

Electrical system Marea-Marea Weekend
Radio System 2000 range @
55.
COMPACT DISC PLAYER - only for H4 version
Activating CD operation
Place a CD in the slot and press slightly, the player will draw in the CD automatically.
If a CD is already present in the slot, press the SRC key until the message «DISC» appears on the display;
the CD begins to play automatically.
SRC = Source ; the sources are: RADIO, DISC, CDC (CD Changer)
4F046LL01
Choosing a track
Keep tapping key A to choose a track in increasing order; similarly, keep tapping key B to choose a track
in decreasing order.
Fast forward to a track
Hold keys A or B down continuously to fast forward or retur to the track being played.
Repeating a track
Press the RPT key to repeat the track being played currently; the wording «RPT ON» appears on the dis­
play for a few seconds.
The current track will be repeated until the function is deactivated by pressing the RPT key again; the
wording «RPT 0FF» appears on the display for a few seconds.
RANDOM track selection
Tracks to be played are selected automatically after pressing the RND key; the message «RND ON» ap­
pears on the display for a few seconds.
The function is interrupted by pressing RND again; the message «RND 0FF» appears on the display for a
few seconds.
Automatic track scan
Press the SCN key to play all tracks on the CD for about 10 seconds each. The message «SCN ON» ap­
pears on the display for a few seconds
The function is suspended by pressing SCN again; the message «SCNOFF» appears on the display for a
few seconds.
Concluding operation and removing the CD
Simply press the C EJECT key to remove the CD from the player.
The wording «EJECT» appears for a few seconds on the display.
Alternatively press the SRC key, the source changes from DISC to CDC (if CD Changer present) or RA­
DIO. Source selection is sequential: RADIO, DISC, CDC.
NOTE: Status of RPT, RND, SCN functions are not stored when the radio set is turned off.
46 XII-00 Update Publication no. 506.763/24

Marea- Marea Weekend Electrical system
2000 range (§) Radio System
55.
TAPE PLAYER; - version H3
Activating tape operation
Place a tape in the slot. «TAPE A» or«TAPE B» appears on the display.
/T the slot already contains a tape, press the SRC repeatedly until «TAPE» appears on the display.
SRC = Source; the sources are: RADIO, TAPE, CDC.
4F047LL01
Changing tape side
Press the D REVERSE key briefly.
When the end of the tape is reached the side changes automatically.
The meanings of the symbols on the display are as follows:
«TAPE A» : top side of tape
«TAPE B» : bottom side of tape.
MSS function
MSS = Music-Search-System
This function can be used to forward/rewind to the beginning of the track to obtain the "skip track" or
"repeat track" function.
Pauses of at least 3 seconds are left between tracks for the MSS function (without an announcement
text). Musical pieces with very low passages (e.g. classical music) are not suitable because these are
treated as pauses.
Activating MSS
The MSS function can be turned on or off from the EXPERT menu; the standard condition is MSS ON
In this configuration, press key B to make the radio skip a number of tracks corresponding to the number
of presses on the key; «+ --« appears on the display.
Example: 3 short presses on the key: skip three tracks;; «+3» appears on the display.
When keys A or B are pressed for longer than 2 seconds, the CD player is made to forward/rewind fully
to the end of the tape.
If the MSS function is deactivated ( from EXPERT) a short press on key A or B allows fast forward or
fast rewind of the tape.
Copyright by Fiat Auto Xfl-00 - Update 47

Radio System
Electrical system Marea- Marea Weekend
2000 range O
55.
Finish MSS before time
Press key A or B until «0» appears on the display. The player stops in its current forward/rewind position
and starts to play the track from that point.
Concluding tape operation
Press the C EJECT key: the tape is ejected. «EJECT» appears briefly on the display
Alternatively press the key SRC, the source changes from TAPE to MCD (if CD CHANGER is present) or
RADIO, source selection is sequential: RADIO, TAPE, MCD.
NOTE: The source is switched immediately if the fast rewind or fast forward function is active but the
tape player completes its current function.
TAPE PLAYER - version M2
Changing the tape side
Press keys A and B half way down.
When the end of the tape is reached the side changes automatically.
The meanings of the symbols on the display are as follows:
"TAPE A" : top side of tape
"TAPE B" : bottom side of tape.
Fast forward/rewind
Fully depress keys A and B
Suspending operation
To suspend operation, briefly press the key opposite to the active key.
The tape begins to play automatically
Concluding tape operation
Fully depress the fast forward and rewind keys simultaneously. The tape will be ejected.
A B
4FO48LL01
48 XH-00 - Update Publication no. 506.763/24

Marea-Marea Weekend
2000 range ©
Electrical system
Radio System
55.

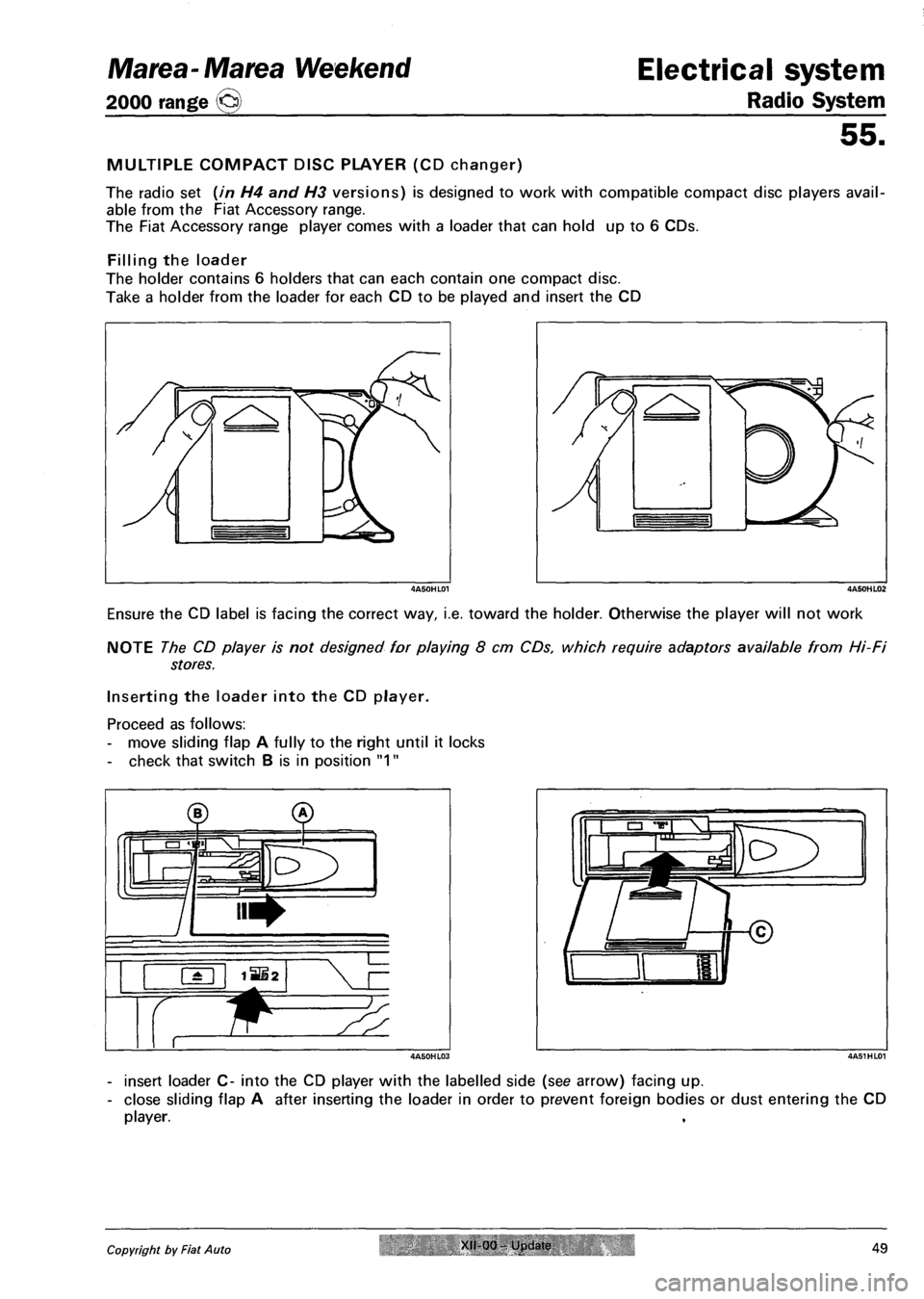

MULTIPLE COMPACT DISC PLAYER (CD changer)
The radio set (in H4 and H3 versions) is designed to work with compatible compact disc players avail­
able from the Fiat Accessory range.
The Fiat Accessory range player comes with a loader that can hold up to 6 CDs.
Filling the loader
The holder contains 6 holders that can each contain one compact disc.
Take a holder from the loader for each CD to be played and insert the CD
Ensure the CD label is facing the correct way, i.e. toward the holder. Otherwise the player will not work
NOTE The CD player is not designed for playing 8 cm CDs, which require adaptors available from Hi-Fi
stores.
Inserting the loader into the CD player.
Proceed as follows:
- move sliding flap A fully to the right until it locks
- check that switch B is in position "1"
- insert loader C- into the CD player with the labelled side (see arrow) facing up.
- close sliding flap A after inserting the loader in order to prevent foreign bodies or dust entering the CD
player.
Copyright by Fiat Auto XII-00 Update 49

Electrical system Marea- Marea Weekend
Radio System 2000 range @
55.
Removing the loader from the CD player.
Proceed as follows:
- slide flap A- to the right until it is no longer locked
- press the eject button on the CD player, .
f
s-
VV
Removing the CDs from the loader
Remove the CDs in order after removing the holders from the loader.
CD PLAYER OPERATION
Selecting CD changer programme source
Press the SRC briefly and repeatedly until the message «MCD» appears on the display.
Choosing a CD
Keep tapping station selection key 3 or 6 until the number of the required CD appears on the display.
3: previous CD
6: next CD
Selecting or repeating a track
Keep tapping the «RIGHT» or «LEFT» keys until the required track number appears on the display.
«RIGHT»: next track
«LEFT» : the track currently playing or the previous track is repeated.
Play a track on the selected CD for 10 seconds (SCAN)
Press the SCAN key briefly.
«SCAN ON» appears briefly on the display.
To stop this function briefly press SCAN key.
«SCAN OFF» appears briefly on the display.
Fast forward and return (TRACK FAST)
To listen to the track at reduced volume during track fast:
Forward: press "RIGHT" and hold down.
Return: press "LEFT" and hold down.
Repeat track (TRACK REPEAT)
To repeat the current track continually: press the RPT key, "TRK ON" appears on the display.
A different track may be selected.
Press RPT key again to suspend the function: «TRK OFF» appears on the display.
50 XII-00 - Update Publication no. 606.763/24
