Warning Messagelight on panel on display
BATTERY NOT RECHARGING PROPERLY (red)
Turning the key to MAR the warning light on the dial turns on, but it should go out as soon as the
engine is started.
If the warning light stays on together with the message, contact a Fiat Dealership as soon as pos-
sible to prevent draining the battery.
SEAT BELTS NOT FASTENED (red)
(Only for right-hand drive versions)
The warning light on the dial turns on glowing steadily when, with ignition key at MAR, the dri-
ver’s seat belt is not fastened correctly.
AIRBAG FAILURE (red)
Turning the ignition key to MAR the warning light on the dial turns on, but it should go off after
about 4 seconds. The warning light will stay on to indicate an airbag failure.
¬ w
<
WARNINGIf when turning the ignition key to MAR, the warning light ¬does not turn on or if
it stays on when travelling there could be a failure in safety systems; in this event
air bags or pretensioners could not trigger in case of impact or, in a minor number
of cases, they could trigger accidentally. Contact Fiat Dealership immediately to
have the system checked.
The failure of the warning light ¬(warning light off) is also indicated by the
flashing for more than the normal 4 seconds of the passenger’s front airbag
deactivated warning light
F.
WARNING
Page 157 of 266

156
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning Messagelight on panel on display
DOORS OPEN (red)
The warning light on the dial turns on together with the message when a door or the tailgate are
not properly shut.
FRONT BRAKES PADS WEAR (red)
The warning light on the dial turns on together with the message when pressing the brake pedal if
front brake pads are worn; in this case have them changed as soon as possible.
IMPORTANT Since the car is fitted with wear sensors for the front brake pads, when changing
them, check also the rear brake pads.
LOW ENGINE OIL PRESSURE (red)
Turning the key to MAR the warning light on the dial turns on, but it should go out as soon as
the engine is started.
d
´
v
WARNINGIf vwarning light stays on glowing steadily together with the message, stop the
engine immediately and contact a Fiat Dealership.
Page 158 of 266

157
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
157
Warning Messagelight on panel on display
ABS (WHEEL ANTI-LOCKING SYSTEM) FAILURE (red)
Turning the key to MAR the warning light on the dial turns on, but it should go off after about 4
seconds.
The warning light turns on together with the message when the system is inefficient. In this case
the braking system keeps its effectiveness unchanged, but without the potential offered by the
ABS system. Caution is advisable, particularly in all cases of less than perfect grip. It is therefore
necessary to contact Fiat Dealership.
ELECTRONIC BRAKEFORCE DISTRIBUTOR (EBD) FAILURE
The car is fitted with an electronic brakeforce distributor (EBD). Warning lights >and xand the
message at the same time, with the engine running, indicate a failure concerning the EBD system.
In this case violent braking may be accompanied by early rear wheel locking with the possibility of
skidding. Drive the car extremely carefully to the nearest Fiat Dealership to have the system checked.
ESP SYSTEM (ELECTRONIC STABILITY PROGRAM) (where provided) (amber)
Turning the ignition key to MAR, the warning light on the dial comes on but shall go off after few
seconds.
If the warning light does not go off or stays on when travelling, contact Fiat Dealership.
Warning light flashing when driving indicates that the ESP system is active.
x
+
>
>
WARNINGWarning light >turning on together with the message when the engine is running,
normally indicates a failure concerning the ABS only. In this case the braking
system is still efficient, though without the anti-locking device. Under these
conditions, performance of the EBD system may be reduced. Also in this case, you
are advised to go immediately to the nearest Fiat Dealership, driving in such a way
to avoid sharp braking to have the system checked.
á
Page 159 of 266

158
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
158
Warning Messagelight on panel on display
EOBD / INJECTION SYSTEM FAILURE (amber)
In normal conditions, turning the ignition key to MAR, the warning light turns on, but it should go
off when the engine has started.
The warning light stays on or turns on when travelling to indicate injection system malfunctioning;
in particular the warning light turns on glowing steadily to indicate a fault in the supply/ignition
system which could cause high emissions at the exhaust, possible lack of performance, poor han-
dling and high consumption levels.
On certain versions the dedicated message is displayed.
In these conditions it is possible to continue driving without however requiring heavy effort or high
speed from the engine. Prolonged use of the car with the warning light on may cause damages. Con-
tact Fiat Dealership as soon as possible.
The warning light goes off if the fault disappears, the system will in any case store the fault.
NOTE (valid for petrol versions only)
The warning light turns on flashing to indicate a possible damage to the catalyst.
If the warning light flashes, it is necessary to release the accelerator pedal to lower the speed of
the engine until the warning light stops flashing; continue the journey at moderate speed, trying to
avoid driving conditions that may cause further flashing and contact Fiat Dealership as soon as
possible.
If, turning the ignition key to MAR, the warning lightUdoes not turn on or if it turns on glowing
steadily or flashing when travelling (on certain versions together with the dedicated message on the
display), contact Fiat Dealership as soon as possible. Warning light
Uoperation can be checked by
traffic agents by proper equipment therefore, comply with laws and regulations in force in the
country where you are driving.
U
Page 160 of 266

159
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
159
Warning Messagelight on panel on display
FIAT CODE (amber)
The warning light will come on in three cases (with the key at MAR):
1. One flash - the key code has been recognised.
The engine can be started.
2. Fixed light together with the message on the display - the key code has not been recognised. Fol-
low the emergency procedure to start the engine (see “In an emergency”).
3. Flashing - indicates that the car is not protected.
The engine can however be started.

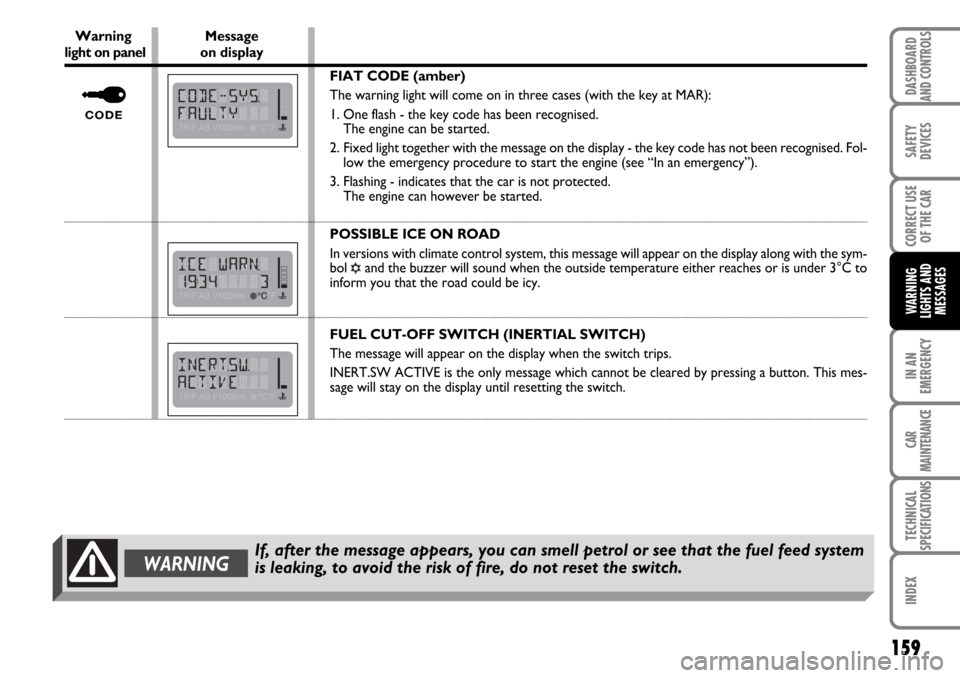

POSSIBLE ICE ON ROAD
In versions with climate control system, this message will appear on the display along with the sym-
bol
√and the buzzer will sound when the outside temperature either reaches or is under 3°C to
inform you that the road could be icy.
FUEL CUT-OFF SWITCH (INERTIAL SWITCH)
The message will appear on the display when the switch trips.
INERT.SW ACTIVE is the only message which cannot be cleared by pressing a button. This mes-
sage will stay on the display until resetting the switch.
¢
If, after the message appears, you can smell petrol or see that the fuel feed system
is leaking, to avoid the risk of fire, do not reset the switch.WARNING
Page 161 of 266

160
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning Messagelight on panel on display
EXHAUST OIL (JTD versions) (red)
The warning light with turn on flashing when the system detects that the engine oil is exhaust.
After the first indication, at each engine starting the warning light
vwill go on flashing.v
(warning light
flashing)
If warning light vflashes, contact immediately Fiat Dealership to have oil changed and
instrument panel warning light turned off.
Page 162 of 266

161
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
Warning Messagelight on panel on display
DIESEL PARTICULATE FILTER CLOGGED (JTD versions) (amber)
The warning light turns on when the diesel particulate filter is clogged and the driving conditions
do not enable to activate automatically the reclaiming procedure.

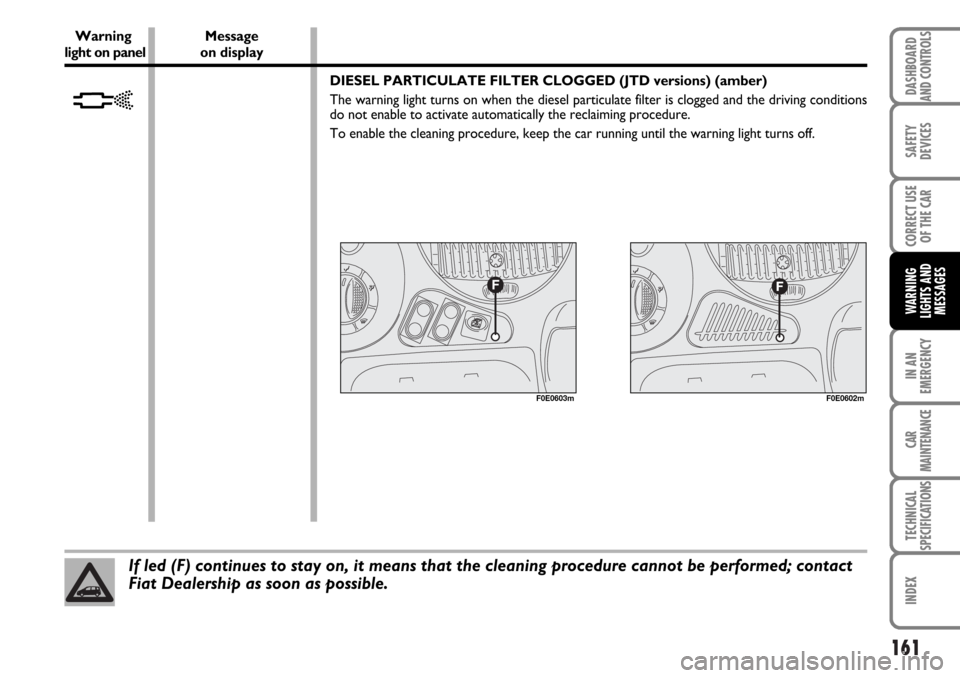

To enable the cleaning procedure, keep the car running until the warning light turns off.
h
If led (F) continues to stay on, it means that the cleaning procedure cannot be performed; contact
Fiat Dealership as soon as possible.
F0E0603mF0E0602m
Page 163 of 266

162
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
162
Warning Messagelight on panel on display
GLOW PLUGS (amber)
(diesel versions)
When the ignition key is turned to MAR. The warning light will go off when glow plugs reach the
prescribed temperature.
DIRECTION INDICATORS (green)
(flashing)
When the direction indicator stalk is operated.
FRONT PASSENGER AIRBAG DEACTIVATED (amber)
Warning light will come on when front passenger airbag is deactivated.
With front passenger airbag on, turning the ignition key to MAR, the warning light shall flash for
about 4 seconds and then go off.
F
m
RE
WARNINGWarning light Findicates also warning light ¬failures. This is indicated by
intermittent flashing, over 4 seconds, of warning light F. In this event warning
light ¬could not indicate safety system failures. In addition, the airbag system
will deactivate automatically the passenger's airbags (side bag, where provided and
front airbag). Contact immediately Fiat Dealership to have the system checked.
Page 164 of 266

163
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
163
Warning Messagelight on panel on display
OUTSIDE LIGHTS (green)
When the side/taillights are switched on.
MAIN BEAM HEADLIGHTS (blue)
When main beam headlights are switched on.
SERVICE
This message will appear on the reconfigurable display at 2000 km from the service schedule dead-
line (every 20,000 km for 100
16Vversions and every 30,000 km for JTD 120 versions) and when
the key is turned to MAR every 200 km, until there are 200 km left, and then every 100, 50, etc...
The data can only be reset at Fiat Dealership.
WARNING LIGHT FAILURE
This message will appear on the reconfigurable display when a failure concerning the warning
lights shown is found
WATER IN DIESEL FUEL FILTER (amber)
(diesel versions)
When there is water in the diesel fuel filter.
3
1
The presence of water in the fuel circuit may cause serious damage to the entire injection system.
Contact Fiat Dealership as soon as this warning light comes on.
c
Page 260 of 266

TECHNICAL
SPECIFICATIONS
259
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
Pretensioners ................................... 117
Protecting the environment.......... 109
Radio-frequency remote control 9
– description ................................. 9
– ministerial homologation......... 255
Rear fog lights
– bulb replacement ..................... 190
– control ......................................... 65
Rear window shelf removal .......... 83
Rear window washer
– control ......................................... 62
– fluid level ..................................... 217
Rear window wiper
– blades ........................................... 227
– control ......................................... 62
– nozzle ........................................... 228
Rearview mirrors
– door mirrors .............................. 46
– driving mirror ............................ 46
Reconfigurable multifunction
display ............................................. 22
Remote control
(door locking/unlocking) ............. 9
Reversing light (replacement)....... 190
Rims and tyres ................................. 240– accessories.................................. 106
– aerial............................................. 103
– hands-free kit ............................. 104
– radio transmitters and
cellular telephones .................... 15
– speakers ...................................... 102
– standard equipment .................. 102
Spark plugs ........................................ 237
Speedometer .................................... 21
Starting the engine .......................... 137
– bump starting ............................. 167
– emergency starting ................... 165
– how to warm up the engine
after it has just started ............. 139
– ignition switch ............................ 15
– jump starting .............................. 166
– starting procedure
for diesel versions ..................... 138
– starting procedure
for petrol versions .................... 137
– stopping the engine................... 140
Steering .............................................. 239
Steering column lock ...................... 16
Steering column stalks
– left stalk ....................................... 61
– right stalk .................................... 59 Roof rack/ski rack ........................... 87
Rubber tubing................................... 226Seat belts.......................................... 112
– general instructions .................. 118
– how to keep the seat belts
always in efficient conditions ... 120
– load limiters .............................. 118
– pretensioners ............................. 117
– rear seat belts ........................... 114
– transporting children in safety.. 120
– type Isofix child restraint
system .......................................... 126
Seats ................................................... 41
– cleaning ........................................ 231
– front ............................................. 41
– moving ......................................... 81
– rear ............................................... 42
– removing ..................................... 84
Service Schedule .............................. 207
Side/taillights
– control ......................................... 59
– front bulb replacement ............ 189
– rear bulb replacement ............ 190
Snow chains ...................................... 150
Snow tyres ........................................ 149
Sound system ................................... 102
