Page 18 of 206

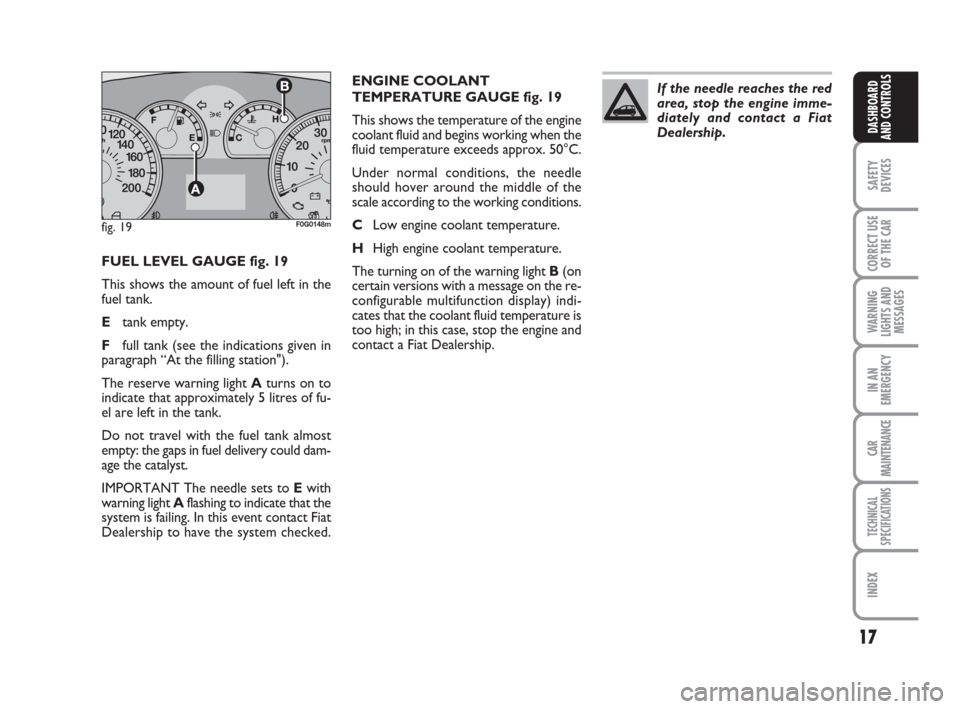

ENGINE COOLANT
TEMPERATURE GAUGE fig. 19
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.
The turning on of the warning light B(on
certain versions with a message on the re-
configurable multifunction display) indi-
cates that the coolant fluid temperature is
too high; in this case, stop the engine and
contact a Fiat Dealership.
17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL LEVEL GAUGE fig. 19
This shows the amount of fuel left in the
fuel tank.
Etank empty.
Ffull tank (see the indications given in
paragraph “At the filling station").
The reserve warning light Aturns on to
indicate that approximately 5 litres of fu-
el are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact Fiat
Dealership to have the system checked.
fig. 19F0G0148m
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
001-031 Panda New GB 21-06-2007 13:47 Pagina 17
Page 54 of 206
53
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

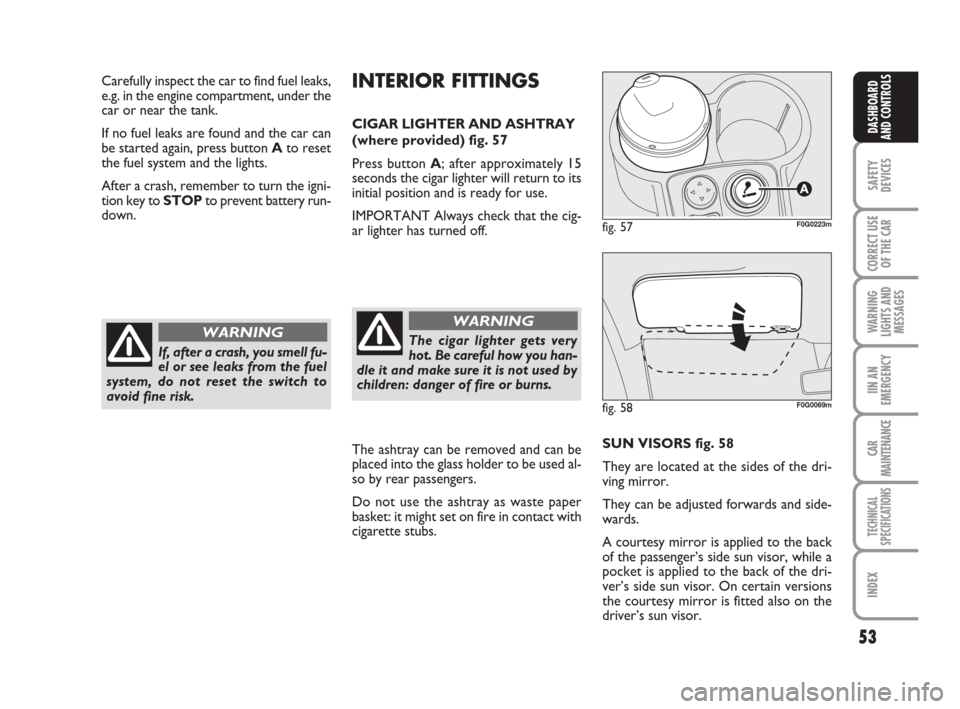

INTERIOR FITTINGS
CIGAR LIGHTER AND ASHTRAY
(where provided) fig. 57
Press button A; after approximately 15
seconds the cigar lighter will return to its
initial position and is ready for use.
IMPORTANT Always check that the cig-
ar lighter has turned off.
SUN VISORS fig. 58
They are located at the sides of the dri-
ving mirror.
They can be adjusted forwards and side-
wards.
A courtesy mirror is applied to the back
of the passenger’s side sun visor, while a
pocket is applied to the back of the dri-
ver’s side sun visor. On certain versions
the courtesy mirror is fitted also on the
driver’s sun visor. Carefully inspect the car to find fuel leaks,
e.g. in the engine compartment, under the
car or near the tank.
If no fuel leaks are found and the car can
be started again, press button Ato reset
the fuel system and the lights.
After a crash, remember to turn the igni-
tion key to STOPto prevent battery run-
down.
fig. 57F0G0223m
fig. 58F0G0069m
If, after a crash, you smell fu-
el or see leaks from the fuel
system, do not reset the switch to
avoid fine risk.
WARNINGThe cigar lighter gets very
hot. Be careful how you han-
dle it and make sure it is not used by
children: danger of fire or burns.
WARNING
The ashtray can be removed and can be
placed into the glass holder to be used al-
so by rear passengers.
Do not use the ashtray as waste paper
basket: it might set on fire in contact with
cigarette stubs.
032-059 Panda New GB 21-06-2007 13:48 Pagina 53
Page 65 of 206
64
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

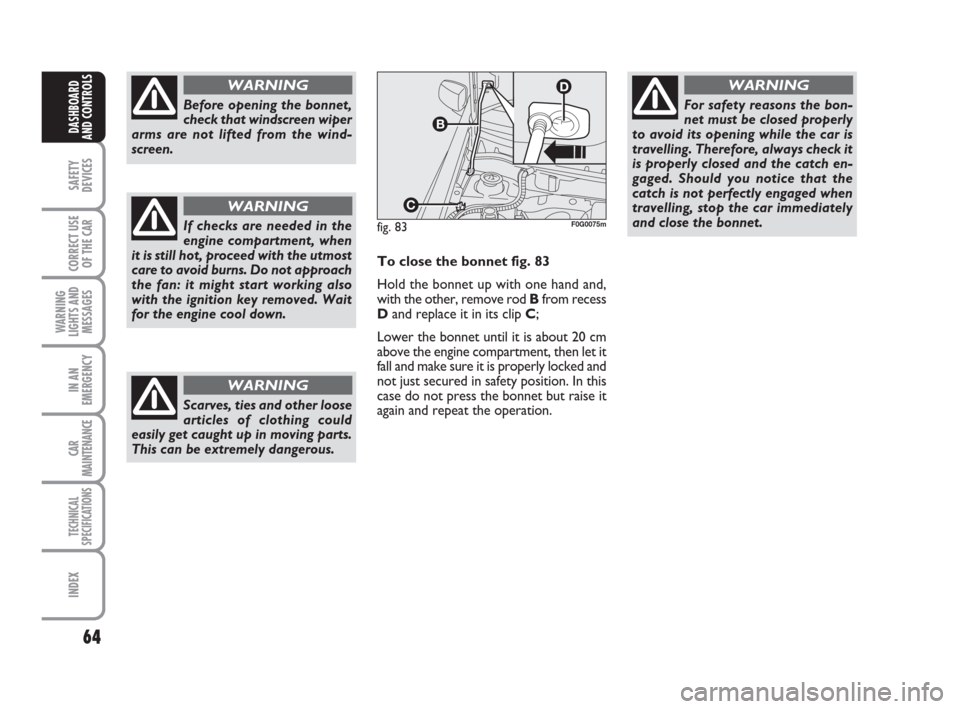

Before opening the bonnet,
check that windscreen wiper
arms are not lifted from the wind-
screen.
WARNING
fig. 83
C
B
F0G0075m
To close the bonnet fig. 83
Hold the bonnet up with one hand and,
with the other, remove rod Bfrom recess
Dand replace it in its clip C;
Lower the bonnet until it is about 20 cm
above the engine compartment, then let it
fall and make sure it is properly locked and
not just secured in safety position. In this
case do not press the bonnet but raise it
again and repeat the operation.
For safety reasons the bon-
net must be closed properly
to avoid its opening while the car is
travelling. Therefore, always check it
is properly closed and the catch en-
gaged. Should you notice that the
catch is not perfectly engaged when
travelling, stop the car immediately
and close the bonnet.
WARNING
If checks are needed in the
engine compartment, when
it is still hot, proceed with the utmost
care to avoid burns. Do not approach
the fan: it might start working also
with the ignition key removed. Wait
for the engine cool down.
WARNING
Scarves, ties and other loose
articles of clothing could
easily get caught up in moving parts.
This can be extremely dangerous.
WARNING
060-080 Panda New GB 21-06-2007 13:48 Pagina 64
Page 73 of 206
72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.
“DUALDRIVE” ELECTRIC
POWER STEERING
SYSTEM
(where provided)
Certain versions feature a new electrical-
ly controlled power steering system called
“Dualdrive” working only with ignition key
at MARand engine running, that can be
customised by the driver according to the
driving conditions.
IMPORTANT When turning quickly the
ignition key, power steering full operation
is obtained after 1-2 seconds.
EOBD SYSTEM (petrol
versions)
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the car correlated with
emissions. It also alerts the driver, by turn-
ing on the warning light
Ufig. 91on the
instrument panel together with relevant
message on the reconfigurable multifunc-
tion display (where provided), when these
conditions are no longer in peak condi-
tions (see section “Warning lights and
messages”).
The objective is:
❒to keep the system efficiency under
control;
❒warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace deterio-
rated components.
The system has a diagnostic connector
that can be interfaced with appropriate
tools, which makes it possible to read the
error codes stored in the control unit, to-
gether with a series of specific parameters
for engine operation and diagnosis.
This check can also be performed by traf-
fic controller agents.
fig. 91F0G0161m
If turning the ignition key to
MAR, the warning light Udoes not turn on or if, while
travelling it turns on glowing
steadily or flashing (together with the
message on the reconfigurable multi-
function display (where provided), con-
tact Fiat Dealership as soon as possi-
ble. Warning light
Uoperation can be
checked by means of special equip-
ment by traffic agents. Always comply
with the traffic regulations in force in
the country where you are travelling.
060-080 Panda New GB 21-06-2007 13:48 Pagina 72
Page 99 of 206
98
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

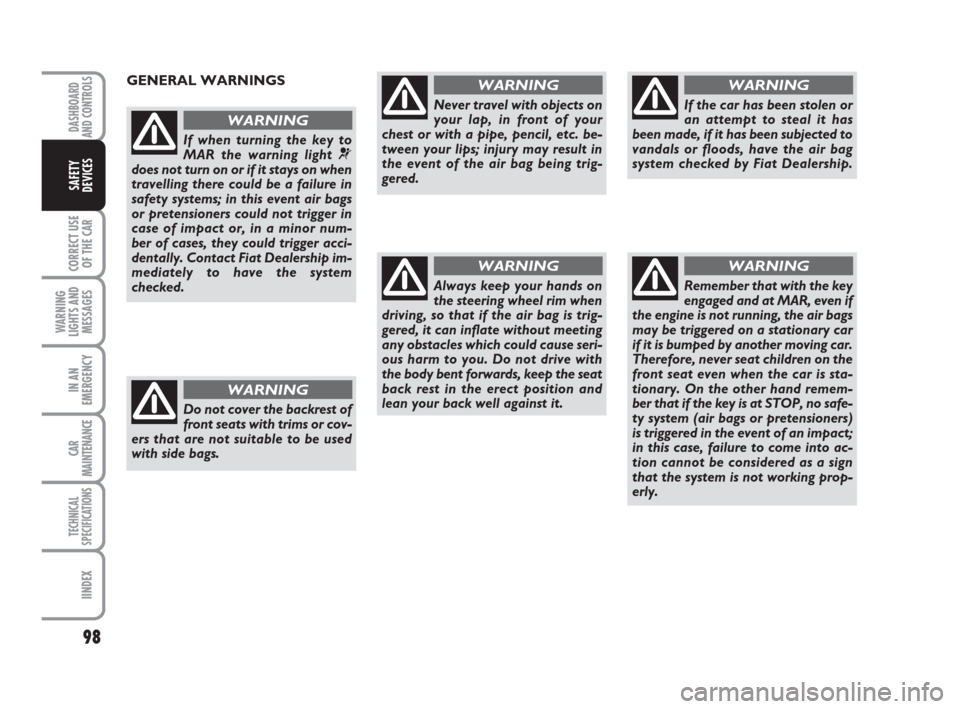

GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬
does not turn on or if it stays on when
travelling there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor num-
ber of cases, they could trigger acci-
dentally. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
Do not cover the backrest of
front seats with trims or cov-
ers that are not suitable to be used
with side bags.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Always keep your hands on
the steering wheel rim when
driving, so that if the air bag is trig-
gered, it can inflate without meeting
any obstacles which could cause seri-
ous harm to you. Do not drive with
the body bent forwards, keep the seat
back rest in the erect position and
lean your back well against it.
WARNING
Remember that with the key
engaged and at MAR, even if
the engine is not running, the air bags
may be triggered on a stationary car
if it is bumped by another moving car.
Therefore, never seat children on the
front seat even when the car is sta-
tionary. On the other hand remem-
ber that if the key is at STOP, no safe-
ty system (air bags or pretensioners)
is triggered in the event of an impact;
in this case, failure to come into ac-
tion cannot be considered as a sign
that the system is not working prop-
erly.
WARNING
If the car has been stolen or
an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
081-100 Panda New GB 21-06-2007 13:49 Pagina 98
Page 107 of 206

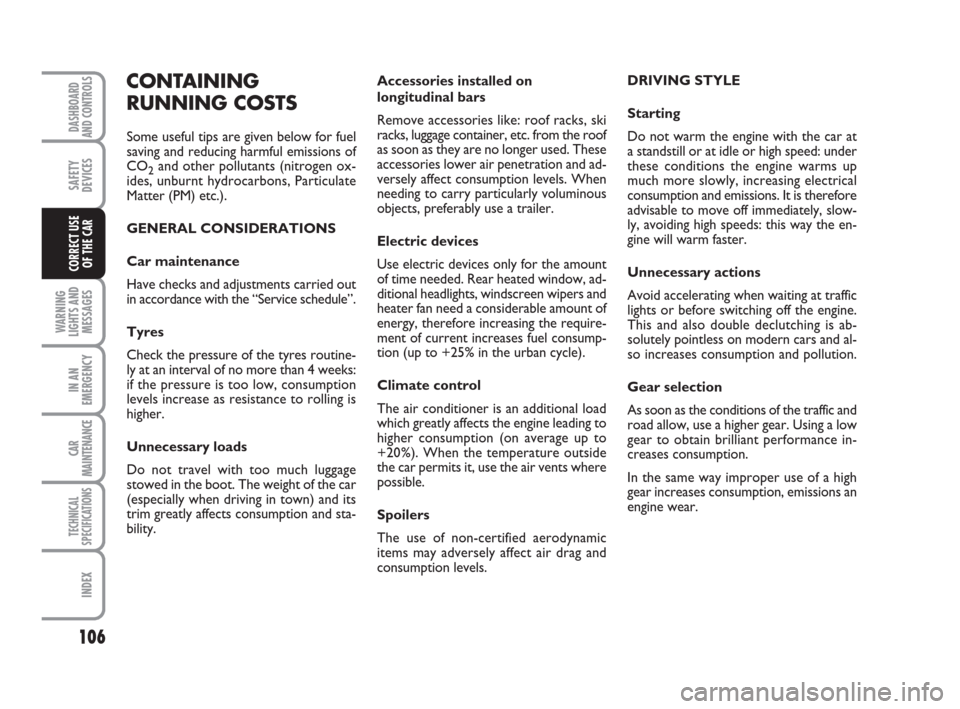

Accessories installed on
longitudinal bars
Remove accessories like: roof racks, ski
racks, luggage container, etc. from the roof
as soon as they are no longer used. These
accessories lower air penetration and ad-
versely affect consumption levels. When
needing to carry particularly voluminous
objects, preferably use a trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).
Climate control
The air conditioner is an additional load
which greatly affects the engine leading to
higher consumption (on average up to
+20%). When the temperature outside
the car permits it, use the air vents where
possible.
Spoilers
The use of non-certified aerodynamic
items may adversely affect air drag and
consumption levels.DRIVING STYLE
Starting
Do not warm the engine with the car at
a standstill or at idle or high speed: under
these conditions the engine warms up
much more slowly, increasing electrical
consumption and emissions. It is therefore
advisable to move off immediately, slow-
ly, avoiding high speeds: this way the en-
gine will warm faster.
Unnecessary actions
Avoid accelerating when waiting at traffic
lights or before switching off the engine.
This and also double declutching is ab-
solutely pointless on modern cars and al-
so increases consumption and pollution.
Gear selection
As soon as the conditions of the traffic and
road allow, use a higher gear. Using a low
gear to obtain brilliant performance in-
creases consumption.
In the same way improper use of a high
gear increases consumption, emissions an
engine wear.CONTAINING
RUNNING COSTS
Some useful tips are given below for fuel
saving and reducing harmful emissions of
CO
2and other pollutants (nitrogen ox-
ides, unburnt hydrocarbons, Particulate
Matter (PM) etc.).
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service schedule”.
Tyres
Check the pressure of the tyres routine-
ly at an interval of no more than 4 weeks:
if the pressure is too low, consumption
levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with too much luggage
stowed in the boot. The weight of the car
(especially when driving in town) and its
trim greatly affects consumption and sta-
bility.
106
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
101-112 Panda New GB 21-06-2007 13:50 Pagina 106
Page 113 of 206
❒ clean and protect the shiny metal parts
using special compounds readily avail-
able;
❒ sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒ slightly open the windows;
❒cover the car with a cloth or perforat-
ed plastic sheet. Do not use sheets of
non-perforated plastic as they do not
allow moisture on the car body to
evaporate;
❒inflate tyres to +0,5 bar above the nor-
mal specified pressure and check it at
intervals;
❒ if you don’t disconnect the battery from
the electric system, check its charge
every month and recharge it if the op-
tical indicator shows a dark colour
without the central green area;
❒ do not drain the engine cooling system.

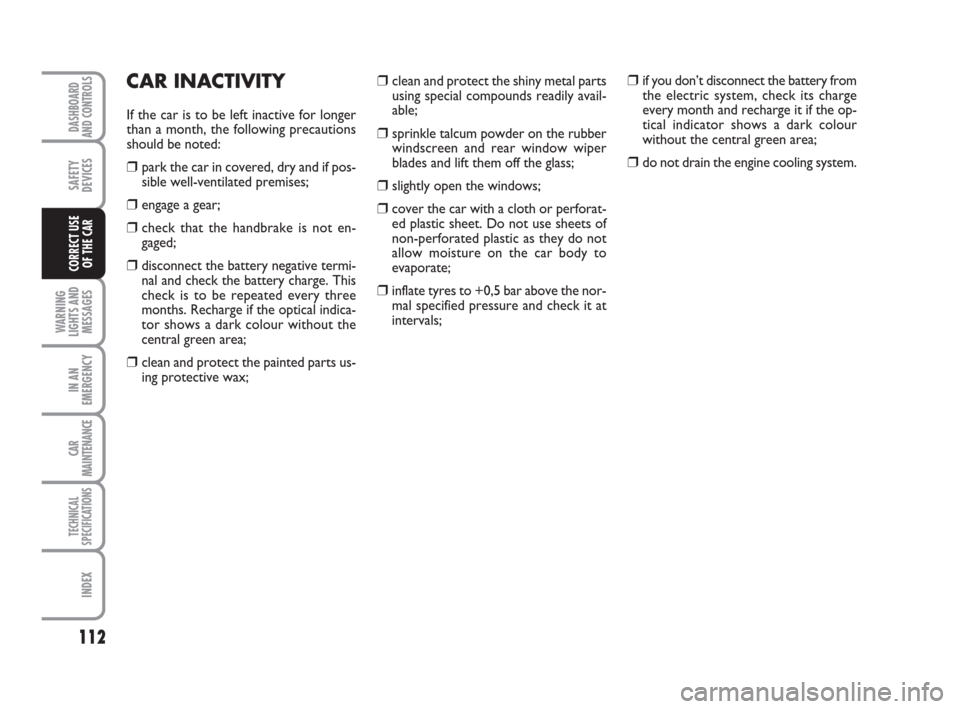

CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒ park the car in covered, dry and if pos-
sible well-ventilated premises;
❒ engage a gear;
❒ check that the handbrake is not en-
gaged;
❒disconnect the battery negative termi-
nal and check the battery charge. This
check is to be repeated every three
months. Recharge if the optical indica-
tor shows a dark colour without the
central green area;
❒ clean and protect the painted parts us-
ing protective wax;
112
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
101-112 Panda New GB 21-06-2007 13:50 Pagina 112
Page 116 of 206
115
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

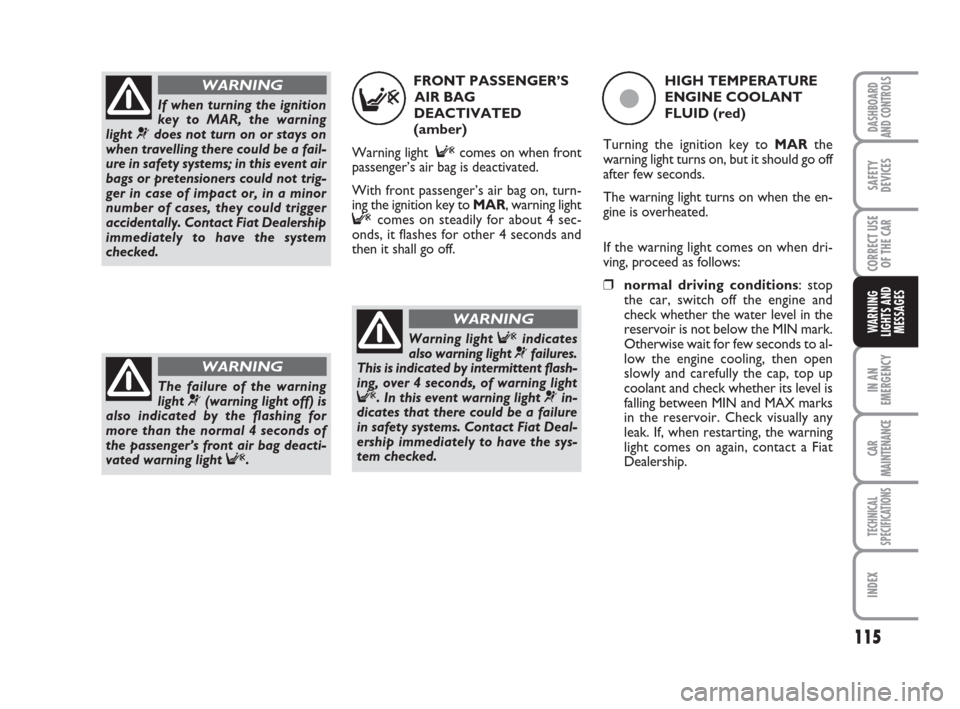

If when turning the ignition
key to MAR, the warning
light ¬does not turn on or stays on
when travelling there could be a fail-
ure in safety systems; in this event air
bags or pretensioners could not trig-
ger in case of impact or, in a minor
number of cases, they could trigger
accidentally. Contact Fiat Dealership
immediately to have the system
checked.
WARNING
The failure of the warning
light ¬(warning light off) is
also indicated by the flashing for
more than the normal 4 seconds of
the passenger’s front air bag deacti-
vated warning light F.
WARNING
FRONT PASSENGER’S
AIR BAG
DEACTIVATED
(amber)
Warning lightFcomes on when front
passenger’s air bag is deactivated.
With front passenger’s air bag on, turn-
ing the ignition key to MAR, warning light
Fcomes on steadily for about 4 sec-
onds, it flashes for other 4 seconds and
then it shall go off.
F
Warning light Findicates
also warning light ¬failures.
This is indicated by intermittent flash-
ing, over 4 seconds, of warning light
F. In this event warning light ¬in-
dicates that there could be a failure
in safety systems. Contact Fiat Deal-
ership immediately to have the sys-
tem checked.
WARNING
HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on when dri-
ving, proceed as follows:
❒normal driving conditions: stop
the car, switch off the engine and
check whether the water level in the
reservoir is not below the MIN mark.
Otherwise wait for few seconds to al-
low the engine cooling, then open
slowly and carefully the cap, top up
coolant and check whether its level is
falling between MIN and MAX marks
in the reservoir. Check visually any
leak. If, when restarting, the warning
light comes on again, contact a Fiat
Dealership.
ç
113-122 Panda New GB 26-06-2007 11:04 Pagina 115
Page 117 of 206
116
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

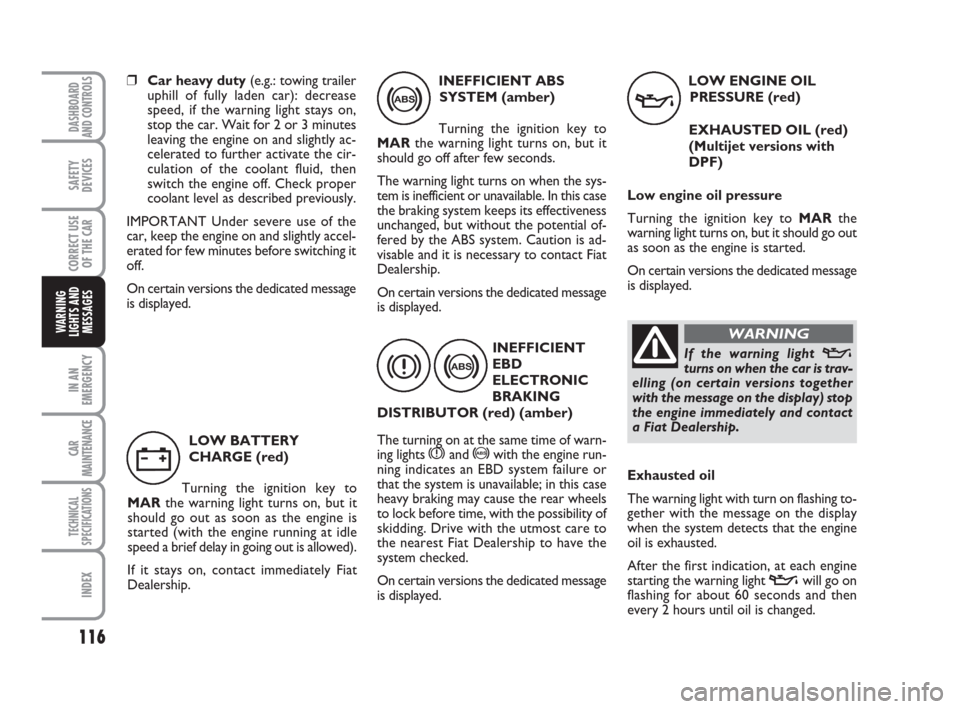

❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease
speed, if the warning light stays on,
stop the car. Wait for 2 or 3 minutes
leaving the engine on and slightly ac-
celerated to further activate the cir-
culation of the coolant fluid, then
switch the engine off. Check proper
coolant level as described previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
On certain versions the dedicated message
is displayed.
LOW BATTERY
CHARGE (red)
Turning the ignition key to
MARthe warning light turns on, but it
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If it stays on, contact immediately Fiat
Dealership.
w
INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system. Caution is ad-
visable and it is necessary to contact Fiat
Dealership.
On certain versions the dedicated message
is displayed.
>
INEFFICIENT
EBD
ELECTRONIC
BRAKING
DISTRIBUTOR (red) (amber)
The turning on at the same time of warn-
ing lights
xand >with the engine run-
ning indicates an EBD system failure or
that the system is unavailable; in this case
heavy braking may cause the rear wheels
to lock before time, with the possibility of
skidding. Drive with the utmost care to
the nearest Fiat Dealership to have the
system checked.
On certain versions the dedicated message
is displayed.
x>
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED OIL (red)
(Multijet versions with
DPF)
Low engine oil pressure
Turning the ignition key to MARthe
warning light turns on, but it should go out
as soon as the engine is started.
On certain versions the dedicated message
is displayed.
v
If the warning light vturns on when the car is trav-
elling (on certain versions together
with the message on the display) stop
the engine immediately and contact
a Fiat Dealership.
WARNING
Exhausted oil
The warning light with turn on flashing to-
gether with the message on the display
when the system detects that the engine
oil is exhausted.
After the first indication, at each engine
starting the warning light
vwill go on
flashing for about 60 seconds and then
every 2 hours until oil is changed.
113-122 Panda New GB 26-06-2007 11:04 Pagina 116
Page 119 of 206
118
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

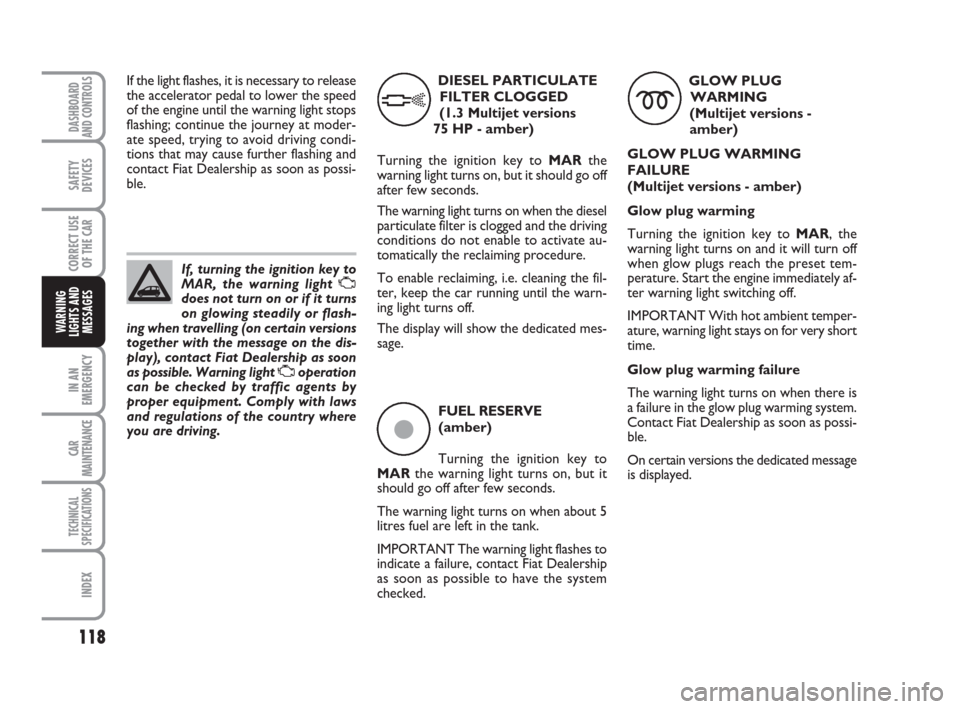

If, turning the ignition key to
MAR, the warning light U
does not turn on or if it turns
on glowing steadily or flash-
ing when travelling (on certain versions
together with the message on the dis-
play), contact Fiat Dealership as soon
as possible. Warning light Uoperation
can be checked by traffic agents by
proper equipment. Comply with laws
and regulations of the country where
you are driving.
ç
FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
The warning light turns on when about 5
litres fuel are left in the tank.
IMPORTANT The warning light flashes to
indicate a failure, contact Fiat Dealership
as soon as possible to have the system
checked.GLOW PLUG
WARMING
(Multijet versions -
amber)
GLOW PLUG WARMING
FAILURE
(Multijet versions - amber)
Glow plug warming
Turning the ignition key to MAR, the
warning light turns on and it will turn off
when glow plugs reach the preset tem-
perature. Start the engine immediately af-
ter warning light switching off.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
Glow plug warming failure
The warning light turns on when there is
a failure in the glow plug warming system.
Contact Fiat Dealership as soon as possi-
ble.
On certain versions the dedicated message
is displayed.
m
If the light flashes, it is necessary to release
the accelerator pedal to lower the speed
of the engine until the warning light stops
flashing; continue the journey at moder-
ate speed, trying to avoid driving condi-
tions that may cause further flashing and
contact Fiat Dealership as soon as possi-
ble.DIESEL PARTICULATE
FILTER CLOGGED
(1.3 Multijet versions
75 HP - amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when the diesel
particulate filter is clogged and the driving
conditions do not enable to activate au-
tomatically the reclaiming procedure.
To enable reclaiming, i.e. cleaning the fil-
ter, keep the car running until the warn-
ing light turns off.
The display will show the dedicated mes-
sage.
h
113-122 Panda New GB 26-06-2007 11:04 Pagina 118
