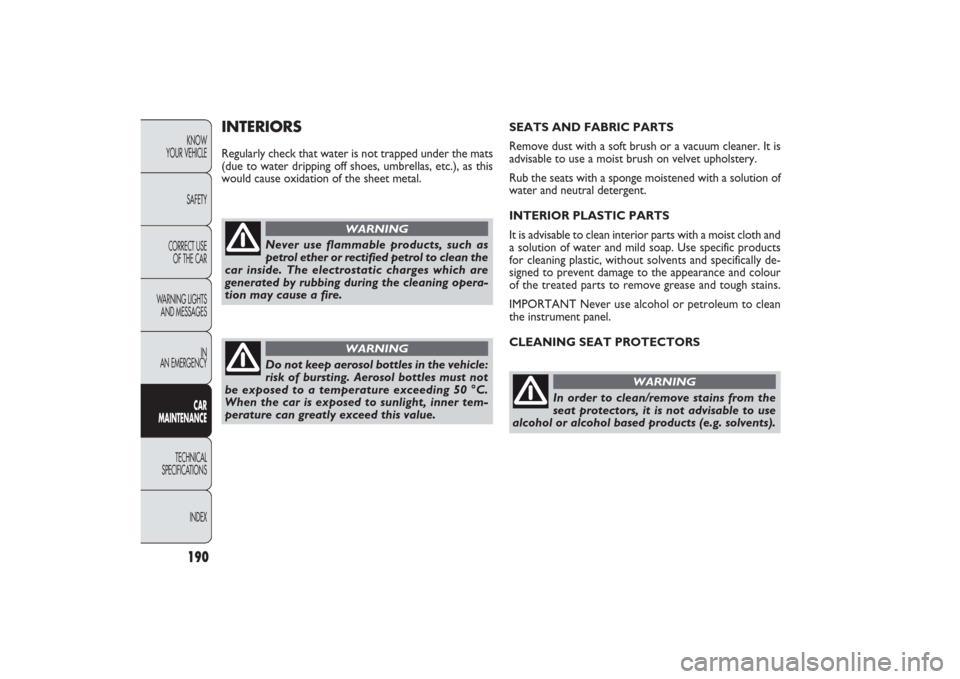

INTERIORSRegularly check that water is not trapped under the mats
(due to water dripping off shoes, umbrellas, etc.), as this
would cause oxidation of the sheet metal.
Never use flammable products, such as
petrol ether or rectified petrol to clean the
car inside. The electrostatic charges which are
generated by rubbing during the cleaning opera-
tion may cause a fire.
WARNING
Do not keep aerosol bottles in the vehicle:
risk of bursting. Aerosol bottles must not
be exposed to a temperature exceeding 50 °C.
When the car is exposed to sunlight, inner tem-
perature can greatly exceed this value.
WARNING
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner. It is
advisable to use a moist brush on velvet upholstery.
Rub the seats with a sponge moistened with a solution of
water and neutral detergent.
INTERIOR PLASTIC PARTS
It is advisable to clean interior parts with a moist cloth and
a solution of water and mild soap. Use specific products
for cleaning plastic, without solvents and specifically de-
signed to prevent damage to the appearance and colour
of the treated parts to remove grease and tough stains.
IMPORTANT Never use alcohol or petroleum to clean
the instrument panel.
CLEANING SEAT PROTECTORS
In order to clean/remove stains from the
seat protectors, it is not advisable to use
alcohol or alcohol based products (e.g. solvents).
WARNING
169-190 PANDA EN 7-10-2009 14:15 Pagina 190

191KNOW
YOUR VEHICLE
SAFETY
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
TECHNICAL SPECIFICATIONS

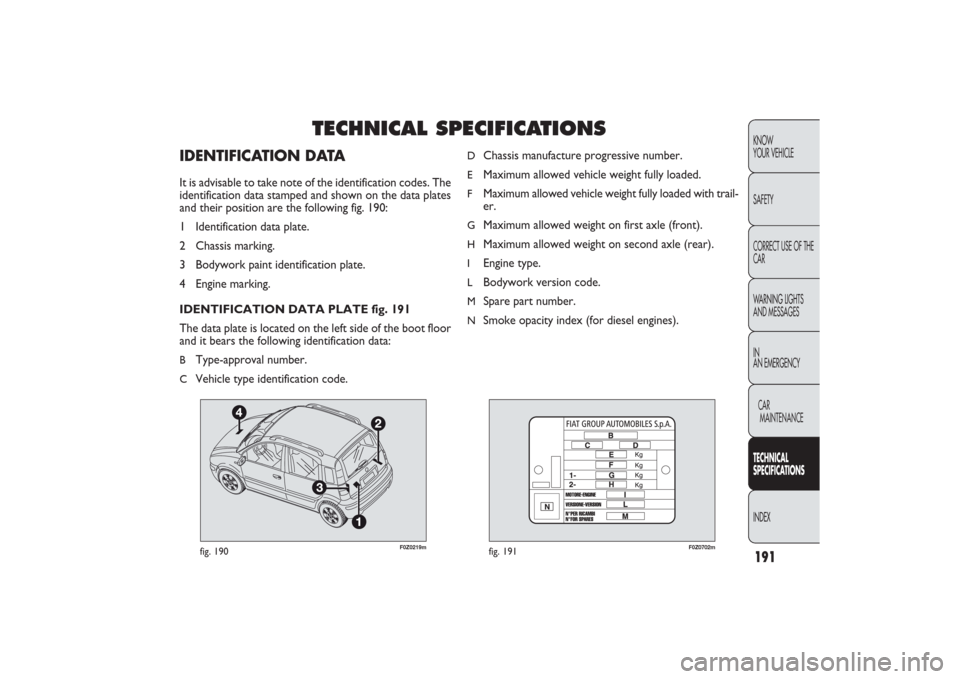

IDENTIFICATION DATAIt is advisable to take note of the identification codes. The
identification data stamped and shown on the data plates
and their position are the following fig. 190:
1 Identification data plate.
2 Chassis marking.
3 Bodywork paint identification plate.
4 Engine marking.
IDENTIFICATION DATA PLATE fig. 191
The data plate is located on the left side of the boot floor
and it bears the following identification data:B
Type-approval number.
C
Vehicle type identification code.
CORRECT USE OF THE
CAR
D
Chassis manufacture progressive number.
E
Maximum allowed vehicle weight fully loaded.
F
Maximum allowed vehicle weight fully loaded with trail-
er.
G
Maximum allowed weight on first axle (front).
H
Maximum allowed weight on second axle (rear).
I
Engine type.
L
Bodywork version code.
M
Spare part number.
N
Smoke opacity index (for diesel engines).
F0Z0219m
fig. 190
F0Z0702m
fig. 191
191-214 PANDA EN 7-10-2009 14:17 Pagina 191

192
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE OF
THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
F0Z0114m
fig. 192
F0Z0220m
fig. 193
CHASSIS MARKING fig. 193
The plate is located on the right side of the boot floor and
it bears the following identification data:❒
vehicle type (ZFA 169000);
❒
the chassis progressive number.
ENGINE MARKING
Engine marking is stamped on the cylinder block and in-
cludes the model and the chassis progressive number. BODYWORK PAINT IDENTIFICATION PLATE
fig. 192
The plate is applied on the external tailgate post (left side)
and it bears the following data:
A
Paint manufacturer.
B
Colour name.
C
Fiat colour code.
D
Paint respray and touch-up code.
191-214 PANDA EN 7-10-2009 14:17 Pagina 192

193KNOW
YOUR VEHICLE
SAFETY
CORRECT USE OF THE
CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

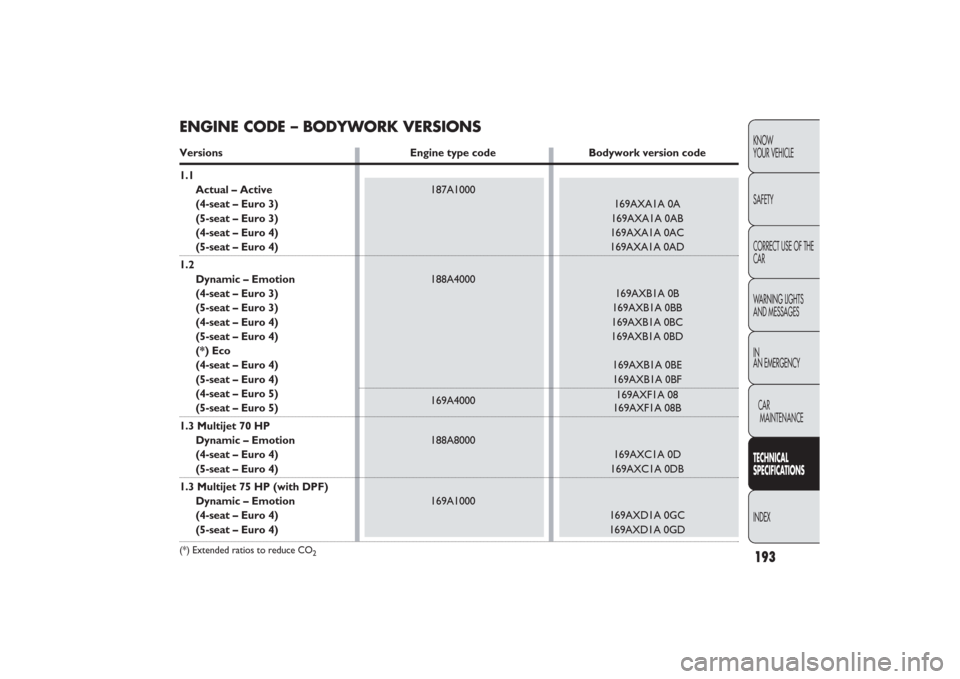

ENGINE CODE – BODYWORK VERSIONSVersions Engine type code Bodywork version code
1.1
Actual – Active187A1000
(4-seat – Euro 3)169AXA1A 0A
(5-seat – Euro 3)169AXA1A 0AB
(4-seat – Euro 4)169AXA1A 0AC
(5-seat – Euro 4)169AXA1A 0AD
1.2
Dynamic – Emotion188A4000
(4-seat – Euro 3)169AXB1A 0B
(5-seat – Euro 3)169AXB1A 0BB
(4-seat – Euro 4)169AXB1A 0BC
(5-seat – Euro 4)169AXB1A 0BD
(*) Eco
(4-seat – Euro 4)169AXB1A 0BE(5-seat – Euro 4)169AXB1A 0BF
(4-seat – Euro 5)
169A4000169AXF1A 08(5-seat – Euro 5)169AXF1A 08B
1.3 Multijet 70 HP
Dynamic – Emotion188A8000
(4-seat – Euro 4)169AXC1A 0D(5-seat – Euro 4)169AXC1A 0DB
1.3 Multijet 75 HP (with DPF)
Dynamic – Emotion169A1000
(4-seat – Euro 4)169AXD1A 0GC(5-seat – Euro 4)169AXD1A 0GD
(*) Extended ratios to reduce CO
2
191-214 PANDA EN 7-10-2009 14:17 Pagina 193

187A1000
Otto
4 in line
70 × 72
1108
9.6 : 1
40
54
5000
88
9.0
2750
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 R.O.N.
169A1000
Diesel
4 in line
69.6 × 82
1248
17.6 : 1
55
75
4000
145
14.8
1500
–Diesel fuel for
motor vehicles
(EN 590 standard)
188A8000
Diesel
4 in line
69.6 × 82
1248
18 : 1
51
70
4000
145
14.8
1500
–Diesel fuel for
motor vehicles
(EN 590 standard)
169A4000
Otto
4 in line
70.8 × 78.86
1242
11.1 : 1
51
69
5500
102
10.4
3000NGK ZKR7A-10
Unleaded petrol
95 R.O.N.
188A4000
Otto
4 in line
70.8 × 78.86
1242
9.8 : 1
44
60
5000
102
10.4
2500
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 R.O.N.
194
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE OF
THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

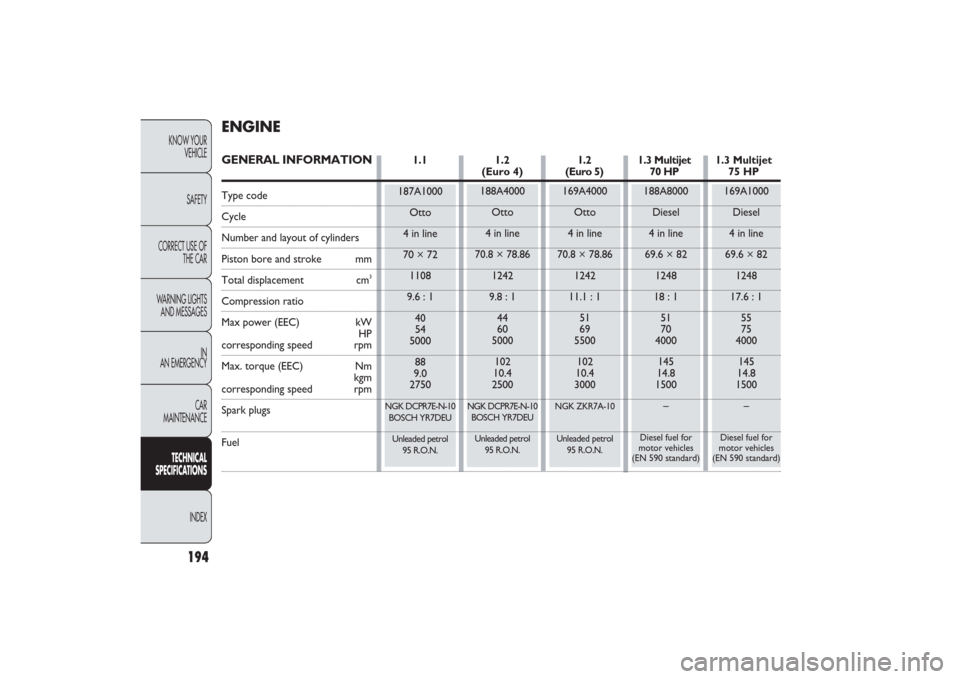

ENGINEGENERAL INFORMATIONType codeCycleNumber and layout of cylindersPiston bore and stroke mmTotal displacement cm
3
Compression ratio
Max power (EEC) kW
HP corresponding speed rpm
Max. torque (EEC) Nm
kgm corresponding speed rpm
Spark plugs Fuel
1.1 1.2
(Euro 4)1.2
(Euro 5)1.3 Multijet
70 HP1.3 Multijet
75 HP
191-214 PANDA EN 7-10-2009 14:17 Pagina 194

Five forward gears plus reverse with synchronizers for
forward gear engagement
Self-adjusting pedal without idle stroke
Front
195KNOW
YOUR VEHICLE
SAFETY
CORRECT USE OF THE
CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

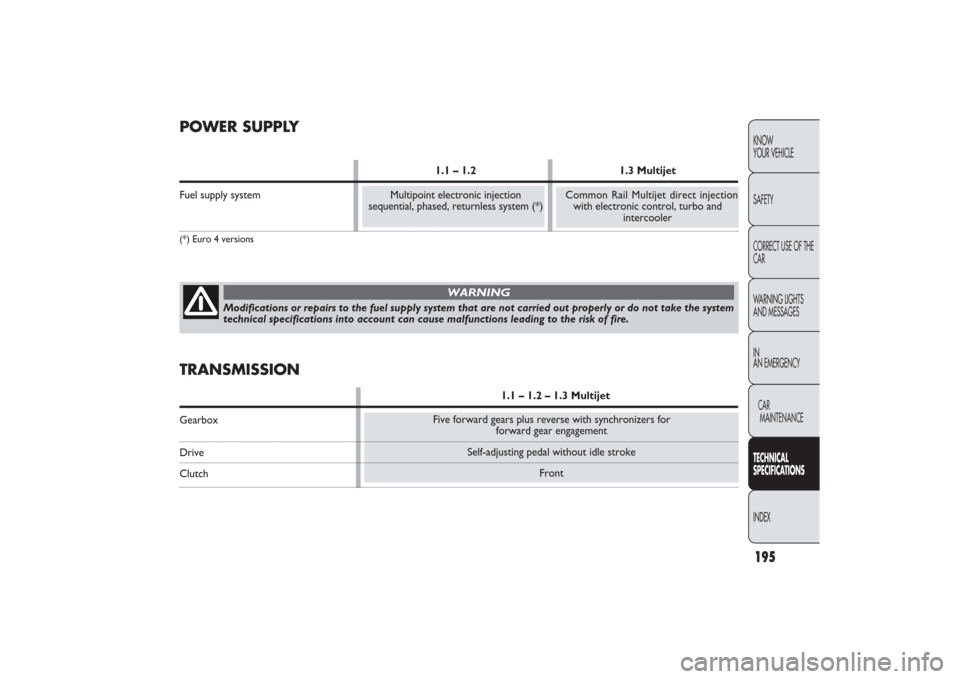

POWER SUPPLY
1.1 – 1.2 1.3 Multijet
Fuel supply system Multipoint electronic injection Common Rail Multijet direct injection
sequential, phased, returnless system (*) with electronic control, turbo and
intercooler
(*) Euro 4 versions
Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.1 – 1.2 – 1.3 Multijet
Gearbox
DriveClutch
191-214 PANDA EN 7-10-2009 14:17 Pagina 195

Mc Pherson independent wheels, mechanical cross member,
shock absorbers and coil springs; anti-roll bar for versions with electric power
steering.
torsion beam with interconnected wheels consisting of a torsion axle and
two tubular arms with shock absorbers and coil springs.rack and pinion with electric power steering (where provided)
9.1
disc (self-ventilating for 1.3 Multijet engine)
drum, self-centering shoes with one control cylinder for each wheel
controlled by hand lever, working on rear brakes
196
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE OF
THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

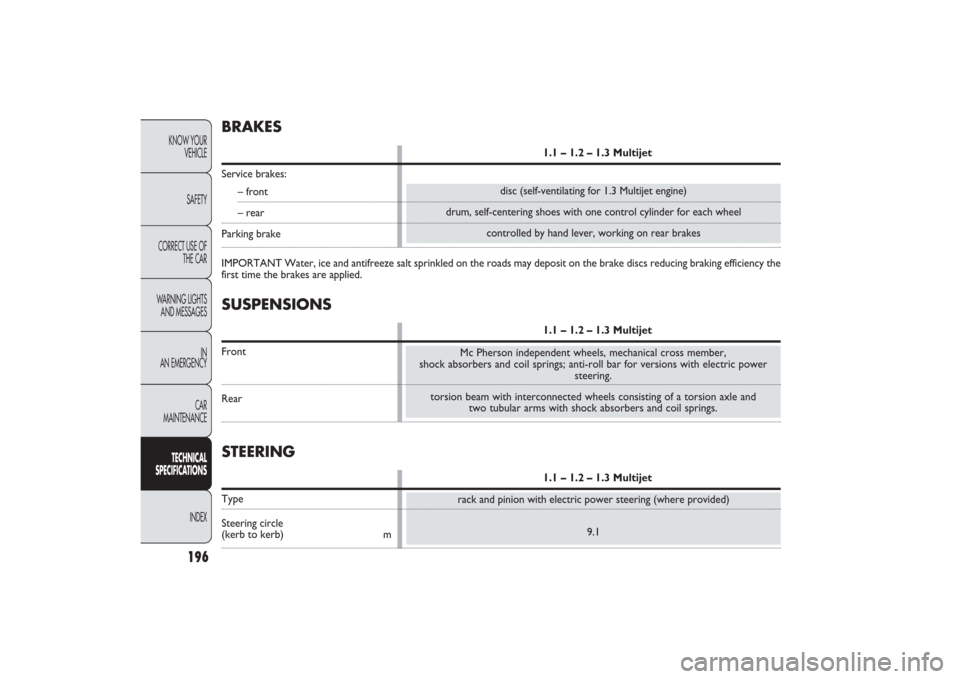

SUSPENSIONS
1.1 – 1.2 – 1.3 Multijet
Front
RearBRAKES
1.1 – 1.2 – 1.3 Multijet
Service brakes:
– front– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt sprinkled on the roads may deposit on the brake discs reducing braking efficiency the
first time the brakes are applied.STEERING
1.1 – 1.2 – 1.3 Multijet
Type
Steering circle (kerb to kerb) m
191-214 PANDA EN 7-10-2009 14:17 Pagina 196

197KNOW
YOUR VEHICLE
SAFETY
CORRECT USE OF THE
CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
F0Z0111m
fig. 194

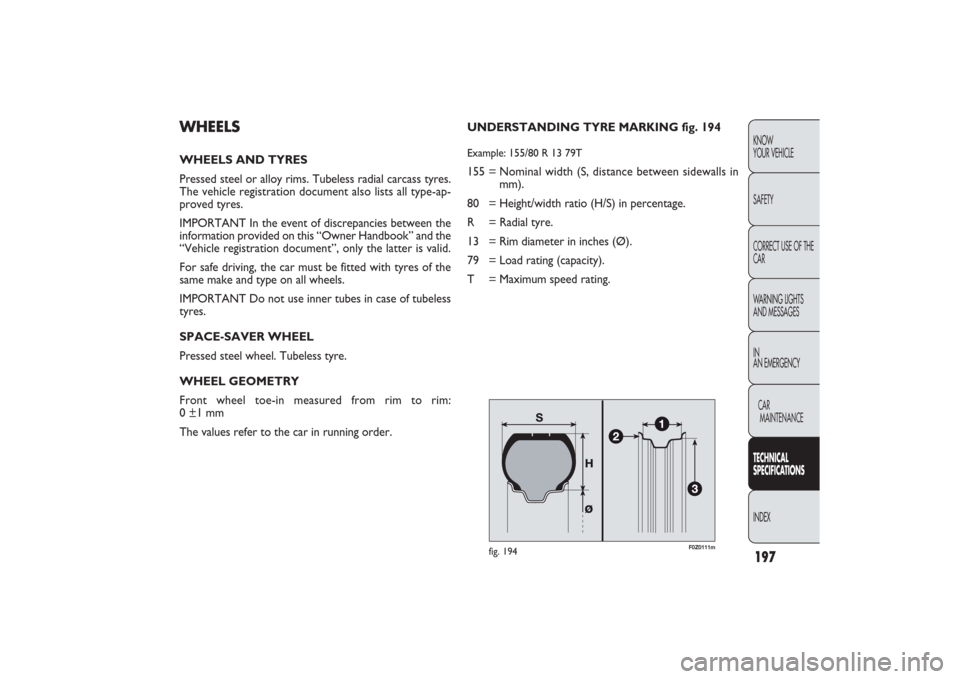

UNDERSTANDING TYRE MARKING fig. 194Example: 155/80 R 13 79T155 = Nominal width (S, distance between sidewalls in
mm).
80 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
13 = Rim diameter in inches (Ø).
79 = Load rating (capacity).
T = Maximum speed rating.
WHEELSWHEELS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres.
The vehicle registration document also lists all type-ap-
proved tyres.
IMPORTANT In the event of discrepancies between the
information provided on this “Owner Handbook” and the
“Vehicle registration document”, only the latter is valid.
For safe driving, the car must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use inner tubes in case of tubeless
tyres.
SPACE-SAVER WHEEL
Pressed steel wheel. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim:
0 ±1 mm
The values refer to the car in running order.
191-214 PANDA EN 7-10-2009 14:17 Pagina 197

198
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE OF
THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

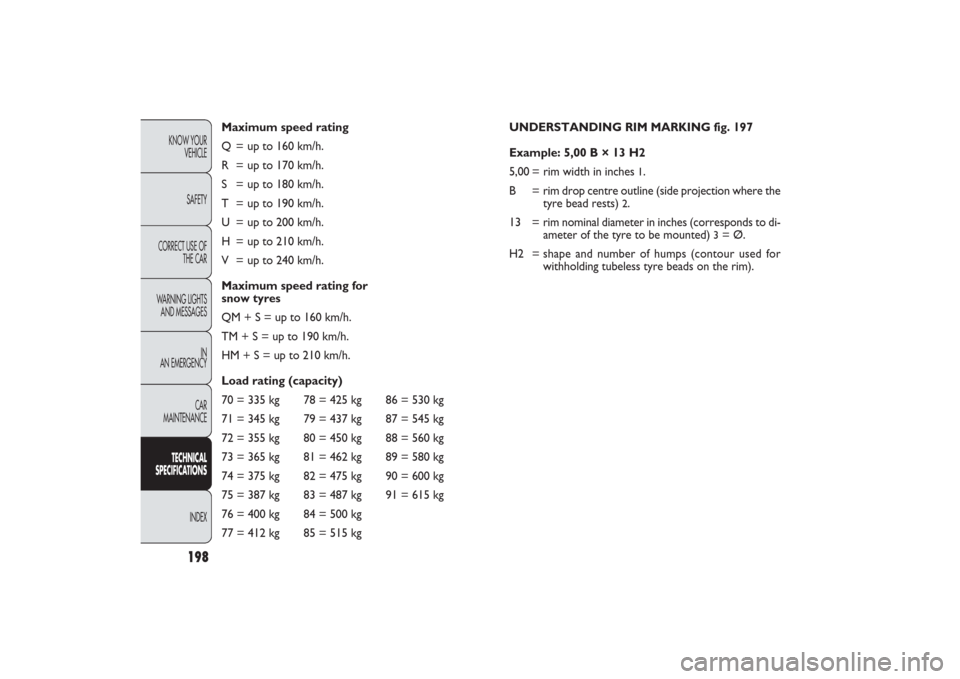

UNDERSTANDING RIM MARKING fig. 197
Example: 5,00 B × 13 H2
5,00 = rim width in inches
1.
B = rim drop centre outline (side projection where the
tyre bead rests)
2.
13 = rim nominal diameter in inches (corresponds to di-
ameter of the tyre to be mounted)
3= Ø.
H2 = shape and number of humps (contour used for
withholding tubeless tyre beads on the rim). Maximum speed rating
Q = up to 160 km/h.
R = up to 170 km/h.
S = up to 180 km/h.
T = up to 190 km/h.
U = up to 200 km/h.
H = up to 210 km/h.
V = up to 240 km/h.
Maximum speed rating for
snow tyres
QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.
Load rating (capacity)
70 = 335 kg 78 = 425 kg 86 = 530 kg
71 = 345 kg 79 = 437 kg 87 = 545 kg
72 = 355 kg 80 = 450 kg 88 = 560 kg
73 = 365 kg 81 = 462 kg 89 = 580 kg
74 = 375 kg 82 = 475 kg 90 = 600 kg
75 = 387 kg 83 = 487 kg 91 = 615 kg
76 = 400 kg 84 = 500 kg
77 = 412 kg 85 = 515 kg
191-214 PANDA EN 7-10-2009 14:17 Pagina 198

5,00 B × 13 H2
(steel)
5J × 14 H2
(alloy)
165/65 R14 79T
155/80 R13 79T
199KNOW
YOUR VEHICLE
SAFETY
CORRECT USE OF THE
CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
4,50 B 13 H
S135/80 B13 82M
135/80 R13 82P
155/80 R13 79T
165/65 R14 79T
155/80 R13 79T M+S
165/65 R14 79T M+S Version Rims Tyres Tyres Tyre Space-saving wheel
standard snow type optional Rim Tyre
Actual
Active
Dynamic
Emotion
2.0
2.0
2.2
2.2
2.0
2.0
2.2
2.2
2.3
2.3
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
1.8
1.8
1.8
1.8
1.8
1.8
155/80 R 13 79T
165/65 R 14 79T
155/80 R 13 79T
165/65 R 14 79T
155/80 R 13 79T M+S
165/65 R 14 79T M+S2.8
2.8
COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar in relation to the recommended figure.
However, recheck that the value is correct with the tyre cold.Versions Tyres Medium load Full load Space-saving wheel
Front Rear Front Rear
Petrol
MultijetSnow tyres
191-214 PANDA EN 7-10-2009 14:17 Pagina 199
