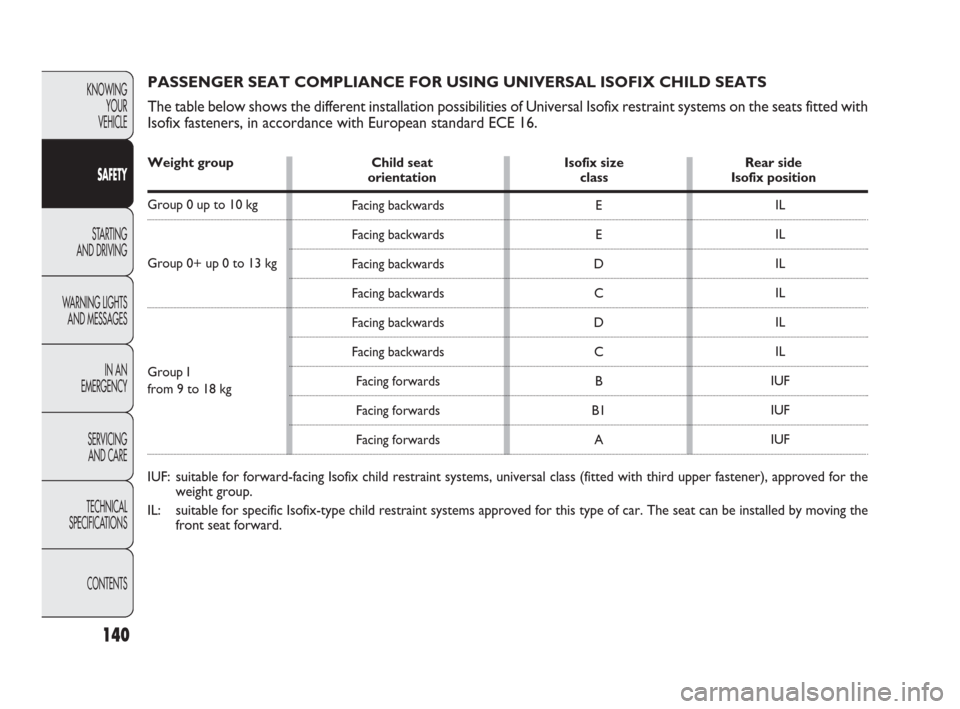

PASSENGER SEAT COMPLIANCE FOR USING UNIVERSAL ISOFIX CHILD SEATS
The table below shows the different installation possibilities of Universal Isofix restraint systems on the seats fitted with
Isofix fasteners, in accordance with European standard ECE 16.
Weight group Child seat Isofix size Rear side orientation class Isofix position
Group 0 up to 10 kg
Group 0+ up 0 to 13 kg
Group I
from 9 to 18 kg
IUF: suitable for forward-facing Isofix child restraint systems, universal class (fitted with third upper fastener), approved for the
weight group.
IL: suitable for specific Isofix-type child restraint systems approved for this type of car. The seat can be installed by moving the
front seat forward.
IL
IL
IL
IL
IL
IL
IUF
IUF
IUF Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwards
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 140

141

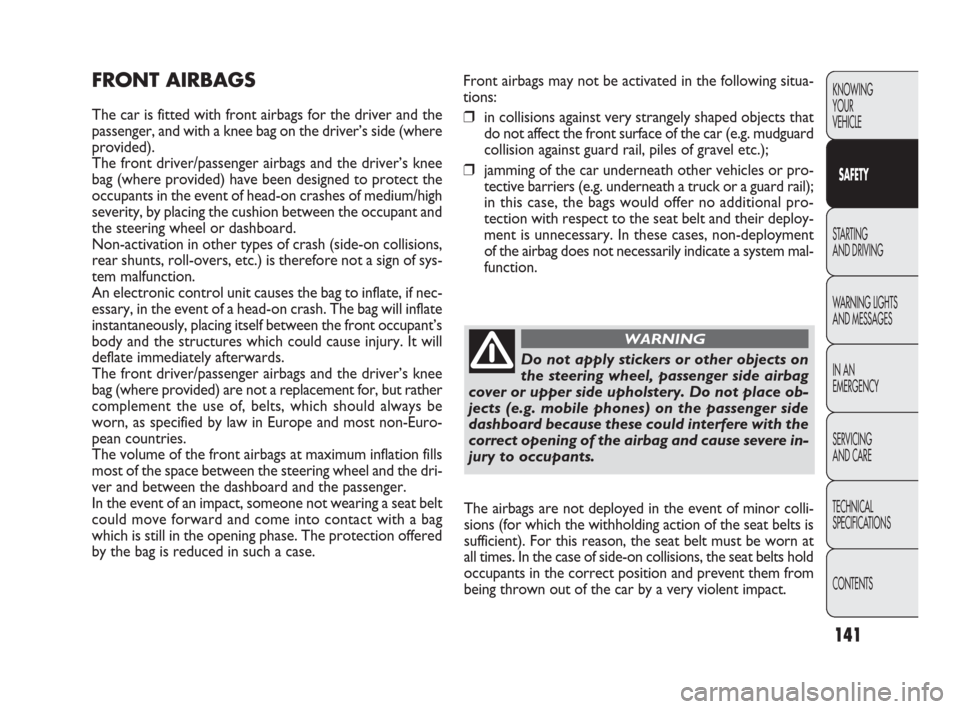

Front airbags may not be activated in the following situa-
tions:
❒in collisions against very strangely shaped objects that
do not affect the front surface of the car (e.g. mudguard
collision against guard rail, piles of gravel etc.);
❒jamming of the car underneath other vehicles or pro-
tective barriers (e.g. underneath a truck or a guard rail);
in this case, the bags would offer no additional pro-
tection with respect to the seat belt and their deploy-
ment is unnecessary. In these cases, non-deployment
of the airbag does not necessarily indicate a system mal-
function.FRONT AIRBAGS
The car is fitted with front airbags for the driver and the
passenger, and with a knee bag on the driver’s side (where
provided).
The front driver/passenger airbags and the driver’s knee
bag (where provided) have been designed to protect the
occupants in the event of head-on crashes of medium/high
severity, by placing the cushion between the occupant and
the steering wheel or dashboard.
Non-activation in other types of crash (side-on collisions,
rear shunts, roll-overs, etc.) is therefore not a sign of sys-
tem malfunction.
An electronic control unit causes the bag to inflate, if nec-
essary, in the event of a head-on crash. The bag will inflate
instantaneously, placing itself between the front occupant’s
body and the structures which could cause injury. It will
deflate immediately afterwards.
The front driver/passenger airbags and the driver’s knee
bag (where provided) are not a replacement for, but rather
complement the use of, belts, which should always be
worn, as specified by law in Europe and most non-Euro-
pean countries.
The volume of the front airbags at maximum inflation fills
most of the space between the steering wheel and the dri-
ver and between the dashboard and the passenger.
In the event of an impact, someone not wearing a seat belt
could move forward and come into contact with a bag
which is still in the opening phase. The protection offered
by the bag is reduced in such a case.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not apply stickers or other objects on
the steering wheel, passenger side airbag
cover or upper side upholstery. Do not place ob-
jects (e.g. mobile phones) on the passenger side
dashboard because these could interfere with the
correct opening of the airbag and cause severe in-
jury to occupants.
WARNING
The airbags are not deployed in the event of minor colli-
sions (for which the withholding action of the seat belts is
sufficient). For this reason, the seat belt must be worn at
all times. In the case of side-on collisions, the seat belts hold
occupants in the correct position and prevent them from
being thrown out of the car by a very violent impact.
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 141

142
F0U0125mfig. 142F0U0126mfig. 143

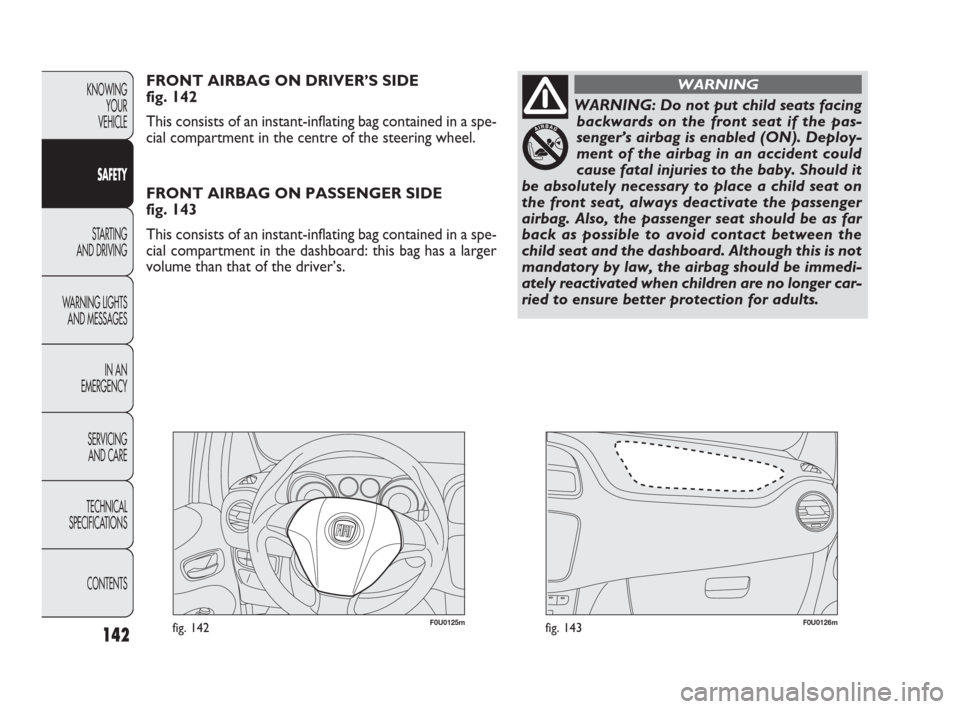

FRONT AIRBAG ON DRIVER’S SIDE
fig. 142
This consists of an instant-inflating bag contained in a spe-
cial compartment in the centre of the steering wheel.
FRONT AIRBAG ON PASSENGER SIDE
fig. 143
This consists of an instant-inflating bag contained in a spe-
cial compartment in the dashboard: this bag has a larger
volume than that of the driver’s.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
WARNING: Do not put child seats facing
backwards on the front seat if the pas-
senger’s airbag is enabled (ON). Deploy-
ment of the airbag in an accident could
cause fatal injuries to the baby. Should it
be absolutely necessary to place a child seat on
the front seat, always deactivate the passenger
airbag. Also, the passenger seat should be as far
back as possible to avoid contact between the
child seat and the dashboard. Although this is not
mandatory by law, the airbag should be immedi-
ately reactivated when children are no longer car-
ried to ensure better protection for adults.
WARNING
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 142

143
F0U0343mfig. 144
KNEE BAG ON DRIVER’S SIDE fig. 144
(for versions/markets where provided)
This consists of an instant-inflating bag contained in a spe-
cial compartment under the steering wheel at knee level,
designed to give further protection in the event of a head-
on crash.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

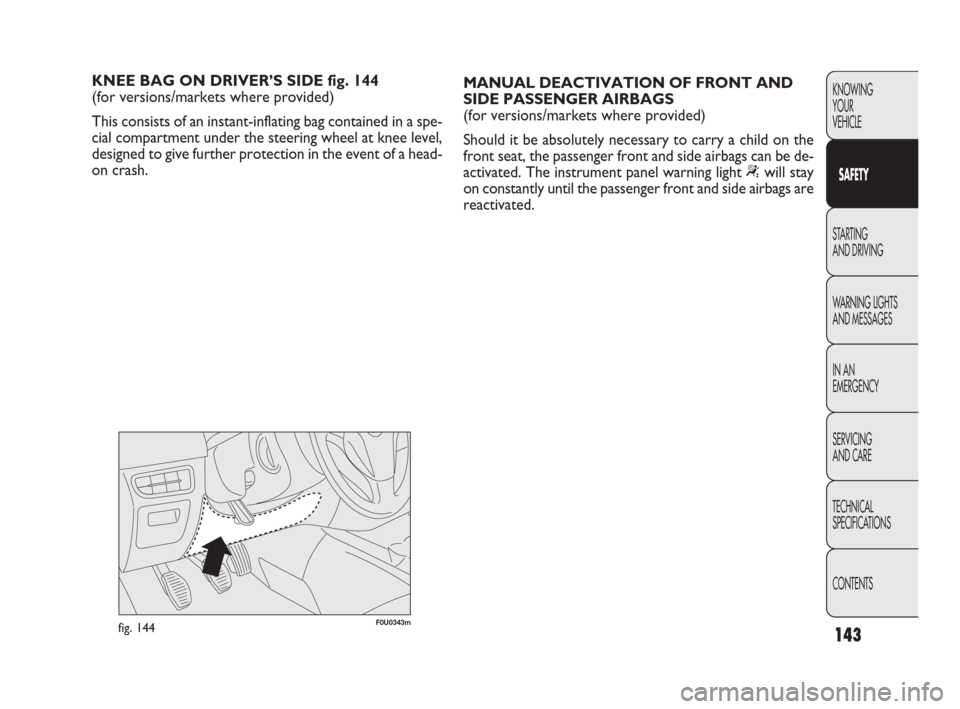

MANUAL DEACTIVATION OF FRONT AND
SIDE PASSENGER AIRBAGS
(for versions/markets where provided)
Should it be absolutely necessary to carry a child on the
front seat, the passenger front and side airbags can be de-
activated. The instrument panel warning light
“will stay
on constantly until the passenger front and side airbags are
reactivated.
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 143

144
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
To manually deactivate the passenger’s
front and side chest/pelvis airbags (for ver-
sions/markets where provided), refer to para-
graphs “Digital display” and “Multifunction dis-
play” in the section “Dashboard and controls”.
WARNINGSIDE AIRBAGS
The car is fitted with front side airbags for driver and pas-
senger (for versions/markets where provided) for pro-
tecting the chest and pelvis, and window bags (for ver-
sions/markets where provided) for protecting the heads
of front and rear occupants.
Side airbags (for versions/markets where provided) pro-
tect car occupants from side-on crashes of medium/high
severity by placing the bag between the occupant and the
internal parts of the side structure of the car. Non-acti-
vation of side bags in other types of collisions (head-on
collisions, rear shunts, roll-overs, etc...) is not an indica-
tion of system malfunction. In the event of a side-on crash,
an electronic control unit triggers the inflation of the bag
if required. The cushion immediately inflates, placing it-
self between the occupant’s body and structures that could
cause injuries, the cushion deflates Immediately afterwards.
Side bags (for versions/markets where provided) are not
a replacement for, but rather a complement to, the seat
belts, which should be worn at all times as specified by law
in Europe and most non-European countries.
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 144

145
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

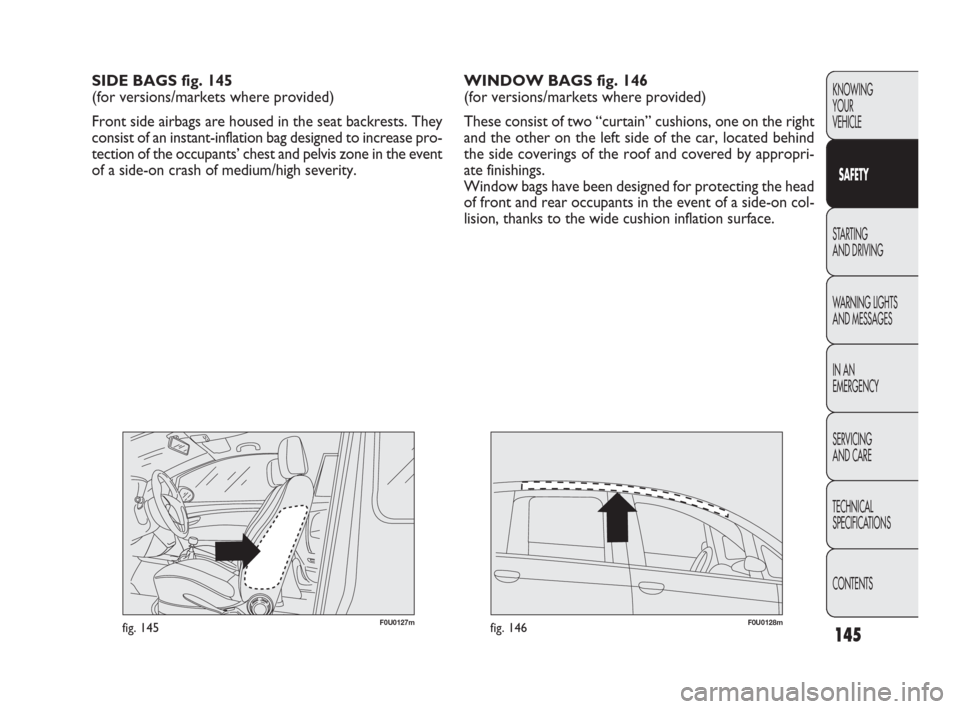

WINDOW BAGS fig. 146
(for versions/markets where provided)
These consist of two “curtain” cushions, one on the right
and the other on the left side of the car, located behind
the side coverings of the roof and covered by appropri-
ate finishings.
Window bags have been designed for protecting the head
of front and rear occupants in the event of a side-on col-
lision, thanks to the wide cushion inflation surface.
F0U0127mfig. 145
SIDE BAGS fig. 145
(for versions/markets where provided)
Front side airbags are housed in the seat backrests. They
consist of an instant-inflation bag designed to increase pro-
tection of the occupants’ chest and pelvis zone in the event
of a side-on crash of medium/high severity.
F0U0128mfig. 146
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 145

146

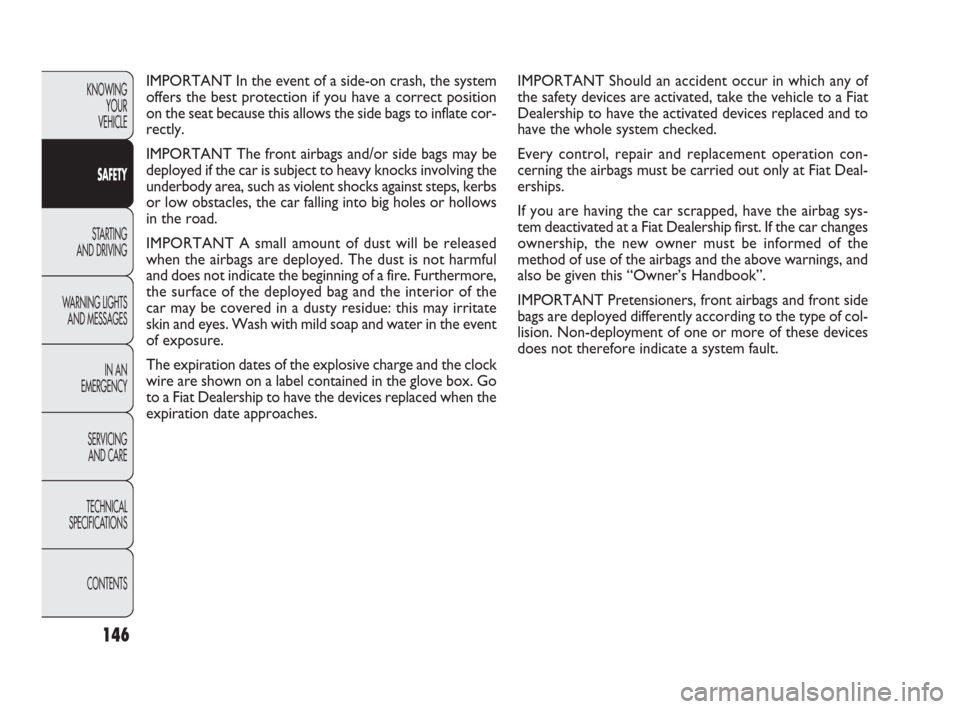

IMPORTANT Should an accident occur in which any of
the safety devices are activated, take the vehicle to a Fiat
Dealership to have the activated devices replaced and to
have the whole system checked.
Every control, repair and replacement operation con-
cerning the airbags must be carried out only at Fiat Deal-
erships.
If you are having the car scrapped, have the airbag sys-
tem deactivated at a Fiat Dealership first. If the car changes
ownership, the new owner must be informed of the
method of use of the airbags and the above warnings, and
also be given this “Owner’s Handbook”.
IMPORTANT Pretensioners, front airbags and front side
bags are deployed differently according to the type of col-
lision. Non-deployment of one or more of these devices
does not therefore indicate a system fault. IMPORTANT In the event of a side-on crash, the system
offers the best protection if you have a correct position
on the seat because this allows the side bags to inflate cor-
rectly.
IMPORTANT The front airbags and/or side bags may be
deployed if the car is subject to heavy knocks involving the
underbody area, such as violent shocks against steps, kerbs
or low obstacles, the car falling into big holes or hollows
in the road.
IMPORTANT A small amount of dust will be released
when the airbags are deployed. The dust is not harmful
and does not indicate the beginning of a fire. Furthermore,
the surface of the deployed bag and the interior of the
car may be covered in a dusty residue: this may irritate
skin and eyes. Wash with mild soap and water in the event
of exposure.
The expiration dates of the explosive charge and the clock
wire are shown on a label contained in the glove box. Go
to a Fiat Dealership to have the devices replaced when the
expiration date approaches.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 146

147
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not rest your head, arms or elbows on
the doors, windows or window bag de-
ployment area as you could be injured during the
inflation phase.
WARNING
Never lean you head, arms or elbows out
of the window.
WARNING
Do not cover the front seat backrest with
sheets or covers that are not compatible
with side bags.
WARNING
If, when turning the key to MAR, the warn-
ing light
¬does not turn on or if it stays
on when travelling (together with the message on
the multifunction display, where provided), there
could be a failure in the safety systems; if this is
the case, the airbags or pretensioners may not trig-
ger in the event of an accident or, in a minor num-
ber of cases, they could activate incorrectly. Con-
tact a Fiat Dealership immediately to have the
system checked before driving off.
WARNING
GENERAL WARNINGS
Do not travel with objects in your lap,
in front of your chest, or between your lips
(pipes, pencils, etc.). In the event of a crash when
the airbag is deployed, you may be seriously in-
jured.
WARNING
Always drive keeping your hands on the
steering wheel rim so that, in the event of
airbag activation, it can inflate without obstruc-
tion. Do not drive with your body slouched for-
wards; keep the backrest upright and lean back
into it.
WARNING
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 147

148
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

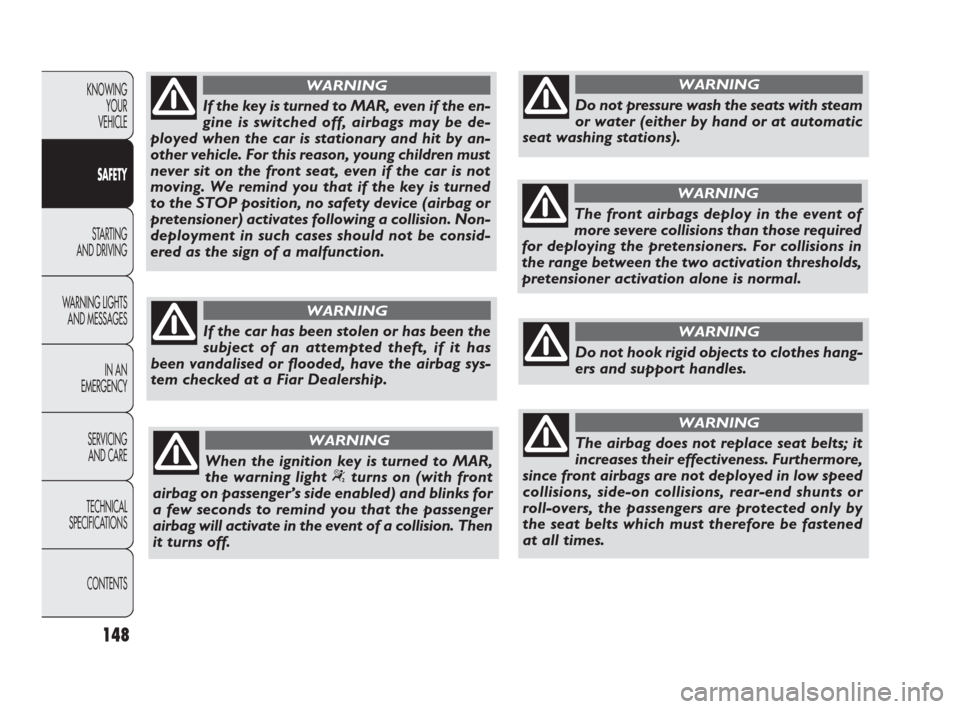

If the key is turned to MAR, even if the en-
gine is switched off, airbags may be de-
ployed when the car is stationary and hit by an-
other vehicle. For this reason, young children must
never sit on the front seat, even if the car is not
moving. We remind you that if the key is turned
to the STOP position, no safety device (airbag or
pretensioner) activates following a collision. Non-
deployment in such cases should not be consid-
ered as the sign of a malfunction.
WARNING
If the car has been stolen or has been the
subject of an attempted theft, if it has
been vandalised or flooded, have the airbag sys-
tem checked at a Fiar Dealership.
WARNING
When the ignition key is turned to MAR,
the warning light “turns on (with front
airbag on passenger’s side enabled) and blinks for
a few seconds to remind you that the passenger
airbag will activate in the event of a collision. Then
it turns off.
WARNING
Do not pressure wash the seats with steam
or water (either by hand or at automatic
seat washing stations).
WARNING
The front airbags deploy in the event of
more severe collisions than those required
for deploying the pretensioners. For collisions in
the range between the two activation thresholds,
pretensioner activation alone is normal.
WARNING
Do not hook rigid objects to clothes hang-
ers and support handles.
WARNING
The airbag does not replace seat belts; it
increases their effectiveness. Furthermore,
since front airbags are not deployed in low speed
collisions, side-on collisions, rear-end shunts or
roll-overs, the passengers are protected only by
the seat belts which must therefore be fastened
at all times.
WARNING
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 148

149
STARTING PROCEDURE FOR PETROL
VERSIONS
Proceed as follows:
❒ensure that the handbrake is on;
❒put the gear lever into neutral;
❒fully depress the clutch pedal without touching the ac-
celerator;
❒turn the ignition key to AVV and let it go the moment
the engine starts.
If the engine does not start at the first attempt, return
the ignition key to STOP before repeating the procedure.
STARTING THE ENGINE
The car is fitted with an electronic engine lock device: if
the engine fails to start, see the paragraph on “The Fiat
CODE system” in the “Dashboard and controls” section.
The engine may be noisier during the first few seconds of
operation, particularly after a long period of inactivity. This
is a feature of hydraulic tappets, the timing system cho-
sen to reduce the number of servicing interventions, and
effects neither functionality nor reliability.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
STARTING AND DRIVING
It is dangerous to let the engine run in en-
closed spaces. The engine consumes oxy-
gen and produces carbon dioxide, carbon monox-
ide and other toxic gases.
WARNING
In the first period of use, we recommend
that you do not demand maximum perfor-
mance from the car (e.g. excessive accel-
eration, extended travel at maximum revs, heavy
braking etc.).
With the engine off, do not leave the
key in the ignition to prevent draining the
battery.
Remember that the brake booster and
power steering are not operational until
the engine has been started, therefore you need
to apply much more force than usual to the brake
pedal and steering wheel.
WARNING
149-160 PUNTO FL EN 4ed 20-01-2010 14:37 Pagina 149
