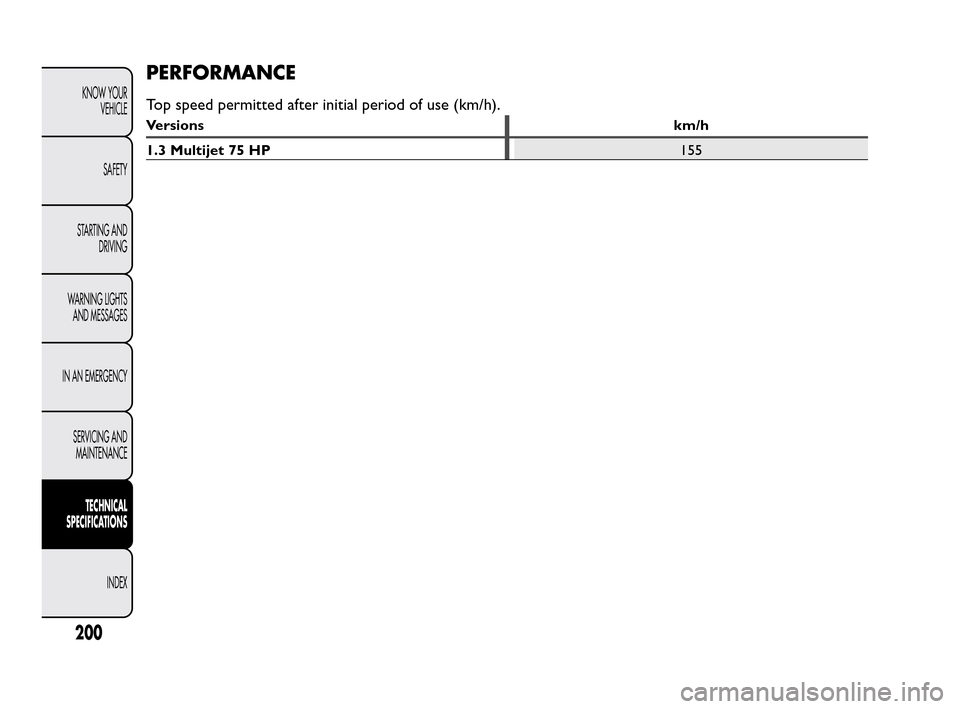

PERFORMANCE
Top speed permitted after initial period of use (km/h).
Versions km/h
1.3 Multijet 75 HP155
200
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

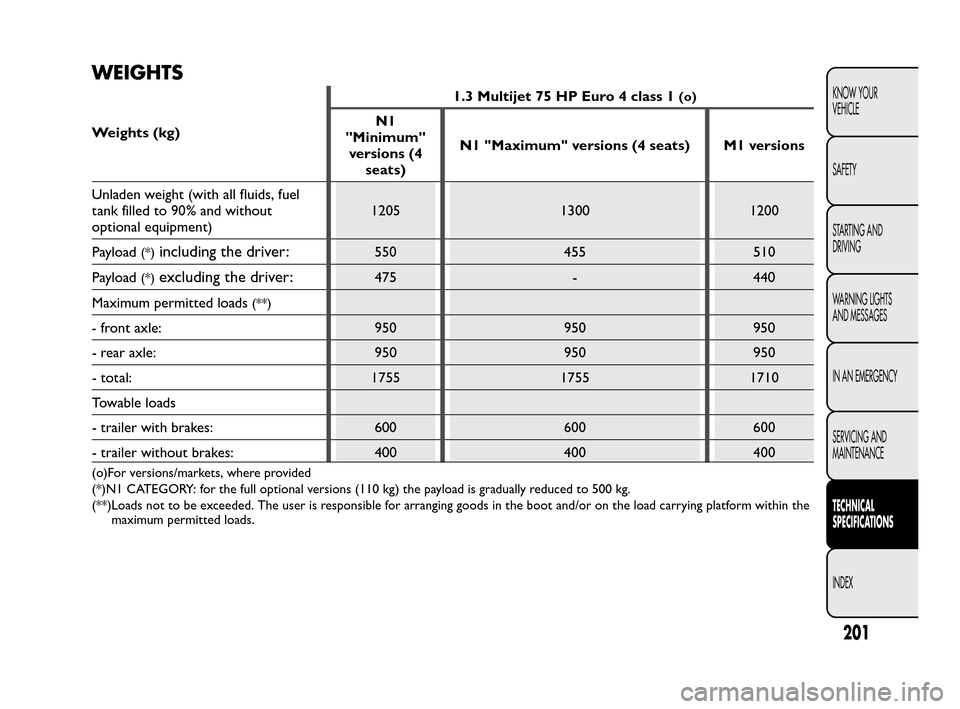

WEIGHTS
Weights (kg)1.3 Multijet 75 HP Euro 4 class 1
(o)
N1
"Minimum"
versions (4
seats)N1 "Maximum" versions (4 seats) M1 versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1205 1300 1200
Payload
(*)including the driver:550 455 510
Payload
(*)excluding the driver:475 - 440
Maximum permitted loads
(**)
- front axle: 950 950 950
- rear axle: 950 950 950
- total: 1755 1755 1710
Towable loads
- trailer with brakes: 600 600 600
- trailer without brakes: 400 400 400
(o)For versions/markets, where provided
(*)N1 CATEGORY: for the full optional versions (110 kg) the payload is gradually reduced to 500 kg.
(**)Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or on the load carrying platform within the
maximum permitted loads.
201
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

Weights (kg)1.3 Multijet 75 HP Euro 4 class 1
(o)
N1
"Minimum"
versions (4
seats)N1 "Maximum" versions (4 seats) M1 versions

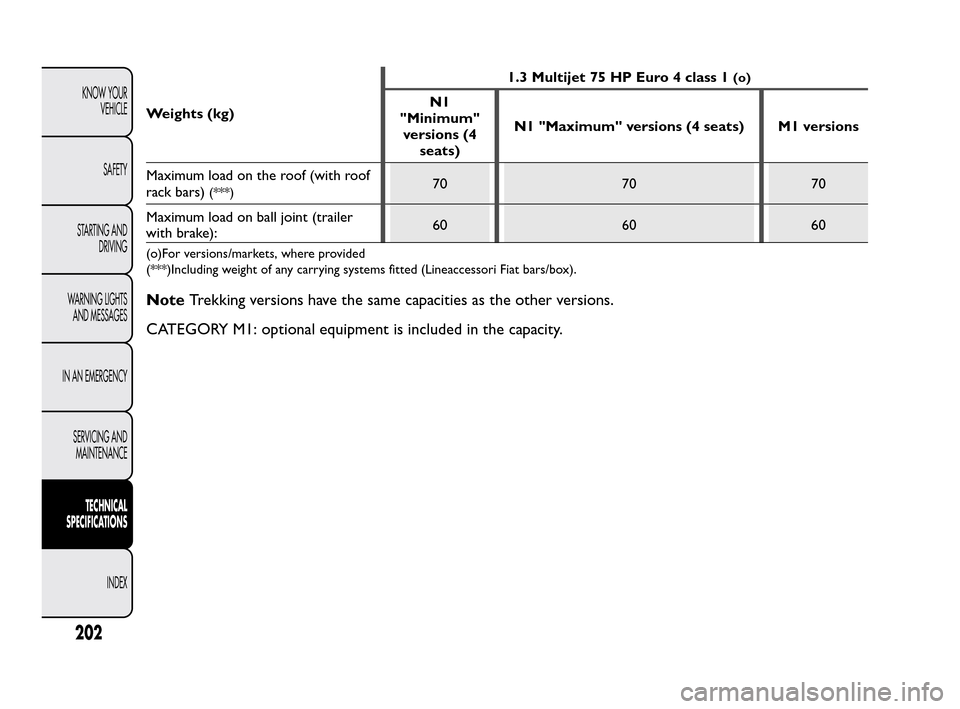

Maximum load on the roof (with roof
rack bars)
(***)70 70 70
Maximum load on ball joint (trailer
with brake):60 60 60
(o)For versions/markets, where provided
(***)Including weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NoteTrekking versions have the same capacities as the other versions.
CATEGORY M1: optional equipment is included in the capacity.
202
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

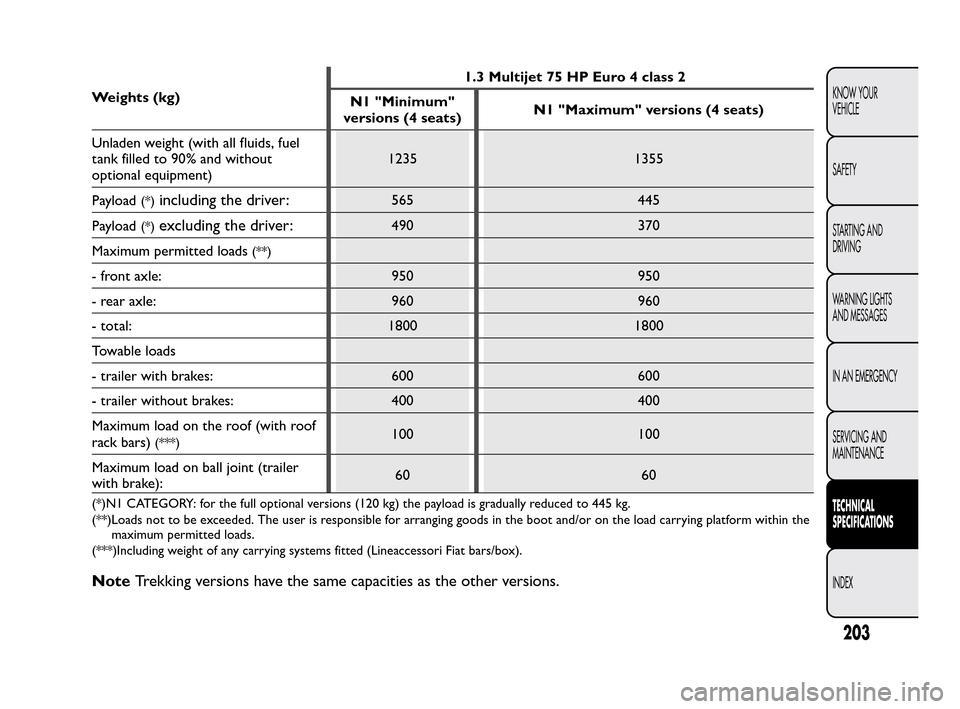

Weights (kg)1.3 Multijet 75 HP Euro 4 class 2
N1 "Minimum"
versions (4 seats)N1 "Maximum" versions (4 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1235 1355
Payload
(*)including the driver:565 445
Payload
(*)excluding the driver:490 370
Maximum permitted loads
(**)
- front axle: 950 950
- rear axle: 960 960
- total: 1800 1800
Towable loads
- trailer with brakes: 600 600
- trailer without brakes: 400 400
Maximum load on the roof (with roof
rack bars)
(***)100 100
Maximum load on ball joint (trailer
with brake):60 60
(*)N1 CATEGORY: for the full optional versions (120 kg) the payload is gradually reduced to 445 kg.
(**)Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or on the load carrying platform within the
maximum permitted loads.
(***)Including weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NoteTrekking versions have the same capacities as the other versions.
203
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

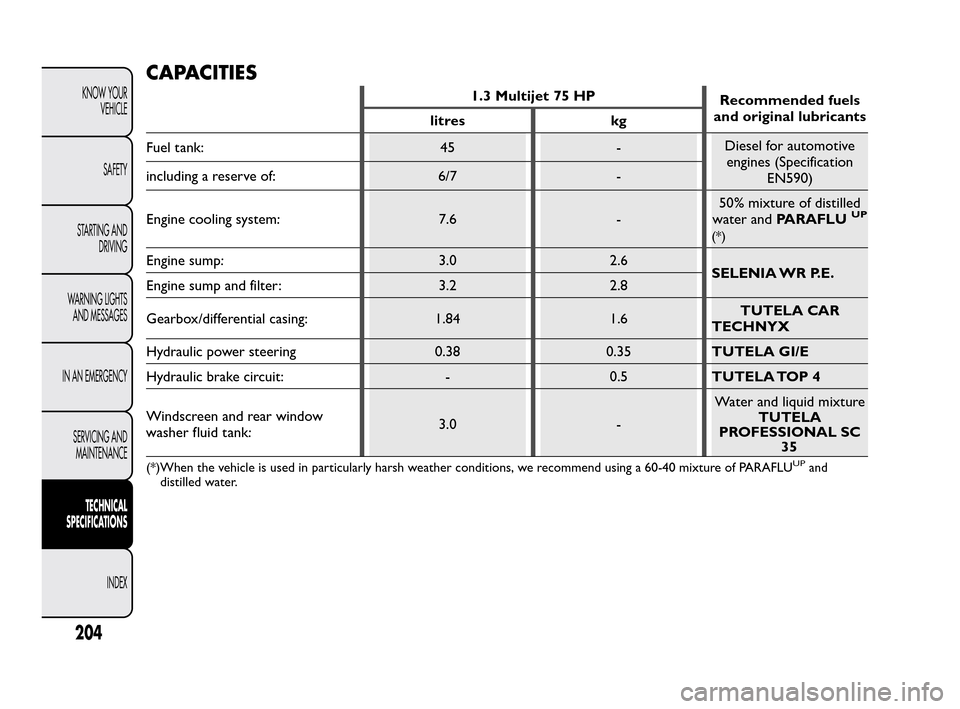

CAPACITIES
1.3 Multijet 75 HP
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Diesel for automotive
engines (Specification
EN590) including a reserve of: 6/7 -
Engine cooling system: 7.6 -50% mixture of distilled
water andPARAFLU
UP
(*)
Engine sump: 3.0 2.6
SELENIA WR P.E.
Engine sump and filter: 3.2 2.8
Gearbox/differential casing: 1.84 1.6TUTELA CAR
TECHNYX
Hydraulic power steering 0.38 0.35TUTELA GI/E
Hydraulic brake circuit: - 0.5TUTELA TOP 4
Windscreen and rear window
washer fluid tank:3.0 -Water and liquid mixture
TUTELA
PROFESSIONAL SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
distilled water.
204
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

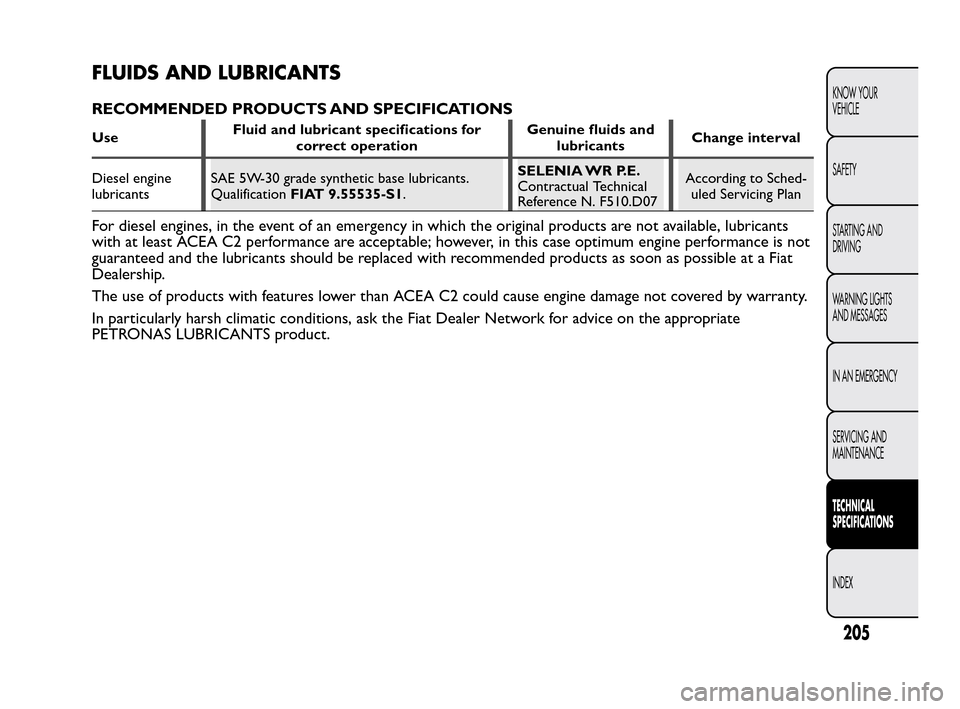

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsChange interval
Diesel engine
lubricantsSAE 5W-30 grade synthetic base lubricants.
QualificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference N. F510.D07According to Sched-
uled Servicing Plan
For diesel engines, in the event of an emergency in which the original products are not available, lubricants
with at least ACEA C2 performance are acceptable; however, in this case optimum engine performance is not
guaranteed and the lubricants should be replaced with recommended products as soon as possible at a Fiat
Dealership.
The use of products with features lower than ACEA C2 could cause engine damage not covered by warranty.
In particularly harsh climatic conditions, ask the Fiat Dealer Network for advice on the appropriate
PETRONAS LUBRICANTS product.
205
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

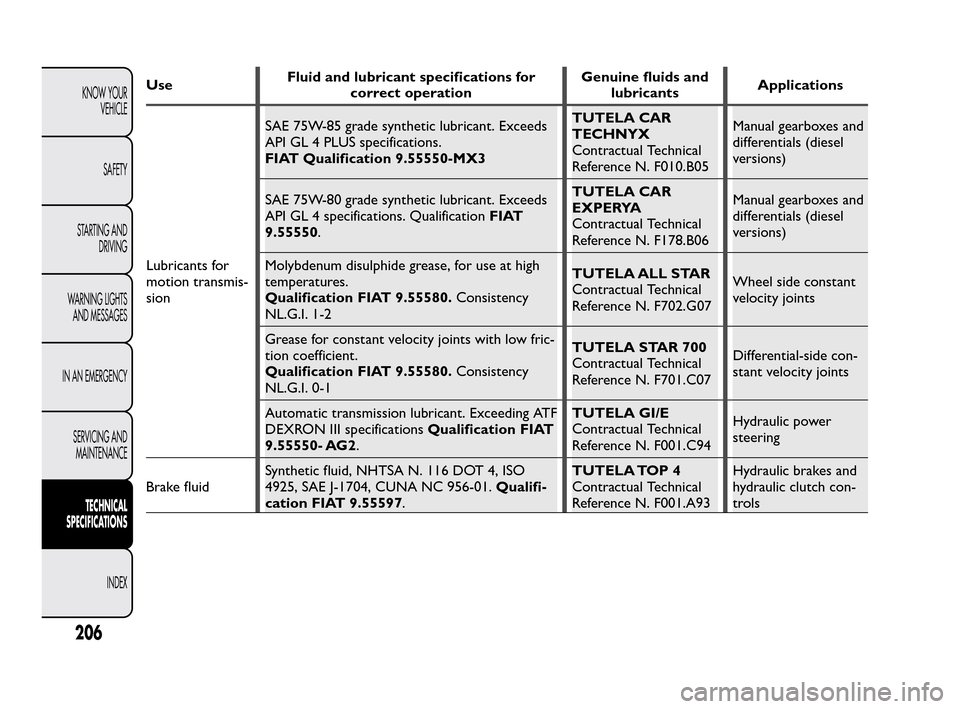

UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsApplications
Lubricants for
motion transmis-
sionSAE 75W-85 grade synthetic lubricant. Exceeds
API GL 4 PLUS specifications.
FIAT Qualification 9.55550-MX3TUTELA CAR
TECHNYX
Contractual Technical
Reference N. F010.B05Manual gearboxes and
differentials (diesel
versions)
SAE 75W-80 grade synthetic lubricant. Exceeds
API GL 4 specifications. QualificationFIAT
9.55550.TUTELA CAR
EXPERYA
Contractual Technical
Reference N. F178.B06Manual gearboxes and
differentials (diesel
versions)
Molybdenum disulphide grease, for use at high
temperatures.
Qualification FIAT 9.55580.Consistency
NL.G.I. 1-2TUTELA ALL STAR
Contractual Technical
Reference N. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low fric-
tion coefficient.
Qualification FIAT 9.55580.Consistency
NL.G.I. 0-1TUTELA STAR 700
Contractual Technical
Reference N. F701.C07Differential-side con-
stant velocity joints
Automatic transmission lubricant. Exceeding ATF
DEXRON III specificationsQualification FIAT
9.55550- AG2.TUTELA GI/E
Contractual Technical
Reference N. F001.C94Hydraulic power
steering
Brake fluidSynthetic fluid, NHTSA N. 116 DOT 4, ISO
4925, SAE J-1704, CUNA NC 956-01.Qualifi-
cation FIAT 9.55597.TUTELA TOP 4
Contractual Technical
Reference N. F001.A93Hydraulic brakes and
hydraulic clutch con-
trols
206
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

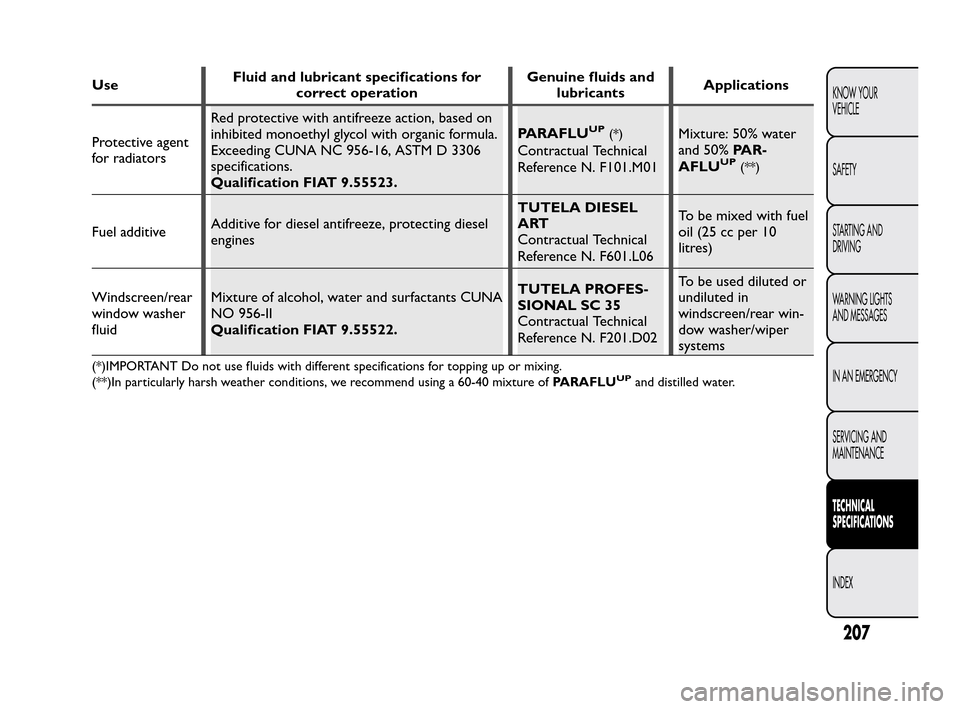

UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective with antifreeze action, based on
inhibited monoethyl glycol with organic formula.
Exceeding CUNA NC 956-16, ASTM D 3306
specifications.
Qualification FIAT 9.55523.PARAFLU
UP(*)
Contractual Technical
Reference N. F101.M01Mixture: 50% water
and 50%PAR-
AFLUUP(**)
Fuel additiveAdditive for diesel antifreeze, protecting diesel
enginesTUTELA DIESEL
ART
Contractual Technical
Reference N. F601.L06To be mixed with fuel
oil (25 cc per 10
litres)
Windscreen/rear
window washer
fluidMixture of alcohol, water and surfactants CUNA
NO 956-II
Qualification FIAT 9.55522.TUTELA PROFES-
SIONAL SC 35
Contractual Technical
Reference N. F201.D02To be used diluted or
undiluted in
windscreen/rear win-
dow washer/wiper
systems
(*)IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**)In particularly harsh weather conditions, we recommend using a 60-40 mixture ofPARAFLUUPand distilled water.
207
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

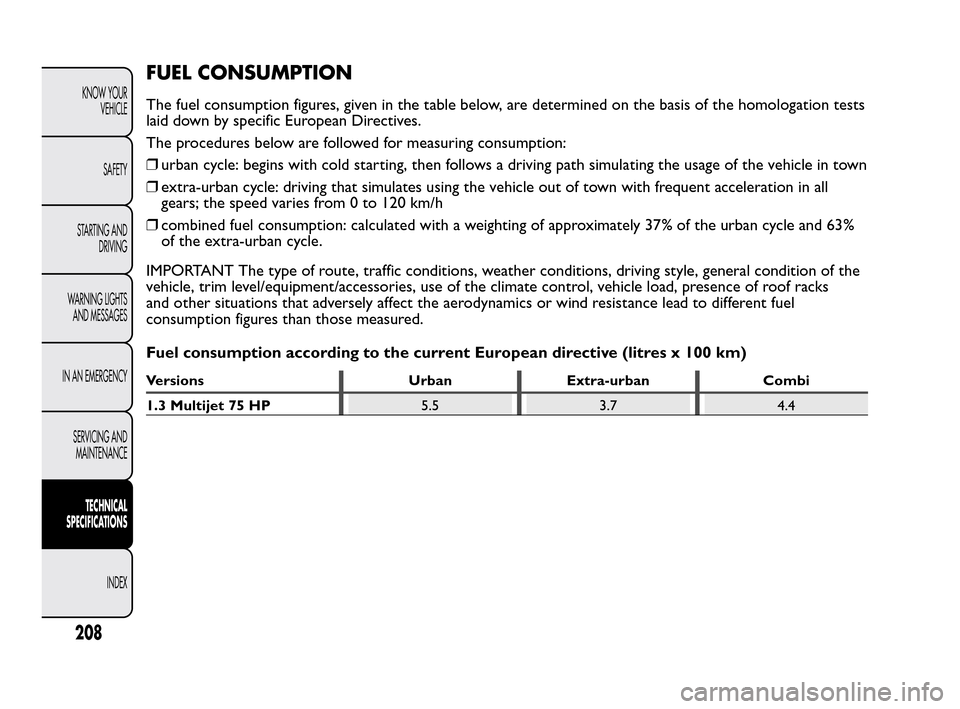

FUEL CONSUMPTION
The fuel consumption figures, given in the table below, are determined on the basis of the homologation tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: begins with cold starting, then follows a driving path simulating the usage of the vehicle in town
❒extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all
gears; the speed varies from 0 to 120 km/h
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
vehicle, trim level/equipment/accessories, use of the climate control, vehicle load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured.
Fuel consumption according to the current European directive (litres x 100 km)
Versions Urban Extra-urban Combi
1.3 Multijet 75 HP5.5 3.7 4.4
208
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

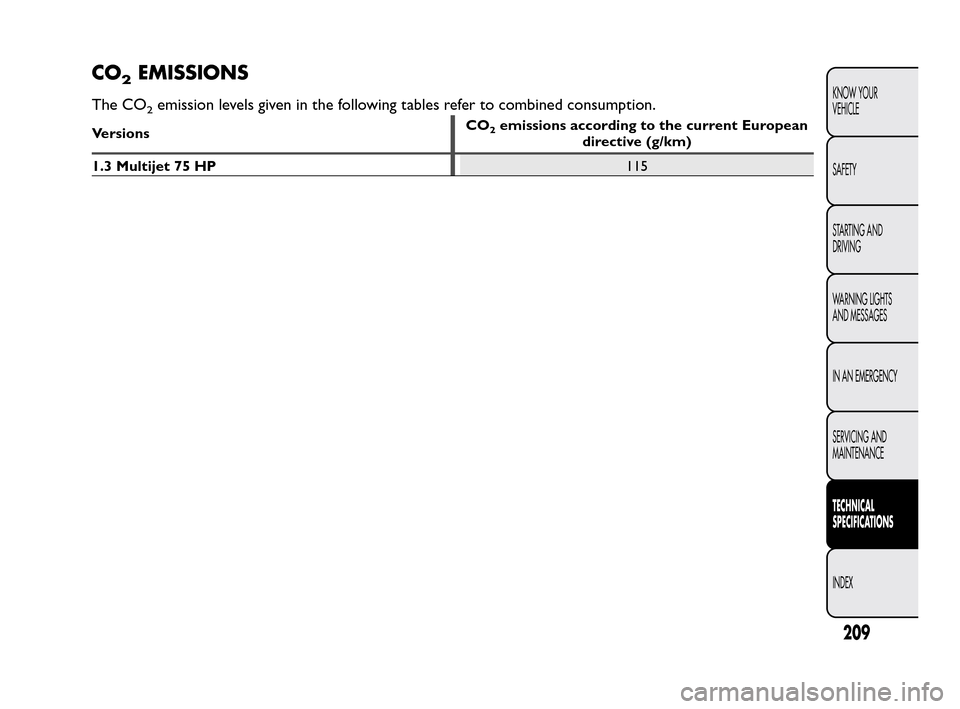

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
VersionsCO2emissions according to the current European
directive (g/km)
1.3 Multijet 75 HP115
209
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
