FIAT QUBO 2010 1.G Owners Manual

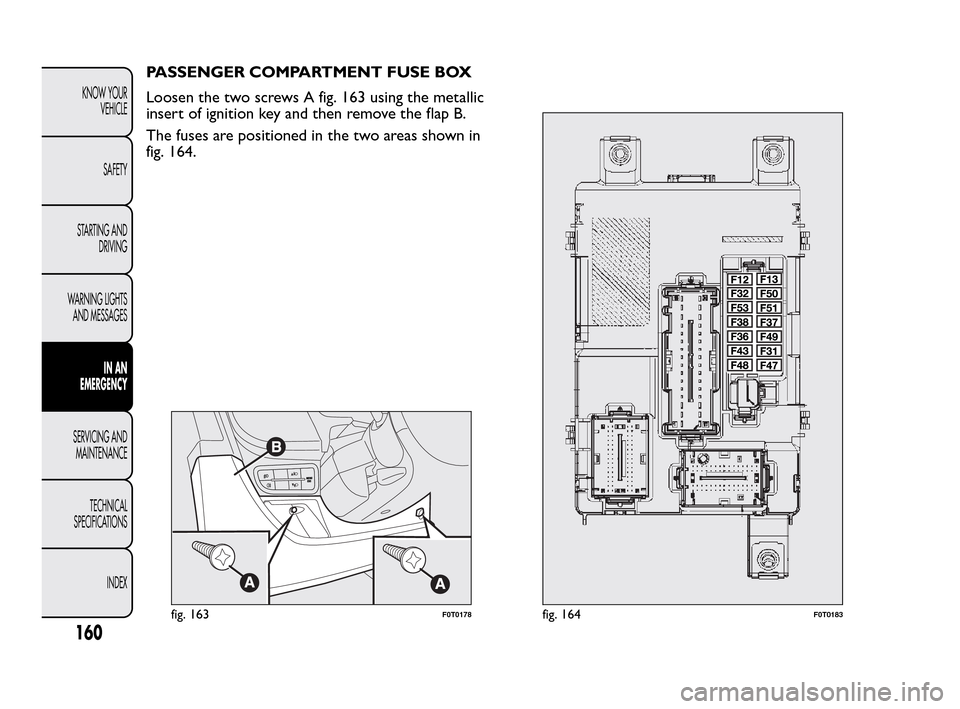

PASSENGER COMPARTMENT FUSE BOX
Loosen the two screws A fig. 163 using the metallic
insert of ignition key and then remove the flap B.
The fuses are positioned in the two areas shown in
fig. 164.
fig. 163F0T0178fig. 164F0T0183
160
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

PROTECTED DEVICE - fig. 164 FUSE AMPS
Sun visor light (passenger side) F12 7.5
Dipped beam light (driver side)/Headlight corrector F13 7.5
INT/A SCM relay coils F31 5
Timed inside lighting F32 7.5
Radio Bluetooth system node/Blue&Me node/EOBD diagnostic socket/
Volumetric alarm ECU/Alarm siren ECUF36 10
Instrument panel node/Stop light control (NO) F37 5
Door/boot lock actuators F38 20
Windshield washer/rear window washer bidirectional pump F43 15
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
Control lights/Parking sensors ECU/Electric wing mirrors/Volumetric alarm
ECUF49 5
INT Radio node/Bluetooth system ECU/Blue&Me node/Electric wing mirrors
movement/Clutch switch/
Brake light control (NC)F51 5
Instrument panel node F53 5
External mirror defrosters F41 7.5
SpareF45 -
SpareF46 -
SpareF90 -
SpareF91 -
161
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

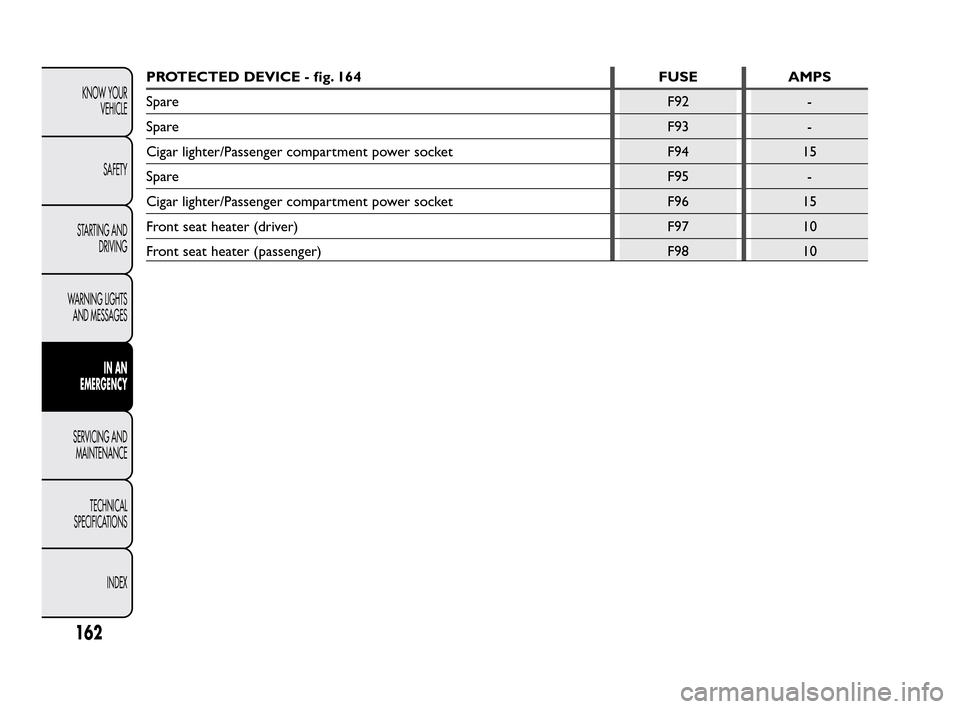

PROTECTED DEVICE - fig. 164 FUSE AMPS
SpareF92 -
SpareF93 -
Cigar lighter/Passenger compartment power socket F94 15
SpareF95 -
Cigar lighter/Passenger compartment power socket F96 15
Front seat heater (driver) F97 10
Front seat heater (passenger) F98 10
162
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

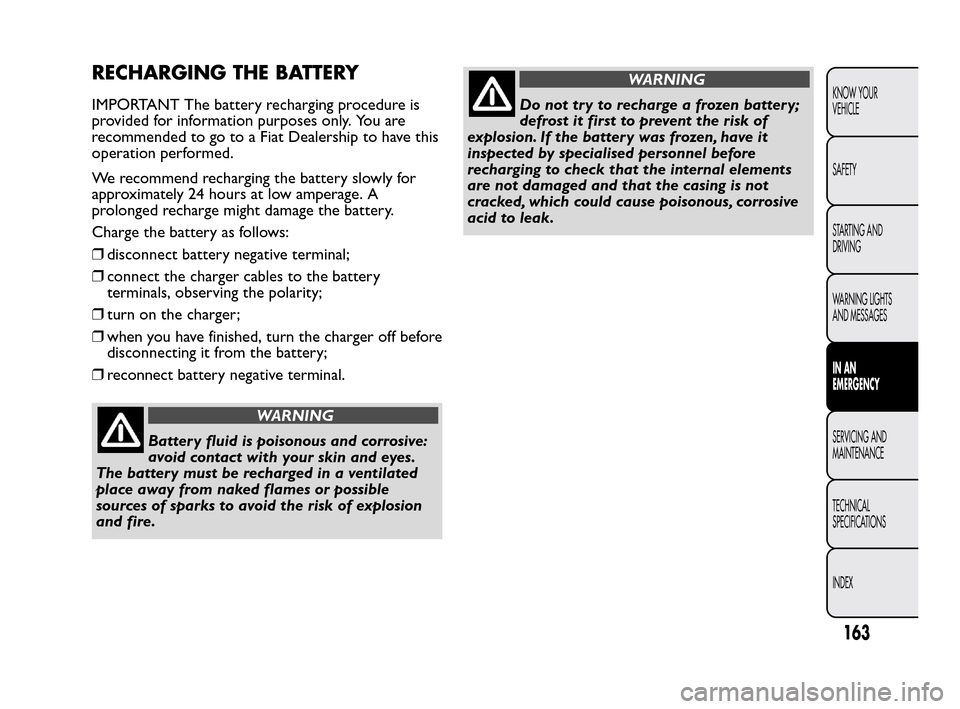

RECHARGING THE BATTERY
IMPORTANT The battery recharging procedure is
provided for information purposes only. You are
recommended to go to a Fiat Dealership to have this
operation performed.
We recommend recharging the battery slowly for
approximately 24 hours at low amperage. A
prolonged recharge might damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the battery
terminals, observing the polarity;
❒turn on the charger;
❒when you have finished, turn the charger off before
disconnecting it from the battery;
❒reconnect battery negative terminal.
WARNING
Battery fluid is poisonous and corrosive:
av
oid contact with your skin and eyes.
The battery must be recharged in a ventilated
place away from naked flames or possible
sources of sparks to avoid the risk of explosion
and fire.
WARNING
Do not try to recharge a frozen battery;
defros
t it first to prevent the risk of
explosion. If the battery was frozen, have it
inspected by specialised personnel before
recharging to check that the internal elements
are not damaged and that the casing is not
cracked, which could cause poisonous, corrosive
acid to leak.
163
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

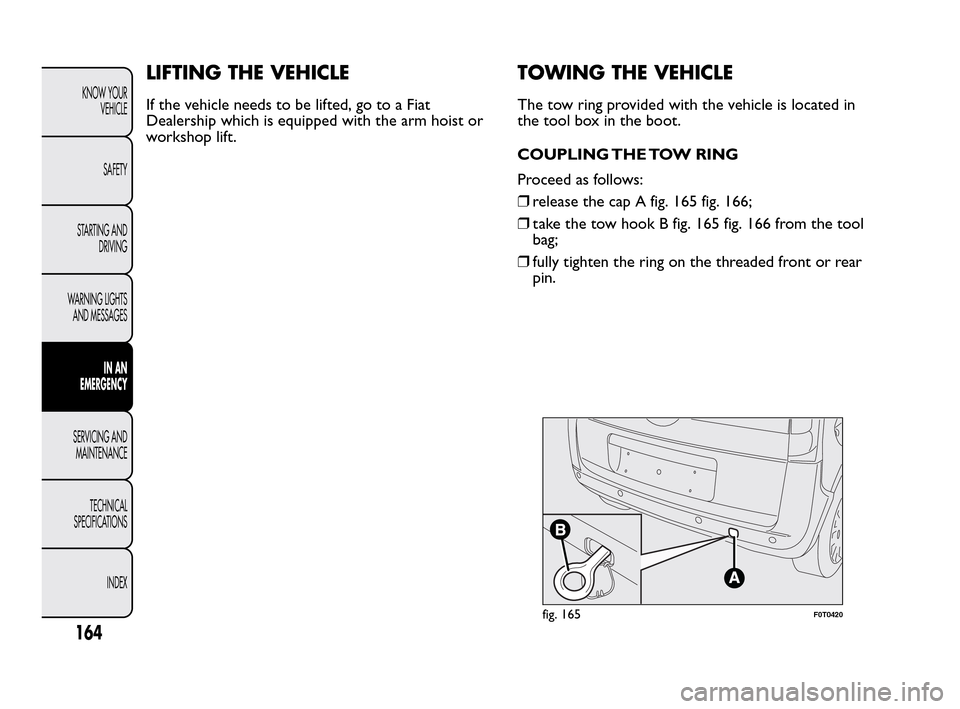

LIFTING THE VEHICLE
If the vehicle needs to be lifted, go to a Fiat
Dealership which is equipped with the arm hoist or
workshop lift.
TOWING THE VEHICLE
The tow ring provided with the vehicle is located in
the tool box in the boot.
COUPLING THE TOW RING
Proceed as follows:
❒release the cap A fig. 165 fig. 166;
❒take the tow hook B fig. 165 fig. 166 from the tool
bag;
❒fully tighten the ring on the threaded front or rear
pin.
fig. 165F0T0420
164
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

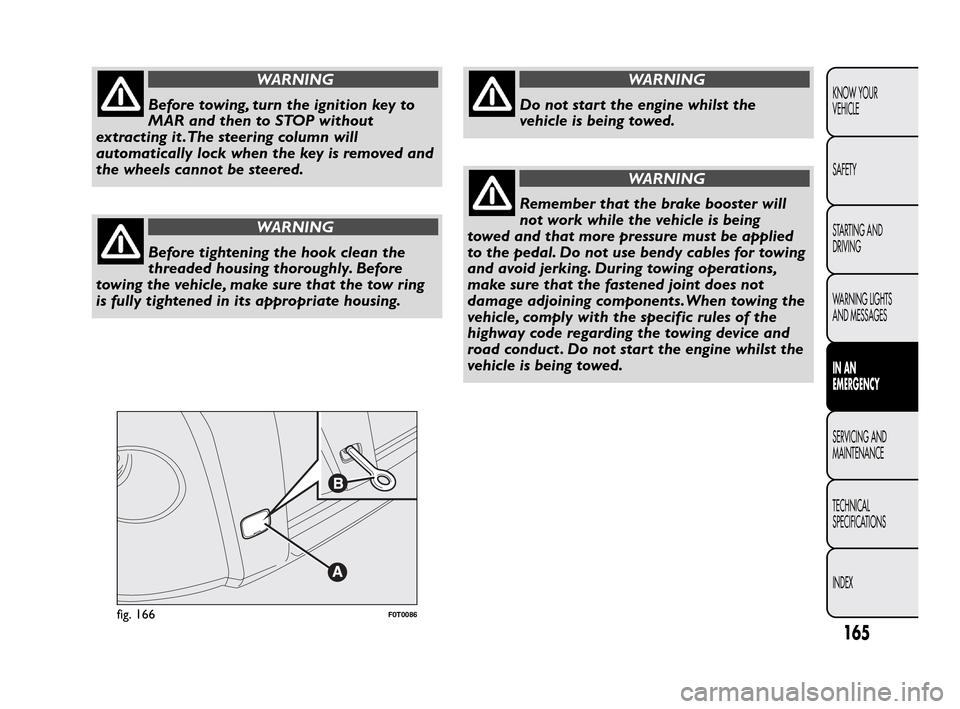

WARNING
Before towing, turn the ignition key to
M
ARandthentoSTOPwithout
extracting it .The steering column will
automatically lock when the key is removed and
the wheels cannot be steered.
WARNING
Before tightening the hook clean the
t
hreaded housing thoroughly. Before
towing the vehicle, make sure that the tow ring
is fully tightened in its appropriate housing.
WARNING
Do not start the engine whilst the
v
ehicle is being towed.
WARNING
Remember that the brake booster will
n
ot work while the vehicle is being
towed and that more pressure must be applied
to the pedal. Do not use bendy cables for towing
and avoid jerking. During towing operations,
make sure that the fastened joint does not
damage adjoining components.When towing the
vehicle, comply with the specific rules of the
highway code regarding the towing device and
road conduct . Do not start the engine whilst the
vehicle is being towed.
fig. 166F0T0086
165
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

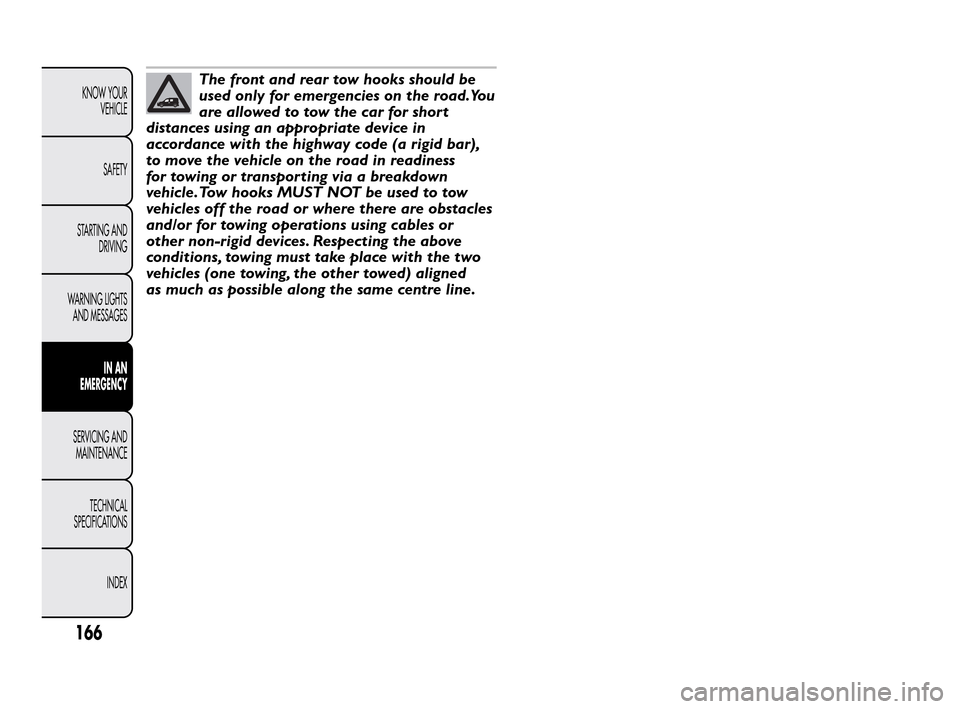

The front and rear tow hooks should be
used only for emergencies on the road.You
are allowed to tow the car for short
distances using an appropriate device in
accordance with the highway code (a rigid bar),
to move the vehicle on the road in readiness
for towing or transporting via a breakdown
vehicle.Tow hooks MUST NOT be used to tow
vehicles off the road or where there are obstacles
and/or for towing operations using cables or
other non-rigid devices. Respecting the above
conditions, towing must take place with the two
vehicles (one towing, the other towed) aligned
as much as possible along the same centre line.
166
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

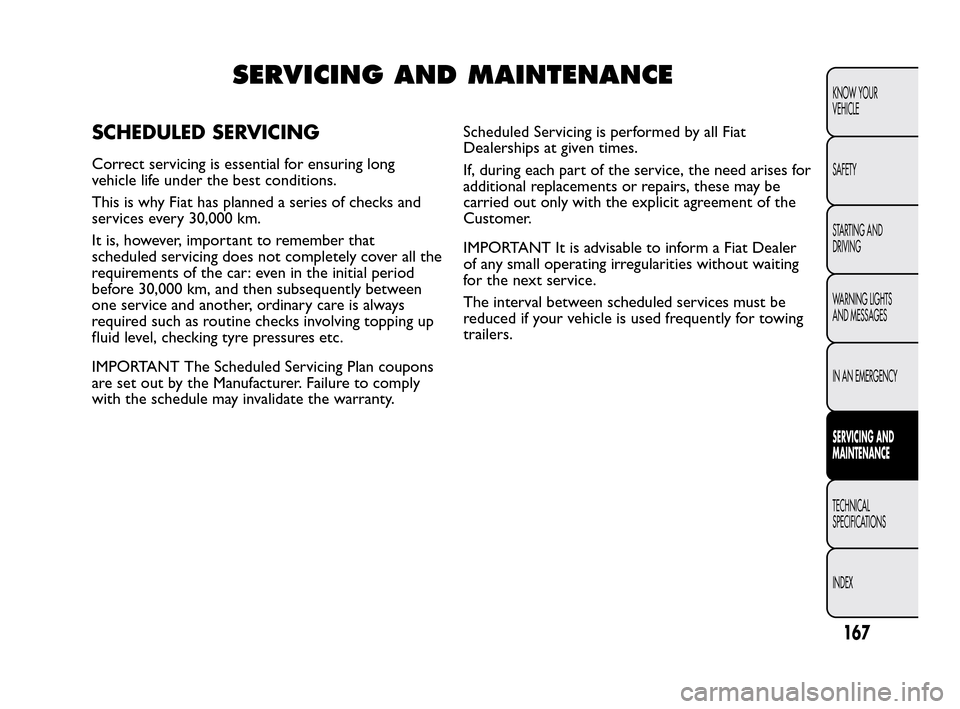

SERVICING AND MAINTENANCE
SCHEDULED SERVICING
Correct servicing is essential for ensuring long
vehicle life under the best conditions.
This is why Fiat has planned a series of checks and
services every 30,000 km.
It is, however, important to remember that
scheduled servicing does not completely cover all the
requirements of the car: even in the initial period
before 30,000 km, and then subsequently between
one service and another, ordinary care is always
required such as routine checks involving topping up
fluid level, checking tyre pressures etc.
IMPORTANT The Scheduled Servicing Plan coupons
are set out by the Manufacturer. Failure to comply
with the schedule may invalidate the warranty.Scheduled Servicing is performed by all Fiat
Dealerships at given times.
If, during each part of the service, the need arises for
additional replacements or repairs, these may be
carried out only with the explicit agreement of the
Customer.
IMPORTANT It is advisable to inform a Fiat Dealer
of any small operating irregularities without waiting
for the next service.
The interval between scheduled services must be
reduced if your vehicle is used frequently for towing
trailers.
167
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

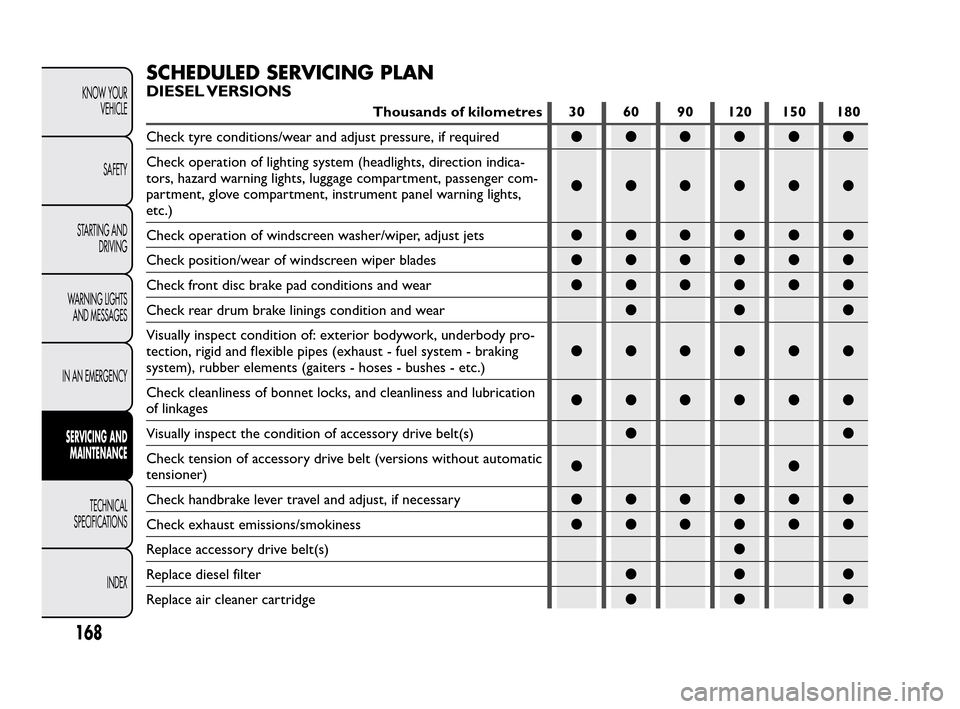

SCHEDULED SERVICING PLAN
DIESEL VERSIONS
Thousands of kilometres 30 60 90 120 150 180
Check tyre conditions/wear and adjust pressure, if required●●●●●●
Check operation of lighting system (headlights, direction indica-
tors, hazard warning lights, luggage compartment, passenger com-
partment, glove compartment, instrument panel warning lights,
etc.)●●●●●●
Check operation of windscreen washer/wiper, adjust jets●●●●●●
Check position/wear of windscreen wiper blades●●●●●●
Check front disc brake pad conditions and wear●●●●●●
Check rear drum brake linings condition and wear●●●
Visually inspect condition of: exterior bodywork, underbody pro-
tection, rigid and flexible pipes (exhaust - fuel system - braking
system), rubber elements (gaiters - hoses - bushes - etc.)●●●●●●
Check cleanliness of bonnet locks, and cleanliness and lubrication
of linkages●●●●●●
Visually inspect the condition of accessory drive belt(s)●●
Check tension of accessory drive belt (versions without automatic
tensioner)●●
Check handbrake lever travel and adjust, if necessary●●●●●●
Check exhaust emissions/smokiness●●●●●●
Replace accessory drive belt(s)●
Replace diesel filter●●●
Replace air cleaner cartridge●●●
168
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

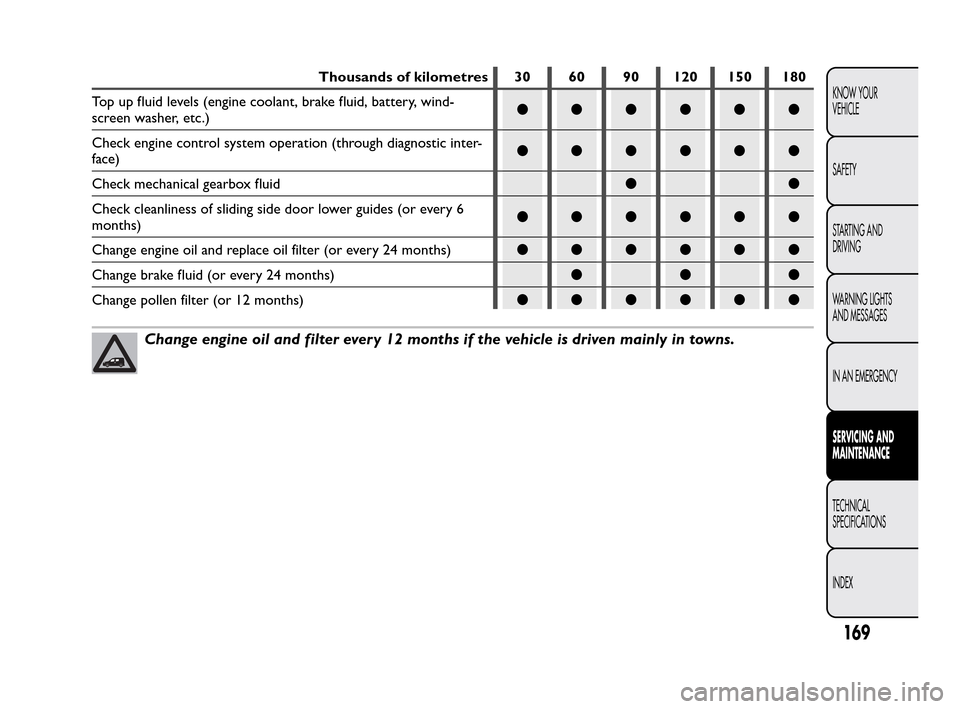

Thousands of kilometres 30 60 90 120 150 180
Top up fluid levels (engine coolant, brake fluid, battery, wind-
screen washer, etc.)●●●●●●
Check engine control system operation (through diagnostic inter-
face)●●●●●●
Check mechanical gearbox fluid●●
Check cleanliness of sliding side door lower guides (or every 6
months)●●●●●●
Change engine oil and replace oil filter (or every 24 months)●●●●●●
Change brake fluid (or every 24 months)●●●
Change pollen filter (or 12 months)●●●●●●
Change engine oil and filter every 12 months if the vehicle is driven mainly in towns.
