FIAT QUBO 2010 1.G Owners Manual

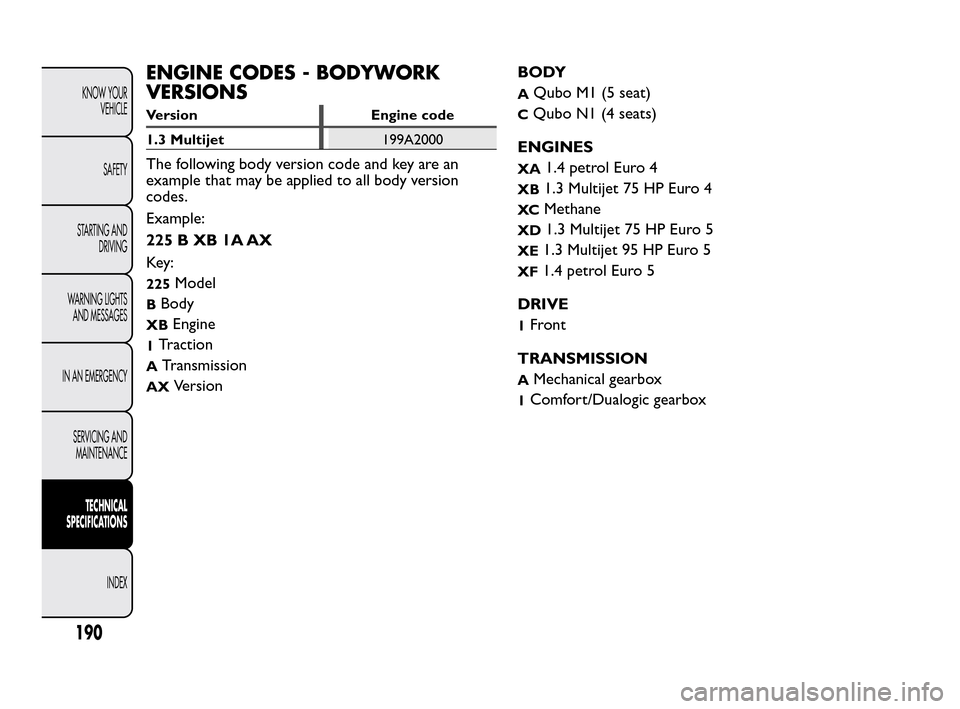

ENGINE CODES - BODYWORK
VERSIONS
Version Engine code
1.3 Multijet199A2000
The following body version code and key are an
example that may be applied to all body version
codes.
Example:
225BXB1AAX
Key :
225Model
BBody
XBEngine
1Traction
ATransmission
AXVersionBODY
AQubo M1 (5 seat)
CQubo N1 (4 seats)
ENGINES
XA1.4 petrol Euro 4
XB1.3 Multijet 75 HP Euro 4
XCMethane
XD1.3 Multijet 75 HP Euro 5
XE1.3 Multijet 95 HP Euro 5
XF1.4 petrol Euro 5
DRIVE
1Front
TRANSMISSION
AMechanical gearbox
1Comfort/Dualogic gearbox
190
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

ENGINE
General features 1.3 Multijet 75 HP
Type code 199A2000
Cycle Diesel
Number and arrangement of cylinders straight 4
Piston diameter and travel (mm) 69.6 x 82
Total displacement (cm3) 1248
Compression ratio 17.6
Max. power (EEC) (kW) 55
Max. power (EEC) (HP) 75
Corresponding engine speed (rpm) 4000
Max. torque (EEC) (Nm) 190
Max. torque (EEC) (kgm) 19.4
Corresponding engine speed (rpm) 1750
Spark plugs -
Fuel Diesel for automotive engines (Specification EN590)
191
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

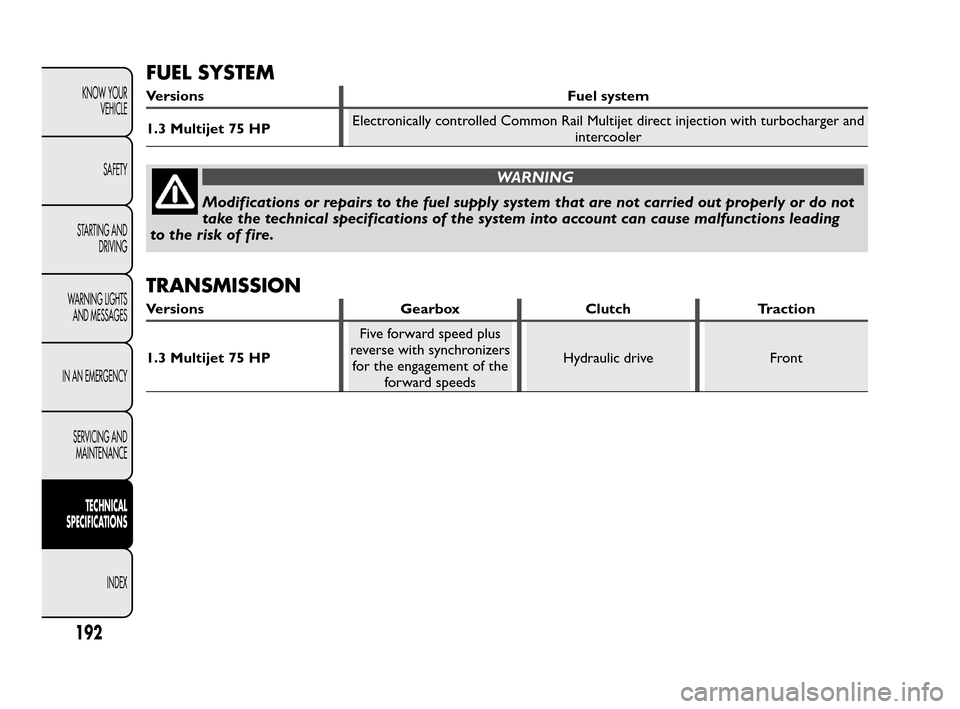

FUEL SYSTEM
Versions Fuel system
1.3 Multijet 75 HPElectronically controlled Common Rail Multijet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out properly or do not
tak
e the technical specifications of the system into account can cause malfunctions leading
to the risk of fire.
TRANSMISSION
Versions Gearbox Clutch Traction
1.3 Multijet 75 HPFive forward speed plus
reverse with synchronizers
for the engagement of the
forward speedsHydraulic drive Front
192
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

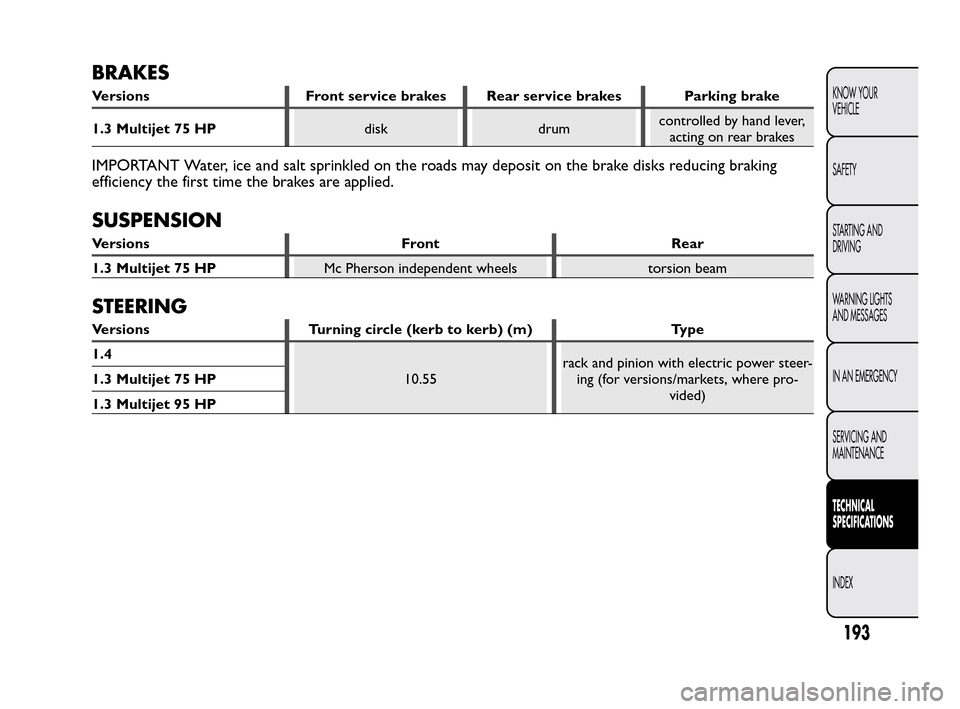

BRAKES
Versions Front service brakes Rear service brakes Parking brake
1.3 Multijet 75 HPdisk drumcontrolled by hand lever,
acting on rear brakes
IMPORTANT Water, ice and salt sprinkled on the roads may deposit on the brake disks reducing braking
efficiency the first time the brakes are applied.
SUSPENSION
Versions Front Rear
1.3 Multijet 75 HPMc Pherson independent wheels torsion beam
STEERING
Versions Turning circle (kerb to kerb) (m) Type
1.4
10.55rack and pinion with electric power steer-
ing (for versions/markets, where pro-
vided) 1.3 Multijet 75 HP
1.3 Multijet 95 HP
193
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

WHEELS
WHEELS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass
tyres. All approved tyres are listed in the Log Book.
IMPORTANT If there are any discrepancies between
the Owner's handbook and the logbook, take the
information from the latter.
Respect the prescribed size to ensure safety of the
vehicle in movement. Fit tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers with tubeless
tyres.
SPARE WHEEL
Pressed steel rims. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured between rims: -1 ±1
mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE
Example: 175/70 R 14 91T(see fig. 180)
175Nominal width (S, distance in mm between
sidewalls)
70Height/width ratio (H/S) as a percentage
RRadial tyre
14Rim diameter in inches (Ø)
91Load index
TMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
fig. 180F0T0014
194
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

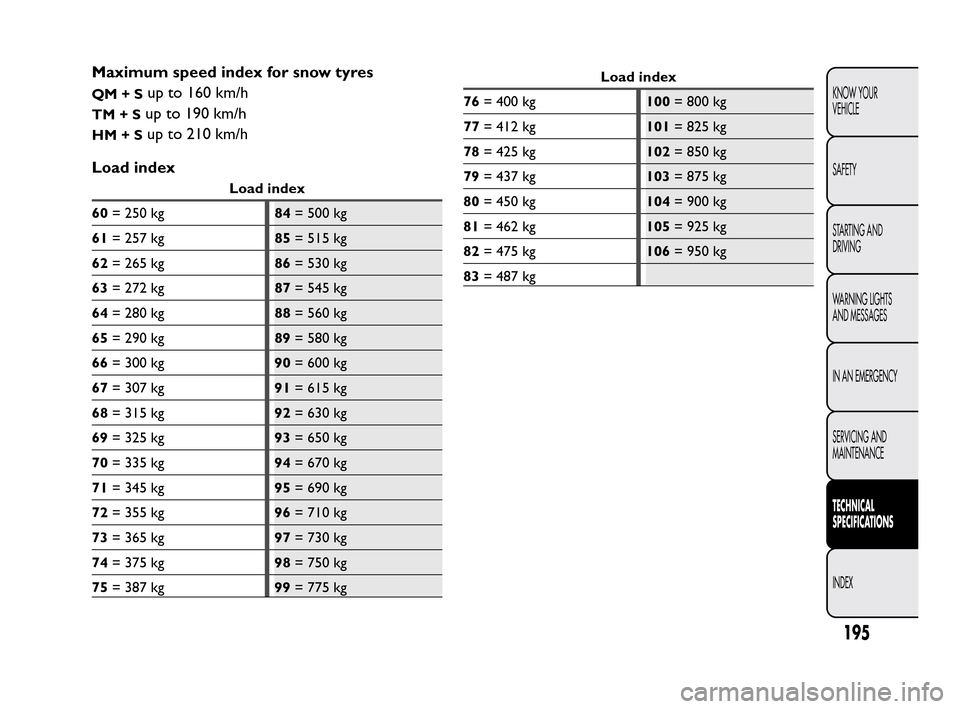

Maximum speed index for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index
Load index
60= 250 kg84= 500 kg
61= 257 kg85= 515 kg
62= 265 kg86= 530 kg
63= 272 kg87= 545 kg
64= 280 kg88= 560 kg
65= 290 kg89= 580 kg
66= 300 kg90= 600 kg
67= 307 kg91= 615 kg
68= 315 kg92= 630 kg
69= 325 kg93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg95= 690 kg
72= 355 kg96= 710 kg
73= 365 kg97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg99= 775 kg
Load index
76= 400 kg100= 800 kg
77= 412 kg101= 825 kg
78= 425 kg102= 850 kg
79= 437 kg103= 875 kg
80= 450 kg104= 900 kg
81= 462 kg105= 925 kg
82= 475 kg106= 950 kg
83= 487 kg
195
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

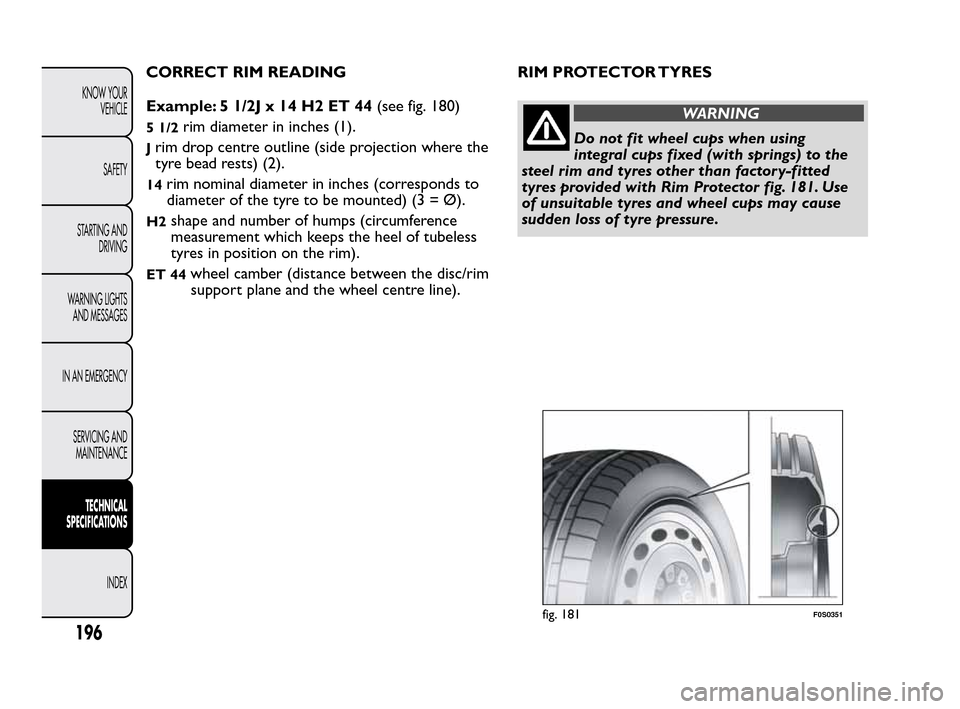

CORRECT RIM READING
Example: 5 1/2J x 14 H2 ET 44(see fig. 180)
5 1/2rim diameter in inches (1).
Jrim drop centre outline (side projection where the
tyre bead rests) (2).
14rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2shape and number of humps (circumference
measurement which keeps the heel of tubeless
tyres in position on the rim).
ET 44wheel camber (distance between the disc/rim
support plane and the wheel centre line).RIM PROTECTOR TYRES
WARNING
Do not fit wheel cups when using
in
tegral cups fixed (with springs) to the
steel rim and tyres other than factory-fitted
tyres provided with Rim Protector fig. 181. Use
of unsuitable tyres and wheel cups may cause
sudden loss of tyre pressure.
fig. 181F0S0351
196
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

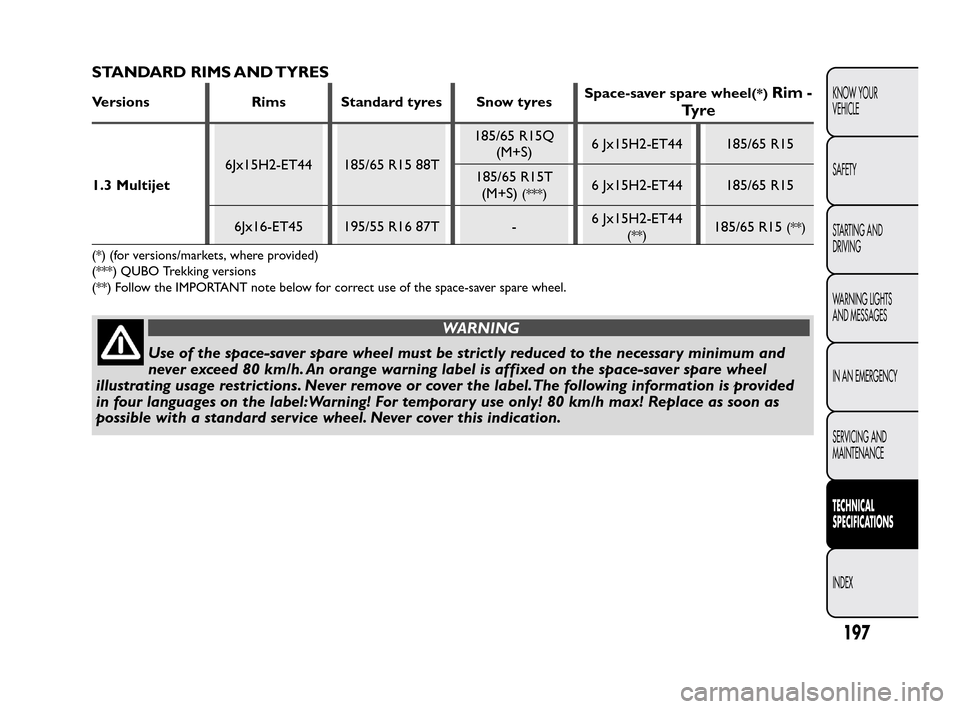

STANDARD RIMS AND TYRES
Versions Rims Standard tyres Snow tyresSpace-saver spare wheel(*)Rim -
Ty r e
1.3 Multijet6Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
185/65 R15T
(M+S)(***)6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)185/65 R15(**)
(*) (for versions/markets, where provided)
(***) QUBO Trekking versions
(**) Follow the IMPORTANT note below for correct use of the space-saver spare wheel.
WARNING
Use of the space-saver spare wheel must be strictly reduced to the necessary minimum and
n
ever exceed 80 km/h. An orange warning label is affixed on the space-saver spare wheel
illustrating usage restrictions. Never remove or cover the label.The following information is provided
in four languages on the label:Warning! For temporary use only! 80 km/h max! Replace as soon as
possible with a standard service wheel. Never cover this indication.
197
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

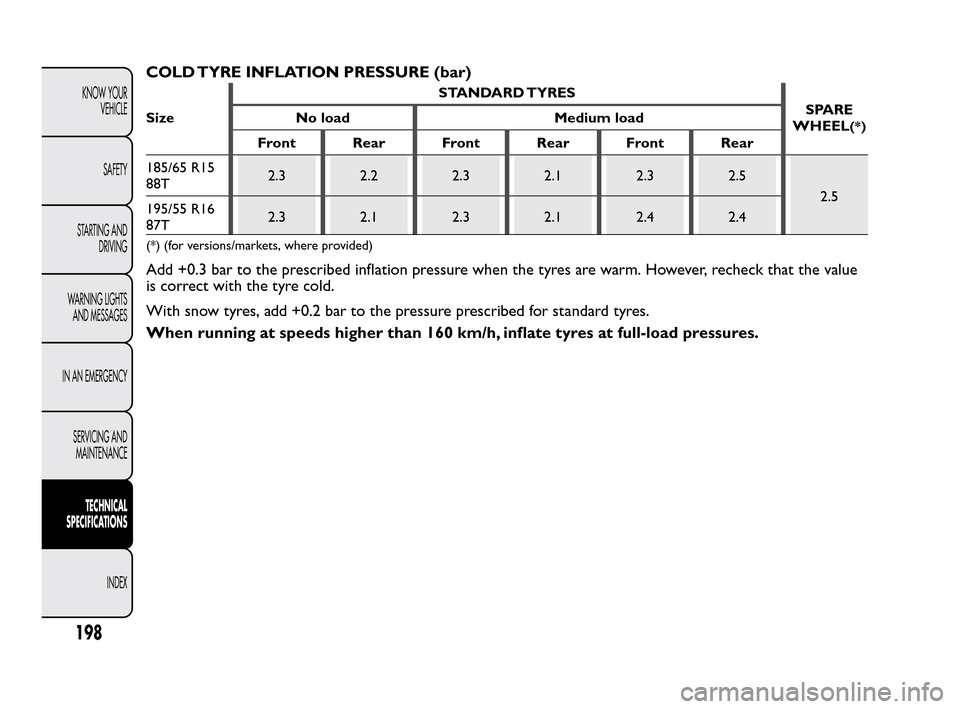

COLD TYRE INFLATION PRESSURE (bar)
SizeSTANDARD TYRES
SPARE
WHEEL(*)No load Medium load
Front Rear Front Rear Front Rear
185/65 R15
88T2.3 2.2 2.3 2.1 2.3 2.5
2.5
195/55 R16
87T2.3 2.1 2.3 2.1 2.4 2.4
(*) (for versions/markets, where provided)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. However, recheck that the value
is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure prescribed for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
198
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

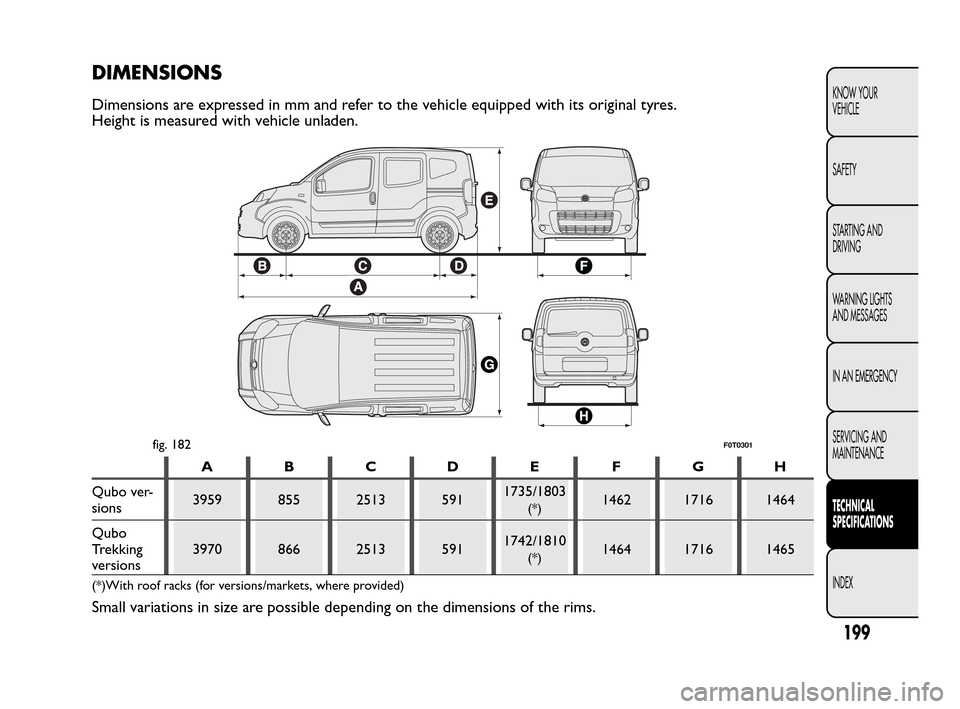

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Qubo ver-
sions3959 855 2513 5911735/1803
(*)1462 1716 1464
Qubo
Trekking
versions3970 866 2513 5911742/1810
(*)1464 1716 1465
(*)With roof racks (for versions/markets, where provided)
Small variations in size are possible depending on the dimensions of the rims.
fig. 182F0T0301
