Engine 120 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.8 8.8 8.8 8.8 9.1 9.2 9.4
Extra-urban
consumption6.5 6.5 6.5 6.5 6.3 6.4 6.6
Combined
consumption7.3 7.3 7.3 7.3 7.2 7.4 7.6
Engine 140 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.8 8.8 8.8 8.8 9.2 9.2 –
Extra-urban
consumption6.5 6.5 6.5 6.5 6.4 6.4 –
Combined
consumption7.3 7.3 7.3 7.3 7.4 7.4 –

201
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
90 Multijet 191 194 194 194 191 191 198
120 Multijet 194 194 194 194 194 196 200
140 Multijet194 194 194 194 196 196 –
165 Multijet185 185 185 185 181 181 186

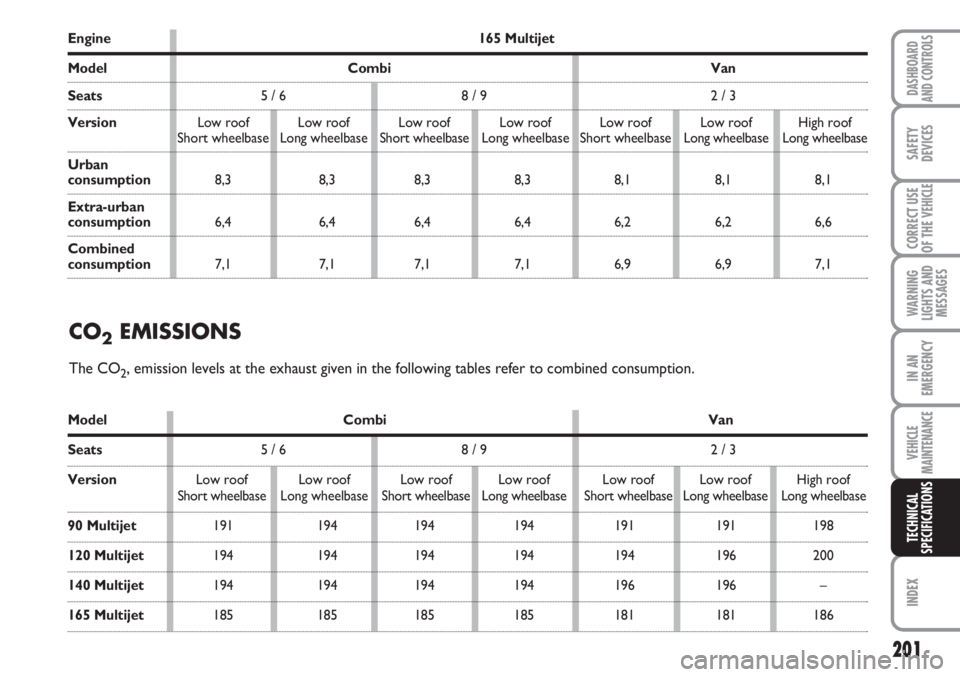

CO2EMISSIONS

The CO2, emission levels at the exhaust given in the following tables refer to combined consumption.
Engine 165 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8,3 8,3 8,3 8,3 8,1 8,1 8,1
Extra-urban
consumption6,4 6,4 6,4 6,4 6,2 6,2 6,6
Combined
consumption7,1 7,1 7,1 7,1 6,9 6,9 7,1
