208
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

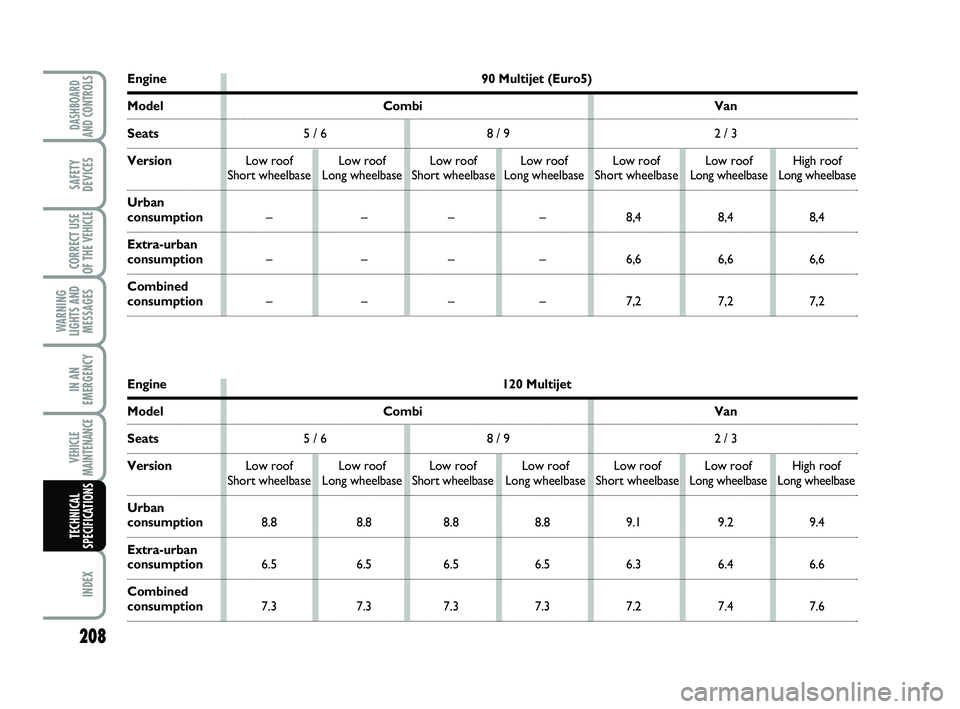

Engine 120 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.8 8.8 8.8 8.8 9.1 9.2 9.4
Extra-urban
consumption6.5 6.5 6.5 6.5 6.3 6.4 6.6
Combined
consumption7.3 7.3 7.3 7.3 7.2 7.4 7.6
Engine 90 Multijet (Euro5)
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption– – – – 8,4 8,4 8,4
Extra-urban
consumption– – – – 6,6 6,6 6,6
Combined
consumption– – – – 7,2 7,2 7,2
175-210 SCUDO LUM GB_173-199 Nuovo ScudoG9 GB 17/10/12 14.46 Pagina 208

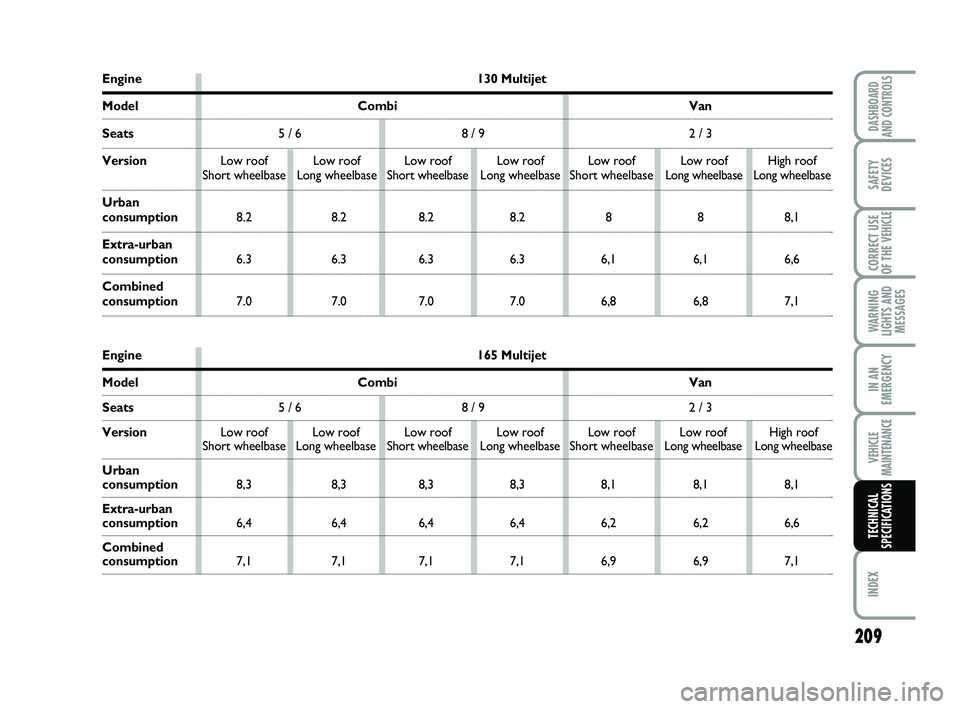

Engine 130 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.2 8.2 8.2 8.2 8 8 8,1
Extra-urban
consumption6.3 6.3 6.3 6.3 6,1 6,1 6,6
Combined
consumption7.0 7.0 7.0 7.0 6,8 6,8 7,1
VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
209
Engine 165 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8,3 8,3 8,3 8,3 8,1 8,1 8,1
Extra-urban
consumption6,4 6,4 6,4 6,4 6,2 6,2 6,6
Combined
consumption7,1 7,1 7,1 7,1 6,9 6,9 7,1
TECHNICAL
SPECIFICATIONS
175-210 SCUDO LUM GB_173-199 Nuovo ScudoG9 GB 17/10/12 14.46 Pagina 209

210
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

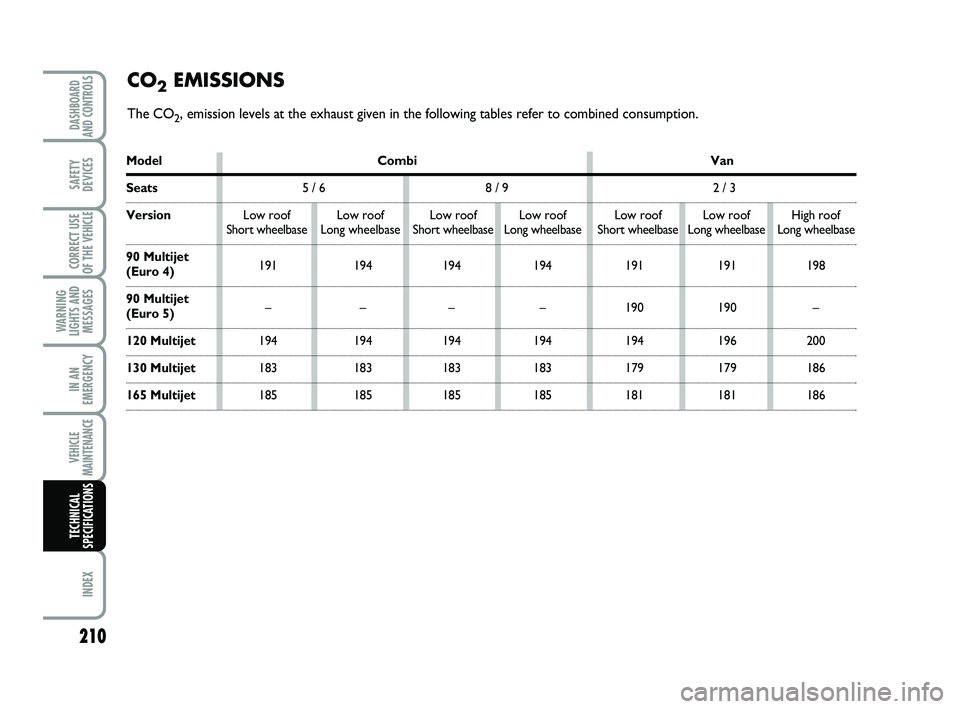

Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
90 Multijet
191 194 194 194 191 191 198
(Euro 4)
90 Multijet
– – – – 190 190 –
(Euro 5)
120 Multijet 194 194 194 194 194 196 200
130 Multijet 183 183 183 183 179 179 186
165 Multijet185 185 185 185 181 181 186
CO2EMISSIONS
The CO2, emission levels at the exhaust given in the following tables refer to combined consumption.
175-210 SCUDO LUM GB_173-199 Nuovo ScudoG9 GB 17/10/12 14.46 Pagina 210

209
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

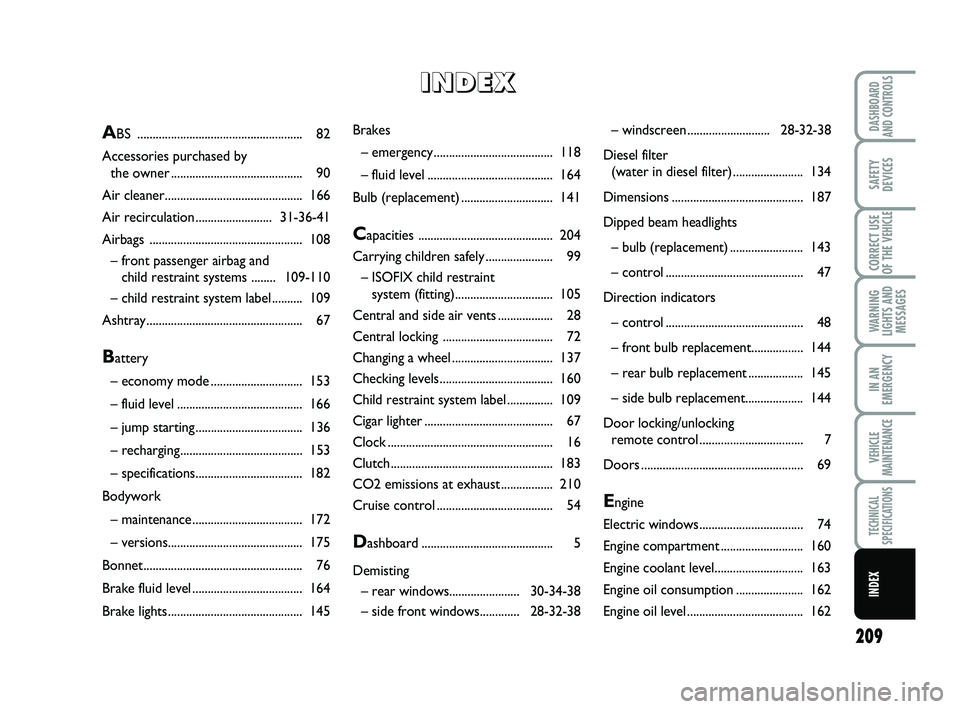

INDEX
Brakes
– emergency.......................................118
– fluid level......................................... 164
Bulb (replacement).............................. 141
Capacities ............................................ 204
Carrying children safely...................... 99
– ISOFIX child restraint
system (fitting)................................ 105
Central and side air vents .................. 28
Central locking .................................... 72
Changing a wheel................................. 137
Checking levels..................................... 160
Child restraint system label ............... 109
Cigar lighter .......................................... 67
Clock ...................................................... 16
Clutch..................................................... 183
CO2 emissions at exhaust ................. 210
Cruise control ...................................... 54
Dashboard ........................................... 5
Demisting
– rear windows.......................30-34-38
– side front windows.............28-32-38– windscreen ...........................28-32-38
Diesel filter
(water in diesel filter) ....................... 134
Dimensions ...........................................187
Dipped beam headlights
– bulb (replacement)........................ 143
– control ............................................. 47
Direction indicators
– control ............................................. 48
– front bulb replacement................. 144
– rear bulb replacement .................. 145
– side bulb replacement................... 144
Door locking/unlocking
remote control .................................. 7
Doors ..................................................... 69
Engine
Electric windows.................................. 74
Engine compartment........................... 160
Engine coolant level............................. 163
Engine oil consumption ...................... 162
Engine oil level...................................... 162
ABS ...................................................... 82
Accessories purchased by
the owner ........................................... 90
Air cleaner.............................................166
Air recirculation .........................31-36-41
Airbags .................................................. 108
– front passenger airbag and
child restraint systems ........109-110
– child restraint system label .......... 109
Ashtray................................................... 67
Battery
– economy mode .............................. 153
– fluid level......................................... 166
– jump starting ...................................136
– recharging........................................153
– specifications................................... 182
Bodywork
– maintenance.................................... 172
– versions............................................ 175
Bonnet.................................................... 76
Brake fluid level.................................... 164
Brake lights............................................ 145
I I
N N
D D
E E
X X
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 209

210
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

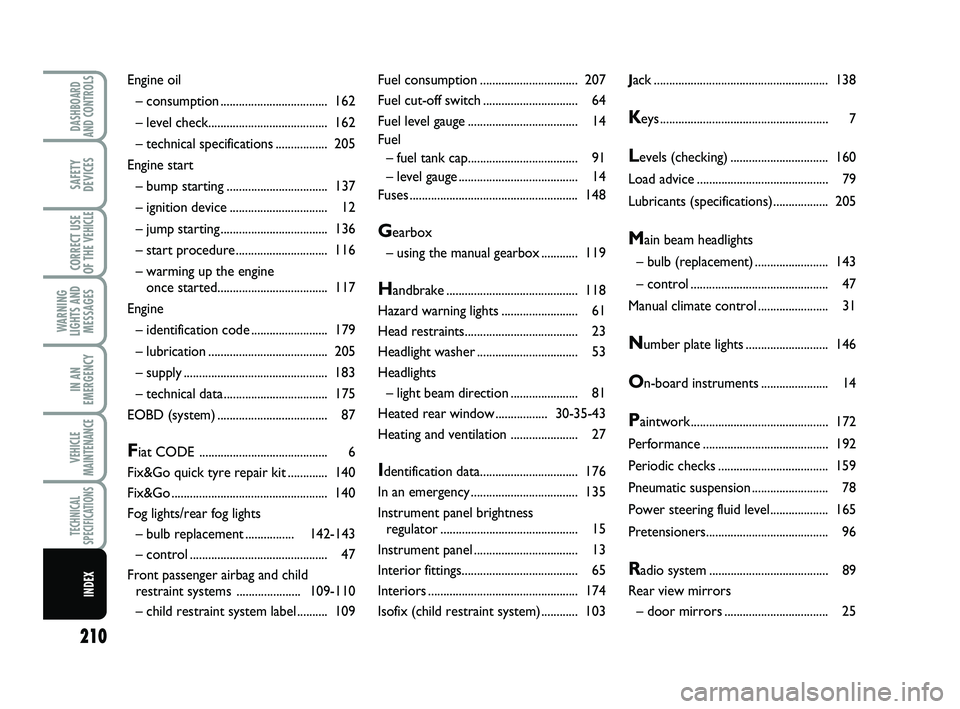

Fuel consumption................................ 207
Fuel cut-off switch............................... 64
Fuel level gauge .................................... 14
Fuel
– fuel tank cap.................................... 91
– level gauge ....................................... 14
Fuses....................................................... 148
Gearbox
– using the manual gearbox ............ 119
Handbrake ........................................... 118
Hazard warning lights......................... 61
Head restraints..................................... 23
Headlight washer................................. 53
Headlights
– light beam direction ...................... 81
Heated rear window.................30-35-43
Heating and ventilation ...................... 27
Identification data................................ 176
In an emergency................................... 135
Instrument panel brightness
regulator .............................................15
Instrument panel.................................. 13
Interior fittings...................................... 65
Interiors .................................................174
Isofix (child restraint system) ............ 103Jack ......................................................... 138
Keys ....................................................... 7
Levels (checking)................................ 160
Load advice ...........................................79
Lubricants (specifications).................. 205
Main beam headlights
– bulb (replacement)........................ 143
– control ............................................. 47
Manual climate control....................... 31
Number plate lights........................... 146
On-board instruments...................... 14
Paintwork.............................................172
Performance .........................................192
Periodic checks.................................... 159
Pneumatic suspension ......................... 78
Power steering fluid level................... 165
Pretensioners........................................ 96
Radio system .......................................89
Rear view mirrors
– door mirrors .................................. 25 Engine oil
– consumption................................... 162
– level check....................................... 162
– technical specifications ................. 205
Engine start
– bump starting .................................137
– ignition device................................ 12
– jump starting ...................................136
– start procedure.............................. 116
– warming up the engine
once started....................................117
Engine
– identification code .........................179
– lubrication .......................................205
– supply............................................... 183
– technical data..................................175
EOBD (system) .................................... 87
Fiat CODE .......................................... 6
Fix&Go quick tyre repair kit ............. 140
Fix&Go................................................... 140
Fog lights/rear fog lights
– bulb replacement................142-143
– control ............................................. 47
Front passenger airbag and child
restraint systems .....................109-110
– child restraint system label .......... 109
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 210

211
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

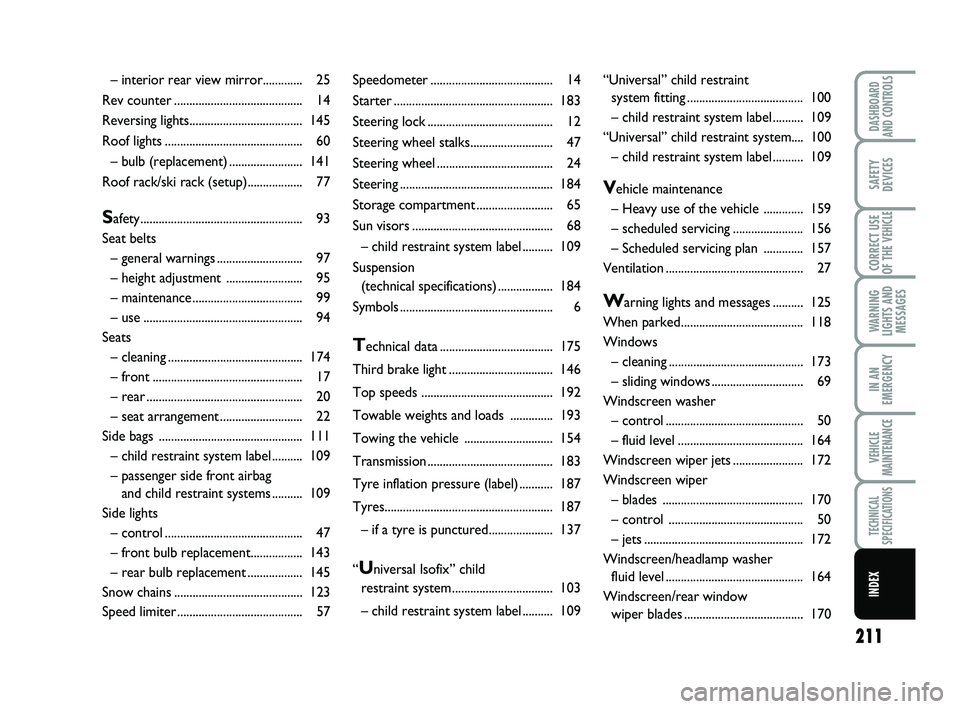

Speedometer........................................ 14
Starter.................................................... 183
Steering lock ......................................... 12
Steering wheel stalks........................... 47
Steering wheel ......................................24
Steering.................................................. 184
Storage compartment......................... 65
Sun visors .............................................. 68
– child restraint system label .......... 109
Suspension
(technical specifications) .................. 184
Symbols.................................................. 6
Technical data .....................................175
Third brake light.................................. 146
Top speeds ........................................... 192
Towable weights and loads ..............193
Towing the vehicle ............................. 154
Transmission ......................................... 183
Tyre inflation pressure (label)........... 187
Tyres....................................................... 187
– if a tyre is punctured..................... 137
“
Universal Isofix” child
restraint system................................. 103
– child restraint system label .......... 109“Universal” child restraint
system fitting...................................... 100
– child restraint system label .......... 109
“Universal” child restraint system.... 100
– child restraint system label .......... 109
Vehicle maintenance
– Heavy use of the vehicle ............. 159
– scheduled servicing....................... 156
– Scheduled servicing plan ............. 157
Ventilation ............................................. 27
Warning lights and messages.......... 125
When parked........................................ 118
Windows
– cleaning ............................................173
– sliding windows.............................. 69
Windscreen washer
– control ............................................. 50
– fluid level......................................... 164
Windscreen wiper jets....................... 172
Windscreen wiper
– blades .............................................. 170
– control ............................................ 50
– jets.................................................... 172
Windscreen/headlamp washer
fluid level ............................................. 164
Windscreen/rear window
wiper blades .......................................170 – interior rear view mirror............. 25
Rev counter .......................................... 14
Reversing lights..................................... 145
Roof lights ............................................. 60
– bulb (replacement)........................ 141
Roof rack/ski rack (setup).................. 77
Safety..................................................... 93
Seat belts
– general warnings............................ 97
– height adjustment ......................... 95
– maintenance.................................... 99
– use.................................................... 94
Seats
– cleaning ............................................174
– front................................................. 17
– rear................................................... 20
– seat arrangement........................... 22
Side bags ...............................................111
– child restraint system label .......... 109
– passenger side front airbag
and child restraint systems .......... 109
Side lights
– control ............................................. 47
– front bulb replacement................. 143
– rear bulb replacement .................. 145
Snow chains ..........................................123
Speed limiter .........................................57
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 211
