key FIAT SCUDO 2013 Owner handbook (in English)

71
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 94F0P0087mfig. 95F0P0602mfig. 96F0P0293m

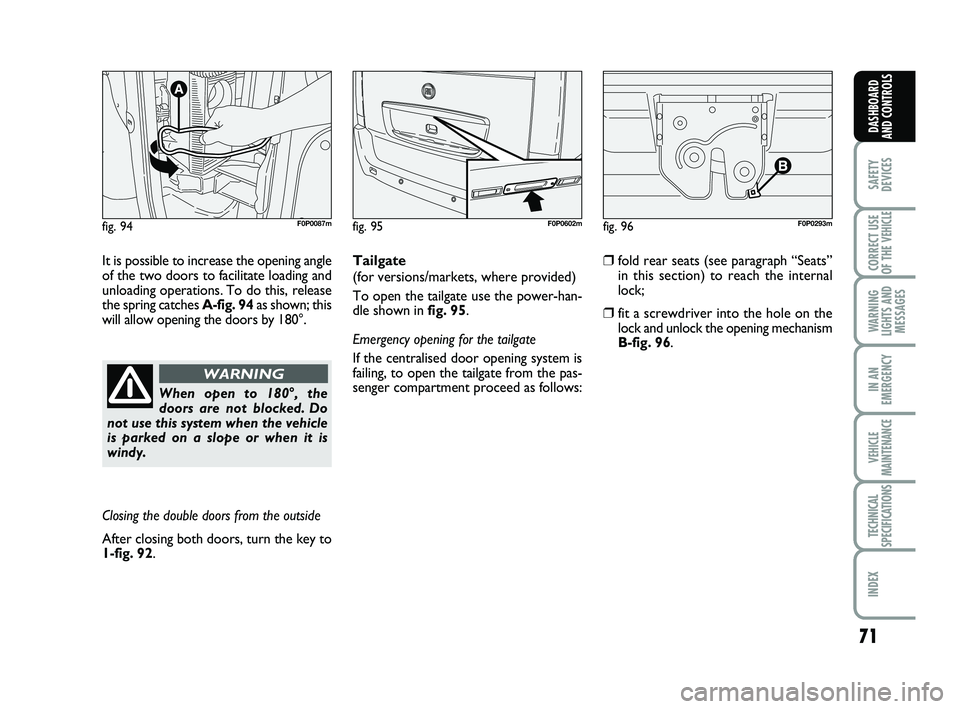

It is possible to increase the opening angle
of the two doors to facilitate loading and
unloading operations. To do this, release
the spring catches A-fig. 94as shown; this
will allow opening the doors by 180°.
When open to 180°, the
doors are not blocked. Do
not use this system when the vehicle
is parked on a slope or when it is
windy.
WARNING
Closing the double doors from the outside
After closing both doors, turn the key to
1-fig. 92.Tailgate
(for versions/markets, where provided)
To open the tailgate use the power-han-
dle shown in fig. 95.
Emergency opening for the tailgate
If the centralised door opening system is
failing, to open the tailgate from the pas-
senger compartment proceed as follows:
❒fold rear seats (see paragraph “Seats”
in this section) to reach the internal
lock;
❒fit a screwdriver into the hole on the
lock and unlock the opening mechanism
B-fig. 96.
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 71

72
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

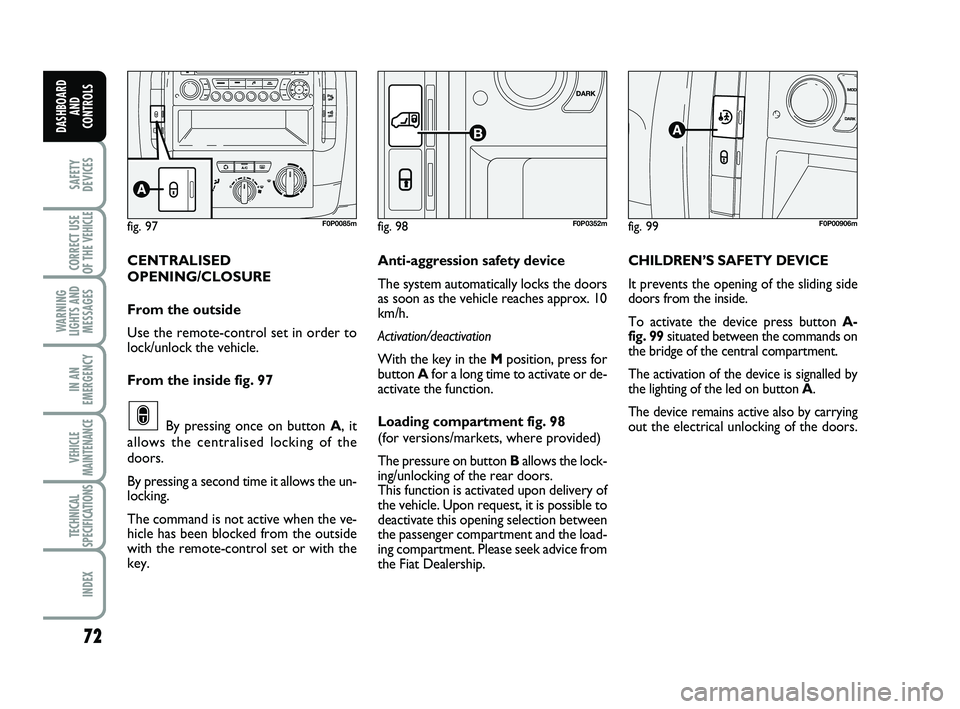

CENTRALISED
OPENING/CLOSURE
From the outside
Use the remote-control set in order to
lock/unlock the vehicle.
From the inside fig. 97
By pressing once on button A, it
allows the centralised locking of the
doors.
By pressing a second time it allows the un-
locking.
The command is not active when the ve-
hicle has been blocked from the outside
with the remote-control set or with the
key.
∫
Anti-aggression safety device
The system automatically locks the doors
as soon as the vehicle reaches approx. 10
km/h.
Activation/deactivation
With the key in the Mposition, press for
button Afor a long time to activate or de-
activate the function.
Loading compartment fig. 98
(for versions/markets, where provided)
The pressure on button Ballows the lock-
ing/unlocking of the rear doors.
This function is activated upon delivery of
the vehicle. Upon request, it is possible to
deactivate this opening selection between
the passenger compartment and the load-
ing compartment. Please seek advice from
the Fiat Dealership.CHILDREN’S SAFETY DEVICE
It prevents the opening of the sliding side
doors from the inside.
To activate the device press button A-
fig. 99situated between the commands on
the bridge of the central compartment.
The activation of the device is signalled by
the lighting of the led on button A.
The device remains active also by carrying
out the electrical unlocking of the doors.
fig. 99F0P00906mfig. 97F0P0085mfig. 98
B
F0P0352m
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 72

74
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

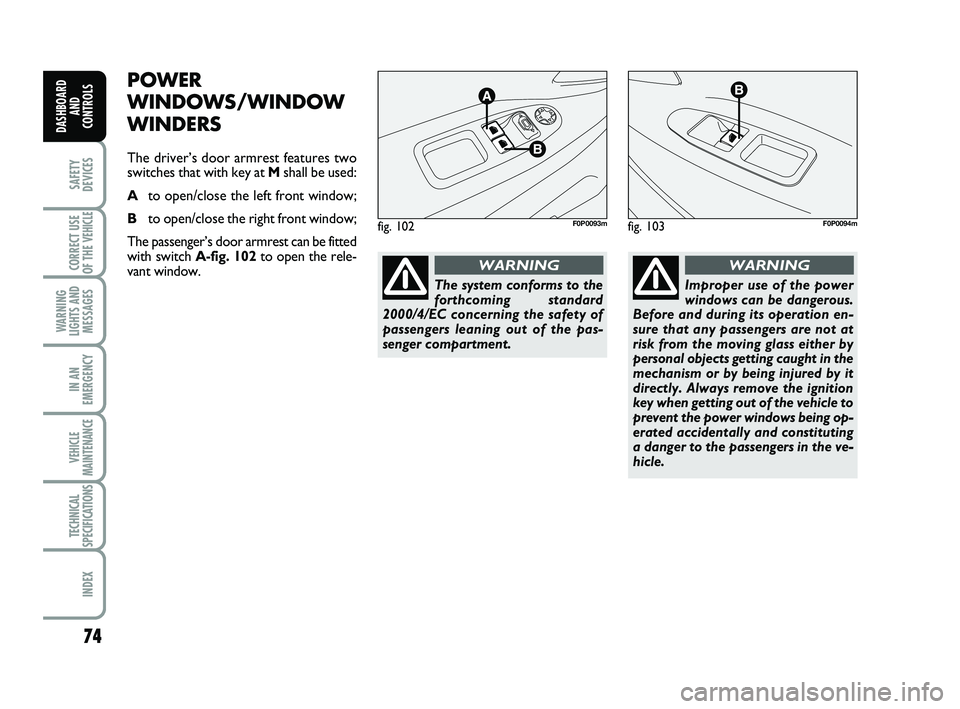

POWER
WINDOWS/WINDOW
WINDERS
The driver’s door armrest features two
switches that with key at Mshall be used:
Ato open/close the left front window;
Bto open/close the right front window;
The passenger’s door armrest can be fitted
with switch A-fig. 102to open the rele-
vant window.
fig. 102F0P0093mfig. 103F0P0094m
Improper use of the power
windows can be dangerous.
Before and during its operation en-
sure that any passengers are not at
risk from the moving glass either by
personal objects getting caught in the
mechanism or by being injured by it
directly. Always remove the ignition
key when getting out of the vehicle to
prevent the power windows being op-
erated accidentally and constituting
a danger to the passengers in the ve-
hicle.
WARNING
The system conforms to the
forthcoming standard
2000/4/EC concerning the safety of
passengers leaning out of the pas-
senger compartment.
WARNING
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 74

75
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

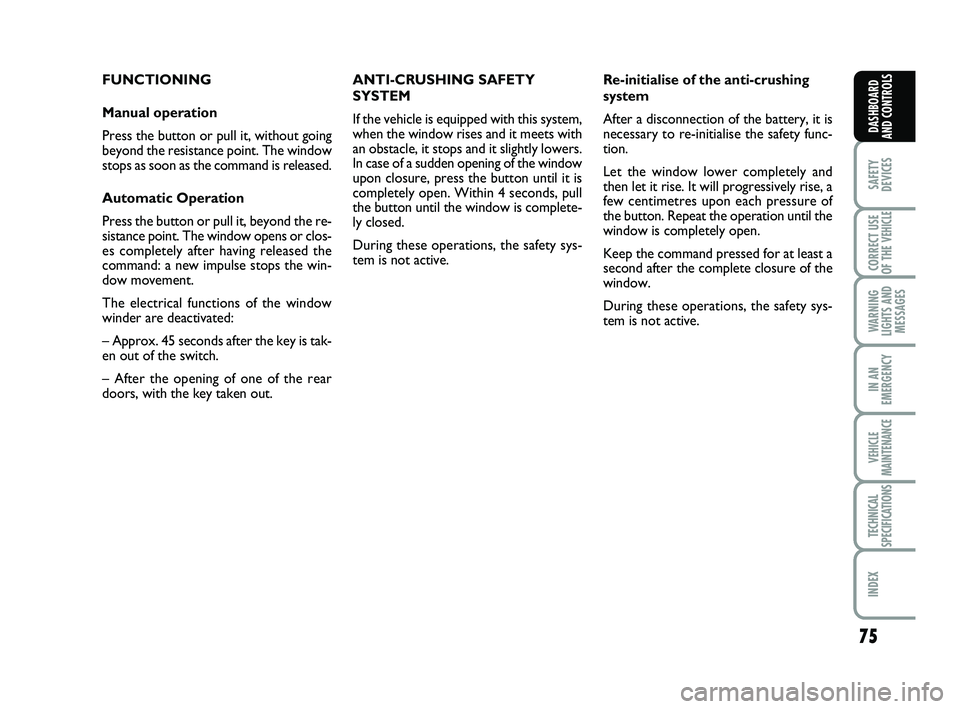

FUNCTIONING
Manual operation
Press the button or pull it, without going
beyond the resistance point. The window
stops as soon as the command is released.
Automatic Operation
Press the button or pull it, beyond the re-
sistance point. The window opens or clos-
es completely after having released the
command: a new impulse stops the win-
dow movement.
The electrical functions of the window
winder are deactivated:
– Approx. 45 seconds after the key is tak-
en out of the switch.
– After the opening of one of the rear
doors, with the key taken out.ANTI-CRUSHING SAFETY
SYSTEM
If the vehicle is equipped with this system,
when the window rises and it meets with
an obstacle, it stops and it slightly lowers.
In case of a sudden opening of the window
upon closure, press the button until it is
completely open. Within 4 seconds, pull
the button until the window is complete-
ly closed.
During these operations, the safety sys-
tem is not active.Re-initialise of the anti-crushing
system
After a disconnection of the battery, it is
necessary to re-initialise the safety func-
tion.
Let the window lower completely and
then let it rise. It will progressively rise, a
few centimetres upon each pressure of
the button. Repeat the operation until the
window is completely open.
Keep the command pressed for at least a
second after the complete closure of the
window.
During these operations, the safety sys-
tem is not active.
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 75

78
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
PNEUMATIC
SUSPENSIONS
In some versions the tires rear suspen-
sions self-leveling may be included as an
optional.
According to versions suspensions can be
adjusted manually or automatically.
MANUAL ADJUSTMENT
The controls fig.109are located in the
rear right of the vehicle.
Height adjustment
The height adjustment varies from a max-
imum alignmentto an intermediate
alignmentto a minimum alignment.
The reaching of the two stabilities, maxi-
mum or minimum is signalled by 3 “beeps”.
By pressing down twice on one of the A
buttons (starting from the minimum align-
ment position) or one of the Bbuttons
(starting from the maximum alignment po-
sition), the system will automatically ad-
just the setting to the intermediate align-
ment.
fig. 109F0P0102m
Before starting the manual
adjustment procedure with
doors open, make sure there
is enough space around the
vehicle.
First-time use
To initialize the system, keep pushbutton
C-fig.109pressed for 2 seconds
Operating faults
If, when acting on the controls, the sus-
pensions do not adjust, 3 acoustic warn-
ings indicate a system malfunction.
This malfunction could be due to one of
these causes:
❒the brake pedal is pressed and the ig-
nition key is in Mposition
❒excessive use of the system manual ad-
justment;
❒the battery is low (or completely dis-
charged);
❒a tire suspension system error.
If the acoustic warning persists, contact
the Fiat Dealership. The required height level should be set
with vehicle at a standstill and engine run-
ning or off.
With engine off, manual adjustment is on-
ly possible for a restricted number of
times.
IMPORTANT Only make adjustments
with vehicle stationary and:
❒front and side doors closed;
❒handbrake engaged;
❒without pressing the brake pedal.
018-080 SCUDO LUM GB:018-080 Nuovo ScudoG9 GB 9-10-2012 9:27 Pagina 78

81
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEADLIGHTS
ADJUSTING THE HEADLIGHT
BEAM
Proper adjustment of the headlight beams
is of vital importance for your safety and
comfort and also for the other road users.
To ensure you and other drivers have the
best visibility conditions when travelling
with the headlights on, the headlights must
be set properly. Contact Fiat Dealership
to have the headlights properly adjusted.HEADLIGHT AIMING DEVICE
It works with ignition key at Mand dipped
beams on. When the vehicle is loaded, it
slopes backwards. This means that the
headlight beam rises. In this case, it is nec-
essary to return it to the correct position.To adjust the headlight slant
fig. 112
Set the device fig. 112position according
to the load carried as specified in the table
below.
Position 0- one or two passengers on
front seats;
Position 1- five passengers;
Position 2- five passengers + load in the
load compartment;
Position 3- eight passengers + load in the
load compartment or driver
+ maximum admitted load in
the load compartment.
IMPORTANT Check beam aiming every
time the load carried changes.
ADJUSTING THE FRONT FOG
LIGHTS
(for versions/markets, where provided)
Contact Fiat Dealership to have the head-
lights properly adjusted.
fig. 112F0F0103m
081-092 SCUDO LUM GB:081-092 Nuovo ScudoG9 GB 22-04-2010 10:08 Pagina 81

87
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
EOBD SYSTEM
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the vehicle correlat-
ed with emissions.
It also alerts the driver, by turning on the
warning light
Uon the instrument panel
(see section “Warning lights and mes-
sages”), when these conditions are no
longer in peak conditions.
The objective is:
❒to keep the system efficiency under con-
trol;
❒ warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace deteriorat-
ed components.The system also has a diagnostic connec-
tor that can be interfaced with appropri-
ate tools, which makes it possible to read
the error codes stored in the control unit,
together with a series of specific parame-
ters for engine operation and diagnosis.
This check can also be carried out by the
traffic police.
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.If when turning the ignition
key to M, the warning light
Udoes not turn on or if,
while travelling it turns on
glowing steadily or flashing, contact
Fiat Dealership as soon as possible.
Warning light Uoperation can be
checked by means of special equip-
ment by traffic agents. Always comply
with the traffic regulations in force in
the country where you are travelling.
081-092 SCUDO LUM GB:081-092 Nuovo ScudoG9 GB 22-04-2010 10:08 Pagina 87

91
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Refuelling
To guarantee full tank filling, carry out two
refuelling operations after the first click of
the fuel delivery gun. Avoid further top-
ping up operations that could cause dam-
ages to the fuel system.
FUEL FILLER CAP fig. 116
To carry out fuelling, open lid A, fit the ig-
nition key into the cap lock and turn it
counterclockwise, then loosen cap B.
The sealing of the tank may cause light
pressurising in the tank. A little breathing
off, while slackening the cap, is absolutely
normal.
When refuelling, secure the cap to the de-
vice Cinside the lid.
fig. 116F0F0107m
AT THE FILLING
STATION
Operation at cold temperatures
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffins and could clog the diesel fuel fil-
ter.
In order to avoid these problems, differ-
ent types of diesel are distributed ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas). If refuelling with diesel fuel not suit-
able for the current temperature, mix
diesel fuel with TUTELA DIESEL ART ad-
ditive in the proportions stated on the can,
putting first the antifreeze in the tank and
then the diesel fuel.
Refuel with local diesel fuel if the vehicle
is used/parked in the mountains or in cold
areas for a long period.
In this event you are recommended to
keep an amount of fuel higher than 50% in
the tank.The vehicle must only be filled
with diesel fuel for motor ve-
hicles, in compliance with Eu-
ropean Standard EN590. The
use of other products or mixtures may
irreparably damage the engine with in-
validation of the warranty due to the
damage caused. In the event of acci-
dentally filling with another type of fu-
el, do not start the engine and empty
the tank. If the engine has been run
even for only a very short time, in ad-
dition to the tank, it is also necessary
to drain out the whole fuel circuit.
Keep naked flames or light-
ed cigarettes away from the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING
During refuelling, do not open
the left sliding door due to the
fact that the open fuel door.
081-092 SCUDO LUM GB:081-092 Nuovo ScudoG9 GB 22-04-2010 10:08 Pagina 91

102
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

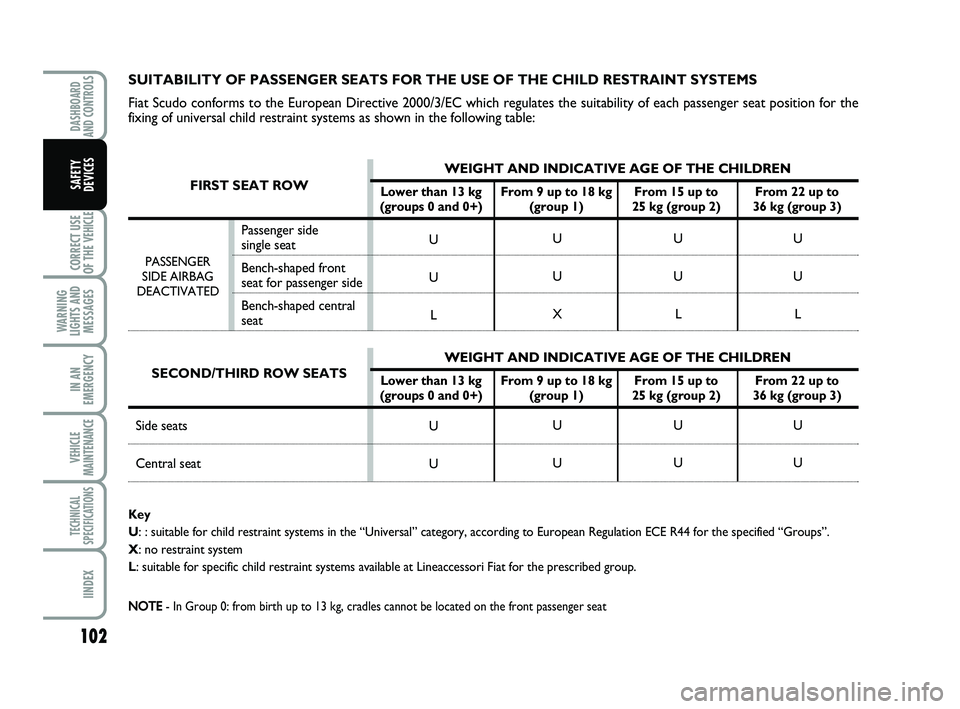

SUITABILITY OF PASSENGER SEATS FOR THE USE OF THE CHILD RESTRAINT SYSTEMS
Fiat Scudo conforms to the European Directive 2000/3/EC which regulates the suitability of each passenger seat position for the
fixing of universal child restraint systems as shown in the following table:
Key
U: : suitable for child restraint systems in the “Universal” category, according to European Regulation ECE R44 for the specified “Groups”.
X: no restraint system
L: suitable for specific child restraint systems available at Lineaccessori Fiat for the prescribed group.
NOTE
- In Group 0: from birth up to 13 kg, cradles cannot be located on the front passenger seat
U
U
L
U
UU
U
X
U
UU
U
L
U
UU
U
L
U
U
FIRST SEAT ROW
Side seats
Central seat
WEIGHT AND INDICATIVE AGE OF THE CHILDREN
Lower than 13 kg From 9 up to 18 kg From 15 up to From 22 up to (groups 0 and 0+) (group 1) 25 kg (group 2) 36 kg (group 3)
WEIGHT AND INDICATIVE AGE OF THE CHILDREN
Lower than 13 kg From 9 up to 18 kg From 15 up to From 22 up to (groups 0 and 0+) (group 1) 25 kg (group 2) 36 kg (group 3)
Passenger side
single seat
Bench-shaped front
seat for passenger side
Bench-shaped central
seat
SECOND/THIRD ROW SEATS
PASSENGER
SIDE AIRBAG
DEACTIVATED
093-112 SCUDO LUM GB 9-10-2012 15:48 Pagina 102

111
CORRECT USE OF THE
VEHICLE
WARNING LIGHTS ANDMESSAGES
IN AN EMERGENCY
VEHICLE MAINTENANCE
TECHNICAL SPECIFICATIONS
INDEX
DASHBOARD AND CONTROLS
SAFETY DEVICES
MANUAL DEACTIVATION OF
THE PASSENGER AIRBAGS
(for versions/markets where provided)
If a child must absolutely be carried on one of the front seats, deactivate the front pas-senger airbag and side bag for pelvis, chestand shoulder protection (for versions/markets, where provided).
The deactivation device on the edge of the glove compartment; toaccess it open its flap.
fig. 14F0P0115m
Use the ignition key to turn the pawl of the deactivation device to OFFto deacti- vate the airbag or to ONto activate it. Warning light “on the instrument pan-el stays on constantly until the front pas-senger airbags and side bag for chest pro-tection (side bag) (for versions/marketswhere provided) are reactivated.
SIDE BAGS
The car is equipped with front side airbagsfor driver and passenger (for ver-sions/markets, where provided) pelvis,chest and shoulder protection (front sidebags), airbags for protecting the heads offront and rear occupants (window bags)(for versions/markets where provided).The front side airbags (for versions/mar-kets, where provided) protect the occu-pants during impacts of medium-highseverity, by placing the bag between theoccupant and the internal parts of the sidestructure of the vehicle. Therefore non-deployment of the side bags in other typesof impacts (front, rear, roll-overs, etc.)does not indicate a system malfunction.
Side airbags (for versions/markets where provided) are not a replacement for, butare complementary to, the seat belts,which you are recommended to alwayswear, as specified by law in Europe andmost non-European countries.
An electronic control unit will inflate the bags, when necessary, in the event of aside impact. The bags will inflate instanta-neously placing themselves between theoccupant bodies and the structures whichcould cause injuries;
093-112 SCUDO LUM GB 9-10-2012 15:48 Pagina 111
fig. 14
is located
