FIAT SCUDO 2015 Owner handbook (in English)

117
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

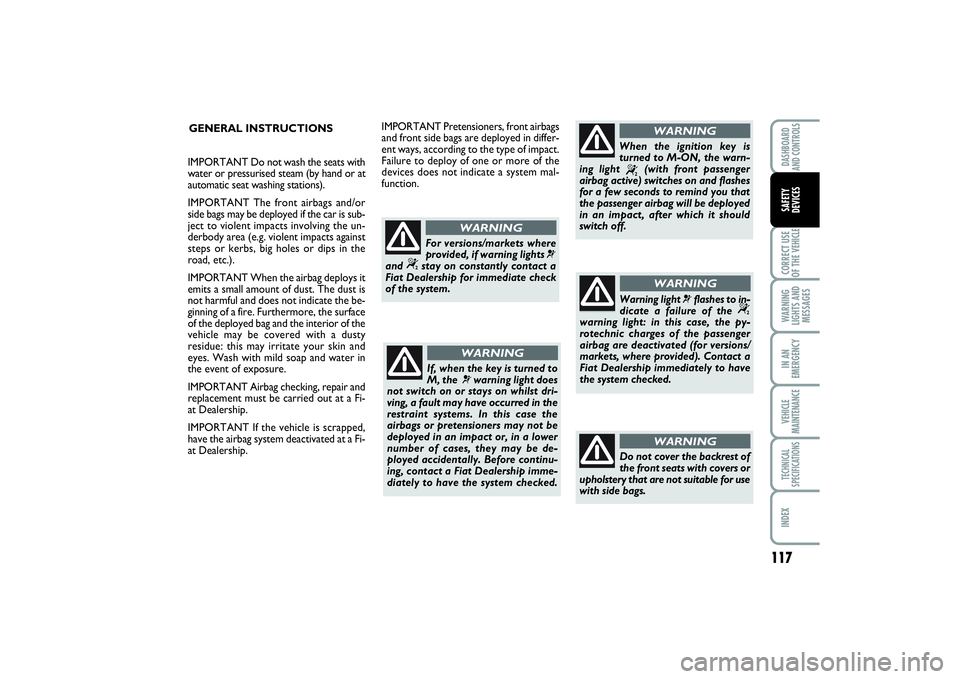

GENERAL INSTRUCTIONS
If, when the key is turned to
M, the
¬warning light does
not switch on or stays on whilst dri-
ving, a fault may have occurred in the
restraint systems. In this case the
airbags or pretensioners may not be
deployed in an impact or, in a lower
number of cases, they may be de-
ployed accidentally. Before continu-
ing, contact a Fiat Dealership imme-
diately to have the system checked.
WARNING
For versions/markets where
provided, if warning lights
¬
and
“
stay on constantly contact a
Fiat Dealership for immediate check
of the system.
WARNING
IMPORTANT Do not wash the seats with
water or pressurised steam (by hand or at
automatic seat washing stations).
IMPORTANT The front airbags and/or
side bags may be deployed if the car is sub-
ject to violent impacts involving the un-
derbody area (e.g. violent impacts against
steps or kerbs, big holes or dips in the
road, etc.).
IMPORTANT When the airbag deploys it
emits a small amount of dust. The dust is
not harmful and does not indicate the be-
ginning of a fire. Furthermore, the surface
of the deployed bag and the interior of the
vehicle may be covered with a dusty
residue: this may irritate your skin and
eyes. Wash with mild soap and water in
the event of exposure.
IMPORTANT Airbag checking, repair and
replacement must be carried out at a Fi-
at Dealership.
IMPORTANT If the vehicle is scrapped,
have the airbag system deactivated at a Fi-
at Dealership.IMPORTANT Pretensioners, front airbags
and front side bags are deployed in differ-
ent ways, according to the type of impact.
Failure to deploy of one or more of the
devices does not indicate a system mal-
function.
Warning light
¬flashes to in-
dicate a failure of the
“
warning light: in this case, the py-
rotechnic charges of the passenger
airbag are deactivated (for versions/
markets, where provided). Contact a
Fiat Dealership immediately to have
the system checked.
WARNING
When the ignition key is
turned to M-ON, the warn-
ing light “
(with front passenger
airbag active) switches on and flashes
for a few seconds to remind you that
the passenger airbag will be deployed
in an impact, after which it should
switch off.WARNING
Do not cover the backrest of
the front seats with covers or
upholstery that are not suitable for use
with side bags.
WARNING
097-118 SCUDO LUM GB 02/04/14 10:40 Pagina 117

118CORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSIINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

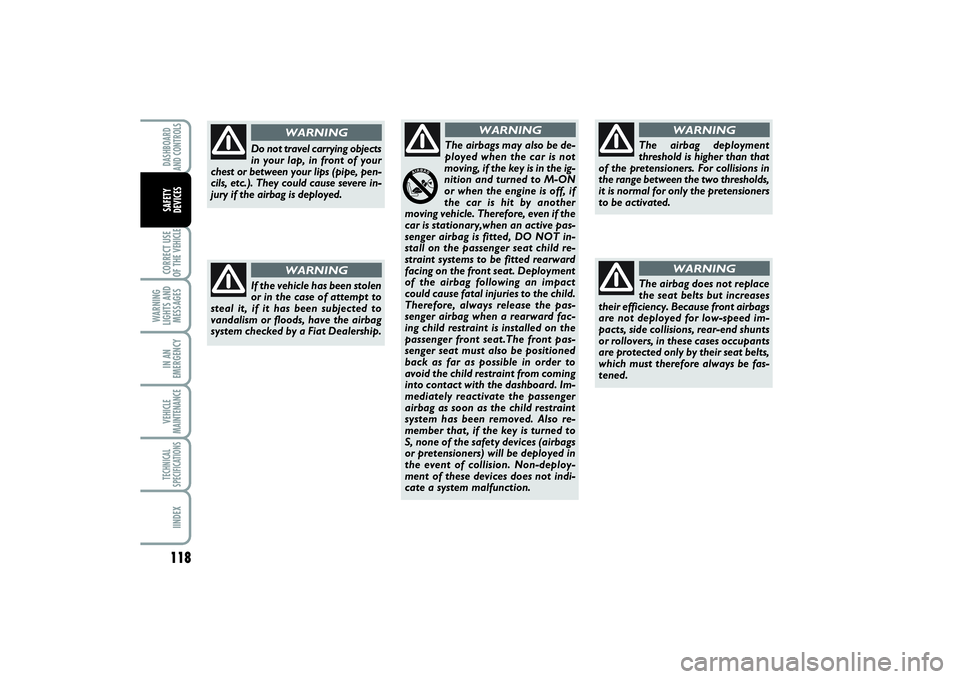

If the vehicle has been stolen
or in the case of attempt to
steal it, if it has been subjected to
vandalism or floods, have the airbag
system checked by a Fiat Dealership.
WARNING
The airbags may also be de-
ployed when the car is not
moving, if the key is in the ig-
nition and turned to M-ON
or when the engine is off, if
the car is hit by another
moving vehicle. Therefore, even if the
car is stationary,when an active pas-
senger airbag is fitted, DO NOT in-
stall on the passenger seat child re-
straint systems to be fitted rearward
facing on the front seat. Deployment
of the airbag following an impact
could cause fatal injuries to the child.
Therefore, always release the pas-
senger airbag when a rearward fac-
ing child restraint is installed on the
passenger front seat.The front pas-
senger seat must also be positioned
back as far as possible in order to
avoid the child restraint from coming
into contact with the dashboard. Im-
mediately reactivate the passenger
airbag as soon as the child restraint
system has been removed. Also re-
member that, if the key is turned to
S, none of the safety devices (airbags
or pretensioners) will be deployed in
the event of collision. Non-deploy-
ment of these devices does not indi-
cate a system malfunction.
WARNING
The airbag deployment
threshold is higher than that
of the pretensioners. For collisions in
the range between the two thresholds,
it is normal for only the pretensioners
to be activated.
WARNING
The airbag does not replace
the seat belts but increases
their efficiency. Because front airbags
are not deployed for low-speed im-
pacts, side collisions, rear-end shunts
or rollovers, in these cases occupants
are protected only by their seat belts,
which must therefore always be fas-
tened.
WARNING
Do not travel carrying objects
in your lap, in front of your
chest or between your lips (pipe, pen-
cils, etc.). They could cause severe in-
jury if the airbag is deployed.
WARNING
097-118 SCUDO LUM GB 02/04/14 10:40 Pagina 118

119
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

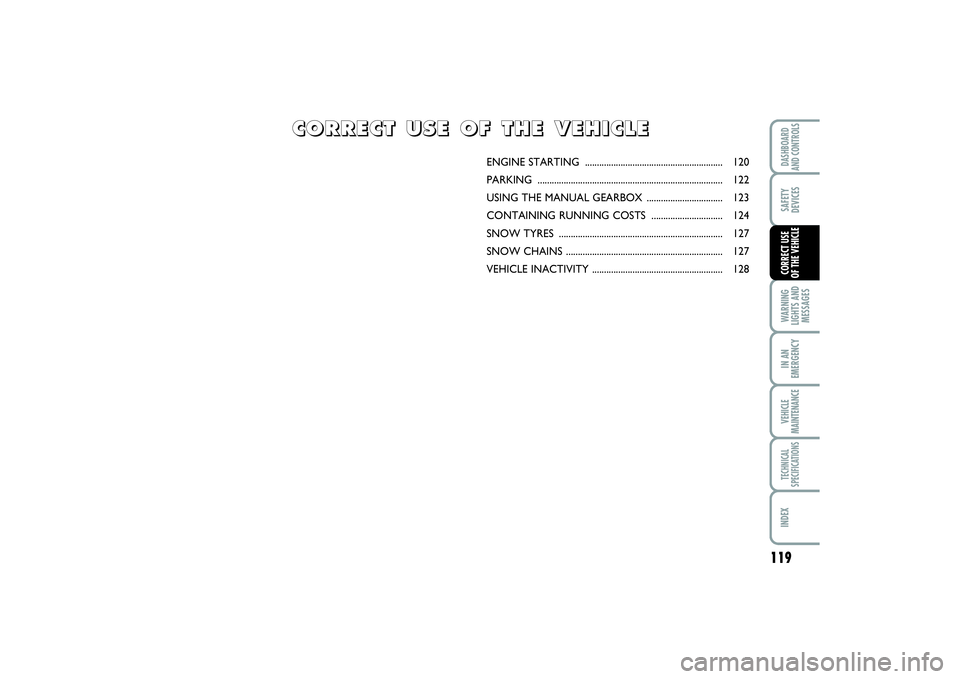

ENGINE STARTING .......................................................... 120
PARKING .............................................................................. 122

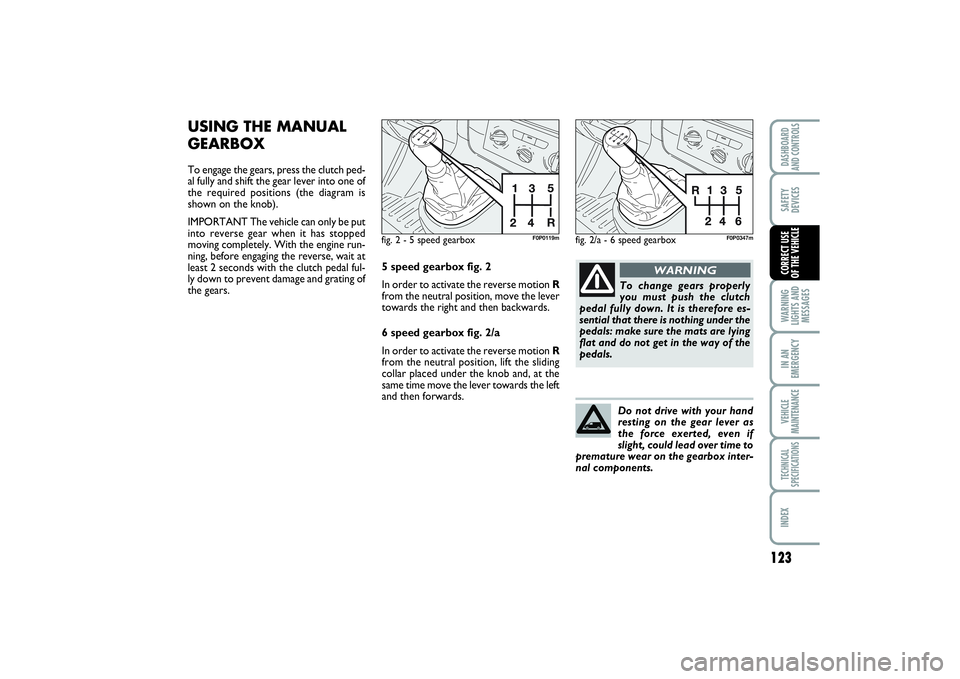

USING THE MANUAL GEARBOX ................................ 123

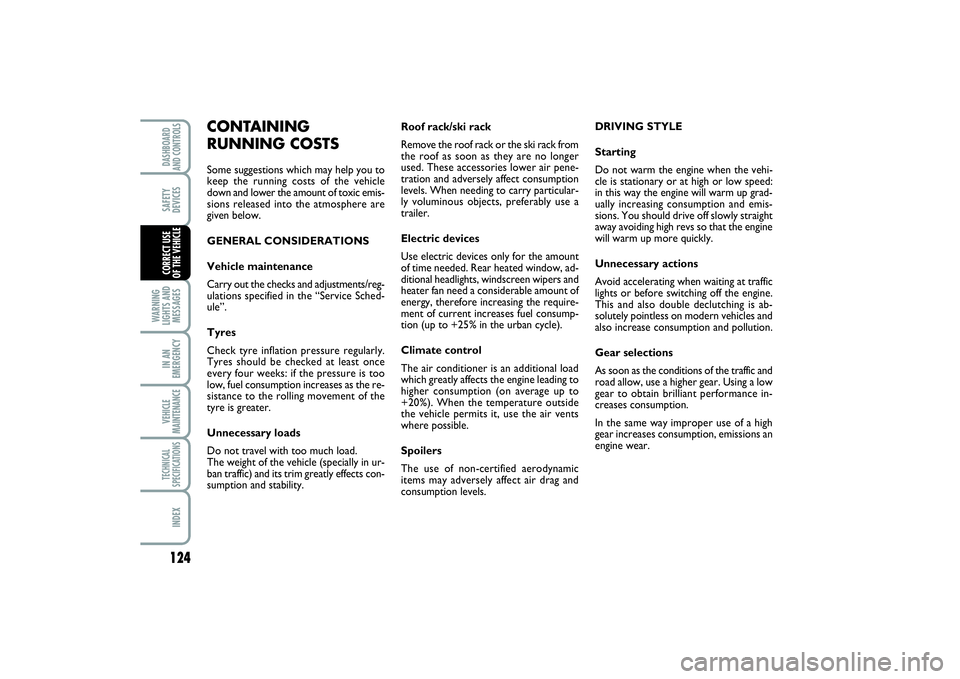

CONTAINING RUNNING COSTS .............................. 124
SNOW TYRES ..................................................................... 127
SNOW CHAINS .................................................................. 127
VEHICLE INACTIVITY ....................................................... 128
C C
O O
R R
R R
E E
C C
T T

U U
S S
E E

O O
F F

T T
H H
E E

V V
E E
H H
I I
C C
L L
E E
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 119

120WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

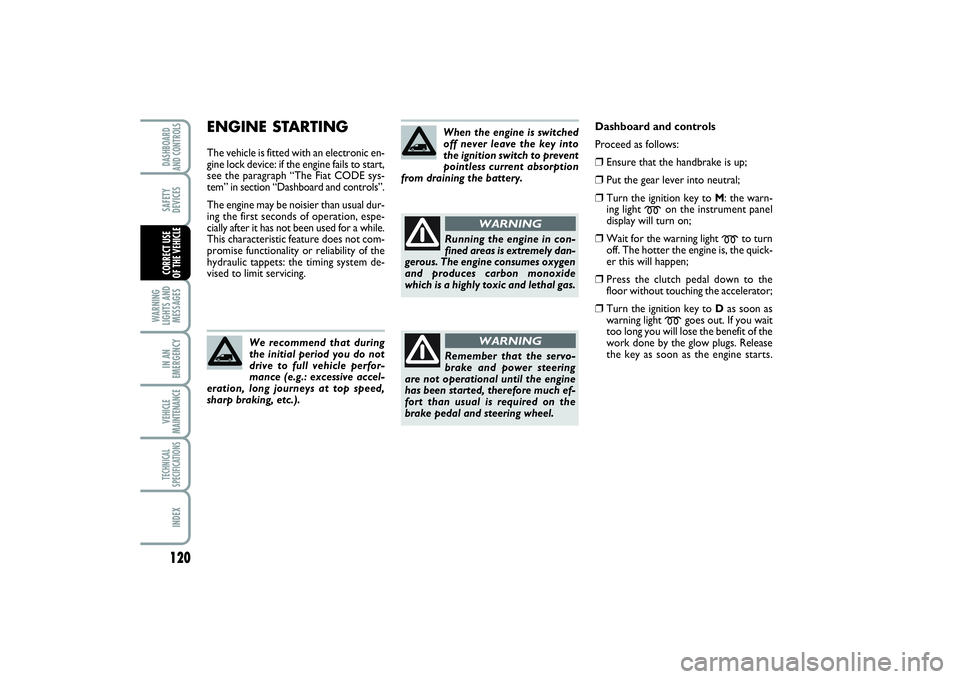

ENGINE STARTINGThe vehicle is fitted with an electronic en-
gine lock device: if the engine fails to start,
see the paragraph “The Fiat CODE sys-
tem” in section “Dashboard and controls”.
The engine may be noisier than usual dur-
ing the first seconds of operation, espe-
cially after it has not been used for a while.
This characteristic feature does not com-
promise functionality or reliability of the
hydraulic tappets: the timing system de-
vised to limit servicing.
We recommend that during
the initial period you do not
drive to full vehicle perfor-
mance (e.g.: excessive accel-
eration, long journeys at top speed,
sharp braking, etc.).
When the engine is switched
off never leave the key into
the ignition switch to prevent
pointless current absorption
from draining the battery.Running the engine in con-
fined areas is extremely dan-
gerous. The engine consumes oxygen
and produces carbon monoxide
which is a highly toxic and lethal gas.
WARNING
Remember that the servo-
brake and power steering
are not operational until the engine
has been started, therefore much ef-
fort than usual is required on the
brake pedal and steering wheel.
WARNING
Dashboard and controls
Proceed as follows:❒
Ensure that the handbrake is up;
❒
Put the gear lever into neutral;
❒
Turn the ignition key to M: the warn-
ing light
m
on the instrument panel
display will turn on;
❒
Wait for the warning light
m
to turn
off. The hotter the engine is, the quick-
er this will happen;
❒
Press the clutch pedal down to the
floor without touching the accelerator;
❒
Turn the ignition key to Das soon as
warning light
m
goes out. If you wait
too long you will lose the benefit of the
work done by the glow plugs. Release
the key as soon as the engine starts.
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 120

121
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

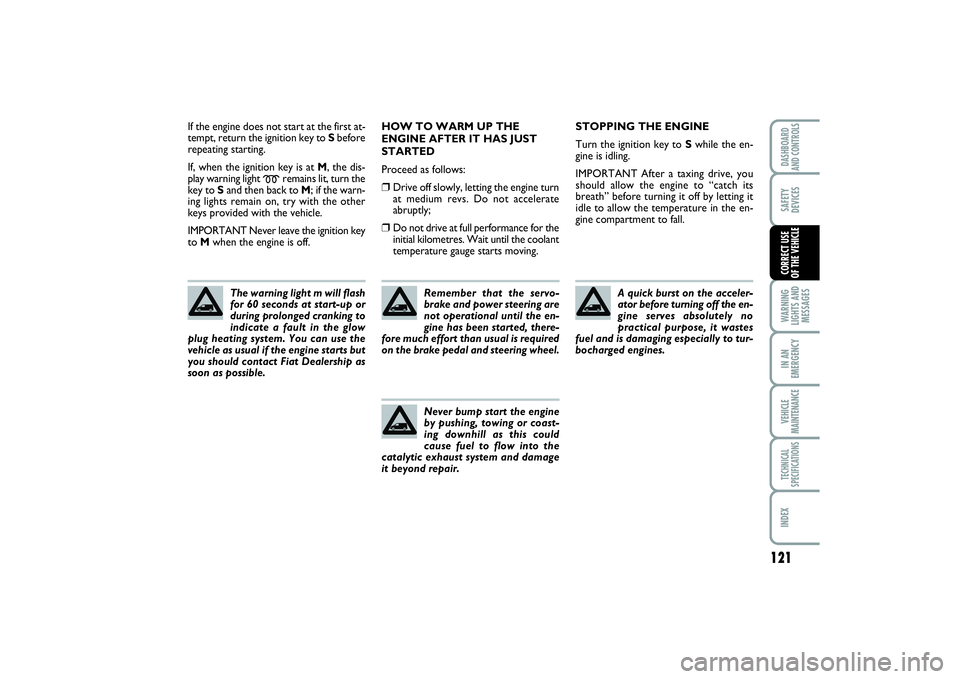

If the engine does not start at the first at-
tempt, return the ignition key to Sbefore
repeating starting.
If, when the ignition key is at M, the dis-
play warning light
m
remains lit, turn the
key to Sand then back to M; if the warn-
ing lights remain on, try with the other
keys provided with the vehicle.
IMPORTANT Never leave the ignition key
to Mwhen the engine is off.
The warning light m will flash
for 60 seconds at start-up or
during prolonged cranking to
indicate a fault in the glow
plug heating system. You can use the
vehicle as usual if the engine starts but
you should contact Fiat Dealership as
soon as possible.
HOW TO WARM UP THE
ENGINE AFTER IT HAS JUST
STARTED
Proceed as follows:❒
Drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
❒
Do not drive at full performance for the
initial kilometres. Wait until the coolant
temperature gauge starts moving.
Remember that the servo-
brake and power steering are
not operational until the en-
gine has been started, there-
fore much effort than usual is required
on the brake pedal and steering wheel.
Never bump start the engine
by pushing, towing or coast-
ing downhill as this could
cause fuel to flow into the
catalytic exhaust system and damage
it beyond repair.
STOPPING THE ENGINE
Turn the ignition key to Swhile the en-
gine is idling.
IMPORTANT After a taxing drive, you
should allow the engine to “catch its
breath” before turning it off by letting it
idle to allow the temperature in the en-
gine compartment to fall.
A quick burst on the acceler-
ator before turning off the en-
gine serves absolutely no
practical purpose, it wastes
fuel and is damaging especially to tur-
bocharged engines.
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 121

122WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

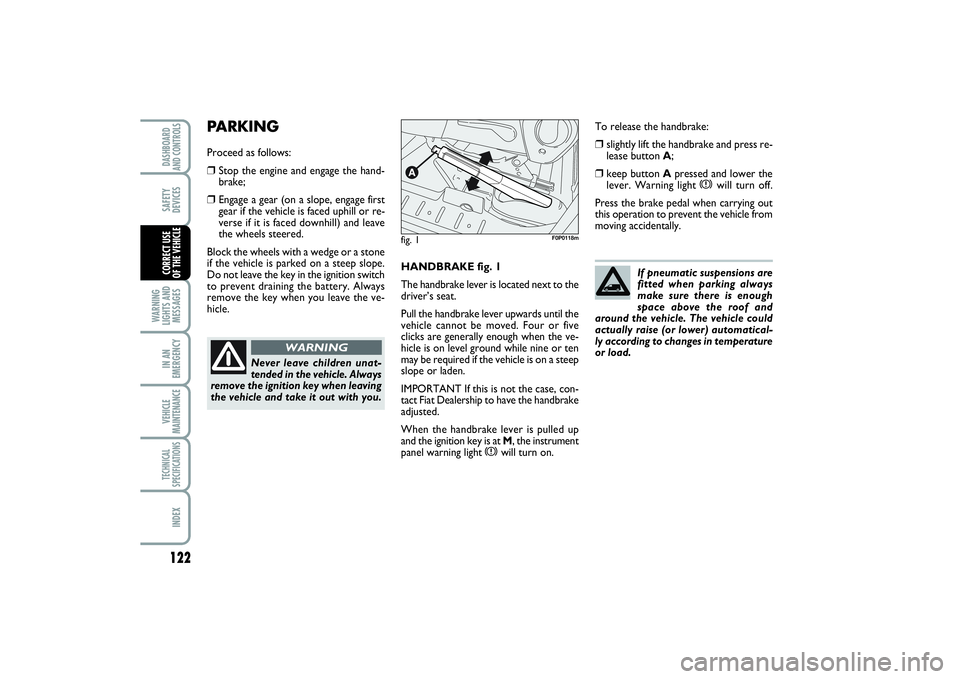

HANDBRAKE fig. 1
The handbrake lever is located next to the
driver’s seat.
Pull the handbrake lever upwards until the
vehicle cannot be moved. Four or five
clicks are generally enough when the ve-
hicle is on level ground while nine or ten
may be required if the vehicle is on a steep
slope or laden.
IMPORTANT If this is not the case, con-
tact Fiat Dealership to have the handbrake
adjusted.
When the handbrake lever is pulled up
and the ignition key is at M, the instrument
panel warning light
x
will turn on.
PARKINGProceed as follows:❒
Stop the engine and engage the hand-
brake;
❒
Engage a gear (on a slope, engage first
gear if the vehicle is faced uphill or re-
verse if it is faced downhill) and leave
the wheels steered.
Block the wheels with a wedge or a stone
if the vehicle is parked on a steep slope.
Do not leave the key in the ignition switch
to prevent draining the battery. Always
remove the key when you leave the ve-
hicle.
Never leave children unat-
tended in the vehicle. Always
remove the ignition key when leaving
the vehicle and take it out with you.
WARNING
fig. 1
F0P0118m
To release the handbrake:❒
slightly lift the handbrake and press re-
lease button A;
❒
keep button Apressed and lower the
lever. Warning light
x
will turn off.
Press the brake pedal when carrying out
this operation to prevent the vehicle from
moving accidentally.
If pneumatic suspensions are
fitted when parking always
make sure there is enough
space above the roof and
around the vehicle. The vehicle could
actually raise (or lower) automatical-
ly according to changes in temperature
or load.
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 122

123
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE
USING THE MANUAL
GEARBOXTo engage the gears, press the clutch ped-
al fully and shift the gear lever into one of
the required positions (the diagram is
shown on the knob).
IMPORTANT The vehicle can only be put
into reverse gear when it has stopped
moving completely. With the engine run-
ning, before engaging the reverse, wait at
least 2 seconds with the clutch pedal ful-
ly down to prevent damage and grating of
the gears.
fig. 2 - 5 speed gearbox
F0P0119m
5 speed gearbox fig. 2
In order to activate the reverse motion R
from the neutral position, move the lever
towards the right and then backwards.
6 speed gearbox fig. 2/a
In order to activate the reverse motion R
from the neutral position, lift the sliding
collar placed under the knob and, at the
same time move the lever towards the left
and then forwards.
To change gears properly
you must push the clutch
pedal fully down. It is therefore es-
sential that there is nothing under the
pedals: make sure the mats are lying
flat and do not get in the way of the
pedals.
WARNING
Do not drive with your hand
resting on the gear lever as
the force exerted, even if
slight, could lead over time to
premature wear on the gearbox inter-
nal components.
fig. 2/a - 6 speed gearbox
F0P0347m
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 123

124WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE
Roof rack/ski rack
Remove the roof rack or the ski rack from
the roof as soon as they are no longer
used. These accessories lower air pene-
tration and adversely affect consumption
levels. When needing to carry particular-
ly voluminous objects, preferably use a
trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).
Climate control
The air conditioner is an additional load
which greatly affects the engine leading to
higher consumption (on average up to
+20%). When the temperature outside
the vehicle permits it, use the air vents
where possible.
Spoilers
The use of non-certified aerodynamic
items may adversely affect air drag and
consumption levels.DRIVING STYLE
Starting
Do not warm the engine when the vehi-
cle is stationary or at high or low speed:
in this way the engine will warm up grad-
ually increasing consumption and emis-
sions. You should drive off slowly straight
away avoiding high revs so that the engine
will warm up more quickly.
Unnecessary actions
Avoid accelerating when waiting at traffic
lights or before switching off the engine.
This and also double declutching is ab-
solutely pointless on modern vehicles and
also increase consumption and pollution.
Gear selections
As soon as the conditions of the traffic and
road allow, use a higher gear. Using a low
gear to obtain brilliant performance in-
creases consumption.
In the same way improper use of a high
gear increases consumption, emissions an
engine wear.
CONTAINING
RUNNING COSTSSome suggestions which may help you to
keep the running costs of the vehicle
down and lower the amount of toxic emis-
sions released into the atmosphere are
given below.
GENERAL CONSIDERATIONS
Vehicle maintenance
Carry out the checks and adjustments/reg-
ulations specified in the “Service Sched-
ule”.
Tyres
Check tyre inflation pressure regularly.
Tyres should be checked at least once
every four weeks: if the pressure is too
low, fuel consumption increases as the re-
sistance to the rolling movement of the
tyre is greater.
Unnecessary loads
Do not travel with too much load.
The weight of the vehicle (specially in ur-
ban traffic) and its trim greatly effects con-
sumption and stability.
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 124

125
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

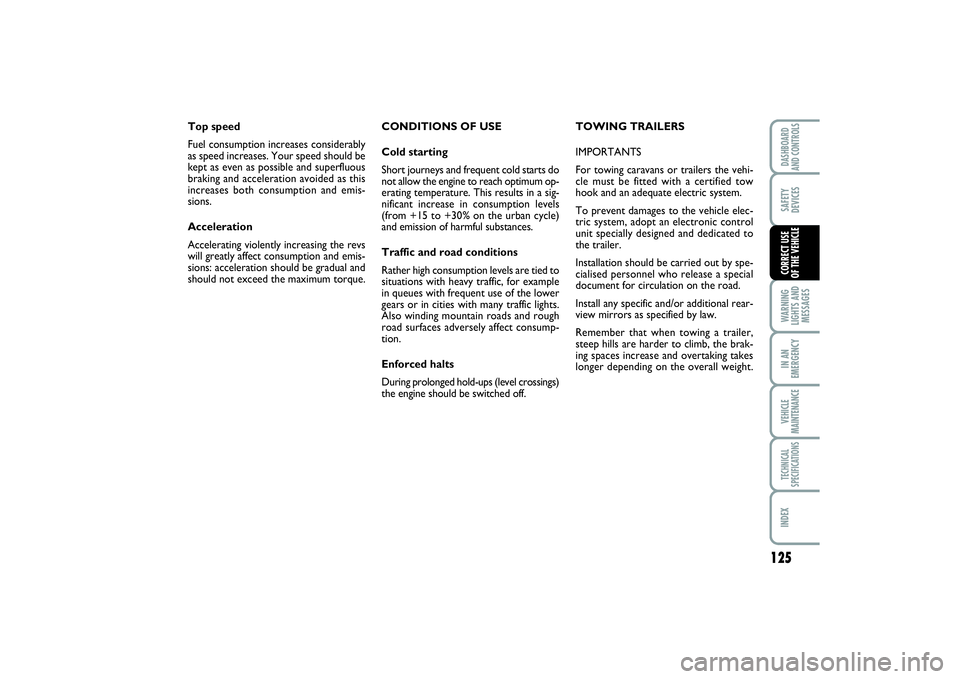

CONDITIONS OF USE
Cold starting
Short journeys and frequent cold starts do
not allow the engine to reach optimum op-
erating temperature. This results in a sig-
nificant increase in consumption levels
(from +15 to +30% on the urban cycle)
and emission of harmful substances.
Traffic and road conditions
Rather high consumption levels are tied to
situations with heavy traffic, for example
in queues with frequent use of the lower
gears or in cities with many traffic lights.
Also winding mountain roads and rough
road surfaces adversely affect consump-
tion.
Enforced halts
During prolonged hold-ups (level crossings)
the engine should be switched off. Top speed
Fuel consumption increases considerably
as speed increases. Your speed should be
kept as even as possible and superfluous
braking and acceleration avoided as this
increases both consumption and emis-
sions.
Acceleration
Accelerating violently increasing the revs
will greatly affect consumption and emis-
sions: acceleration should be gradual and
should not exceed the maximum torque.TOWING TRAILERS
IMPORTANTS
For towing caravans or trailers the vehi-
cle must be fitted with a certified tow
hook and an adequate electric system.
To prevent damages to the vehicle elec-
tric system, adopt an electronic control
unit specially designed and dedicated to
the trailer.
Installation should be carried out by spe-
cialised personnel who release a special
document for circulation on the road.
Install any specific and/or additional rear-
view mirrors as specified by law.
Remember that when towing a trailer,
steep hills are harder to climb, the brak-
ing spaces increase and overtaking takes
longer depending on the overall weight.
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 125

126WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE

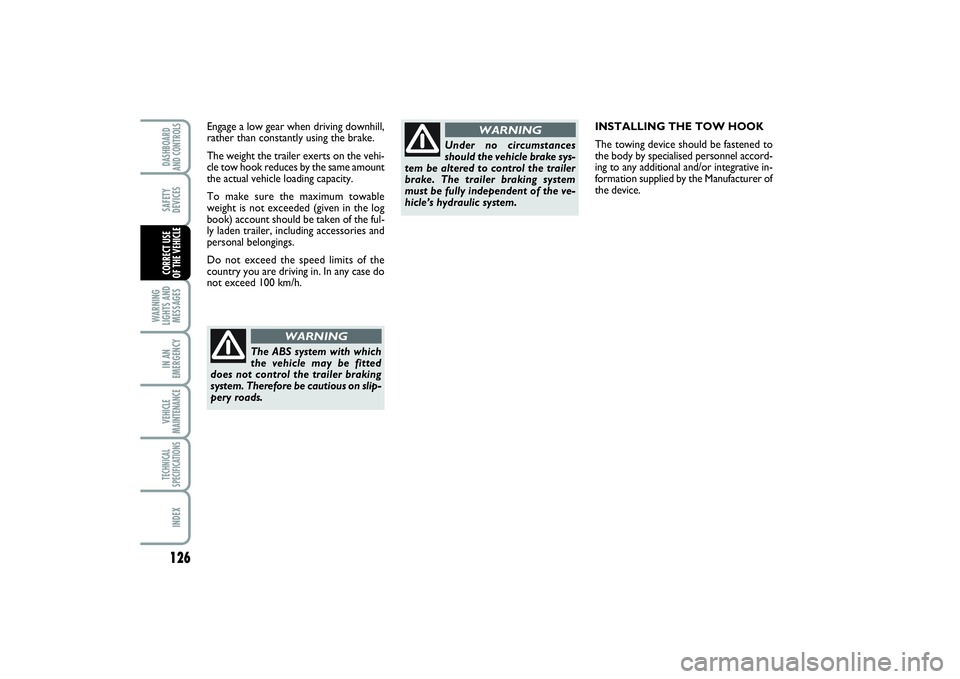

INSTALLING THE TOW HOOK
The towing device should be fastened to
the body by specialised personnel accord-
ing to any additional and/or integrative in-
formation supplied by the Manufacturer of
the device. Engage a low gear when driving downhill,
rather than constantly using the brake.
The weight the trailer exerts on the vehi-
cle tow hook reduces by the same amount
the actual vehicle loading capacity.
To make sure the maximum towable
weight is not exceeded (given in the log
book) account should be taken of the ful-
ly laden trailer, including accessories and
personal belongings.
Do not exceed the speed limits of the
country you are driving in. In any case do
not exceed 100 km/h.
The ABS system with which
the vehicle may be fitted
does not control the trailer braking
system. Therefore be cautious on slip-
pery roads.
WARNING
Under no circumstances
should the vehicle brake sys-
tem be altered to control the trailer
brake. The trailer braking system
must be fully independent of the ve-
hicle’s hydraulic system.
WARNING
119-128 SCUDO LUM GB 18/11/13 14.26 Pagina 126
