FIAT SCUDO 2015 Owner handbook (in English)

147
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

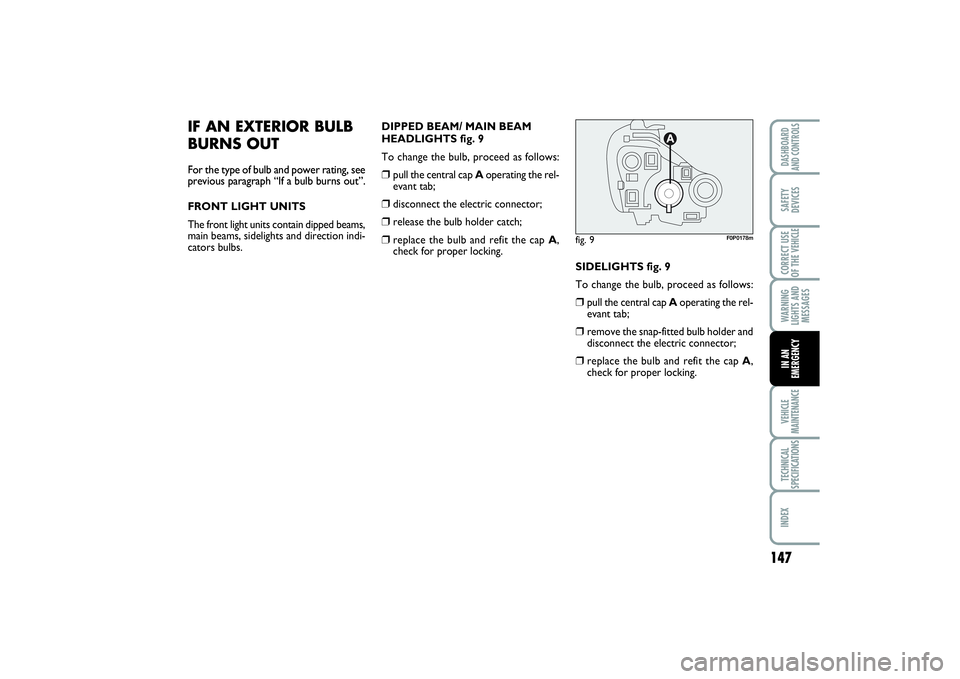

IF AN EXTERIOR BULB
BURNS OUTFor the type of bulb and power rating, see
previous paragraph “If a bulb burns out”.FRONT LIGHT UNITS
The front light units contain dipped beams,
main beams, sidelights and direction indi-
cators bulbs.DIPPED BEAM/ MAIN BEAM
HEADLIGHTS fig. 9
To change the bulb, proceed as follows:
❒
pull the central cap Aoperating the rel-
evant tab;
❒
disconnect the electric connector;
❒
release the bulb holder catch;
❒
replace the bulb and refit the cap A,
check for proper locking.
SIDELIGHTS fig. 9
To change the bulb, proceed as follows:
❒
pull the central cap Aoperating the rel-
evant tab;
❒
remove the snap-fitted bulb holder and
disconnect the electric connector;
❒
replace the bulb and refit the cap A,
check for proper locking.
fig. 9
F0P0178m
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 147

148WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

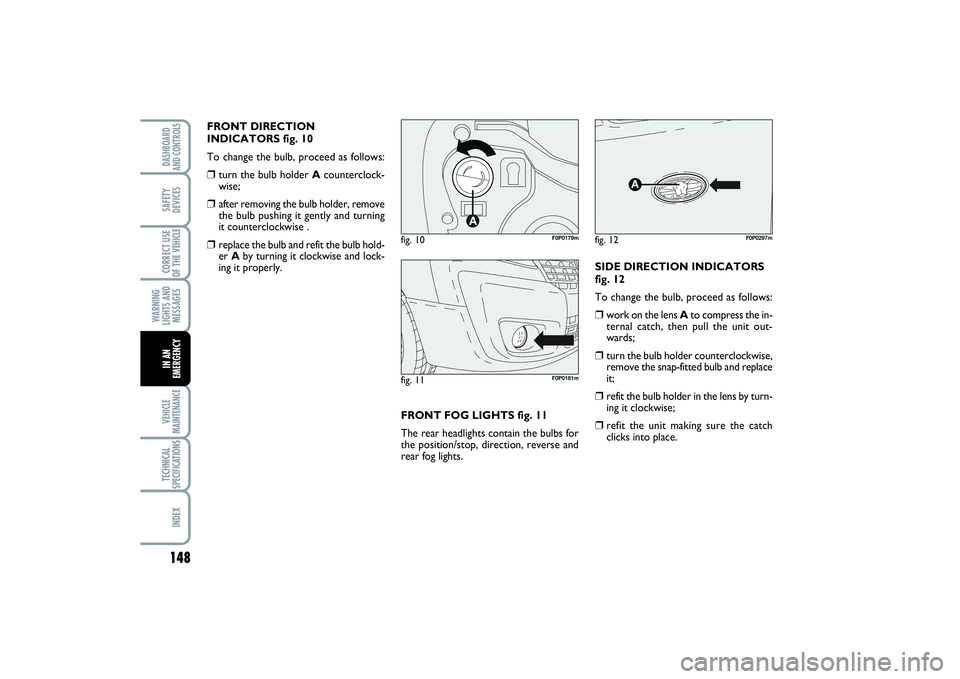

FRONT DIRECTION
INDICATORS fig. 10
To change the bulb, proceed as follows:❒
turn the bulb holder Acounterclock-
wise;
❒
after removing the bulb holder, remove
the bulb pushing it gently and turning
it counterclockwise .
❒
replace the bulb and refit the bulb hold-
er Aby turning it clockwise and lock-
ing it properly.
FRONT FOG LIGHTS fig. 11
The rear headlights contain the bulbs for
the position/stop, direction, reverse and
rear fog lights.SIDE DIRECTION INDICATORS
fig. 12
To change the bulb, proceed as follows:
❒
work on the lens Ato compress the in-
ternal catch, then pull the unit out-
wards;
❒
turn the bulb holder counterclockwise,
remove the snap-fitted bulb and replace
it;
❒
refit the bulb holder in the lens by turn-
ing it clockwise;
❒
refit the unit making sure the catch
clicks into place.
fig. 11
F0P0181m
fig. 10
F0P0179m
fig. 12
A
F0P0297m
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 148

149
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

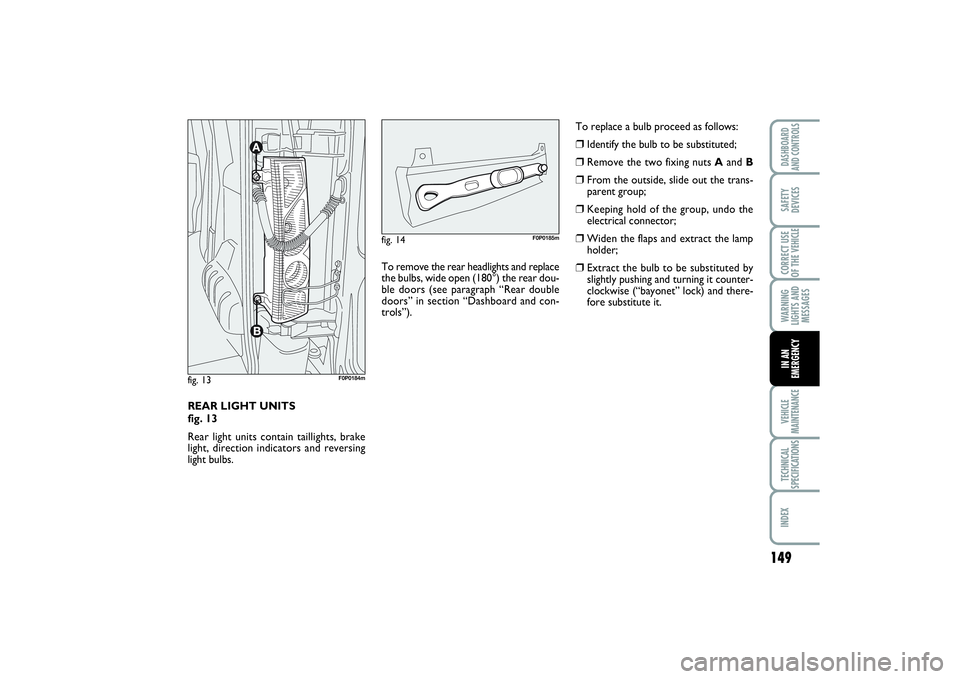

REAR LIGHT UNITS
fig. 13
Rear light units contain taillights, brake
light, direction indicators and reversing
light bulbs.fig. 13
F0P0184m
To remove the rear headlights and replace
the bulbs, wide open (180°) the rear dou-
ble doors (see paragraph “Rear double
doors” in section “Dashboard and con-
trols”).fig. 14
F0P0185m
To replace a bulb proceed as follows:❒
Identify the bulb to be substituted;
❒
Remove the two fixing nuts Aand B
❒
From the outside, slide out the trans-
parent group;
❒
Keeping hold of the group, undo the
electrical connector;
❒
Widen the flaps and extract the lamp
holder;
❒
Extract the bulb to be substituted by
slightly pushing and turning it counter-
clockwise (“bayonet” lock) and there-
fore substitute it.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 149

150WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

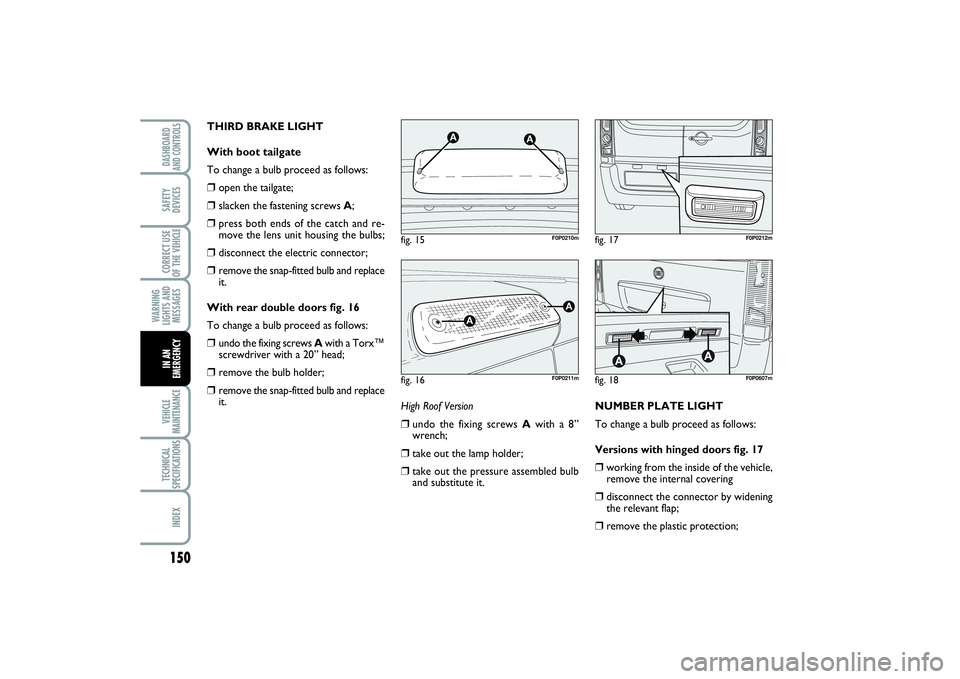

THIRD BRAKE LIGHT
With boot tailgate
To change a bulb proceed as follows:❒
open the tailgate;
❒
slacken the fastening screws A;
❒
press both ends of the catch and re-
move the lens unit housing the bulbs;
❒
disconnect the electric connector;
❒
remove the snap-fitted bulb and replace
it.
With rear double doors fig. 16
To change a bulb proceed as follows:
❒
undo the fixing screws Awith a Torx™
screwdriver with a 20” head;
❒
remove the bulb holder;
❒
remove the snap-fitted bulb and replace
it.
NUMBER PLATE LIGHT
To change a bulb proceed as follows:
Versions with hinged doors fig. 17
❒
working from the inside of the vehicle,
remove the internal covering
❒
disconnect the connector by widening
the relevant flap;
❒
remove the plastic protection;
fig. 15
A
A
F0P0210m
fig. 16
A
A
F0P0211m
fig. 17
F0P0212m
fig. 18
F0P0607m
High Roof Version❒
undo the fixing screws Awith a 8”
wrench;
❒
take out the lamp holder;
❒
take out the pressure assembled bulb
and substitute it.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 150

151
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

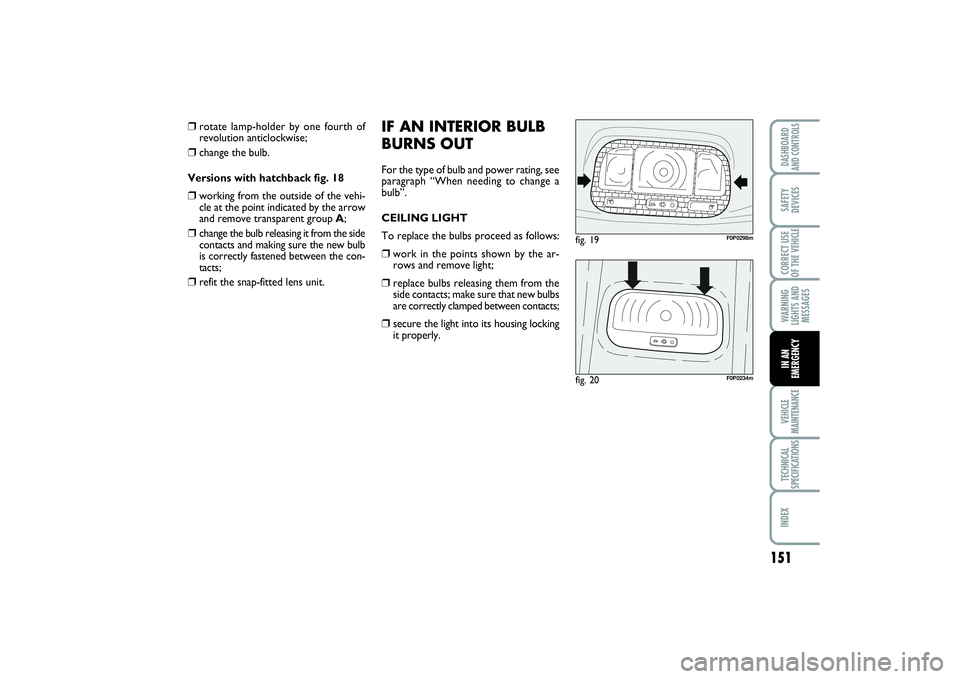

IF AN INTERIOR BULB
BURNS OUTFor the type of bulb and power rating, see
paragraph “When needing to change a
bulb”.
CEILING LIGHT
To replace the bulbs proceed as follows:❒
work in the points shown by the ar-
rows and remove light;
❒
replace bulbs releasing them from the
side contacts; make sure that new bulbs
are correctly clamped between contacts;
❒
secure the light into its housing locking
it properly.
fig. 19
F0P0298m
fig. 20
F0P0234m
❒
rotate lamp-holder by one fourth of
revolution anticlockwise;
❒
change the bulb.
Versions with hatchback fig. 18
❒
working from the outside of the vehi-
cle at the point indicated by the arrow
and remove transparent group A;
❒
change the bulb releasing it from the side
contacts and making sure the new bulb
is correctly fastened between the con-
tacts;
❒
refit the snap-fitted lens unit.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 151

152WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY

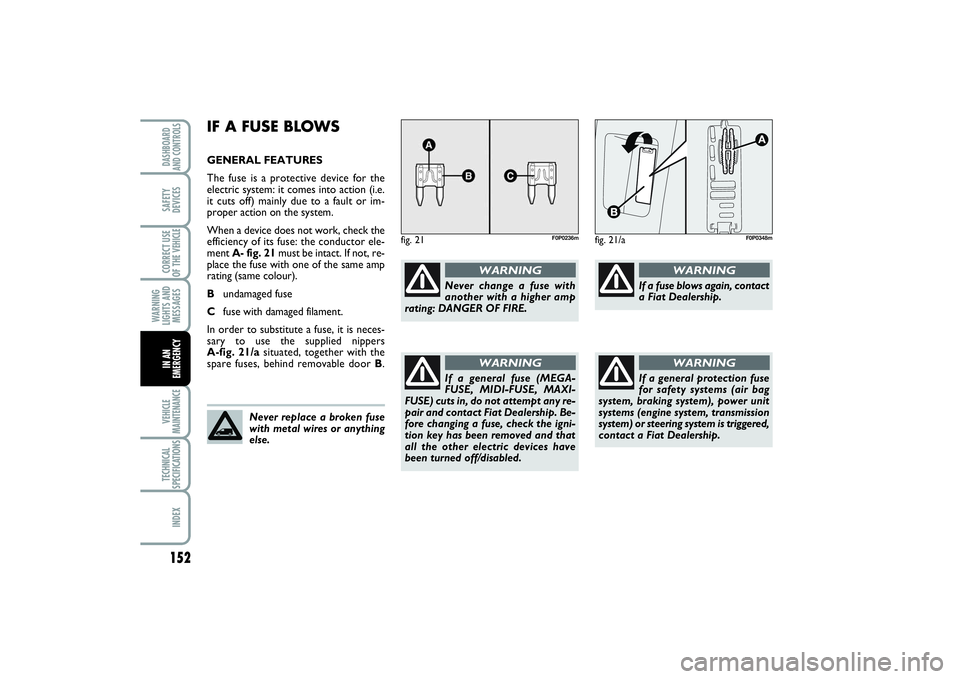

IF A FUSE BLOWSGENERAL FEATURES
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A- fig. 21must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse
Cfuse with damaged filament.
In order to substitute a fuse, it is neces-
sary to use the supplied nippers
A-fig. 21/asituated, together with the
spare fuses, behind removable door B.
fig. 21
F0P0236m
Never change a fuse with
another with a higher amp
rating: DANGER OF FIRE.
WARNING
Never replace a broken fuse
with metal wires or anything
else.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership. Be-
fore changing a fuse, check the igni-
tion key has been removed and that
all the other electric devices have
been turned off/disabled.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
fig. 21/a
F0P0348m
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 152

153
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY
fig. 22
F0P0299m
F1
F2
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F1715
–
10
30
30
5
20
10
30
15
15
5
15
30
–
40
Fuse box on the dashboard on passenger sideUSERS FUSE AMPERERear window wiperFree
Headlight aiming device, diagnostic socket, ESC control unit,ventilation, particulate filter pump, steering sensorPower rearview mirror, passenger power windowFront window powerCeiling lights, glovebox light
Multi-function Display, anti-theft alarm siren, sound system,
CD-Changer, Radiotelephone, trailer services control unit, Panel workers protection control unitCigar lighter, load compartment outletRear trimming strip, starting device, instrument panel Diagnostic socket, anti-theft system control unitKit main libre, airbag control unitEngine utilities control unit, trailer utilities control unit
Rain sensor, automatic acclimatiser instrument panel,
ventilation rear part of passenger compartment (combined fittings)Door locking/unlockingFreeRear heated window and door mirrors defroster
❒
Tilt the object holding compartment
and forcibly pull it out so as to access
the fuses.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 153

154WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY
fig. 23
F0P0239m
F1
F2
F3
F4
F5
F6
F8
F9
F10
F11
F12
F13
F1420
15
10
20
15
10
20
10
30
40
30
40
30

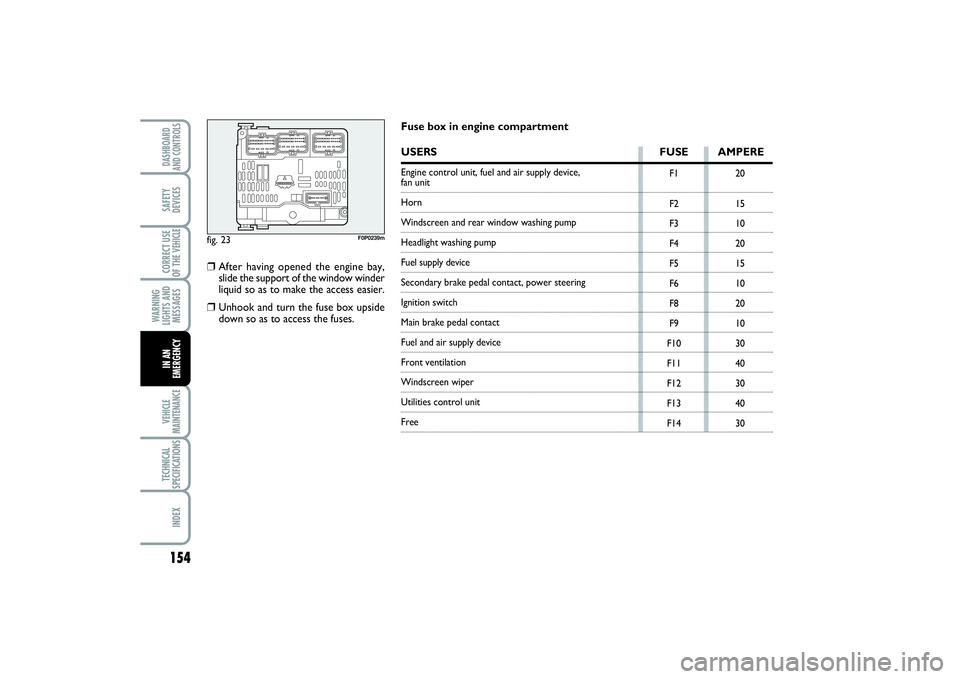

Fuse box in engine compartmentUSERS FUSE AMPEREEngine control unit, fuel and air supply device, fan unitHornWindscreen and rear window washing pumpHeadlight washing pumpFuel supply deviceSecondary brake pedal contact, power steeringIgnition switchMain brake pedal contactFuel and air supply deviceFront ventilationWindscreen wiperUtilities control unitFree
❒
After having opened the engine bay,
slide the support of the window winder
liquid so as to make the access easier.
❒
Unhook and turn the fuse box upside
down so as to access the fuses.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 154

155
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY
fig. 24
F1
F2
F3
F1 F4 F3 F4 F5
F0P0241m
F1
F2
F3
F4
F36
F37
F38
F39
F4030
–
40/50
–
15
10
20
–
5

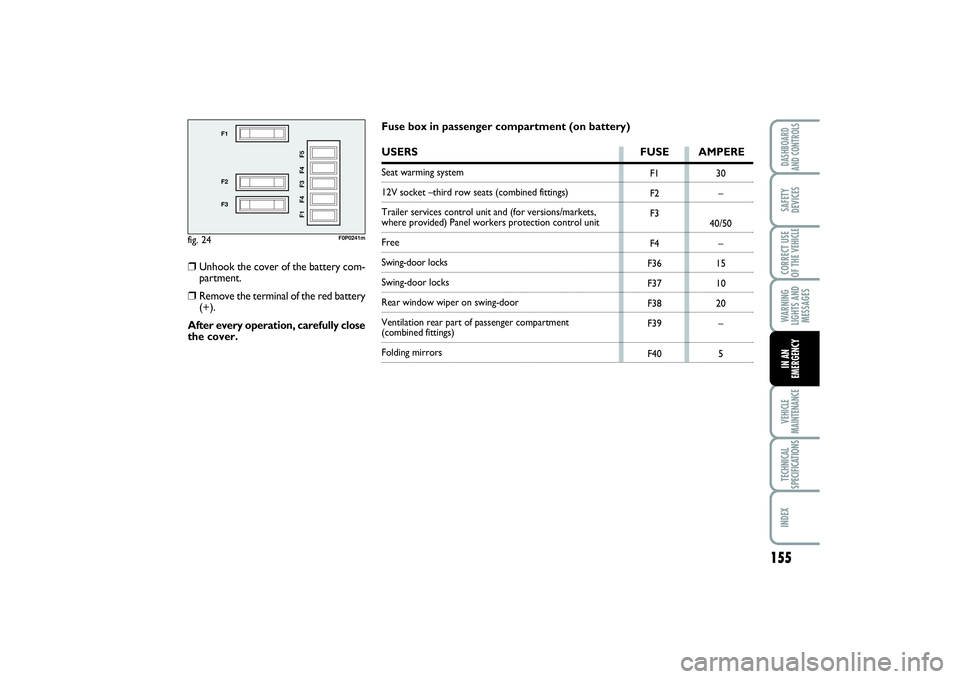

Fuse box in passenger compartment (on battery)USERS FUSE AMPERESeat warming system12V socket –third row seats (combined fittings)
Trailer services control unit and (for versions/markets, where provided) Panel workers protection control unitFreeSwing-door locksSwing-door locksRear window wiper on swing-door
Ventilation rear part of passenger compartment (combined fittings)Folding mirrors
❒
Unhook the cover of the battery com-
partment.
❒
Remove the terminal of the red battery
(+).
After every operation, carefully close
the cover.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 155

156WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY
fig. 25
F1
F2
F3
F4
F5
F0P0246m
F1
F2
F3
F4
F515
15
15
15
40
Additional fuseboxUSERS FUSE AMPEREFreeOptional generator and contact relayTrailer power Permanent power for convertersHazard lights
