DAILY INSPECTION
CHECKLIST
BEFORE DRIVING
Make sure that windows, mirrors,
lights, and reflectors are clean and un-
obstructed.
Visually check the tires for the fol-
lowing points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel bolts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in “INSPECTION AND
MAINTENANCE” section for details.
Look for fluid and oil leaks.
NOTE It is normal for water to drip from
the air conditioning system after use.
Make sure the hood is fully closed and
latched.
Check the headlights, turn signal lights,
brake lights and horn for proper oper-
ation.

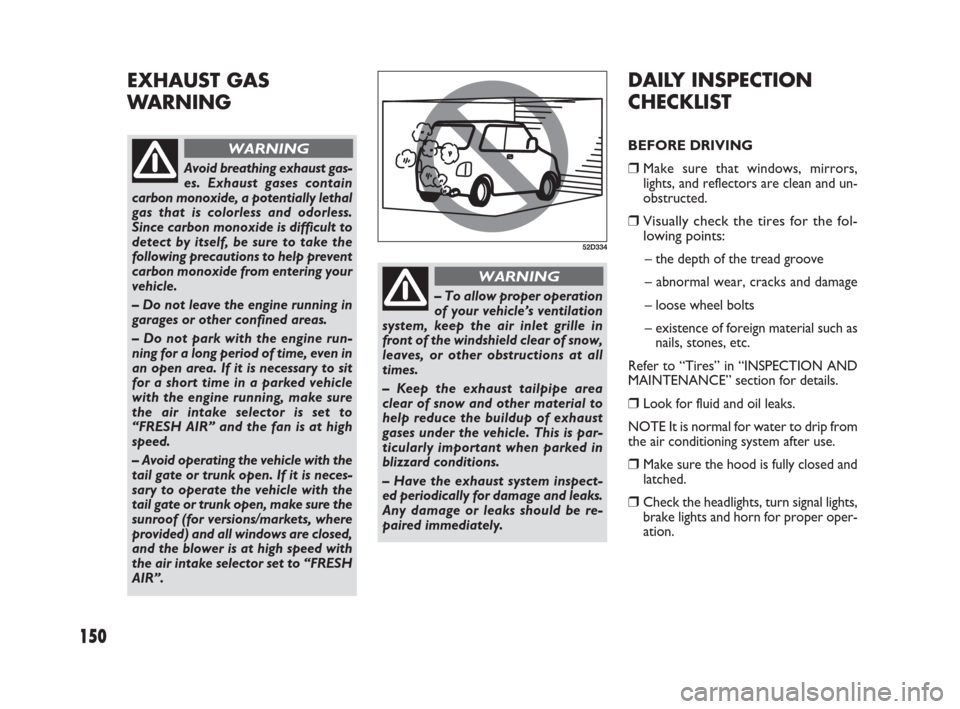

EXHAUST GAS
WARNING
52D334
Avoid breathing exhaust gas-
es. Exhaust gases contain
carbon monoxide, a potentially lethal
gas that is colorless and odorless.
Since carbon monoxide is difficult to
detect by itself, be sure to take the
following precautions to help prevent
carbon monoxide from entering your
vehicle.
– Do not leave the engine running in
garages or other confined areas.
– Do not park with the engine run-
ning for a long period of time, even in
an open area. If it is necessary to sit
for a short time in a parked vehicle
with the engine running, make sure
the air intake selector is set to
“FRESH AIR” and the fan is at high
speed.
– Avoid operating the vehicle with the
tail gate or trunk open. If it is neces-
sary to operate the vehicle with the
tail gate or trunk open, make sure the
sunroof (for versions/markets, where
provided) and all windows are closed,
and the blower is at high speed with
the air intake selector set to “FRESH
AIR”.
WARNING
– To allow proper operation
of your vehicle’s ventilation
system, keep the air inlet grille in
front of the windshield clear of snow,
leaves, or other obstructions at all
times.
– Keep the exhaust tailpipe area
clear of snow and other material to
help reduce the buildup of exhaust
gases under the vehicle. This is par-
ticularly important when parked in
blizzard conditions.
– Have the exhaust system inspect-
ed periodically for damage and leaks.
Any damage or leaks should be re-
paired immediately.
WARNING
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 150

151
Brake fluid level
Power steering (for versions/markets,
where provided) fluid level
Windshield washer fluid level
Battery solution level
Hood latch operation
Pull the hood release handle inside the
vehicle. Make sure that you cannot
open the hood all the way without re-
leasing the secondary latch. Be sure to
close the hood securely after check-
ing for proper latch operation. See “All
latches, hinges & locks” of “CHASSIS
AND BODY” in the “Periodic Main-
tenance Schedule” in the “INSPEC-
TION AND MAINTENANCE” section
for lubrication schedule.
Once a month, or each time you fill your
fuel tank, check the tire pressure using a
tire pressure gauge. Also check the tire
pressure of the spare tire.
Adjust the seat and adjustable head re-
straint (for versions/markets, where
provided).
Check the brake pedal and the park-
ing brake lever.
Adjust the mirrors.
Make sure that you and all passengers
have properly fastened your seat belts.
Make sure that all warning lights come
on as the key is turned to the “ON” or
“START” position.
Check all gauges.
Make sure that the BRAKE SYSTEM
WARNING light turns off when the
parking brake is released.
Once a week, or each time you fill your
fuel tank, perform the following under-
hood checks:
Engine oil level
Coolant level
60A187S
Make sure the hood is fully
closed and latched before
driving. If it is not, it can fly up un-
expectedly during driving, obstructing
your view and resulting in an acci-
dent.
WARNING

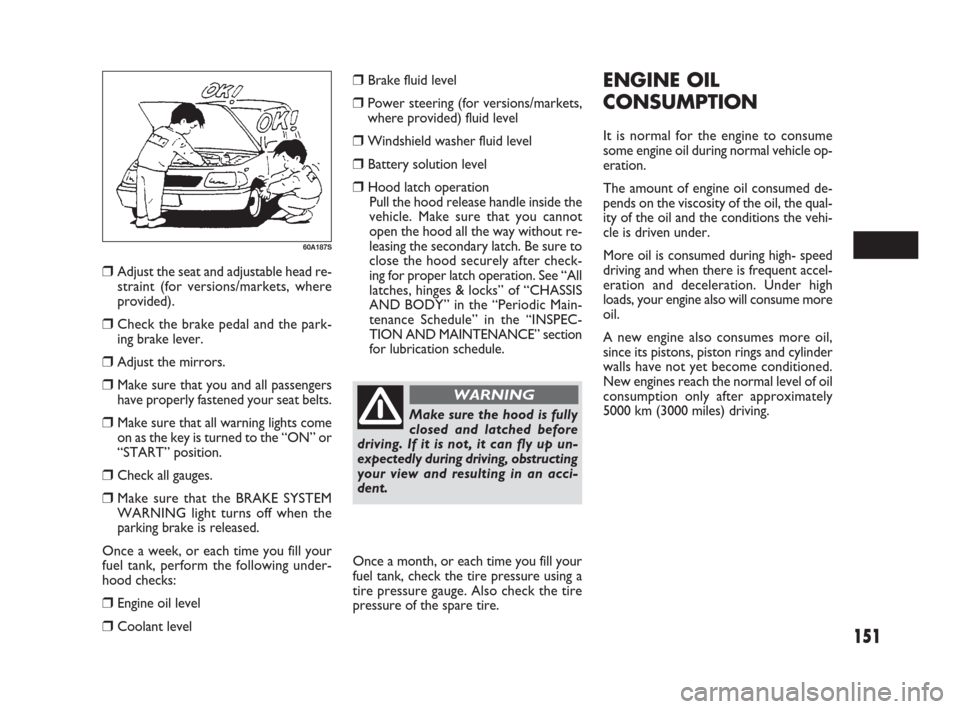

ENGINE OIL
CONSUMPTION
It is normal for the engine to consume
some engine oil during normal vehicle op-
eration.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the qual-
ity of the oil and the conditions the vehi-
cle is driven under.
More oil is consumed during high- speed
driving and when there is frequent accel-
eration and deceleration. Under high
loads, your engine also will consume more
oil.
A new engine also consumes more oil,
since its pistons, piston rings and cylinder
walls have not yet become conditioned.
New engines reach the normal level of oil
consumption only after approximately
5000 km (3000 miles) driving.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 151

152
Oil consumption: Max. 1.0 L per
1000 km (1 Qt. per 600 miles)
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to accurately
judge the true oil level.
As an example, if a vehicle is used for re-
peated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more of dri-
ving. This is because the oil is gradually be-
coming diluted with fuel or moisture, mak-
ing it appear that the oil level has not
changed.
You should also be aware that the dilut-
ing ingredients evaporate out when the ve-
hicle is subsequently driven at high speeds,
such as on an expressway, making it ap-
pear that oil is excessively consumed af-
ter high- speed driving.STARTING THE ENGINE

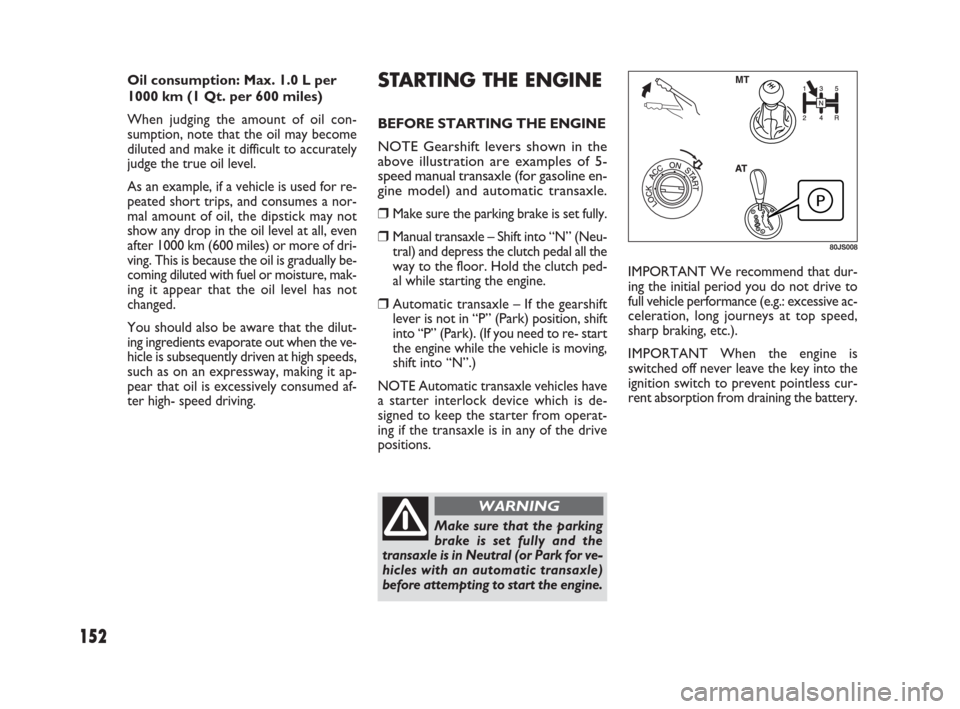

BEFORE STARTING THE ENGINE
NOTE Gearshift levers shown in the
above illustration are examples of 5-
speed manual transaxle (for gasoline en-
gine model) and automatic transaxle.

Make sure the parking brake is set fully.
Manual transaxle – Shift into “N” (Neu-
tral) and depress the clutch pedal all the
way to the floor. Hold the clutch ped-
al while starting the engine.
Automatic transaxle – If the gearshift
lever is not in “P” (Park) position, shift
into “P” (Park). (If you need to re- start
the engine while the vehicle is moving,
shift into “N”.)
NOTE Automatic transaxle vehicles have
a starter interlock device which is de-
signed to keep the starter from operat-
ing if the transaxle is in any of the drive
positions.
Make sure that the parking
brake is set fully and the
transaxle is in Neutral (or Park for ve-
hicles with an automatic transaxle)
before attempting to start the engine.
WARNING
IMPORTANT We recommend that dur-
ing the initial period you do not drive to
full vehicle performance (e.g.: excessive ac-
celeration, long journeys at top speed,
sharp braking, etc.).
IMPORTANT When the engine is
switched off never leave the key into the
ignition switch to prevent pointless cur-
rent absorption from draining the battery.
MT
80JS008
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 152

153
STARTING A COLD ENGINE
(For Gasoline Engine Model)
With your foot off the accelerator pedal,
crank the engine by turning the ignition
key to “START”. Release the key when
the engine starts.
IMPORTANT
Stop turning the starter immediately af-
ter the engine has started or the starter
system can be damaged.
Do not crank the engine for more than
15 seconds at a time. If the engine does-
n’t start on the first try, wait about 15
seconds before trying again.
If the engine does not start after 15 sec-
onds of cranking, wait about 15 seconds,
then press down the accelerator pedal to
1/3 of its travel and try cranking the en-
gine again. Release the key and accelera-
tor pedal when the engine starts.
If the engine still does not start, try hold-
ing the accelerator pedal all the way to the
floor while cranking. This should clear the
engine if it is flooded.
STARTING A COLD ENGINE
(for Diesel Engine Model)
Turn the ignition switch to the “ON” po-
sition and wait until the glow plug indica-
tor goes out if it comes on. Crank the en-
gine by turning the ignition key to
“START”. Release the key when the en-
gine starts.IMPORTANT
The starter is allowed to crank the
engine up to 30 seconds. If the engine
failed to start, wait 15 seconds, then
restart cranking. Even if the third
trial failed, consult authorized Fiat
Dealership.

If the engine is started after long time
parking at extremely cold atmosphere
such as the ambient temperature is be-
low –20°C, release ignition key from
start position and stop cranking after
confirming the engine speed increase
around 800 to 1000 rpm.

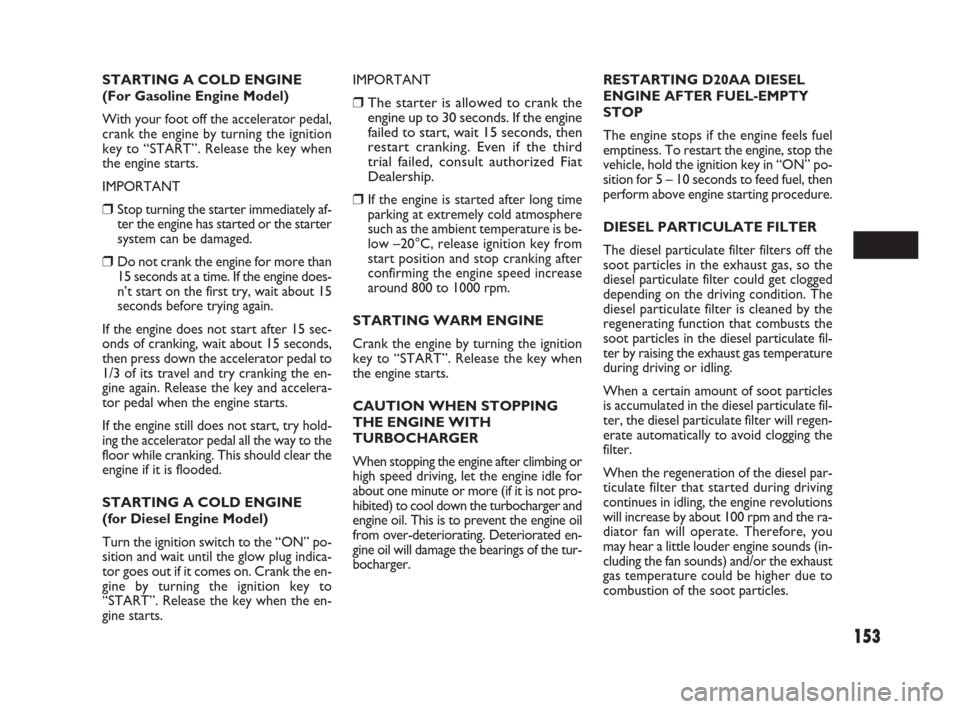

STARTING WARM ENGINE
Crank the engine by turning the ignition
key to “START”. Release the key when
the engine starts.
CAUTION WHEN STOPPING
THE ENGINE WITH
TURBOCHARGER
When stopping the engine after climbing or
high speed driving, let the engine idle for
about one minute or more (if it is not pro-
hibited) to cool down the turbocharger and
engine oil. This is to prevent the engine oil
from over-deteriorating. Deteriorated en-
gine oil will damage the bearings of the tur-
bocharger.RESTARTING D20AA DIESEL
ENGINE AFTER FUEL-EMPTY
STOP
The engine stops if the engine feels fuel
emptiness. To restart the engine, stop the
vehicle, hold the ignition key in “ON” po-
sition for 5 – 10 seconds to feed fuel, then
perform above engine starting procedure.
DIESEL PARTICULATE FILTER
The diesel particulate filter filters off the
soot particles in the exhaust gas, so the
diesel particulate filter could get clogged
depending on the driving condition. The
diesel particulate filter is cleaned by the
regenerating function that combusts the
soot particles in the diesel particulate fil-
ter by raising the exhaust gas temperature
during driving or idling.
When a certain amount of soot particles
is accumulated in the diesel particulate fil-
ter, the diesel particulate filter will regen-
erate automatically to avoid clogging the
filter.
When the regeneration of the diesel par-
ticulate filter that started during driving
continues in idling, the engine revolutions
will increase by about 100 rpm and the ra-
diator fan will operate. Therefore, you
may hear a little louder engine sounds (in-
cluding the fan sounds) and/or the exhaust
gas temperature could be higher due to
combustion of the soot particles.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 153

154
NOTE When you drive or idle your ve-
hicle, white smoke may be emitted de-
pending on the grade of fuel used. This is
due to the particle filter regenerating au-
tomatically, and does not affect the way

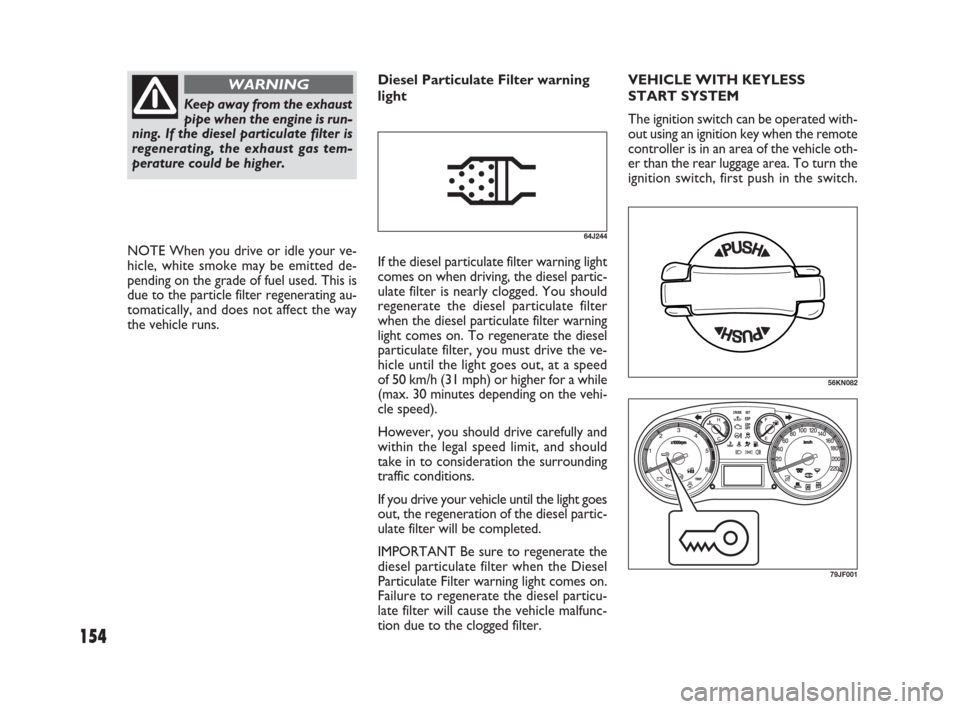

the vehicle runs.If the diesel particulate filter warning light
comes on when driving, the diesel partic-
ulate filter is nearly clogged. You should
regenerate the diesel particulate filter
when the diesel particulate filter warning
light comes on. To regenerate the diesel
particulate filter, you must drive the ve-
hicle until the light goes out, at a speed
of 50 km/h (31 mph) or higher for a while
(max. 30 minutes depending on the vehi-
cle speed).
However, you should drive carefully and
within the legal speed limit, and should
take in to consideration the surrounding
traffic conditions.
If you drive your vehicle until the light goes
out, the regeneration of the diesel partic-
ulate filter will be completed.
IMPORTANT Be sure to regenerate the
diesel particulate filter when the Diesel
Particulate Filter warning light comes on.
Failure to regenerate the diesel particu-
late filter will cause the vehicle malfunc-
tion due to the clogged filter.VEHICLE WITH KEYLESS
START SYSTEM
The ignition switch can be operated with-
out using an ignition key when the remote
controller is in an area of the vehicle oth-
er than the rear luggage area. To turn the
ignition switch, first push in the switch.
64J244
Diesel Particulate Filter warning
light
Keep away from the exhaust
pipe when the engine is run-
ning. If the diesel particulate filter is
regenerating, the exhaust gas tem-
perature could be higher.
WARNING
56KN082
79JF001
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 154

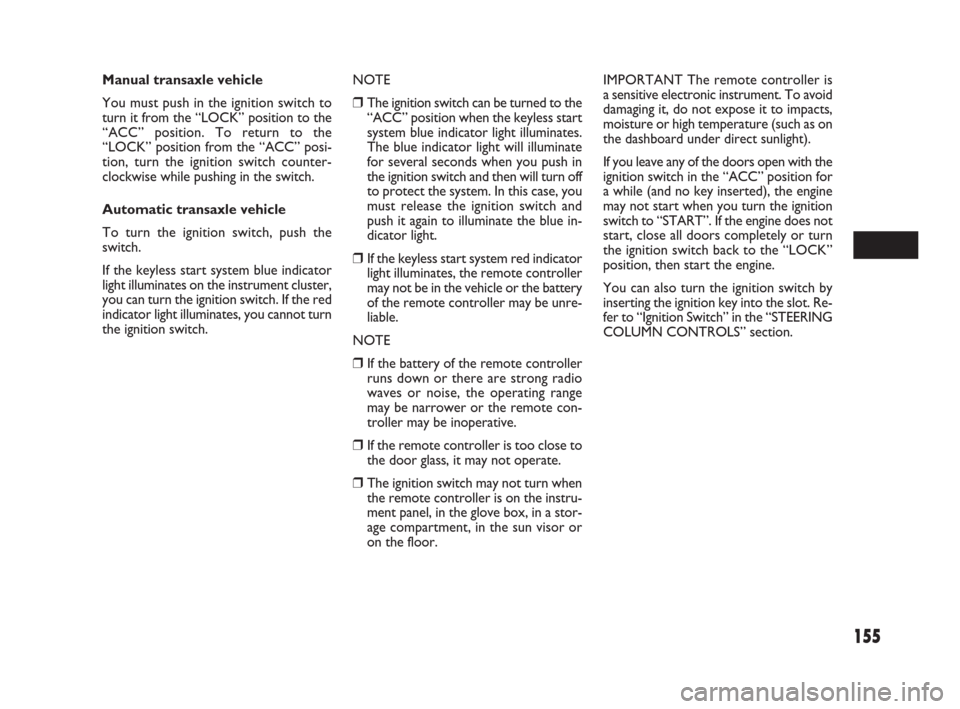

155
Manual transaxle vehicle
You must push in the ignition switch to
turn it from the “LOCK” position to the
“ACC” position. To return to the
“LOCK” position from the “ACC” posi-
tion, turn the ignition switch counter-
clockwise while pushing in the switch.
Automatic transaxle vehicle
To turn the ignition switch, push the
switch.
If the keyless start system blue indicator
light illuminates on the instrument cluster,
you can turn the ignition switch. If the red
indicator light illuminates, you cannot turn
the ignition switch.NOTE
 The ignition switch can be turned to the
“ACC” position when the keyless start
system blue indicator light illuminates.
The blue indicator light will illuminate
for several seconds when you push in
the ignition switch and then will turn off
to protect the system. In this case, you
must release the ignition switch and
push it again to illuminate the blue in-
dicator light.
 If the keyless start system red indicator
light illuminates, the remote controller
may not be in the vehicle or the battery
of the remote controller may be unre-
liable.
NOTE
 If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
 If the remote controller is too close to
the door glass, it may not operate.
 The ignition switch may not turn when
the remote controller is on the instru-
ment panel, in the glove box, in a stor-
age compartment, in the sun visor or
on the floor.IMPORTANT The remote controller is
a sensitive electronic instrument. To avoid
damaging it, do not expose it to impacts,
moisture or high temperature (such as on
the dashboard under direct sunlight).
If you leave any of the doors open with the
ignition switch in the “ACC” position for
a while (and no key inserted), the engine
may not start when you turn the ignition
switch to “START”. If the engine does not
start, close all doors completely or turn
the ignition switch back to the “LOCK”
position, then start the engine.
You can also turn the ignition switch by
inserting the ignition key into the slot. Re-
fer to “Ignition Switch” in the “STEERING
COLUMN CONTROLS” section.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 155

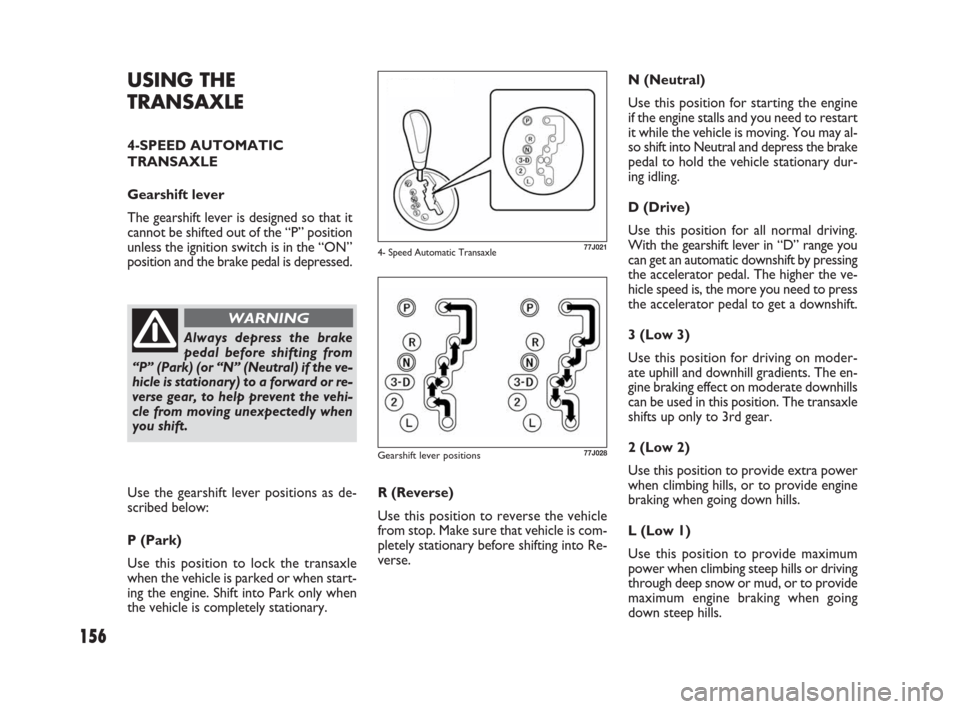

156
77J021
77J028Gearshift lever positions
4- Speed Automatic Transaxle
USING THE
TRANSAXLE
4-SPEED AUTOMATIC
TRANSAXLE
Gearshift lever
The gearshift lever is designed so that it
cannot be shifted out of the “P” position
unless the ignition switch is in the “ON”
position and the brake pedal is depressed.
Always depress the brake
pedal before shifting from
“P” (Park) (or “N” (Neutral) if the ve-
hicle is stationary) to a forward or re-
verse gear, to help prevent the vehi-
cle from moving unexpectedly when
you shift.
WARNING
N (Neutral)
Use this position for starting the engine
if the engine stalls and you need to restart
it while the vehicle is moving. You may al-
so shift into Neutral and depress the brake
pedal to hold the vehicle stationary dur-
ing idling.
D (Drive)
Use this position for all normal driving.
With the gearshift lever in “D” range you
can get an automatic downshift by pressing
the accelerator pedal. The higher the ve-
hicle speed is, the more you need to press
the accelerator pedal to get a downshift.
3 (Low 3)
Use this position for driving on moder-
ate uphill and downhill gradients. The en-
gine braking effect on moderate downhills
can be used in this position. The transaxle
shifts up only to 3rd gear.
2 (Low 2)
Use this position to provide extra power
when climbing hills, or to provide engine
braking when going down hills.
L (Low 1)
Use this position to provide maximum
power when climbing steep hills or driving
through deep snow or mud, or to provide
maximum engine braking when going
down steep hills. Use the gearshift lever positions as de-
scribed below:
P (Park)
Use this position to lock the transaxle
when the vehicle is parked or when start-
ing the engine. Shift into Park only when
the vehicle is completely stationary.R (Reverse)
Use this position to reverse the vehicle
from stop. Make sure that vehicle is com-
pletely stationary before shifting into Re-
verse.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 156

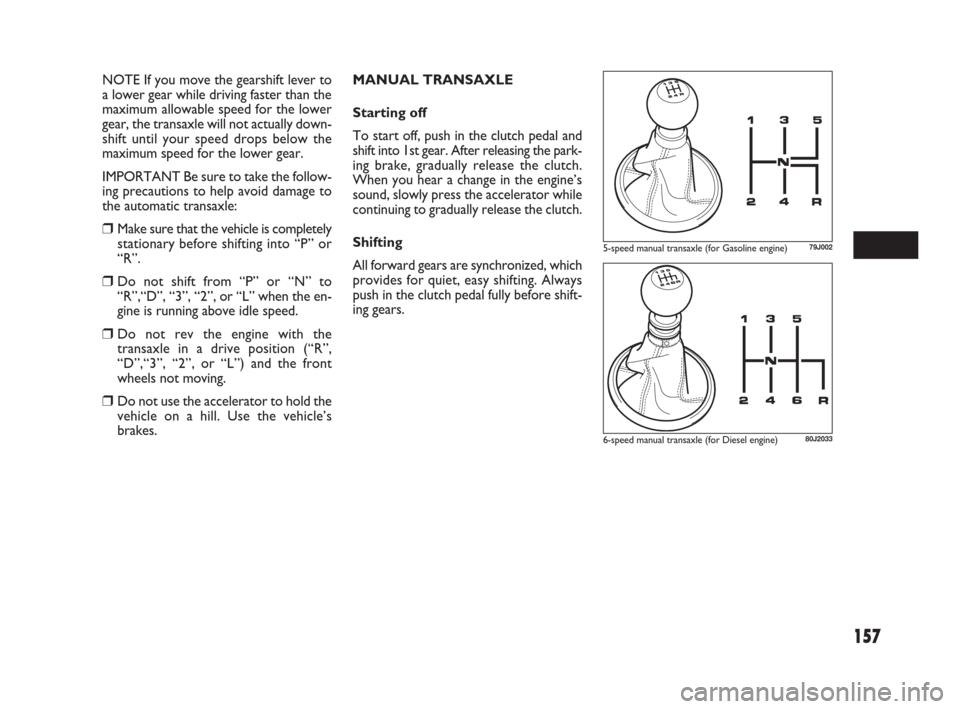

157
NOTE If you move the gearshift lever to
a lower gear while driving faster than the
maximum allowable speed for the lower
gear, the transaxle will not actually down-
shift until your speed drops below the
maximum speed for the lower gear.
IMPORTANT Be sure to take the follow-
ing precautions to help avoid damage to
the automatic transaxle:
Make sure that the vehicle is completely
stationary before shifting into “P” or
“R”.
Do not shift from “P” or “N” to
“R”,“D”, “3”, “2”, or “L” when the en-
gine is running above idle speed.
Do not rev the engine with the
transaxle in a drive position (“R”,
“D”,“3”, “2”, or “L”) and the front
wheels not moving.
Do not use the accelerator to hold the
vehicle on a hill. Use the vehicle’s
brakes.MANUAL TRANSAXLE
Starting off
To start off, push in the clutch pedal and
shift into 1st gear. After releasing the park-
ing brake, gradually release the clutch.
When you hear a change in the engine’s
sound, slowly press the accelerator while
continuing to gradually release the clutch.
Shifting
All forward gears are synchronized, which
provides for quiet, easy shifting. Always
push in the clutch pedal fully before shift-
ing gears.
79J0025-speed manual transaxle (for Gasoline engine)
80J20336-speed manual transaxle (for Diesel engine)
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 157

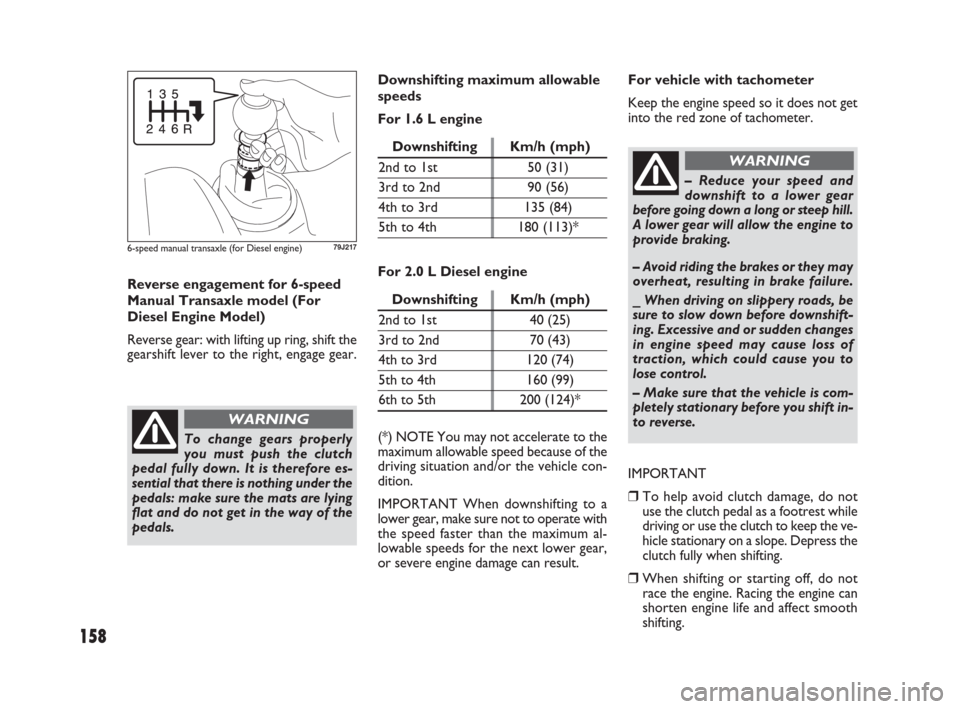

158
– Reduce your speed and
downshift to a lower gear
before going down a long or steep hill.
A lower gear will allow the engine to
provide braking.
– Avoid riding the brakes or they may
overheat, resulting in brake failure.
_ When driving on slippery roads, be
sure to slow down before downshift-
ing. Excessive and or sudden changes
in engine speed may cause loss of
traction, which could cause you to
lose control.
– Make sure that the vehicle is com-
pletely stationary before you shift in-
to reverse.
WARNING
79J217
To change gears properly
you must push the clutch
pedal fully down. It is therefore es-
sential that there is nothing under the
pedals: make sure the mats are lying
flat and do not get in the way of the
pedals.
WARNING
For vehicle with tachometer
Keep the engine speed so it does not get
into the red zone of tachometer. Downshifting maximum allowable
speeds
For 1.6 L engine
DownshiftingKm/h (mph)
2nd to 1st50 (31)
3rd to 2nd90 (56)
4th to 3rd135 (84)
5th to 4th180 (113)*
Downshifting Km/h (mph)
2nd to 1st40 (25)
3rd to 2nd70 (43)
4th to 3rd120 (74)
5th to 4th160 (99)
6th to 5th200 (124)*
For 2.0 L Diesel engine
(*) NOTE You may not accelerate to the
maximum allowable speed because of the
driving situation and/or the vehicle con-
dition.
IMPORTANT When downshifting to a
lower gear, make sure not to operate with
the speed faster than the maximum al-
lowable speeds for the next lower gear,
or severe engine damage can result.IMPORTANT
 To help avoid clutch damage, do not
use the clutch pedal as a footrest while
driving or use the clutch to keep the ve-
hicle stationary on a slope. Depress the
clutch fully when shifting.
 When shifting or starting off, do not
race the engine. Racing the engine can
shorten engine life and affect smooth
shifting.
6-speed manual transaxle (for Diesel engine)
Reverse engagement for 6-speed
Manual Transaxle model (For
Diesel Engine Model)
Reverse gear: with lifting up ring, shift the
gearshift lever to the right, engage gear.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 158

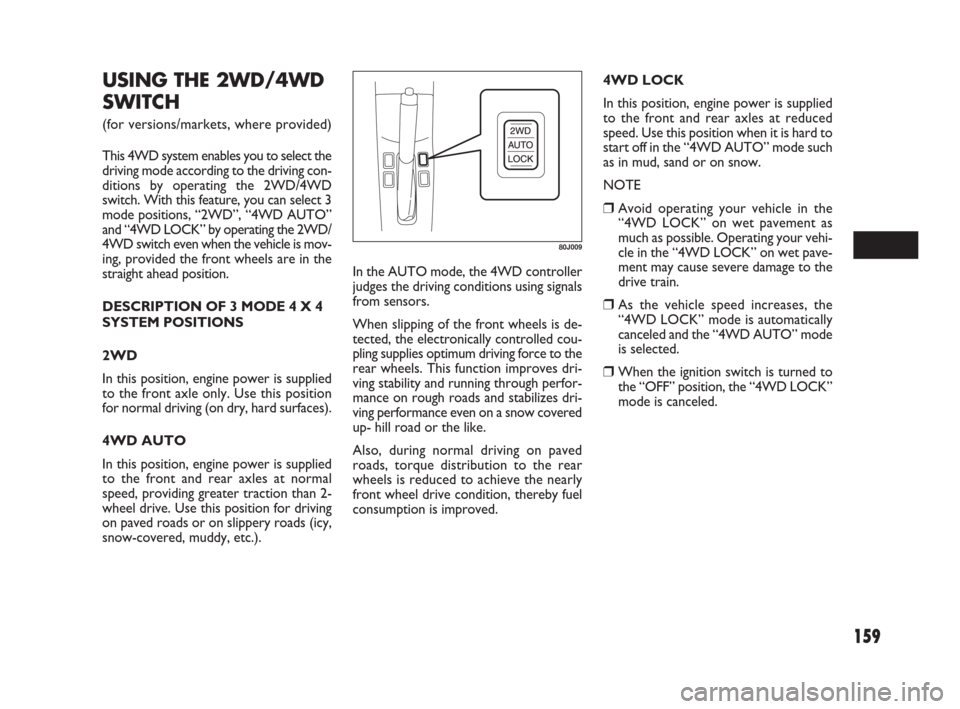

159
USING THE 2WD/4WD
SWITCH
(for versions/markets, where provided)
This 4WD system enables you to select the
driving mode according to the driving con-
ditions by operating the 2WD/4WD
switch. With this feature, you can select 3
mode positions, “2WD”, “4WD AUTO”
and “4WD LOCK” by operating the 2WD/
4WD switch even when the vehicle is mov-
ing, provided the front wheels are in the
straight ahead position.
DESCRIPTION OF 3 MODE 4 X 4
SYSTEM POSITIONS
2WD
In this position, engine power is supplied
to the front axle only. Use this position
for normal driving (on dry, hard surfaces).
4WD AUTO
In this position, engine power is supplied
to the front and rear axles at normal
speed, providing greater traction than 2-
wheel drive. Use this position for driving
on paved roads or on slippery roads (icy,
snow-covered, muddy, etc.).In the AUTO mode, the 4WD controller
judges the driving conditions using signals
from sensors.
When slipping of the front wheels is de-
tected, the electronically controlled cou-
pling supplies optimum driving force to the
rear wheels. This function improves dri-
ving stability and running through perfor-
mance on rough roads and stabilizes dri-
ving performance even on a snow covered
up- hill road or the like.
Also, during normal driving on paved
roads, torque distribution to the rear
wheels is reduced to achieve the nearly
front wheel drive condition, thereby fuel
consumption is improved.
80J009
4WD LOCK
In this position, engine power is supplied
to the front and rear axles at reduced
speed. Use this position when it is hard to
start off in the “4WD AUTO” mode such
as in mud, sand or on snow.
NOTE
Avoid operating your vehicle in the
“4WD LOCK” on wet pavement as
much as possible. Operating your vehi-
cle in the “4WD LOCK” on wet pave-
ment may cause severe damage to the
drive train.
As the vehicle speed increases, the
“4WD LOCK” mode is automatically
canceled and the “4WD AUTO” mode
is selected.
When the ignition switch is turned to
the “OFF” position, the “4WD LOCK”
mode is canceled.
149-168 SEDICI LUM FL GB 1E 19-06-2009 13:33 Pagina 159
