FIAT SEDICI 2009 2.G Owners Manual

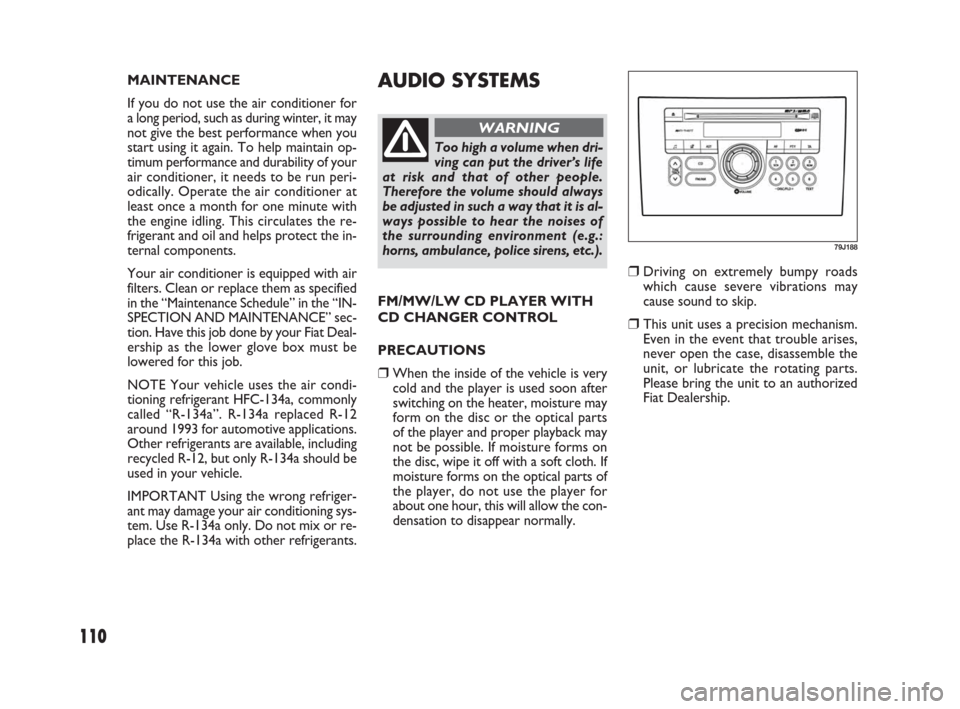

110
AUDIO SYSTEMS
❒Driving on extremely bumpy roads
which cause severe vibrations may
cause sound to skip.
❒This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
Fiat Dealership. MAINTENANCE
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
Your air conditioner is equipped with air
filters. Clean or replace them as specified
in the “Maintenance Schedule” in the “IN-
SPECTION AND MAINTENANCE” sec-
tion. Have this job done by your Fiat Deal-
ership as the lower glove box must be
lowered for this job.
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.
79J188
Too high a volume when dri-
ving can put the driver’s life
at risk and that of other people.
Therefore the volume should always
be adjusted in such a way that it is al-
ways possible to hear the noises of
the surrounding environment (e.g.:
horns, ambulance, police sirens, etc.).
WARNING
FM/MW/LW CD PLAYER WITH
CD CHANGER CONTROL
PRECAUTIONS
❒When the inside of the vehicle is very
cold and the player is used soon after
switching on the heater, moisture may
form on the disc or the optical parts
of the player and proper playback may
not be possible. If moisture forms on
the disc, wipe it off with a soft cloth. If
moisture forms on the optical parts of
the player, do not use the player for
about one hour, this will allow the con-
densation to disappear normally.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 110

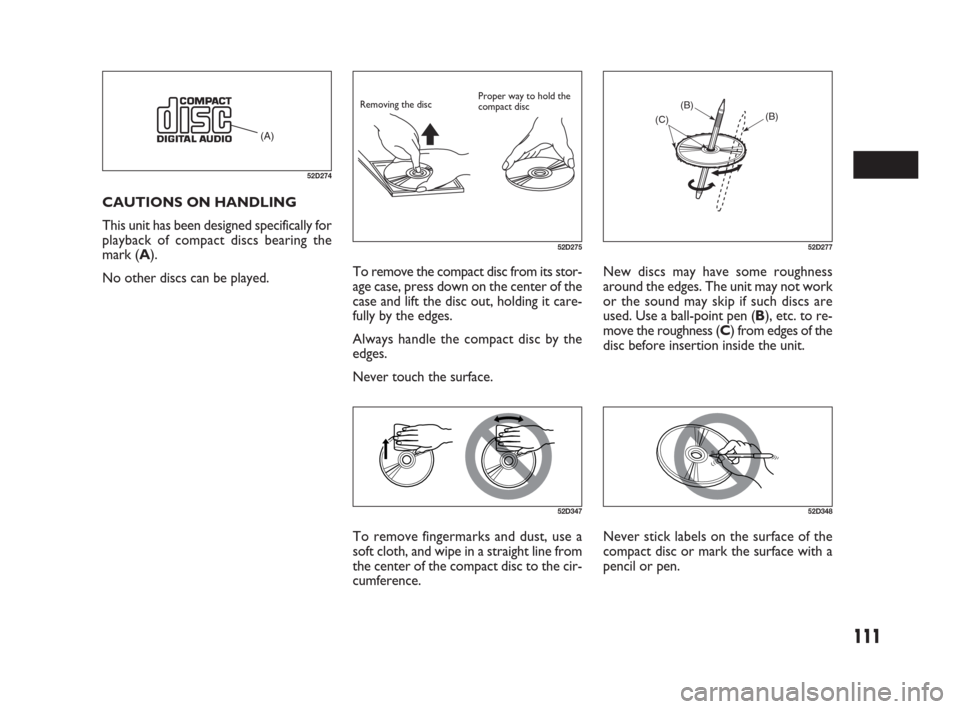

111
New discs may have some roughness
around the edges. The unit may not work
or the sound may skip if such discs are
used. Use a ball-point pen (B), etc. to re-
move the roughness (C) from edges of the
disc before insertion inside the unit. To remove the compact disc from its stor-
age case, press down on the center of the
case and lift the disc out, holding it care-
fully by the edges.
Always handle the compact disc by the
edges.
Never touch the surface.
52D275
Removing the discProper way to hold the
compact disc
52D347
To remove fingermarks and dust, use a
soft cloth, and wipe in a straight line from
the center of the compact disc to the cir-
cumference.
(B)
(B)
(C)
52D277
52D348
Never stick labels on the surface of the
compact disc or mark the surface with a
pencil or pen. CAUTIONS ON HANDLING
This unit has been designed specifically for
playback of compact discs bearing the
mark (A).
No other discs can be played.
(A)
52D274
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 111

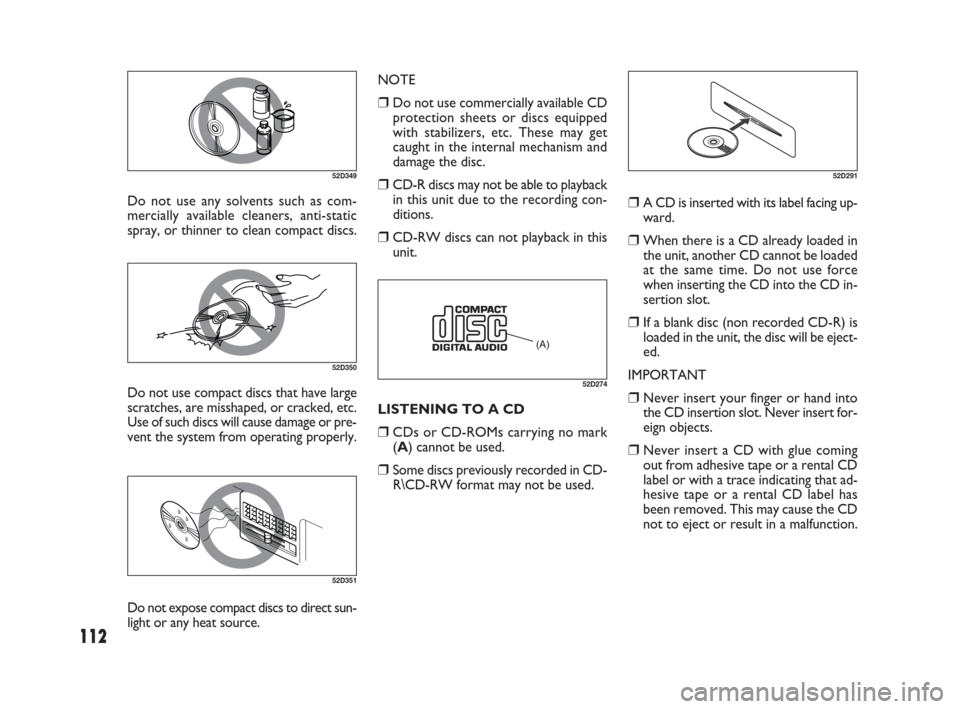

112
Do not use any solvents such as com-
mercially available cleaners, anti-static
spray, or thinner to clean compact discs.
52D349
52D350
Do not use compact discs that have large
scratches, are misshaped, or cracked, etc.
Use of such discs will cause damage or pre-
vent the system from operating properly.LISTENING TO A CD
❒CDs or CD-ROMs carrying no mark
(A) cannot be used.
❒Some discs previously recorded in CD-
R\CD-RW format may not be used. NOTE
❒Do not use commercially available CD
protection sheets or discs equipped
with stabilizers, etc. These may get
caught in the internal mechanism and
damage the disc.
❒CD-R discs may not be able to playback
in this unit due to the recording con-
ditions.
❒CD-RW discs can not playback in this
unit.
52D351
(A)
52D274
52D291
❒A CD is inserted with its label facing up-
ward.
❒When there is a CD already loaded in
the unit, another CD cannot be loaded
at the same time. Do not use force
when inserting the CD into the CD in-
sertion slot.
❒If a blank disc (non recorded CD-R) is
loaded in the unit, the disc will be eject-
ed.
IMPORTANT
❒Never insert your finger or hand into
the CD insertion slot. Never insert for-
eign objects.
❒Never insert a CD with glue coming
out from adhesive tape or a rental CD
label or with a trace indicating that ad-
hesive tape or a rental CD label has
been removed. This may cause the CD
not to eject or result in a malfunction.
Do not expose compact discs to direct sun-
light or any heat source.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 112

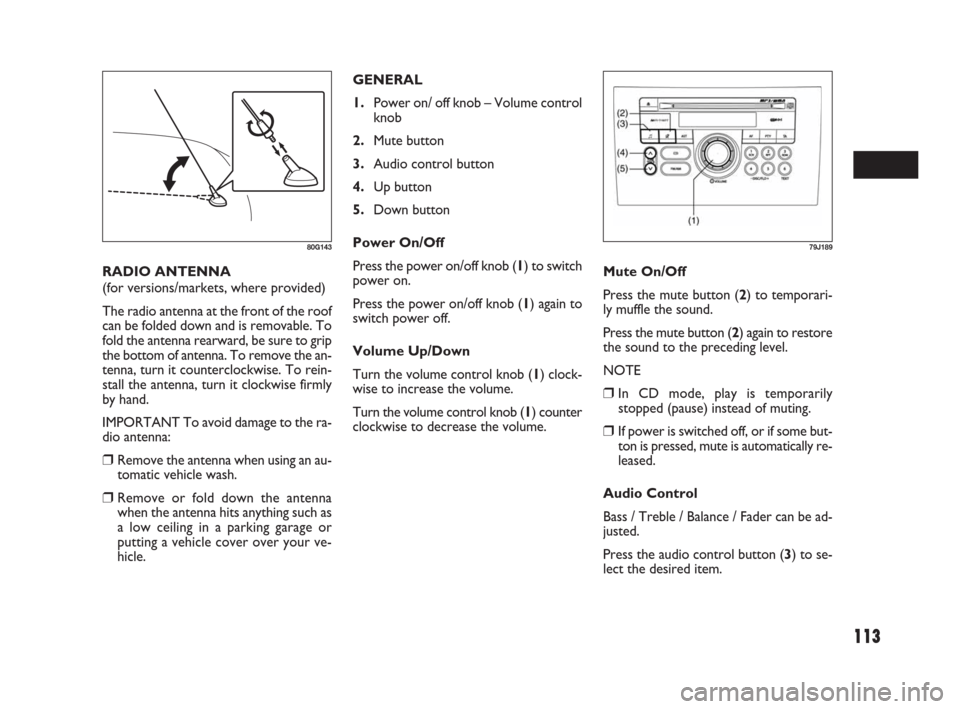

113
GENERAL
1.Power on/ off knob – Volume control
knob
2.Mute button
3.Audio control button
4.Up button
5.Down button
Power On/Off
Press the power on/off knob (1) to switch
power on.
Press the power on/off knob (1) again to
switch power off.
Volume Up/Down
Turn the volume control knob (1) clock-
wise to increase the volume.
Turn the volume control knob (1) counter
clockwise to decrease the volume. RADIO ANTENNA
(for versions/markets, where provided)
The radio antenna at the front of the roof
can be folded down and is removable. To
fold the antenna rearward, be sure to grip
the bottom of antenna. To remove the an-
tenna, turn it counterclockwise. To rein-
stall the antenna, turn it clockwise firmly
by hand.
IMPORTANT To avoid damage to the ra-
dio antenna:
❒Remove the antenna when using an au-
tomatic vehicle wash.
❒Remove or fold down the antenna
when the antenna hits anything such as
a low ceiling in a parking garage or
putting a vehicle cover over your ve-
hicle.
80G143
Mute On/Off
Press the mute button (2) to temporari-
ly muffle the sound.
Press the mute button (2) again to restore
the sound to the preceding level.
NOTE
❒In CD mode, play is temporarily
stopped (pause) instead of muting.
❒If power is switched off, or if some but-
ton is pressed, mute is automatically re-
leased.
Audio Control
Bass / Treble / Balance / Fader can be ad-
justed.
Press the audio control button (3) to se-
lect the desired item.
79J189
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 113

114
NOTE The Auto Volume Control (AVC)
function automatically adjusts (increas-
es/decreases) the sound volume in accor-
dance with vehicle speed.
RADIO
4.Up button
5.Down button
6.FM/AM button
7.Preset button [1] to [6]
8.Auto search button
Radio Mode
If FM/AM button (6) is pressed when pow-
er is off or in other than radio mode, the
last station you were listening to is re-
ceived.
Band
Each time FM/AM button (6) is pressed in
radio mode, the bands change as follows:
FM1 / FM2 / LW / MW1 / MW2 / (FM1)
Manual Tuning
The frequencies can be adjusted by press-
ing the up button (4) or the down button
(5).
(4): Higher frequency
(5): Lower frequency Each time the audio control button (3) is
pressed the selectable items change as fol-
lows:
BAS (Bass) / TRE (Treble) / BAL (Balance) /FAD (Fader) / AVC (Auto Volume Con-
trol) (only MP3 version)
Pressing the audio control button (3) again
releases Audio Control.
Press the up button (4) or the down but-
ton (5) to adjust the selected item.
❒BAS (Bass)
(4): To increase bass
(5): To decrease bass
❒TRE (Treble)
(4): To increase treble
(5): To decrease treble
❒BAL (Balance)
(4): To decrease the left speaker’s
volume
(5): To decrease the right speaker’s
volume
❒FAD (Fader)
(4): To decrease the rear speaker’s
volume
(5): To decrease the front speaker’s
volume
❒AVC (Auto Volume Control)
(only MP3 version)
(4): AVC OFF / AVC1 / AVC2 / AVC3
(5): AVC3 / AVC2 / AVC1 / AVC OFFAuto Tuning
If the up button (4) or the down button
(5) is released after pressing it for about
1 second or more, the unit searches for
a station till it receives one.
(4): Higher frequency
(5): Lower frequency
NOTE If AF is ON, the unit searches for
RDS stations only.
79J190
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 114

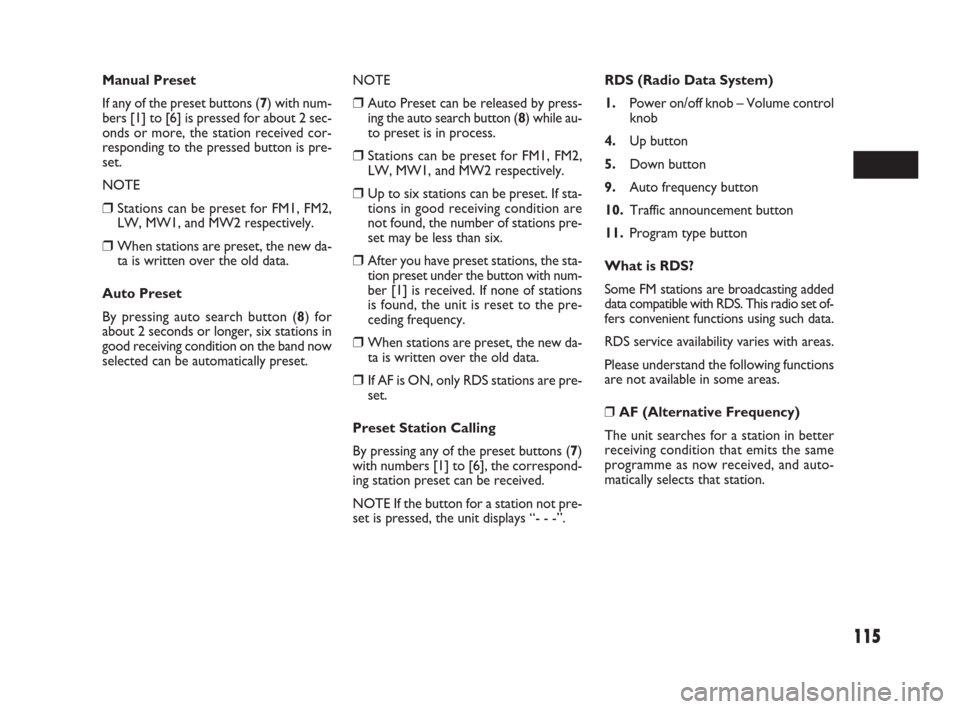

115
NOTE
❒Auto Preset can be released by press-
ing the auto search button (8) while au-
to preset is in process.
❒Stations can be preset for FM1, FM2,
LW, MW1, and MW2 respectively.
❒Up to six stations can be preset. If sta-
tions in good receiving condition are
not found, the number of stations pre-
set may be less than six.
❒After you have preset stations, the sta-
tion preset under the button with num-
ber [1] is received. If none of stations
is found, the unit is reset to the pre-
ceding frequency.
❒When stations are preset, the new da-
ta is written over the old data.
❒If AF is ON, only RDS stations are pre-
set.
Preset Station Calling
By pressing any of the preset buttons (7)
with numbers [1] to [6], the correspond-
ing station preset can be received.
NOTE If the button for a station not pre-
set is pressed, the unit displays “- - -”. Manual Preset
If any of the preset buttons (7) with num-
bers [1] to [6] is pressed for about 2 sec-
onds or more, the station received cor-
responding to the pressed button is pre-
set.
NOTE
❒Stations can be preset for FM1, FM2,
LW, MW1, and MW2 respectively.
❒When stations are preset, the new da-
ta is written over the old data.
Auto Preset
By pressing auto search button (8) for
about 2 seconds or longer, six stations in
good receiving condition on the band now
selected can be automatically preset.RDS (Radio Data System)
1.Power on/off knob – Volume control
knob
4.Up button
5.Down button
9.Auto frequency button
10.Traffic announcement button
11.Program type button
What is RDS?
Some FM stations are broadcasting added
data compatible with RDS. This radio set of-
fers convenient functions using such data.
RDS service availability varies with areas.
Please understand the following functions
are not available in some areas.
❒ AF (Alternative Frequency)
The unit searches for a station in better
receiving condition that emits the same
programme as now received, and auto-
matically selects that station.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 115

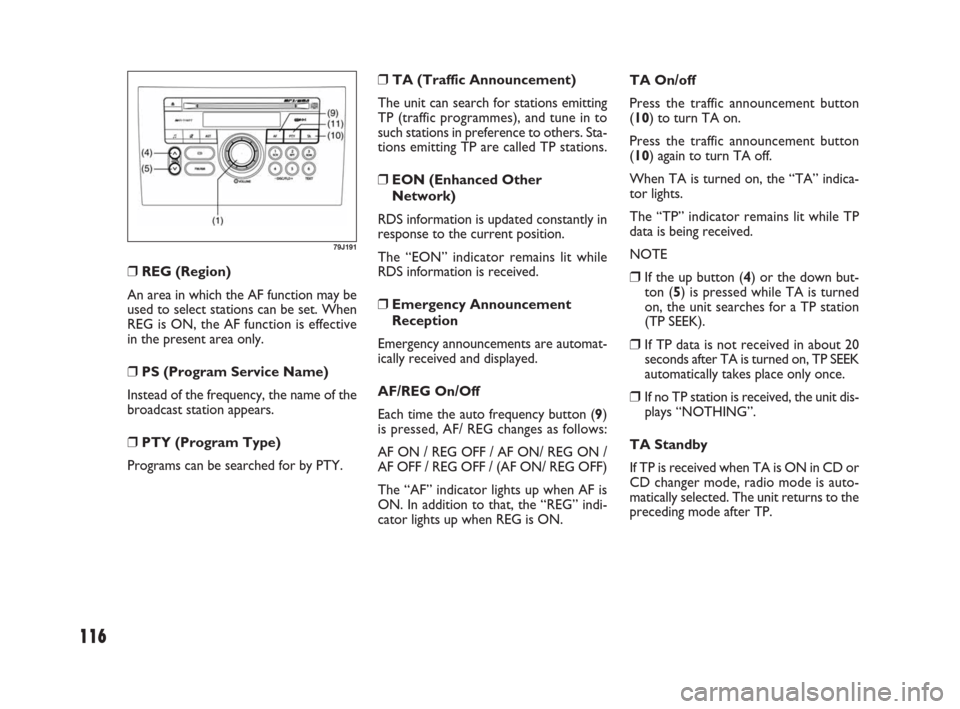

116
❒ REG (Region)
An area in which the AF function may be
used to select stations can be set. When
REG is ON, the AF function is effective
in the present area only.
❒ PS (Program Service Name)
Instead of the frequency, the name of the
broadcast station appears.
❒ PTY (Program Type)
Programs can be searched for by PTY.❒ TA (Traffic Announcement)
The unit can search for stations emitting
TP (traffic programmes), and tune in to
such stations in preference to others. Sta-
tions emitting TP are called TP stations.
❒ EON (Enhanced Other
Network)
RDS information is updated constantly in
response to the current position.
The “EON” indicator remains lit while
RDS information is received.
❒ Emergency Announcement
Reception
Emergency announcements are automat-
ically received and displayed.
AF/REG On/Off
Each time the auto frequency button (9)
is pressed, AF/ REG changes as follows:
AF ON / REG OFF / AF ON/ REG ON /
AF OFF / REG OFF / (AF ON/ REG OFF)
The “AF” indicator lights up when AF is
ON. In addition to that, the “REG” indi-
cator lights up when REG is ON.
79J191
TA On/off
Press the traffic announcement button
(10) to turn TA on.
Press the traffic announcement button
(10) again to turn TA off.
When TA is turned on, the “TA” indica-
tor lights.
The “TP” indicator remains lit while TP
data is being received.
NOTE
❒If the up button (4) or the down but-
ton (5) is pressed while TA is turned
on, the unit searches for a TP station
(TP SEEK).
❒If TP data is not received in about 20
seconds after TA is turned on, TP SEEK
automatically takes place only once.
❒If no TP station is received, the unit dis-
plays “NOTHING”.
TA Standby
If TP is received when TA is ON in CD or
CD changer mode, radio mode is auto-
matically selected. The unit returns to the
preceding mode after TP.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 116

117

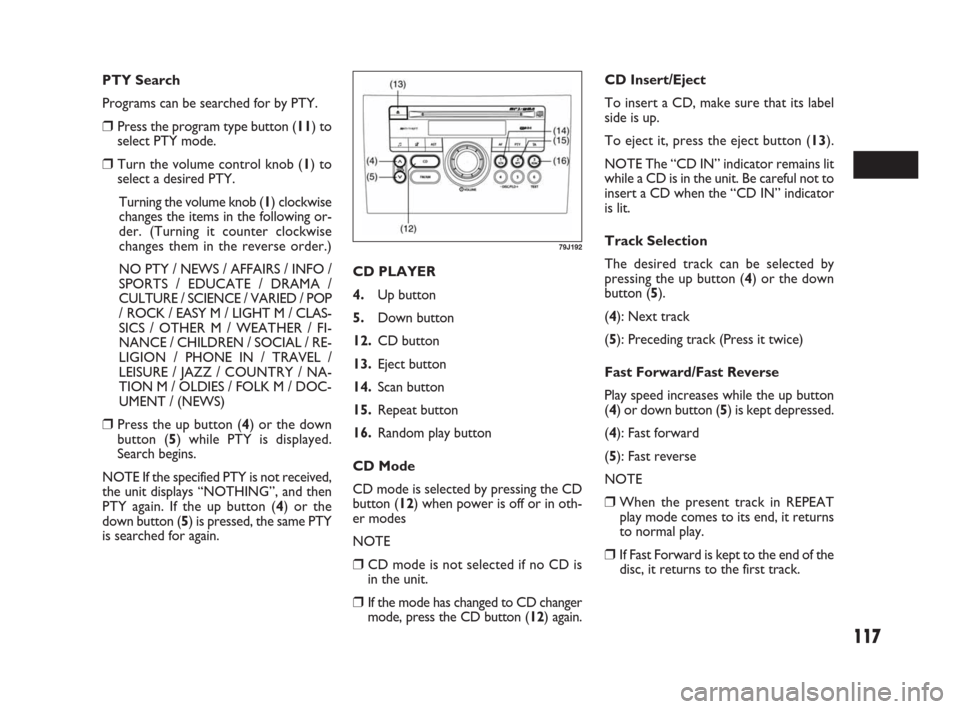

PTY Search
Programs can be searched for by PTY.
❒Press the program type button (11) to
select PTY mode.
❒Turn the volume control knob (1) to
select a desired PTY.
Turning the volume knob (1) clockwise
changes the items in the following or-
der. (Turning it counter clockwise
changes them in the reverse order.)
NO PTY / NEWS / AFFAIRS / INFO /
SPORTS / EDUCATE / DRAMA /
CULTURE / SCIENCE / VARIED / POP
/ ROCK / EASY M / LIGHT M / CLAS-
SICS / OTHER M / WEATHER / FI-
NANCE / CHILDREN / SOCIAL / RE-
LIGION / PHONE IN / TRAVEL /
LEISURE / JAZZ / COUNTRY / NA-
TION M / OLDIES / FOLK M / DOC-
UMENT / (NEWS)
❒Press the up button (4) or the down
button (5) while PTY is displayed.
Search begins.
NOTE If the specified PTY is not received,
the unit displays “NOTHING”, and then
PTY again. If the up button (4) or the
down button (5) is pressed, the same PTY
is searched for again.CD PLAYER
4.Up button
5.Down button
12.CD button
13.Eject button
14.Scan button
15.Repeat button
16.Random play button
CD Mode
CD mode is selected by pressing the CD
button (12) when power is off or in oth-
er modes
NOTE
❒CD mode is not selected if no CD is
in the unit.
❒If the mode has changed to CD changer
mode, press the CD button (12) again.
79J192
CD Insert/Eject
To insert a CD, make sure that its label
side is up.
To eject it, press the eject button (13).
NOTE The “CD IN” indicator remains lit
while a CD is in the unit. Be careful not to
insert a CD when the “CD IN” indicator
is lit.
Track Selection
The desired track can be selected by
pressing the up button (4) or the down
button (5).
(4): Next track
(5): Preceding track (Press it twice)
Fast Forward/Fast Reverse
Play speed increases while the up button
(4) or down button (5) is kept depressed.
(4): Fast forward
(5): Fast reverse
NOTE
❒When the present track in REPEAT
play mode comes to its end, it returns
to normal play.
❒If Fast Forward is kept to the end of the
disc, it returns to the first track.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 117

118

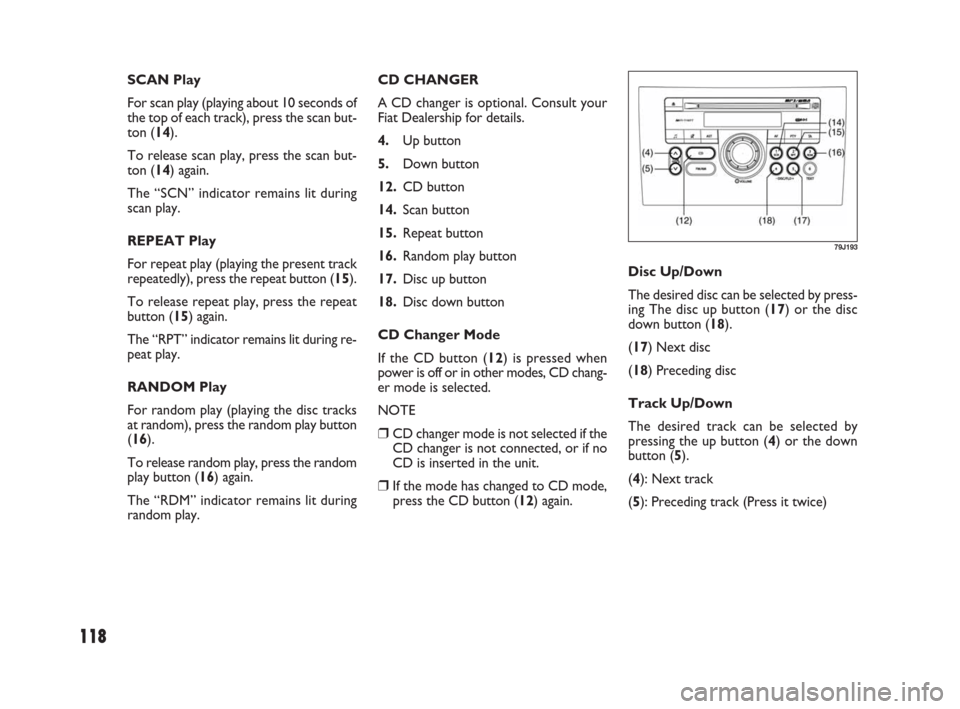

SCAN Play
For scan play (playing about 10 seconds of
the top of each track), press the scan but-
ton (14).
To release scan play, press the scan but-
ton (14) again.
The “SCN” indicator remains lit during
scan play.
REPEAT Play
For repeat play (playing the present track
repeatedly), press the repeat button (15).
To release repeat play, press the repeat
button (15) again.
The “RPT” indicator remains lit during re-
peat play.
RANDOM Play
For random play (playing the disc tracks
at random), press the random play button
(16).
To release random play, press the random
play button (16) again.
The “RDM” indicator remains lit during
random play.CD CHANGER
A CD changer is optional. Consult your
Fiat Dealership for details.
4.Up button
5.Down button
12.CD button
14.Scan button
15.Repeat button
16.Random play button
17.Disc up button
18.Disc down button
CD Changer Mode
If the CD button (12) is pressed when
power is off or in other modes, CD chang-
er mode is selected.
NOTE
❒CD changer mode is not selected if the
CD changer is not connected, or if no
CD is inserted in the unit.
❒If the mode has changed to CD mode,
press the CD button (12) again.Disc Up/Down
The desired disc can be selected by press-
ing The disc up button (17) or the disc
down button (18).
(17) Next disc
(18) Preceding disc
Track Up/Down
The desired track can be selected by
pressing the up button (4) or the down
button (5).
(4): Next track
(5): Preceding track (Press it twice)
79J193
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 118

119
❒DISC SCAN Play
For disc scan play (playing about 10 sec-
onds of the top of the first track on each
disc), press the scan button (14) for about
1 second or more.
To release disc scan play, press the scan
button (14) again.
The “D. SCN” indicator remains lit dur-
ing disc scan play.
REPEAT Play
❒REPEAT Play
For repeat play (playing the present track
repeatedly), press the repeat button (15).
To release repeat play, press the repeat
button (15) again.
The “RPT” indicator remains lit during re-
peat play.
❒DISC REPEAT Play
For disc repeat play (playing the present
disc repeatedly), press the repeat button
(15) for about 1 second or more.
To release disc repeat play, press the re-
peat button (15) again.
The “D.RPT” indicator remains lit during
disc repeat play.RANDOM Play
❒RANDOM Play
For random play (playing the disc tracks
at random), press the random play button
(16).
To release random play, press the random
play button (16) again.
The “RDM” indicator remains lit during
random play.
❒DISC RANDOM Play
For disc random play (playing the tracks
of all discs at random), press the random
play button (16) for about 1 second or
more.
To release disc random play, press the
random play button (16) again.
The “D.RDM” indicator remains lit during
disc random play. Fast Forward/Fast Reverse
Play speed increases while the up button
(4) or down button (5) is kept depressed.
(4): Fast forward
(5): Fast reverse
NOTE
❒When the present track in REPEAT
play mode comes to its end, it returns
to normal play.
❒If Fast Forward is kept to the end of the
disc, it returns to the first track.
SCAN Play
❒SCAN Play
For scan play (playing about 10 seconds of
the top of each track on the present disc),
press the scan button (14).
To release scan play, press the scan but-
ton (14) again.
The “SCN” indicator remains lit during
scan play.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 119
