Use snow tyres of the same size as the
normal tyres provided with the car.
Fiat Dealership will be glad to provide ad-
vice concerning the most suitable type of
tyre for the customer’s requirements.
For the type of tyre to be used, inflation
pressures and the specifications of snow
tyres, follow the instructions given in para-
graph “Wheels” in section “Technical
specifications”.
The winter features of these tyres are re-
duced considerably when the tread depth
is below 4 mm. In this case, they should
be replaced.Due to the snow tyre features, under nor-
mal conditions of use or on long motor-
way journeys, the performance of these
tyres is lower than that of normal tyres. It
is therefore necessary to limit their use to
the purposes for which they are certified.
IMPORTANT When snow tyres are used
with a max speed index below the one
that can be reached by the car (increased
by 5%), place a notice in the passenger
compartment, plainly in the driver’s view
which states the max permissible speed of
the snow tyres (as per EC Directive).
All four tyres should be the same (brand
and track) to ensure greater safety when
driving and braking and better driveabili-
ty.
Remember that it is inappropriate to
change the direction of rotation of tyres.The max speed for snow
tyres with “Q” marking is
160 km/h; 190 km/h for tyres with “T”
marking and 210 km/h for tyres with
H marking. The Road Traffic Code
speed limits must however be always
strictly observed.
WARNING

Keep your speed
down when snow
chains are fitted. Do
not exceed 50 Km/h. Avoid
potholes, steps and pavements and
avoid also to drive for long distances on
roads not covered with snow to prevent
damaging the car and the roadbed.
155
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Snow chains should only be applied to the
driving wheels (front wheels).
Check the tension of the chains after the
first few metres have been driven.
Use snow chains with reduced size: on
tyres 195/65 R15” and 205/55 R16” use
snow chains with reduced size with max
protrusion beyond the tyre profile of 9
mm.
IMPORTANT Snow chains cannot be fit-
ted to the space-saver spare wheel. So, if
a front (drive) wheel is punctured and
chains are needed, a rear wheel should be
fitted to the front of the car and the spare
wheel should be fitted to the rear.
This way with two normal drive wheels,
snow chains can be fitted to them to solve
an emergency.
IMPORTANT Snow chains may not be
used on tyres type 215/45 R17 87W since
interference can be generated with the
surrounding components.

156
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if pos-
sible well-ventilated premises;
❒engage a gear;
❒ check that the handbrake is not en-
gaged;
❒disconnect battery terminals (first dis-
connect the negative terminal) and
check the battery charge. This check
is to be repeated every three months
when the car is left inactive. Recharge
if the optical indicator shows a dark
colour without the central green area;
❒ clean and protect the painted parts us-
ing protective wax;
❒clean and protect the shiny metal parts
using special compounds readily avail-
able.
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒ cover the car with a cloth or perforat-
ed plastic sheet. Do not use sheets of
non-perforated plastic as they do not
allow moisture on the car body to
evaporate;
❒inflate tyres to +0,5 bar above the nor-
mal specified pressure and check it at
intervals;
❒ if you don’t disconnect the battery from
the electric system, check its charge
every month and recharge it if the op-
tical indicator shows a dark colour
without the central green area;
❒ do not drain the engine cooling system.IMPORTANT Where relevant, switch off
the electronic car alarm with the remote
control.

157
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ...................................................... 158
LOW BRAKE FLUID.............................................................. 158
HANDBRAKE ON ................................................................. 158
BRAKE PAD WEAR ............................................................... 158
AIR BAG FAILURE ................................................................. 159
FRONT PASSENGER’S AIR BAG DEACTIVATED ....... 159
REAR SIDE BAGS DEACTIVATED .................................. 160
SEAT BELTS NOT FASTENED ........................................... 160
LOW BATTERY CHARGE .................................................. 160
LOW ENGINE OIL PRESSURE........................................... 161
EXHAUST OIL ....................................................................... 161
SELESPEED TRANSMISSION FAILURE ............................ 161
“DUALDRIVE” ELECTRIC POWER STEERING
FAILURE .................................................................................... 162
HIGH TEMPERATURE ENGINE COOLANT FLUID ... 162
INCOMPLETE DOOR LOCKING..................................... 163
GENERIC FAILURE INDICATION .................................. 163
DIESEL PARTICULATE FILTER CLOGGED ................... 163
FUEL RESERVE......................................................................... 164
ENGINE CONTROL SYSTEM FAILURE (EOBD) ......... 164
ESP SYSTEM ............................................................................ 165
GLOW PLUG WARMING FAILURE ................................ 165
GLOW PLUGS ........................................................................ 165
WATER IN DIESEL FUEL FILTER ...................................... 166INEFFICIENT ABS SYSTEM ................................................. 166
INEFFICIENT EBD
(ELECTRONIC BRAKING DISTRIBUTOR) .................. 166
CAR PROTECTION SYSTEM FAILURE -
FIAT CODE .............................................................................. 167
ALARM FAILURE ................................................................... 167
BREAK-IN ATTEMPT ........................................................... 167
EXTERNAL LIGHT FAILURE .............................................. 167
REAR FOGLIGHTS ................................................................ 167
FRONT FOG LIGHTS ........................................................... 167
LEFT-HAND DIRECTION INDICATOR ........................ 168
RIGHT-HAND DIRECTION INDICATOR .................... 168
SIDELIGHTS AND LOW BEAMS ...................................... 168
FOLLOW ME HOME ............................................................ 168
MAIN BEAMS ........................................................................... 168
CRUISE CONTROL............................................................... 168
POSSIBLE PRESENCE OF ICE ON THE ROAD ............ 168
LIMITED RANGE ................................................................... 168
ASR SYSTEM ........................................................................... 168
SPEED LIMIT EXCEEDED ................................................... 168
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S

158
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Turning on of warning light is accompa-
nied by specific message and/or by buzzer
sound where provided by instrument pan-
el. These indications are concise and
cautionaryand shall not be considered
as exhaustive and/or as an alternative to
the specifications contained in this Own-
er Handbook which shall always be read
through carefully and thoroughly. In case
of failure indication always refer to the
specifications contained in this sec-
tion.
IMPORTANT Failure indications displayed
are divided into two categories: very se-
riousand less seriousfailures.
Very seriousfailures are indicated by a
repeated and prolonged warning “cycle”.
Less seriousfailures are indicated by a
limited warning “cycle”.
The warning cycle of both failure classes
can be stopped by pressing button
MODE. The instrument panel warning
light will stay on until eliminating the fault.Handbrake on
The warning light turns on when the hand-
brake is on.
If the car is moving, a buzzer will also
sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged. LOW BRAKE
FLUID LEVEL (red)
HANDBRAKE ON (red)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
Low brake fluid level
The warning light turns on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level, due to possi-
ble leak in the circuit.
The display will show the dedicated mes-
sage.BRAKE PAD
WEAR (red)
The warning light turns on when the
front brake pads are worn; in this case
have them changed as soon as possible.
The display will show the dedicated mes-
sage.
IMPORTANT Since the car is fitted with
wear sensors for the front brake pads,
when changing them, check also the rear
brake pads.
x
If the warning light xturns
on when travelling (together
with the message on the display) stop
the car immediately and contact Fiat
Dealership.
WARNING
d

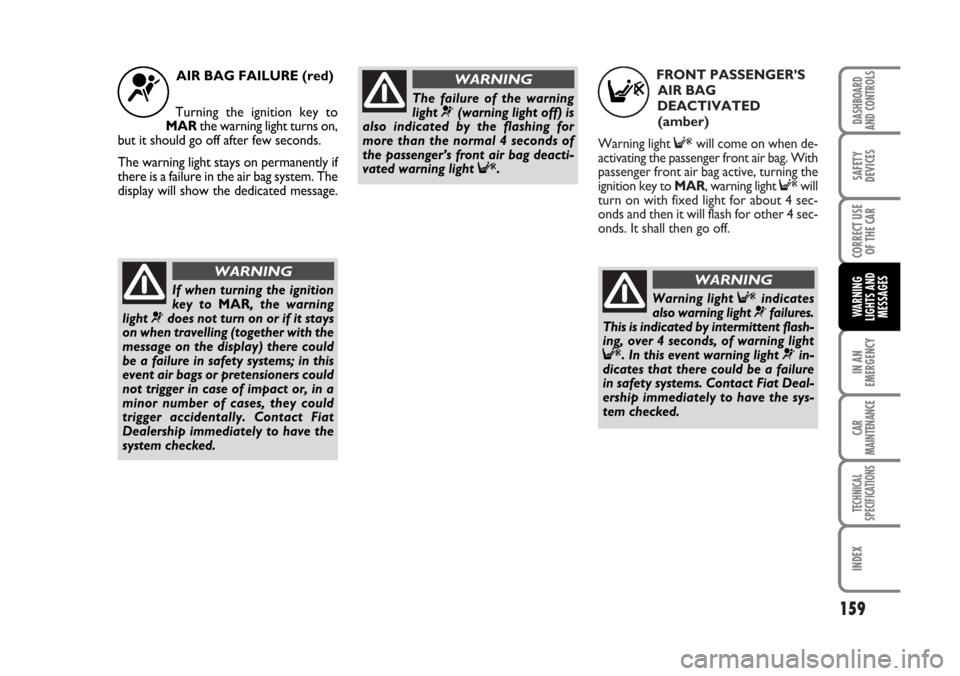

FRONT PASSENGER’S
AIR BAG
DEACTIVATED
(amber)
Warning light Fwill come on when de-
activating the passenger front air bag. With
passenger front air bag active, turning the
ignition key to MAR, warning light Fwill
turn on with fixed light for about 4 sec-
onds and then it will flash for other 4 sec-
onds. It shall then go off.
159
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
AIR BAG FAILURE (red)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light stays on permanently if
there is a failure in the air bag system. The
display will show the dedicated message.
¬
If when turning the ignition
key to MAR, the warning
light ¬does not turn on or if it stays
on when travelling (together with the
message on the display) there could
be a failure in safety systems; in this
event air bags or pretensioners could
not trigger in case of impact or, in a
minor number of cases, they could
trigger accidentally. Contact Fiat
Dealership immediately to have the
system checked.
WARNING
The failure of the warning
light ¬(warning light off) is
also indicated by the flashing for
more than the normal 4 seconds of
the passenger’s front air bag deacti-
vated warning light F.
WARNING
F
Warning light Findicates
also warning light ¬failures.
This is indicated by intermittent flash-
ing, over 4 seconds, of warning light
F. In this event warning light ¬in-
dicates that there could be a failure
in safety systems. Contact Fiat Deal-
ership immediately to have the sys-
tem checked.
WARNING

160
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
REAR SIDE BAGS
DEACTIVATED
(where provided)
(amber)
Warning light Àturns on when rear side
bags are deactivated.
With rear side bags on, turning the igni-
tion key to MAR, warning light Àwill
turn on with fixed light for about 4 sec-
onds and then it will flash for other 4 sec-
onds. It shall then go off.SEAT BELTS NOT
FASTENED (red)
The warning light turns on
glowing steadily with car station-
ary and driver’s seat belt not fastened cor-
rectly. The warning light will turn on flash-
ing together with the buzzer when, with
car moving, the driver’s seat belt is not fas-
tened correctly.
The S.B.R. (Seat Belt Reminder) buzzer
can only be excluded by Fiat Dealership.
The system can be reactivated through the
set-up menu.LOW BATTERY
CHARGE (red)
Turning the ignition key to
MARthe warning light turns on,
but it should go out as soon as the engine
is started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly or flashing, contact immediately Fiat
Dealership.
À

SELESPEED
TRANSMISSION
FAILURE (red)
Turning the ignition key to MAR
the warning light turns on, but it should go
out as soon as the engine is started.
The warning light with turn on flashing (to-
gether with the message on the display)
when there is a failure in the Selespeed
transmission.
t
161
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
EXHAUST OIL (red)
(Multijet versions with DPF)
Low engine oil pressure
Turning the ignition key to MARthe
warning light turns on, but it should go out
as soon as the engine is started.
The display will show the dedicated mes-
sage.
v
In the event of Selespeed
transmission failure, go as
soon as possible to the nearest Fiat
Dealership and have the system
checked.
WARNING
Exhaust oil
(Multijet versions with DPF)
The warning light with turn on flashing
when the system detects that the engine
oil is exhaust.
After the first indication, at each engine
starting the warning light vwill go on
flashing for about 1 minute and then every
2 hours until oil is changed.
The display will show the dedicated mes-
sage.
If the warning light vturns
on when the car is travelling
(together with the message on
the display), stop the engine
immediately and contact a Fiat Deal-
ership.
If warning light vflashes,
contact Fiat Dealership as
soon as possible to have oil
changed and instrument pan-
el warning light turned off.

162
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
“DUALDRIVE”
ELECTRIC POWER
STEERING FAILURE
(red)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
If the warning light stays on, you will not
have steering assistance and the effort on
the steering wheel will be increased, steer-
ing is however possible. Contact Fiat Deal-
ership.
The display will show the dedicated mes-
sage.HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to MAR
the warning light turns on, but it should go
off after few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on when dri-
ving, proceed as follows:
❒normal driving conditions: stop the
car, switch off the engine and check
whether the water level in the reser-
voir is not below the MIN mark. Oth-
erwise wait for few seconds to allow
engine cooling, then open slowly and
carefully the cap, top up coolant and
check whether its level is falling be-
tween MIN and MAX marks in the
reservoir. Check visually any leak and if
when restarting the warning light
comes on again, contact a Fiat Dealer-
ship.
❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease speed,
if the warning light stays on, stop the
car. Wait for 2 or 3 minutes leaving the
engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
Check proper coolant level as de-
scribed previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
gç

163
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
INCOMPLETE DOOR
LOCKING (red)
The warning light turns on
when one or more doors, the
boot or the bonnet are not properly shut.
The display will show the dedicated mes-
sage.
The buzzer will sound when one or more
doors are open and the car is moving.GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the
following circumstances.
Inertial fuel cut-off switch
intervened
The warning light turns on when the in-
ertial fuel cut-off switch is triggered. The
display will show the dedicated message.
Sensor failure
The warning light turns on when a fault
is detected to one of the following sensors
(where provided):
❒window anti-pinch sensors;
❒engine oil pressure sensor;
❒twilight sensor;
❒rain sensor;
❒parking sensors;
The display will show the dedicated mes-
sage (excluding in the event of engine oil
pressure sensor failure).
Contact Fiat Dealership as soon as possi-
ble to have the fault removed.
´è
DIESEL PARTICULATE
FILTER CLOGGED
(amber)
(Multijet versions)
The warning light turns on when the diesel
particulate filter is clogged and the driving
conditions do not enable to activate au-
tomatically the reclaiming procedure.
To enable the cleaning procedure, keep
the car running until the warning light
turns off.
The display will show the dedicated mes-
sage.
h
