FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when about 8
litres fuel are left in the tank. The display
will show the dedicated message.
IMPORTANT The warning light flashes to
indicate a failure, contact Fiat Dealership
as soon as possible to have the system
checked.ENGINE CONTROL
SYSTEM FAILURE
(EOBD) (amber)
In normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go off when the en-
gine has started. The initial turning on in-
dicates that the warning light is working
properly. If the warning light stays on or
turns on when travelling:
❒glowing steadily: means a fault in the sup-
ply/ignition system which could cause
high emissions at the exhaust, possible
lack of performance, poor handling and
high consumption levels.
The display will show the dedicated mes-
sage.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. Prolonged use of the car with the
warning light on may cause damages. Con-
tact Fiat Dealership as soon as possible.
çU
If, turning the ignition key to
MAR, the warning light Udoes not turn on or if it turns
on glowing steadily or flashing
when travelling, contact Fiat Dealer-
ship. Warning light
Uoperation can
be checked by traffic agents by prop-
er equipments, therefore comply with
laws and regulations of the country
where you are driving.
The warning light turns off if the fault dis-
appears, but it is still stored by the system.
❒flashing: indicates the possibility of dam-
age to the catalyst (see “EOBD system”
in section “Dashboard and controls”).
If the light flashes, it is necessary to release
the accelerator pedal to lower the speed
of the engine until the warning light stops
flashing; continue the journey at moder-
ate speed, trying to avoid driving condi-
tions that may cause further flashing and
contact Fiat Dealership as soon as possi-
ble.

165
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
ESP SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns
on, but it should go off after few
seconds.
If the warning light does not turn off or
stays on when travelling together with the
button led ASR, contact Fiat Dealership.
The display will show the dedicated mes-
sage.
Disconnecting the battery will make the
warning light turn on (together with the
message on the display) to indicate that
the system shall be realigned. To make the
warning light turn off carry out the initial-
isation procedure described at paragraph
“ESP system” in section “Dashboard and
controls”.
Warning light flashing when driving indi-
cates that the ESP system is active.GLOW PLUG
WARMING FAILURE
(Multijet versions)
(amber)
GLOW PLUGS
(Multijet versions)
(amber)
Glow plug warming
Turning the ignition key to MARthe
warning light turns on and it will go off
when glow plugs reach the preset tem-
perature. Start the engine immediately af-
ter warning light turning off.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
ám
Glow plug warming failure
The warning light flashes when there is a
failure in the glow plug warming system.
Contact Fiat Dealership as soon as possi-
ble.
The display will show the dedicated mes-
sage.

INEFFICIENT
EBD
(ELECTRONIC
BRAKING
DISTRIBUTOR) (red) (amber)
The turning on at the same time of warn-
ing lights
xand >with the engine run-
ning indicates an EBD system failure or
that the system is unavailable; in this case
heavy braking may cause the rear wheels
to lock before time, with the possibility of
skidding.
Drive with the utmost care to the near-
est Fiat Dealership to have the system
checked.
The display will show the dedicated mes-
sage.
166
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WATER IN DIESEL
FUEL FILTER
(Multijet versions)
(amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when there is
water in the diesel fuel filter.
The display will show the dedicated mes-
sage.INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system.
Caution is advisable and it is necessary to
contact Fiat Dealership.
The display will show the dedicated mes-
sage.
c
The presence of water in the
fuel circuit may cause serious
damage to the entire injection
system and cause irregular en-
gine operation. If the warning light
cturns on (together with the message on
the display), contact Fiat Dealership as
soon as possible to have the system re-
lieved. If the above indications come on
immediately after refuelling, water has
probably been poured into the tank:
turn the engine off immediately and
contact Fiat Dealership.
>x>

167
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR PROTECTION
SYSTEM FAILURE-FIAT
CODE (amber)
ALARM FAILURE
(where provided) (amber)
BREAK-IN ATTEMPT
(amber)
Car protection system failure
Turning the key to MARthe warning light
shall flash only once and then go off.
The turning on of the warning light glow-
ing steadily, with the ignition key at MAR,
indicates a probable failure (see “Fiat Code
system” in section “Dashboard and con-
trols”).
IMPORTANT The turning on at the same
time of the
Uand Ywarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning light
Yflashes (together with the message on
the display), this means that the car is not
protected by the engine immobilising de-
vice (see “Fiat Code system” in section
“Dashboard and controls”). Contact Fiat
Dealership to have all the keys memo-
rised.Alarm failure (where provided)
The turning on of the warning light indi-
cates a failure in the alarm system. Con-
tact Fiat Dealership as soon as possible.
The display will show the dedicated mes-
sage.
Break-in attempt
The turning on of the warning light indi-
cates an attempt of break-in. Contact Fi-
at Dealership as soon as possible.
The display will show the dedicated mes-
sage.EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights
is failing:
❒side/taillights
❒brake lights or relevant fuse
❒rear fog lights
❒direction indicators
❒number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
The display will show the dedicated mes-
sage.
YW
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are
turned on.
4
FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are
turned on.
5

168
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
LEFT-HAND DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when
the direction indicator stalk is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
RIGHT-HAND
DIRECTION INDICATOR
(green - intermittent)
The warning light turns on when
the direction indicator stalk is moved up-
wards or, together with the left indicator,
when the hazard warning light button is
pressed.
SIDELIGHTS AND
LOW BEAMS (green)
FOLLOW ME HOME
Side/taillights and low beams
The warning light turns on when side/tail-
lights, parking lights or low beams are
turned on.MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
F
D
3
1
CRUISE CONTROL
(where provided) (green)
Turning the ignition key to
MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when turning
the Cruise Control knurled ring to ON.
The display will show the dedicated mes-
sage.
Ü
POSSIBLE PRESENCE OF ICE
ON THE ROAD
The outside temperature indication starts
flashing and symbol
❄appears on the dis-
play when the outside temperature reach-
es or falls below 3°C to warn the driver
of the possible presence of ice on the
road.
The display will show the dedicated mes-
sage.
LIMITED RANGE
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km.
ASR SYSTEM
The ASR system can be turned off by
pressing the ASR button. The display will
show the dedicated message to warn the
driver that the system is off; at the same
time the button led will turn on.
Pressing again the ASR button will turn off
the button led and the display will show
the dedicated message to warn the dri-
ver that the system is active again.
SPEED LIMIT EXCEEDED
The warning light turns on when the car
exceeds the speed limit set previously (see
“Multifunction Display” in section “Dash-
board and controls”). The display will
show the dedicated message. Follow me home
The warning light turns on when activat-
ing the “Follow me home” device (see sec-
tion “Dashboard and controls”). The dis-
play will show the dedicated message.

169
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
ENGINE STARTING.............................................................. 170
IF A TYRE IS PUNCTURED ................................................ 171
QUICK TYRE REPAIR KIT FIX & GO automatic ......... 177
WHEN NEEDING TO CHANGE A BULB .................... 181
IF AN EXTERIOR LIGHT BURNS OUT .......................... 184
IF AN INTERIOR LIGHT BURNS OUT ........................... 192
IF A FUSE BLOWS ................................................................. 196
IF THE BATTERY IS FLAT ................................................... 205
JACKING THE CAR .............................................................. 206
TOWING THE CAR ............................................................ 206
FIRE EXTINGUISHER ........................................................... 208
I I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y

170
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
ENGINE STARTING
JUMP STARTING
If the battery is flat, it is possible to start
the engine using an auxiliary battery with
the same capacity or a little higher than
the flat one.
Proceed as follows fig. 1:
❒Connect positive terminals (+ near the
terminal) of the two batteries with a
jump lead;
❒With a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
and to an earthing point
Eon the en-
gine or the gearbox of the car to be
started;
❒Start the engine;
❒When the engine has been started, re-
move the leads reversing the order
above.
If after a few attempts the engine does not
start, do not insist but contact the near-
est Fiat Dealership.IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite the flammable gas from
the battery. If the other battery is fitted in
another car, prevent accidental contacts
between the metal parts of the two cars.BUMP STARTING
Never bump start the engine (by pushing,
towing, or coasting downhill) as this could
cause fuel to flow into the catalytic ex-
haust system and damage it beyond repair.
IMPORTANT Remember that the servo-
brake and electrical power steering sys-
tem are not operating until the engine is
started, a greater effort will therefore be
required to press the brake pedal or turn
the steering wheel.

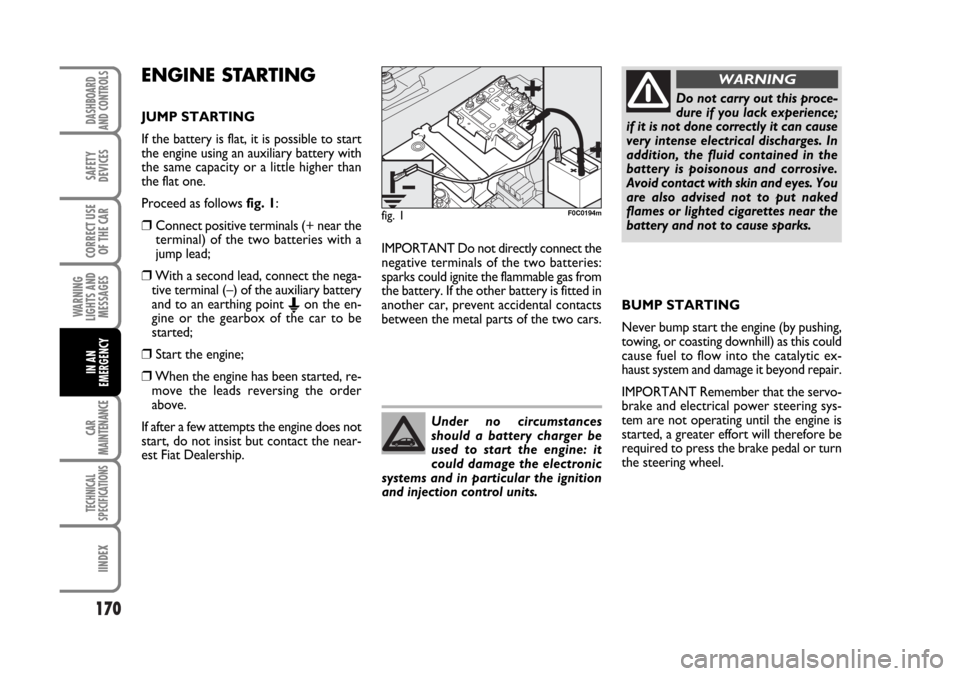

fig. 1F0C0194m
Under no circumstances
should a battery charger be
used to start the engine: it
could damage the electronic
systems and in particular the ignition
and injection control units.
Do not carry out this proce-
dure if you lack experience;
if it is not done correctly it can cause
very intense electrical discharges. In
addition, the fluid contained in the
battery is poisonous and corrosive.
Avoid contact with skin and eyes. You
are also advised not to put naked
flames or lighted cigarettes near the
battery and not to cause sparks.
WARNING

171

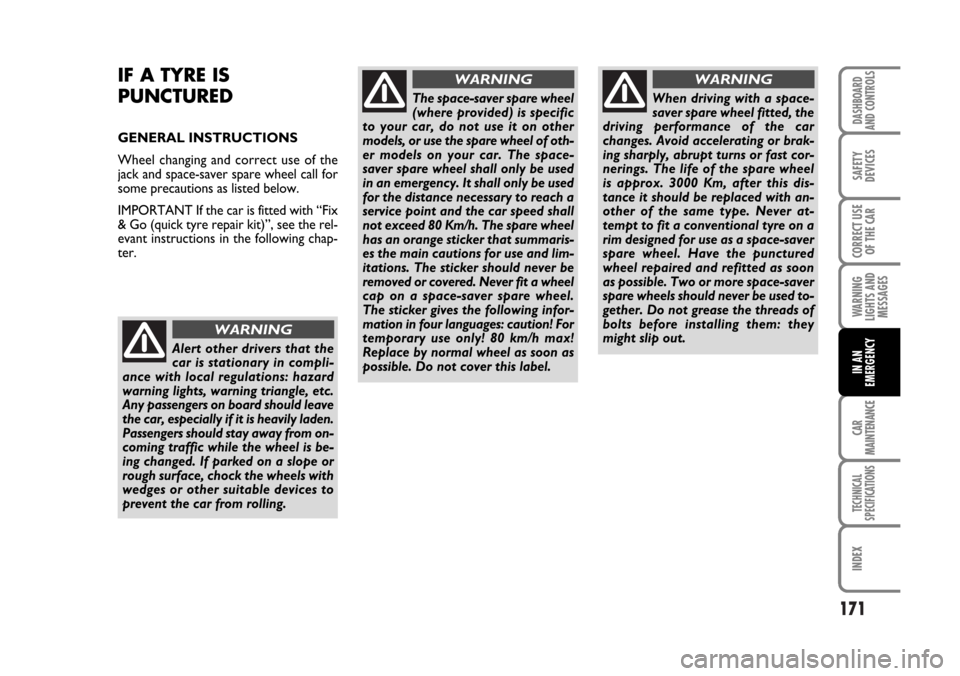

WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
IF A TYRE IS
PUNCTURED
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and space-saver spare wheel call for
some precautions as listed below.
IMPORTANT If the car is fitted with “Fix
& Go (quick tyre repair kit)”, see the rel-
evant instructions in the following chap-
ter.
Alert other drivers that the
car is stationary in compli-
ance with local regulations: hazard
warning lights, warning triangle, etc.
Any passengers on board should leave
the car, especially if it is heavily laden.
Passengers should stay away from on-
coming traffic while the wheel is be-
ing changed. If parked on a slope or
rough surface, chock the wheels with
wedges or other suitable devices to
prevent the car from rolling.
WARNING
The space-saver spare wheel
(where provided) is specific
to your car, do not use it on other
models, or use the spare wheel of oth-
er models on your car. The space-
saver spare wheel shall only be used
in an emergency. It shall only be used
for the distance necessary to reach a
service point and the car speed shall
not exceed 80 Km/h. The spare wheel
has an orange sticker that summaris-
es the main cautions for use and lim-
itations. The sticker should never be
removed or covered. Never fit a wheel
cap on a space-saver spare wheel.
The sticker gives the following infor-
mation in four languages: caution! For
temporary use only! 80 km/h max!
Replace by normal wheel as soon as
possible. Do not cover this label.
WARNING
When driving with a space-
saver spare wheel fitted, the
driving performance of the car
changes. Avoid accelerating or brak-
ing sharply, abrupt turns or fast cor-
nerings. The life of the spare wheel
is approx. 3000 Km, after this dis-
tance it should be replaced with an-
other of the same type. Never at-
tempt to fit a conventional tyre on a
rim designed for use as a space-saver
spare wheel. Have the punctured
wheel repaired and refitted as soon
as possible. Two or more space-saver
spare wheels should never be used to-
gether. Do not grease the threads of
bolts before installing them: they
might slip out.
WARNING

172
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
To change a wheel proceed as follows:
❒Stop the car is a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground should be flat and adequately
firm; turn the engine off and pull up the
handbrake; engage first gear or reverse;
use the handle A-fig. 2to remove the
piece of stiff cover B(saloon versions)
or C-fig. 3(Multi Wagon versions);
loosen the clamping device E-fig. 4;

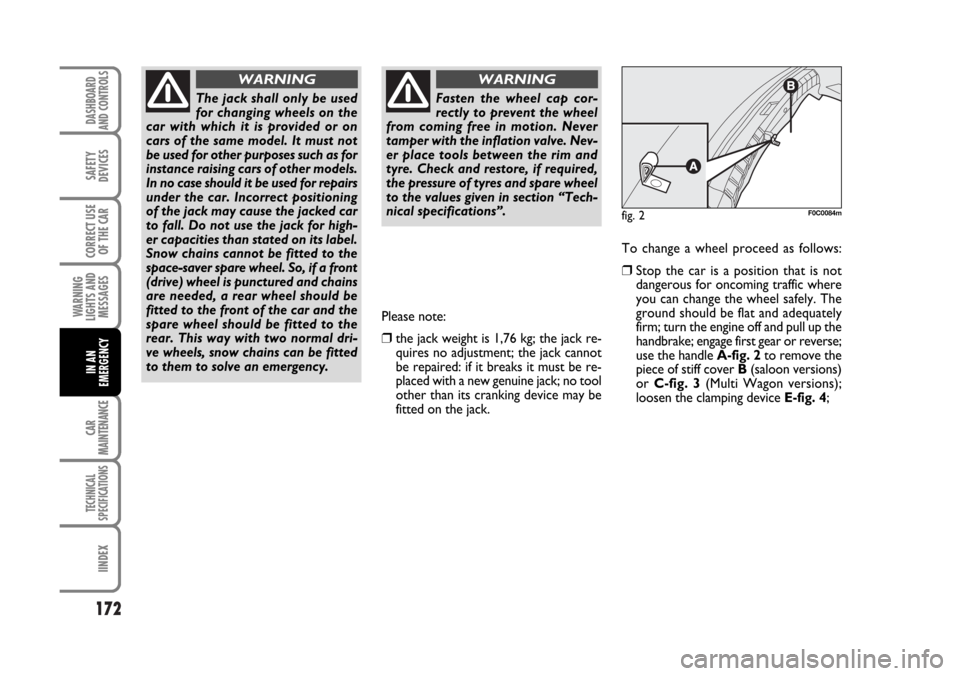

fig. 2F0C0084m
Please note:
❒the jack weight is 1,76 kg; the jack re-
quires no adjustment; the jack cannot
be repaired: if it breaks it must be re-
placed with a new genuine jack; no tool
other than its cranking device may be
fitted on the jack.
The jack shall only be used
for changing wheels on the
car with which it is provided or on
cars of the same model. It must not
be used for other purposes such as for
instance raising cars of other models.
In no case should it be used for repairs
under the car. Incorrect positioning
of the jack may cause the jacked car
to fall. Do not use the jack for high-
er capacities than stated on its label.
Snow chains cannot be fitted to the
space-saver spare wheel. So, if a front
(drive) wheel is punctured and chains
are needed, a rear wheel should be
fitted to the front of the car and the
spare wheel should be fitted to the
rear. This way with two normal dri-
ve wheels, snow chains can be fitted
to them to solve an emergency.
WARNING
Fasten the wheel cap cor-
rectly to prevent the wheel
from coming free in motion. Never
tamper with the inflation valve. Nev-
er place tools between the rim and
tyre. Check and restore, if required,
the pressure of tyres and spare wheel
to the values given in section “Tech-
nical specifications”.
WARNING

173
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

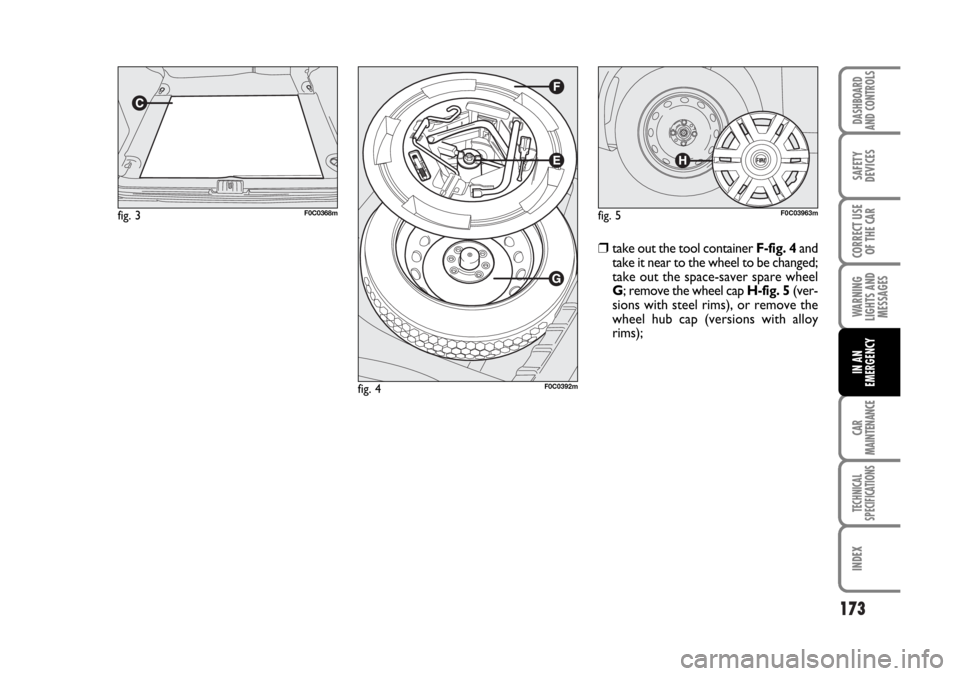

fig. 3F0C0368m
fig. 4F0C0392m
fig. 5F0C03963m
❒take out the tool container F-fig. 4and
take it near to the wheel to be changed;
take out the space-saver spare wheel
G; remove the wheel cap H-fig. 5(ver-
sions with steel rims), or remove the
wheel hub cap (versions with alloy
rims);
