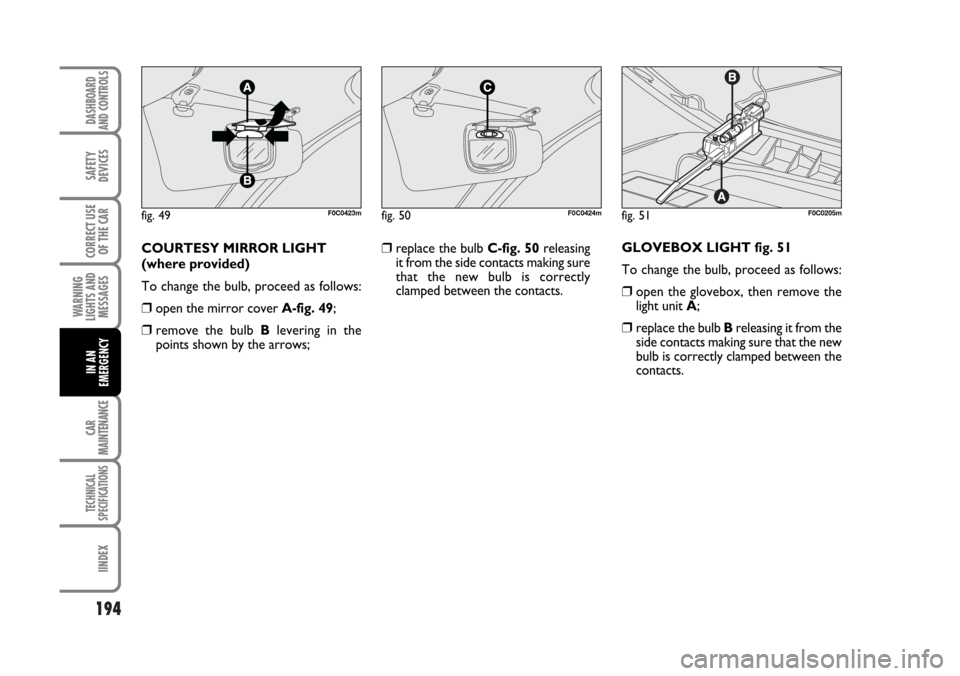

COURTESY MIRROR LIGHT
(where provided)
To change the bulb, proceed as follows:
❒open the mirror cover A-fig. 49;
❒ remove the bulb Blevering in the
points shown by the arrows;GLOVEBOX LIGHT fig. 51
To change the bulb, proceed as follows:
❒open the glovebox, then remove the
light unit A;
❒replace the bulb Breleasing it from the
side contacts making sure that the new
bulb is correctly clamped between the
contacts.
fig. 49F0C0423mfig. 50F0C0424mfig. 51F0C0205m
❒replace the bulb C-fig. 50releasing
it from the side contacts making sure
that the new bulb is correctly
clamped between the contacts.

195
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

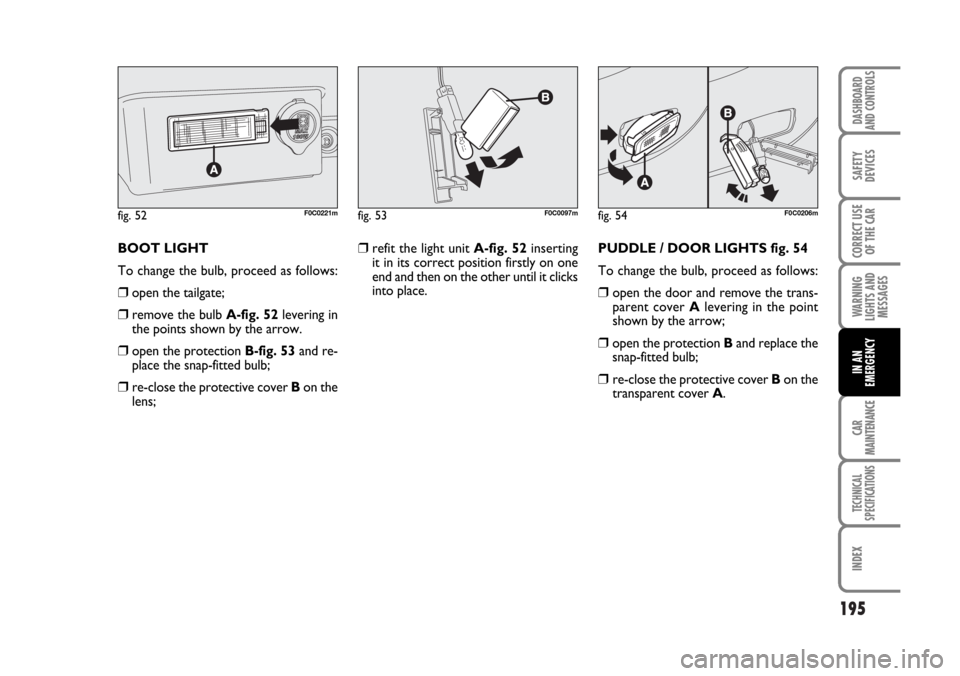

BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the bulb A-fig. 52levering in
the points shown by the arrow.
❒open the protection B-fig. 53and re-
place the snap-fitted bulb;
❒re-close the protective cover Bon the
lens;
fig. 52F0C0221mfig. 53F0C0097mfig. 54F0C0206m
❒refit the light unit A-fig. 52inserting
it in its correct position firstly on one
end and then on the other until it clicks
into place.PUDDLE / DOOR LIGHTS fig. 54
To change the bulb, proceed as follows:
❒ open the door and remove the trans-
parent cover Alevering in the point
shown by the arrow;
❒open the protection Band replace the
snap-fitted bulb;
❒ re-close the protective cover Bon the
transparent cover A.
