Vehicles complete and with no further changes. Measurements i millimetres
COMBI N1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
5/6 passengers
A 3098 3498
B 4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1369 1369
Y 1391 1391
Z 1320 1320
Z1 1650 2050
189

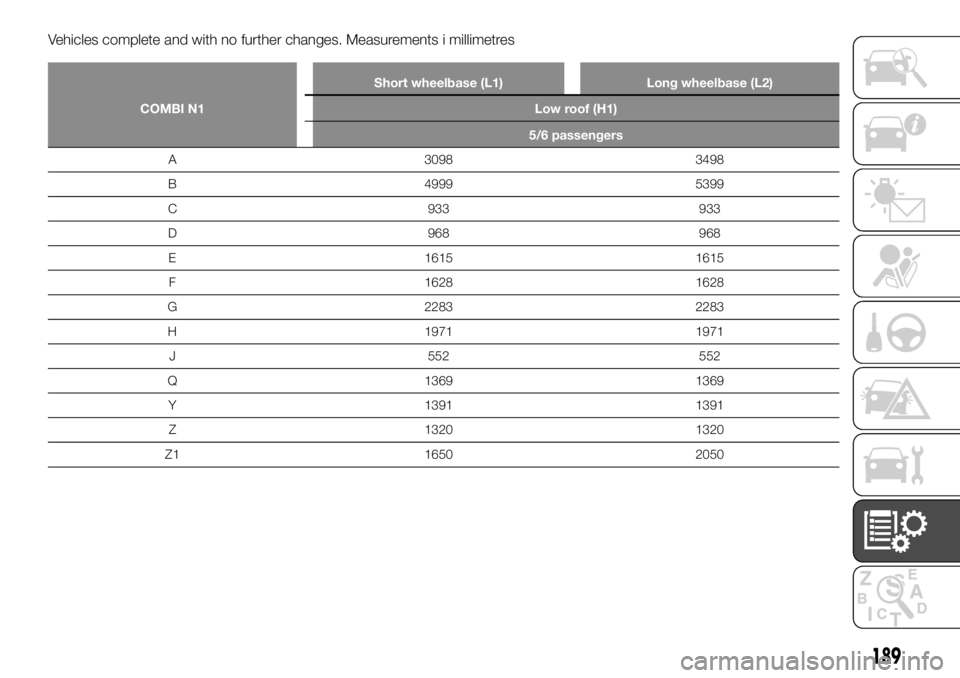

Vehicles complete and with no further changes. Measurements i millimetres
COMBI M1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1) Low roof (H1)
5/6 passengers 8/9 passengers 5/6 passengers 8/9 passengers
A 3098 3098 3498 3498
B 4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 1971 1971 1971
J 552 552 552 552
Q 1369 1369 1369 1369
Y 1391 1391 1391 1391
Z 1320 1320 1320 1320
Z1 1650 736 2050 1136
190
TECHNICAL DATA

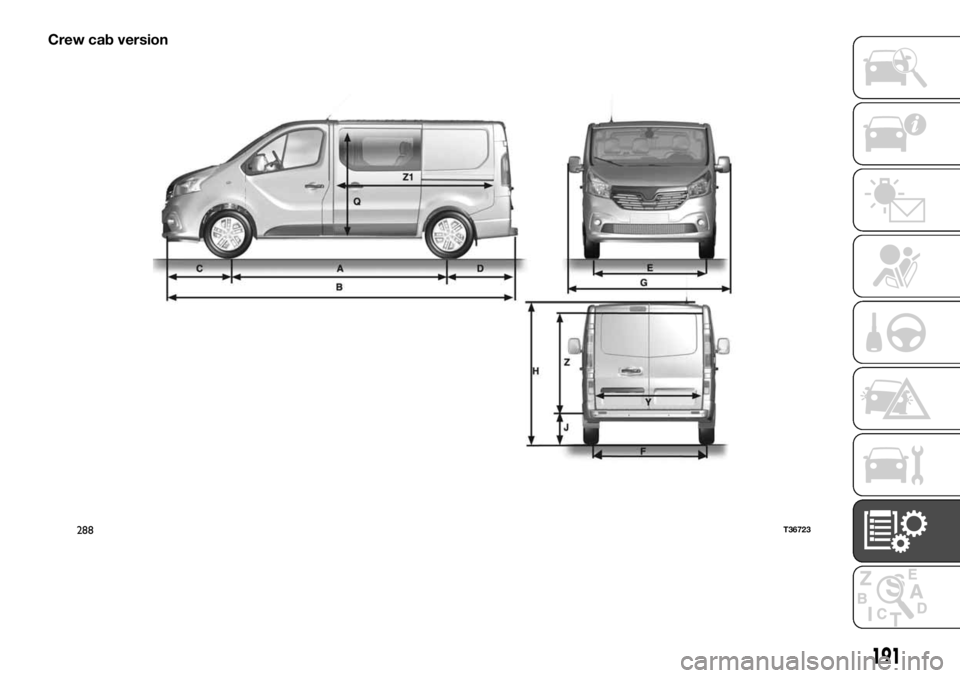

Crew cab version
288T36723
191

Vehicles complete and with no further changes. Measurements i millimetres
CREW CABShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
A 3098 3498
B
4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1387 1387
Y 1391 1391
Z 1320 1320
Z1 (min/max) 1914 / 2023 2314 / 2423
192
TECHNICAL DATA

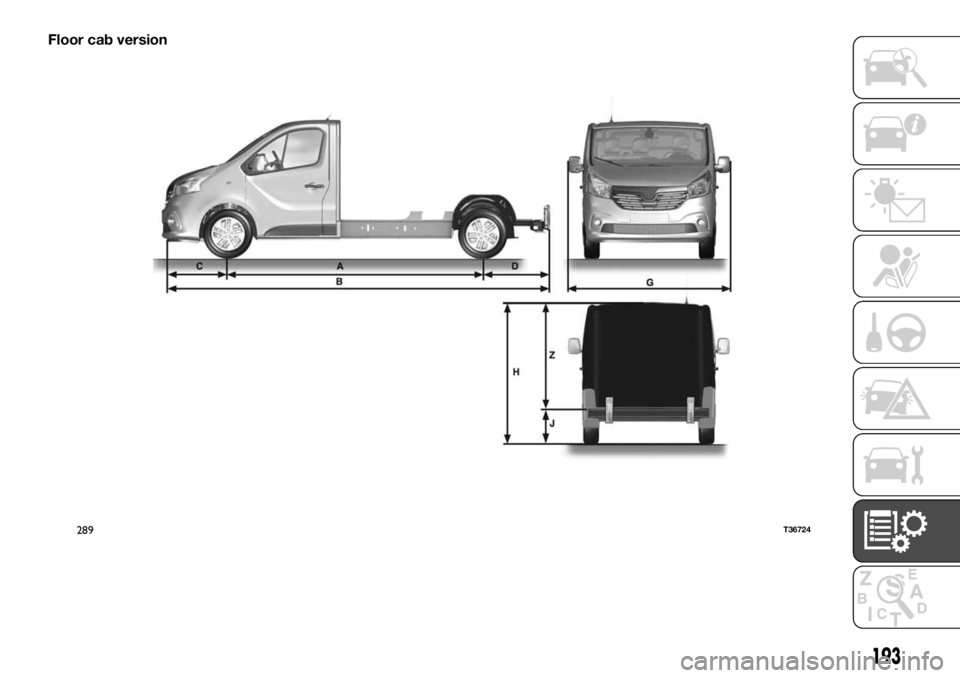

Floor cab version
289T36724
193

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B
(fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
194
TECHNICAL DATA

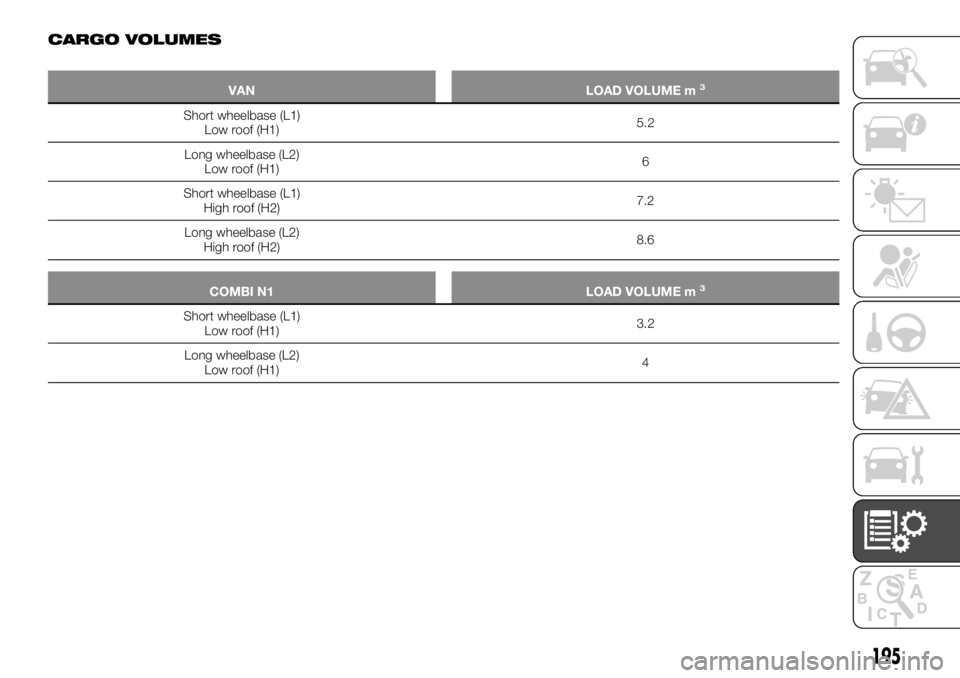

CARGO VOLUMES
VAN LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5.2
Long wheelbase (L2)
Low roof (H1)6
Short wheelbase (L1)
High roof (H2)7.2
Long wheelbase (L2)
High roof (H2)8.6
COMBI N1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
195

COMBI M1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5/6 passengers 3.2
8/9 passengers 1
Long wheelbase (L2)
Low roof (H1)5/6 passengers 4
8/9 passengers 1.8
CREW CAB LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
196
TECHNICAL DATA

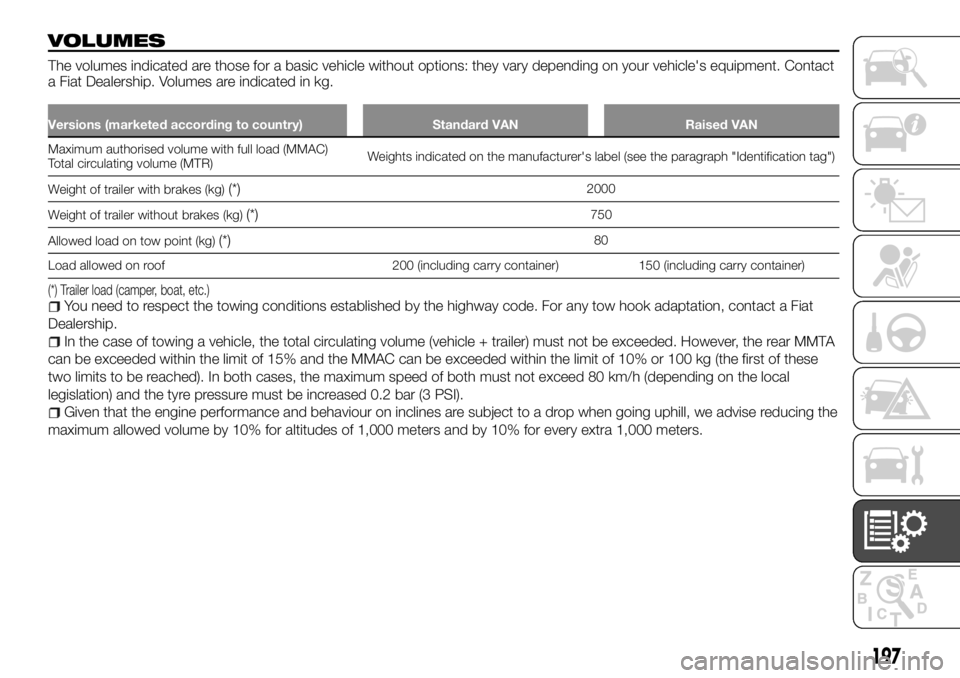

VOLUMES
The volumes indicated are those for a basic vehicle without options: they vary depending on your vehicle's equipment. Contact
a Fiat Dealership. Volumes are indicated in kg.
Versions (marketed according to country) Standard VAN Raised VAN
Maximum authorised volume with full load (MMAC)
Total circulating volume (MTR)Weights indicated on the manufacturer's label (see the paragraph "Identification tag")
Weight of trailer with brakes (kg)
(*)2000
Weight of trailer without brakes (kg)
(*)750
Allowed load on tow point (kg)
(*)80
Load allowed on roof 200 (including carry container) 150 (including carry container)
(*) Trailer load (camper, boat, etc.)You need to respect the towing conditions established by the highway code. For any tow hook adaptation, contact a Fiat
Dealership.
In the case of towing a vehicle, the total circulating volume (vehicle + trailer) must not be exceeded. However, the rear MMTA
can be exceeded within the limit of 15% and the MMAC can be exceeded within the limit of 10% or 100 kg (the first of these
two limits to be reached). In both cases, the maximum speed of both must not exceed 80 km/h (depending on the local
legislation) and the tyre pressure must be increased 0.2 bar (3 PSI).
Given that the engine performance and behaviour on inclines are subject to a drop when going uphill, we advise reducing the
maximum allowed volume by 10% for altitudes of 1,000 meters and by 10% for every extra 1,000 meters.
197

VersionVan
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145 Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1726 1743 1726 1743
Maximum carrying
capacity (including the
driver)1074 1077 1224 1217
Total weight on the
ground2800 2820 2950 2960
VersionVan
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95 — Multijet 120 Ecojet 125 – Ecojet 145
Capacity1200
kg
Gear order weight 1781 1797
Maximum carrying capacity (including the
driver)1249 1243
Total weight on the ground 3030 3040
198
