FIAT TALENTO 2018 Owner handbook (in English)

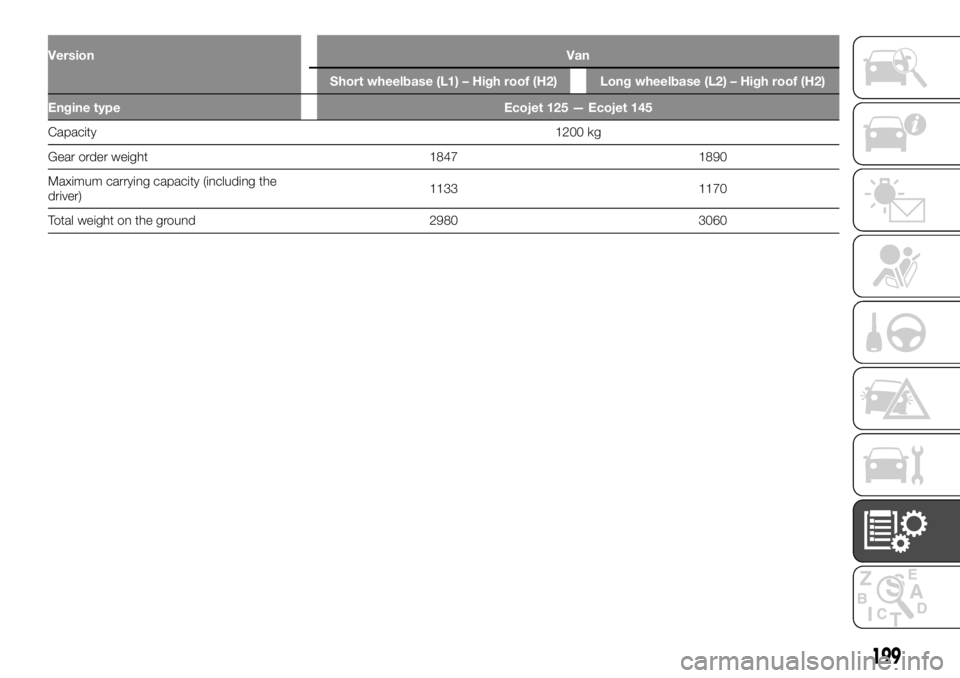

VersionVan
Short wheelbase (L1) – High roof (H2) Long wheelbase (L2) – High roof (H2)
Engine type Ecojet 125 — Ecojet 145
Capacity1200
kg
Gear order weight 1847 1890
Maximum carrying capacity (including the
driver)1133 1170
Total weight on the ground 2980 3060
199

Version Combi N1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 – Ecojet 145 Ecojet 95 Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1837 1847 1849 1859
Maximum carrying
capacity (including the
driver)1033 1033 1111 1111
Total weight on the
ground2870 2880 2960 2970
VersionCombi N1
Long wheelbase (L2) – Low roof (H1)
Ecojet 95 Ecojet 125 – Ecojet 145
Capacity1200
kg
Gear order weight 1925 1933
Maximum carrying capacity (including the
driver)1085 1087
Total weight on the ground 3010 3020
200
TECHNICAL DATA

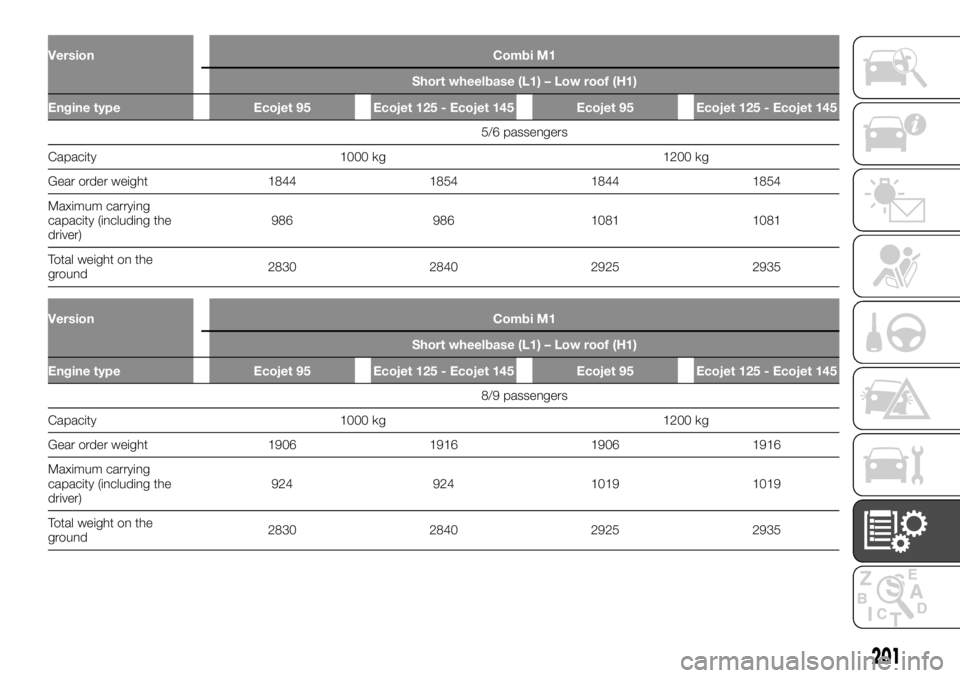

Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers
Capacity
1000 kg 1200 kg
Gear order weight 1844 1854 1844 1854
Maximum carrying
capacity (including the
driver)986 986 1081 1081
Total weight on the
ground2830 2840 2925 2935
Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
8/9 passengers
Capacity
1000 kg 1200 kg
Gear order weight 1906 1916 1906 1916
Maximum carrying
capacity (including the
driver)924 924 1019 1019
Total weight on the
ground2830 2840 2925 2935
201

Version Combi M1
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers 8/9 passengers
Capacity
1200 kg
Gear order weight 1914 1924 1977 1987
Maximum carrying
capacity (including the
driver)1096 1096 1033 1033
Total weight on the
ground3010 3020 3010 3020
202
TECHNICAL DATA

Version Crew cab
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 - Ecojet 145 Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 – cojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1844 1864 1844 1864
Maximum carrying
capacity (including the
driver)981 971 991 981
Total weight on the
ground2825 2835 2835 2845
VersionCrew cab
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Multijet 120 – Ecojet 95 Ecojet 125 - Ecojet 145
Capacity1200
kg
Gear order weight 1895 1916
Maximum carrying capacity (including the
driver)1025 1024
Total weight on the ground 2920 2940
203

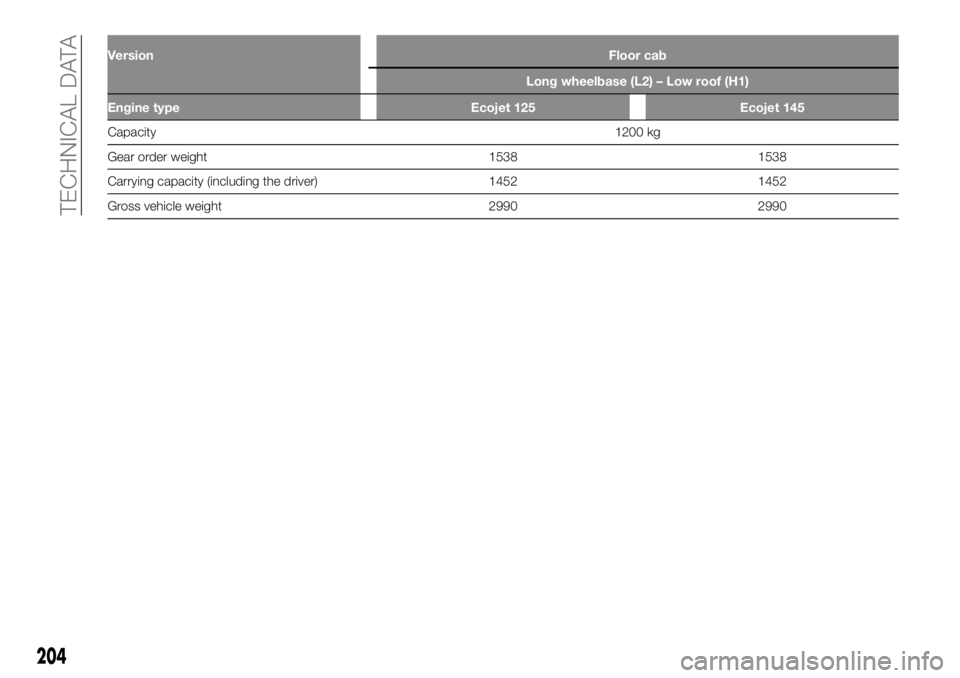

VersionFloor cab
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 125 Ecojet 145
Capacity1200
kg
Gear order weight 1538 1538
Carrying capacity (including the driver) 1452 1452
Gross vehicle weight 2990 2990
204
TECHNICAL DATA

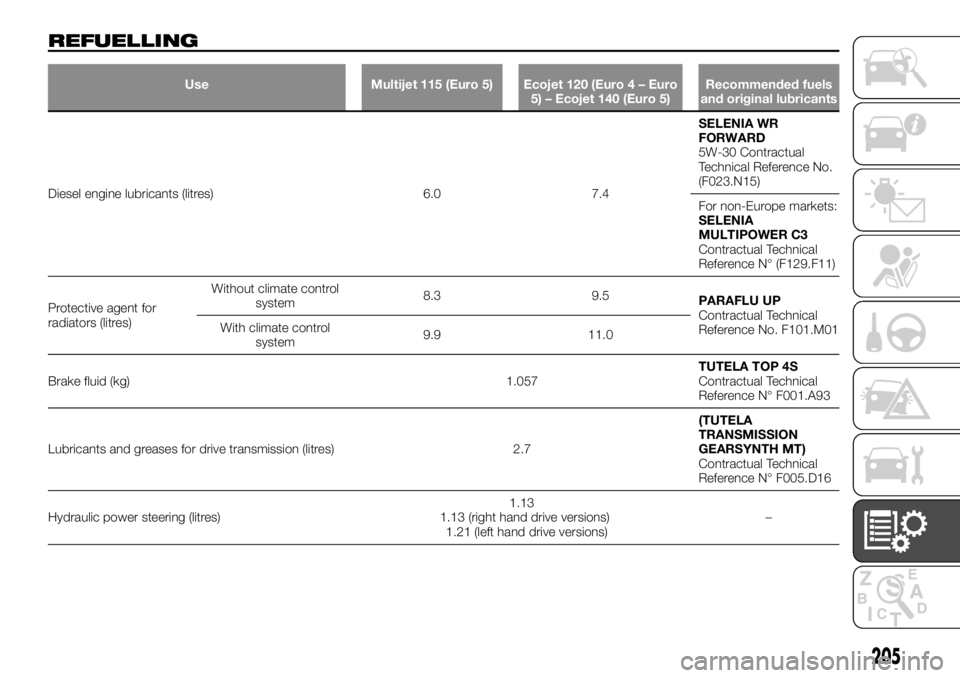

REFUELLING
Use Multijet 115 (Euro 5) Ecojet 120 (Euro 4 – Euro
5) – Ecojet 140 (Euro 5)Recommended fuels
and original lubricants
Diesel engine lubricants (litres) 6.0 7.4SELENIA WR
FORWARD
5W-30 Contractual
Technical Reference No.
(F023.N15)
For non-Europe markets:
SELENIA
MULTIPOWER C3
Contractual Technical
Reference N° (F129.F11)
Protective agent for
radiators (litres)Without climate control
system8.3 9.5
PARAFLU UP
Contractual Technical
Reference No. F101.M01 With climate control
system9.9 11.0
Brake fluid (kg) 1.057TUTELA TOP 4S
Contractual Technical
Reference N° F001.A93
Lubricants and greases for drive transmission (litres) 2.7(TUTELA
TRANSMISSION
GEARSYNTH MT)
Contractual Technical
Reference N° F005.D16
Hydraulic power steering (litres)1.13
1.13 (right hand drive versions)
1.21 (left hand drive versions)–
205

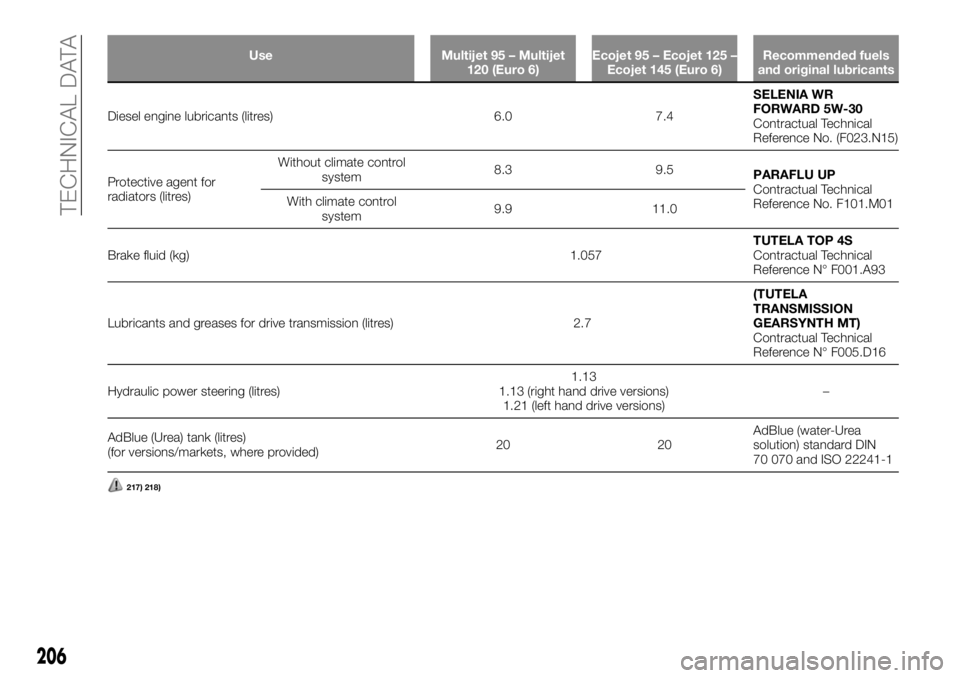

Use Multijet 95 – Multijet
120 (Euro 6)Ecojet 95 – Ecojet 125 –
Ecojet 145 (Euro 6)Recommended fuels
and original lubricants
Diesel engine lubricants (litres) 6.0 7.4SELENIA WR
FORWARD 5W-30
Contractual Technical
Reference No. (F023.N15)
Protective agent for
radiators (litres)Without climate control
system8.3 9.5
PARAFLU UP
Contractual Technical
Reference No. F101.M01 With climate control
system9.9 11.0
Brake fluid (kg) 1.057TUTELA TOP 4S
Contractual Technical
Reference N° F001.A93
Lubricants and greases for drive transmission (litres) 2.7(TUTELA
TRANSMISSION
GEARSYNTH MT)
Contractual Technical
Reference N° F005.D16
Hydraulic power steering (litres)1.13
1.13 (right hand drive versions)
1.21 (left hand drive versions)–
AdBlue (Urea) tank (litres)
(for versions/markets, where provided)20 20AdBlue (water-Urea
solution) standard DIN
70 070 and ISO 22241-1
217) 218)
206
TECHNICAL DATA

CLIMATE CONTROL
SYSTEM
219)
The refrigeration circuit contains
fluorinated greenhouse gases.
Depending on the vehicle version, the
label A inside the engine compartment
gives the following information. The
presence and location of the
information on the label A depends on
the vehicle.
..
Coolant type
Oil type in the air
conditioning
circuit
Flammable
product
Refer to the
instruction manual
Maintenance
x.xxx kg
Amount of refrigerant in the vehicle.
GWP xxxxx
Global warming potential (CO
2equivalent)
CO
2eq x.xx t
Amount in mass and CO
2equivalent.
290T40620
291T40621
292T40622
207

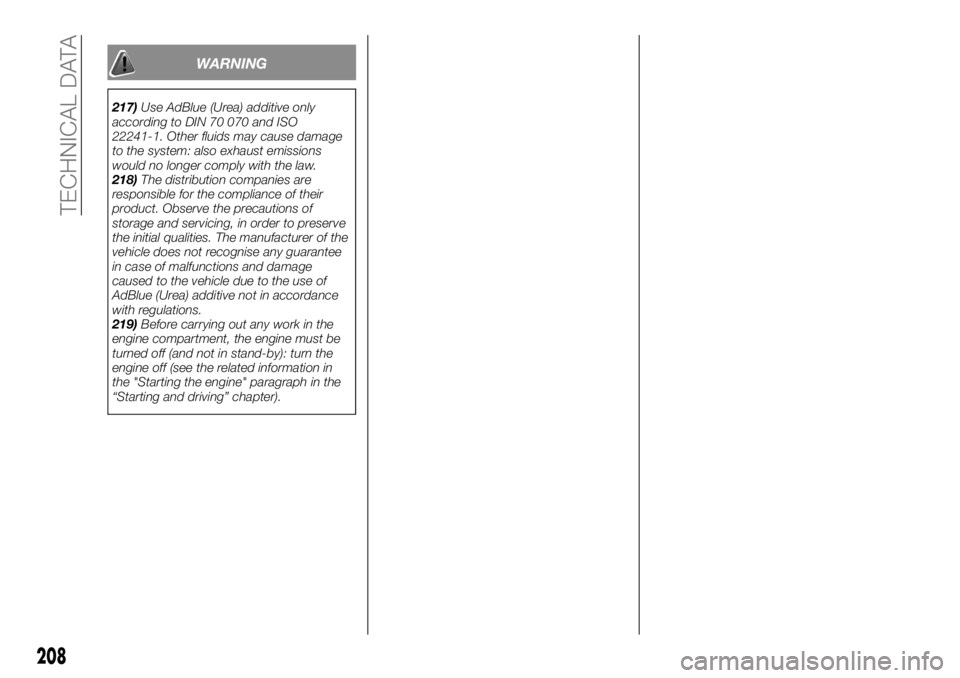

WARNING
217)Use AdBlue (Urea) additive only
according to DIN 70 070 and ISO
22241-1. Other fluids may cause damage
to the system: also exhaust emissions
would no longer comply with the law.
218)The distribution companies are
responsible for the compliance of their
product. Observe the precautions of
storage and servicing, in order to preserve
the initial qualities. The manufacturer of the
vehicle does not recognise any guarantee
in case of malfunctions and damage
caused to the vehicle due to the use of
AdBlue (Urea) additive not in accordance
with regulations.
219)Before carrying out any work in the
engine compartment, the engine must be
turned off (and not in stand-by): turn the
engine off (see the related information in
the "Starting the engine" paragraph in the
“Starting and driving” chapter).
208
TECHNICAL DATA
