FIAT TALENTO 2018 Owner handbook (in English)

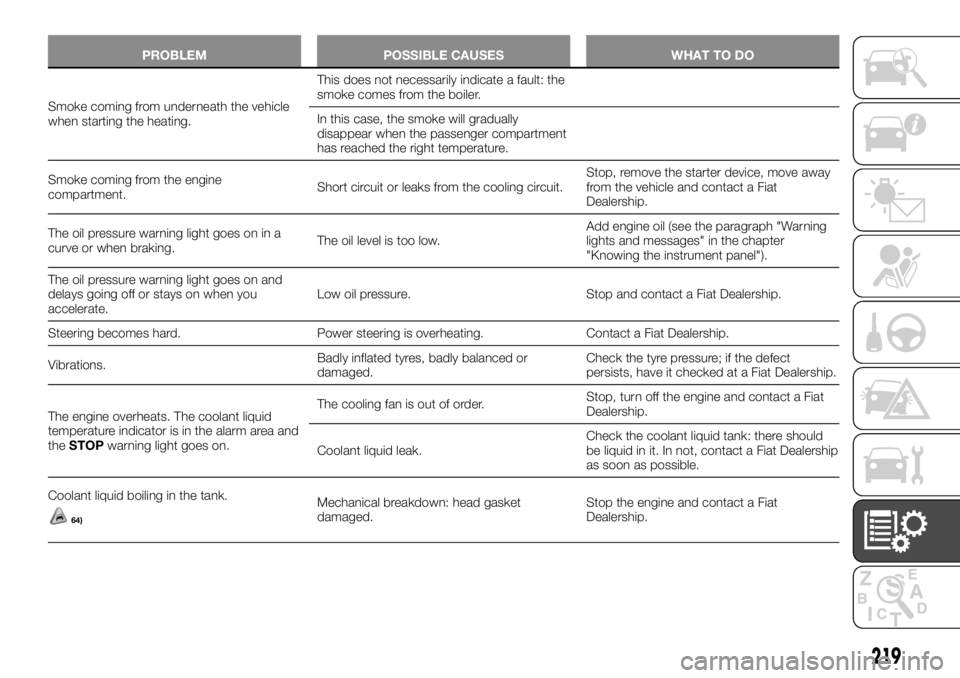

PROBLEM POSSIBLE CAUSES WHAT TO DO
Smoke coming from underneath the vehicle
when starting the heating.This does not necessarily indicate a fault: the
smoke comes from the boiler.
In this case, the smoke will gradually
disappear when the passenger compartment
has reached the right temperature.
Smoke coming from the engine
compartment.Short circuit or leaks from the cooling circuit.Stop, remove the starter device, move away
from the vehicle and contact a Fiat
Dealership.
The oil pressure warning light goes on in a
curve or when braking.The oil level is too low.Add engine oil (see the paragraph "Warning
lights and messages" in the chapter
"Knowing the instrument panel").
The oil pressure warning light goes on and
delays going off or stays on when you
accelerate.Low oil pressure. Stop and contact a Fiat Dealership.
Steering becomes hard. Power steering is overheating. Contact a Fiat Dealership.
Vibrations.Badly inflated tyres, badly balanced or
damaged.Check the tyre pressure; if the defect
persists, have it checked at a Fiat Dealership.
The engine overheats. The coolant liquid
temperature indicator is in the alarm area and
theSTOPwarning light goes on.The cooling fan is out of order.Stop, turn off the engine and contact a Fiat
Dealership.
Coolant liquid leak.Check the coolant liquid tank: there should
be liquid in it. In not, contact a Fiat Dealership
as soon as possible.
Coolant liquid boiling in the tank.
64)
Mechanical breakdown: head gasket
damaged.Stop the engine and contact a Fiat
Dealership.
219

PROBLEM POSSIBLE CAUSES WHAT TO DO
Electric equipment
Windscreen wiper not working.Windscreen wiper blade blocked. Detach the blade before moving the wiper.
Electrical circuit defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The windscreen wiper does not stop. Defective electrical controls. Contact a Fiat Dealership.
Faster directional signal frequency. Bulb blown.Please see the paragraph "Replacing a light
bulb" in the "Emergency" chapter.
The direction indicators do not work.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The headlights do not go on or do not go off.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
Traces of condensation in the lights.Traces of condensation can be due to natural
causes linked to temperature variations. In
this case, they will gradually disappear when
you turn the lights on.
The front seat belt warning light turns on
even if the seat belts are fastened.An object has come between the floorboard
and the seat, obstructing the sensor's
function.Remove any object that is beneath the front
seats.
220
TECHNICAL DATA

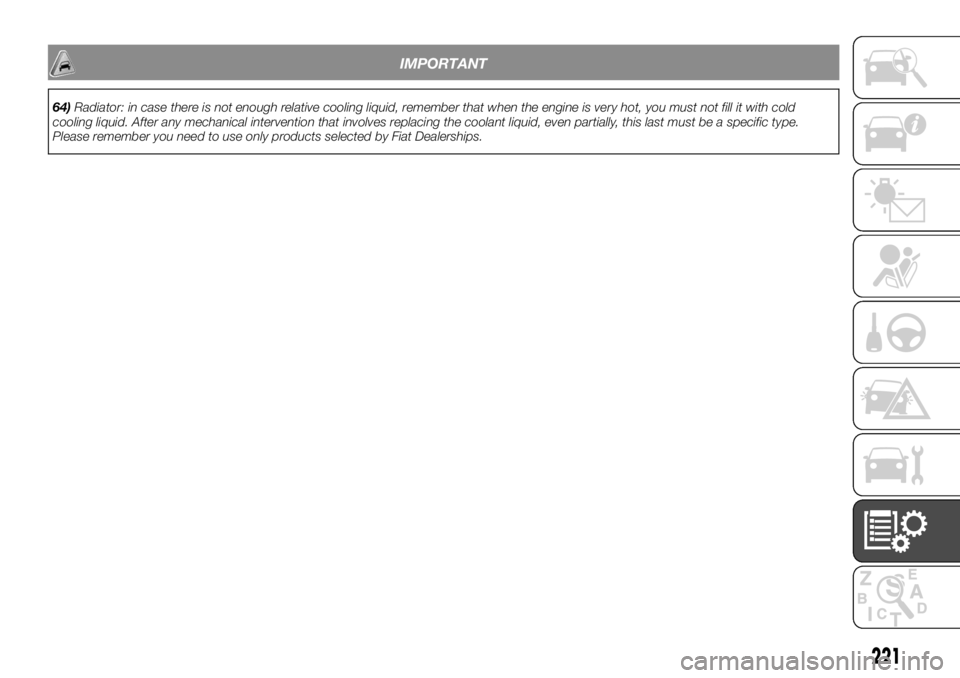

IMPORTANT
64)Radiator: in case there is not enough relative cooling liquid, remember that when the engine is very hot, you must not fill it with cold
cooling liquid. After any mechanical intervention that involves replacing the coolant liquid, even partially, this last must be a specific type.
Please remember you need to use only products selected by Fiat Dealerships.
221

Mopar Vehicle Protectionoffers a series of service contracts that are designed to give all our customers the
pleasure of driving their vehicle without any hitch's and concerns.
Our product portfolio consists of a wide and flexible range of extended warranty and maintenance plans
endorsed by FCA. Each with a series of different coverage tiers, in terms of durability and mileage, built to
accommodate you’re driving needs.
Service contracts are made by experts that know every part of your vehicle, and commit themselves
to maintain it in tip top conditions. Our knowledge and passion is tailored around designing
products that promises all our drivers “worry-free driving”.
Only with Mopar Vehicle Protection you are ensured that all service operations are performed
by highly qualified and specialized technicians in authorized FCA repair facilities, using the right tools,
equipment and only original parts, all over Europe.
Check which Service Contract plans are available on your market today and choose the
Service Contract that suits your driving habits best.
Ask your local dealer for further information.
MAINTAIN YOUR VEHICLE IN
TIP TOP CONDITIONS WITH

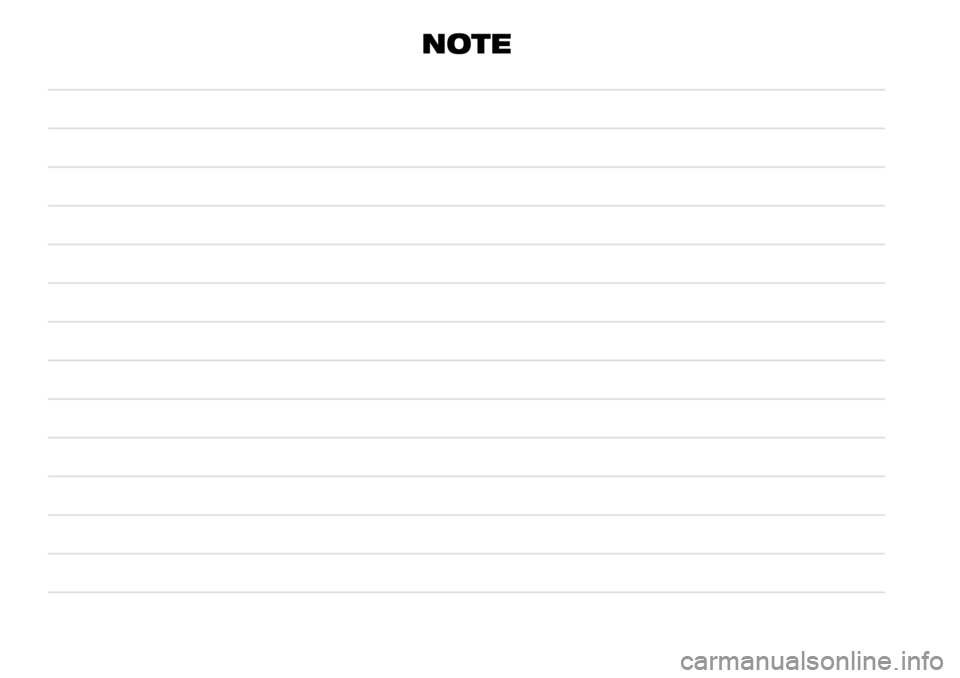

NOTE

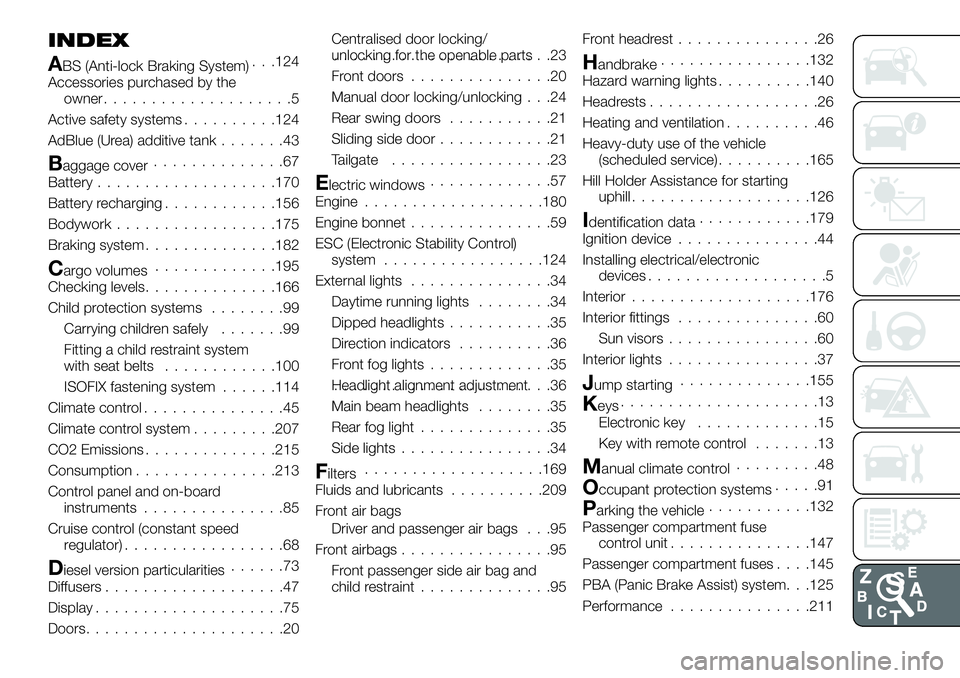

INDEX
ABS (Anti-lock Braking System). . .124
Accessories purchased by the
owner....................5
Active safety systems..........124
AdBlue (Urea) additive tank.......43
Baggage cover..............67
Battery...................170
Battery recharging............156
Bodywork.................175
Braking system..............182
Cargo volumes.............195
Checking levels..............166
Child protection systems........99
Carrying children safely.......99
Fitting a child restraint system
with seat belts............100
ISOFIX fastening system......114
Climate control...............45
Climate control system.........207
CO2 Emissions..............215
Consumption...............213
Control panel and on-board
instruments...............85
Cruise control (constant speed
regulator).................68
Diesel version particularities......73
Diffusers...................47
Display....................75
Doors.....................20Centralised door locking/
unlocking for the openable parts.......................23
Front doors...............20
Manual door locking/unlocking . . .24
Rear swing doors...........21
Sliding side door............21
Tailgate.................23
Electric windows.............57
Engine...................180
Engine bonnet...............59
ESC (Electronic Stability Control)
system.................124
External lights...............34
Daytime running lights........34
Dipped headlights...........35
Direction indicators..........36
Front fog lights.............35
Headlight alignment adjustment.......................36
Main beam headlights........35
Rear fog light..............35
Side lights................34
Filters...................169
Fluids and lubricants..........209
Front air bags
Driver and passenger air bags . . .95
Front airbags................95
Front passenger side air bag and
child restraint..............95Front headrest...............26
Handbrake................132
Hazard warning lights..........140
Headrests..................26
Heating and ventilation..........46
Heavy-duty use of the vehicle
(scheduled service)..........165
Hill Holder Assistance for starting
uphill...................126
Identification data............179
Ignition device...............44
Installing electrical/electronic
devices...................5
Interior...................176
Interior fittings...............60
Sun visors................60
Interior lights................37
Jump starting..............155
Keys.....................13
Electronic key.............15
Key with remote control.......13
Manual climate control.........48
Occupant protection systems.....91
Parking the vehicle...........132
Passenger compartment fuse
control unit...............147
Passenger compartment fuses. . . .145
PBA (Panic Brake Assist) system. . .125
Performance...............211

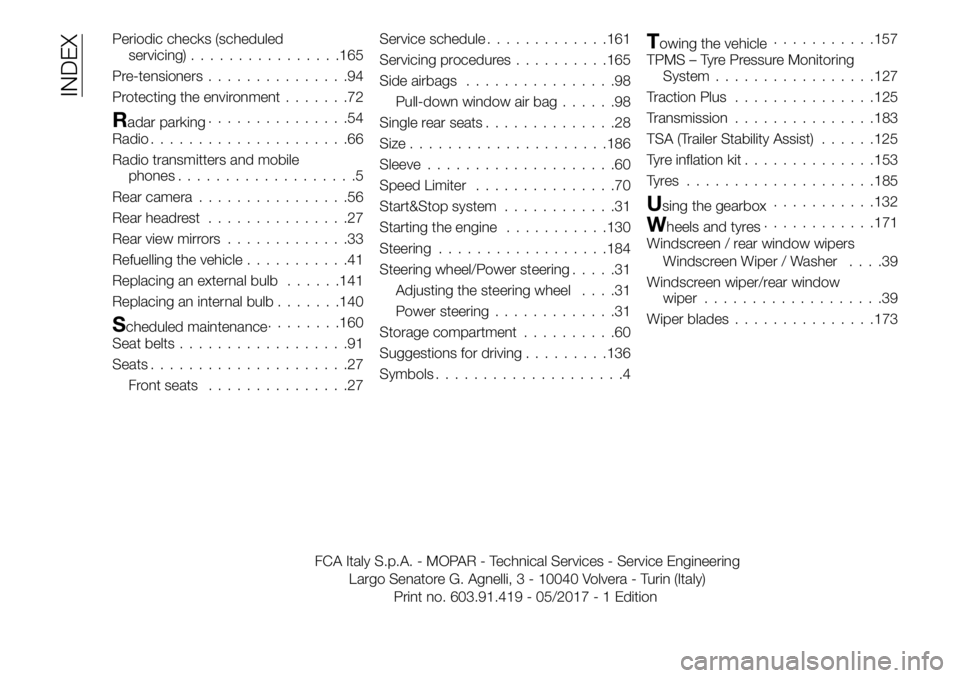

Periodic checks (scheduled
servicing)................165
Pre-tensioners...............94
Protecting the environment.......72
Radar parking...............54
Radio.....................66
Radio transmitters and mobile
phones...................5
Rear camera................56
Rear headrest...............27
Rear view mirrors.............33
Refuelling the vehicle...........41
Replacing an external bulb......141
Replacing an internal bulb.......140
Scheduled maintenance........160
Seat belts..................91
Seats.....................27
Front seats...............27Service schedule.............161
Servicing procedures..........165
Side airbags................98
Pull-down window air bag......98
Single rear seats..............28
Size.....................186
Sleeve....................60
Speed Limiter...............70
Start&Stop system............31
Starting the engine...........130
Steering..................184
Steering wheel/Power steering.....31
Adjusting the steering wheel....31
Power steering.............31
Storage compartment..........60
Suggestions for driving.........136
Symbols....................4
Towing the vehicle...........157
TPMS – Tyre Pressure Monitoring
System.................127
Traction Plus...............125
Transmission...............183
TSA (Trailer Stability Assist)......125
Tyre inflation kit..............153
Tyres ....................185
Using the gearbox...........132
Wheels and tyres............171
Windscreen / rear window wipers
Windscreen Wiper / Washer....39
Windscreen wiper/rear window
wiper...................39
Wiper blades...............173
INDEX
FCA Italy S.p.A. - MOPAR - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Turin (Italy)
Print no. 603.91.419 - 05/
2017 - 1 Edition
