FIAT TALENTO 2018 Owner handbook (in English)

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the scheduled servicing plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features Specification Original fluids and
lubricantsReplacement interval
Diesel engine lubricants (SAE 5W-30 – ACEA C4)9.55535-S4SELENIA WR Forward
5W-30
Contractual Technical
Reference No. (F023.N15)According to Scheduled
Servicing Plan
Diesel engine lubricants
(1)(SAE 5W-30 ACEA C3)9.55535-S3 or
MS-11106SELENIA
MULTIPOWER C3
Contractual Technical
Reference No. (F129.F11)According to Scheduled
Servicing Plan
(1) Product used for non-Europe countries.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up. In this case optimal engine performance is not guaranteed. The use of products with different specifications than those
indicated above could cause damage to the engine not covered by the warranty.
209

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluid
ClutchfluidSynthetic fluid for brake
and clutch systems
Exceeds specifications:
DOT 49.55597 or MS-90039TUTELA TOP 4S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Lubricants and greases
for drive transmission
Manual transmission PF6SAE 75W-80 API GL-4+
grade synthetic lubricant.9.55550-MZ12TUTELA
TRANSMISSION
GEARSYNTH MTManual mechanical
transmission
Hydraulic power steering - - -
Protective agent for
radiatorsMixture of spirits and
surfactants. Exceeds
CUNA NC
956-16 specifications9.55523 or MS-90032PARAFLU
UP(1) (*) (**)
Contractual Technical
Reference No. F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP
Cooling gas for the air
conditioning system1. R134a 2. R1234yf - -
Additive for diesel
emissions AdBlue (Urea)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank Urea on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount, we recommend completely changing the coolant in the percentages given.
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU UP and 40% demineralised water.
210
TECHNICAL DATA

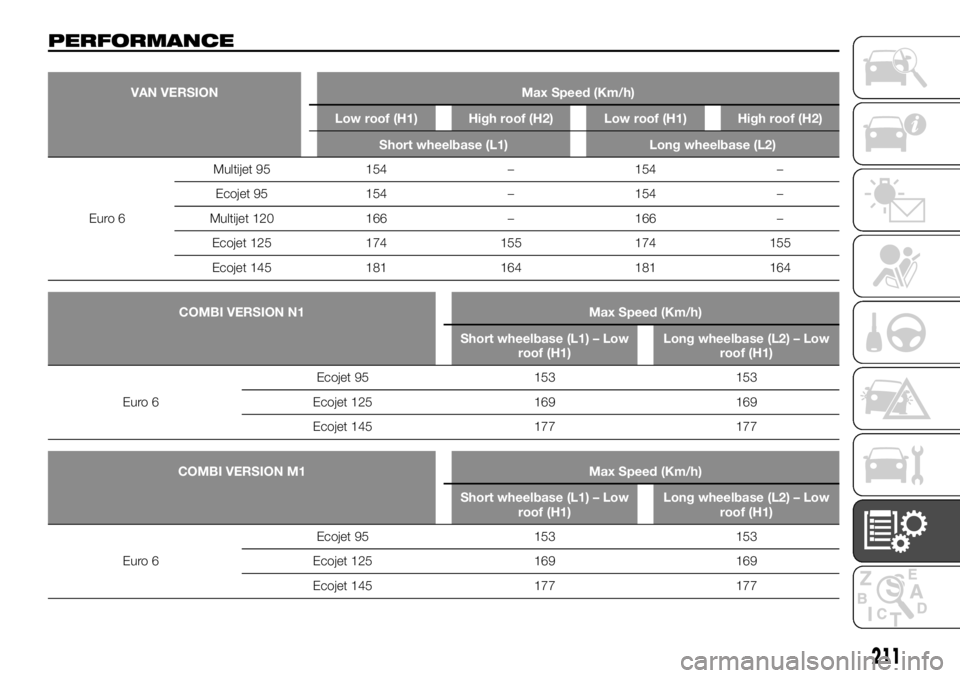

PERFORMANCE
VAN VERSION Max Speed (Km/h)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet 95 154 – 154 –
Ecojet 95 154 – 154 –
Multijet 120 166 – 166 –
Ecojet 125 174 155 174 155
Ecojet 145 181 164 181 164
COMBI VERSION N1 Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 153 153
Ecojet 125 169 169
Ecojet 145 177 177
COMBI VERSION M1 Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 153 153
Ecojet 125 169 169
Ecojet 145 177 177
211

CREW CAB VERSION Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 154 154
Ecojet 95 154 154
Multijet 120 166 166
Ecojet 125 174 174
Ecojet 145 181 181
FLOOR CAB VERSION Max Speed (Km/h)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 –
Ecojet 145 –
212
TECHNICAL DATA

CONSUMPTION
VAN VERSION Combined (l/100 km)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet 95 6.5 6.7 –
Ecojet 95 6.1 – 6.3 –
Multijet 120 6.5 – 6.7 –
Ecojet 125 5.9 6.8 6.1 6.9
Ecojet 145 6.1 6.8 6.3 6.9
COMBI VERSION N1 Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 6.3 6.3
Ecojet 125 6.1 6.1
Ecojet 145 6.3 6.3
COMBI VERSION M1 Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 6.0 6.0
Ecojet 125 5.6 5.6
Ecojet 145 5.9 5.9
213

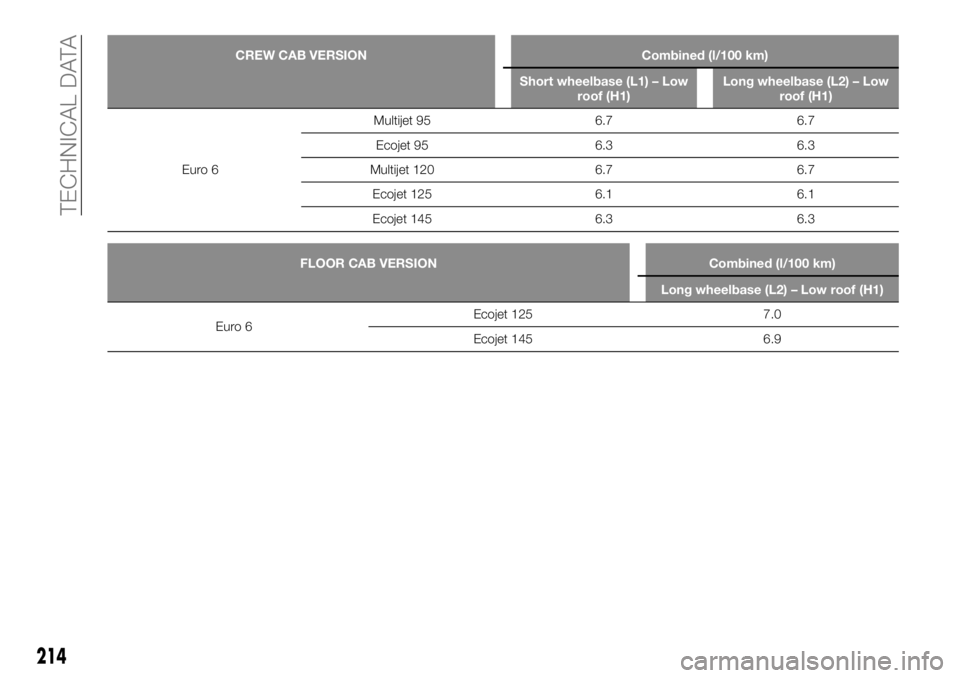

CREW CAB VERSION Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 6.7 6.7
Ecojet 95 6.3 6.3
Multijet 120 6.7 6.7
Ecojet 125 6.1 6.1
Ecojet 145 6.3 6.3
FLOOR CAB VERSION Combined (l/100 km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 7.0
Ecojet 145 6.9
214
TECHNICAL DATA

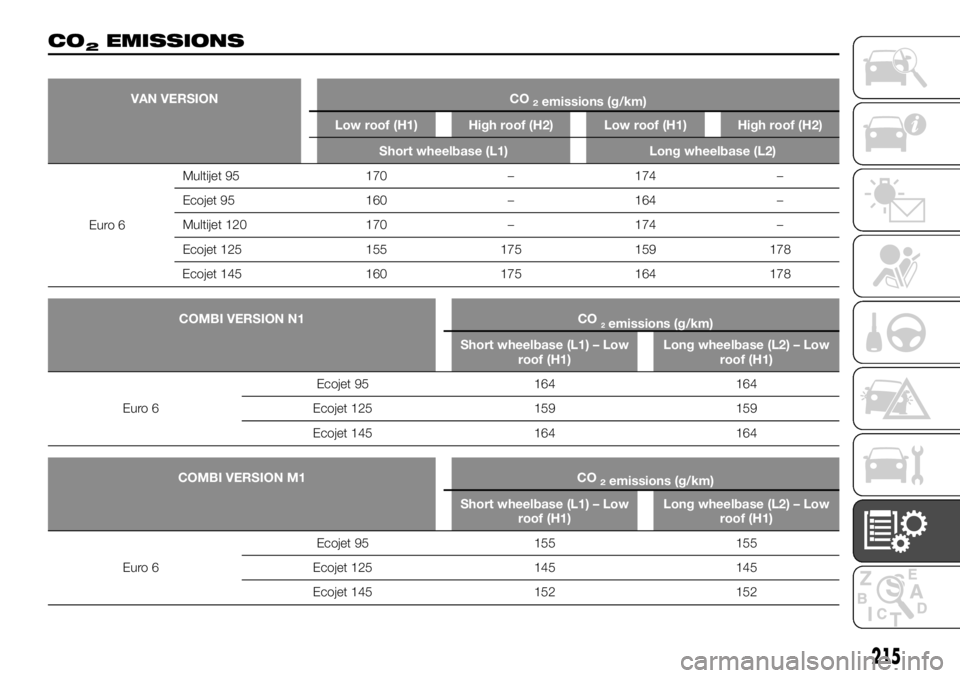

CO2EMISSIONS
VAN VERSION CO2emissions (g/km)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet 95 170 – 174 –
Ecojet 95 160 – 164 –
Multijet 120 170 – 174 –
Ecojet 125 155 175 159 178
Ecojet 145 160 175 164 178
COMBI VERSION N1 CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet 95 164 164
Ecojet 125 159 159
Ecojet 145 164 164
COMBI VERSION M1 CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet 95 155 155
Ecojet 125 145 145
Ecojet 145 152 152
215

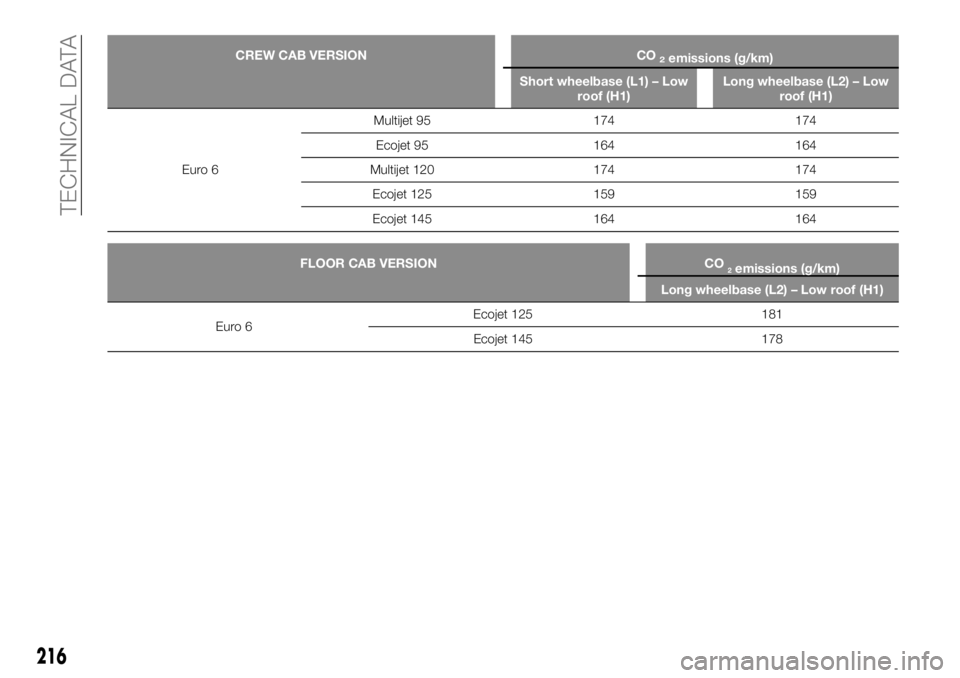

CREW CAB VERSION CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 174 174
Ecojet 95 164 164
Multijet 120 174 174
Ecojet 125 159 159
Ecojet 145 164 164
FLOOR CAB VERSION CO2emissions (g/km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 181
Ecojet 145 178
216
TECHNICAL DATA

WHATTODOIF...
The advice given below lets you quickly and temporarily fix various problems: for safety, contact a Fiat Dealership as soon as
possible.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the electronic key
The electronic key cannot lock or unlock the
doors.Dead key battery.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
Use of devices on the same frequency as the
card (cell phone, etc.).Stop using these devices or use the
integrated key (refer to the "Electronic key”
paragraph).
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Vehicle battery run down.Use the key integrated in the key (refer to the
"Electronic key” paragraph in the “Knowing
you vehicle” chapter)
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
Using the remote control
The remote control does not lock or unlock
the doors.Remote control battery run down. Use the key.
Use of devices on the same frequency as the
remote control (cell phone, etc.).Stop using the other devices or use the key.
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Battery flat.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
217

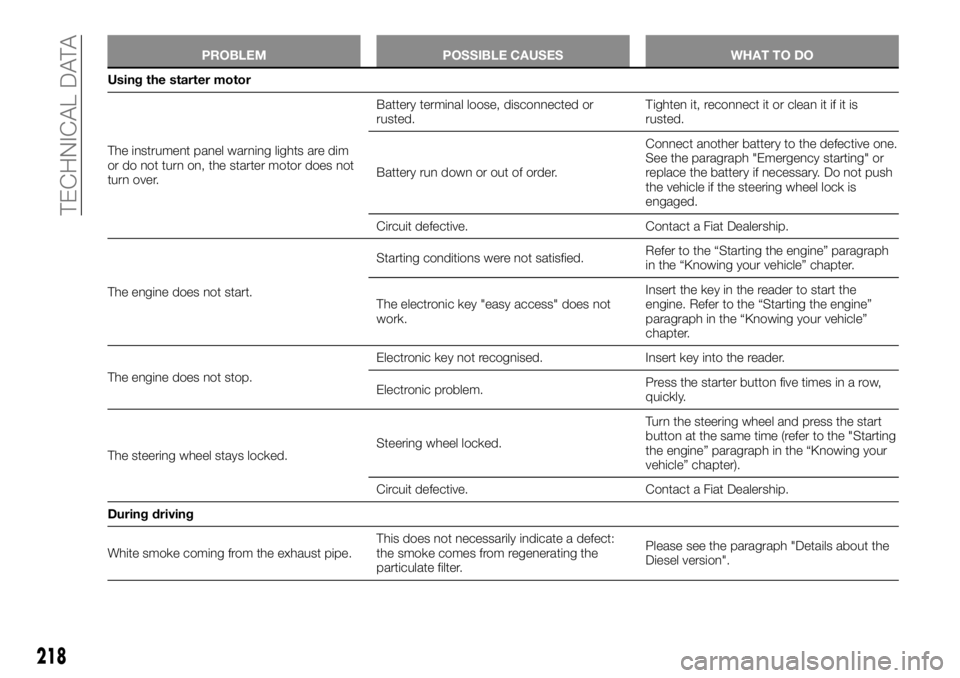

PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the starter motor
The instrument panel warning lights are dim
or do not turn on, the starter motor does not
turn over.Battery terminal loose, disconnected or
rusted.Tighten it, reconnect it or clean it if it is
rusted.
Battery run down or out of order.Connect another battery to the defective one.
See the paragraph "Emergency starting" or
replace the battery if necessary. Do not push
the vehicle if the steering wheel lock is
engaged.
Circuit defective. Contact a Fiat Dealership.
The engine does not start.Starting conditions were not satisfied.Refer to the “Starting the engine” paragraph
in the “Knowing your vehicle” chapter.
The electronic key "easy access" does not
work.Insert the key in the reader to start the
engine. Refer to the “Starting the engine”
paragraph in the “Knowing your vehicle”
chapter.
The engine does not stop.Electronic key not recognised. Insert key into the reader.
Electronic problem.Press the starter button five times in a row,
quickly.
The steering wheel stays locked.Steering wheel locked.Turn the steering wheel and press the start
button at the same time (refer to the "Starting
the engine” paragraph in the “Knowing your
vehicle” chapter).
Circuit defective. Contact a Fiat Dealership.
During driving
White smoke coming from the exhaust pipe.This does not necessarily indicate a defect:
the smoke comes from regenerating the
particulate filter.Please see the paragraph "Details about the
Diesel version".
218
