FIAT ULYSSE 2007 2.G Owners Manual

CAR MAINTENANCE
190

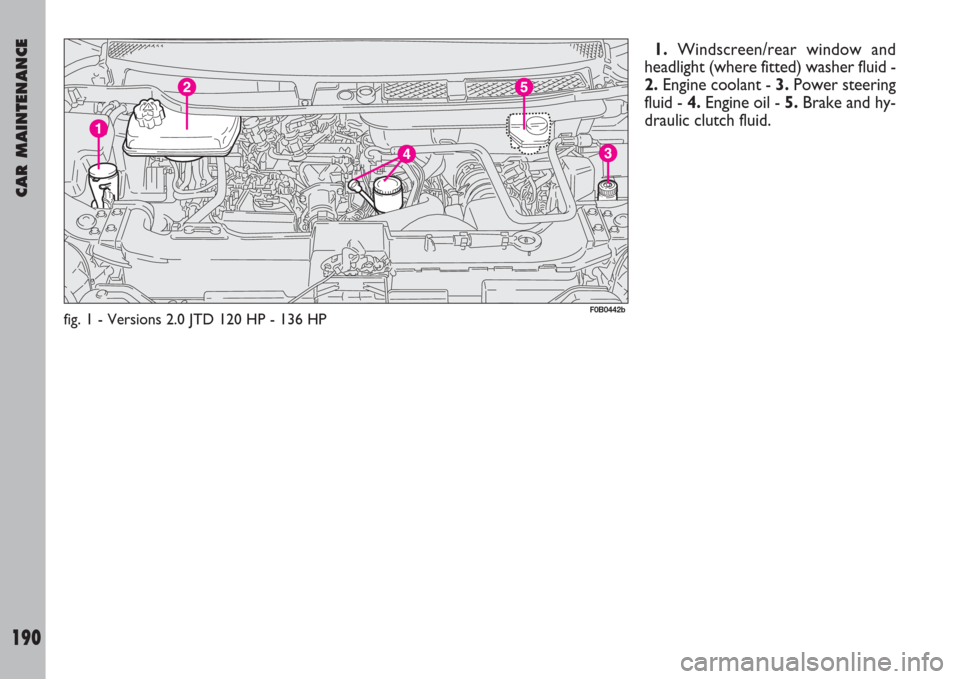

1.Windscreen/rear window and
headlight (where fitted) washer fluid -
2.Engine coolant - 3.Power steering
fluid - 4.Engine oil - 5.Brake and hy-
draulic clutch fluid.
fig. 1 - Versions 2.0 JTD 120 HP - 136 HPF0B0442b

CAR MAINTENANCE
191

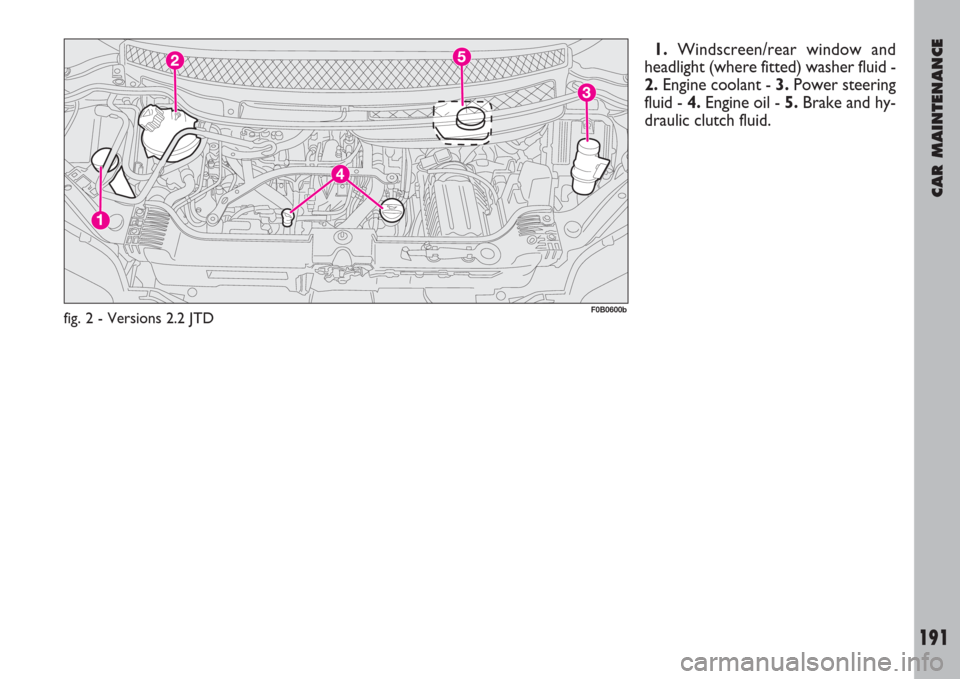

1.Windscreen/rear window and
headlight (where fitted) washer fluid -
2.Engine coolant - 3.Power steering
fluid - 4.Engine oil - 5.Brake and hy-
draulic clutch fluid.
fig. 2 - Versions 2.2 JTDF0B0600b

CAR MAINTENANCE
192

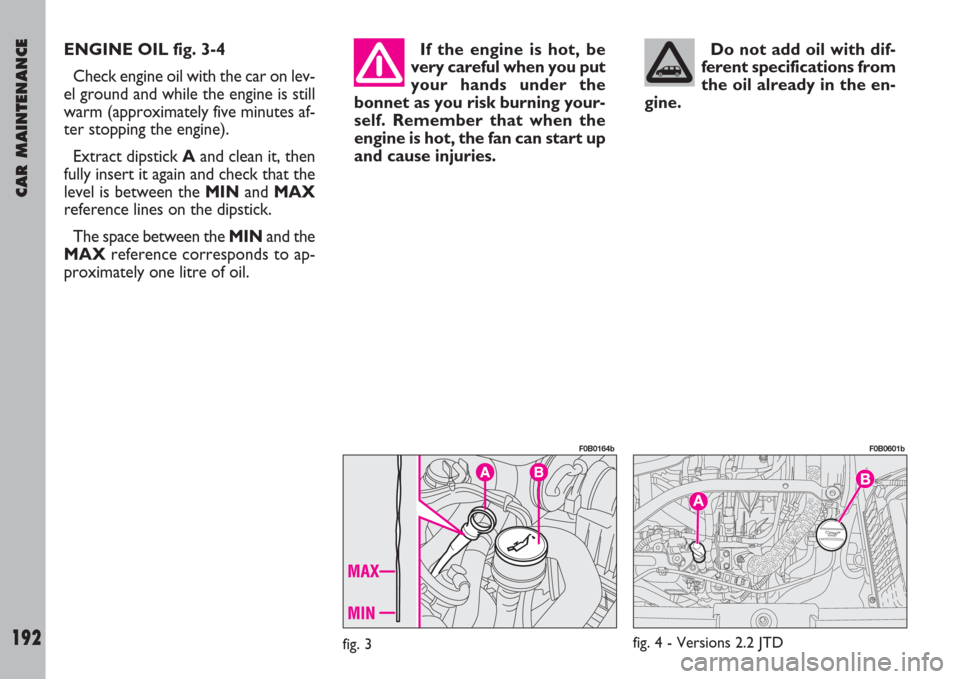

ENGINE OIL fig. 3-4
Check engine oil with the car on lev-
el ground and while the engine is still
warm (approximately five minutes af-
ter stopping the engine).
Extract dipstick Aand clean it, then
fully insert it again and check that the
level is between the MINand MAX
reference lines on the dipstick.
The space between the MINand the
MAXreference corresponds to ap-
proximately one litre of oil.Do not add oil with dif-
ferent specifications from
the oil already in the en-
gine.If the engine is hot, be
very careful when you put
your hands under the
bonnet as you risk burning your-
self. Remember that when the
engine is hot, the fan can start up
and cause injuries.
fig. 3
F0B0164b
fig. 4 - Versions 2.2 JTD
F0B0601b

CAR MAINTENANCE
193

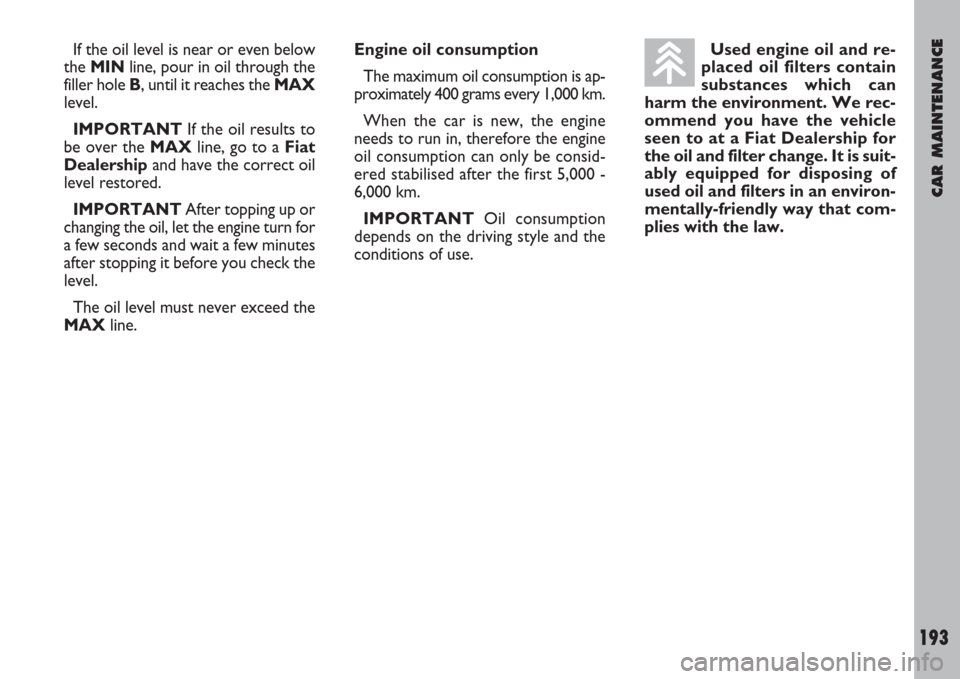

If the oil level is near or even below
the MIN line, pour in oil through the
filler hole B, until it reaches the MAX
level.
IMPORTANTIf the oil results to
be over the MAX line, go to a Fiat
Dealershipand have the correct oil
level restored.
IMPORTANTAfter topping up or
changing the oil, let the engine turn for
a few seconds and wait a few minutes
after stopping it before you check the
level.
The oil level must never exceed the
MAX line.Used engine oil and re-
placed oil filters contain
substances which can
harm the environment. We rec-
ommend you have the vehicle
seen to at a Fiat Dealership for
the oil and filter change. It is suit-
ably equipped for disposing of
used oil and filters in an environ-
mentally-friendly way that com-
plies with the law. Engine oil consumption
The maximum oil consumption is ap-
proximately 400 grams every 1,000 km.
When the car is new, the engine
needs to run in, therefore the engine
oil consumption can only be consid-
ered stabilised after the first 5,000 -
6,000 km.
IMPORTANTOil consumption
depends on the driving style and the
conditions of use.

CAR MAINTENANCE
194

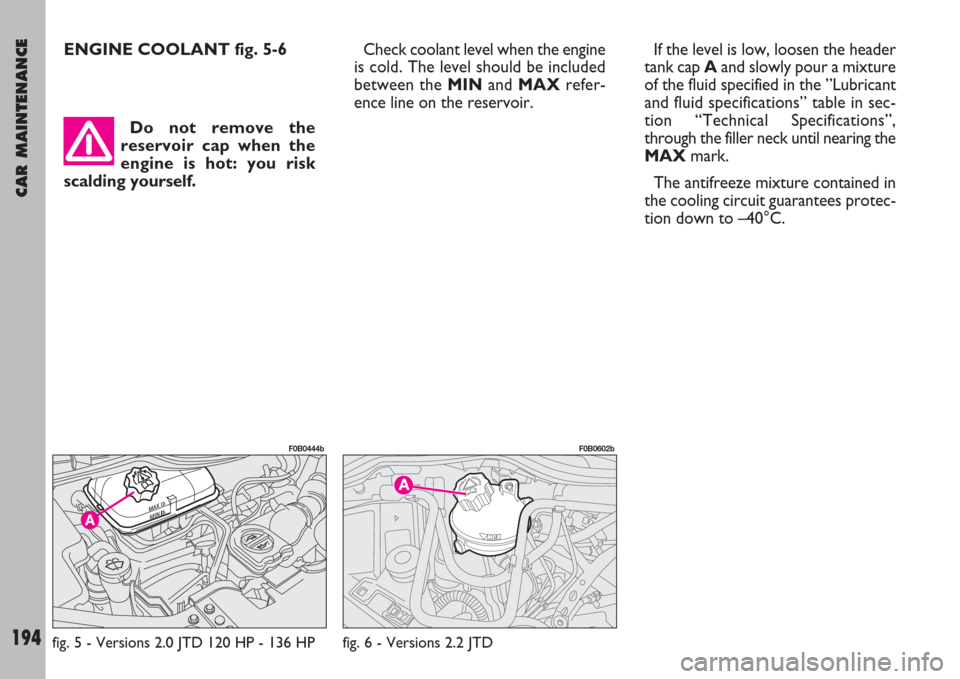

Do not remove the
reservoir cap when the
engine is hot: you risk
scalding yourself. ENGINE COOLANT fig. 5-6Check coolant level when the engine
is cold. The level should be included
between the MINand MAXrefer-
ence line on the reservoir.If the level is low, loosen the header
tank cap Aand slowly pour a mixture
of the fluid specified in the ”Lubricant
and fluid specifications” table in sec-
tion “Technical Specifications”,
through the filler neck until nearing the
MAXmark.
The antifreeze mixture contained in
the cooling circuit guarantees protec-
tion down to –40°C.
fig. 5 - Versions 2.0 JTD 120 HP - 136 HP
F0B0444b
fig. 6 - Versions 2.2 JTD
F0B0602b

Top up only with the
same fluid contained in
the cooling circuit.
PARAFLU UP (red) cannot be
mixed with PARAFLU 11 (blue)
or with other fluids. Should this
take place, do not start the en-
gine and contact Fiat Dealership.
CAR MAINTENANCE
195

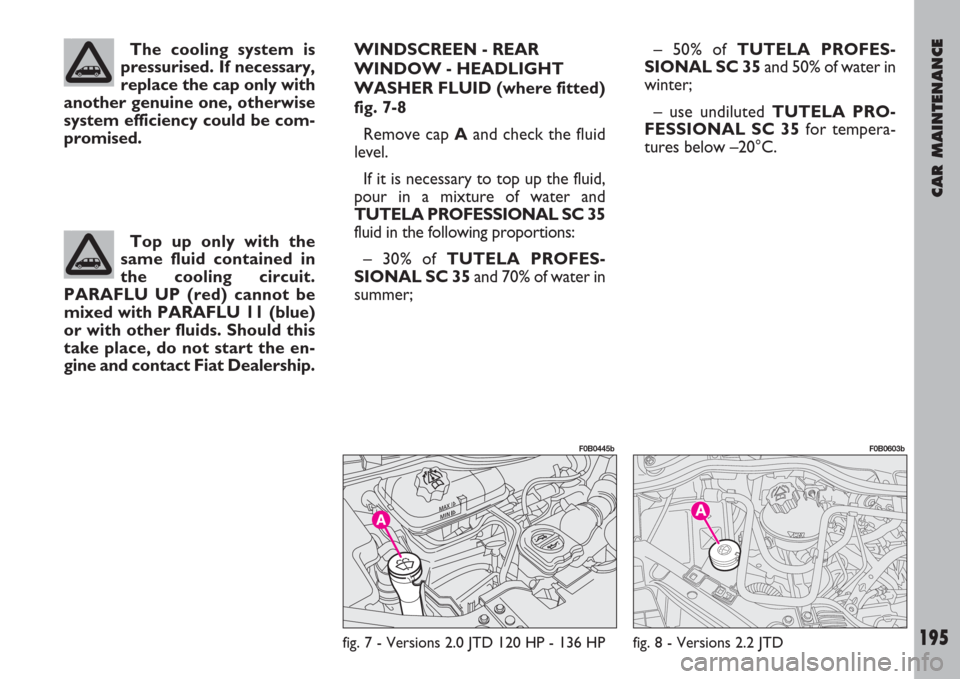

WINDSCREEN - REAR
WINDOW - HEADLIGHT
WASHER FLUID (where fitted)
fig. 7-8
Remove cap Aand check the fluid
level.
If it is necessary to top up the fluid,
pour in a mixture of water and
TUTELA PROFESSIONAL SC 35
fluid in the following proportions:
– 30% of TUTELA PROFES-
SIONAL SC 35and 70% of water in
summer; The cooling system is
pressurised. If necessary,
replace the cap only with
another genuine one, otherwise
system efficiency could be com-
promised.– 50% of TUTELA PROFES-
SIONAL SC 35and 50% of water in
winter;
– use undiluted TUTELA PRO-
FESSIONAL SC 35for tempera-
tures below –20°C.
fig. 7 - Versions 2.0 JTD 120 HP - 136 HP
F0B0445b
fig. 8 - Versions 2.2 JTD
F0B0603b

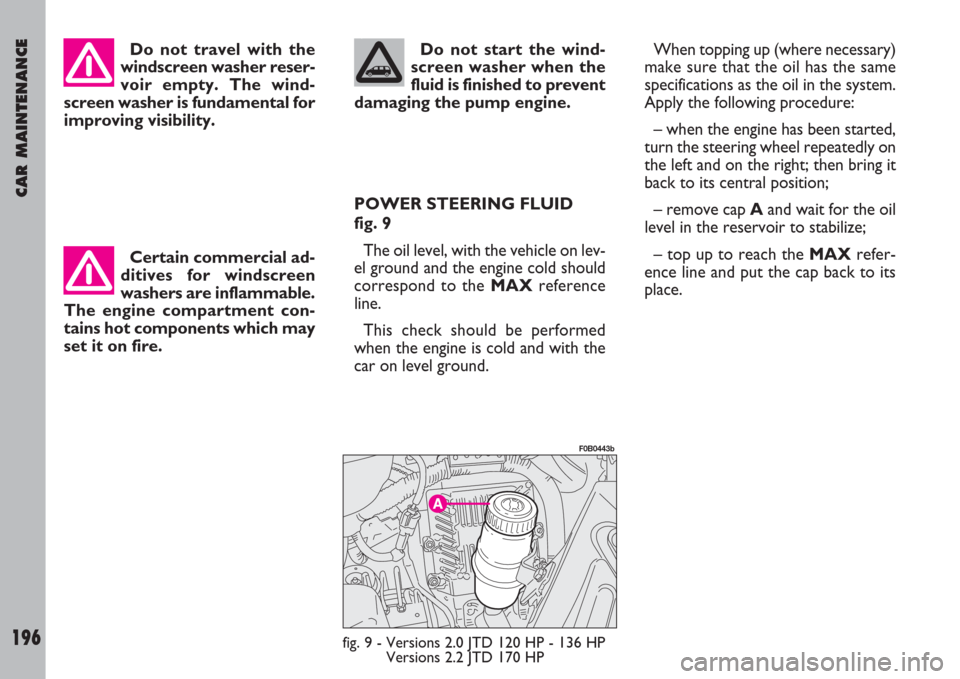

Do not travel with the
windscreen washer reser-
voir empty. The wind-
screen washer is fundamental for
improving visibility.Do not start the wind-
screen washer when the
fluid is finished to prevent
damaging the pump engine.
POWER STEERING FLUID
fig. 9
The oil level, with the vehicle on lev-
el ground and the engine cold should
correspond to the MAX reference
line.
This check should be performed
when the engine is cold and with the
car on level ground.When topping up (where necessary)
make sure that the oil has the same
specifications as the oil in the system.
Apply the following procedure:
– when the engine has been started,
turn the steering wheel repeatedly on
the left and on the right; then bring it
back to its central position;
– remove cap Aand wait for the oil
level in the reservoir to stabilize;
– top up to reach the MAX refer-
ence line and put the cap back to its
place. Certain commercial ad-
ditives for windscreen
washers are inflammable.
The engine compartment con-
tains hot components which may
set it on fire.
CAR MAINTENANCE
196fig. 9 - Versions 2.0 JTD 120 HP - 136 HP
Versions 2.2 JTD 170 HP
F0B0443b

CAR MAINTENANCE
197

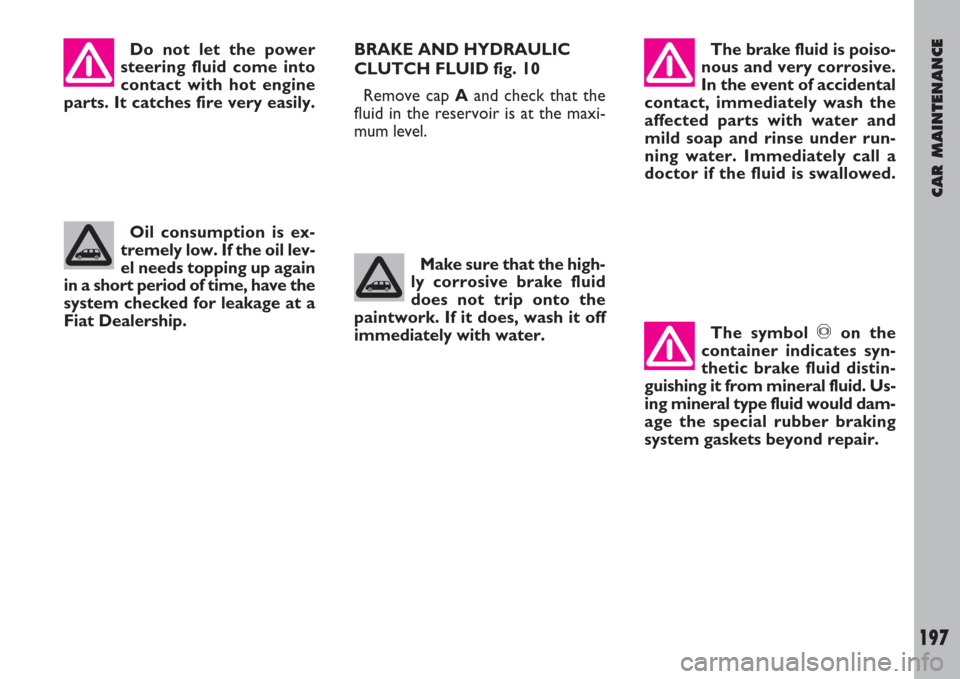

Do not let the power
steering fluid come into
contact with hot engine
parts. It catches fire very easily.The brake fluid is poiso-
nous and very corrosive.
In the event of accidental
contact, immediately wash the
affected parts with water and
mild soap and rinse under run-
ning water. Immediately call a
doctor if the fluid is swallowed.
Oil consumption is ex-
tremely low. If the oil lev-
el needs topping up again
in a short period of time, have the
system checked for leakage at a
Fiat Dealership.Make sure that the high-
ly corrosive brake fluid
does not trip onto the
paintwork. If it does, wash it off
immediately with water. BRAKE AND HYDRAULIC
CLUTCH FLUID fig. 10
Remove cap Aand check that the
fluid in the reservoir is at the maxi-
mum level.
The symbol πon the
container indicates syn-
thetic brake fluid distin-
guishing it from mineral fluid. Us-
ing mineral type fluid would dam-
age the special rubber braking
system gaskets beyond repair.

AIR CLEANER
The air cleaner is connected to tem-
perature and air flow sensors which
send the electrical signals needed for
the correct system injection and start-
ing to the control unit.
For this reason and to limit con-
sumption and exhaust emissions the
air cleaner must always be efficient. IMPORTANTBrake fluid is hy-
groscopic (meaning it absorbs humid-
ity). This is why the fluid should be
changed more frequently than shown
in the Service Schedule if the vehicle is
mainly driven in areas with a high per-
centage of humidity in the air.If the following filter re-
placement operations are
not carried out in the cor-
rect way and without taking the
necessary precautions, the vehi-
cle driving safety may be com-
promised.
The filter replacement
procedure is just for in-
formation. Go to a Fiat
Dealership to carry it out in the
correct way.
If the car is often used in
dusty roads, you should
change the filter element
more frequently than shown in
the Service Schedule.
The cleaner can be dam-
aged if it is cleaned and
consequently the engine
can be damaged.
fig. 10
F0B0166b
CAR MAINTENANCE
198

CAR MAINTENANCE
199

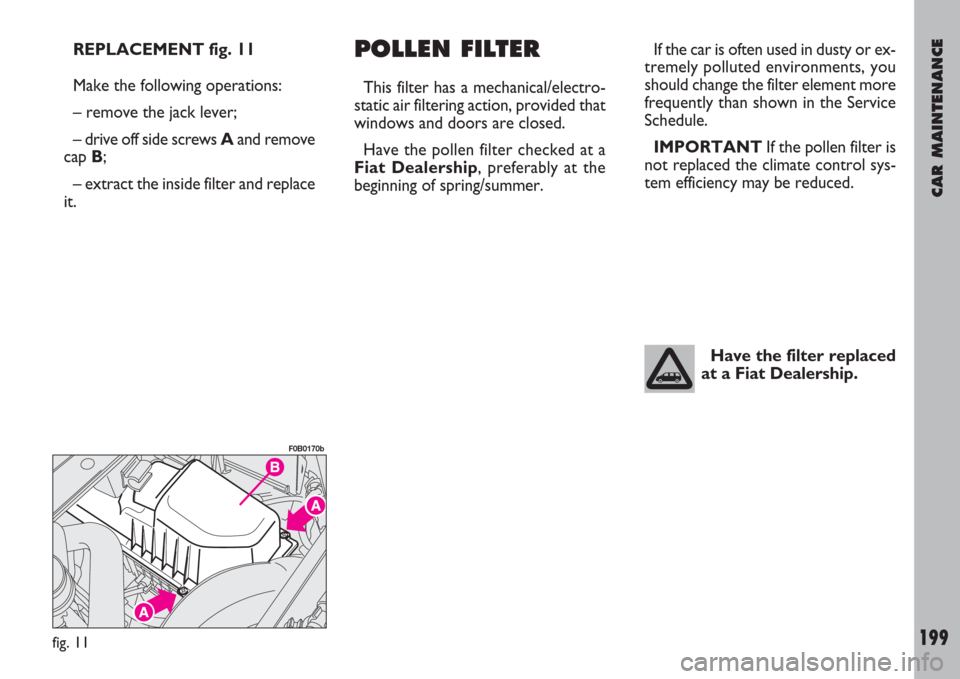

REPLACEMENT fig. 11
Make the following operations:
– remove the jack lever;
– drive off side screws Aand remove
cap B;
– extract the inside filter and replace
it.POLLEN FILTER
This filter has a mechanical/electro-
static air filtering action, provided that
windows and doors are closed.
Have the pollen filter checked at a
Fiat Dealership, preferably at the
beginning of spring/summer.If the car is often used in dusty or ex-
tremely polluted environments, you
should change the filter element more
frequently than shown in the Service
Schedule.
IMPORTANTIf the pollen filter is
not replaced the climate control sys-
tem efficiency may be reduced.
fig. 11
F0B0170b
Have the filter replaced
at a Fiat Dealership.
